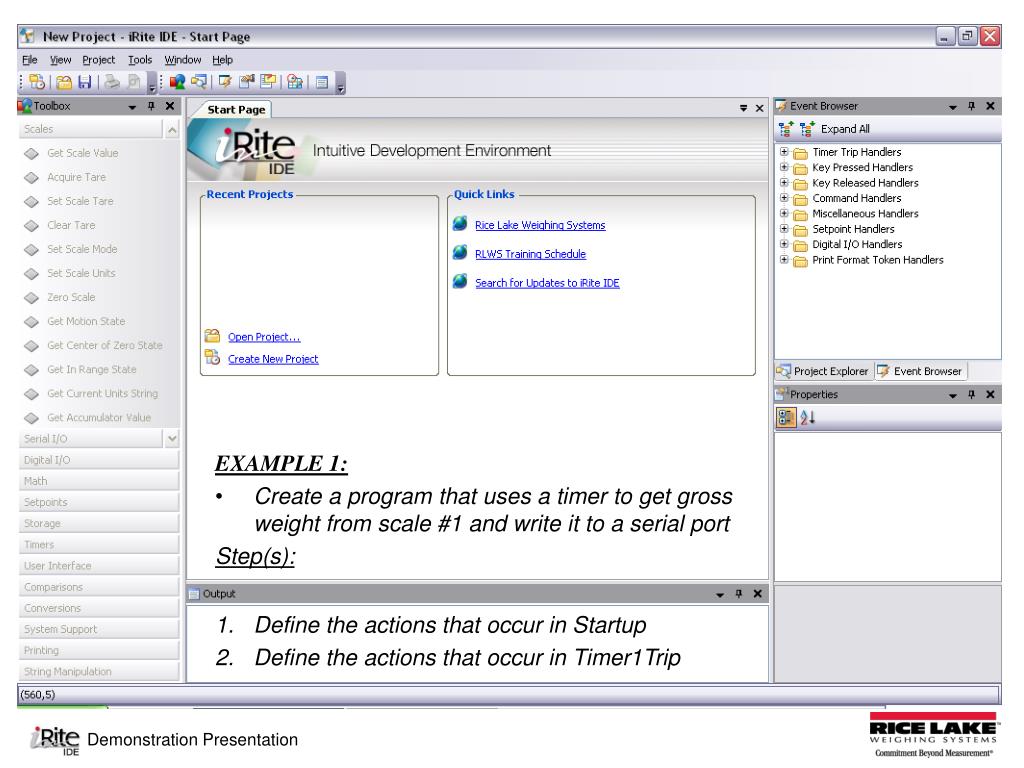

EXAMPLE 1: • Create a program that uses a timer to get gross weight from scale #1 and write it to a serial port Step(s): • Define the actions that occur in Startup • Define the actions that occur in Timer1Trip

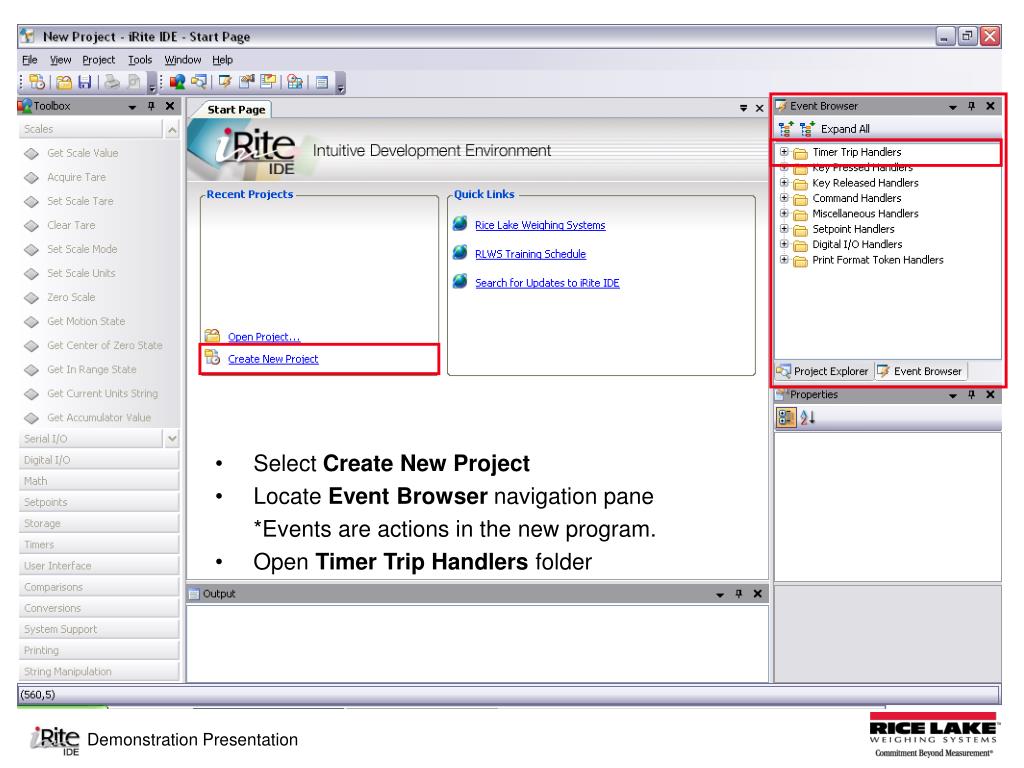

Select Create New Project • Locate Event Browser navigation pane *Events are actions in the new program. • Open Timer Trip Handlers folder

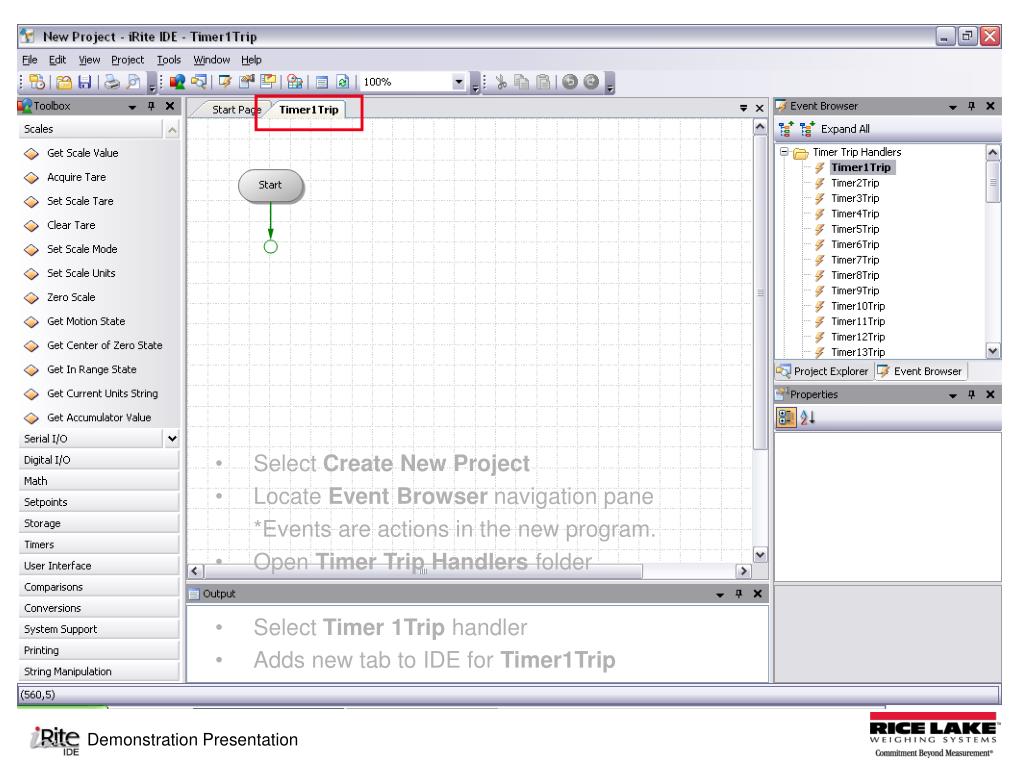

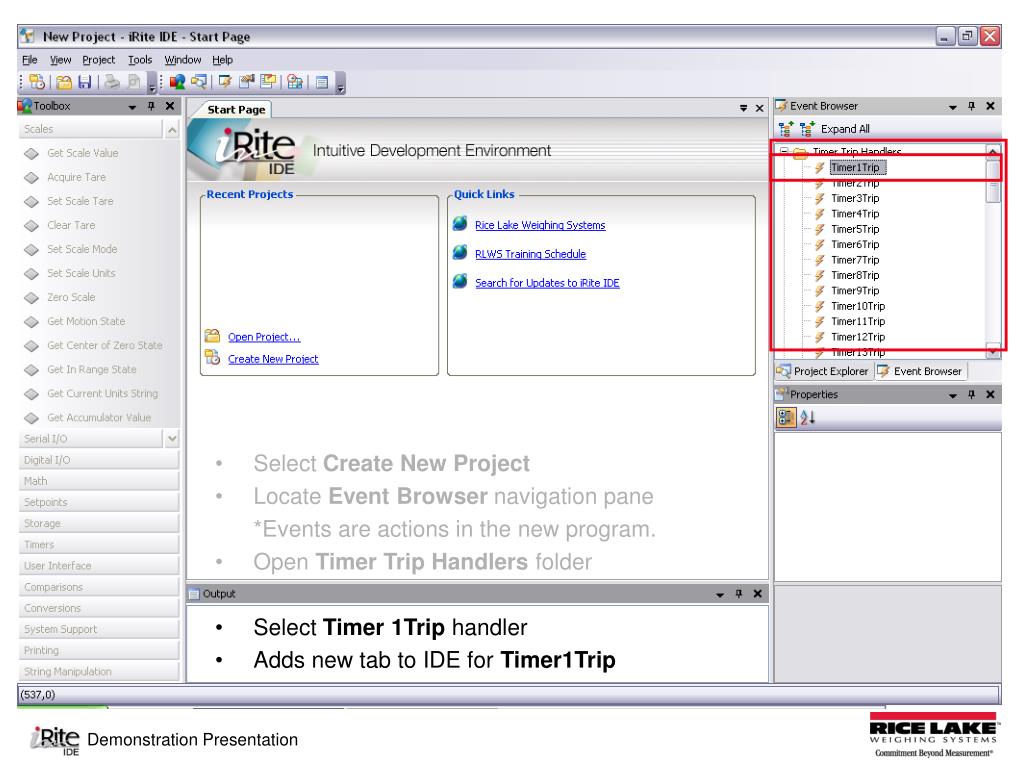

Select Create New Project • Locate Event Browser navigation pane *Events are actions in the new program. • Open Timer Trip Handlers folder • Select Timer 1Trip handler • Adds new tab to IDE for Timer1Trip

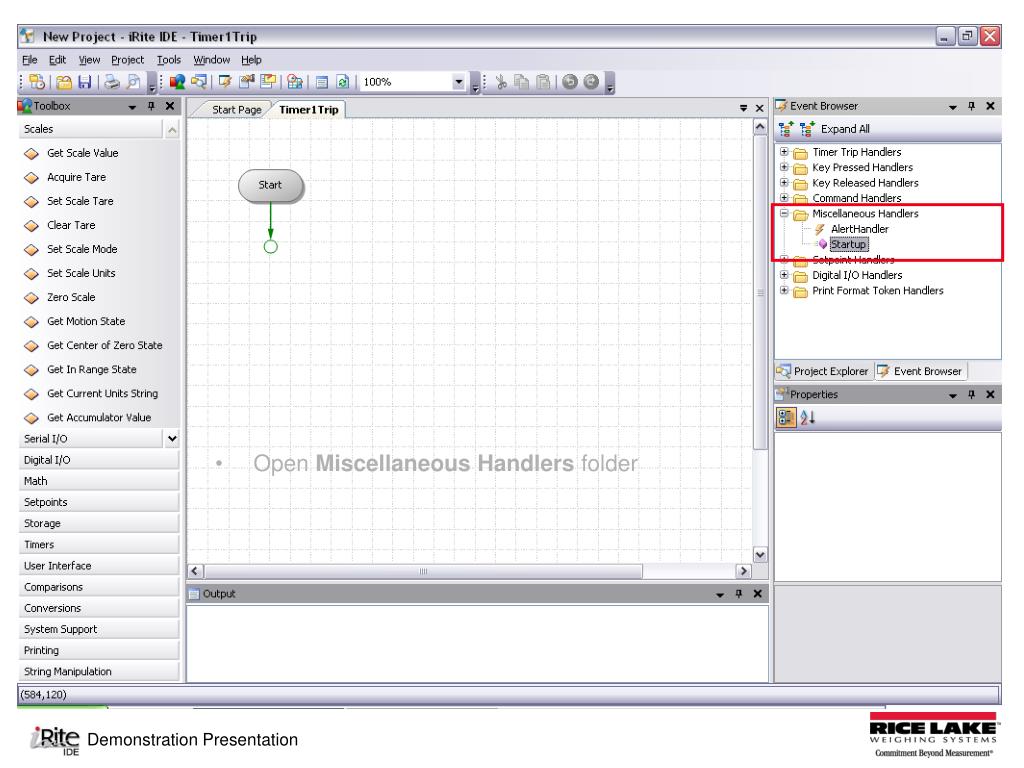

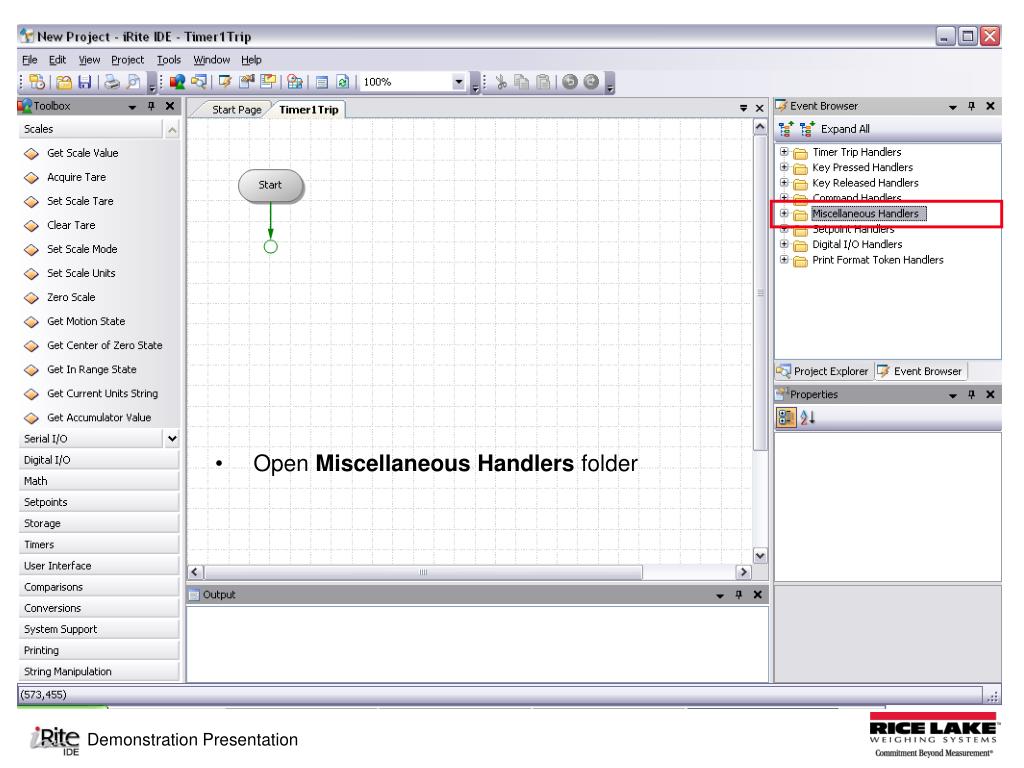

Open Miscellaneous Handlers folder

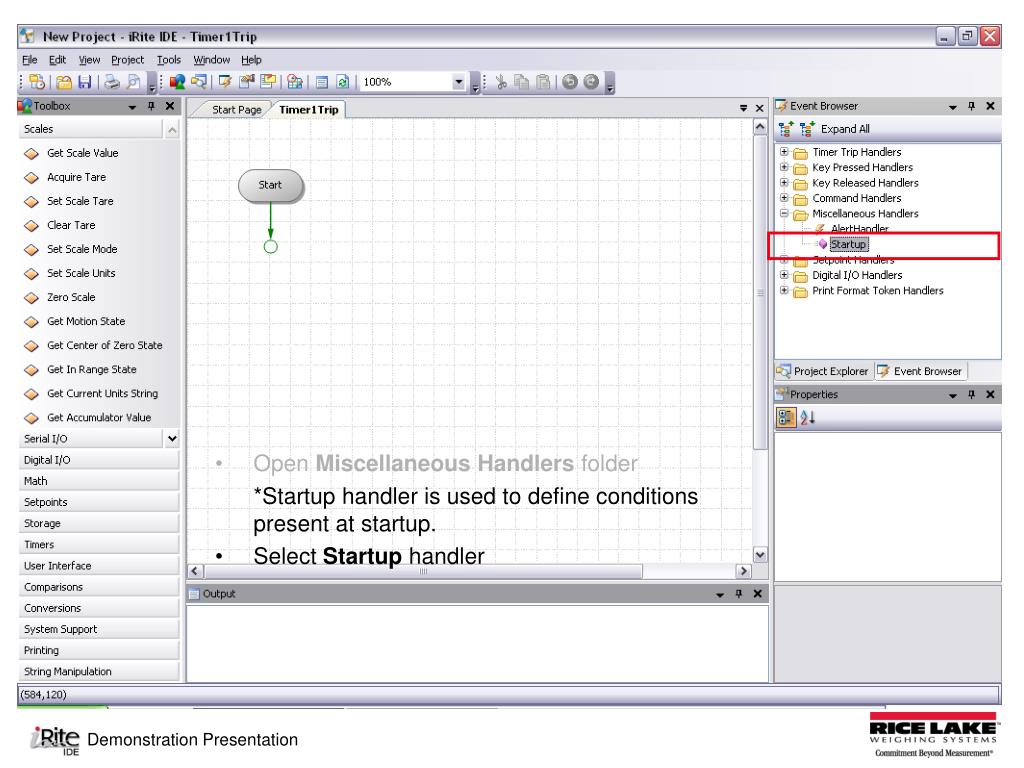

Open Miscellaneous Handlers folder *Startup handler is used to define conditionspresent at startup. • Select Startup handler

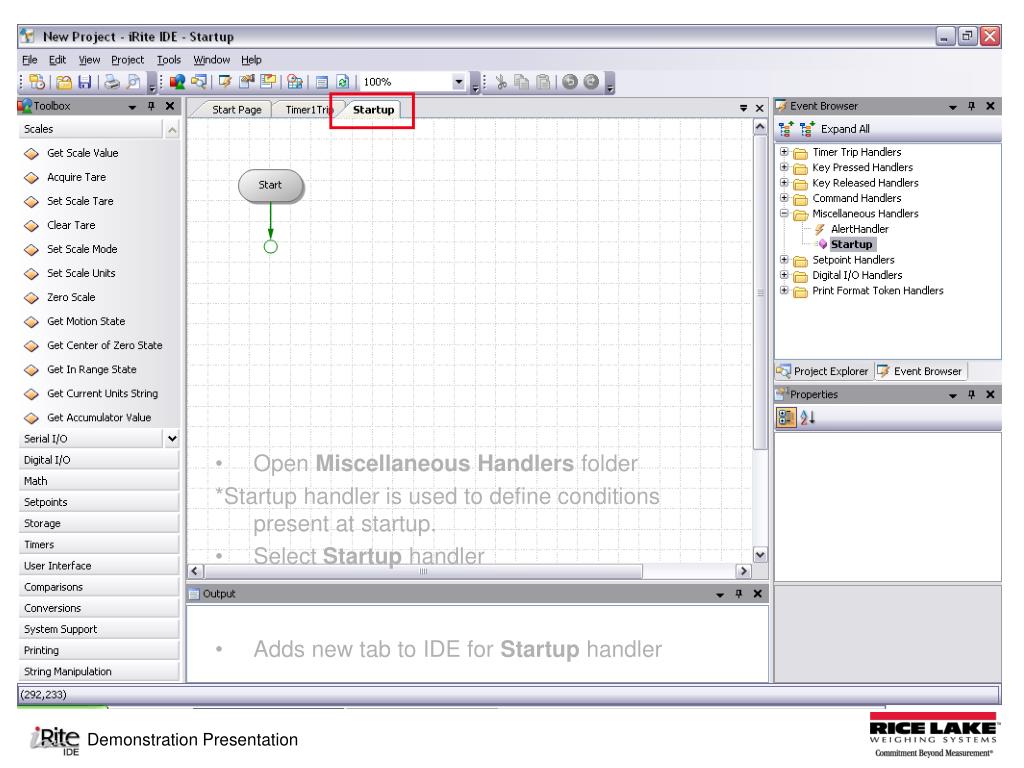

Open Miscellaneous Handlers folder *Startup handler is used to define conditionspresent at startup. • Select Startup handler • Adds new tab to IDE for Startup handler

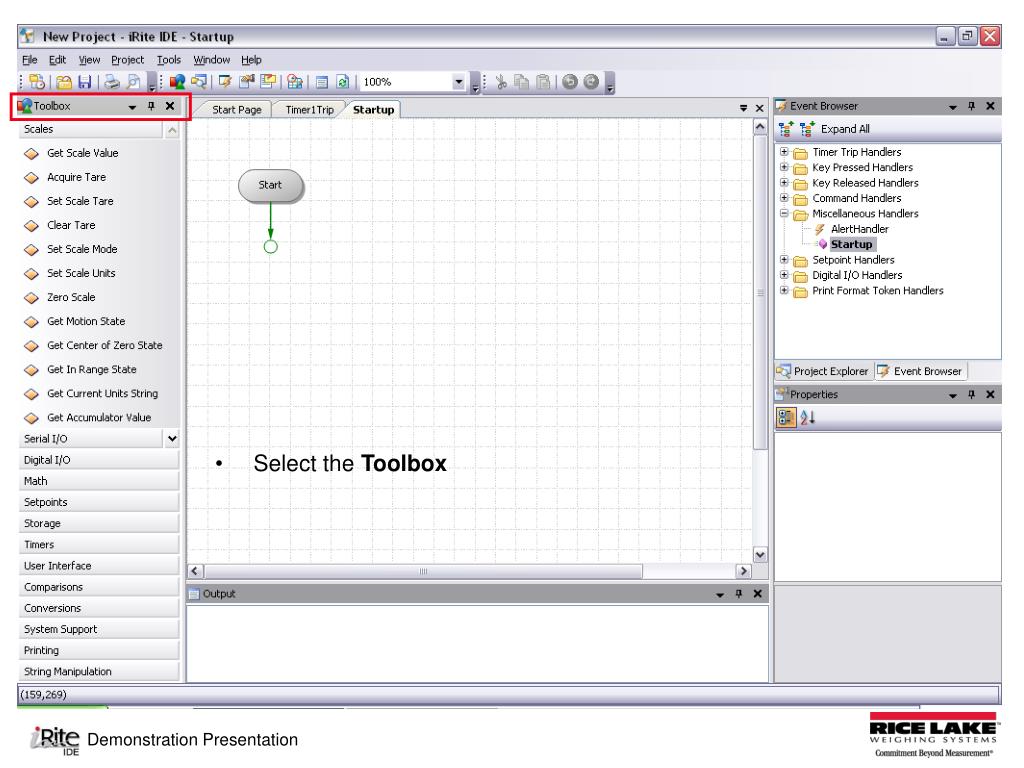

Select the Toolbox

Select the Toolbox • Select Timers navigation pane

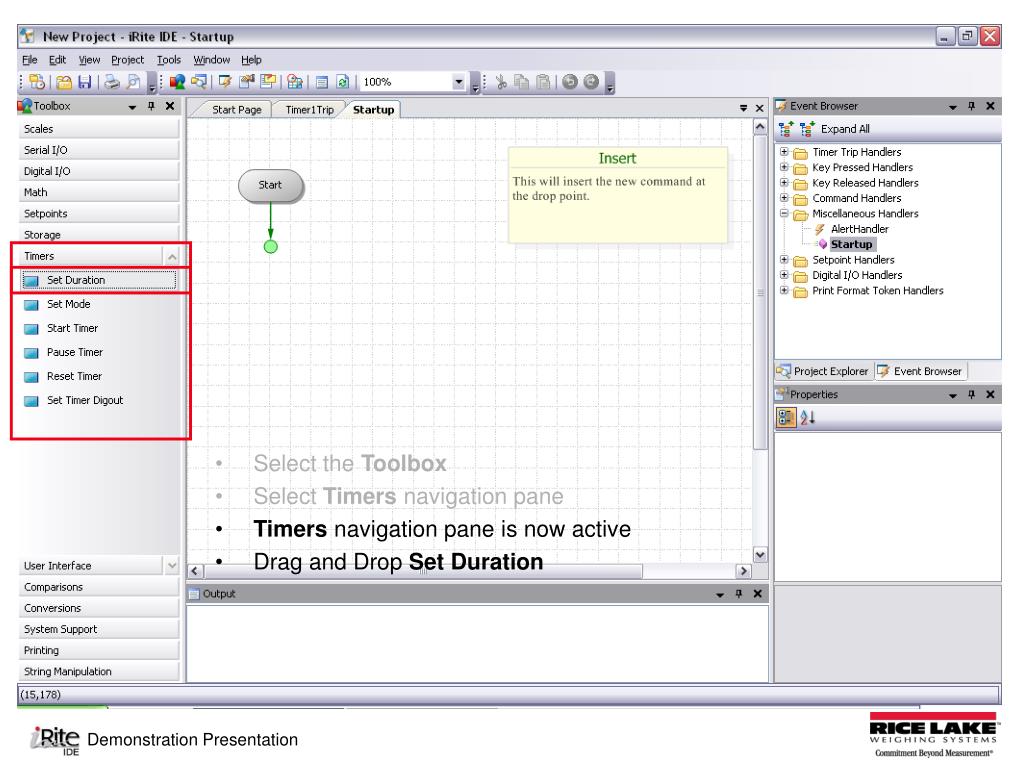

Select the Toolbox • Select Timers navigation pane • Timers navigation pane is now active • Drag and Drop Set Duration

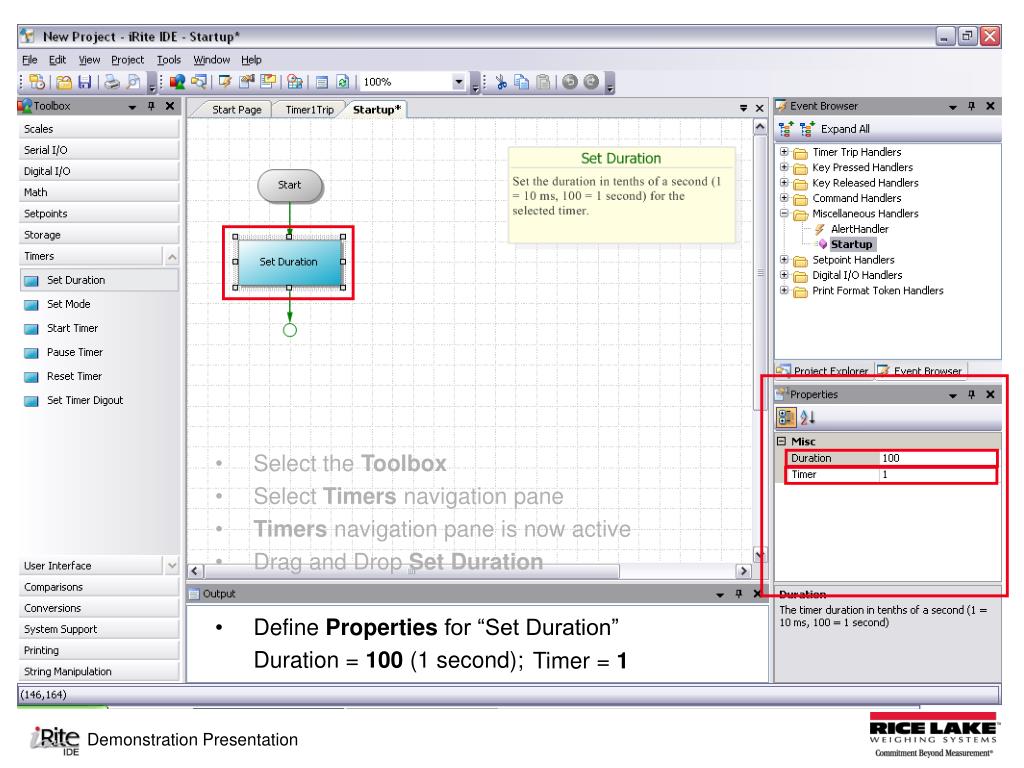

Select the Toolbox • Select Timers navigationpane • Timers navigation pane is now active • Drag and Drop Set Duration • Define Properties for “Set Duration” Duration = 100 (1 second); Timer = 1

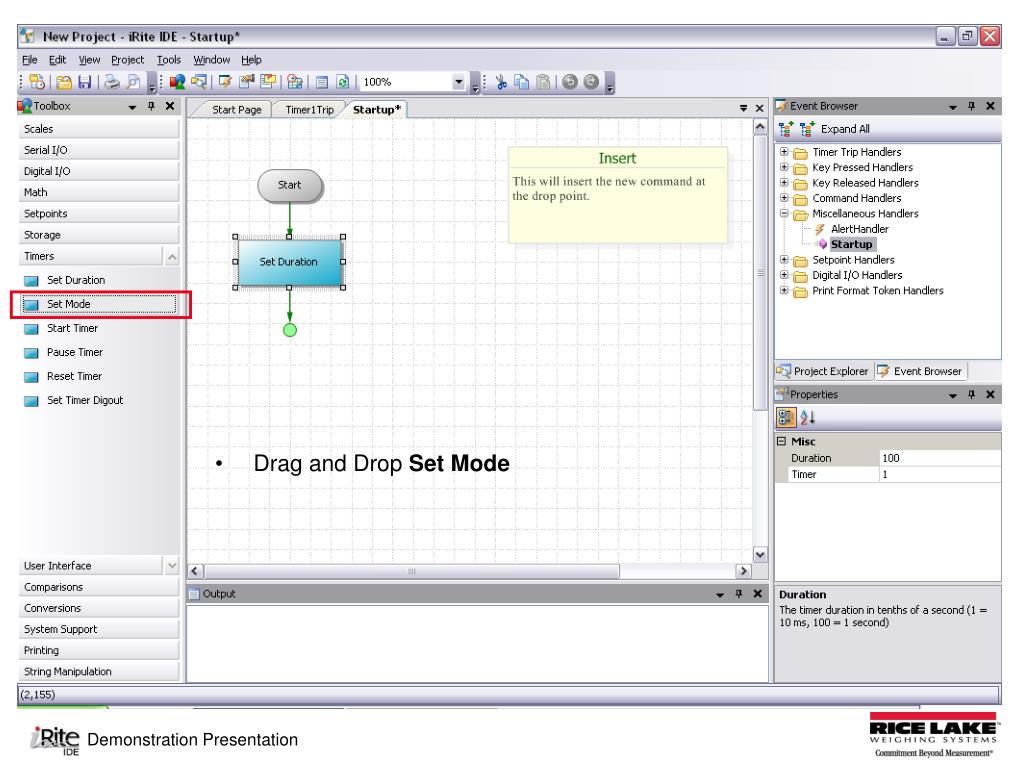

Drag and Drop Set Mode

Drag and Drop Set Mode • Define Properties for “Set Mode” Mode = Continuous; Timer = 1

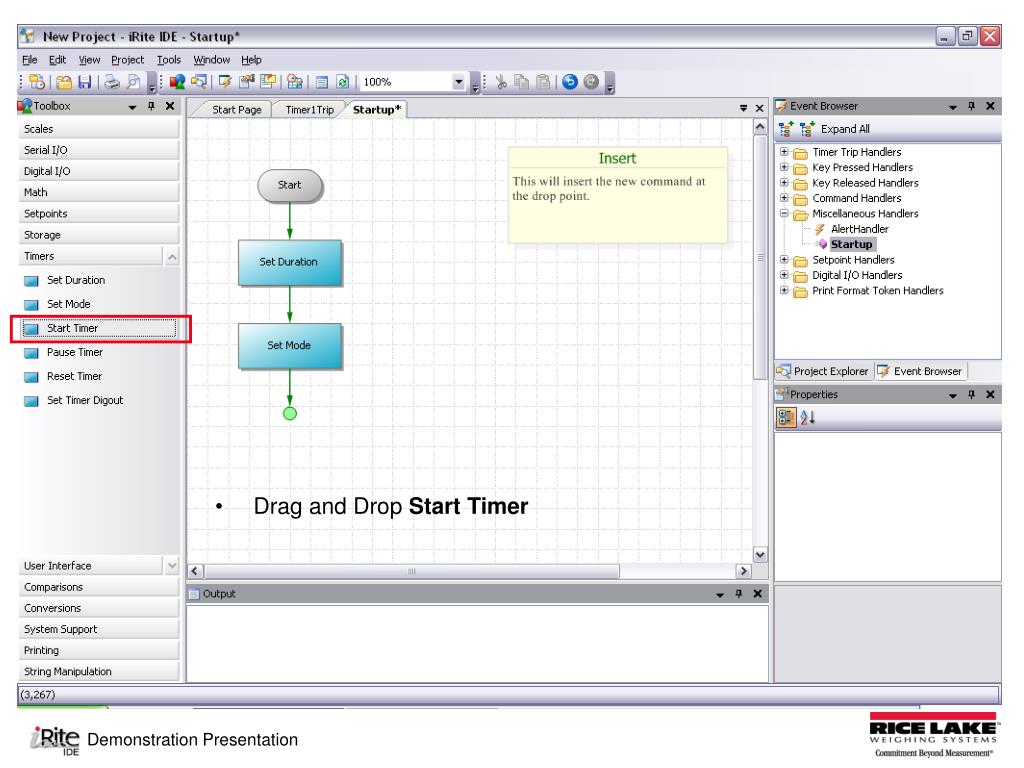

Drag and Drop Start Timer

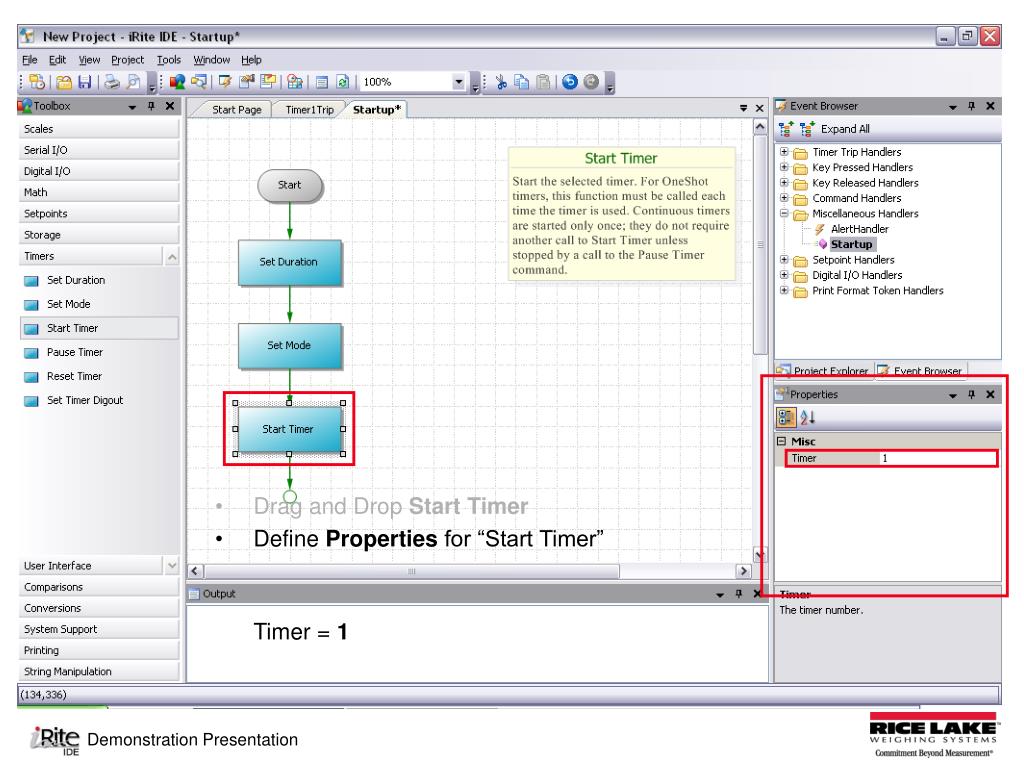

Drag and Drop Start Timer • Define Properties for “Start Timer” Timer = 1

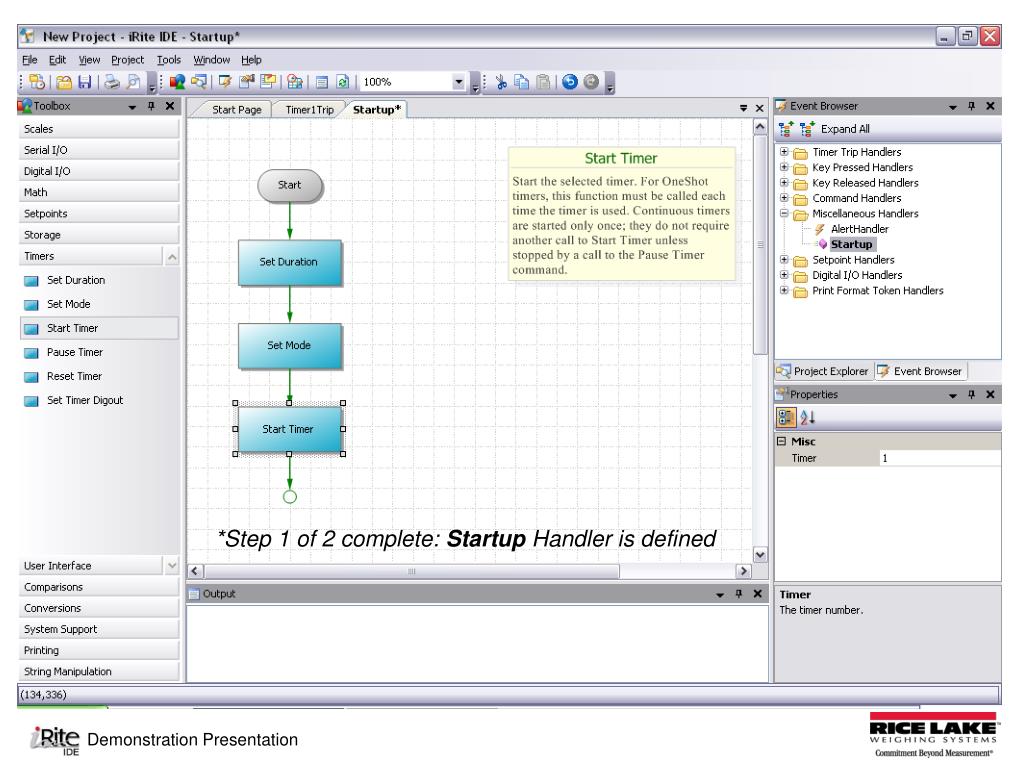

*Step 1 of 2 complete: Startup Handler is defined

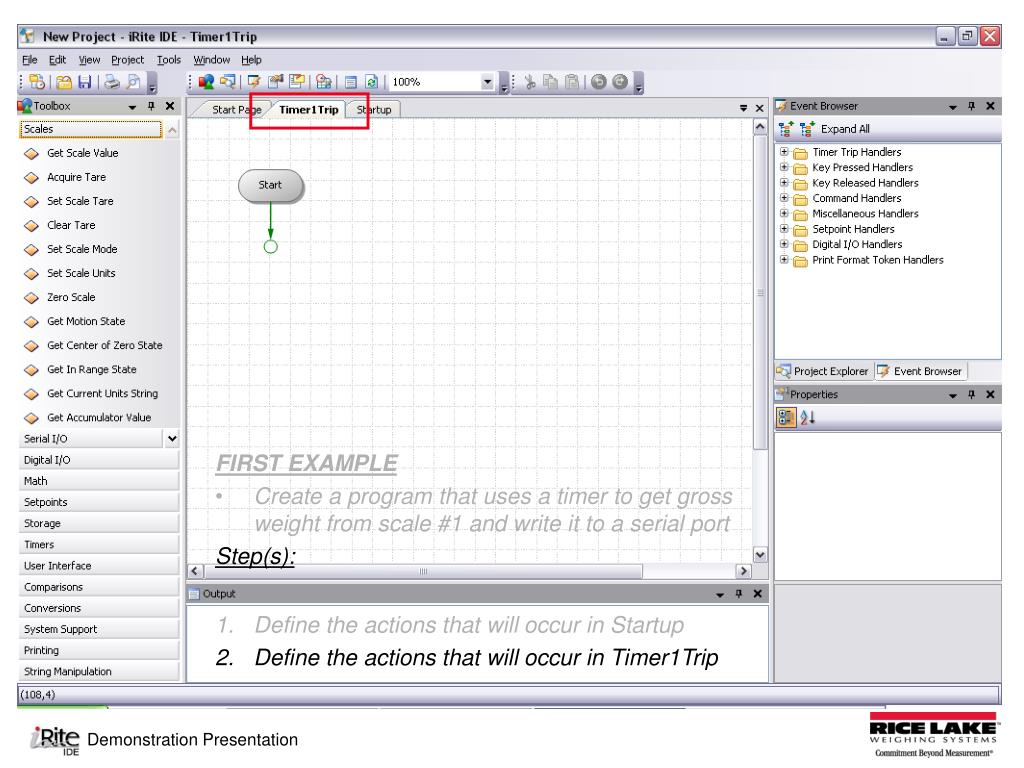

FIRST EXAMPLE • Create a program that uses a timer to get gross weight from scale #1 and write it to a serial port Step(s): • Define the actions that will occur in Startup • Define the actions that will occur in Timer1Trip

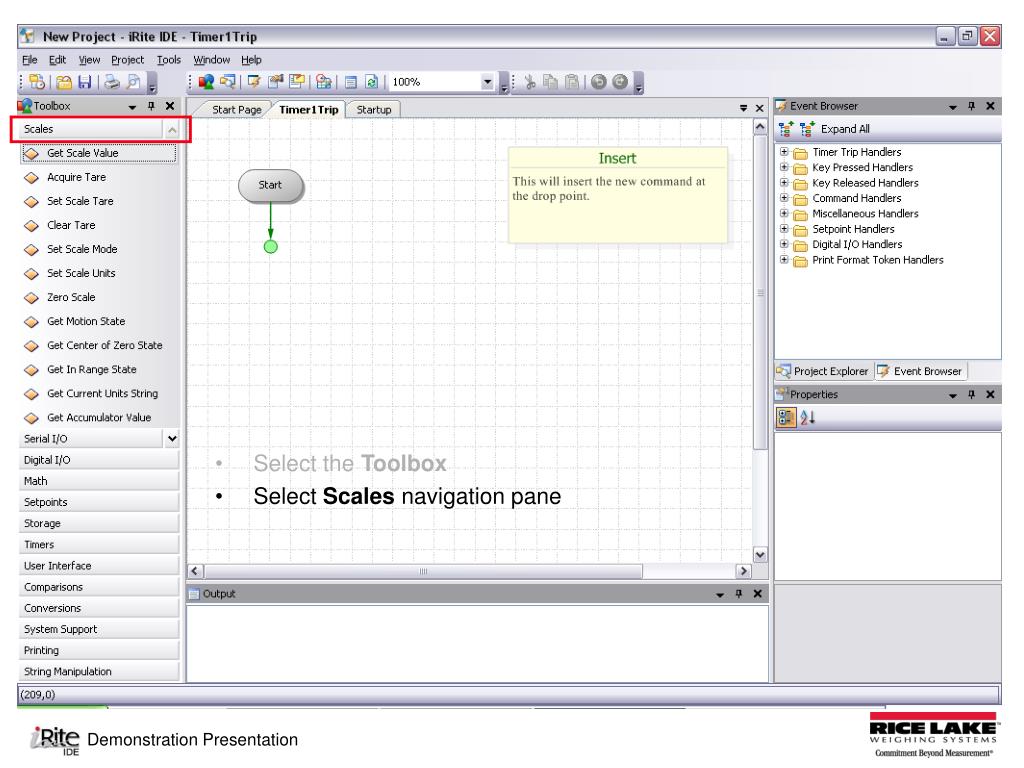

Select the Toolbox • Select Scales navigation pane

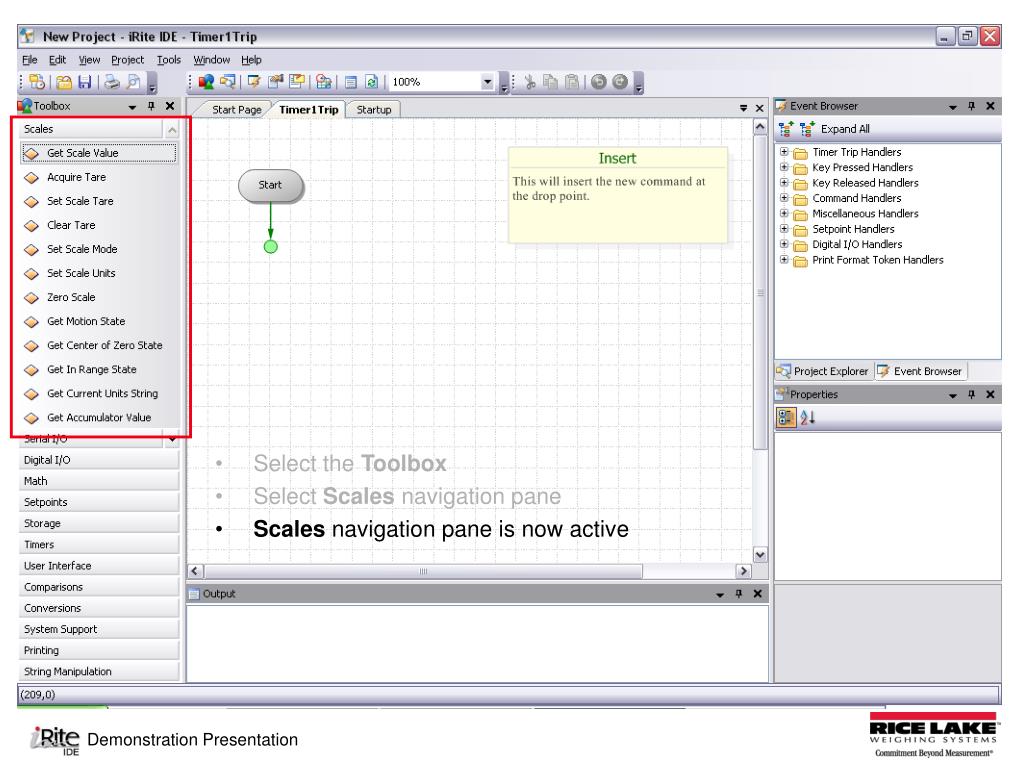

Select the Toolbox • Select Scales navigation pane • Scales navigation pane is now active

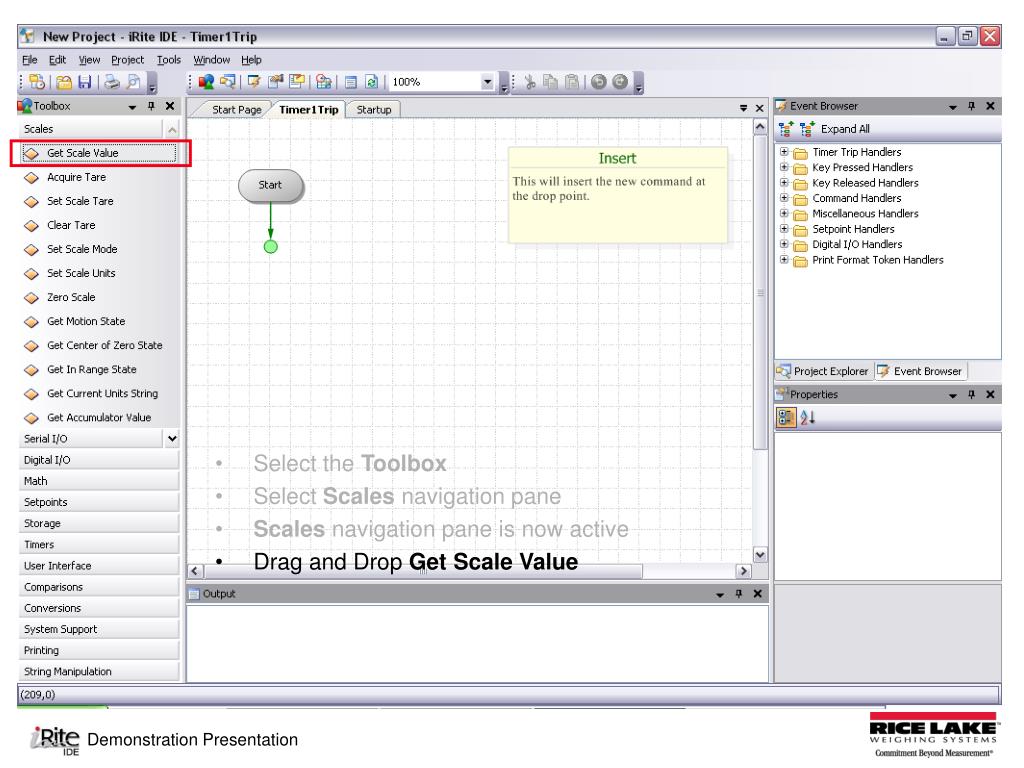

Select the Toolbox • Select Scales navigation pane • Scales navigation pane is now active • Drag and Drop Get Scale Value

Select the Toolbox • Select Scales navigation pane • Scales navigation pane is now active • Drag and Drop Get Scale Value • Define Properties for “Get Scale Value” Mode = Gross; Units = Primary ScaleNumber = 1;

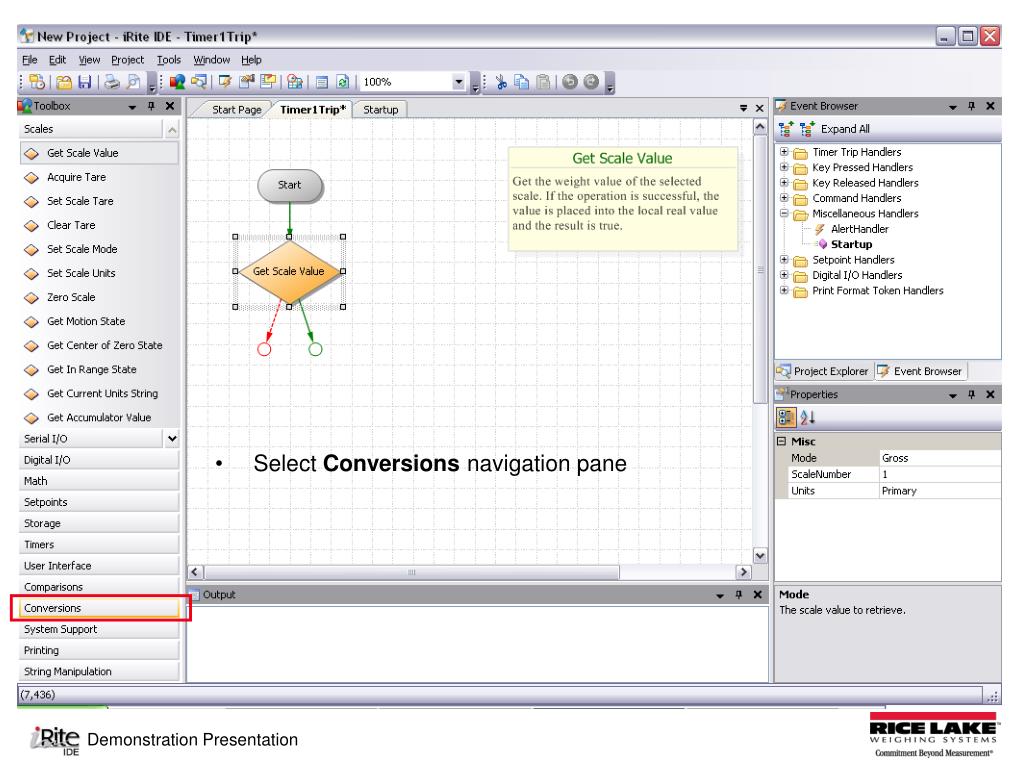

Select Conversions navigation pane

Select Conversions navigation pane • Conversions navigation pane is now active

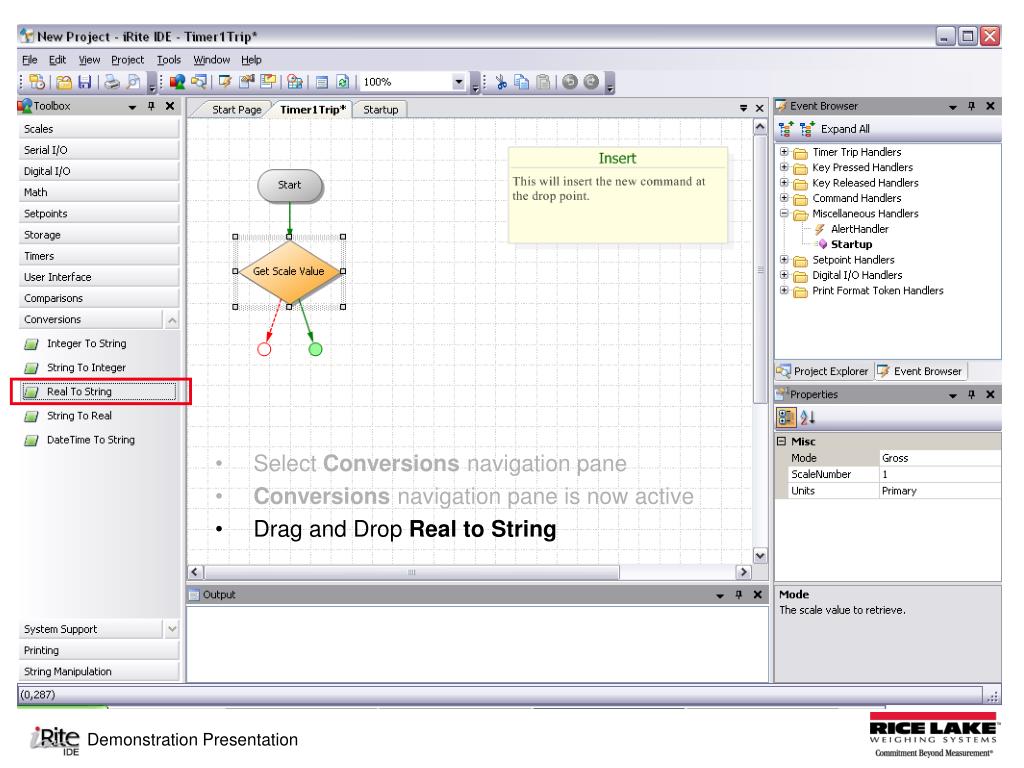

Select Conversions navigation pane • Conversions navigation pane is now active • Drag and Drop Real to String

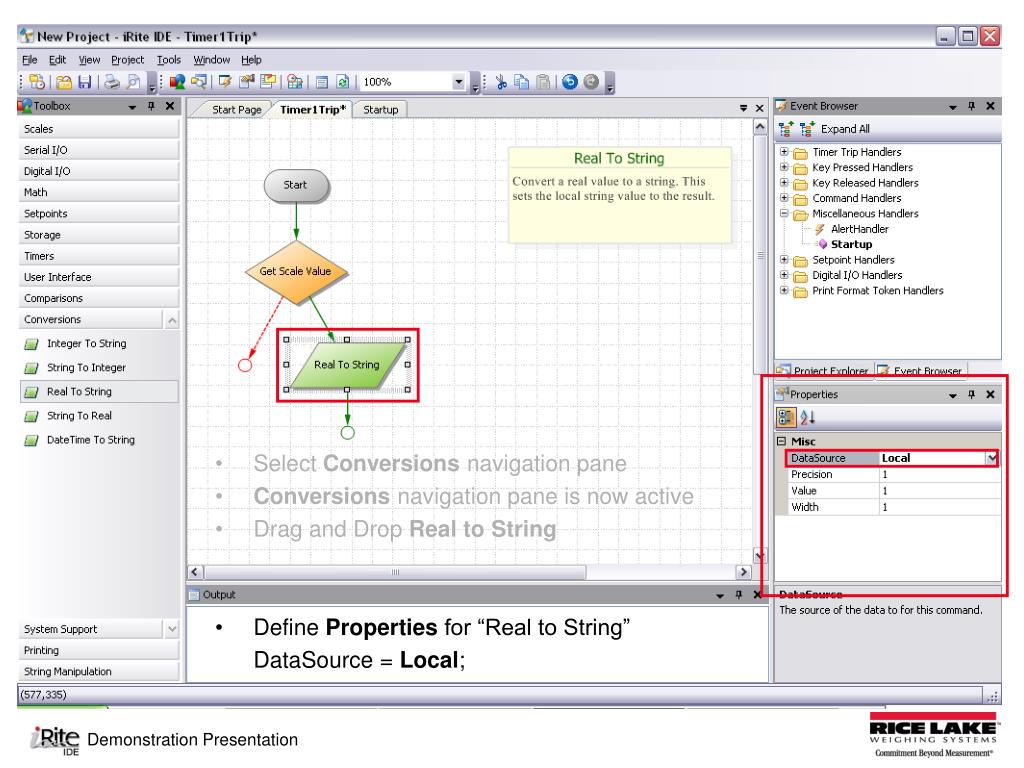

Select Conversions navigation pane • Conversions navigation pane is now active • Drag and Drop Real to String • Define Properties for “Real to String” DataSource = Local;

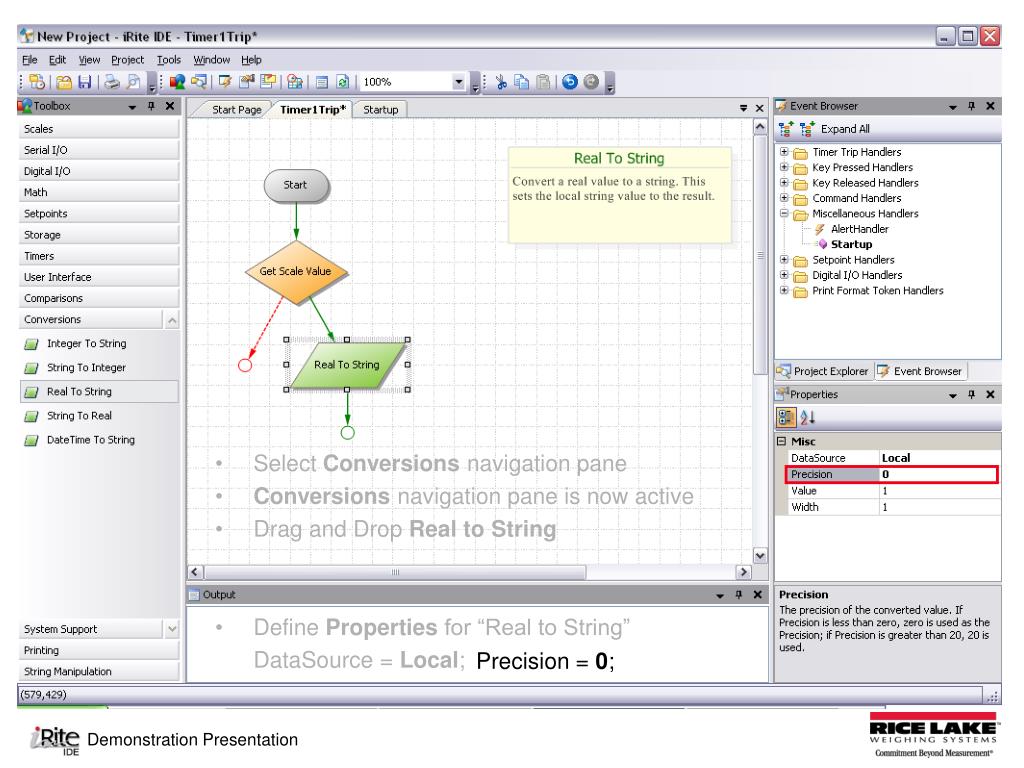

Select Conversions navigation pane • Conversions navigation pane is now active • Drag and Drop Real to String • Define Properties for “Real to String” DataSource = Local; Precision = 0;

Select Conversions navigation pane • Conversions navigation pane is now active • Drag and Drop Real to String • Define Properties for “Real to String” DataSource = Local; Value (n/a); Precision = 0;

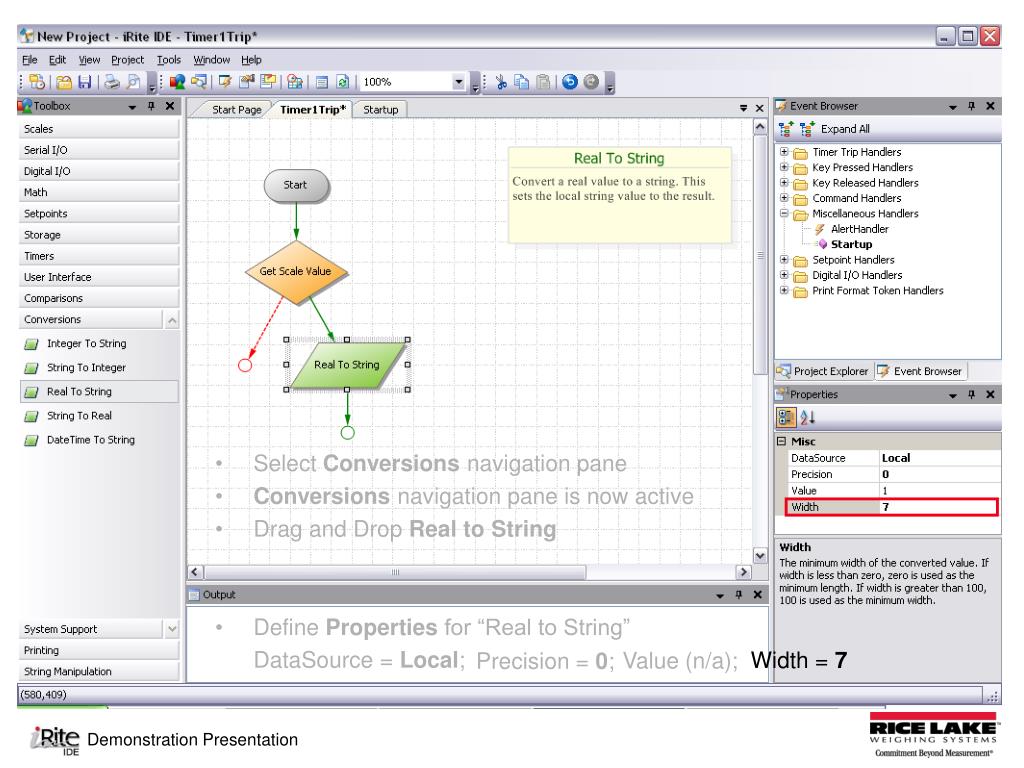

Select Conversions navigation pane • Conversions navigation pane is now active • Drag and Drop Real to String • Define Properties for “Real to String” DataSource = Local; Width = 7 Value (n/a); Precision = 0;

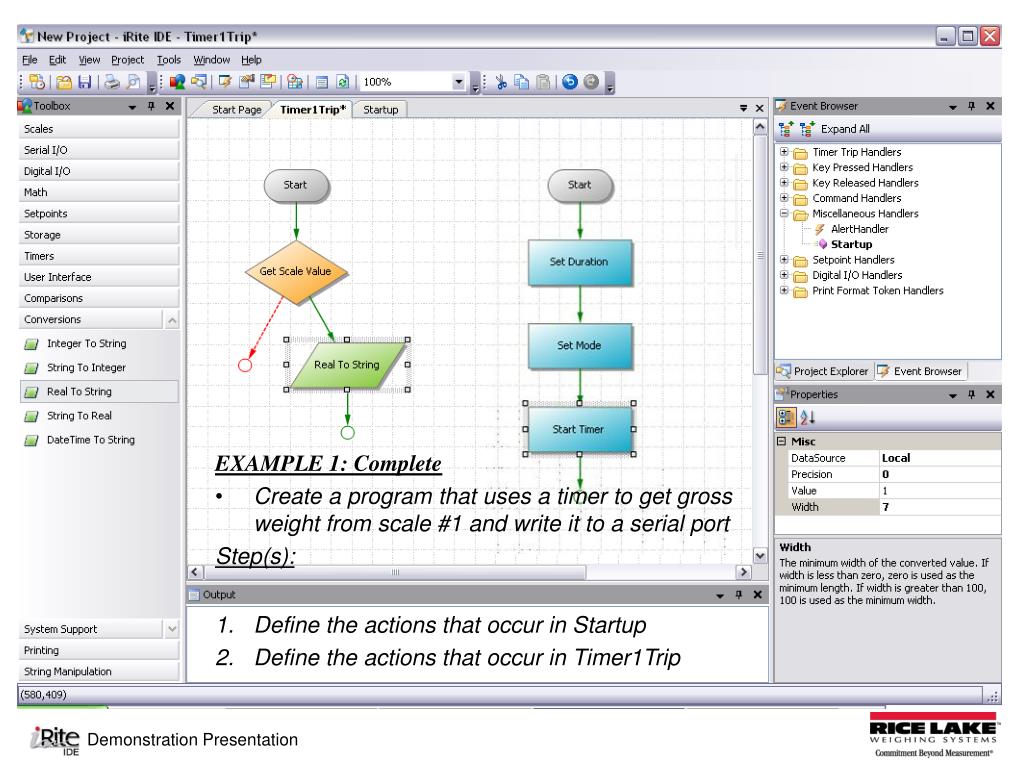

EXAMPLE 1: Complete • Create a program that uses a timer to get gross weight from scale #1 and write it to a serial port Step(s): • Define the actions that occur in Startup • Define the actions that occur in Timer1Trip

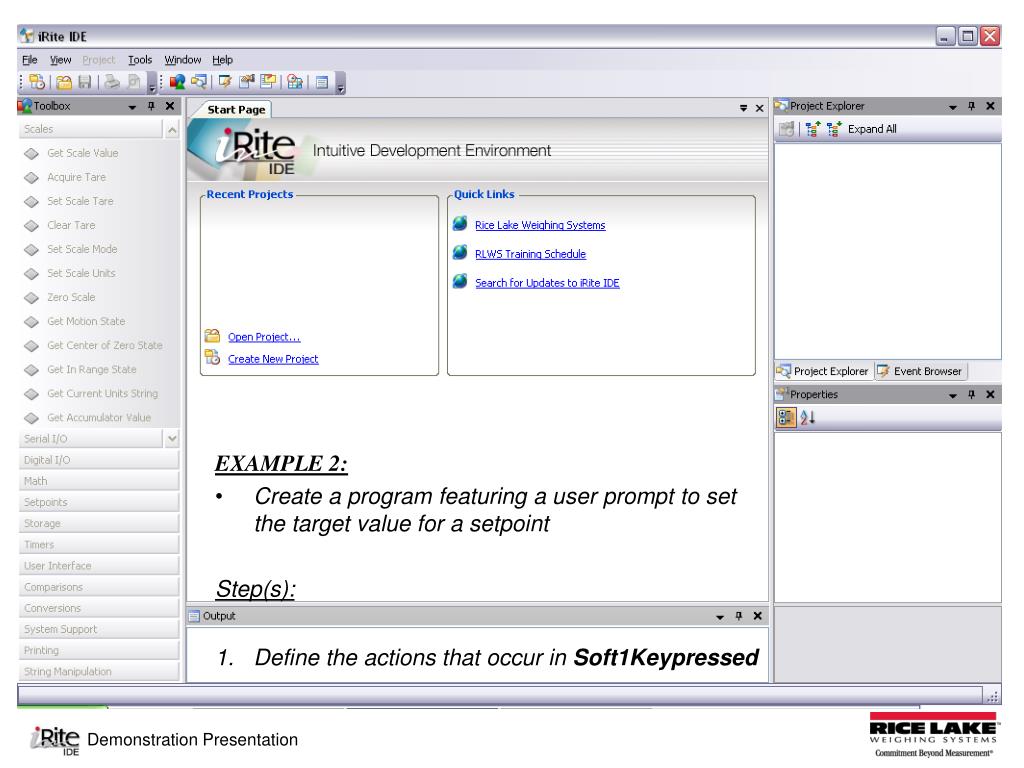

EXAMPLE 2: • Create a program featuring a user prompt to set the target value for a setpoint Step(s): • Define the actions that occur in Soft1Keypressed

Select Create New Project • Locate Event Browser navigation pane *Events are actions in the new program.

Select Create New Project • Locate Event Browser navigation pane *Events are actions in the new program. • Open Key Pressed Handlers folder

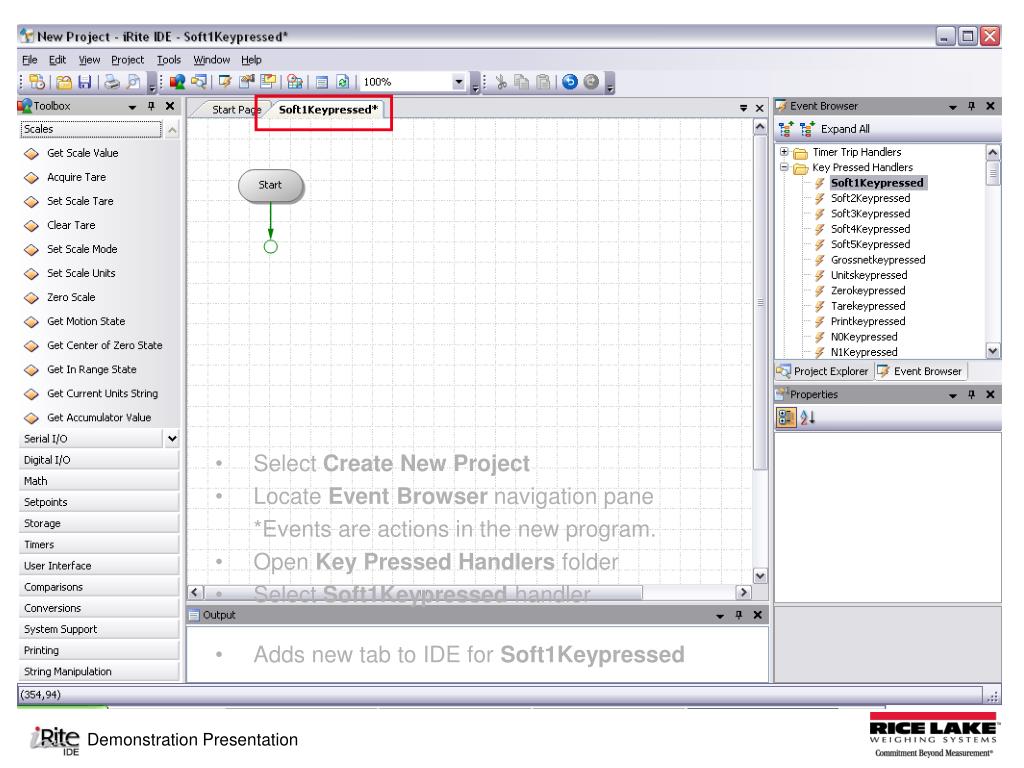

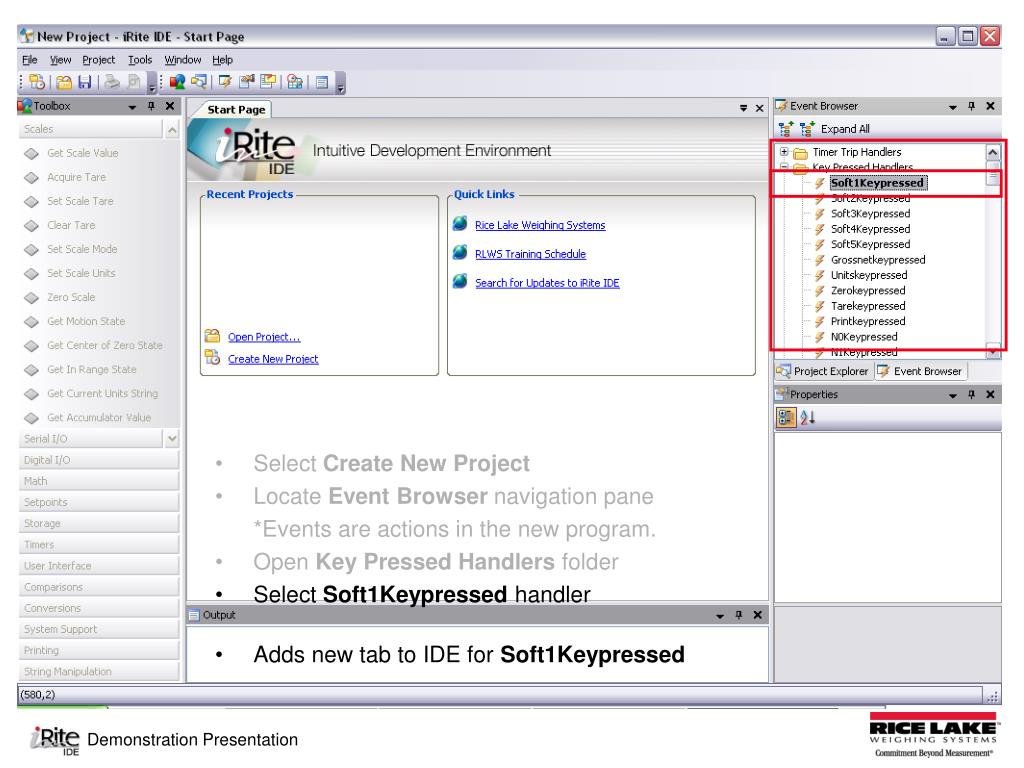

Select Create New Project • Locate Event Browser navigation pane *Events are actions in the new program. • Open Key Pressed Handlers folder • Select Soft1Keypressed handler • Adds new tab to IDE for Soft1Keypressed

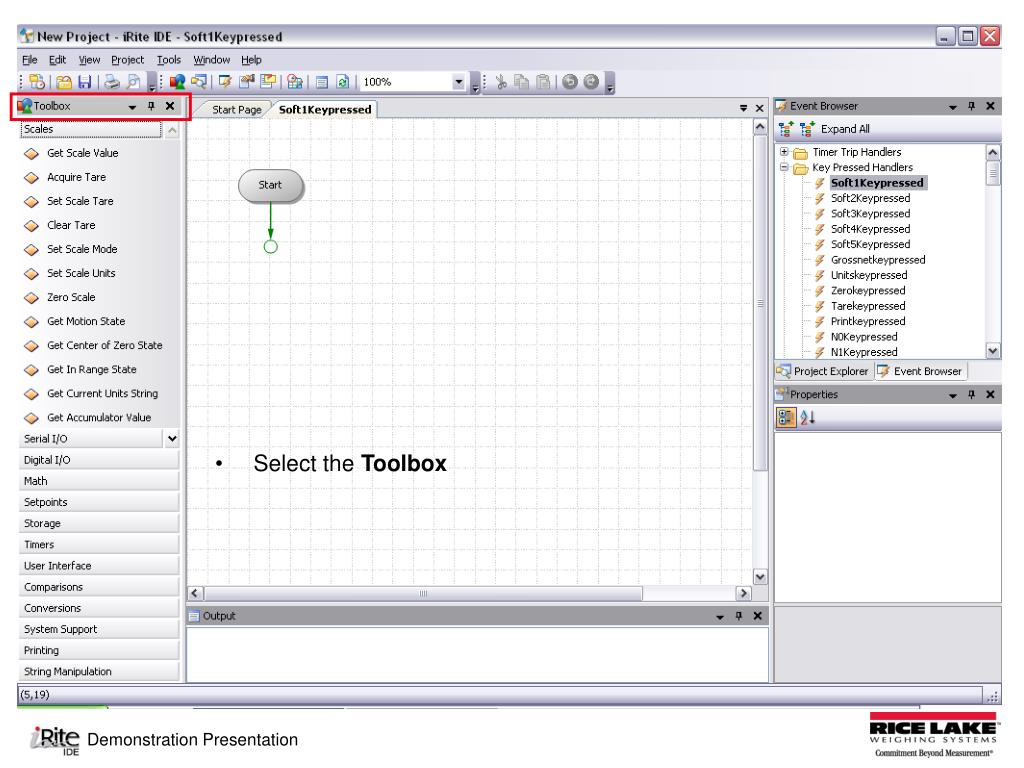

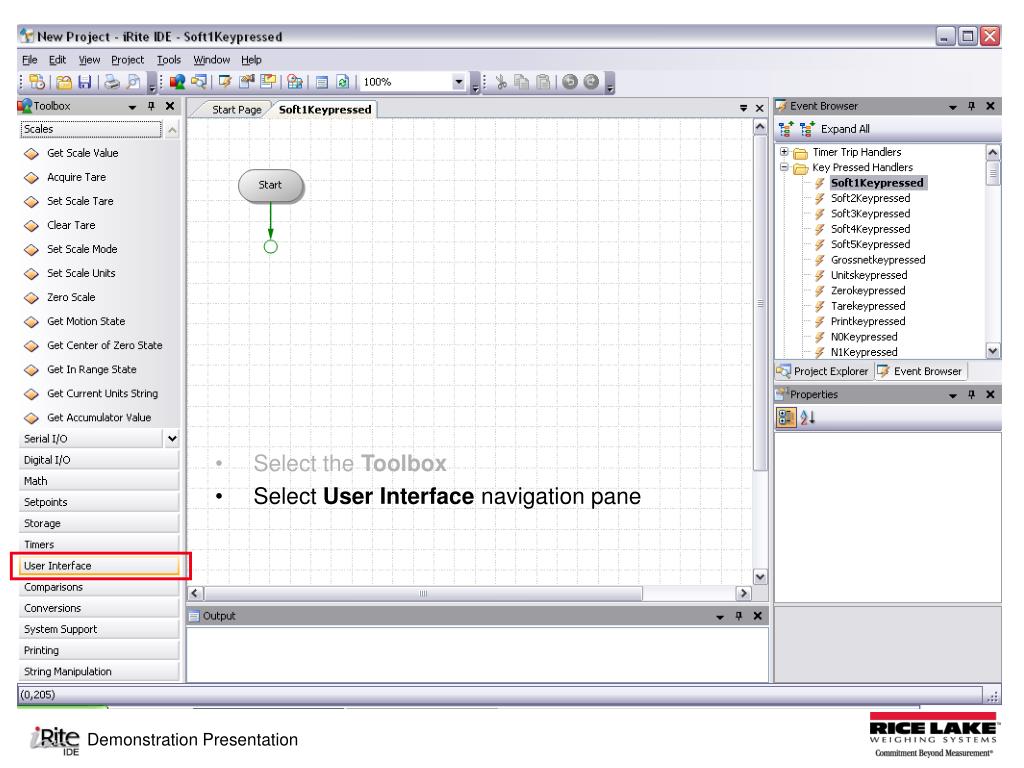

Select the Toolbox • Select User Interface navigation pane

Select the Toolbox • Select User Interface navigation pane • User Interface navigation pane is now active • Drag and Drop Prompt User for Real

Select the Toolbox • Select User Interface navigationpane • User Interface navigation pane is now active • Drag and Drop Prompt User for Real • Define Properties for “Prompt User for Real” DataSource = Static;

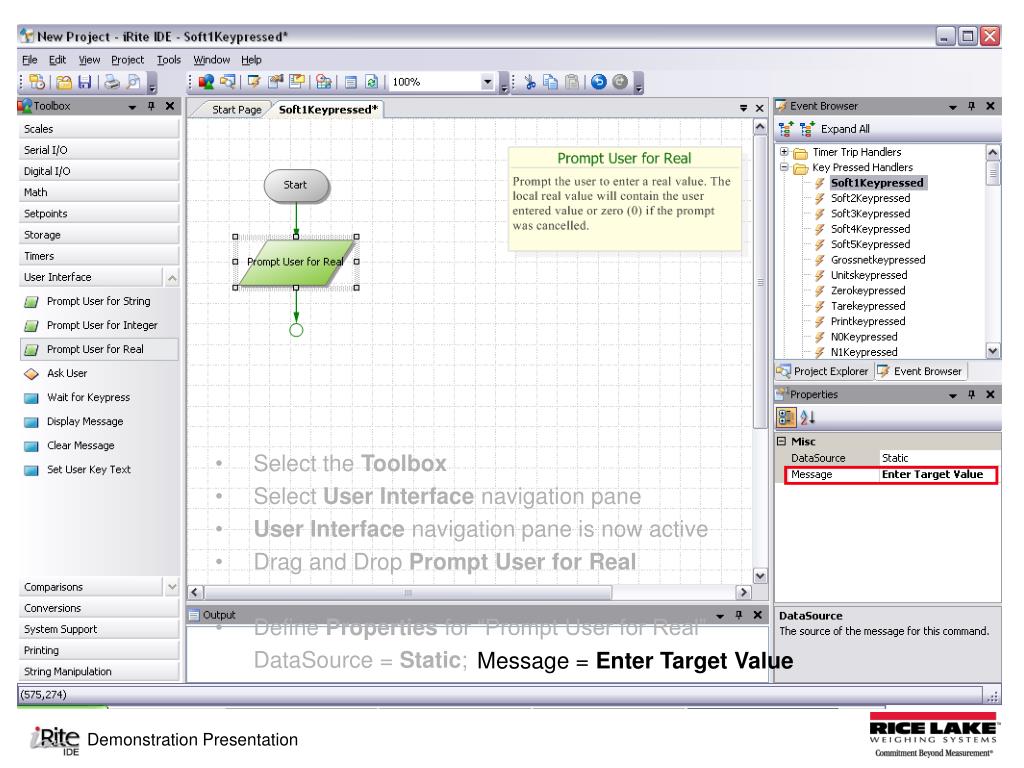

Select the Toolbox • Select User Interface navigationpane • User Interface navigation pane is now active • Drag and Drop Prompt User for Real • Define Properties for “Prompt User for Real” DataSource = Static; Message = Enter Target Value

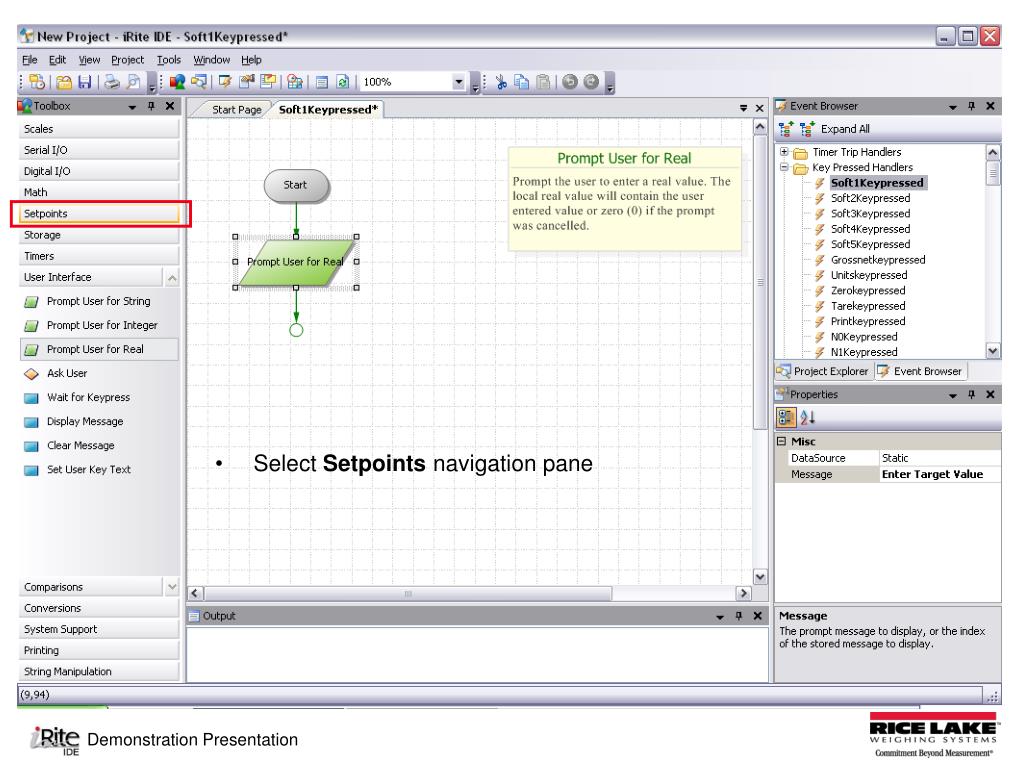

Select Setpoints navigation pane

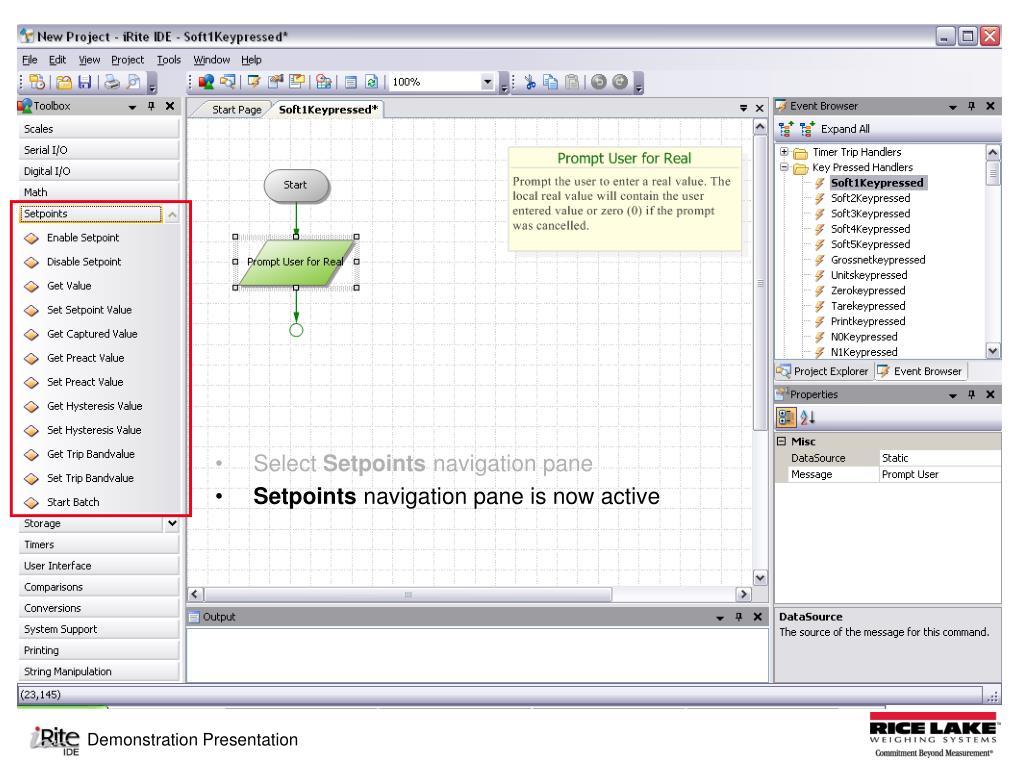

Select Setpoints navigation pane • Setpoints navigation pane is now active

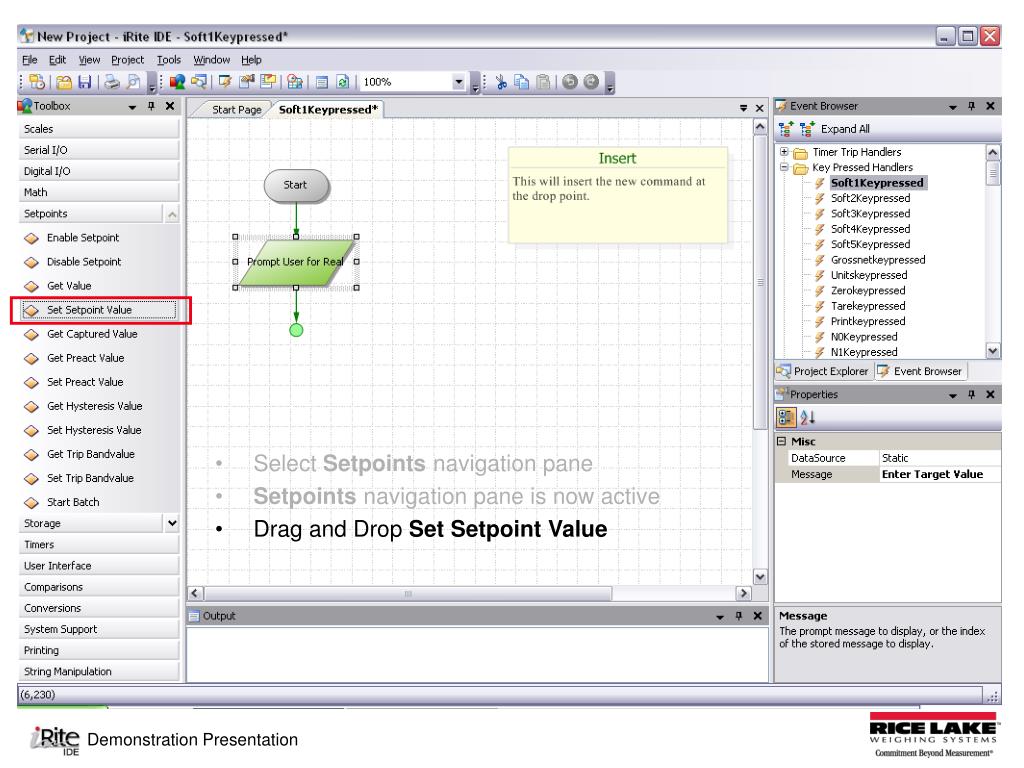

Select Setpoints navigation pane • Setpoints navigation pane is now active • Drag and Drop Set Setpoint Value

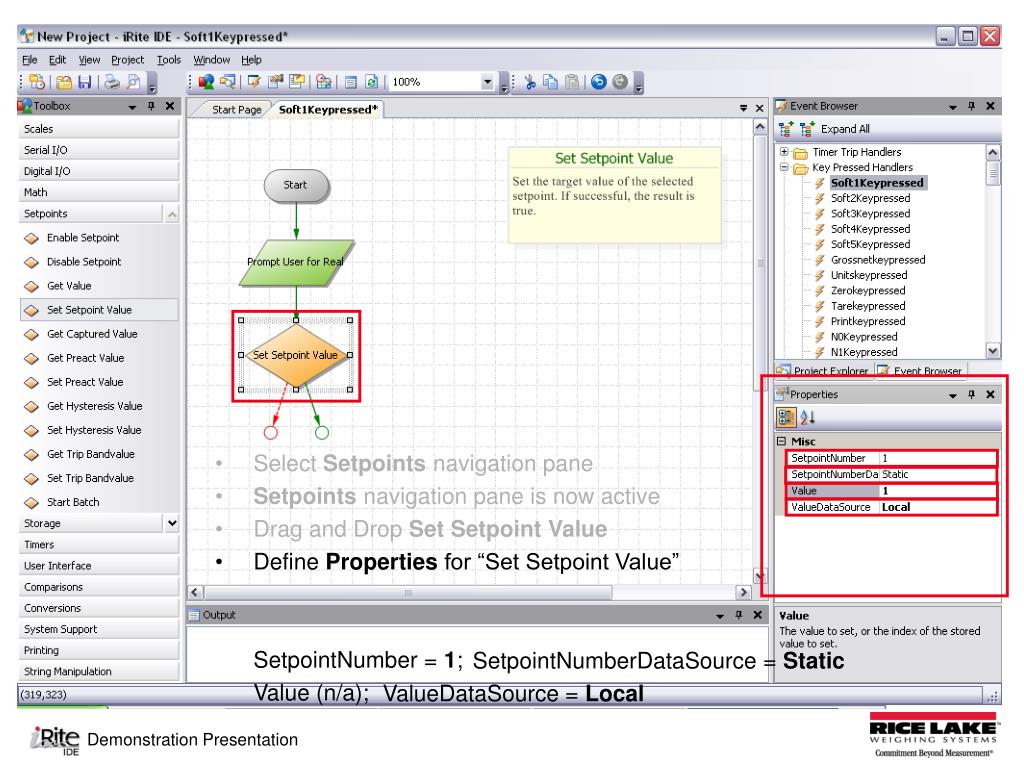

Select Setpoints navigationpane • Setpoints navigation pane is now active • Drag and Drop Set Setpoint Value • Define Properties for “Set Setpoint Value” SetpointNumber = 1; Value (n/a); SetpointNumberDataSource = Static ValueDataSource = Local

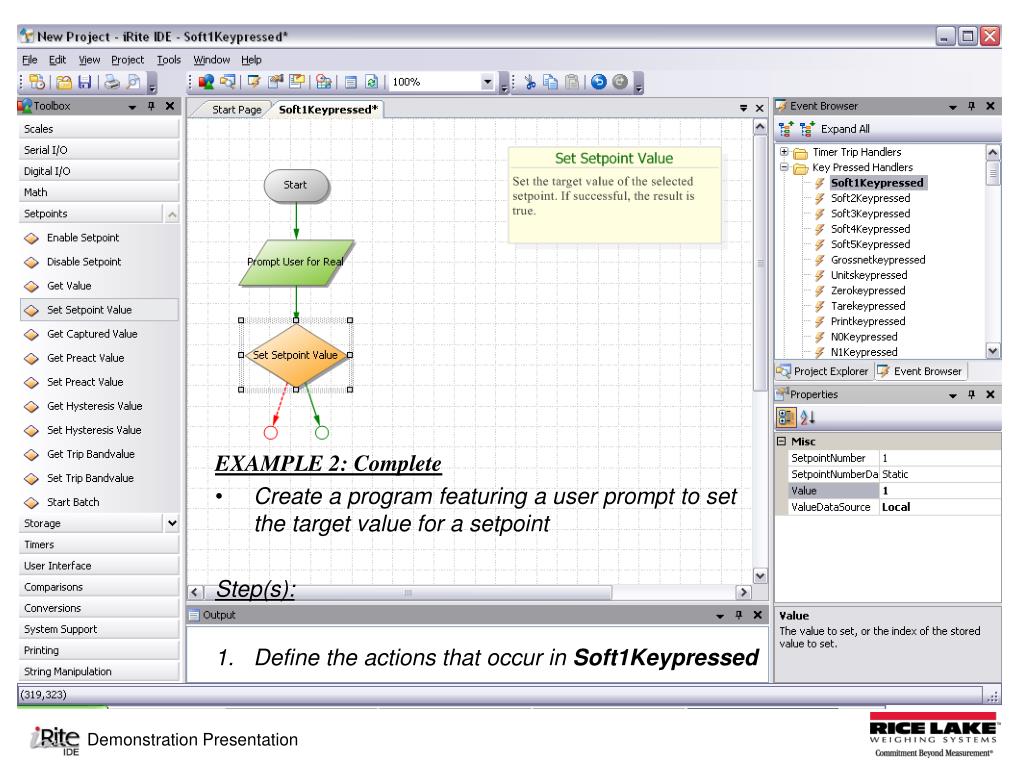

EXAMPLE 2: Complete • Create a program featuring a user prompt to set the target value for a setpoint Step(s): • Define the actions that occur in Soft1Keypressed
