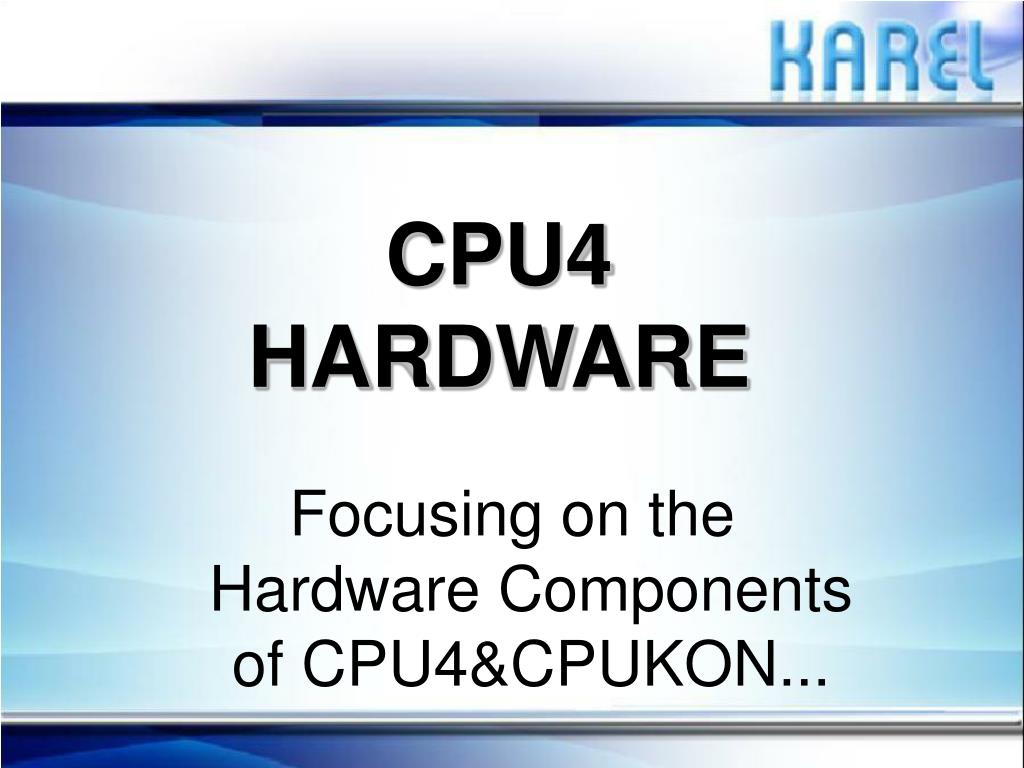

  1. CPU4 HARDWARE Focusing on the Hardware Components of CPU4&CPUKON...

  2. CPU4 Hardware • 2 ethernet ports (eth0,eth1) • Compact Flash Memory (4GB) • Flash ROM (32MB) • DRAM (128 MB) • CPU Module Card (PPC 850, Linux O.S.) • CPUKON Connector • OFF button

  3. CPU4 Hardware Components

  4. New CPUKON Card for CPU4

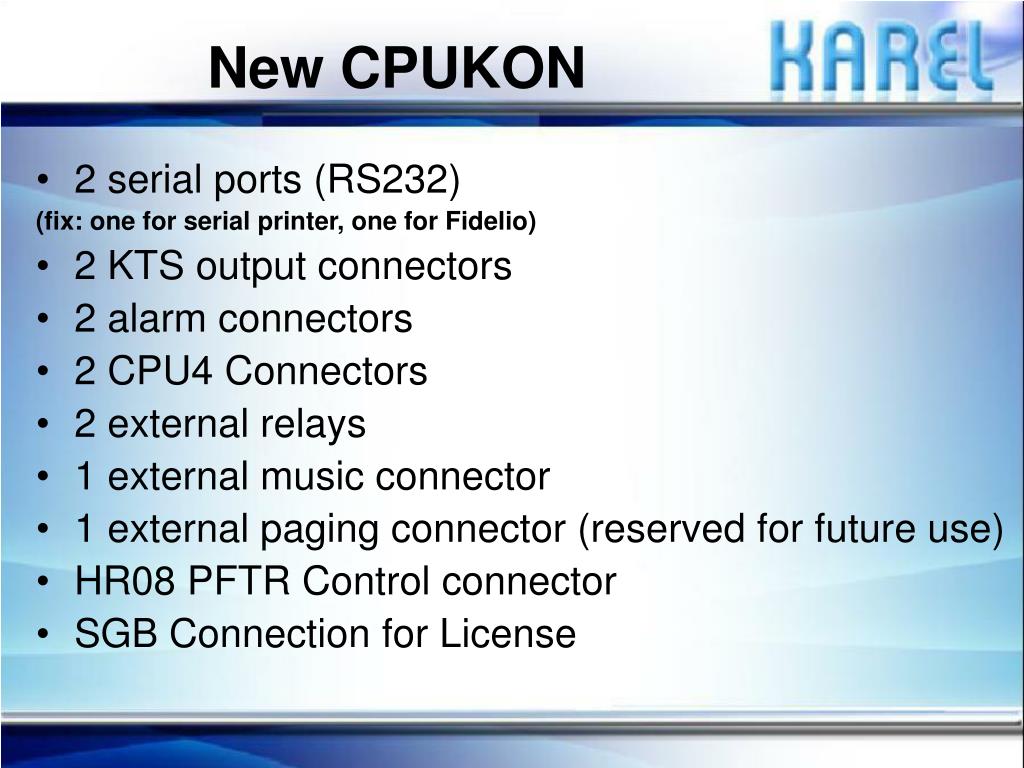

  5. New CPUKON • 2 serial ports (RS232) (fix: one for serial printer, one for Fidelio) • 2 KTS output connectors • 2 alarm connectors • 2 CPU4 Connectors • 2 external relays • 1 external music connector • 1 external paging connector (reserved for future use) • HR08 PFTR Control connector • SGB Connection for License

  6. CPUKON Harware Components

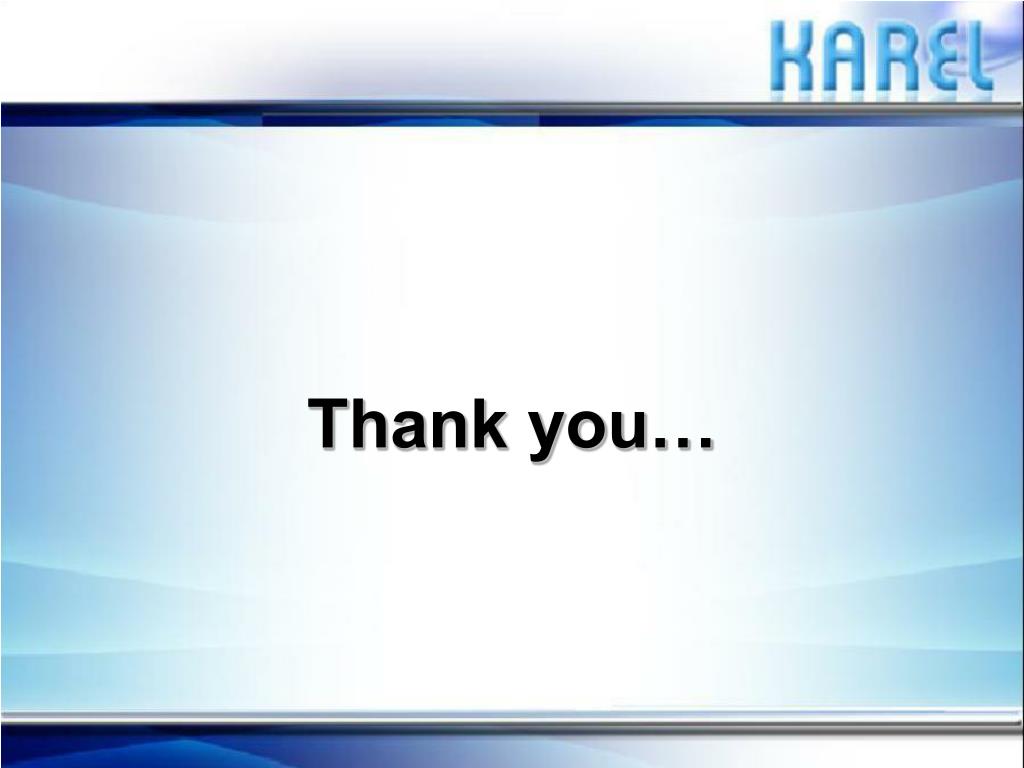

  7. Thank you…
