TEW-684UB

450Mbps Dual Band Wireless-N USB Adapter

slide3

TEW-684UB

Training

slide4

Topics

  • Package Contents
  • System Requirements
  • Features
  • Comparison
  • Application
  • Product Overview
  • Installation
  • Test Reports
  • Demo
  • Question
slide5

Package Contents

TEW-684UB Package Contents

(1x) TEW-684UB

(1x) Multi-Language Quick Installation Guide

(1x) Utility & User’s Guide CD-ROM

(1x) Micro USB Cable (100cm/3.28ft)

slide6

System Requirements

  • USB 2.0 port on computer.
  • CD-ROM drive
  • Computer with the following specifications
slide7

Features

  • 1 x USB 2.0 connector
  • Wi-Fi compliant with IEEE 802.11n/g/b/a standards
  • One-touch wireless connection with external Wi-Fi Protected Setup (WPS) button
  • Multiple Input Multiple Output (MIMO) technology
  • Maximum reliability, throughput, and connectivity with automatic data rate switching
  • Supports 64/128-bit WEP, WPA/WPA2-RADIUS, and WPA-PSK/WPA2-PSK
  • Wi-Fi Multimedia (WMM) Quality of Service (QoS) data prioritization
  • Easy user setup and intuitive diagnostic utility
  • Coverage of up to 50 meters indoor (164 feet) and 100 meters outdoor (320 feet) *
  • 3-year limited warranty
slide8

Comparison

TEW-647GA

74 x 45 x 104 mm 80 g

TEW-640MB

118 x 60 x 135 mm

170 g

TEW-687GA

118 x 60 x 135 mm

153 g

TEW-684UB

50 x 31 x 72 mm

40 g

slide9

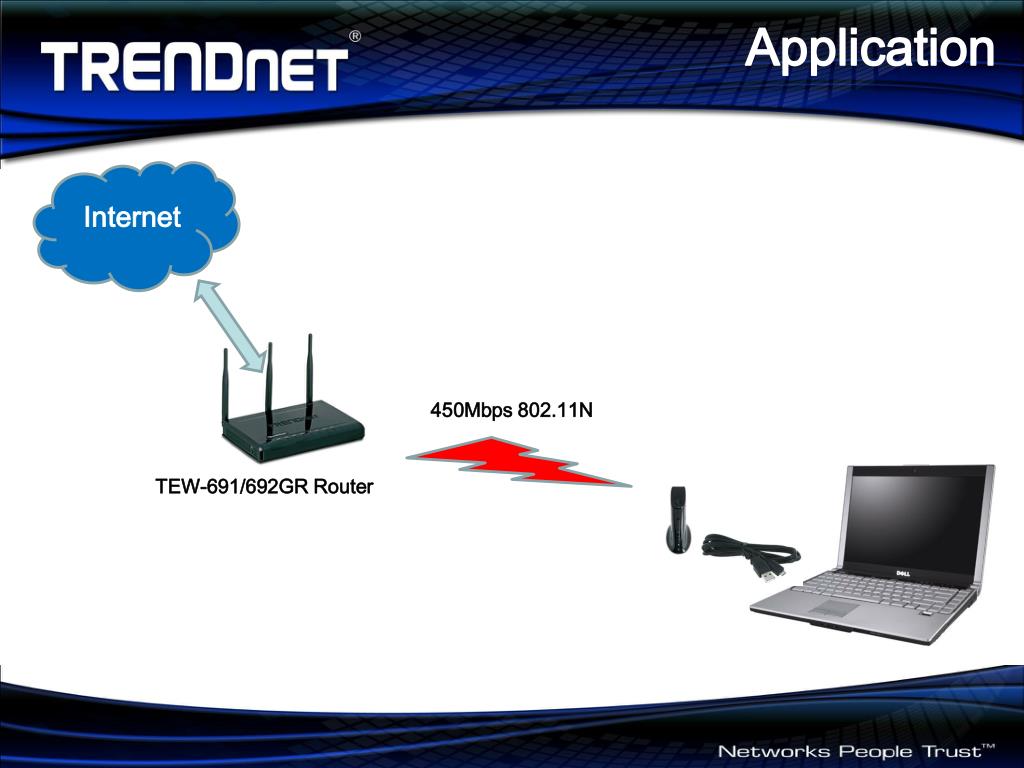

Application

Internet

450Mbps 802.11N

TEW-691/692GR Router

slide11

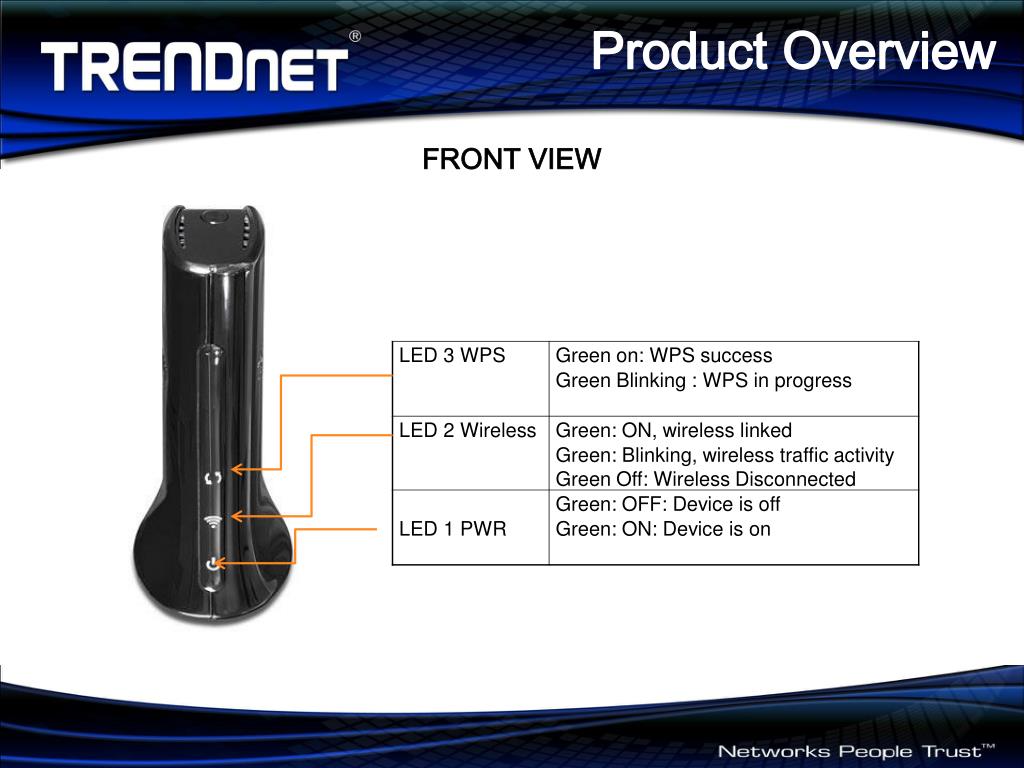

Product Overview

BACK VIEW

WPS Button

USB Port

slide12

Installation

Insert the Utility & User's Guide

CD into your computer's CD-ROM Drive.

  • 2. Click Run Autorun.exe (Windows 7/Vista only).
  • 3.Click Install Utility.
slide13

Installation

  • 4. Select I accept the terms and of the license agreement andclick Next.
  • 5. Select Install driver and TRENDnet WLAN utility and click Next.
slide14

Installation

  • 6. SelectTRENDnet Configuration Tool and click Next
  • 7. Click Install.
slide15

Installation

  • 8. Select Finish.
  • 9. ClickUtility to configure connection
  • with router or AP.
slide16

Test Report

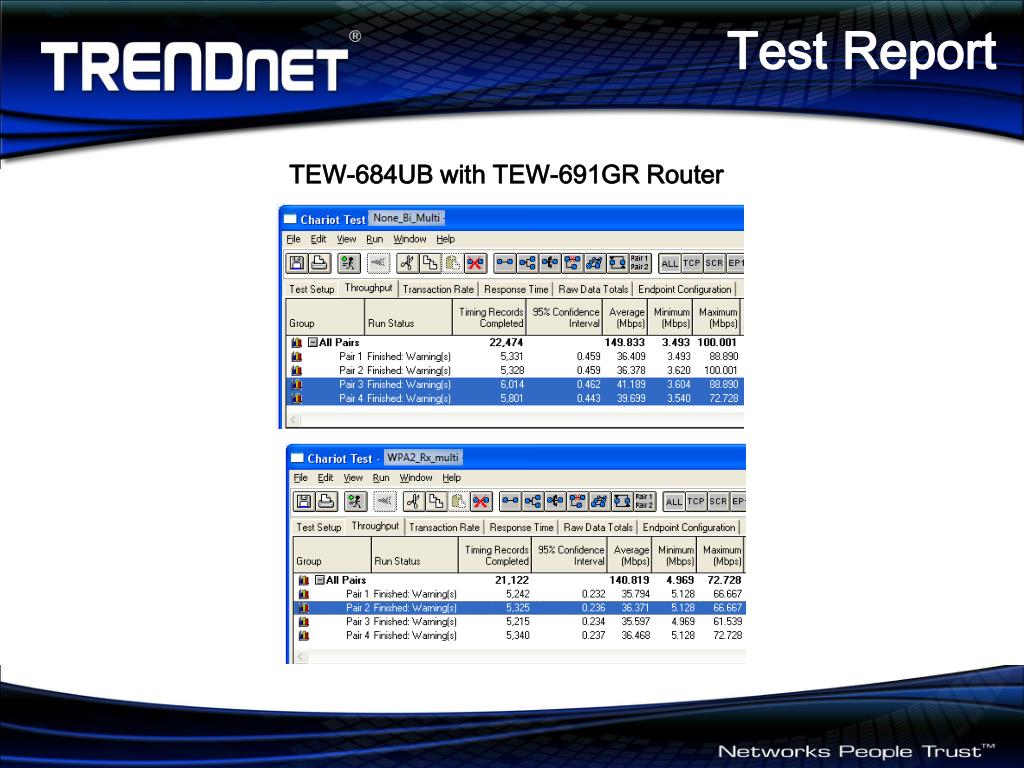

TEW-684UB with TEW-691GR Router

slide17

Test Report

TEW-684UB with TEW-692GR Router (2.4/5GHz)

slide18

Demo

Internet

802.11N

2.4 or 5 GHz

TEW-692GR

450Mbps

Dual band Wireless-N Gigabit Router
