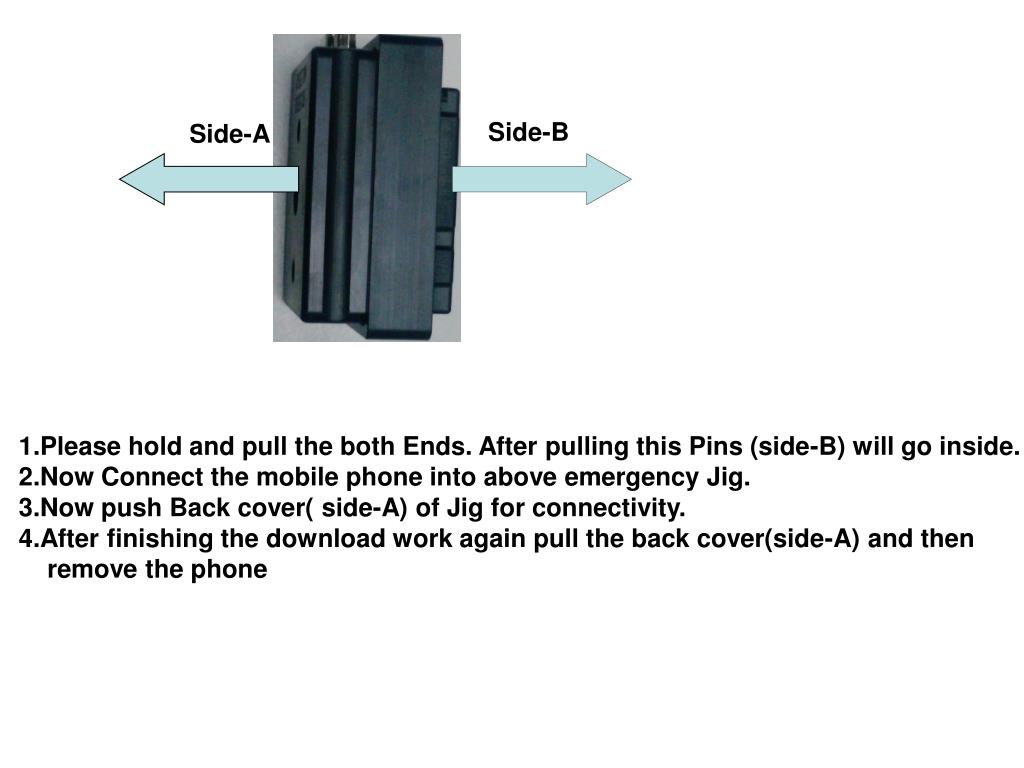

  1. Side-B Side-A 1.Please hold and pull the both Ends. After pulling this Pins (side-B) will go inside. 2.Now Connect the mobile phone into above emergency Jig. 3.Now push Back cover( side-A) of Jig for connectivity. 4.After finishing the download work again pull the back cover(side-A) and then remove the phone

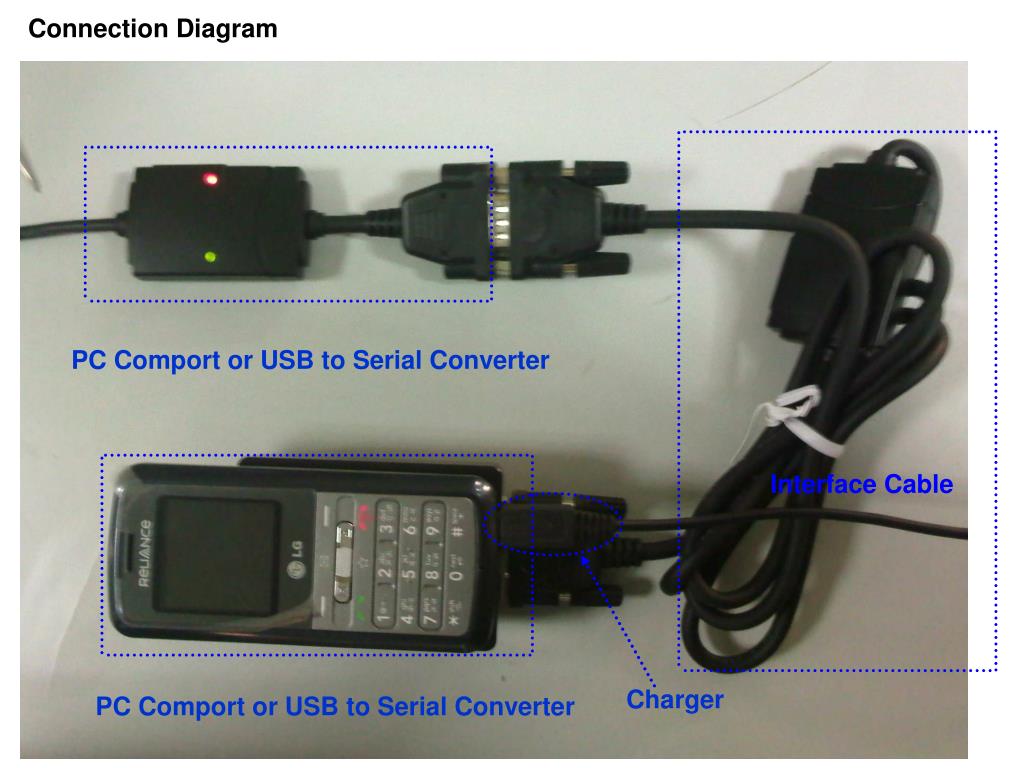

  2. PC Comport or USB to Serial Converter Interface Cable Charger PC Comport or USB to Serial Converter Connection Diagram
