Lecture on Intelligent Signal Processing

1. Lecture onIntelligent Signal Processing www.AssignmentPoint.com www.assignmentpoint.com

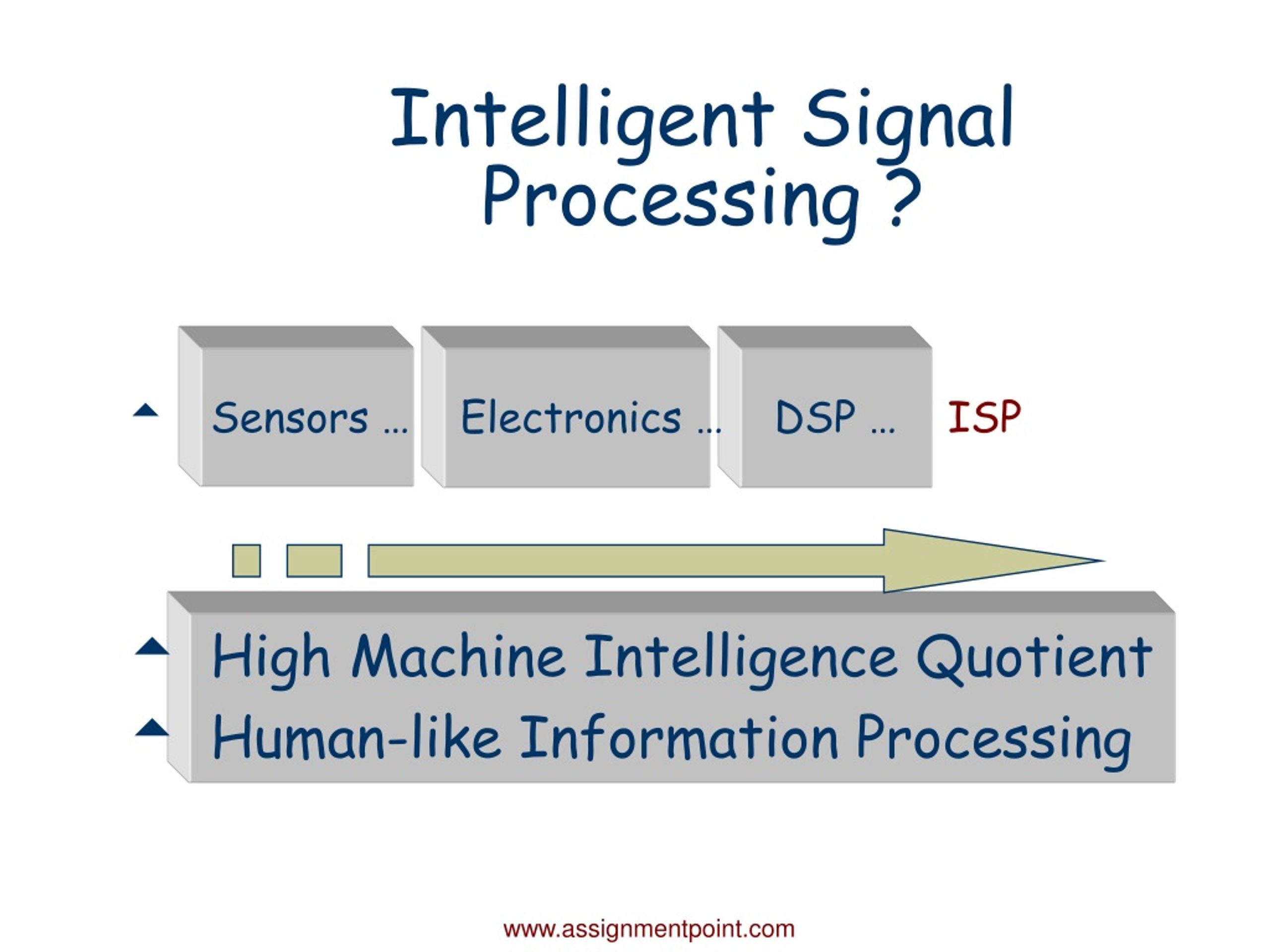

2. Intelligent Signal Processing ? • Sensors …  Electronics …  DSP …  ISP • High Machine Intelligence Quotient • Human-like Information Processing www.assignmentpoint.com

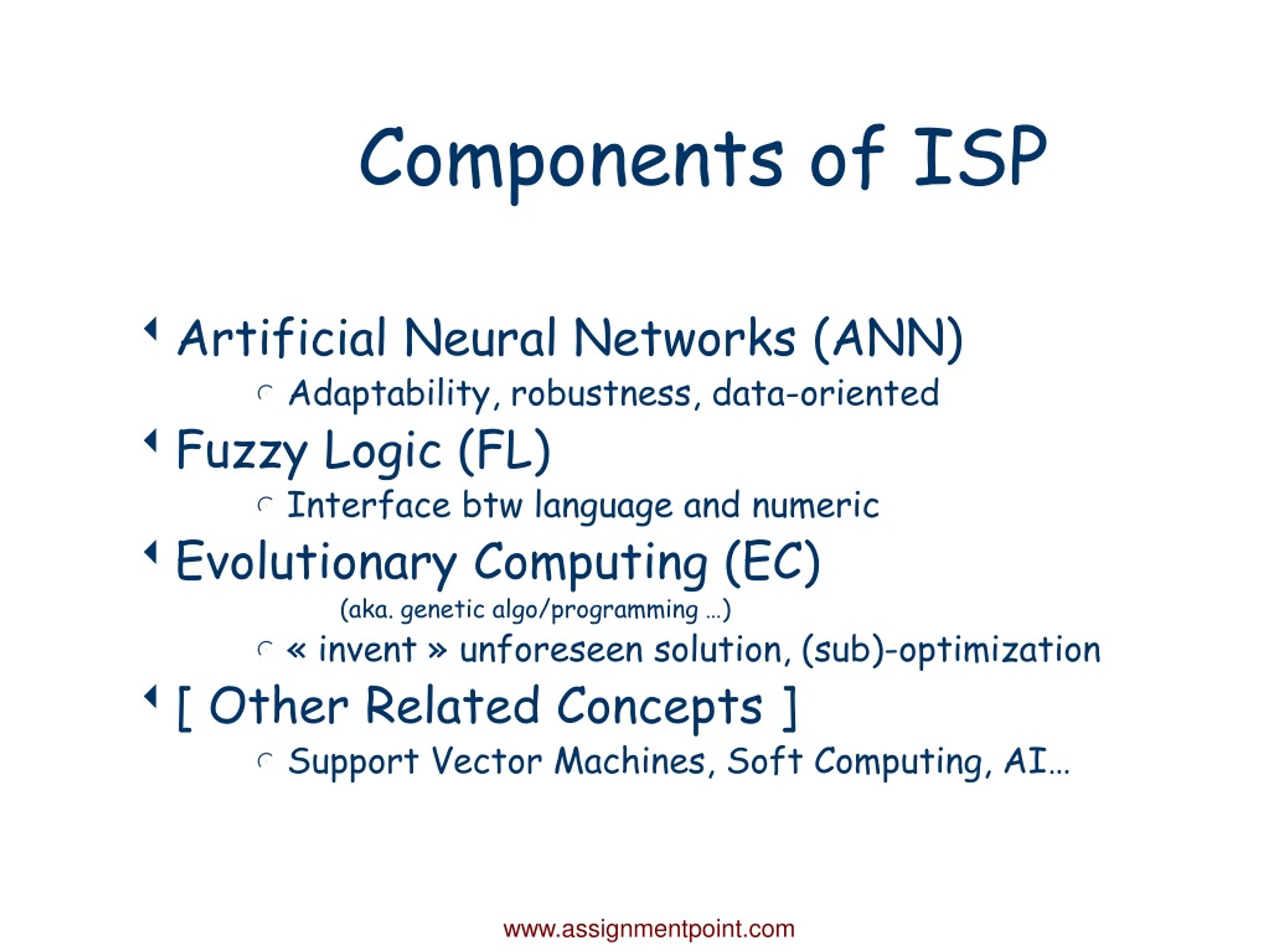

3. Components of ISP • Artificial Neural Networks (ANN) • Adaptability, robustness, data-oriented • Fuzzy Logic (FL) • Interface btw language and numeric • Evolutionary Computing (EC) (aka. genetic algo/programming …) • « invent » unforeseen solution, (sub)-optimization • [ Other Related Concepts ] • Support Vector Machines, Soft Computing, AI… www.assignmentpoint.com

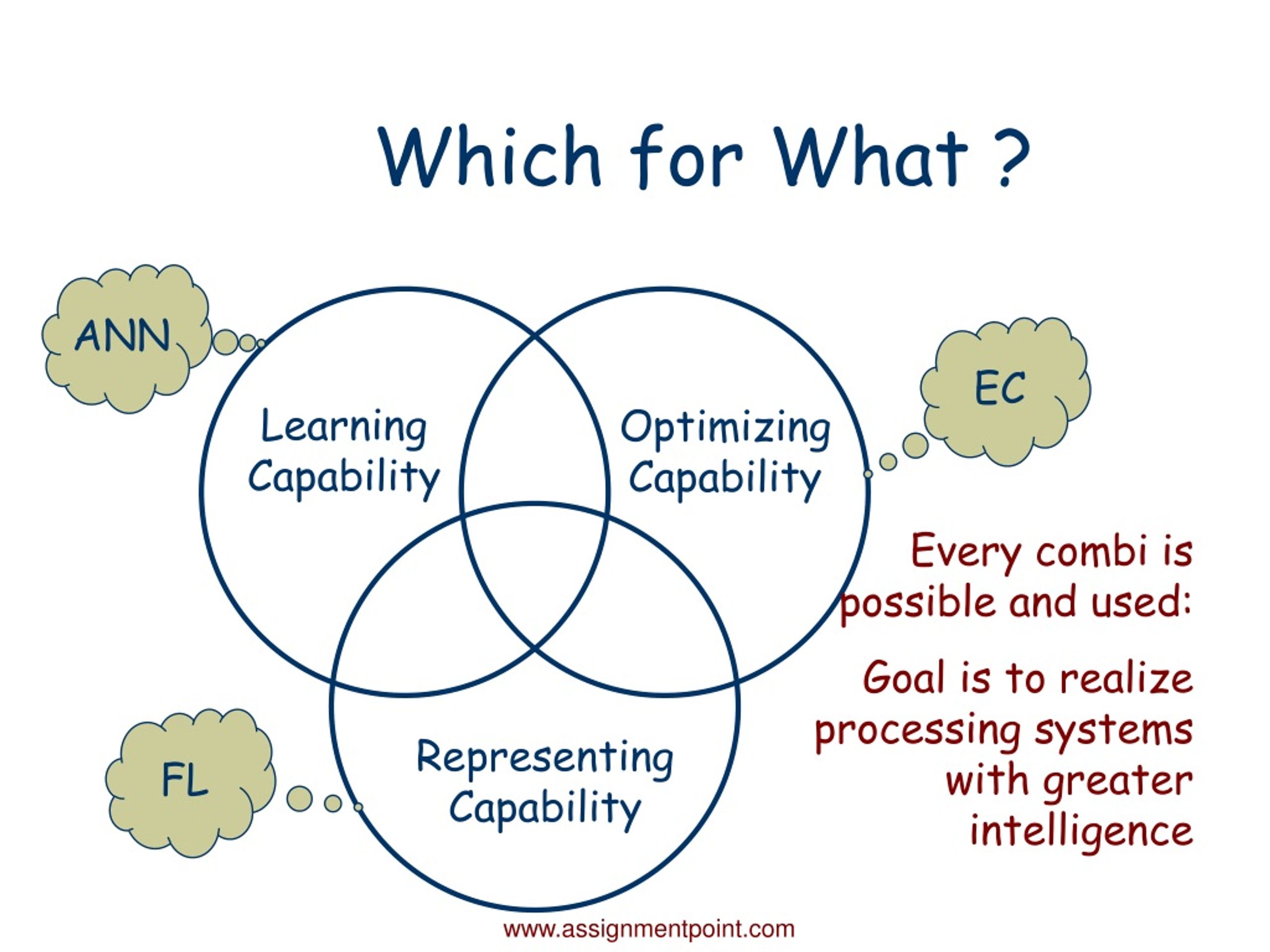

4. Which for What ? ANN EC Learning Capability Optimizing Capability Every combi is possible and used: Goal is to realize processing systems with greater intelligence FL Representing Capability www.assignmentpoint.com

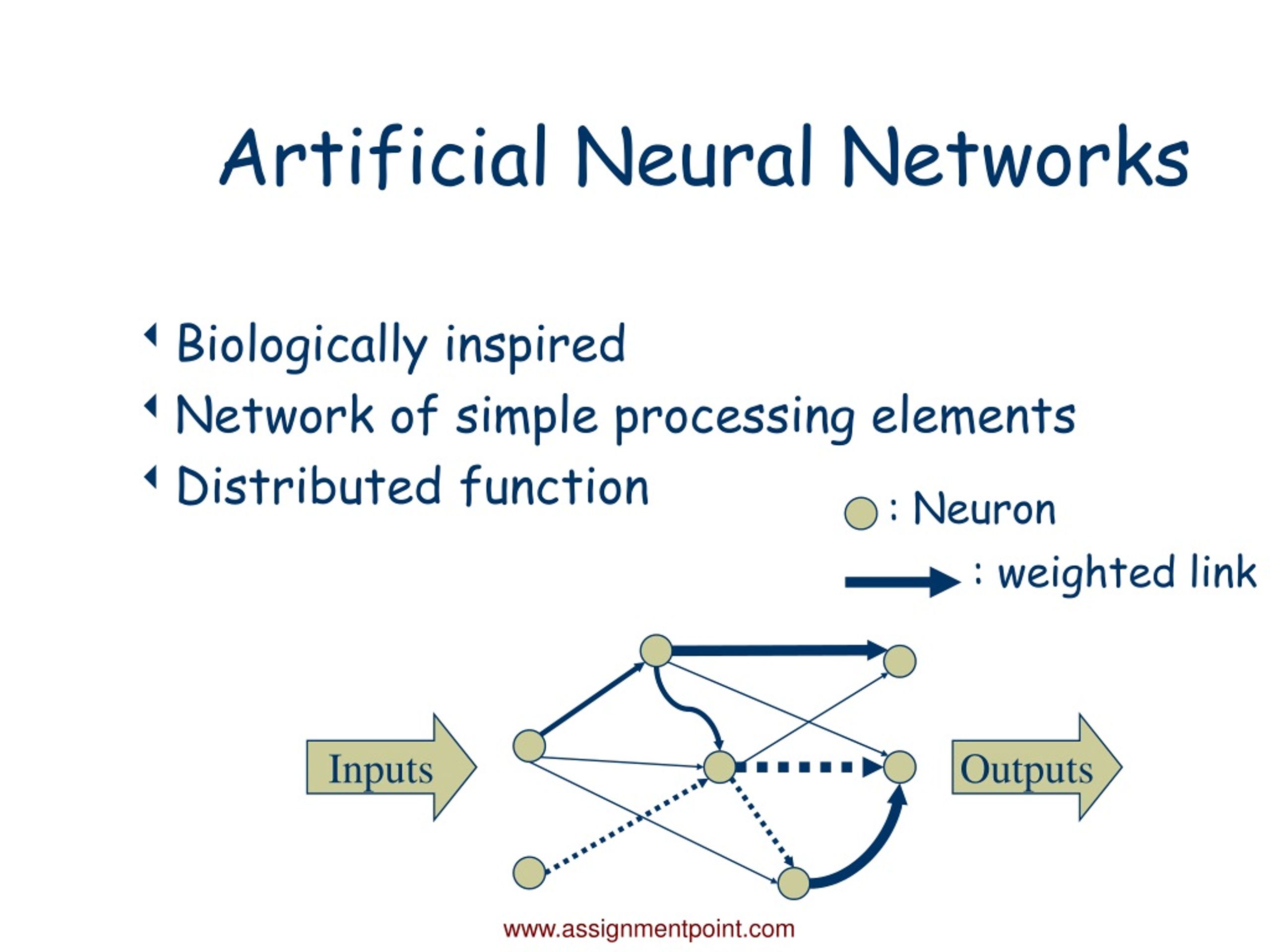

5. : Neuron : weighted link Inputs Outputs Artificial Neural Networks • Biologically inspired • Network of simple processing elements • Distributed function www.assignmentpoint.com

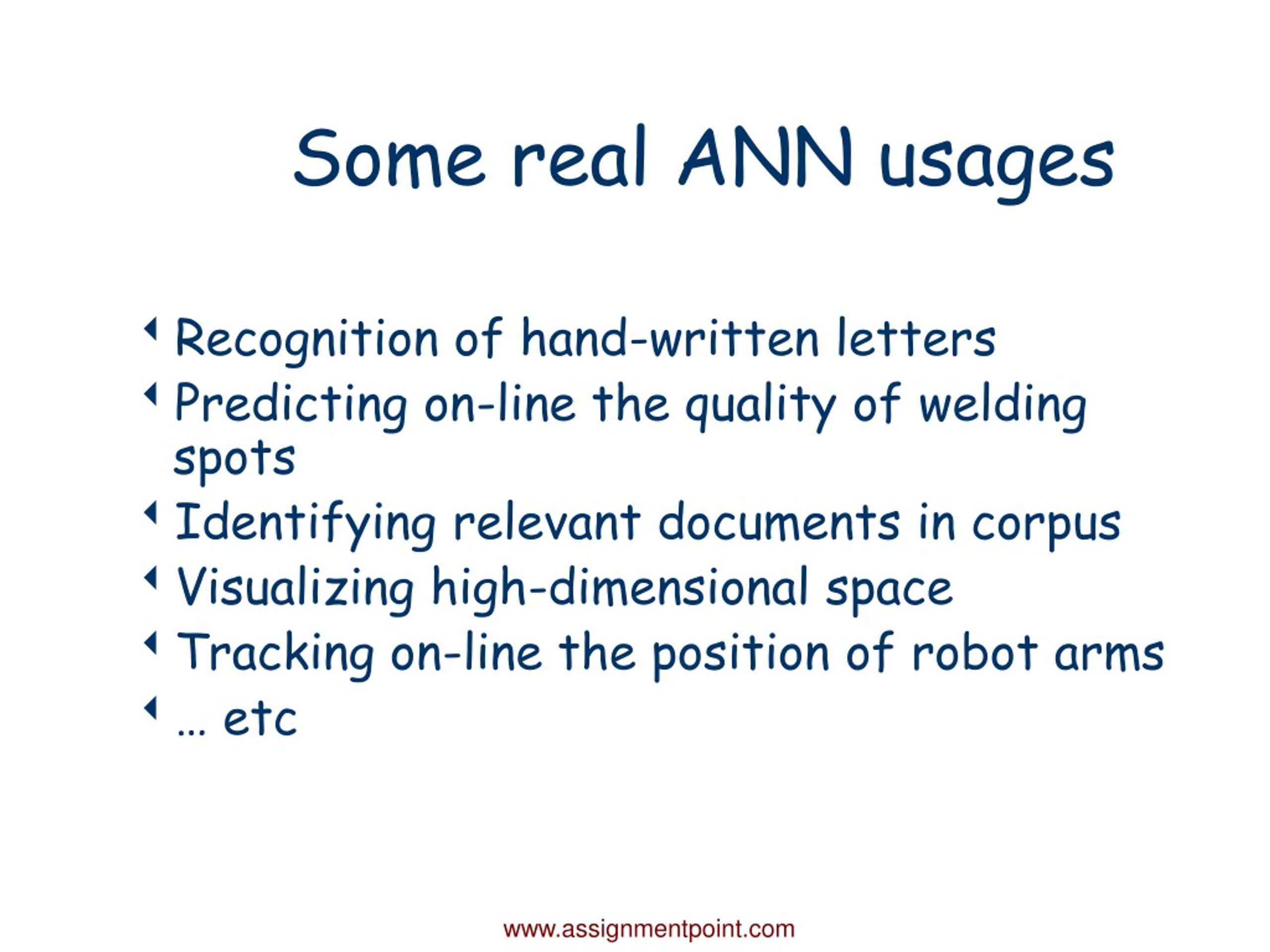

6. Some real ANN usages • Recognition of hand-written letters • Predicting on-line the quality of welding spots • Identifying relevant documents in corpus • Visualizing high-dimensional space • Tracking on-line the position of robot arms • … etc www.assignmentpoint.com

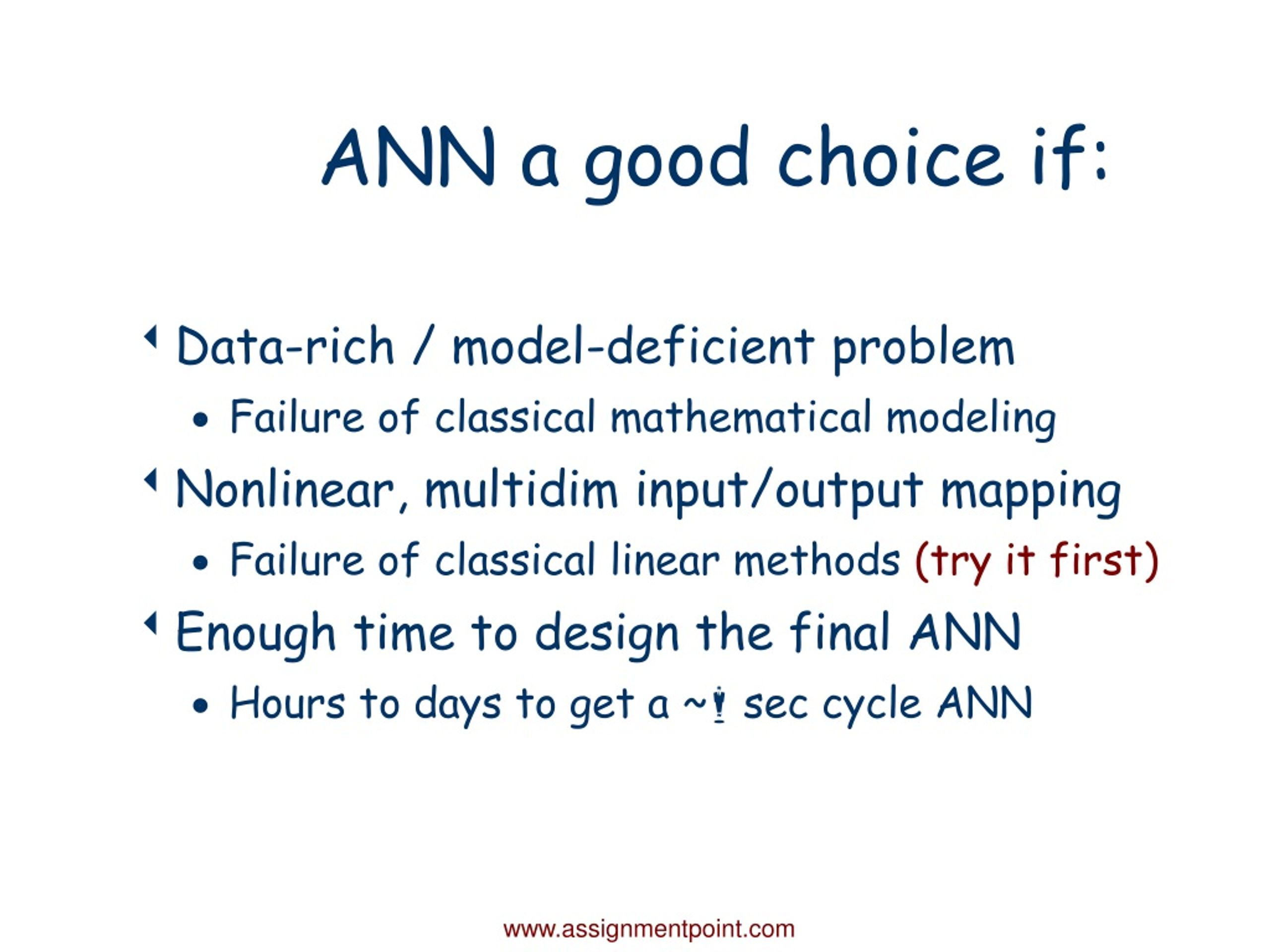

7. ANN a good choice if: • Data-rich / model-deficient problem • Failure of classical mathematical modeling • Nonlinear, multidim input/output mapping • Failure of classical linear methods (try it first) • Enough time to design the final ANN • Hours to days to get a ~m sec cycle ANN www.assignmentpoint.com

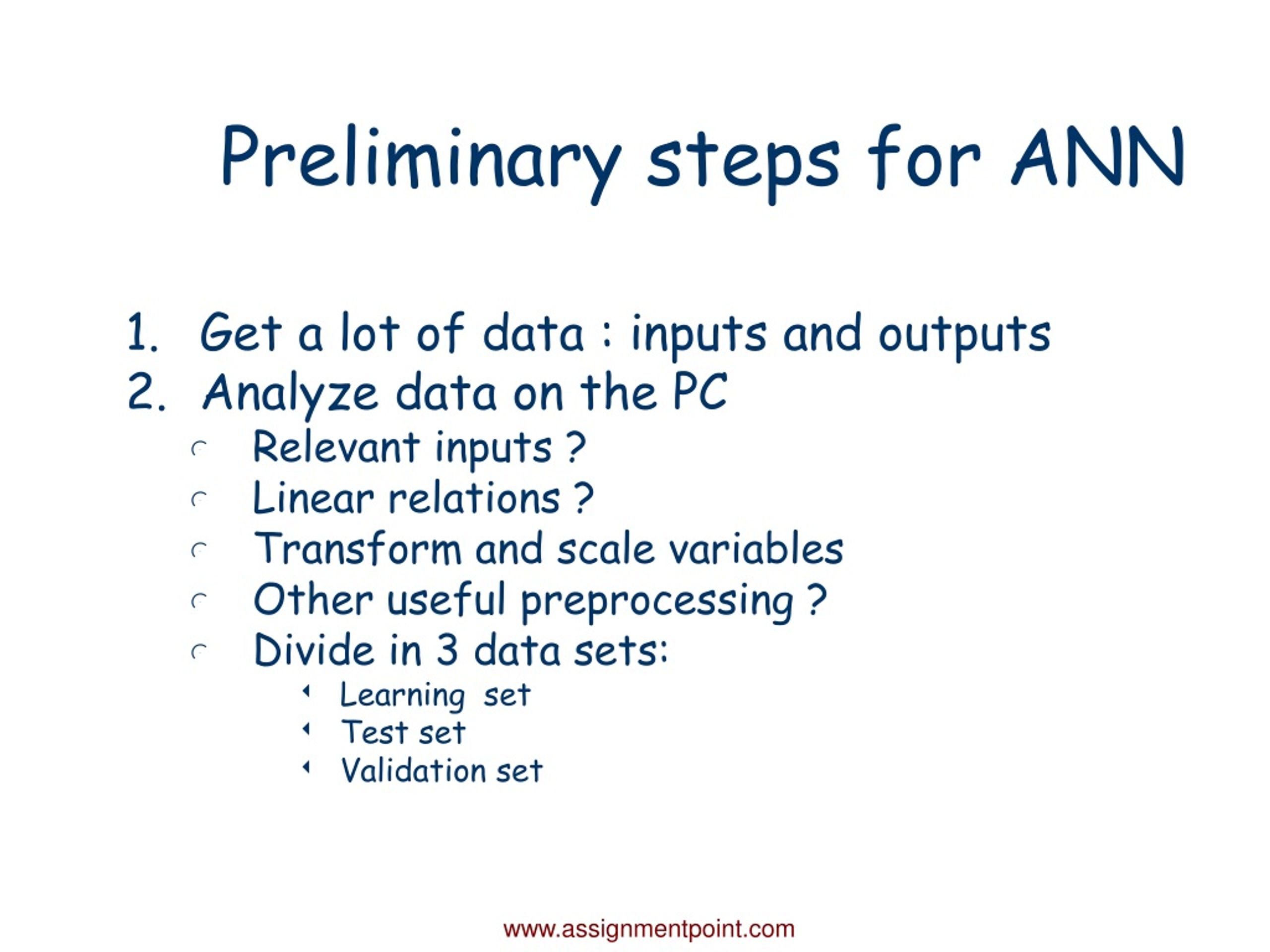

8. Preliminary steps for ANN • Get a lot of data : inputs and outputs • Analyze data on the PC • Relevant inputs ? • Linear relations ? • Transform and scale variables • Other useful preprocessing ? • Divide in 3 data sets: • Learning set • Test set • Validation set www.assignmentpoint.com

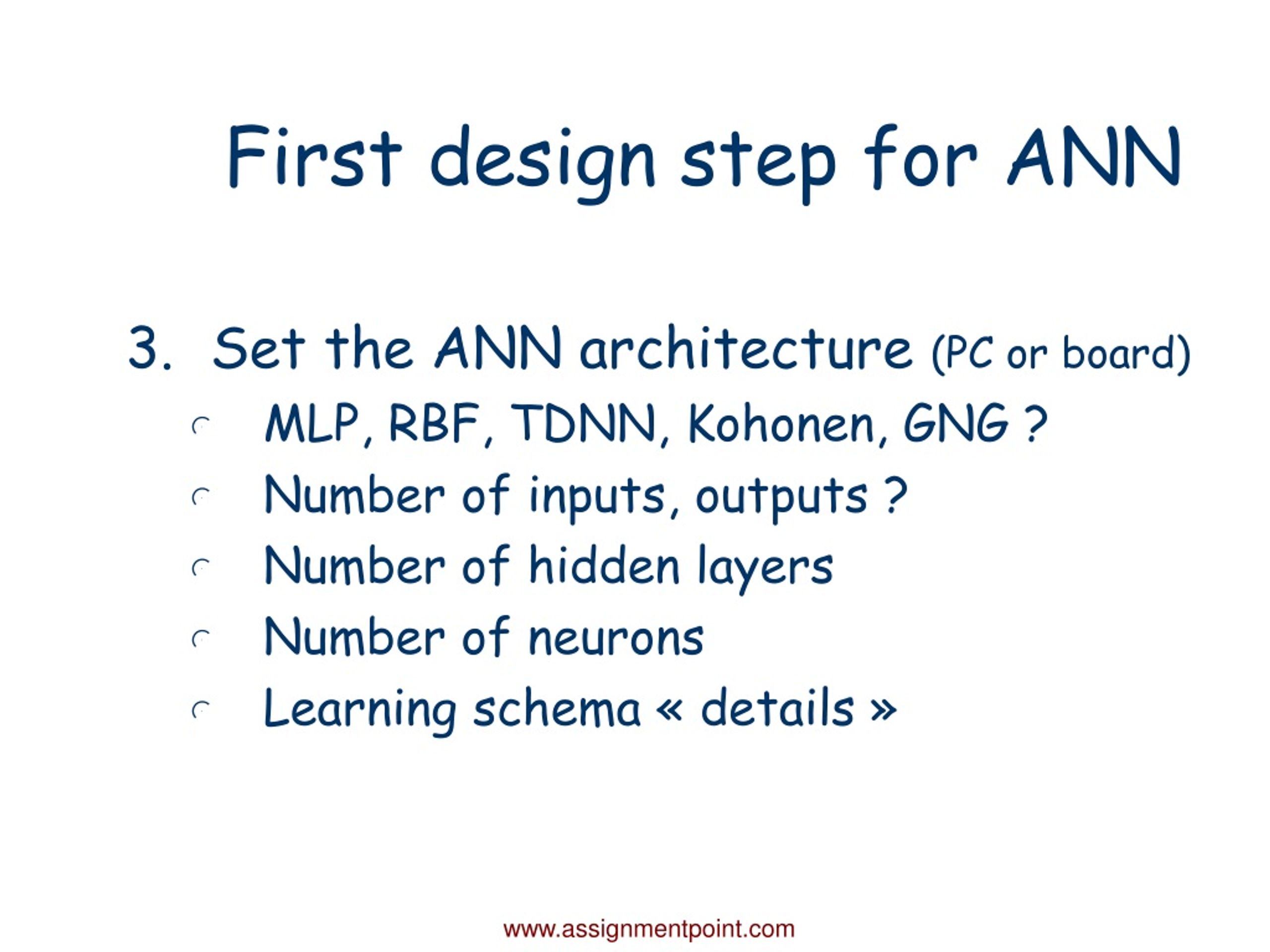

9. First design step for ANN • Set the ANN architecture (PC or board) • MLP, RBF, TDNN, Kohonen, GNG ? • Number of inputs, outputs ? • Number of hidden layers • Number of neurons • Learning schema « details » www.assignmentpoint.com

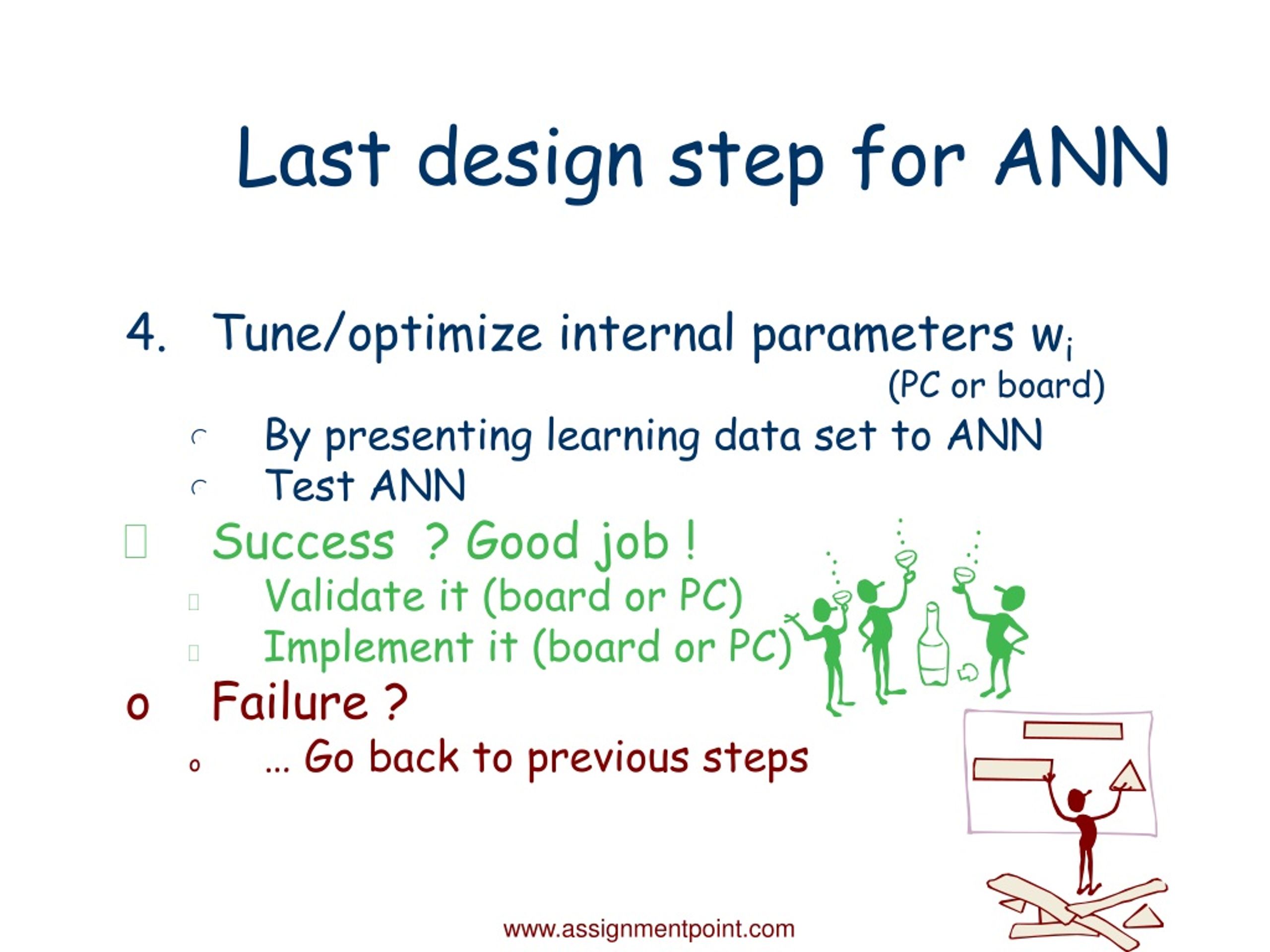

10. Last design step for ANN • Tune/optimize internal parameters wi(PC or board) • By presenting learning data set to ANN • Test ANN • Success ? Good job ! • Validate it (board or PC) • Implement it (board or PC) • Failure ? • … Go back to previous steps www.assignmentpoint.com

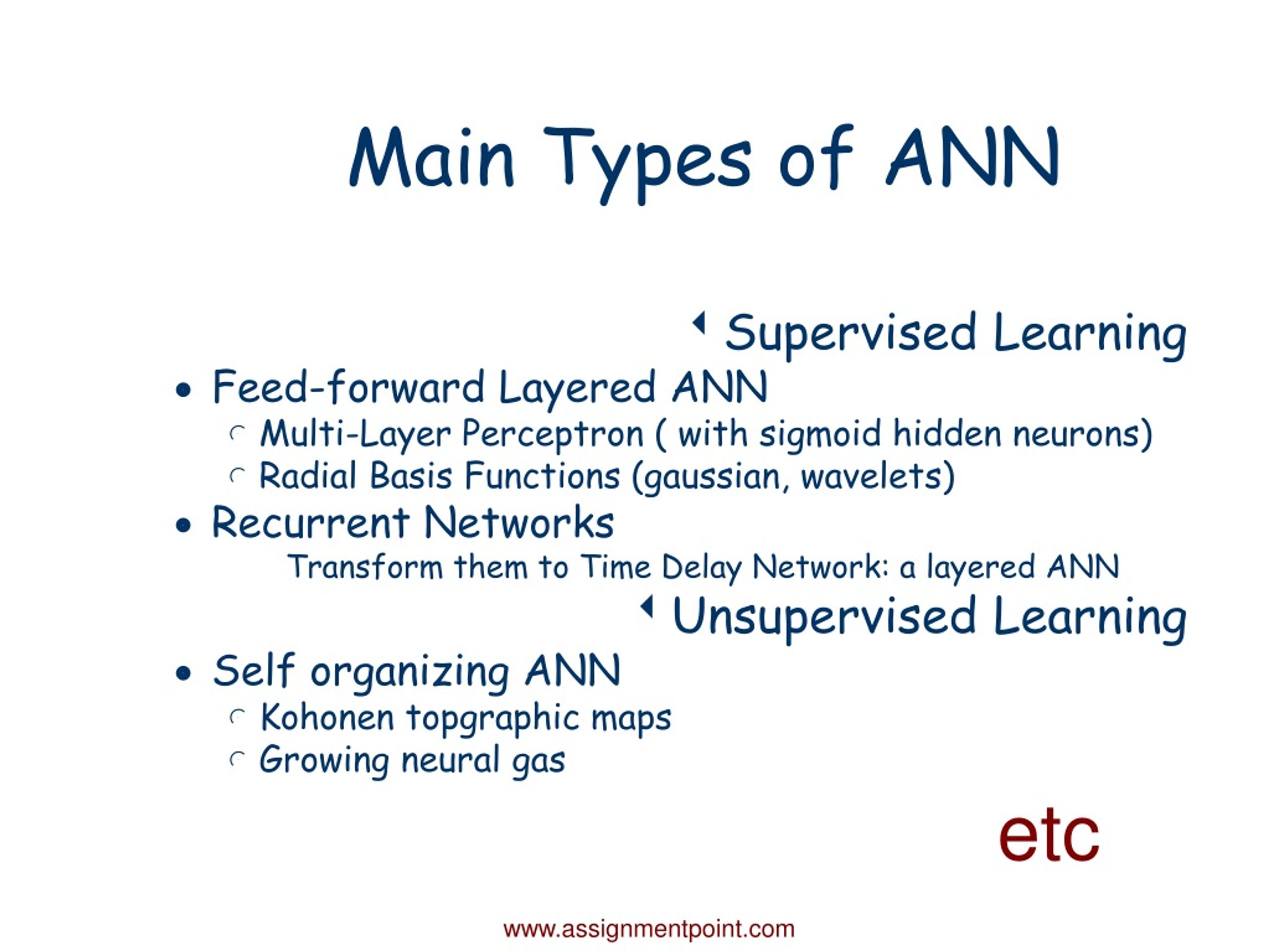

11. Main Types of ANN • Supervised Learning • Feed-forward Layered ANN • Multi-Layer Perceptron ( with sigmoid hidden neurons) • Radial Basis Functions (gaussian, wavelets) • Recurrent Networks Transform them to Time Delay Network: a layered ANN • Unsupervised Learning • Self organizing ANN • Kohonen topgraphic maps • Growing neural gas etc www.assignmentpoint.com

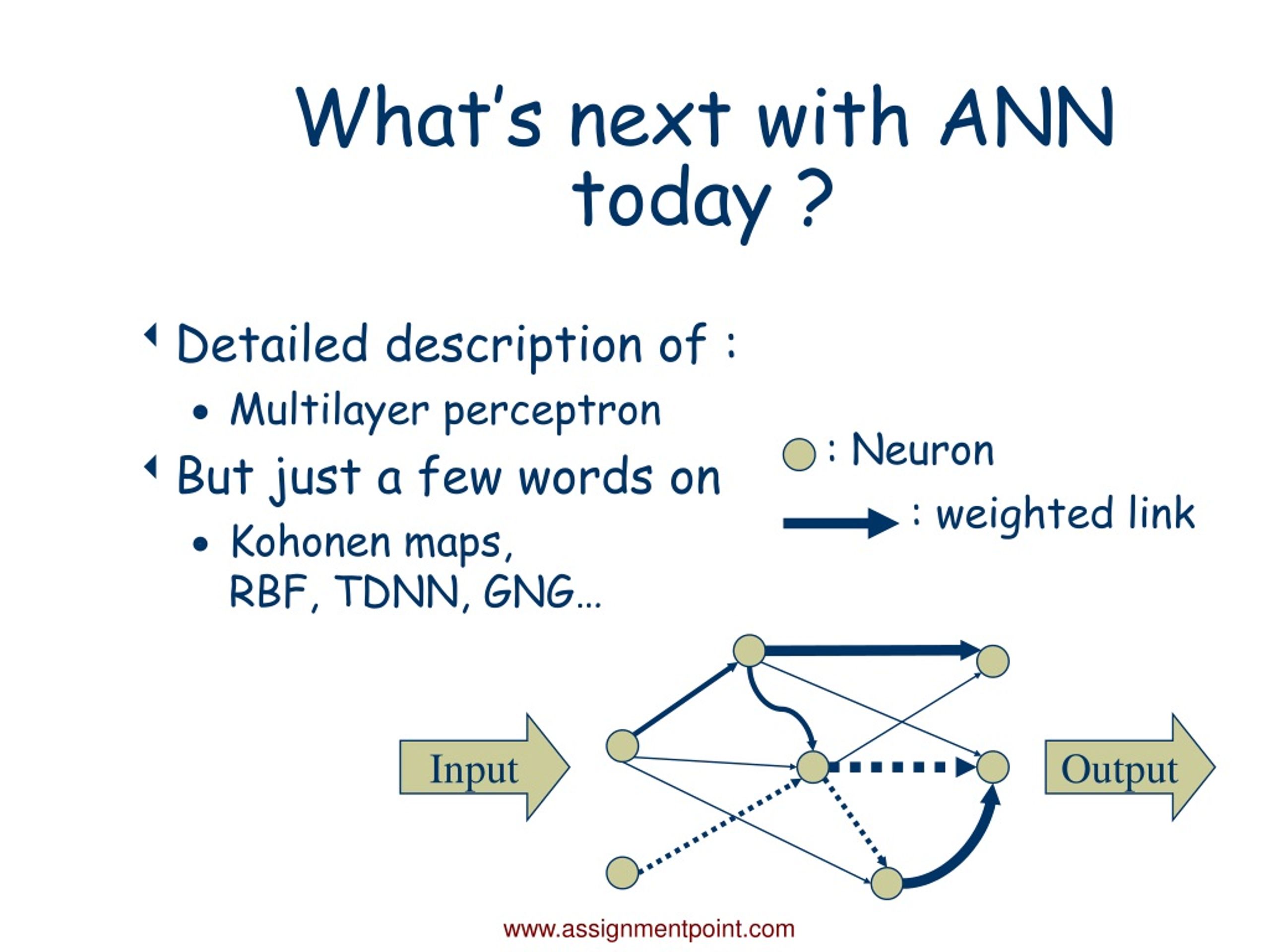

12. : Neuron : weighted link Input Output What’s next with ANN today ? • Detailed description of : • Multilayer perceptron • But just a few words on • Kohonen maps,RBF, TDNN, GNG… www.assignmentpoint.com

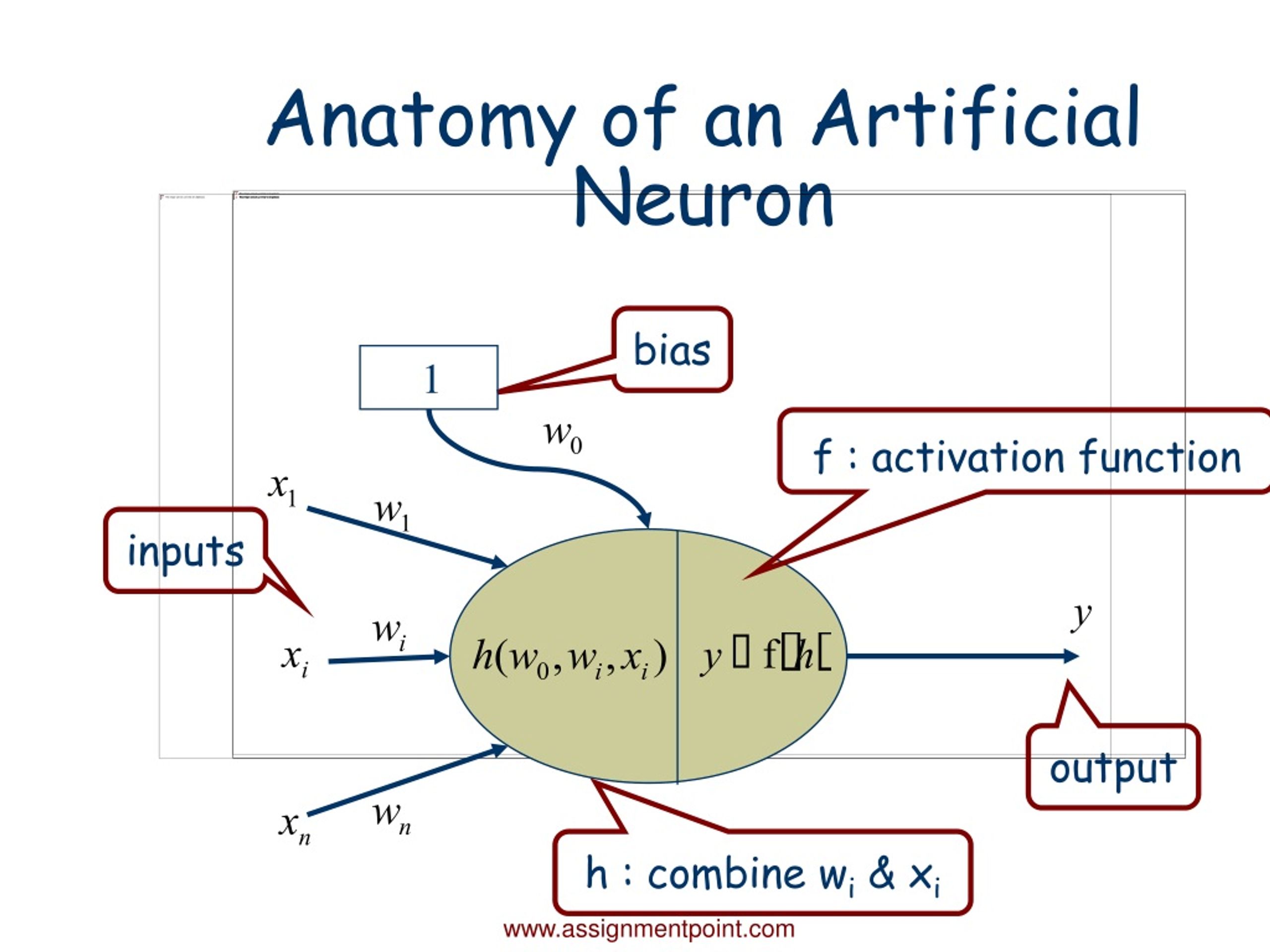

13. 1 Anatomy of an Artificial Neuron bias f : activation function inputs output h : combine wi & xi www.assignmentpoint.com

14. Common Activation Functions • Sigmoidal Function: • Radial Function, e.g.. Gaussian: • … Linear Function www.assignmentpoint.com

15. Hidden layers { Multilayer Perceptron www.assignmentpoint.com

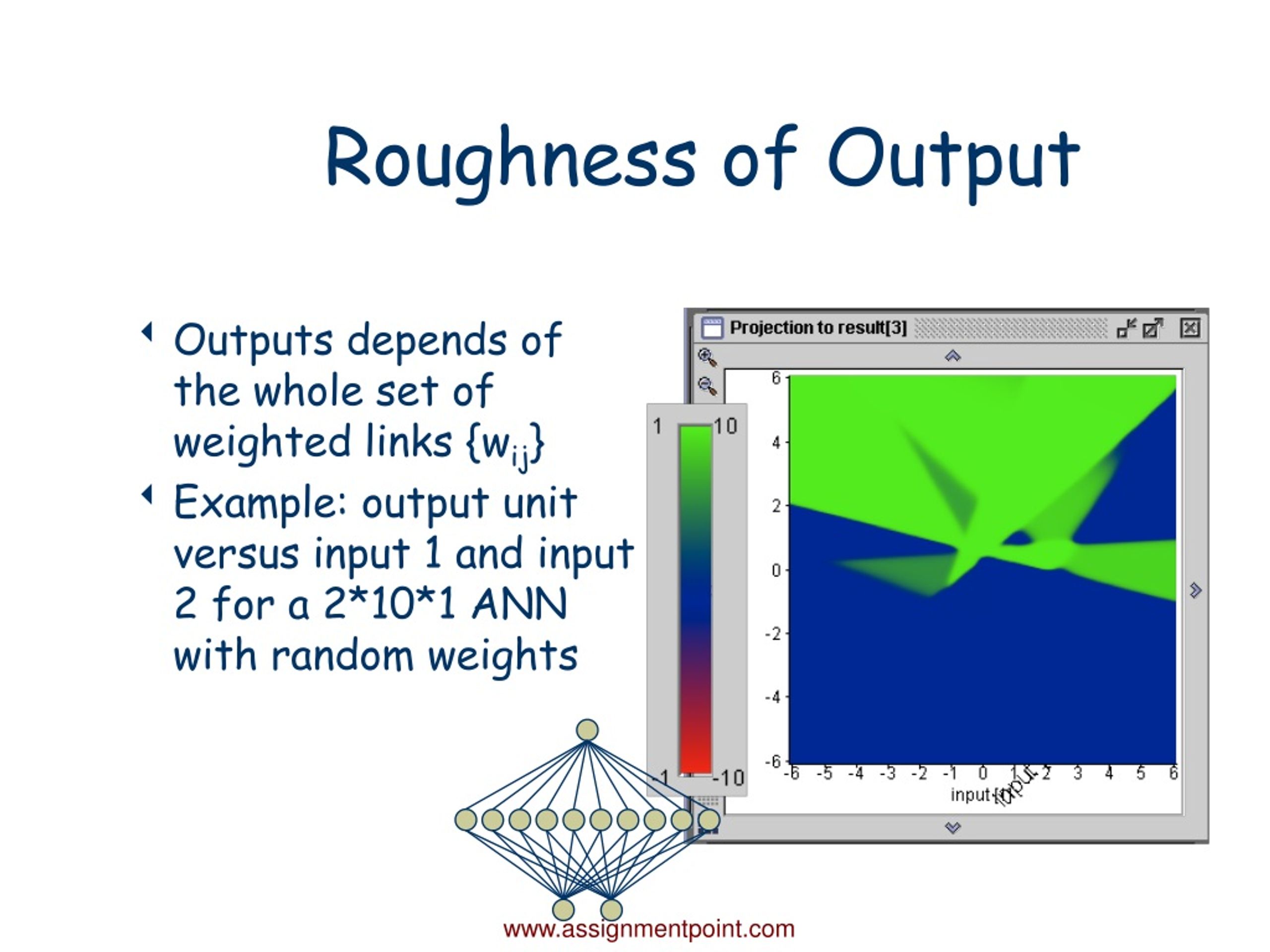

16. Roughness of Output • Outputs depends of the whole set of weighted links {wij} • Example: output unit versus input 1 and input 2 for a 2*10*1 ANN with random weights www.assignmentpoint.com

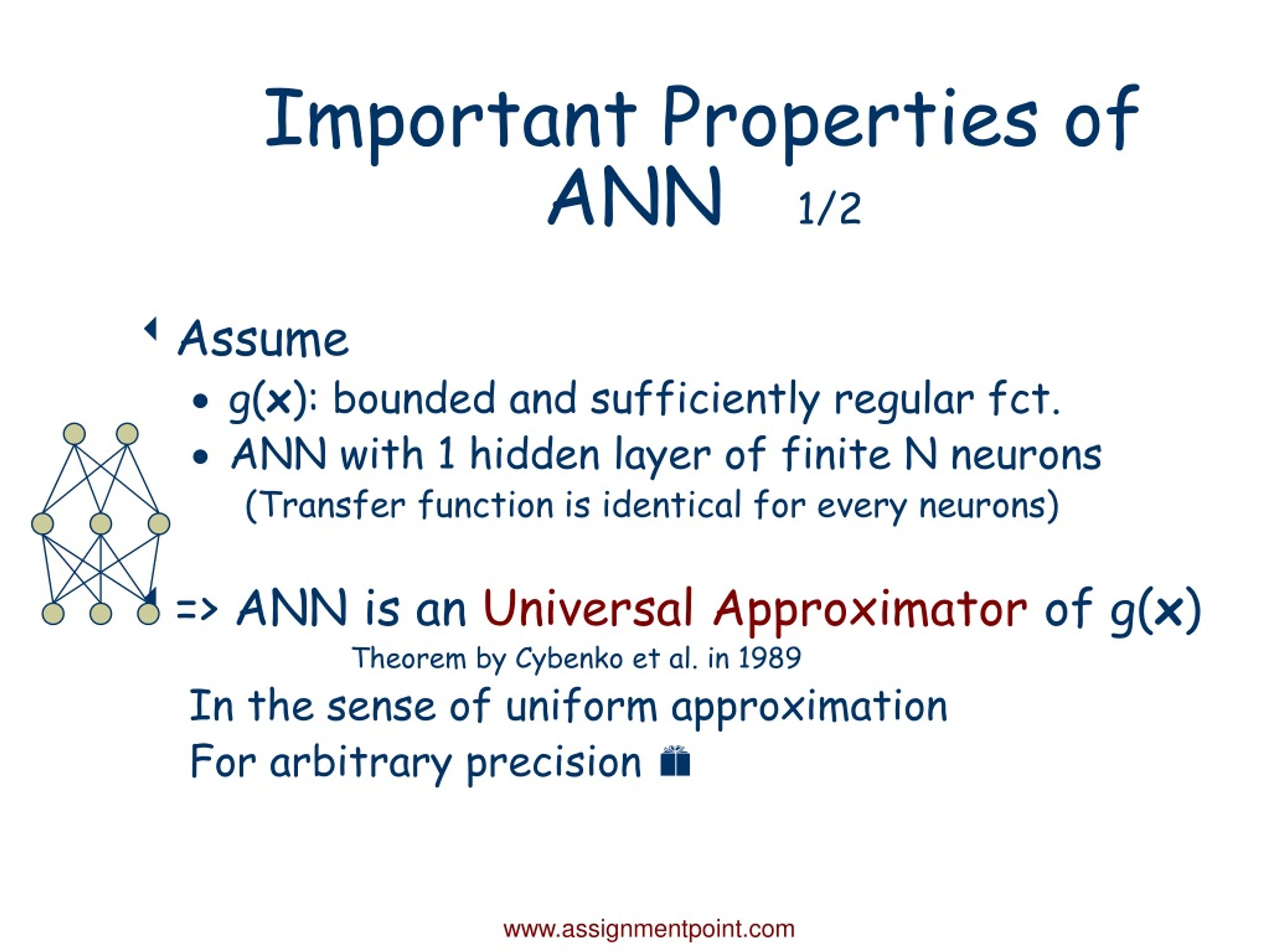

17. Important Properties of ANN 1/2 • Assume • g(x): bounded and sufficiently regular fct. • ANN with 1 hidden layer of finite N neurons (Transfer function is identical for every neurons) • => ANN is an Universal Approximator of g(x) Theorem by Cybenko et al. in 1989 In the sense of uniform approximation For arbitrary precision e www.assignmentpoint.com

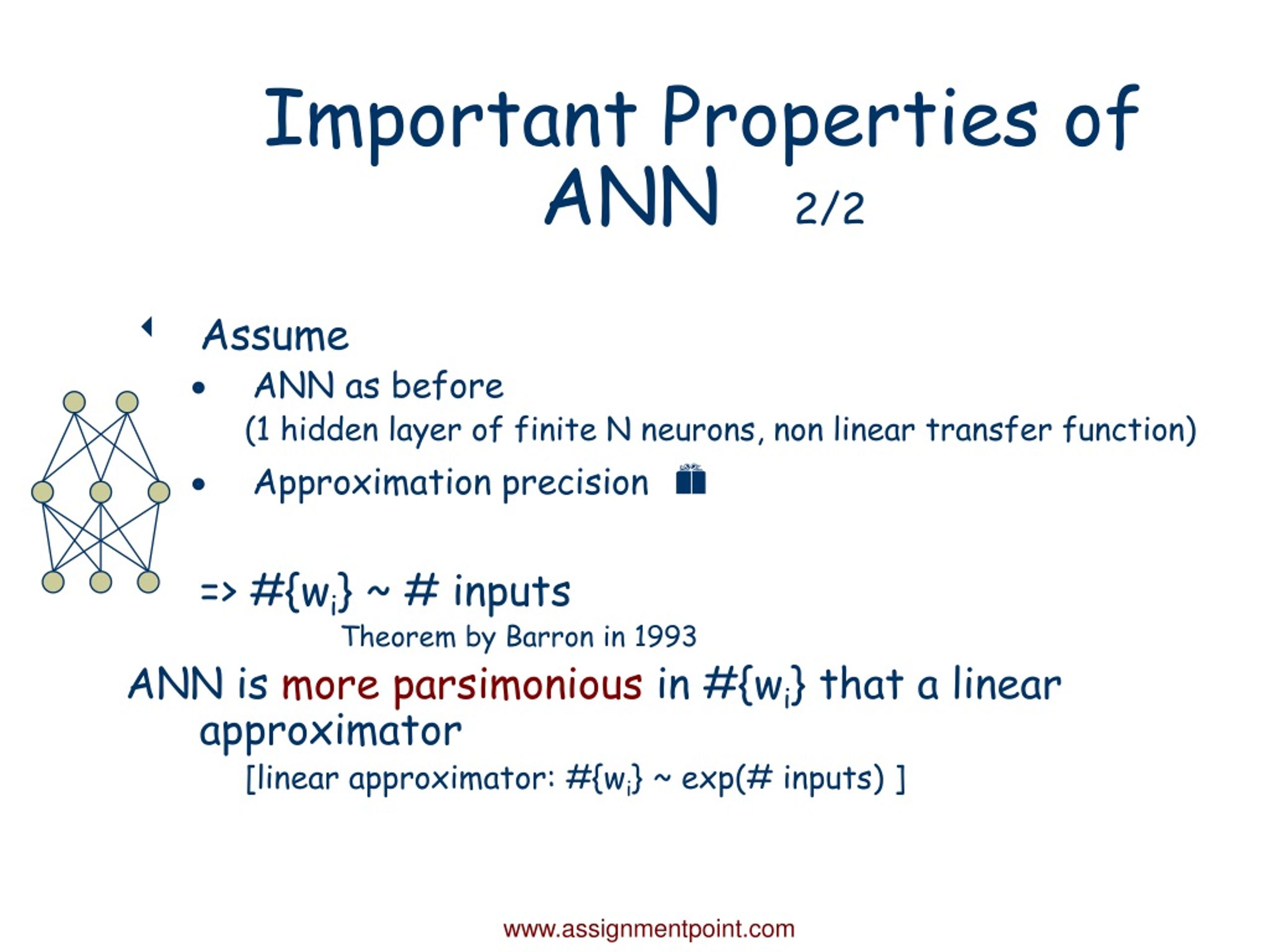

18. Important Properties of ANN 2/2 • Assume • ANN as before (1 hidden layer of finite N neurons, non linear transfer function) • Approximation precision e • => #{wi} ~ # inputs Theorem by Barron in 1993 ANN is more parsimonious in #{wi} that a linear approximator [linear approximator: #{wi} ~ exp(# inputs) ] www.assignmentpoint.com

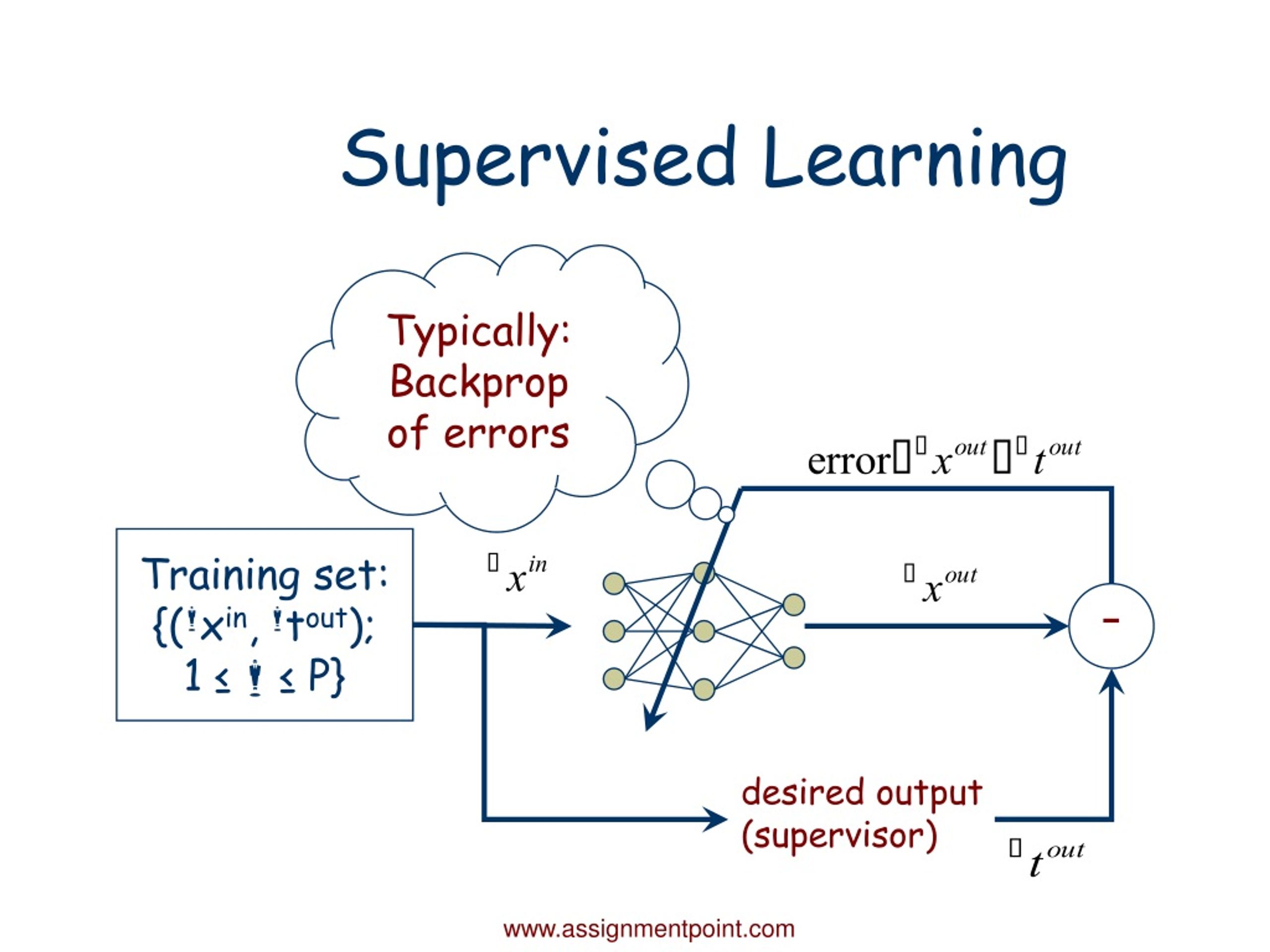

19. desired output (supervisor) Supervised Learning Typically: Backprop of errors Training set: {(mxin,mtout); 1 ≤ m ≤ P} - www.assignmentpoint.com

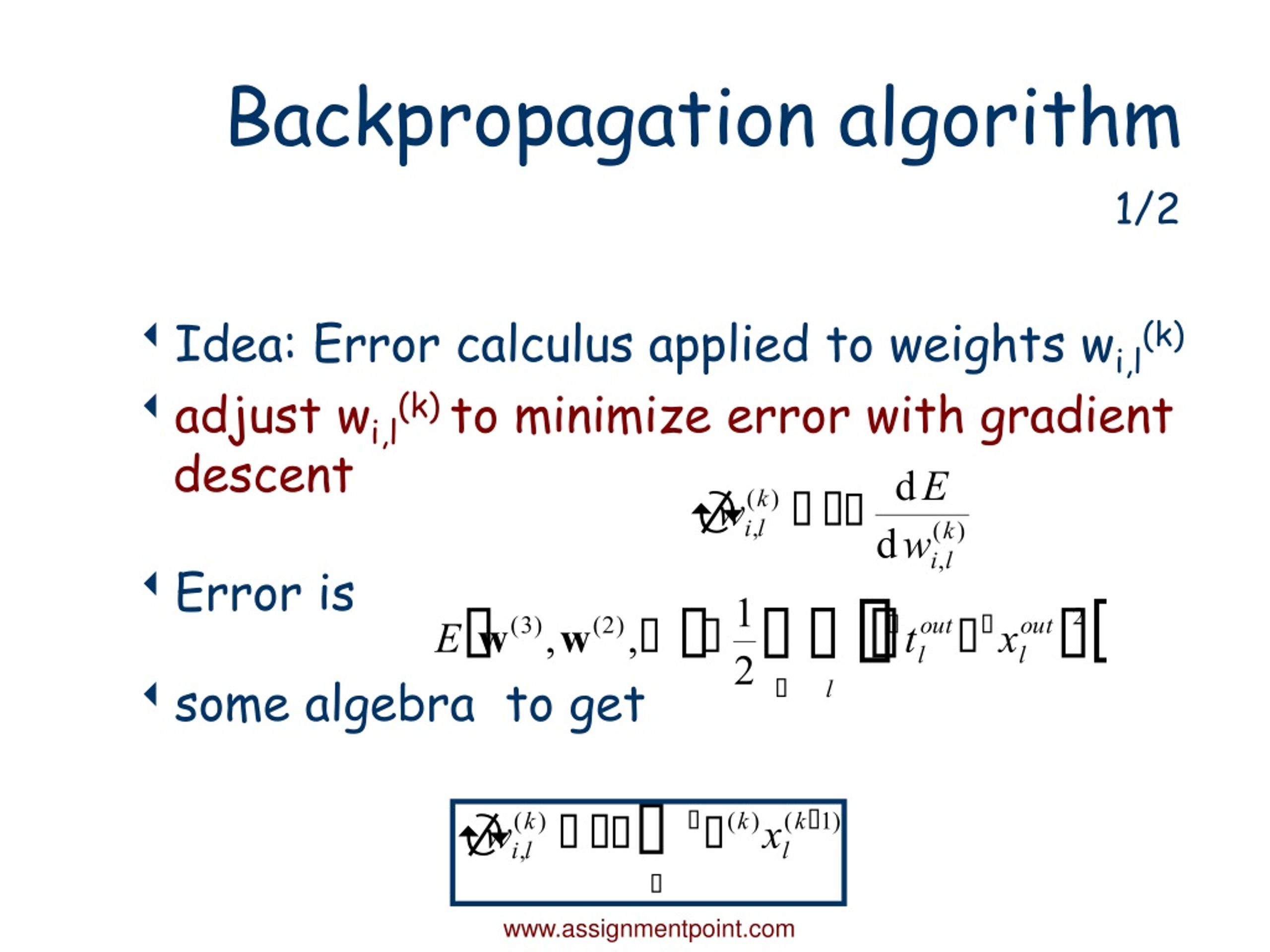

20. Backpropagation algorithm 1/2 • Idea: Error calculus applied to weights wi,l(k) • adjust wi,l(k) to minimize error with gradient descent • Error is • some algebra to get www.assignmentpoint.com

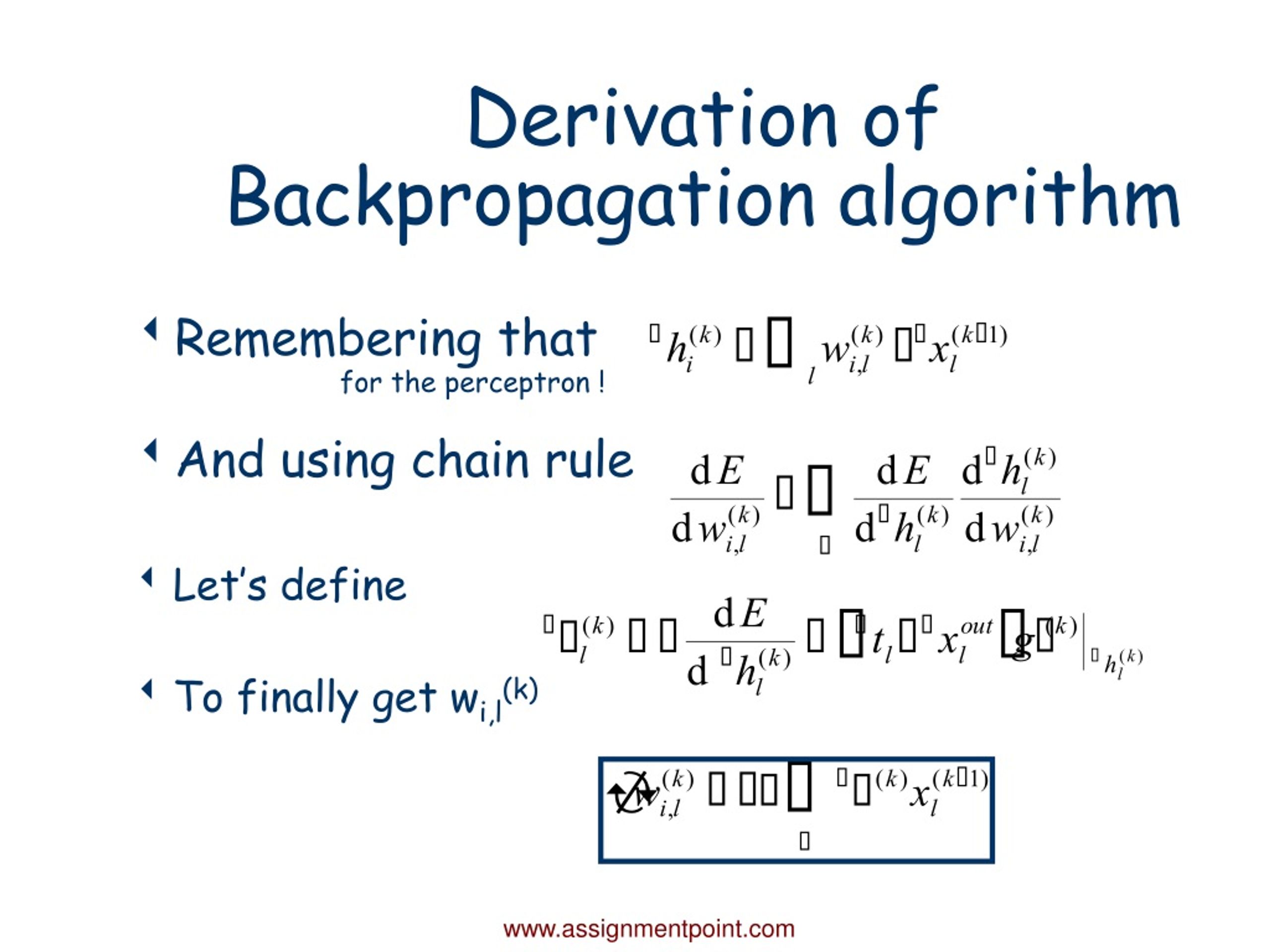

21. Derivation of Backpropagation algorithm • Remembering that for the perceptron ! • And using chain rule • Let’s define • To finally get wi,l(k) www.assignmentpoint.com

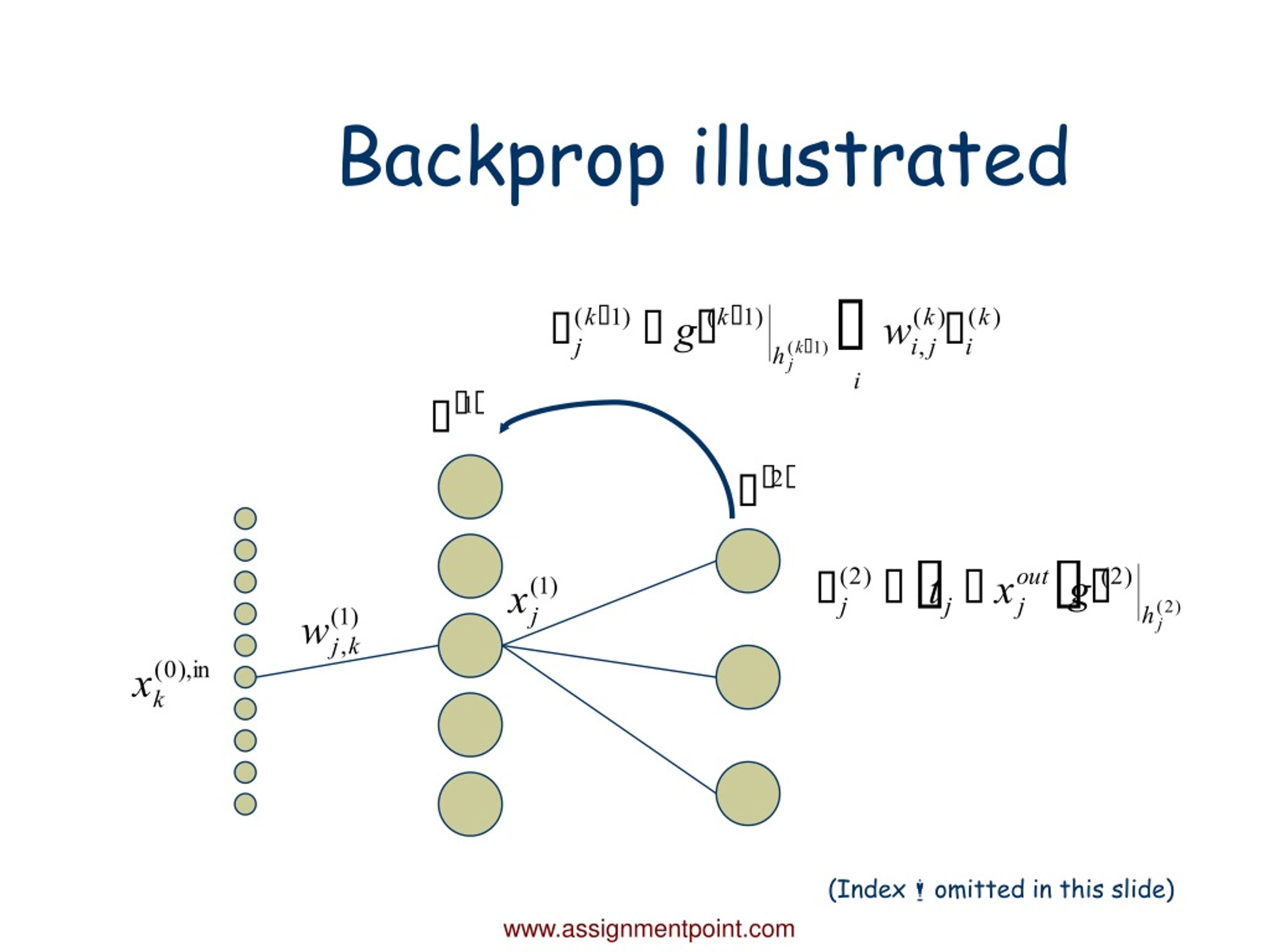

22. Backprop illustrated (Index m omitted in this slide) www.assignmentpoint.com

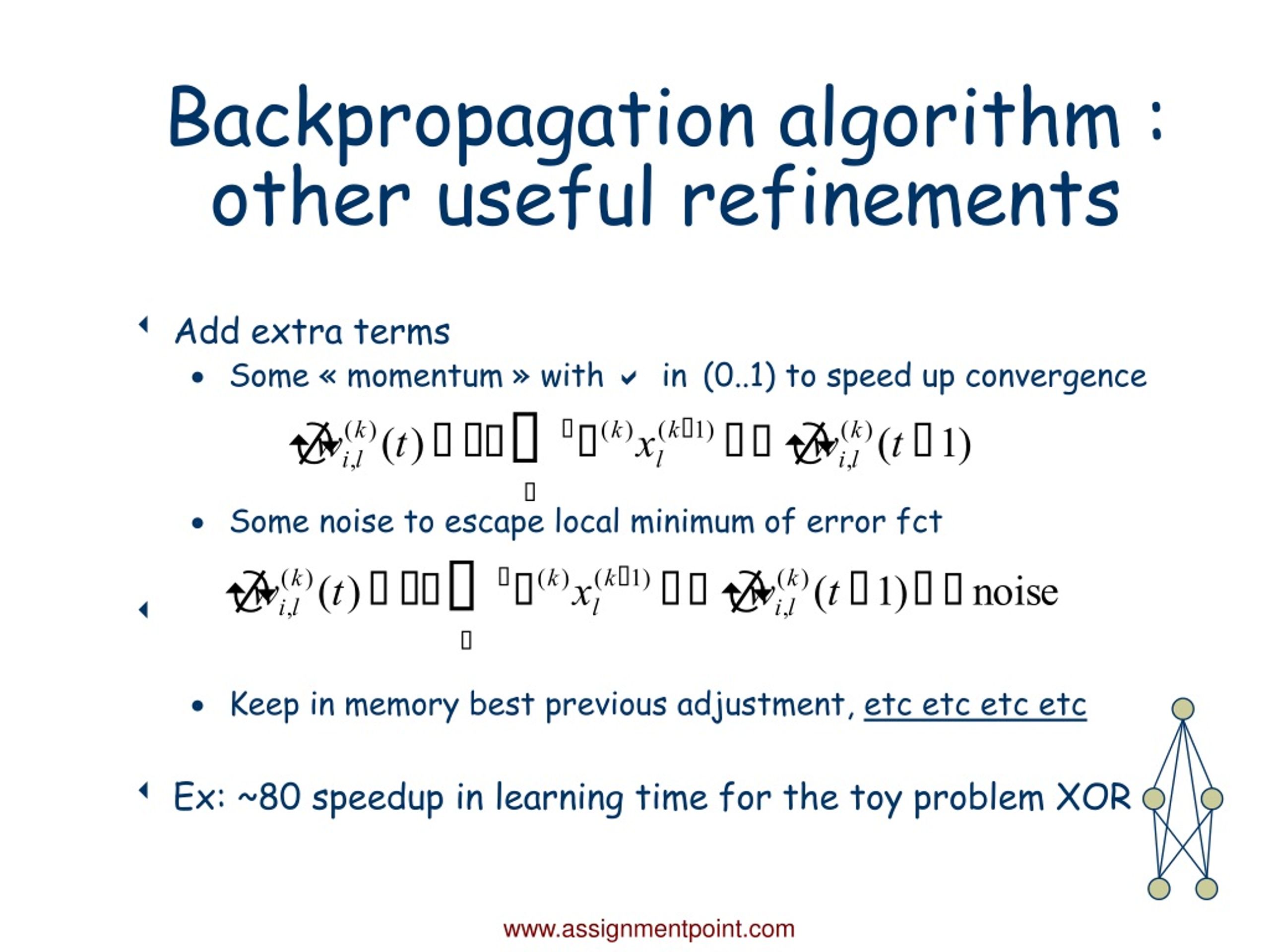

23. Backpropagation algorithm : other useful refinements • Add extra terms • Some « momentum » with a in(0..1) to speed up convergence • Some noise to escape local minimum of error fct • Keep in memory best previous adjustment, etc etc etc etc • Ex: ~80 speedup in learning time for the toy problem XOR www.assignmentpoint.com

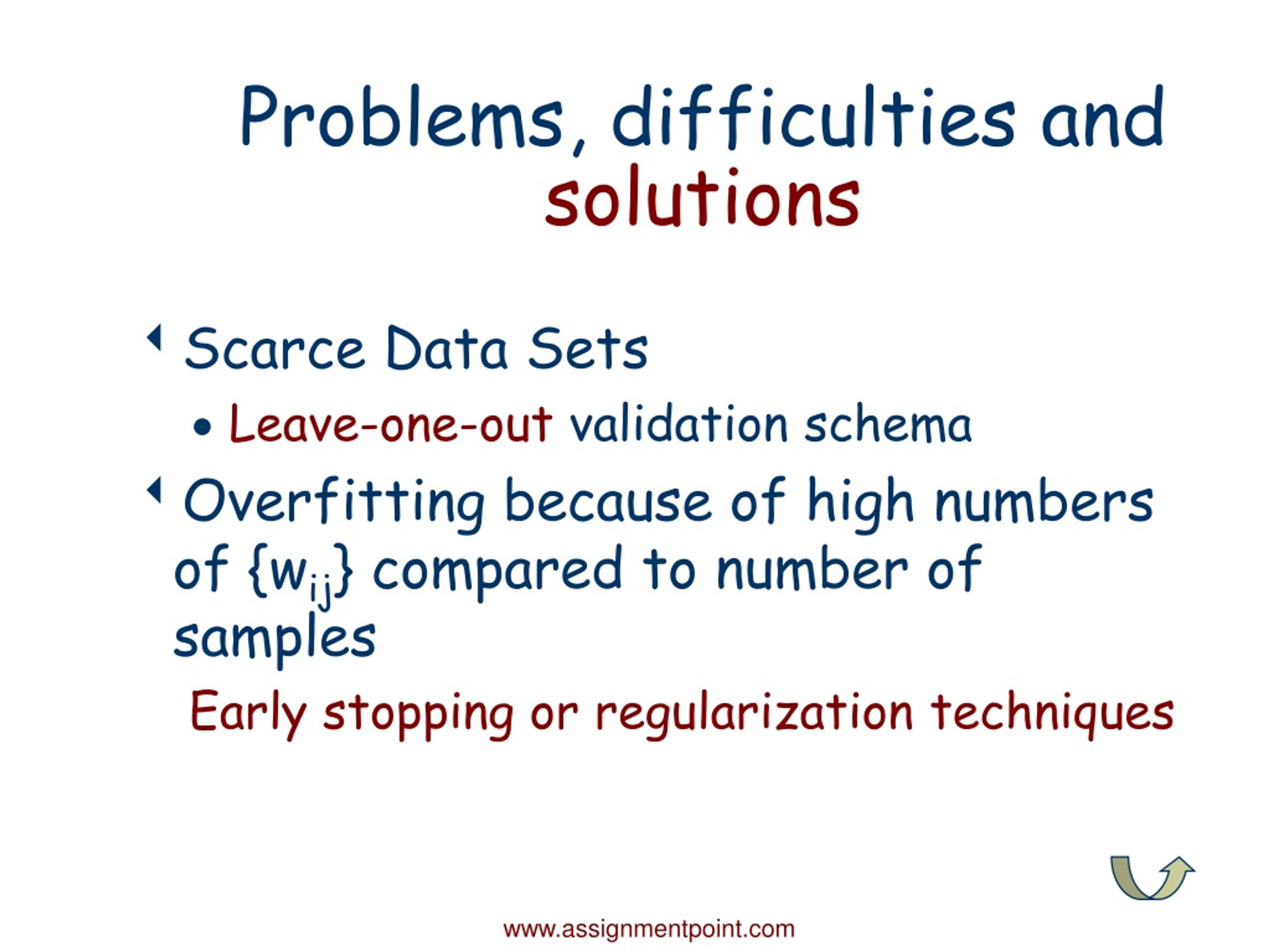

24. Problems, difficulties and solutions • Scarce Data Sets • Leave-one-out validation schema • Overfitting because of high numbers of {wij} compared to number of samples Early stopping or regularization techniques www.assignmentpoint.com

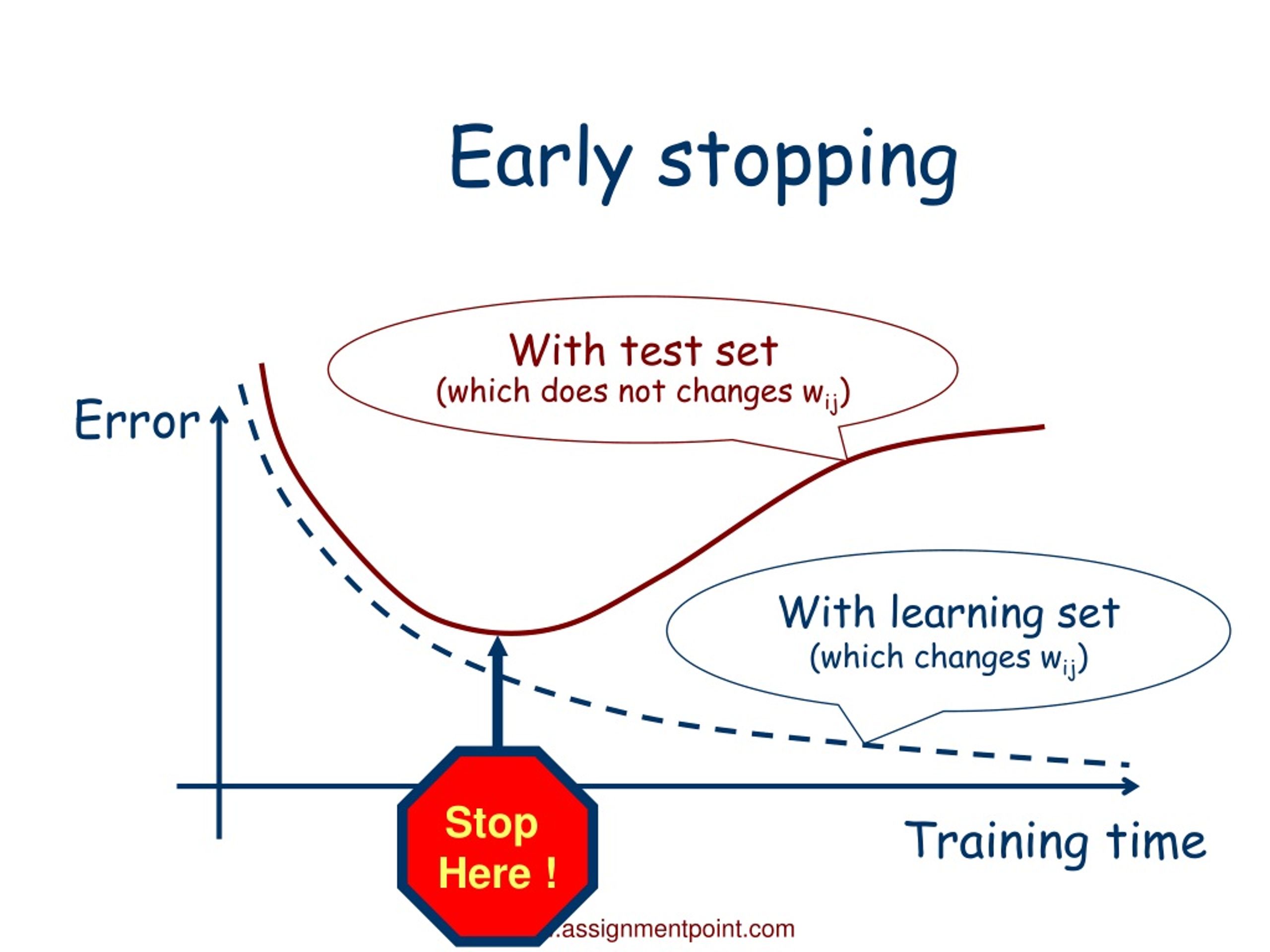

25. With test set (which does not changes wij) Error With learning set (which changes wij) Stop Here ! Training time Early stopping www.assignmentpoint.com

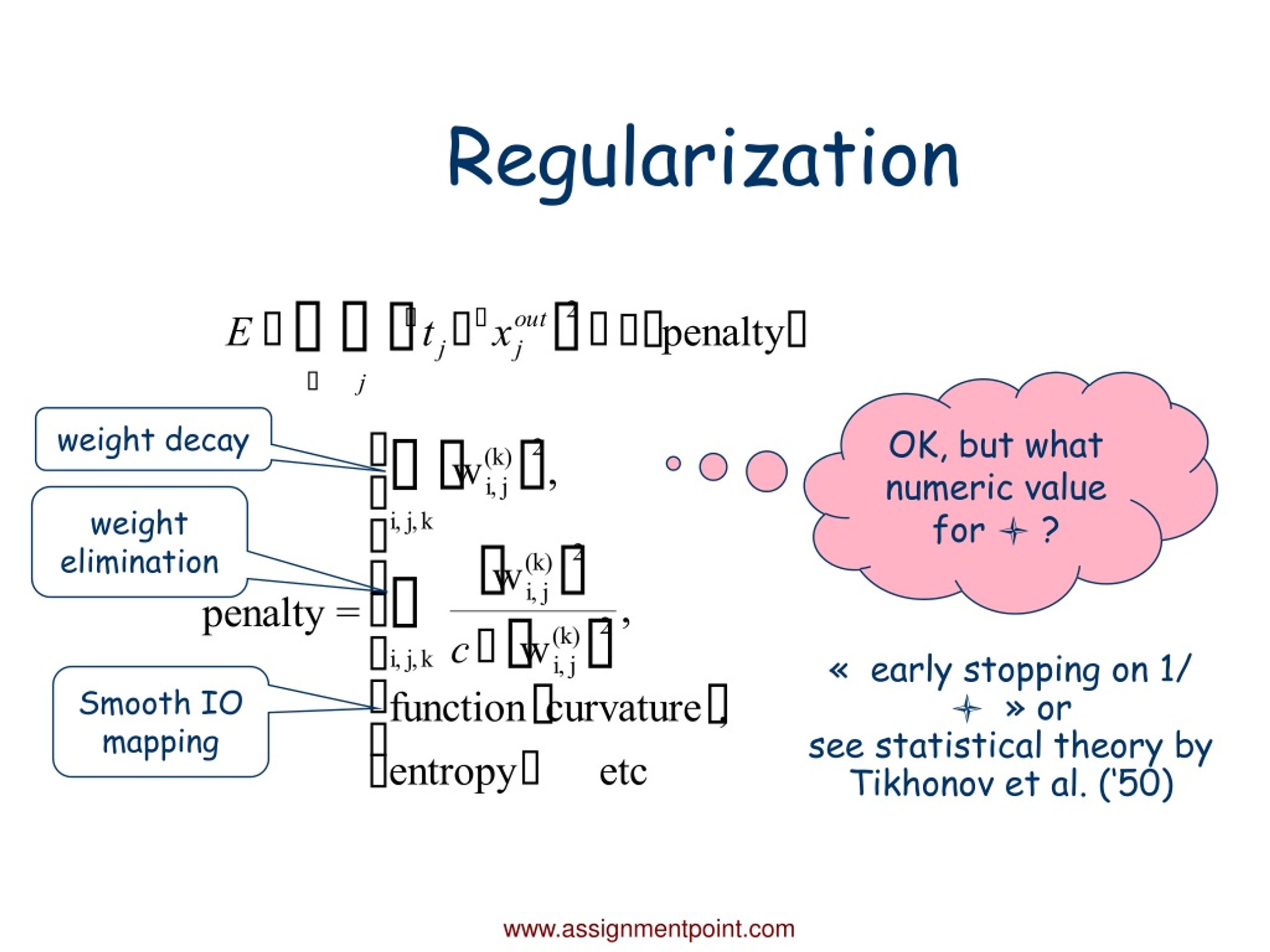

26. Regularization OK, but what numeric value for l ? weight decay weight elimination «  early stopping on 1/ l  » or see statistical theory by Tikhonov et al. (‘50) Smooth IO mapping www.assignmentpoint.com

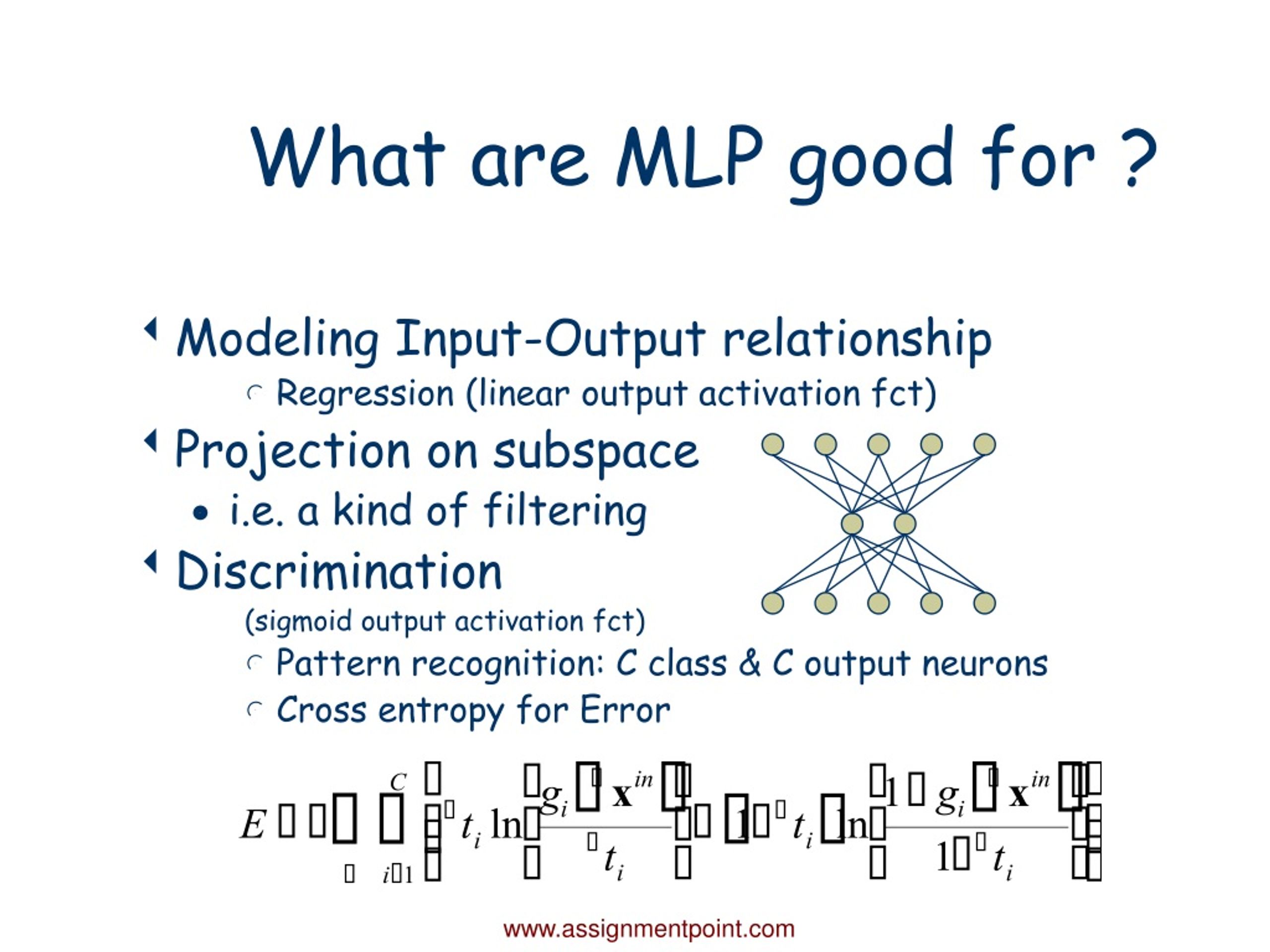

27. What are MLP good for ? • Modeling Input-Output relationship • Regression (linear output activation fct) • Projection on subspace • i.e. a kind of filtering • Discrimination (sigmoid output activation fct) • Pattern recognition: C class & C output neurons • Cross entropy for Error www.assignmentpoint.com

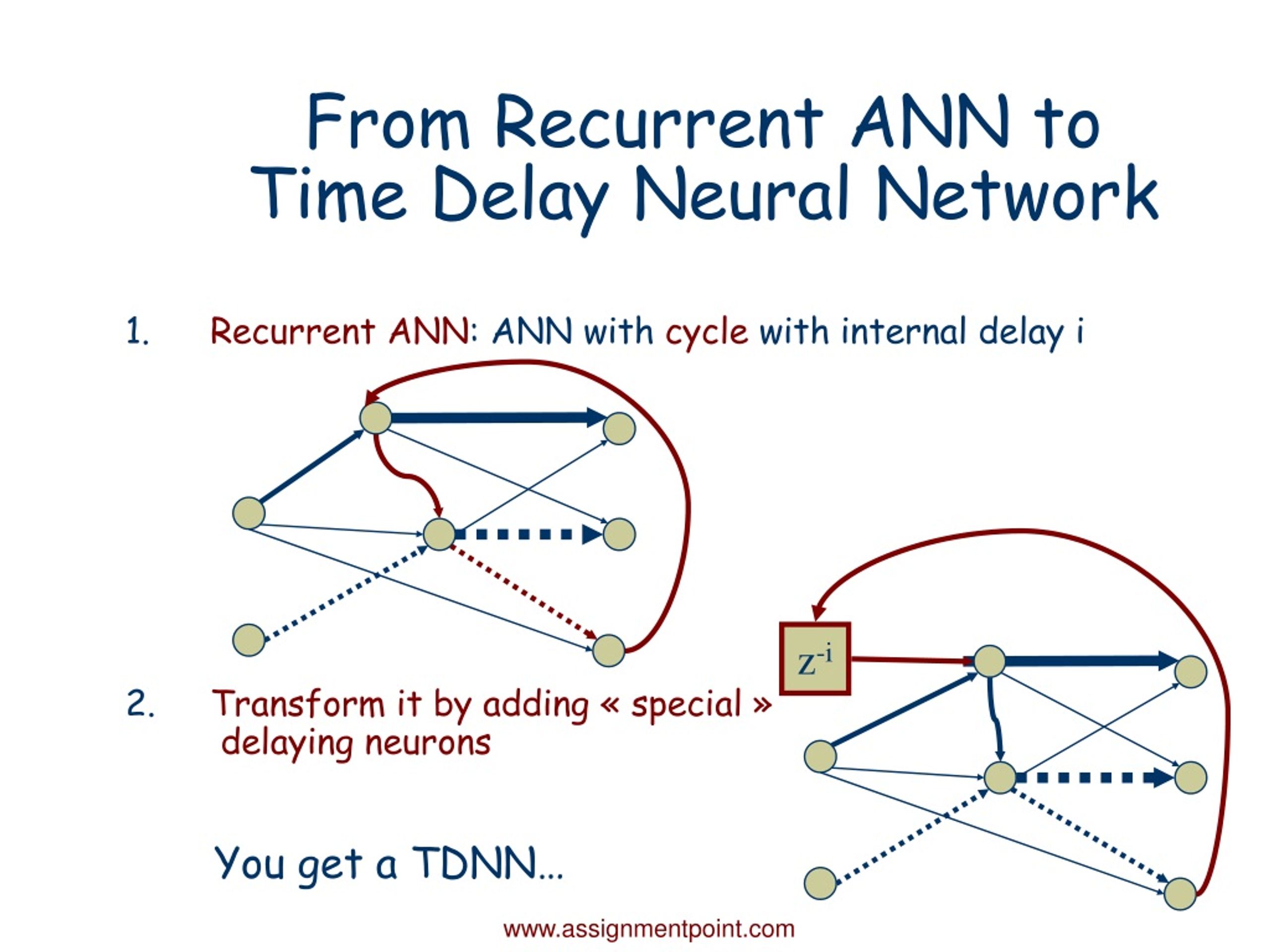

28. z-i From Recurrent ANN toTime Delay Neural Network • Recurrent ANN: ANN with cycle with internal delay i • Transform it by adding « special » delaying neurons You get a TDNN… www.assignmentpoint.com

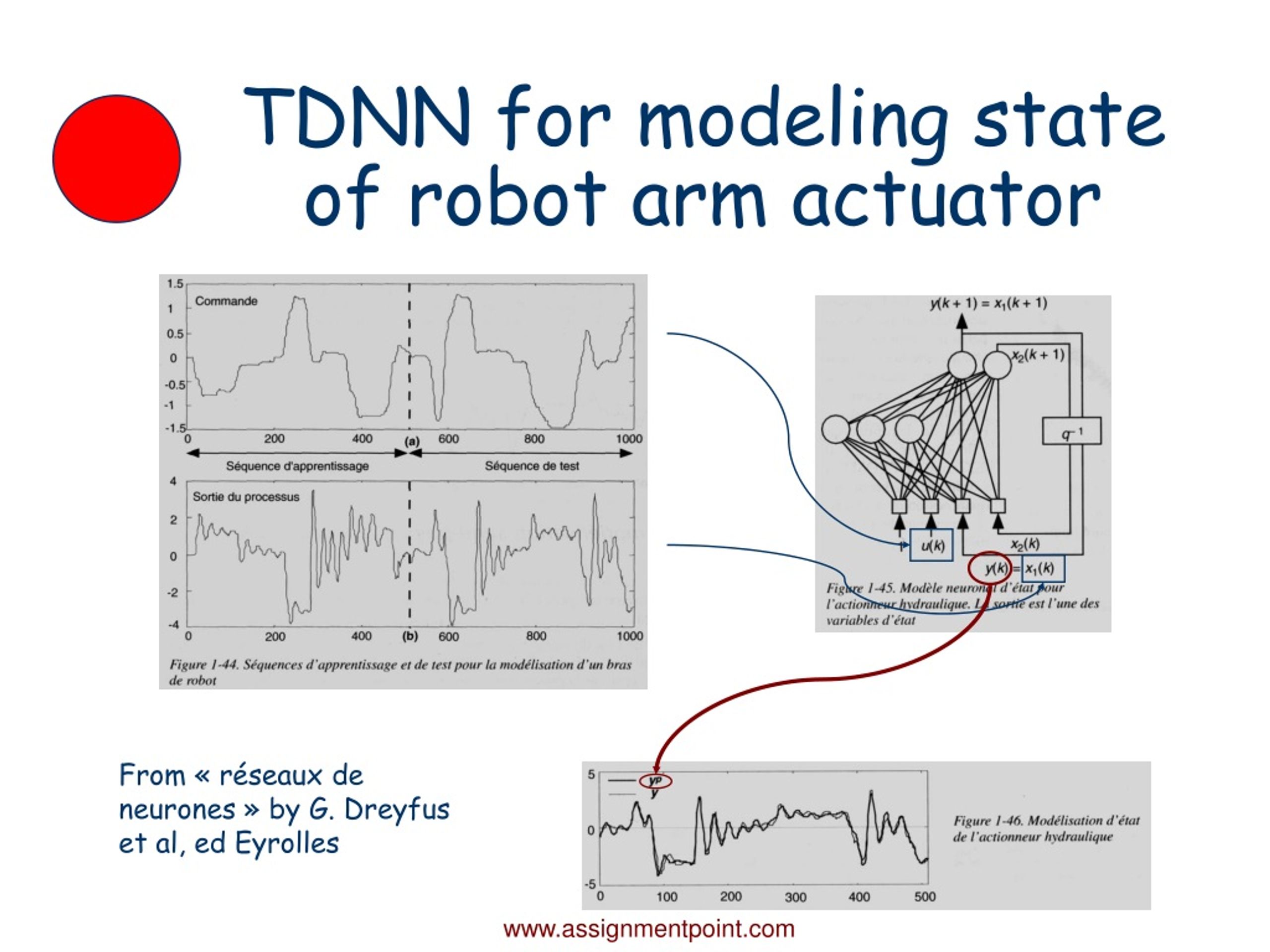

29. TDNN for modeling state of robot arm actuator From « réseaux de neurones » by G. Dreyfus et al, ed Eyrolles www.assignmentpoint.com

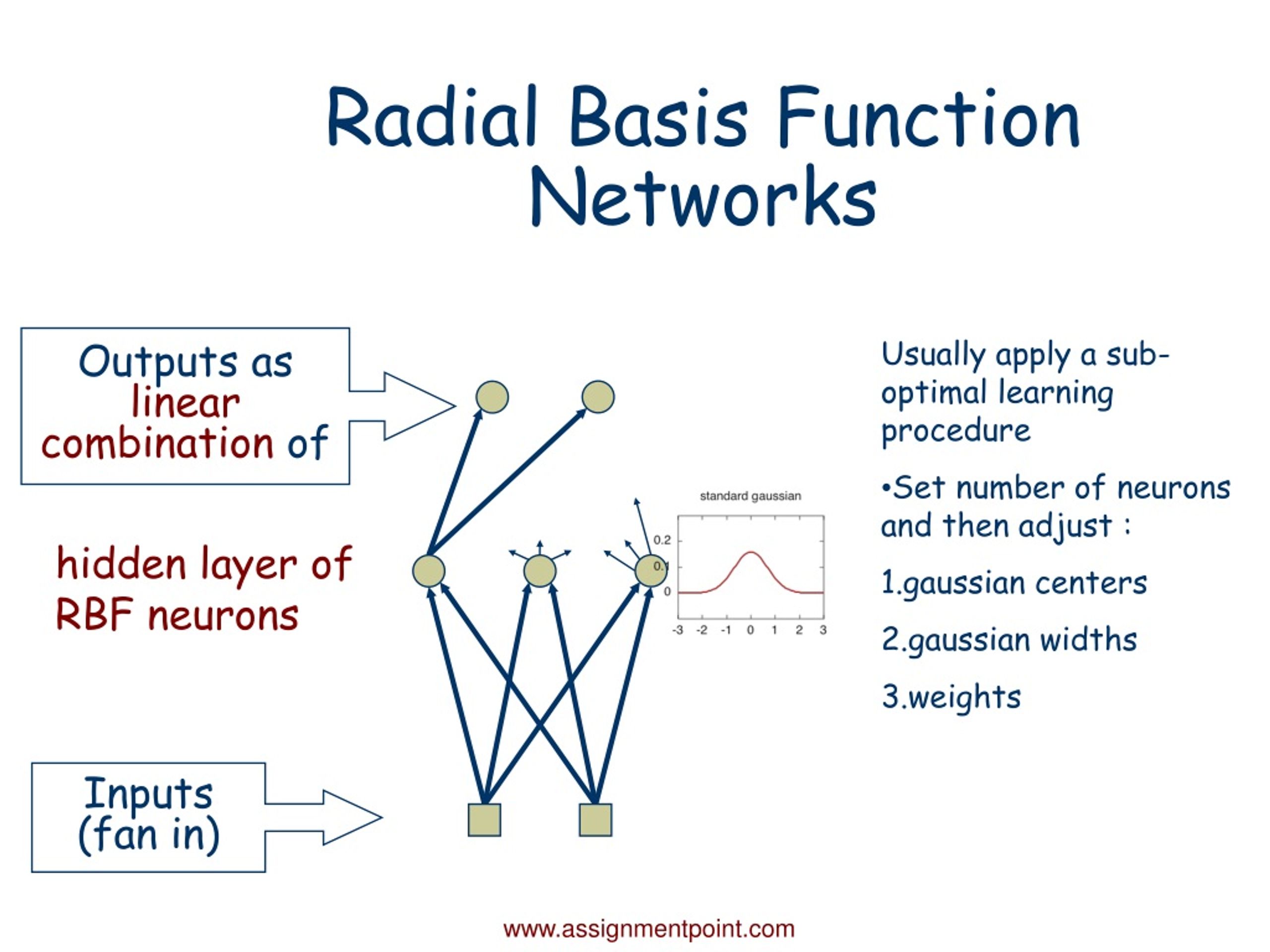

30. Radial Basis Function Networks Outputs as linear combination of • Usually apply a sub-optimal learning procedure • Set number of neurons and then adjust : • gaussian centers • gaussian widths • weights hidden layer of RBF neurons Inputs (fan in) www.assignmentpoint.com

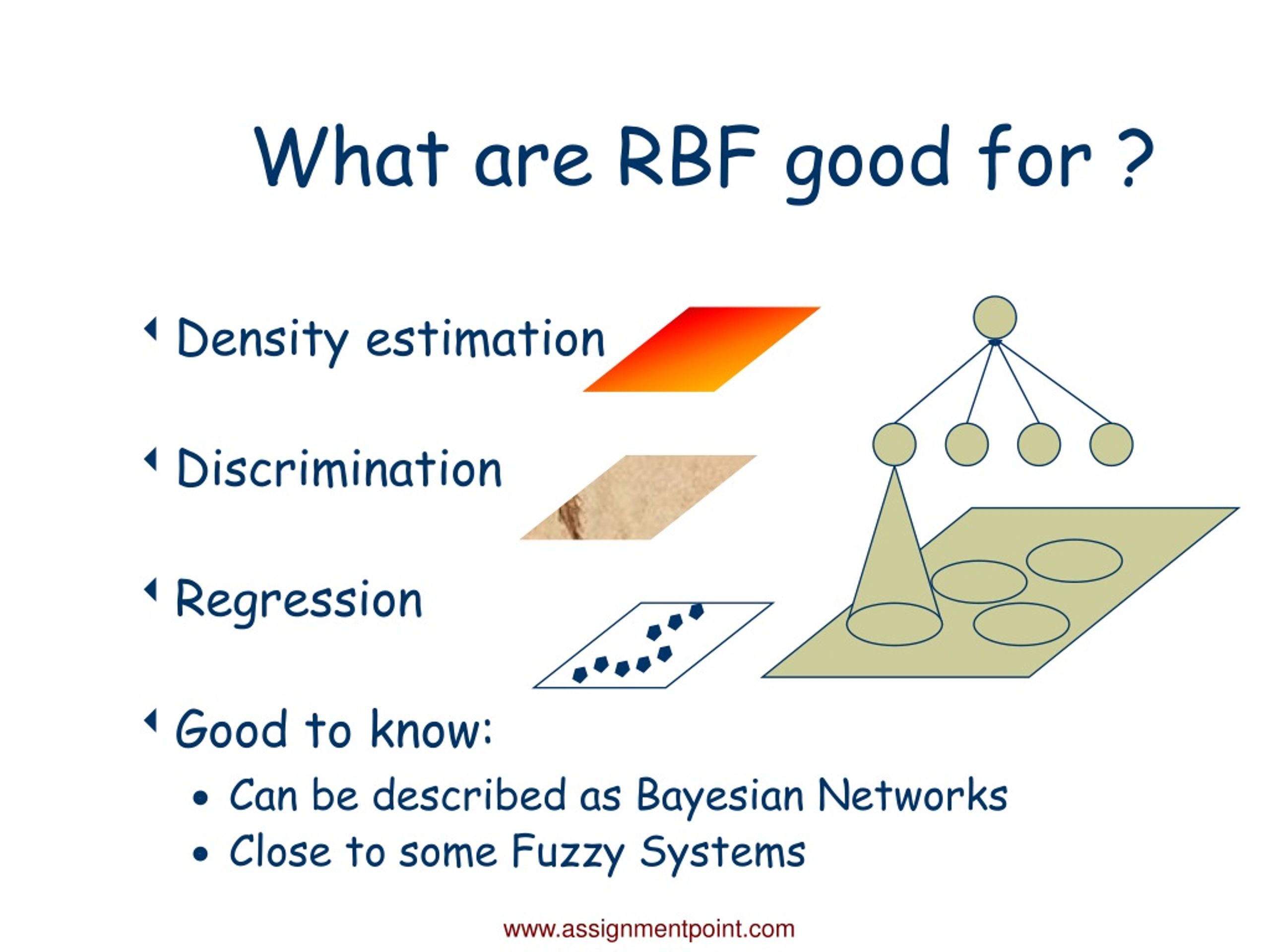

31. What are RBF good for ? • Density estimation • Discrimination • Regression • Good to know: • Can be described as Bayesian Networks • Close to some Fuzzy Systems www.assignmentpoint.com

32. Kohonen topographic maps Outputs: Sj= S wjk xk • Neurons : receptive fields with local interaction -> • Neurons know their neighbors • Sj= S wjk xk is max • when Wj. is collinear with x www.assignmentpoint.com

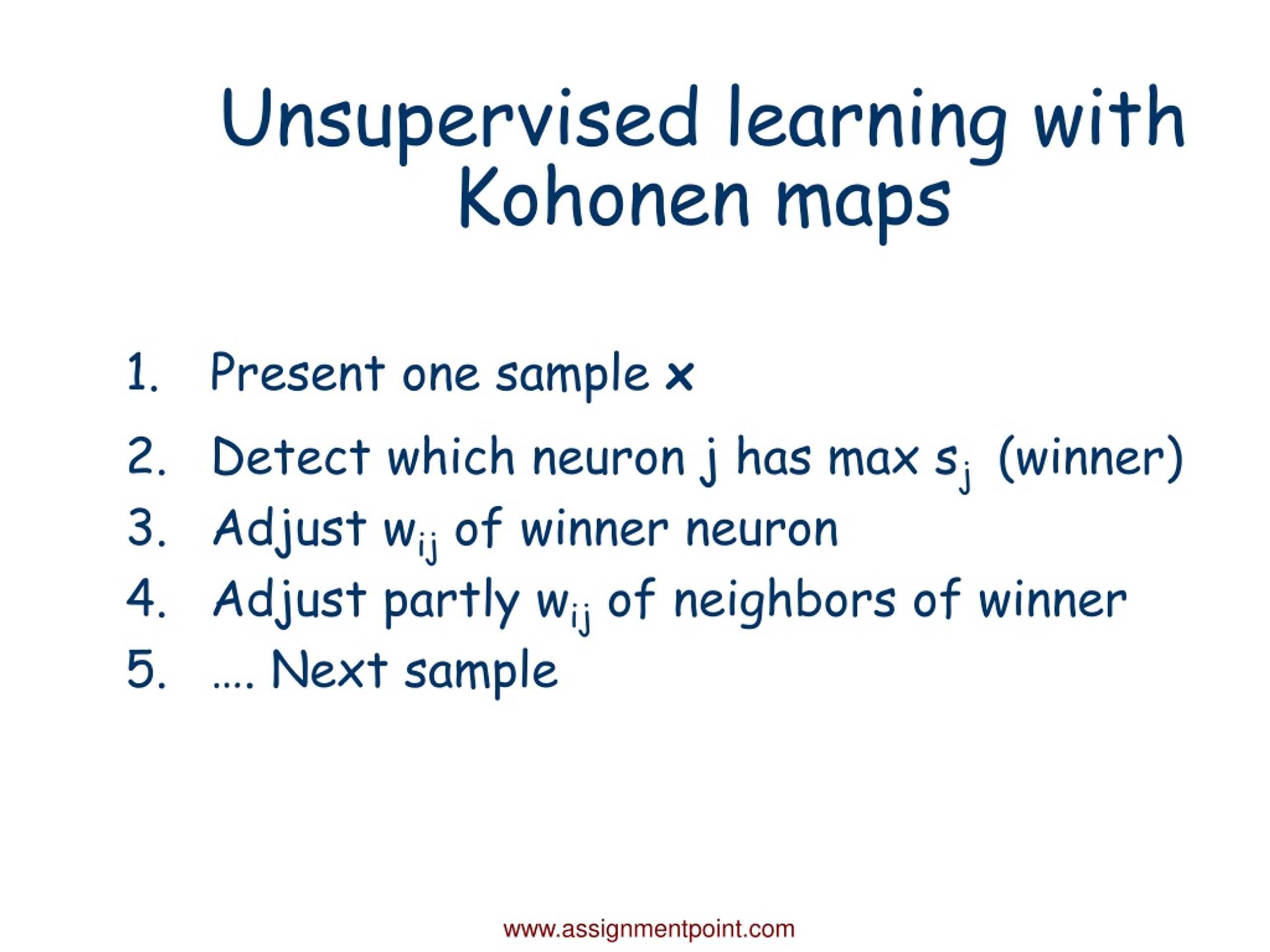

33. Unsupervised learning with Kohonen maps • Present one sample x • Detect which neuron j has max sj  (winner) • Adjust wij of winner neuron • Adjust partly wij of neighbors of winner • …. Next sample www.assignmentpoint.com

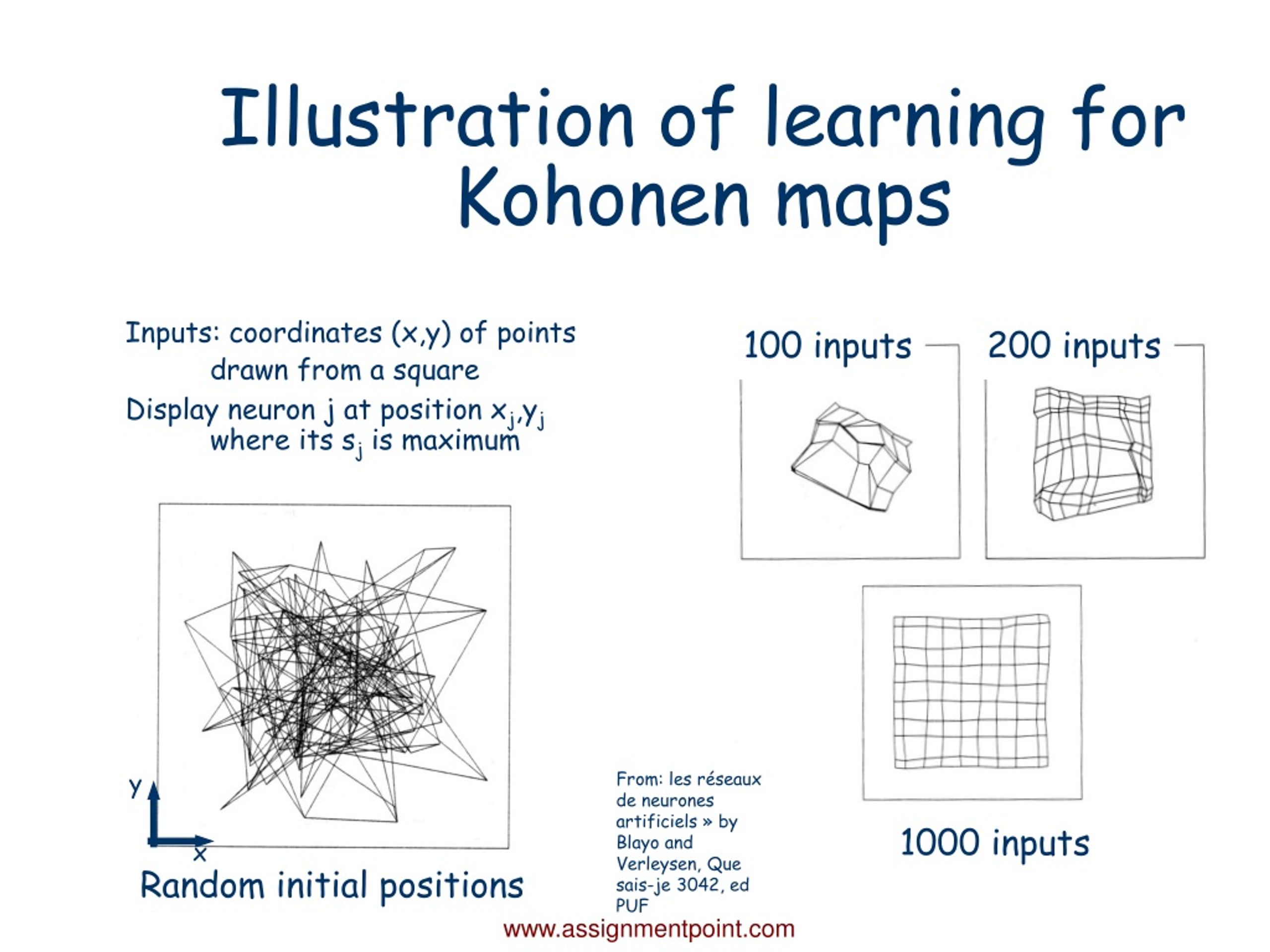

34. y x Illustration of learning for Kohonen maps Inputs: coordinates (x,y) of points drawn from a square Display neuron j at position xj,yj where its sj is maximum 100 inputs 200 inputs From: les réseaux de neurones artificiels » by Blayo and Verleysen, Que sais-je 3042, ed PUF 1000 inputs Random initial positions www.assignmentpoint.com

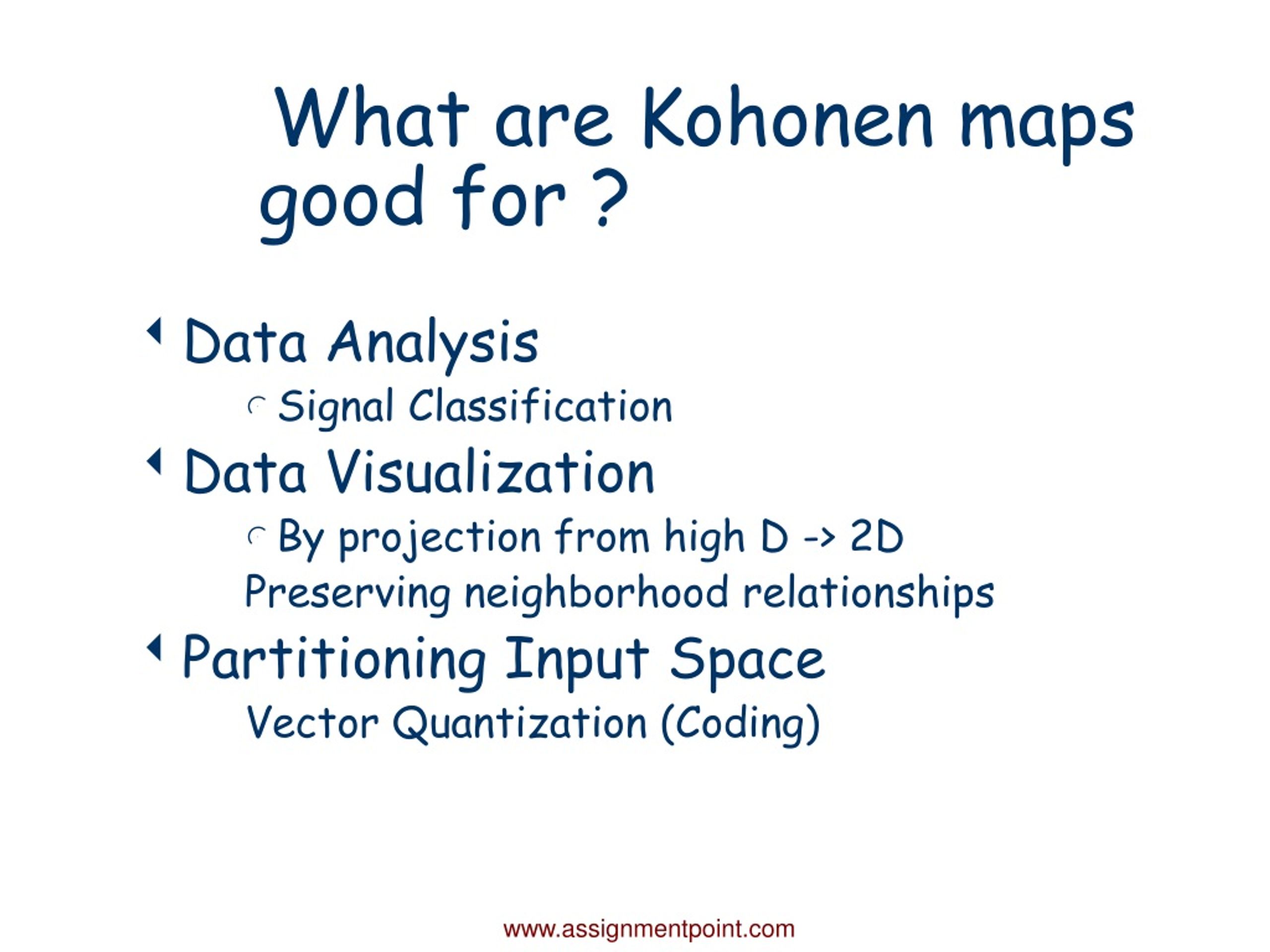

35. What are Kohonen maps good for ? • Data Analysis • Signal Classification • Data Visualization • By projection from high D -> 2D Preserving neighborhood relationships • Partitioning Input Space Vector Quantization (Coding) www.assignmentpoint.com

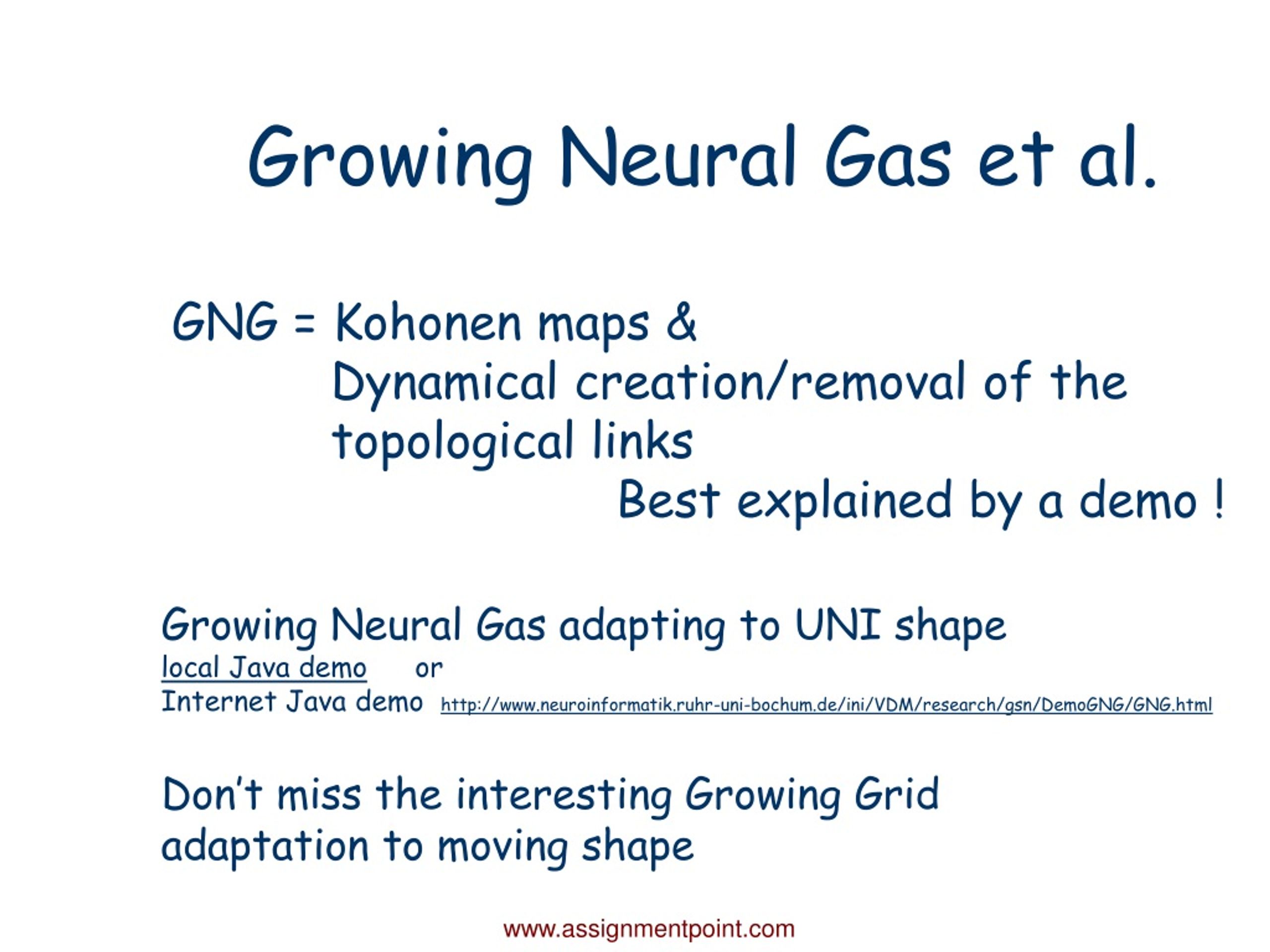

36. Growing Neural Gas et al. GNG = Kohonen maps &Dynamical creation/removal of the topological links Best explained by a demo ! Growing Neural Gas adapting to UNI shape local Java demo or Internet Java demo http://www.neuroinformatik.ruhr-uni-bochum.de/ini/VDM/research/gsn/DemoGNG/GNG.html Don’t miss the interesting Growing Grid adaptation to moving shape www.assignmentpoint.com

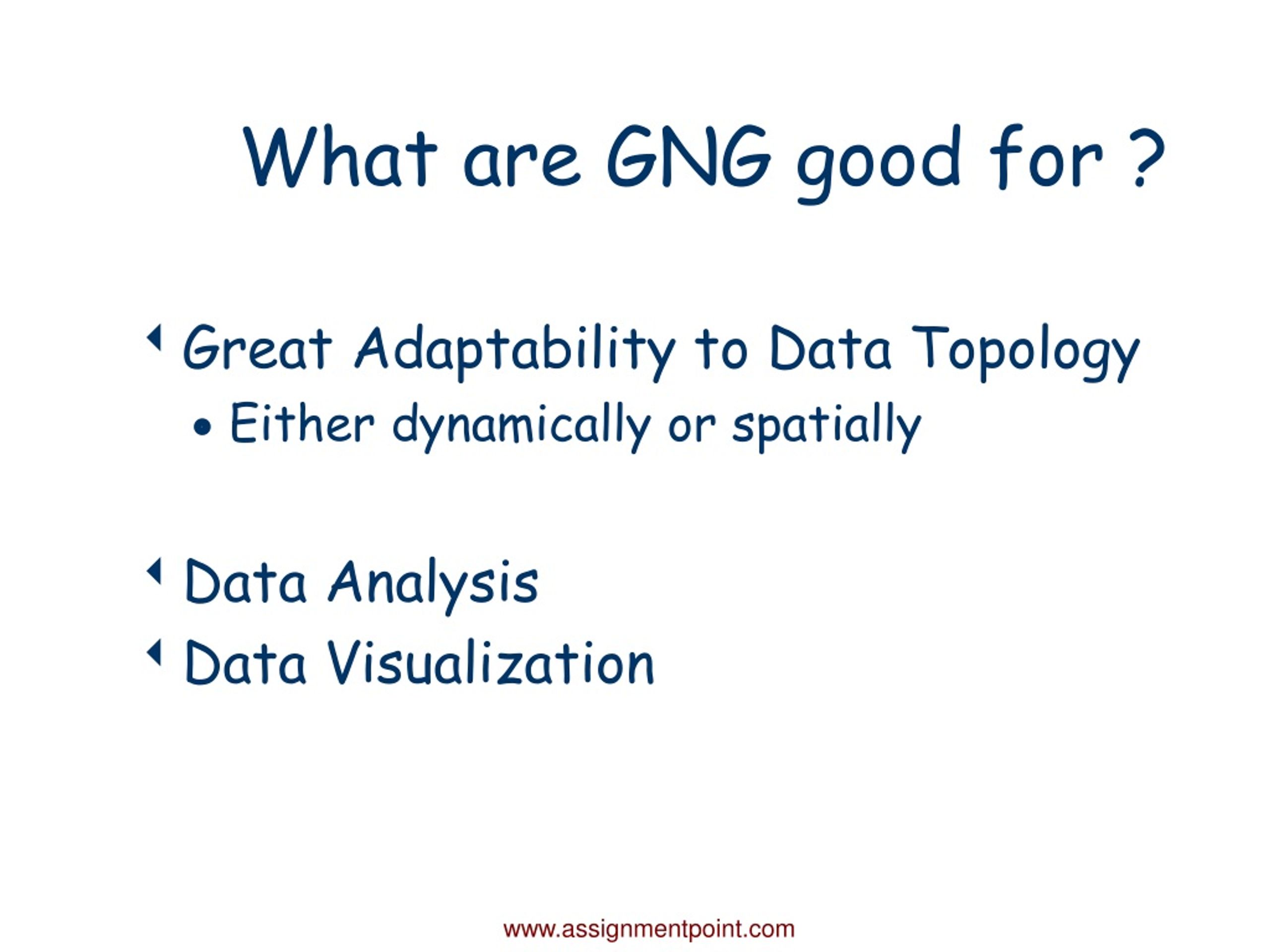

37. What are GNG good for ? • Great Adaptability to Data Topology • Either dynamically or spatially • Data Analysis • Data Visualization www.assignmentpoint.com

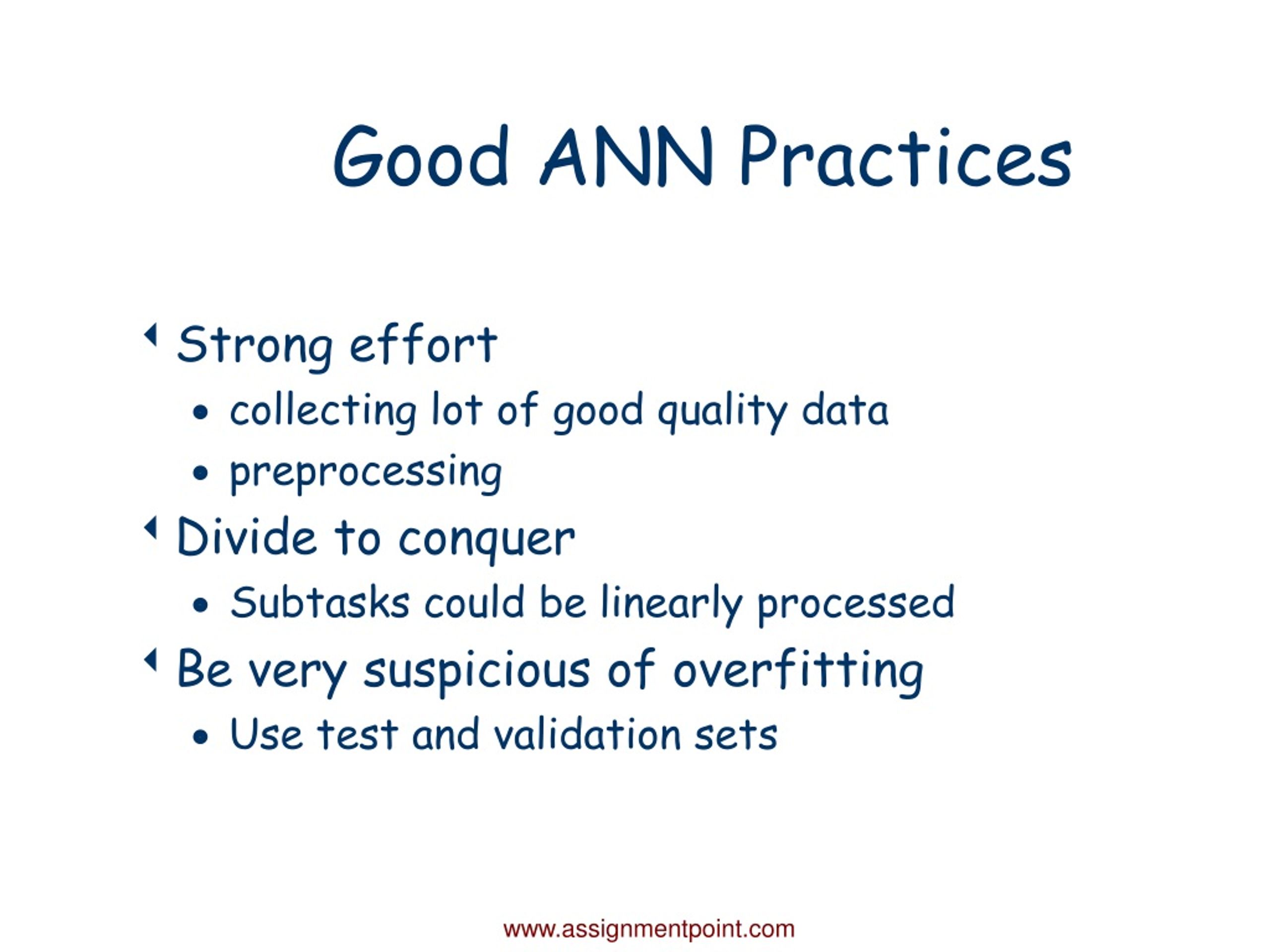

38. Good ANN Practices • Strong effort • collecting lot of good quality data • preprocessing • Divide to conquer • Subtasks could be linearly processed • Be very suspicious of overfitting • Use test and validation sets www.assignmentpoint.com

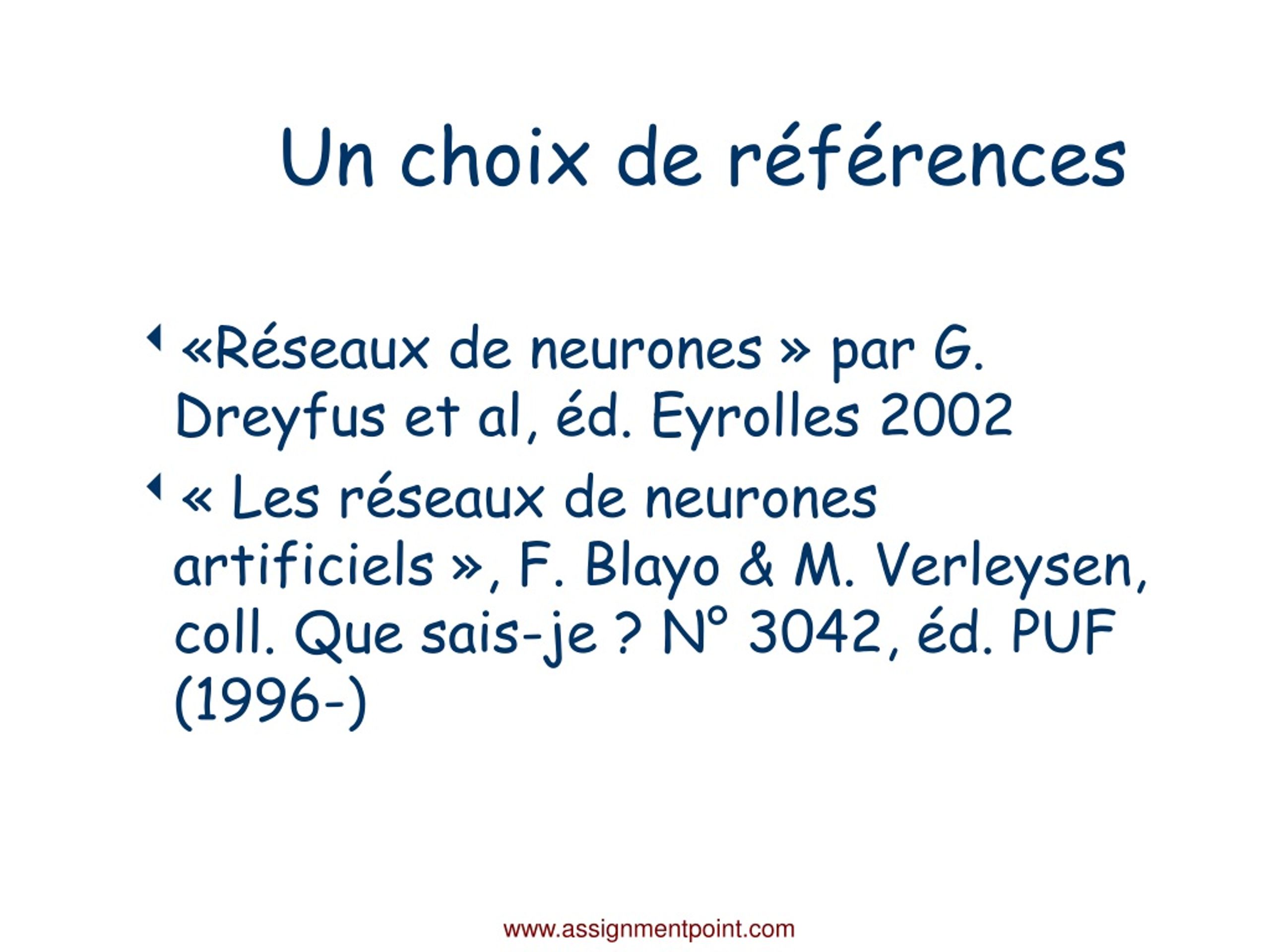

39. Un choix de références • «Réseaux de neurones » par G. Dreyfus et al, éd. Eyrolles 2002 • « Les réseaux de neurones artificiels », F. Blayo & M. Verleysen, coll. Que sais-je ? N° 3042, éd. PUF (1996-) www.assignmentpoint.com

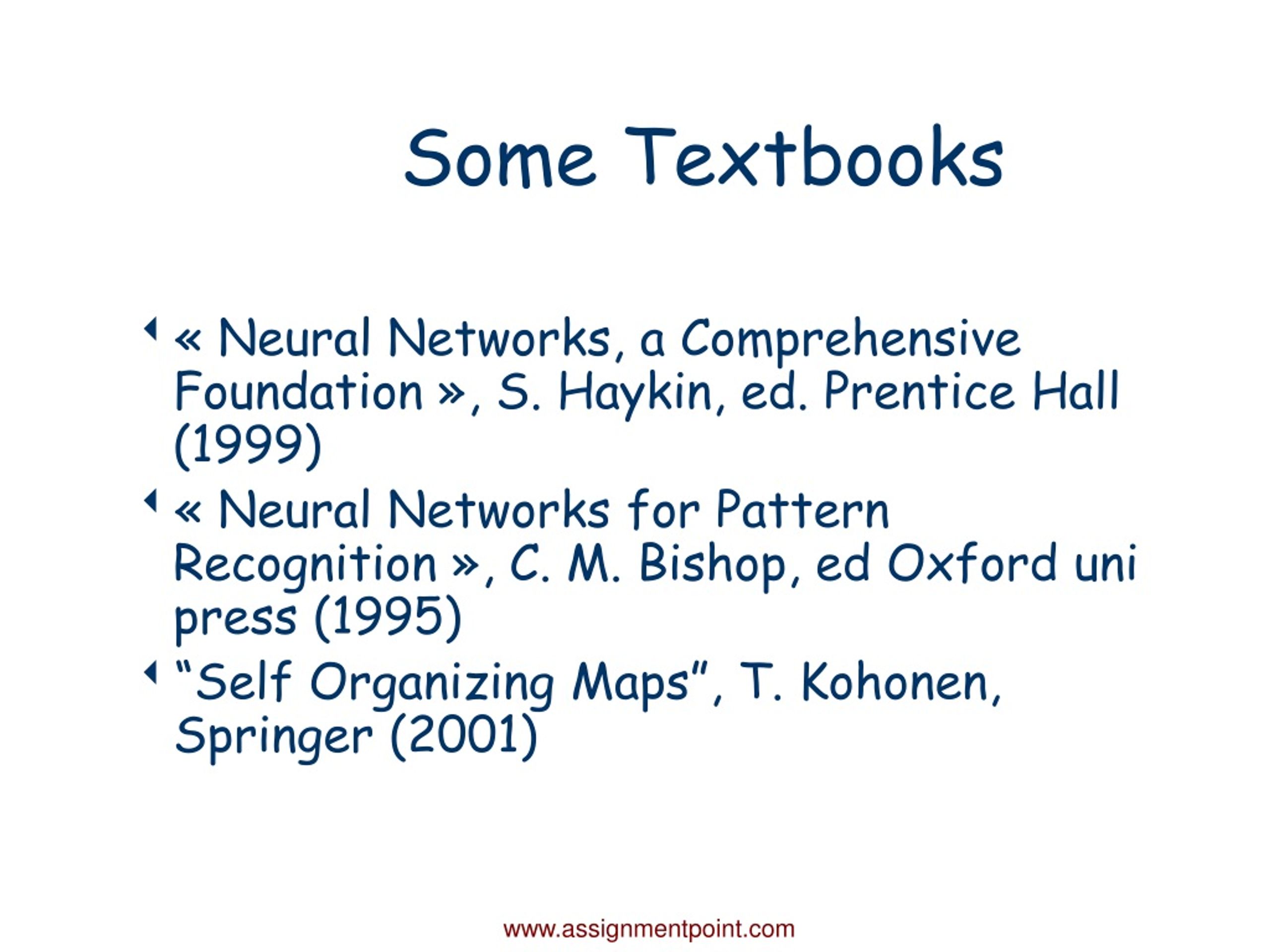

40. Some Textbooks • « Neural Networks, a Comprehensive Foundation », S. Haykin, ed. Prentice Hall (1999) • « Neural Networks for Pattern Recognition », C. M. Bishop, ed Oxford uni press (1995) • “Self Organizing Maps”, T. Kohonen, Springer (2001) www.assignmentpoint.com

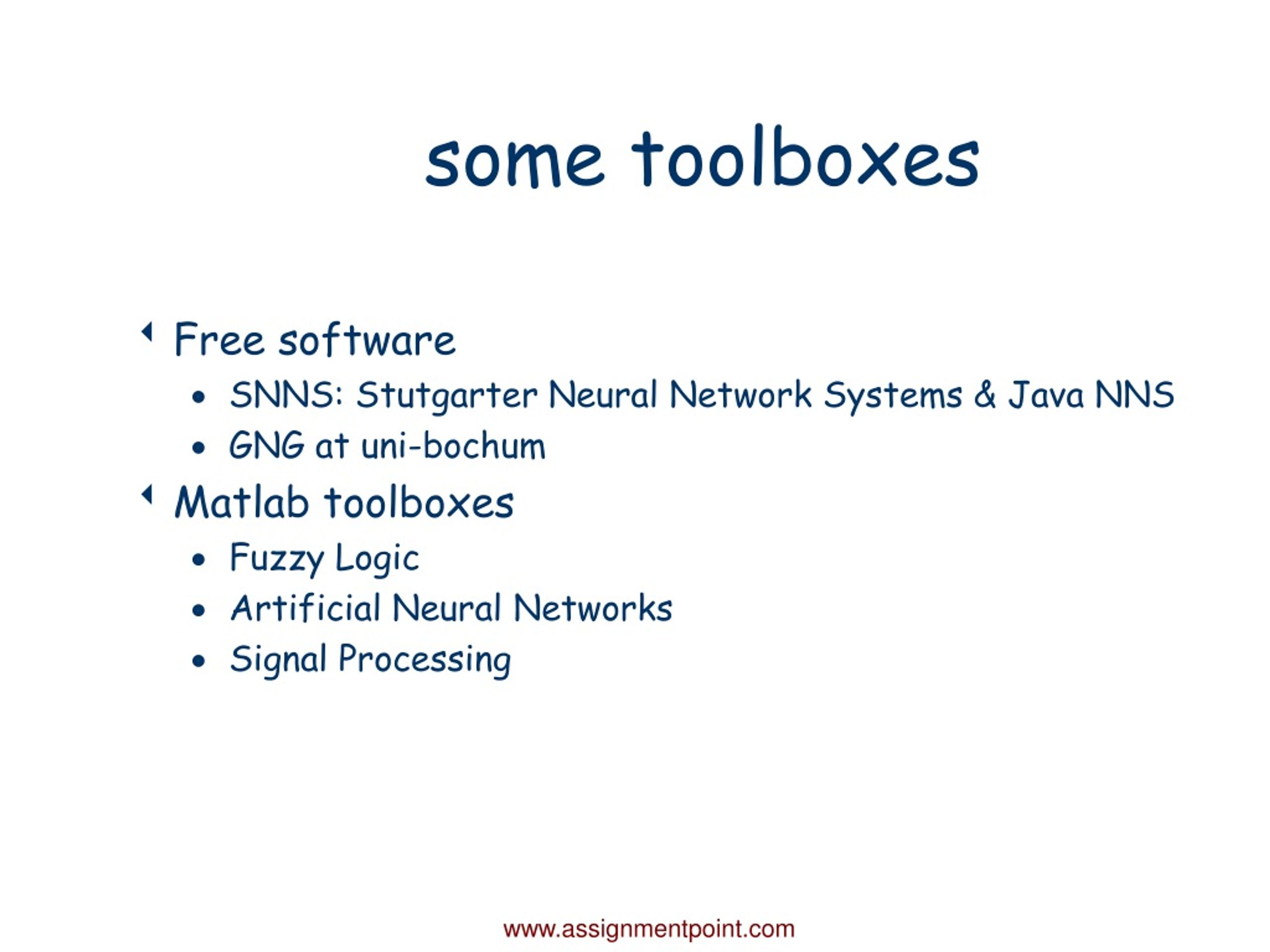

41. some toolboxes • Free software • SNNS: Stutgarter Neural Network Systems & Java NNS • GNG at uni-bochum • Matlab toolboxes • Fuzzy Logic • Artificial Neural Networks • Signal Processing www.assignmentpoint.com
