A Complete Guide to Choosing the Right Lathe Machine Chuck

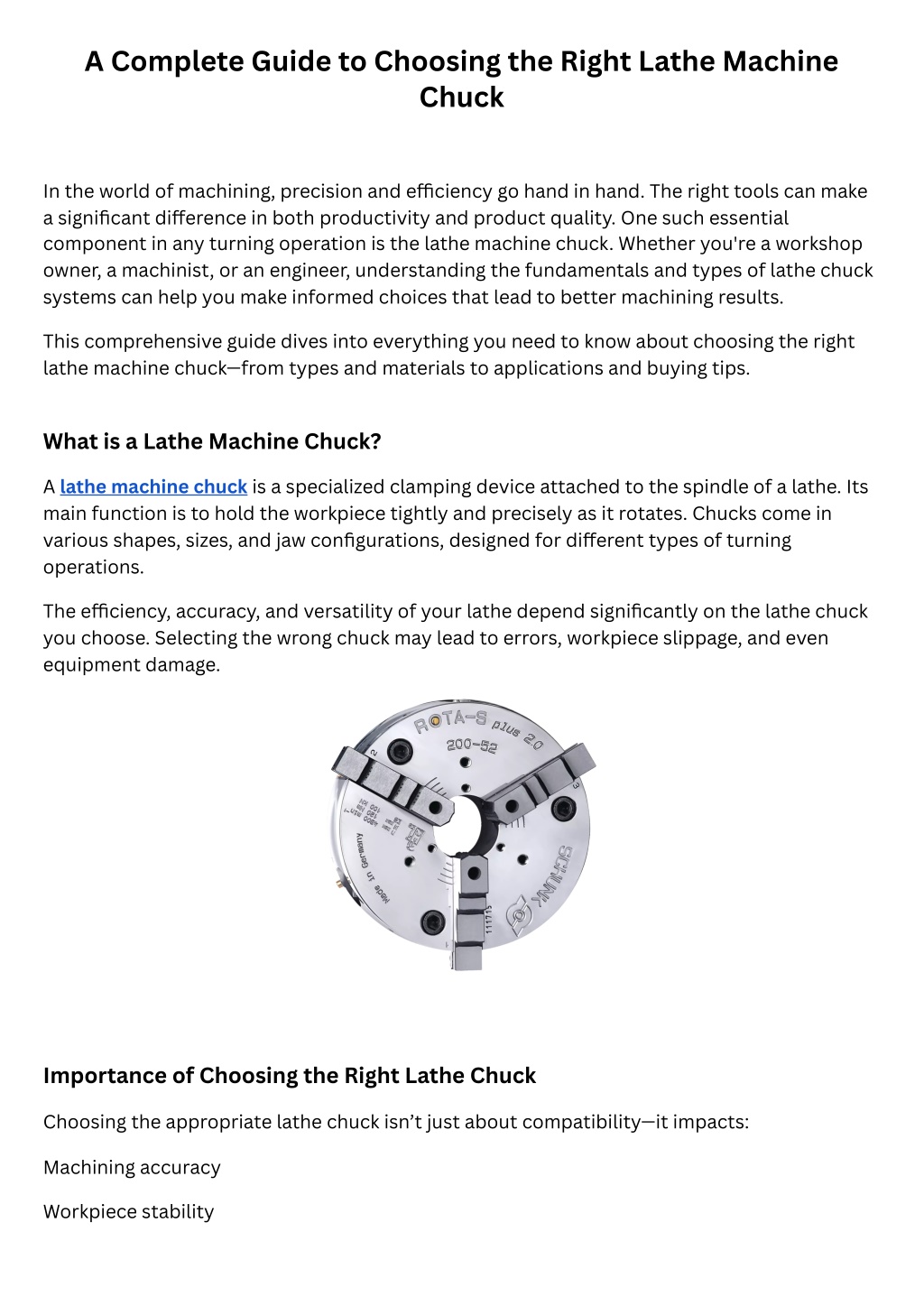

1. A Complete Guide to Choosing the Right Lathe Machine Chuck In the world of machining, precision and e?ciency go hand in hand. The right tools can make a significant di?erence in both productivity and product quality. One such essential component in any turning operation is the lathe machine chuck. Whether you're a workshop owner, a machinist, or an engineer, understanding the fundamentals and types of lathe chuck systems can help you make informed choices that lead to better machining results. This comprehensive guide dives into everything you need to know about choosing the right lathe machine chuck—from types and materials to applications and buying tips. What is a Lathe Machine Chuck? A lathe machine chuck is a specialized clamping device attached to the spindle of a lathe. Its main function is to hold the workpiece tightly and precisely as it rotates. Chucks come in various shapes, sizes, and jaw configurations, designed for di?erent types of turning operations. The e?ciency, accuracy, and versatility of your lathe depend significantly on the lathe chuck you choose. Selecting the wrong chuck may lead to errors, workpiece slippage, and even equipment damage. Importance of Choosing the Right Lathe Chuck Choosing the appropriate lathe chuck isn’t just about compatibility—it impacts: Machining accuracy Workpiece stability

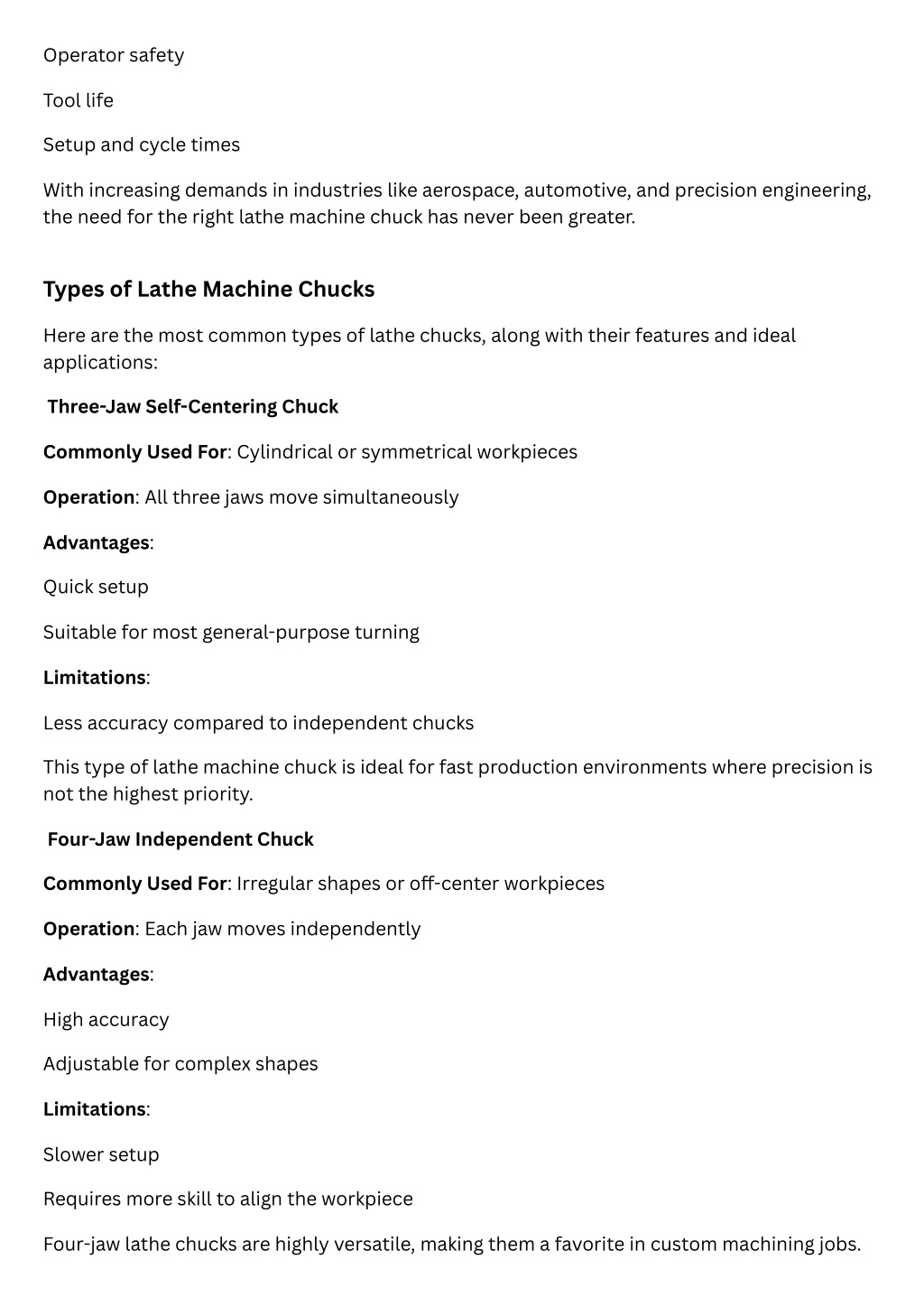

2. Operator safety Tool life Setup and cycle times With increasing demands in industries like aerospace, automotive, and precision engineering, the need for the right lathe machine chuck has never been greater. Types of Lathe Machine Chucks Here are the most common types of lathe chucks, along with their features and ideal applications: Three-Jaw Self-Centering Chuck Commonly Used For: Cylindrical or symmetrical workpieces Operation: All three jaws move simultaneously Advantages: Quick setup Suitable for most general-purpose turning Limitations: Less accuracy compared to independent chucks This type of lathe machine chuck is ideal for fast production environments where precision is not the highest priority. Four-Jaw Independent Chuck Commonly Used For: Irregular shapes or o?-center workpieces Operation: Each jaw moves independently Advantages: High accuracy Adjustable for complex shapes Limitations: Slower setup Requires more skill to align the workpiece Four-jaw lathe chucks are highly versatile, making them a favorite in custom machining jobs.

3. Collet Chuck Commonly Used For: Small, high-precision workpieces Operation: Uses a collet (a sleeve that forms a collar) Advantages: Superior grip High RPM capability Limitations: Limited to specific sizes Higher cost for multiple collet sizes Ideal for CNC lathes and applications requiring consistent precision, such as watchmaking or electronics manufacturing. Magnetic Chuck Commonly Used For: Ferromagnetic workpieces Operation: Uses magnetic force to hold the workpiece Advantages: No mechanical pressure on the workpiece Even holding pressure Limitations: Only suitable for magnetic materials Not ideal for heavy-duty operations This lathe machine chuck is beneficial in grinding and light turning tasks. Hydraulic and Pneumatic Chucks Commonly Used For: Automated production lines Operation: Uses fluid or air pressure to clamp Advantages: High clamping force Fast and automatic operation

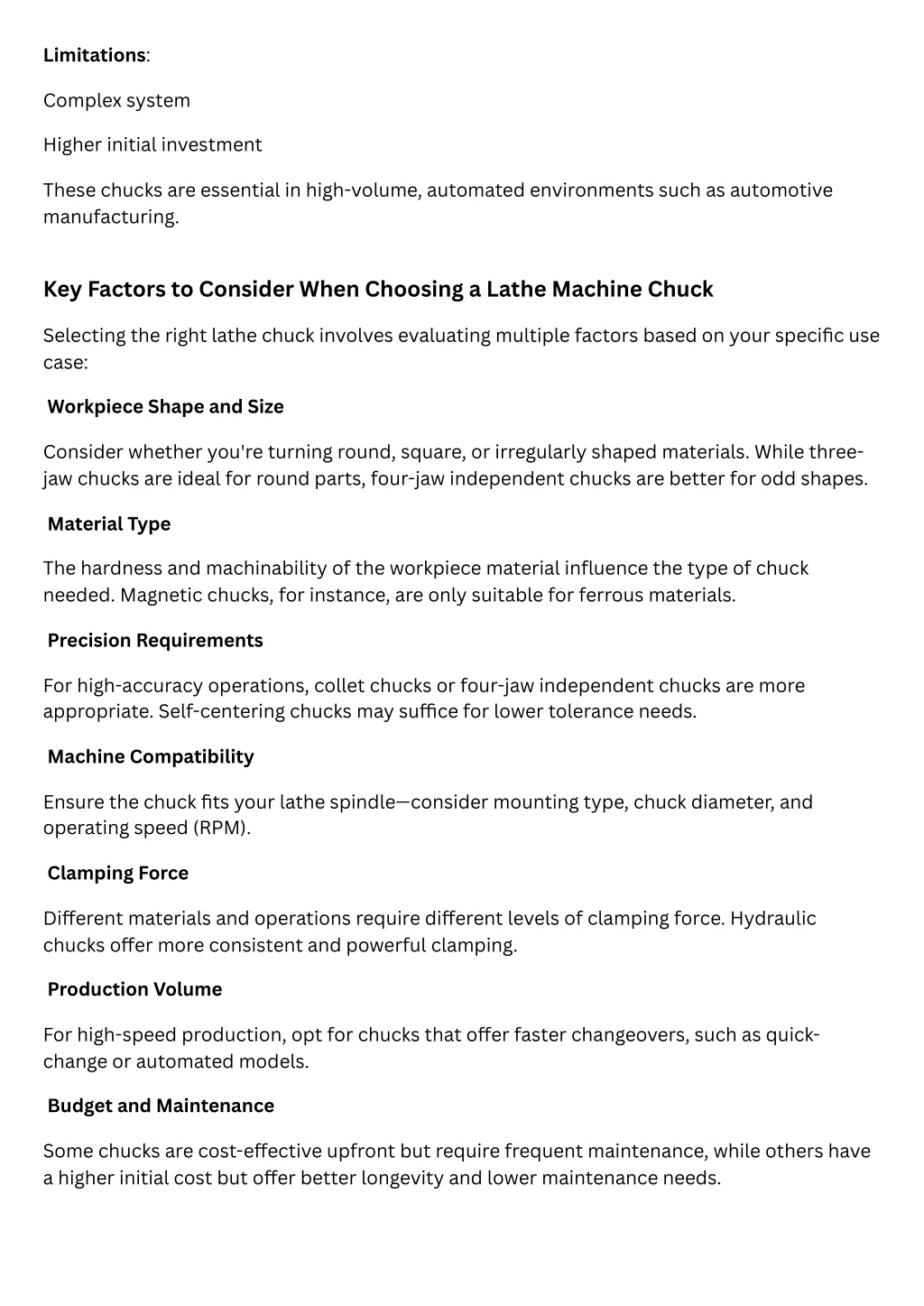

4. Limitations: Complex system Higher initial investment These chucks are essential in high-volume, automated environments such as automotive manufacturing. Key Factors to Consider When Choosing a Lathe Machine Chuck Selecting the right lathe chuck involves evaluating multiple factors based on your specific use case: Workpiece Shape and Size Consider whether you're turning round, square, or irregularly shaped materials. While three- jaw chucks are ideal for round parts, four-jaw independent chucks are better for odd shapes. Material Type The hardness and machinability of the workpiece material influence the type of chuck needed. Magnetic chucks, for instance, are only suitable for ferrous materials. Precision Requirements For high-accuracy operations, collet chucks or four-jaw independent chucks are more appropriate. Self-centering chucks may su?ce for lower tolerance needs. Machine Compatibility Ensure the chuck fits your lathe spindle—consider mounting type, chuck diameter, and operating speed (RPM). Clamping Force Di?erent materials and operations require di?erent levels of clamping force. Hydraulic chucks o?er more consistent and powerful clamping. Production Volume For high-speed production, opt for chucks that o?er faster changeovers, such as quick- change or automated models. Budget and Maintenance Some chucks are cost-e?ective upfront but require frequent maintenance, while others have a higher initial cost but o?er better longevity and lower maintenance needs.

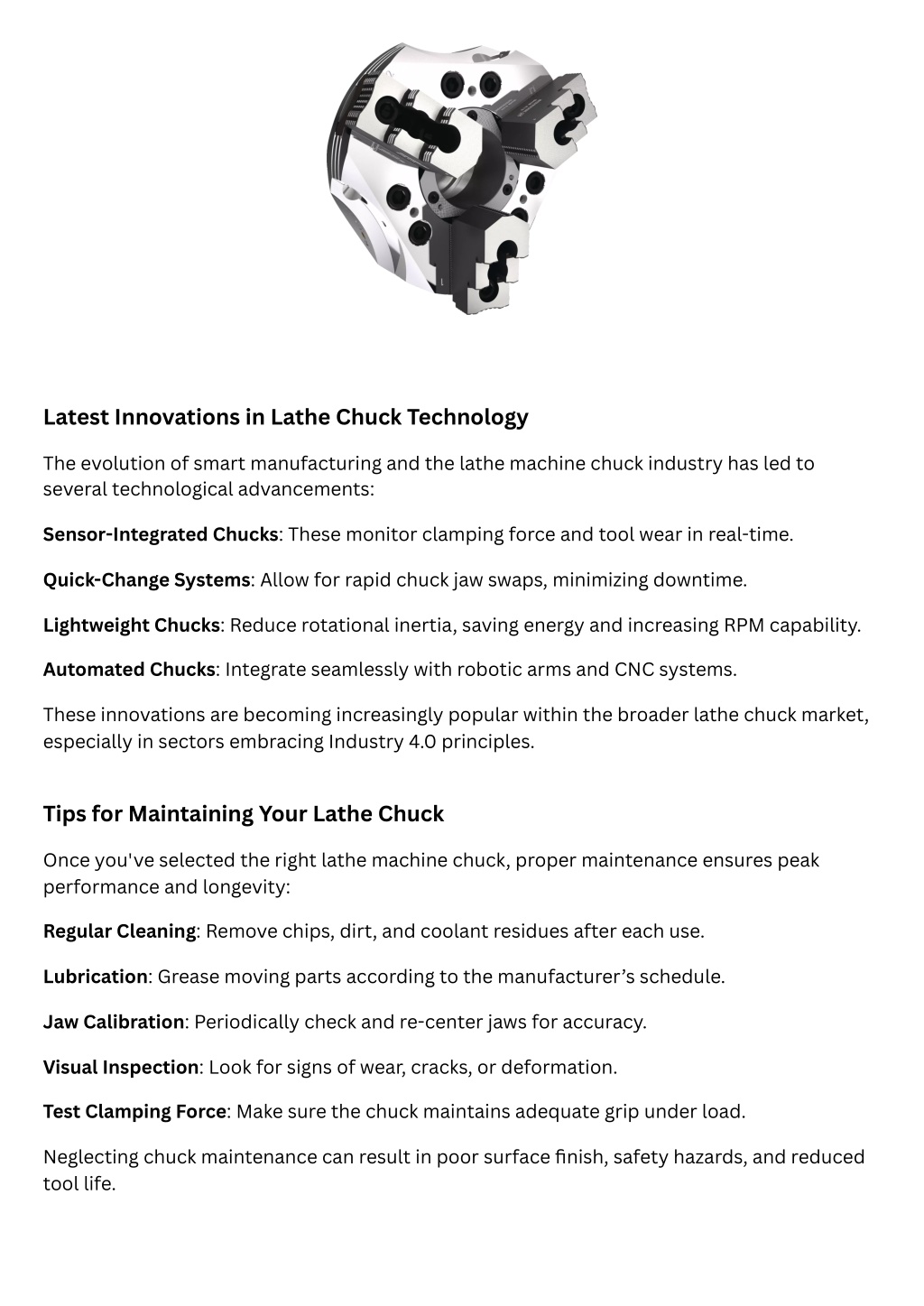

5. Latest Innovations in Lathe Chuck Technology The evolution of smart manufacturing and the lathe machine chuck industry has led to several technological advancements: Sensor-Integrated Chucks: These monitor clamping force and tool wear in real-time. Quick-Change Systems: Allow for rapid chuck jaw swaps, minimizing downtime. Lightweight Chucks: Reduce rotational inertia, saving energy and increasing RPM capability. Automated Chucks: Integrate seamlessly with robotic arms and CNC systems. These innovations are becoming increasingly popular within the broader lathe chuck market, especially in sectors embracing Industry 4.0 principles. Tips for Maintaining Your Lathe Chuck Once you've selected the right lathe machine chuck, proper maintenance ensures peak performance and longevity: Regular Cleaning: Remove chips, dirt, and coolant residues after each use. Lubrication: Grease moving parts according to the manufacturer’s schedule. Jaw Calibration: Periodically check and re-center jaws for accuracy. Visual Inspection: Look for signs of wear, cracks, or deformation. Test Clamping Force: Make sure the chuck maintains adequate grip under load. Neglecting chuck maintenance can result in poor surface finish, safety hazards, and reduced tool life.

6. Common Mistakes to Avoid Choosing the Wrong Jaw Type: Always match jaw types with your workpiece geometry. Ignoring Balance at High Speeds: Unbalanced chucks at high RPM can damage both the machine and the workpiece. Using One Chuck for All Tasks: Special applications often need specialized chucks—don’t compromise on performance. Over-tightening: Excessive force can damage soft materials or deform the workpiece. Conclusion Choosing the right lathe machine chuck is a critical decision that impacts every aspect of your machining operation—from precision and productivity to tool life and worker safety. As the demand for precision manufacturing continues to grow, so does the need for reliable, high-quality lathe chucks. One of the most trusted names in the field of clamping and gripping technology is Schunk. Renowned for their German engineering excellence, Schunk o?ers a wide range of lathe chucks and clamping systems designed for high-performance, precision machining. Whether you're in aerospace, automotive, or general manufacturing, Schunk provides innovative and durable chucking solutions that align with the evolving demands of modern machining. Investing in the right lathe machine chuck is more than just a technical decision—it's a strategic move toward better performance, lower operational costs, and superior product quality.
