Presentation Transcript
slide1

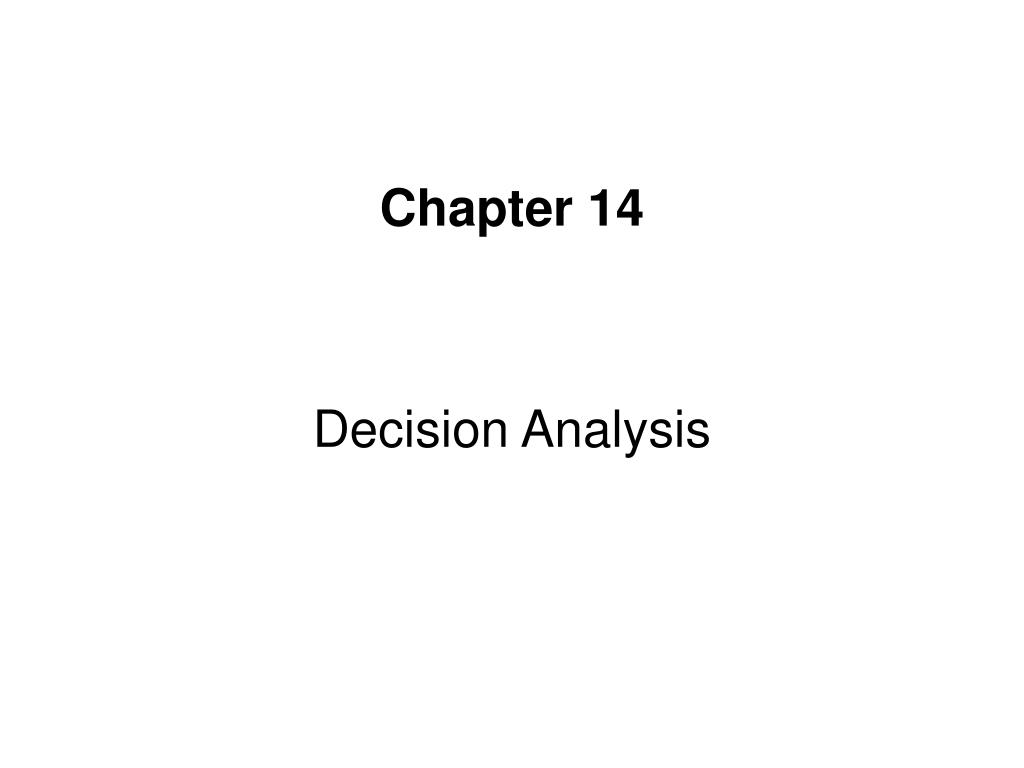

Chapter 14

Decision Analysis

decision making

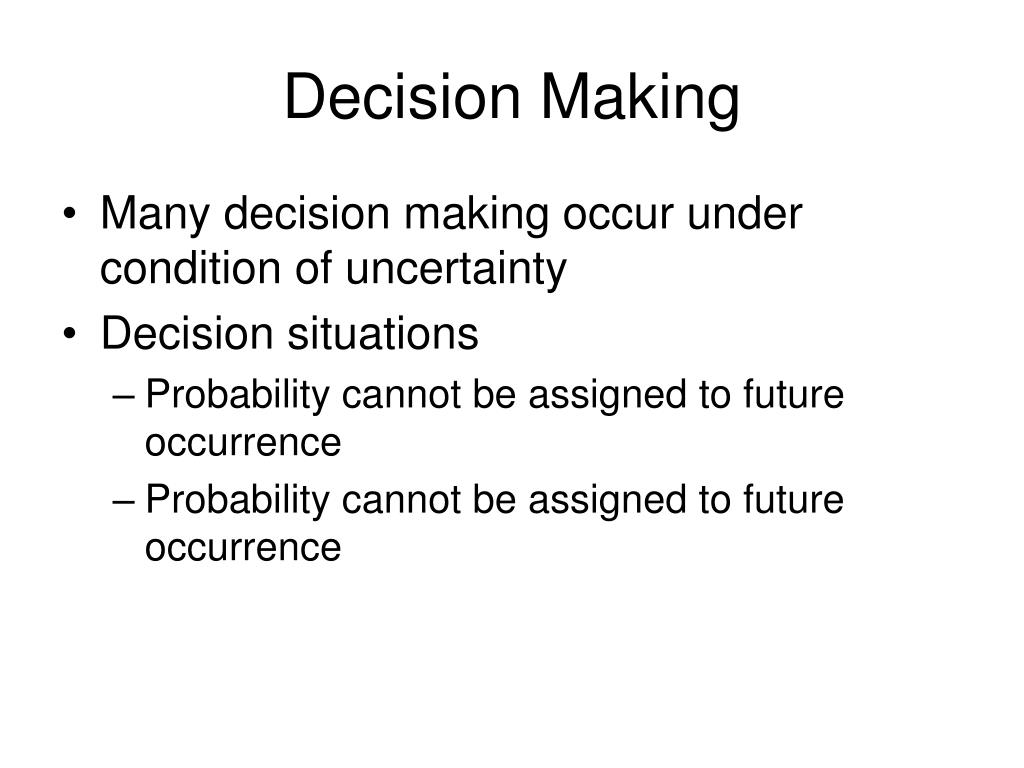

Decision Making
  • Many decision making occur under condition of uncertainty
  • Decision situations
    • Probability cannot be assigned to future occurrence
    • Probability cannot be assigned to future occurrence
slide3

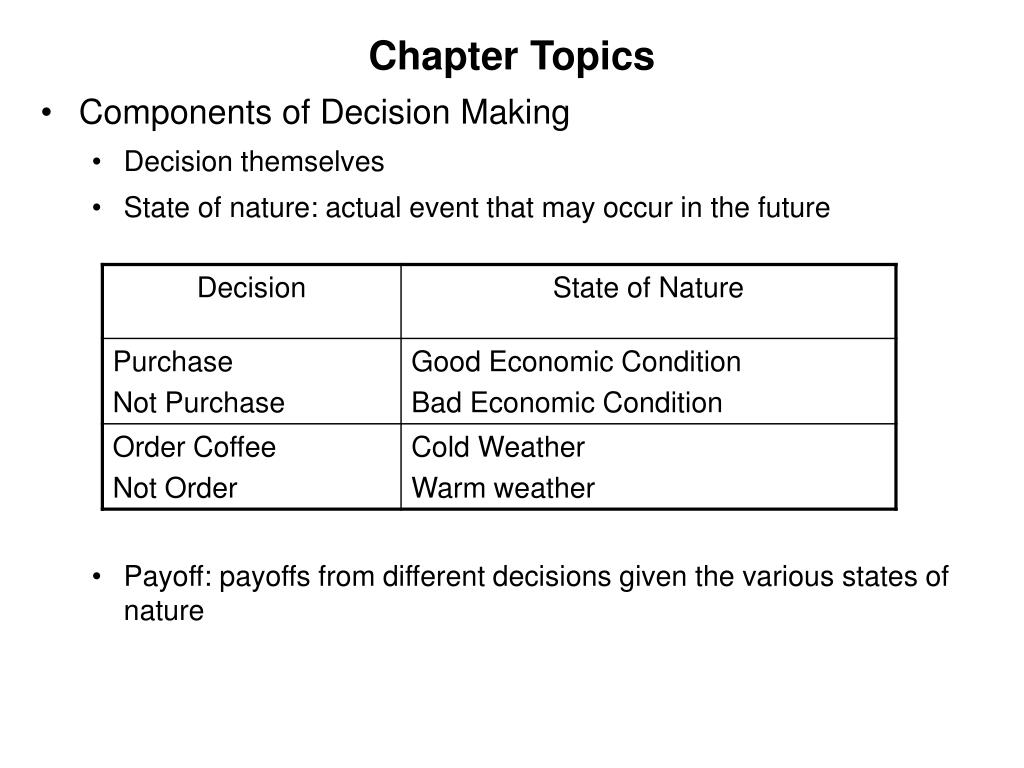

Chapter Topics

  • Components of Decision Making
    • Decision themselves
    • State of nature: actual event that may occur in the future
    • Payoff: payoffs from different decisions given the various states of nature
decision making tools

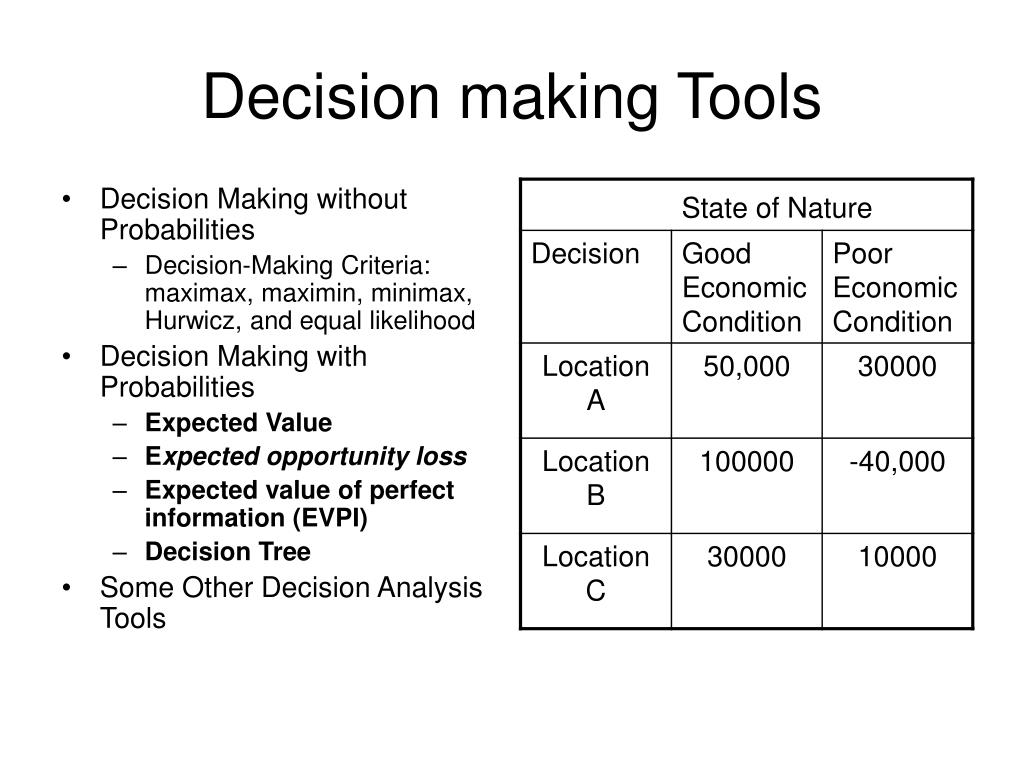

Decision making Tools
  • Decision Making without Probabilities
    • Decision-Making Criteria: maximax, maximin, minimax, Hurwicz, and equal likelihood
  • Decision Making with Probabilities
    • Expected Value
    • Expected opportunity loss
    • Expected value of perfect information (EVPI)
    • Decision Tree
  • Some Other Decision Analysis Tools
slide5

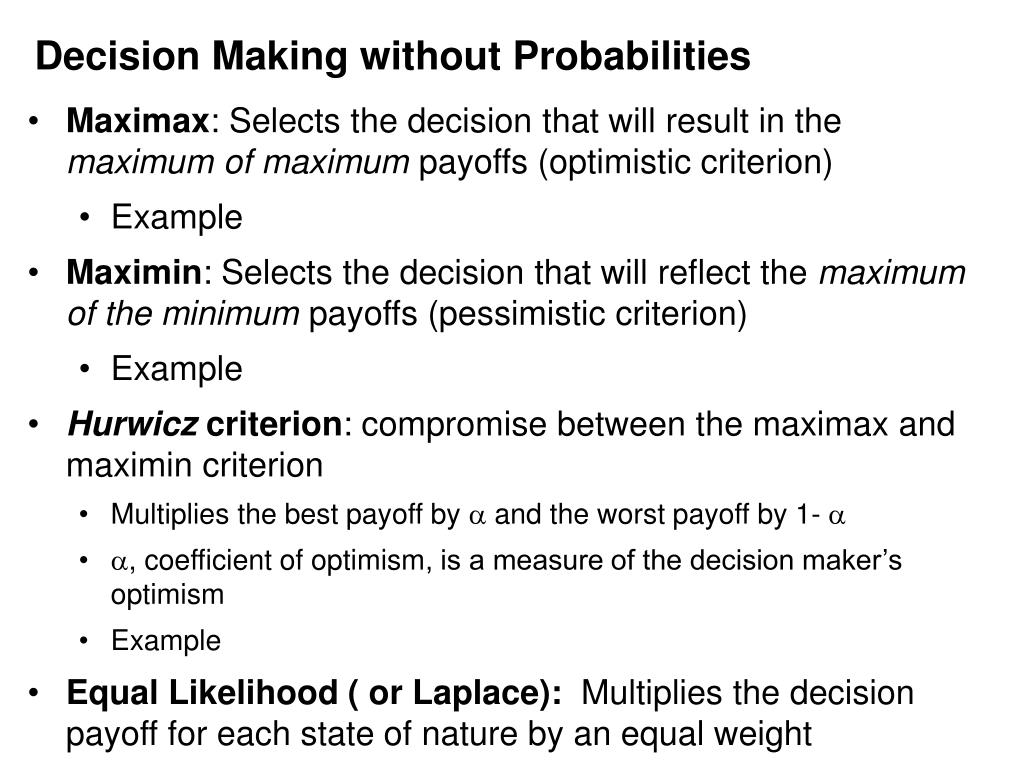

Decision Making without Probabilities

  • Maximax: Selects the decision that will result in the maximum of maximum payoffs (optimistic criterion)
    • Example
  • Maximin: Selects the decision that will reflect the maximum of the minimum payoffs (pessimistic criterion)
    • Example
  • Hurwicz criterion: compromise between the maximax and maximin criterion
    • Multiplies the best payoff by  and the worst payoff by 1- 
    • , coefficient of optimism, is a measure of the decision maker’s optimism
    • Example
  • Equal Likelihood ( or Laplace): Multiplies the decision payoff for each state of nature by an equal weight
slide6

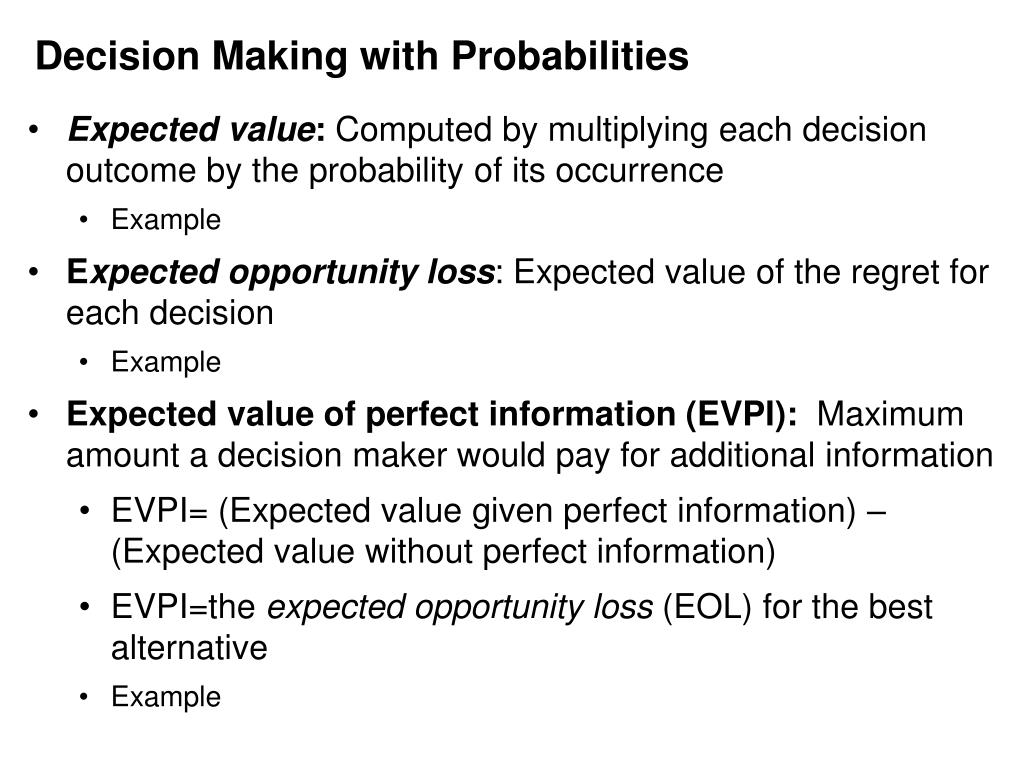

Decision Making with Probabilities

  • Expected value: Computed by multiplying each decision outcome by the probability of its occurrence
    • Example
  • Expected opportunity loss: Expected value of the regret for each decision
    • Example
  • Expected value of perfect information (EVPI): Maximum amount a decision maker would pay for additional information
    • EVPI= (Expected value given perfect information) – (Expected value without perfect information)
    • EVPI=the expected opportunity loss (EOL) for the best alternative
    • Example
expected opportunity loss eol

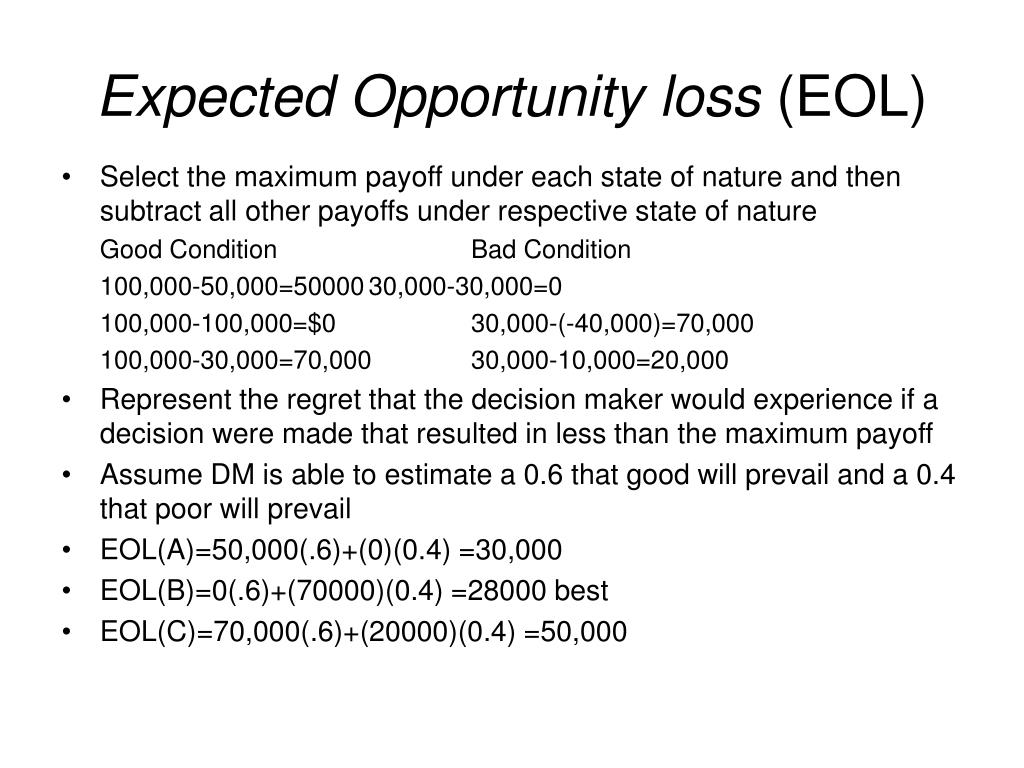

Expected Opportunity loss (EOL)
  • Select the maximum payoff under each state of nature and then subtract all other payoffs under respective state of nature

Good Condition Bad Condition

100,000-50,000=50000 30,000-30,000=0

100,000-100,000=$0 30,000-(-40,000)=70,000

100,000-30,000=70,000 30,000-10,000=20,000

  • Represent the regret that the decision maker would experience if a decision were made that resulted in less than the maximum payoff
  • Assume DM is able to estimate a 0.6 that good will prevail and a 0.4 that poor will prevail
  • EOL(A)=50,000(.6)+(0)(0.4) =30,000
  • EOL(B)=0(.6)+(70000)(0.4) =28000 best
  • EOL(C)=70,000(.6)+(20000)(0.4) =50,000
expected value of perfect information
Expected Value of Perfect Information
  • Possible to purchase additional information regarding the future
  • DM should not pay more than what he/she earns from his investment
  • Thus there is a maximum value for it
  • Computed as the expected value of perfect information (EVPI)
  • If the DM knows for sure that good condition will prevail, he goes after B (100,000)
  • If the DM knows for sure that poor condition will prevail, he goes after A (30,000)
expected value of perfect information evpi
Expected Value of Perfect Information (EVPI)
  • Also the probabilities tell us about the likelihood of good or poor condition (0.6 and 0.4)
  • Means that each state of nature will occur only a certain portion of the time
  • Thus, each decision outcomes must be weighted; (100,000)(0.6)+(30,000)(0.4)=72,000
  • 72,000 is the expected value of the decision, given perfect information, not the EVPI
  • EVPI is computed by subtracting the expected value (EV) without perfect information (44000) from the expected value given perfect information 72,000
  • EVPI=72,000-44,000=28,000
  • Maximum amount that DM would pay for additional information, but usually pays less
slide10

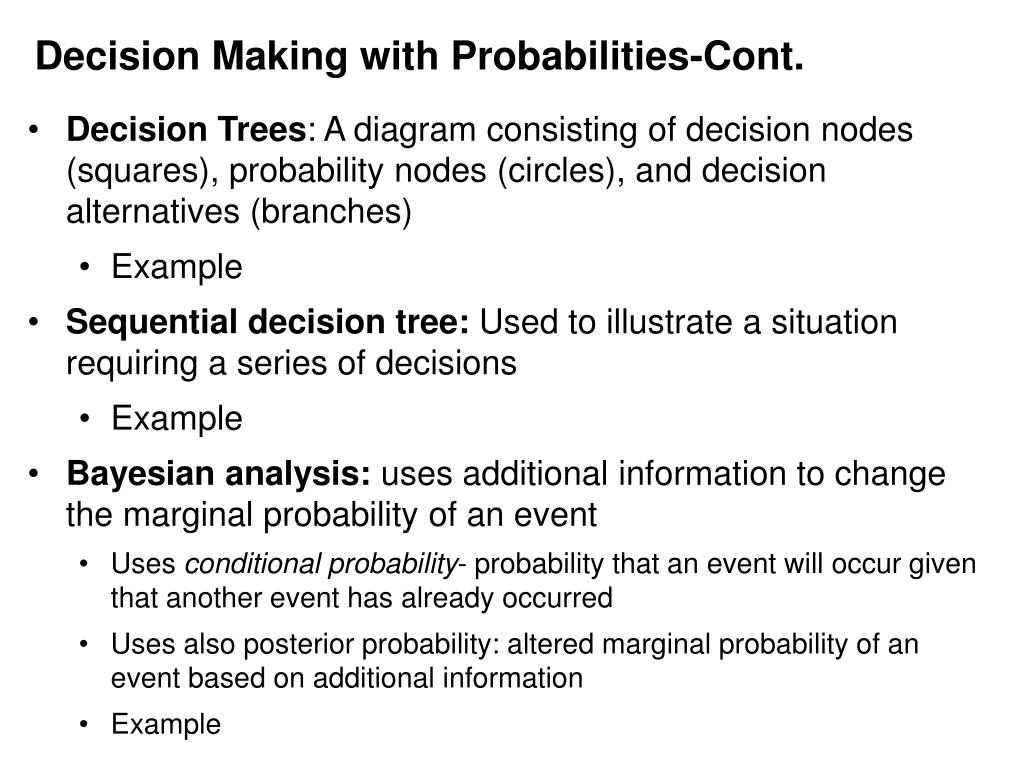

Decision Making with Probabilities-Cont.

  • Decision Trees:A diagram consisting of decision nodes (squares), probability nodes (circles), and decision alternatives (branches)
    • Example
  • Sequential decision tree: Used to illustrate a situation requiring a series of decisions
    • Example
  • Bayesian analysis: uses additional information to change the marginal probability of an event
    • Uses conditional probability- probability that an event will occur given that another event has already occurred
    • Uses also posterior probability: altered marginal probability of an event based on additional information
    • Example
slide11

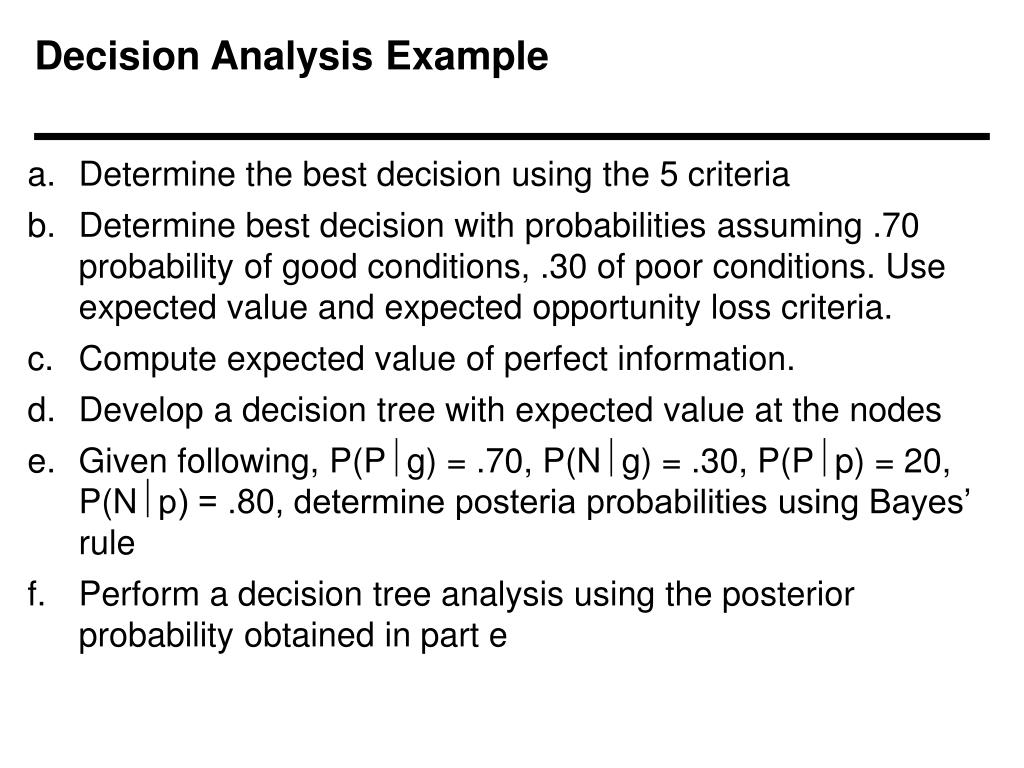

Decision Analysis Example

  • Determine the best decision using the 5 criteria
  • Determine best decision with probabilities assuming .70 probability of good conditions, .30 of poor conditions. Use expected value and expected opportunity loss criteria.
  • Compute expected value of perfect information.
  • Develop a decision tree with expected value at the nodes
  • Given following, P(Pg) = .70, P(Ng) = .30, P(Pp) = 20, P(Np) = .80, determine posteria probabilities using Bayes’ rule
  • Perform a decision tree analysis using the posterior probability obtained in part e
