Presentation Transcript
slide2

What is an Epolene Polymer?

  • Medium to low molecular weight polyethylene and polypropylene polymers
  • Produced in 4 operating units in Longview, TX
  • 3 basic types of polymers which are called C, E, and N-type polymers
  • Products supplied as free flowing pellets; powder form available for some products
  • Products packaged in 50 lbs bags; some alternative package sizes available
slide3

Epolene Performance Attributes

  • Used as additives and polymer modifiers in diverse applications
  • Product attributes deliver :
      • Abrasion resistance
      • Moisture and grease resistance
      • Surface slip and release properties
      • Compatibility with other polymers, pigments, and fillers
slide4

Types of Epolene Polymers

Highly branched, medium molecular

C-Type

Coating Grade

weight polyethylene polymers (C-16 &

C-18 are chemically modified)

Low molecular weight polyethylene, polymers (except N-15, which is polypropylene based)

Nonemulsifiable

N-Type

Oxidized low molecular weight polyethylene polymers (except E-43, which is polypropylene based)

E-Type

Emulsifiable

slide5

Chemical Processing of EpolenePolymers

Polyethylene:

C-Type

Maleation

C-16, C-18, C-19

E-10, E-14, E-16, E-20

Oxidation

N-Type

E-Type

Polypropylene:

Degradation

N-15

PP

E-43 and E-25

Maleation

slide6

Characteristics of Epolene Polymers

Low Molecular Weight Polyolefins

Plastic Grade Polyolefins

C-Type

N-Type

E-Type

PE

PP

< 100,000

> 100,000

Molecular Weight

Molecular Weight

3,600-9,100

15,000-100,000

4,000-15,000

molecular weight vs density
Molecular Weight vs. Density

Epolene C, E and N Polymers

Viscosity

Hardness

C-14

C-17

C-13

Softening Pt.

C-10/16

C-15/18

N-15

N-10

N-30

E-43

N35

N34

E-20

N-21

N-11

E-10

E-16

E-14

N-14

0.900

0.910

0.920

0.930

0.940

0.950

0.970

0.980

0.960

slide8

Epolene Polymer Applications

Epolene C polymers: Adhesives/Wax Blends

Epolene N polymers: Lubricants/Processing Aids/Dispersing Aids

Epolene E polymers: Emulsion products/ Processing Aids/ Lubricants/Coupling Agents

slide9

Epolene C-Type Polymers

Product Attributes

  • Superior thermal stability
  • Low color
  • Consistent quality through SPC methods
  • Wide viscosity range
  • Wide Ring & Ball softening point range
  • Good compatibility with tackifiers
  • Approved by FDA for food contact
  • Oil and water resistant
slide10

Epolene C-Type Polymers

Highly branched, medium molecular

weight polyethylene

C-Type

Coating Grade

Applications

  • In Adhesives and Wax Blending
    • Petroleum Wax Upgrading
    • Hot-melt Packaging Adhesives
    • Carpet Seaming Tape
    • Multi-wall Bag Assembly
    • Thermoplastic Road Striping Compounds
  • Plastic Additive Applications
    • External PVC Lubricants
    • Color Concentrate Binders
    • Rubber Processing Aids

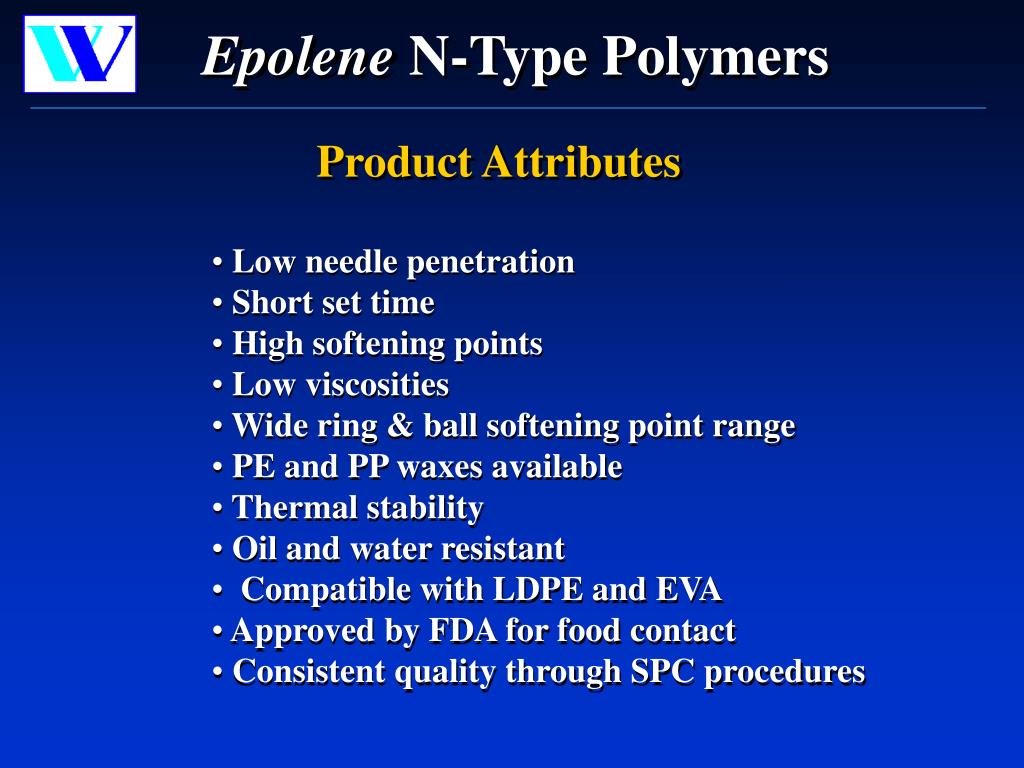

slide11

Epolene N-Type Polymers

Product Attributes

  • Low needle penetration
  • Short set time
  • High softening points
  • Low viscosities
  • Wide ring & ball softening point range
  • PE and PP waxes available
  • Thermal stability
  • Oil and water resistant
  • Compatible with LDPE and EVA
  • Approved by FDA for food contact
  • Consistent quality through SPC procedures

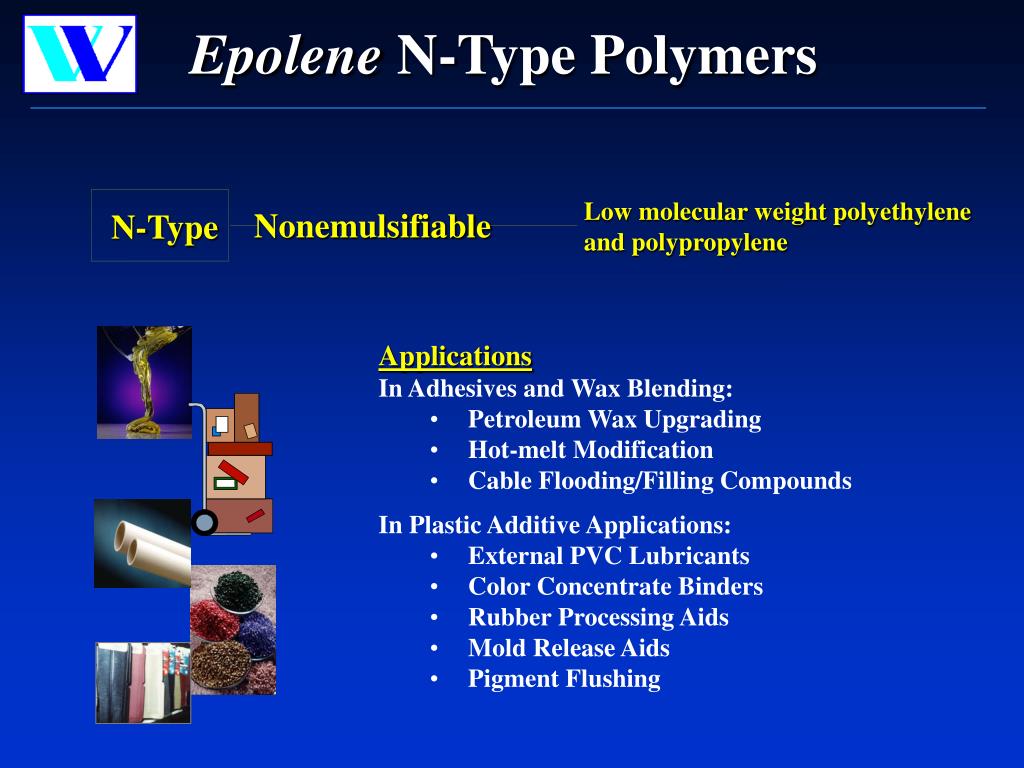

slide12

Epolene N-Type Polymers

Low molecular weight polyethylene

and polypropylene

Nonemulsifiable

N-Type

Applications

In Adhesives and Wax Blending:

  • Petroleum Wax Upgrading
  • Hot-melt Modification
  • Cable Flooding/Filling Compounds

In Plastic Additive Applications:

  • External PVC Lubricants
  • Color Concentrate Binders
  • Rubber Processing Aids
  • Mold Release Aids
  • Pigment Flushing

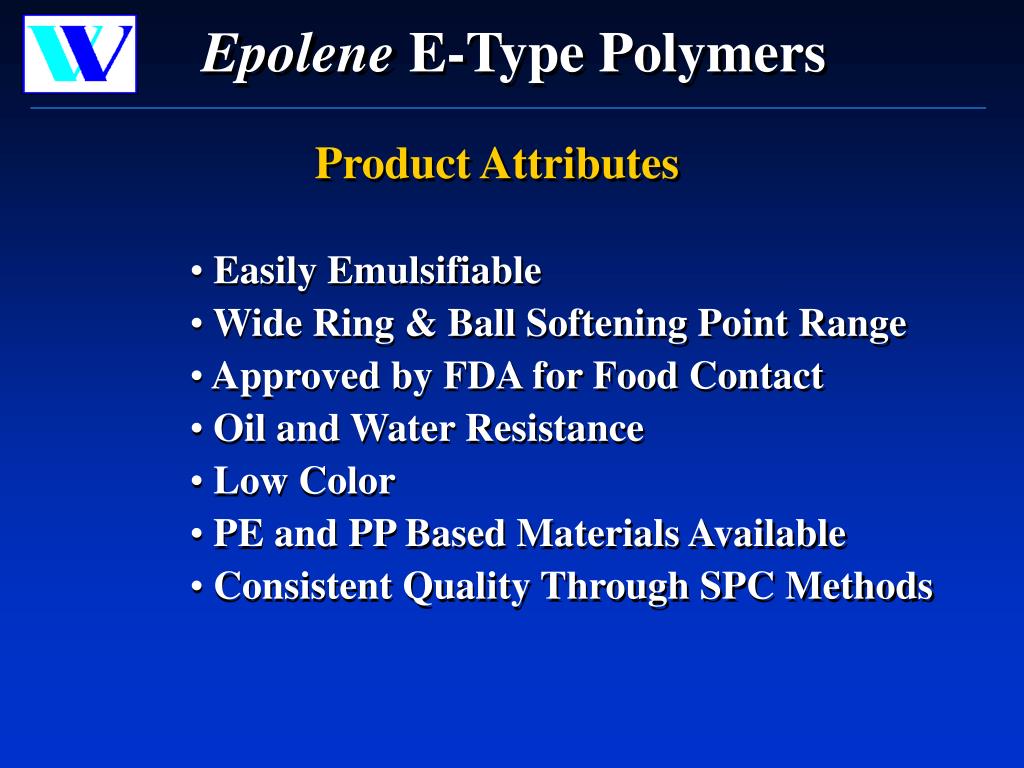

slide13

Epolene E-Type Polymers

Product Attributes

  • Easily Emulsifiable
  • Wide Ring & Ball Softening Point Range
  • Approved by FDA for Food Contact
  • Oil and Water Resistance
  • Low Color
  • PE and PP Based Materials Available
  • Consistent Quality Through SPC Methods

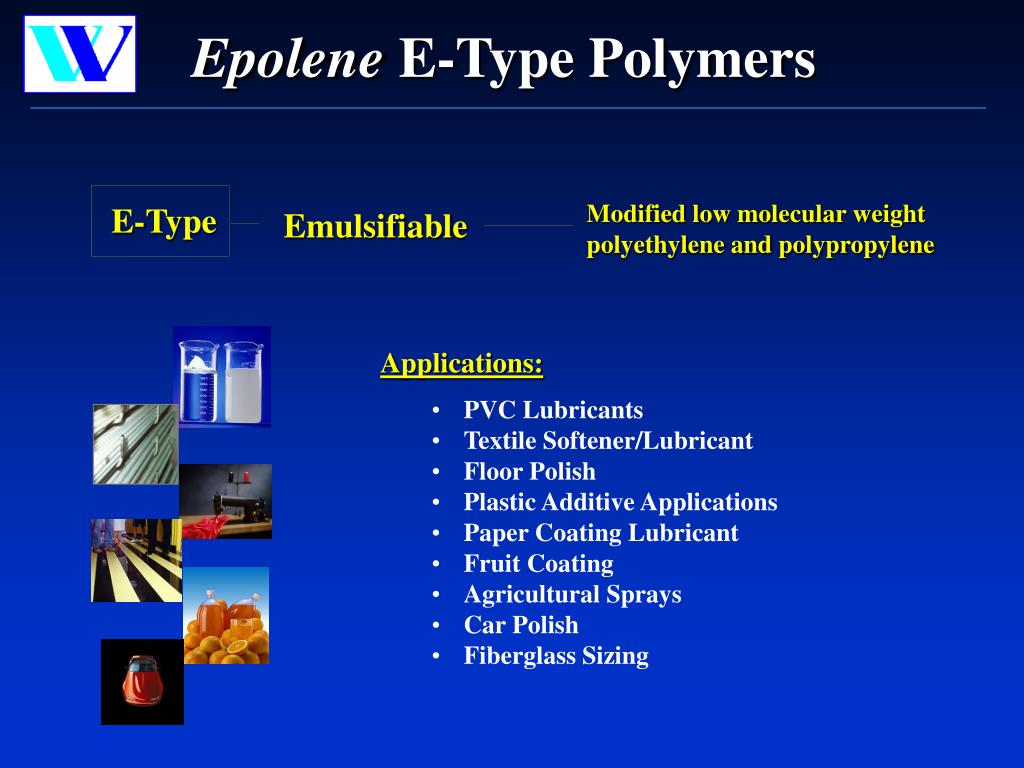

slide14

Epolene E-Type Polymers

Modified low molecular weight

polyethylene and polypropylene

E-Type

Emulsifiable

Applications:

  • PVC Lubricants
  • Textile Softener/Lubricant
  • Floor Polish
  • Plastic Additive Applications
  • Paper Coating Lubricant
  • Fruit Coating
  • Agricultural Sprays
  • Car Polish
  • Fiberglass Sizing
