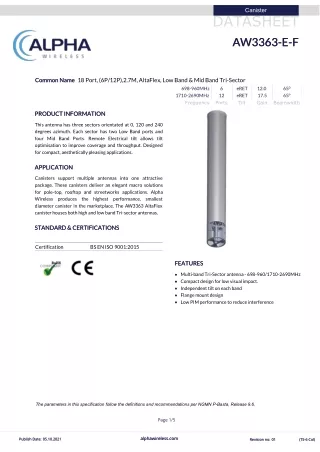

  1. Canister DATASHEET AW3363-E-F AW3363-E-F Common Name Common Name 18 Port, (6P/12P),2.7M, AltaFlex, Low Band & Mid Band Tri-Sector 698-960MHz 1710-2690MHz Frequency 6 12 eRET eRET Tilt 12.0 17.5 Gain 65⁰ 65° Ports Beamwidth PRODUCT INFORMATION PRODUCT INFORMATION This antenna has three sectors orientated at 0, 120 and 240 degrees azimuth. Each sector has two Low Band ports and four Mid Band Ports. Remote Electrical tilt allows tilt optimisation to improve coverage and throughput. Designed for compact, aesthetically pleasing applications. APPLICATION APPLICATION Canisters support multiple antennas into one attractive package. These canisters deliver an elegant macro solutions for pole-top, rooftop and streetworks applications. Alpha Wireless produces the highest performance, smallest diameter canister in the marketplace. The AW3363 AltaFlex canister houses both high and low band Tri-sector antennas. STANDARD & CERTIFICATIONS STANDARD & CERTIFICATIONS Certification BS EN ISO 9001:2015 FEATURES FEATURES Multi-band Tri-Sector antenna - 698-960/1710-2690MHz Compact design for low visual impact. Independent tilt on each band Flange mount design Low PIM performance to reduce interference The parameters in this specification follow the definitions and recommendations per NGMN P-Basta, Release 9.6. Page 1/5 alphawireless.com alphawireless.com Publish Date: Publish Date: 05.10.2021 05.10.2021 Revision no: Revision no: 01 01 (TS-6 Col) (TS-6 Col)

  2. Canister AW3363-E-F AW3363-E-F TECHNICAL SPECIFICATION TECHNICAL SPECIFICATION Electrical Specifications Electrical Specifications 1710-1920 1920-2170 2300 - 2690 Frequency Range Polarisation Gain Basta Max Azimuth Beamwidth Azimuth Beam Squint Elevation Beamwidth Electrical Downtilt Electrical Downtilt Deviation Impedance VSWR Return Loss Isolation Passive Intermodulation Upper Sidelobe Suppression, Peak to 20° Cross-Polar Discrimination Maximum Effective Power Per Port MHz Degree 698-790 790-890 890-960 +/-45° Slant Linear 17.3±0.5 17.8 64⁰ 17.5±0.5 18.0 60⁰ dBi dBi 11.9 ±0.5 12.4 69⁰ 12.0±0.5 12.5 67⁰ 12.1 ±0.5 12.6 65⁰ 17.0 ±0.5 17.5 69⁰ Degree Degree< Degree Degree Degree< Ohms < dB> dB> dBc< dB> dB> W 3⁰ 6.5⁰ 6.2⁰ 6.0⁰ 26⁰ 25⁰ 23⁰ T0⁰ - T10⁰ T6⁰ - T14⁰ 1⁰ 50 1.5 14 25 -150 N/A 16 500 16 15 250 Sample Text Sample Text Representative Pattern Files Representative Pattern Files Low Band Ultra-wide Band Elevation Elevation Azimuth Azimuth For radiation pattern files, please login at www.alphawireless.com Page 2/5 alphawireless.com alphawireless.com Publish Date: Publish Date: 05.10.2021 05.10.2021 Revision no: Revision no: 01 01 (TS-6 Col) (TS-6 Col)

  3. Canister AW3363-E-F AW3363-E-F TECHNICAL SPECIFICATION TECHNICAL SPECIFICATION Mechanical Specifications Mechanical Specifications Dimensions Packing Size (LxWxD) Net Weight (antenna) Net Weight (mount) Shipping Weight Connector Type (Female) Connector Position Connector Quantity Windload Frontal (at Rated Wind Speed: 150km/h) Windload Lateral (at Rated Wind Speed: 150km/h) Survival Wind Speed Radome Material Radome Colour Product Compliance Environmental Lightning Protection Cold Temperature Survival Hot Temperature Survival mm (in) mm (in) kg (lb) kg (lb) kg (lb) - - - N (Ibf) N (Ibf) km/h (mph) - RAL - - - - Celsius (Fahrenheit) Celsius (Fahrenheit) 2753 (108.3) x 330 (12.9) - (L x Ø) 2910 (114) x 500 (20) x 590 (23) 75 (165) Flange mount 124 (273) 4.3-10 Bottom 18 (6P Low Band, 12P Mid band) 830 (187) 830 (187) 200 (125) UV-Stabilised PVC 9010 RoHS DC Grounded -40 (-40) 70 (158) Page 3/5 alphawireless.com alphawireless.com Revision no: Revision no: 01 01 (TS-6 Col) (TS-6 Col) Publish Date: Publish Date: 05.10.2021 05.10.2021

  4. Canister AW3363-E-F AW3363-E-F TECHNICAL SPECIFICATION TECHNICAL SPECIFICATION Page 4/5 alphawireless.com alphawireless.com Publish Date: Publish Date: 05.10.2021 05.10.2021 Revision no: Revision no: 01 01 (TS-6 Col) (TS-6 Col)

  5. Canister AW3363-E-F AW3363-E-F TECHNICAL SPECIFICATION TECHNICAL SPECIFICATION Mounting Bracket Kit Mounting Bracket Kit 330mm Canister Flange Mount Mounting Kit Tilt Range N/A Mounting Kit Material Galvanized Steel Mounting Kit Pole Diameter N/A Ordering Info Ordering Info Order Code - Antenna Order Code - Antenna AW3363-E-F Order Code - Accessories Order Code - Accessories AW1012-2-FM-FM AW1012-2-FM-NM AW1014-2-FM-TM PADC 1000 SADC 2000 AW0326-3-PM-PF AW0326-10-PM-PF AW0326-25-PM-PF AW0326-50-PM-PF Description Description Enclosed Remote Electrical Tilt (eRET) with 4.3-10 connectors. Description Description RF Jumper Cable, connector types 4.3-10 (m) / 4.3-10 (m), length 2 metres (6'6") RF Jumper Cable, connector types 4.3-10 (m) / N-Type (m), length 2 metres (6'6") RF Jumper Cable, connector types 4.3-10 (m) / Nex10 (m), length 2 metres (6'6") Portable AISG Controller Site AISG Controller AISG Jumper Cable Lengths 3 metres (9' 10") AISG Jumper Cable Lengths 10 metres (32' 9") AISG Jumper Cable Lengths 25 metres (82') AISG Jumper Cable Lengths 50 metres (164') Enquiries Enquiries Global Headquarters Global Headquarters Ashgrove Business Centre, Ballybrittas, Portlaoise, Ireland Post code: R32 DT0A sales@alphawireless.com +353 57 86 33847 North America North America 7301 W. 129th Street, Suite 150 Overland Park, KS 66213, USA sales@alphawireless.com +1 913 279 0008 Alpha Wireless Alpha Wireless Australia Australia 3/76 Regentville Rd, Jamisontown NSW 2750 AUSTRALIA sales@alphawireless.com + 61 2 4504 8212 DISCLAIMER The information in this document is provided solely regarding Alpha Wireless products. The information is not a guarantee of performance or characteristics. Alpha Wireless reserves the right to modify, change, amend, improve or make corrections to this document and its products, at any time and its sole discretion without prior written consent or notice. No license to any intellectual property rights is granted or implied under this document. Alpha Wireless disclaims warranties and liabilities of any kind including non-infringement of intellectual property rights of any third party. © Alpha Wireless Limited 2021 Page 5/5 alphawireless.com alphawireless.com Publish Date: Publish Date: 05.10.2021 05.10.2021 Revision no: Revision no: 01 01 (TS-6 Col) (TS-6 Col)
