DINING PHILOSOPHERS PROBLEM

1. DINING PHILOSOPHERS PROBLEM

2. The Problem… Five silent philosophers sit at a table around a bowl of spaghetti. A fork is placed between each pair of adjacent philosophers. Each philosopher must alternately think and eat. However, a philosopher can only eat spaghetti when he has both left and right forks. Each fork can be held by only one philosopher and so a philosopher can use the fork only if it's not being used by another philosopher. After he finishes eating, he needs to put down both forks so they become available to others. A philosopher can grab the fork on his right or the one on his left as they become available, but can't start eating before getting both of them.

3. Eating is not limited by the amount of spaghetti left: assume an infinite supply. • The problem is how to design a discipline of behavior (a concurrent algorithm) such that each philosopher won't starve; i.e., can forever continue to alternate between eating and thinking assuming that any philosopher cannot know when others may want to eat or think.

4. The problem was designed to illustrate the problem of avoiding deadlock. • To see that designing a proper solution to this problem isn't obvious, instruct each philosopher to behave as follows: • think until the left fork is available; when it is, pick it up; • think until the right fork is available; when it is, pick it up; • when both forks are held, eat for a fixed amount of time; • then, put the right fork down; • then, put the left fork down; • repeat from the beginning.

5. This attempt at a solution fails: it allows the system to reach a deadlock state. • This is the state in which each philosopher has picked up the fork to the left, waiting for the fork to the right to be put down. With the given instructions, this state can be reached, and when it is reached, the philosophers will eternally wait for each other to release a fork.

6. Resource starvation might also occur independently of deadlock if a particular philosopher is unable to acquire both forks because of a timing problem. • For example there might be a rule that the philosophers put down a fork after waiting ten minutes for the other fork to become available and wait a further ten minutes before making their next attempt.

7. This scheme eliminates the possibility of deadlock, but still suffers from the problem of livelock. • If all five philosophers appear in the dining room at exactly the same time and each picks up the left fork at the same time the philosophers will wait ten minutes until they all put their forks down and then wait a further ten minutes before they all pick them up again

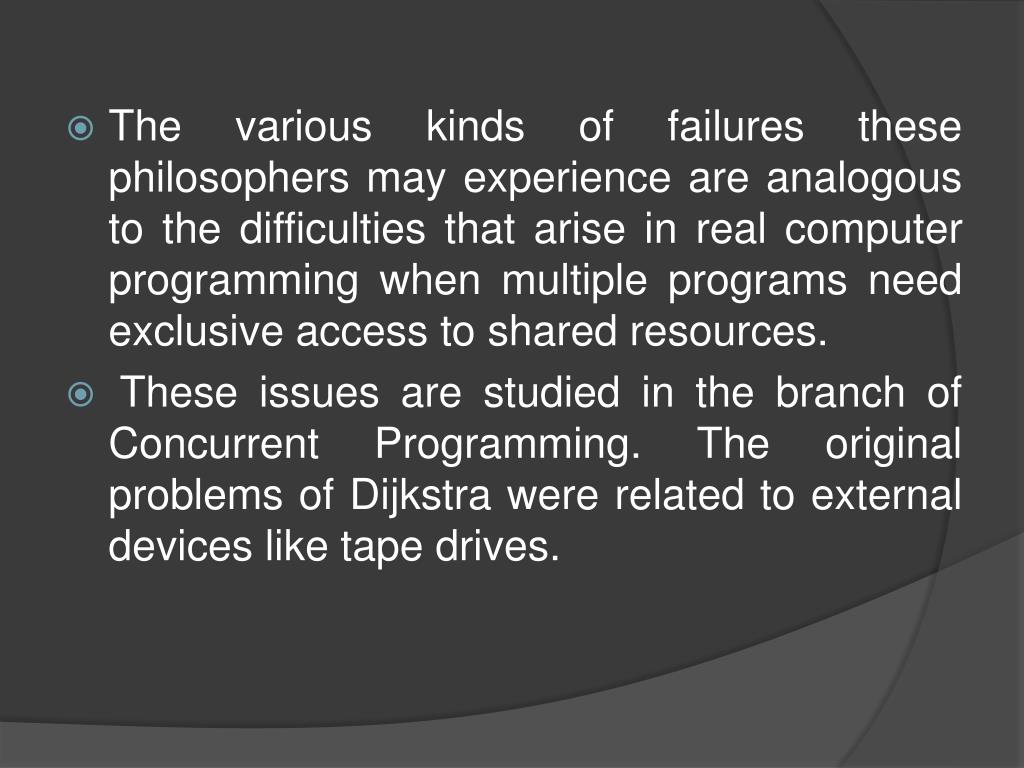

8. The various kinds of failures these philosophers may experience are analogous to the difficulties that arise in real computer programming when multiple programs need exclusive access to shared resources. • These issues are studied in the branch of Concurrent Programming. The original problems of Dijkstra were related to external devices like tape drives.

9. However, the difficulties studied in the Dining Philosophers problem arise far more often when multiple processes access sets of data that are being updated. • Systems that must deal with a large number of parallel processes, such as operating system kernels, use thousands of locks and synchronizations that require strict adherence to methods and protocols if such problems as deadlock, starvation, or data corruption are to be avoided.

10. Now, the philosophers basically go through the following steps. • while(1) { think for a random number of seconds pickup(p); eat for a random number of seconds putdown(p); }

11. p is the philosopher's Phil_struct. • The pickup() call is timed and this time is added to the total blocked time for each thread. • Each solution to this problem must implement initialize_v(), pickup() and putdown() to manage the chopsticks. • pickup() and putdown() should be written so that no philosopher starves (i.e. wants to eat, but never gets a chopstick), and so that deadlock doesn't occur (a subset of the above, because it would mean that all philosophers starve...) • It should also attempt to try to minimize the amount of time that the philosopher's spend waiting for chopsticks.

12. IPC: Semaphores • Semaphores are a programming construct designed by E. W. Dijkstra in the late 1960s. • Dijkstra'smodel was the operation of railroads: • Consider a stretch of railroad in which there is a single track over which only one train at a time is allowed. Guarding this track is a semaphore. • A train must wait before entering the single track until the semaphore is in a state that permits travel. When the train enters the track, the semaphore changes state to prevent other trains from entering the track. A train that is leaving this section of track must again change the state of the semaphore to allow another train to enter.

13. In the computer version, a semaphore appears to be a simple integer. A process (or a thread) waits for permission to proceed by waiting for the integer to become 0. The signal if it proceeds signals that this by performing incrementing the integer by 1. When it is finished, the process changes the semaphore's value by subtracting one from it.

14. Algorithm Step 1: Initialize number of forks N=5, a semaphore array S[N] , left[N+n]%N, right=n%N Step 2:while i less than N do . i) Create five semaphore with value 1 Step 3:i=0 Step 4: while i less than N do i) Create a thread with argument I, namely philo ii) Increment i Step 5: End While

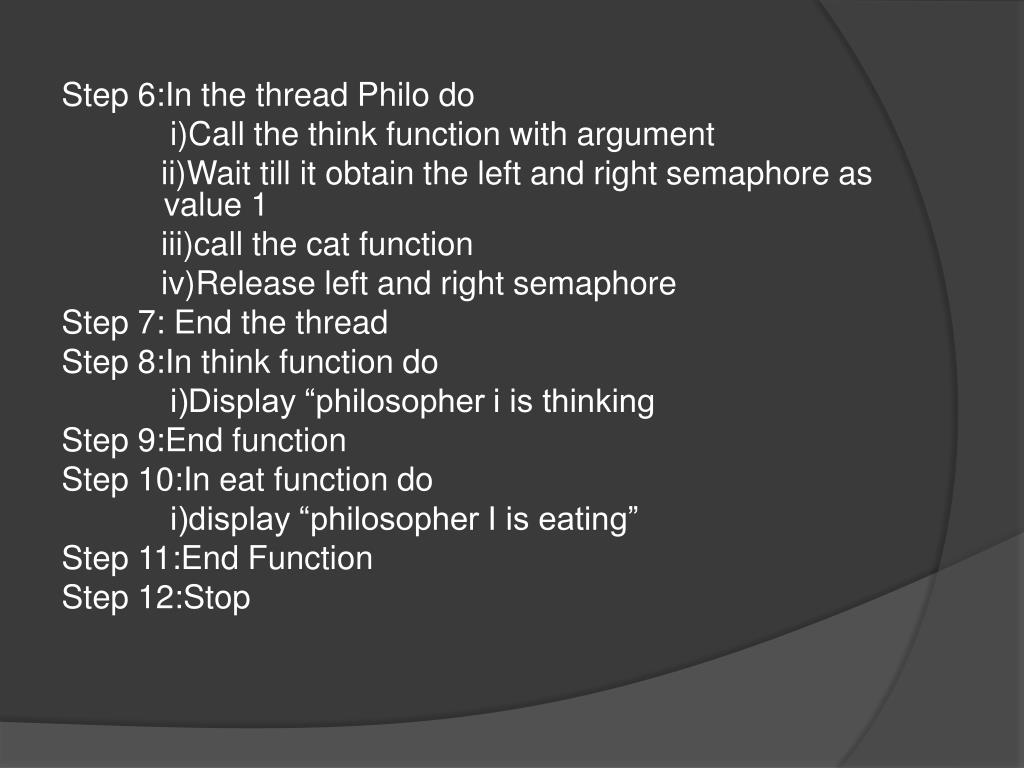

15. Step 6:In the thread Philo do i)Call the think function with argument ii)Wait till it obtain the left and right semaphore as value 1 iii)call the cat function iv)Release left and right semaphore Step 7: End the thread Step 8:In think function do i)Display “philosopher i is thinking Step 9:End function Step 10:In eat function do i)display “philosopher I is eating” Step 11:End Function Step 12:Stop

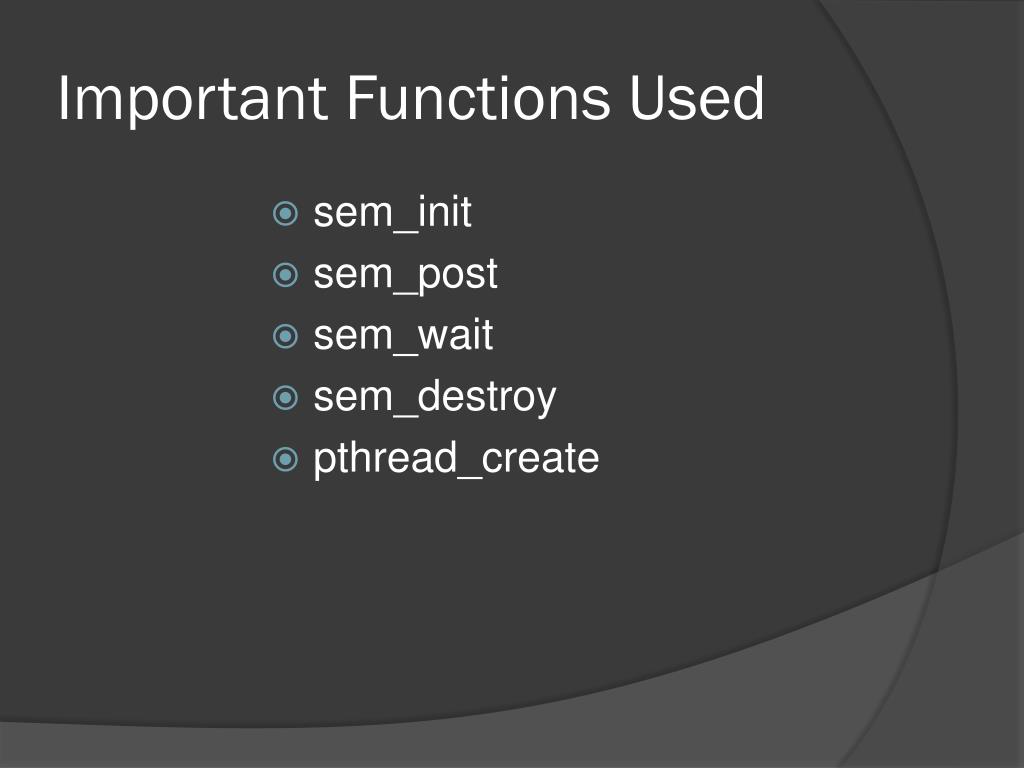

16. Important Functions Used • sem_init • sem_post • sem_wait • sem_destroy • pthread_create

17. sem_init • sem_init() • Initialize an unnamed semaphore • Synopsis: #include <semaphore.h> intsem_init( sem_t * sem, intpshared, unsigned value );

18. Sem • A pointer to the sem_t object for the semaphore that you want to initialize. • pshared • Nonzero if you want the semaphore to be shared between processes via shared memory. • value • The initial value of the semaphore. A positive value (i.e. greater than zero) indicates an unlocked semaphore, and a value of 0 (zero) indicates a locked semaphore. This value must not exceed SEM_VALUE_MAX.

19. Library: • libc • Use the -l c option to gcc to link against this library. • This library is usually included automatically.

20. You can use the initialized semaphore in subsequent calls to sem_wait(), sem_trywait(), sem_post(), and sem_destroy(). • An initialized semaphore is valid until it's destroyed by the sem_destroy() function, or until the memory where the semaphore resides is released. • If the pshared argument is nonzero, then the semaphore can be shared between processes via shared memory. • Any process can then use sem with the sem_wait(), sem_trywait(), sem_post() and sem_destroy() functions.

21. Return Value • 0 • Success. • The semaphore referred to by sem is initialized. • -1 • An error occurred (errno is set).

22. sem_post() • Increment a named or unnamed semaphore • Synopsis : #include <semaphore.h> int sem_post( sem_t * sem ); • sem • A pointer to the sem_t object for the semaphore whose value you want to increment.

23. The sem_post() function increments the semaphore referenced by the sem argument. If any processes are currently blocked waiting for the semaphore, then one of these processes will return successfully from its call to sem_wait. • The process to be unblocked is determined in accordance with the scheduling policies in effect for the blocked processes. The highest priority waiting process is unblocked, and if there is more than one highest priority process blocked waiting for the semaphore, then the highest priority process that has been waiting the longest is unblocked. • The sem_post() function is reentrant with respect to signals, and can be called from a signal handler.

24. Return Value • 0 • Success. • -1 • An error occurred (errno is set).

25. sem_wait() • Wait on a named or unnamed semaphore Synopsis: #include <semaphore.h> intsem_wait( sem_t * sem); • sem • A pointer to the sem_t object for the semaphore that you want to wait on.

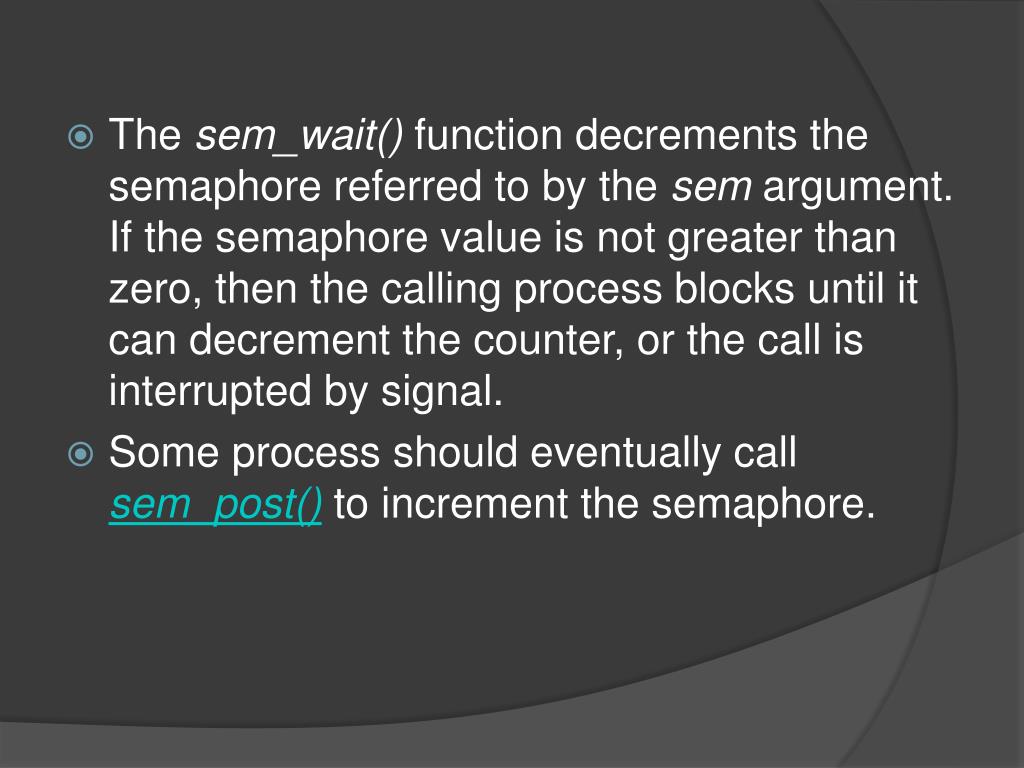

26. The sem_wait() function decrements the semaphore referred to by the sem argument. If the semaphore value is not greater than zero, then the calling process blocks until it can decrement the counter, or the call is interrupted by signal. • Some process should eventually call sem_post() to increment the semaphore.

27. Return Value • 0 • The semaphore was successfully decremented. • -1 • The state of the semaphore is unchanged (errno is set).

28. sem_destroy() • Destroy a semaphore Synopsis: #include <semaphore.h> intsem_destroy( sem_t * sem); • sem • A pointer to the sem_t object for the semaphore that you want to destroy.

29. The sem_destroy() function destroys the unnamed semaphore referred to by the sem argument. The semaphore must have been previously initialized by the sem_init() function. • The effect of using a semaphore after it has been destroyed is undefined. If you destroy a semaphore that other processes are currently blocked on, they're unblocked, with an error (EINVAL).

30. Return Value • 0 • Success. • -1 • An error occurred (errno is set).
