Esters (p. 17)

Esters (p. 17). Organic compounds that began as acids and were reacted to become esters. General form: O O R-C-OH R- C-O-R. Naming:. Parent Chain The part connected to the double bonded oxygen (that is carbon #1) It is named last

jenski
Download Presentation

Esters (p. 17)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

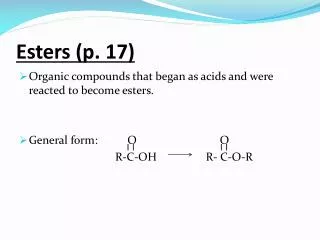

  1. Esters (p. 17) • Organic compounds that began as acids and were reacted to become esters. • General form: O O R-C-OH R- C-O-R

  2. Naming: • Parent Chain • The part connected to the double bonded oxygen (that is carbon #1) • It is named last • Name as an alkane (remove the “e”) • Ends in –oate (pronouced “o” ate)

  3. Naming: • Branches • Named first • Part connected to the single bonded oxygen • End in –yl • Example: Propylethanoate • O C-C-O-C-C-C 2 1 1 2 3 (parent) (alkyl branch)

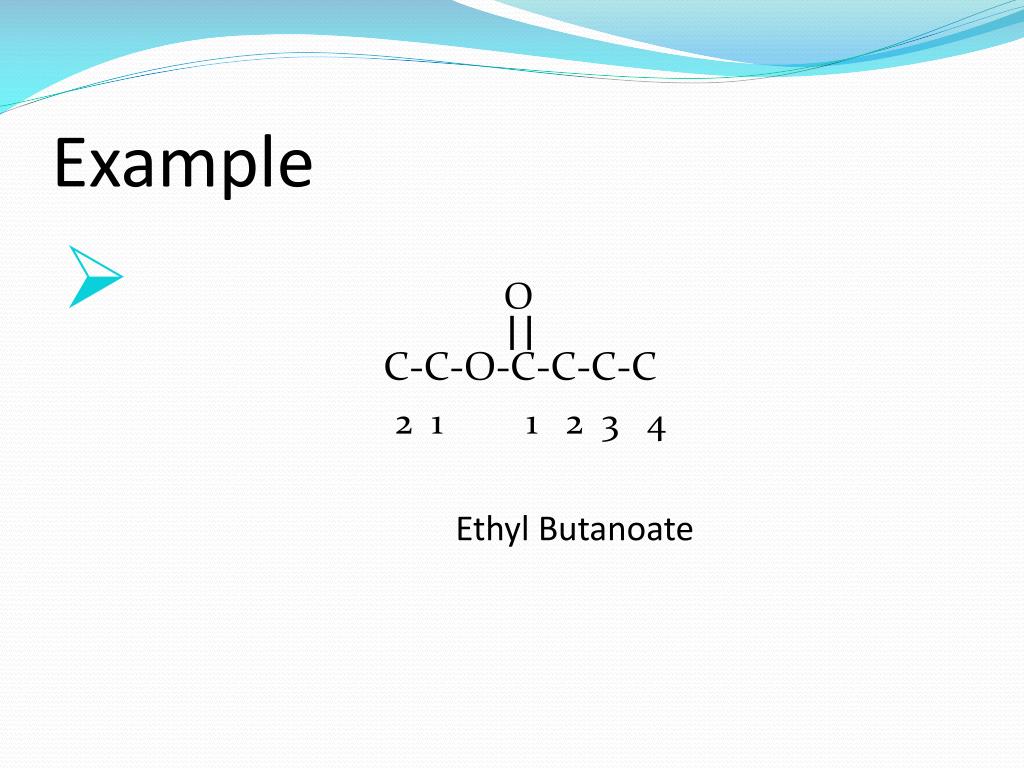

  4. Example • O C-C-O-C-C-C-C 2 1 1 2 3 4 Ethyl Butanoate

  5. Draw: PentylHexanoate O C-C-C-C-C-O-C-C-C-C-C-C 5 4 3 2 1 1 2 3 4 5 6

  6. Example: • OR O C-C-C-C-C-C-O-C-C-C-C-C 6 5 4 3 2 1 1 2 3 4 5

  7. Amines (p. 19) • Organic compounds based on NH3 • General form: R” R- N -R’ • Naming: • Carbon branches ( -yl) replace hydrogens • Put in alphabetical order • Add amine at the end

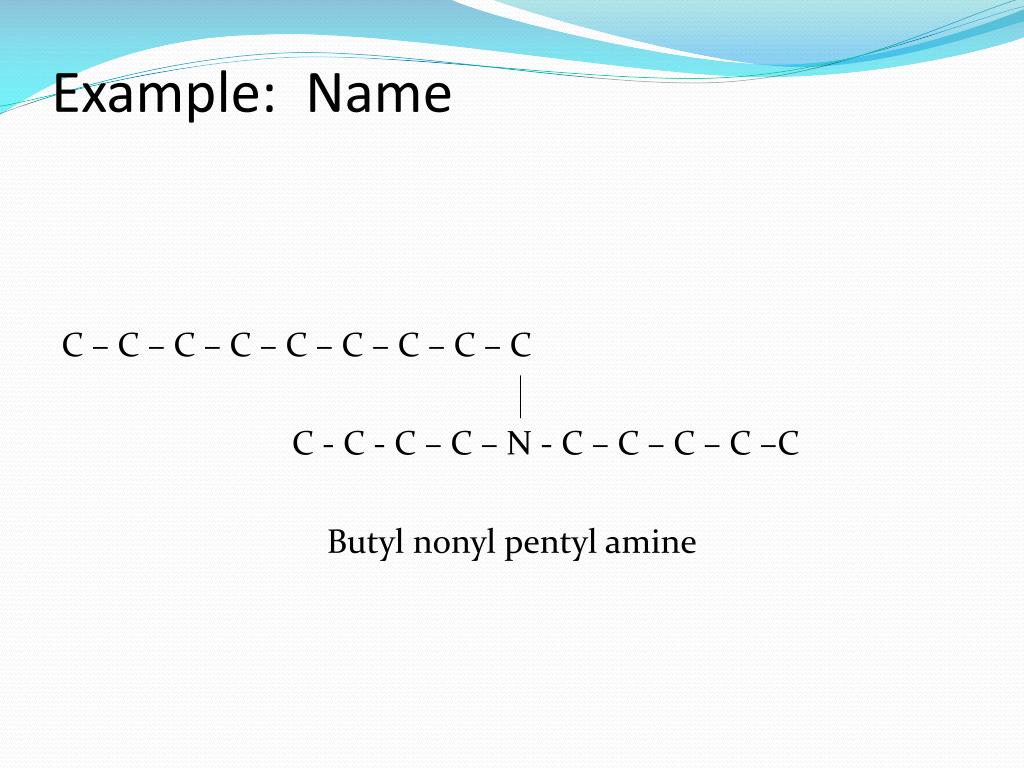

  8. Example: Name C – C – C – C – C – C – C – C – C C - C - C – C – N - C – C – C – C –C Butyl nonylpentyl amine

  9. Example: C – C – N - C - C Cyclobutyl diethyl amine

  10. Name: C – C - C C - C - C -C – C – N - H pentylpropyl amine

  11. H C - C - C - C -C - C- N -H hexyl amine
