cs1550 recitation

CS1550 Recitation

Mengmeng Li

LMM@cs.pitt.edu

Office hours: Wed 2:15-4:45pm, Fri 3:00-4:00pm

Office: Sennot Square 6805

slide2
goal
  • Review the CPU scheduling.
  • Exercises.
  • Project 1.
motivation
motivation
  • When a computer is multiprogrammed, it frequently has multiple processes or threads competing at the same time.
  • If only one CPU is available, a choice has to be made which process to run next.
  • Scheduler:

The part of the OS that makes the choice.

  • Scheduling algorithm:
categories
categories
  • Preemptive algorithm
  • Nonpreemptive algorithm
definitions
definitions
  • Throughput:

The number of jobs per hour that the system completes

  • Turnaround time:

the statistically average time from the moment that a batch job is submitted until the moment it is completed.

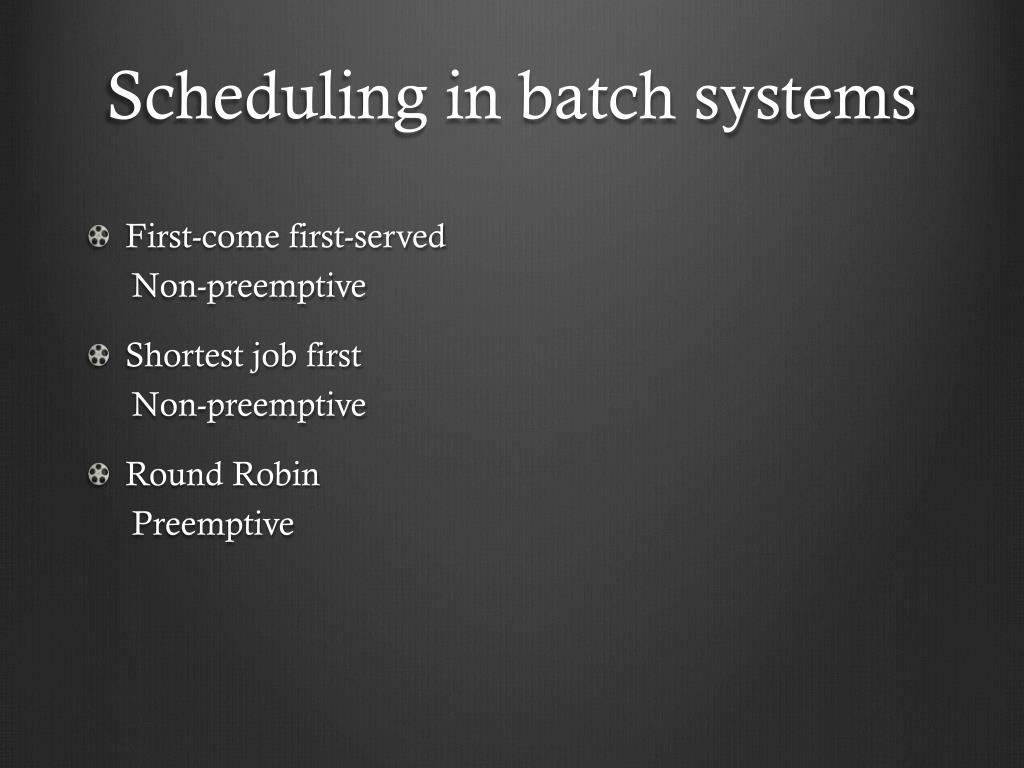

scheduling in batch systems
Scheduling in batch systems
  • First-come first-served

Non-preemptive

  • Shortest job first

Non-preemptive

  • Round Robin

Preemptive

first come first served
First-come first-served
  • Example 1:

Throughput = 60*3/(24+3+3) = 6

Turnaround time = (24 + 26 +28)/3 = 26

shortest job first
Shortest job first
  • Example 1:

P1

P4

P2

P3

Throughput = 60*4/(10+8+18+3) = 6

Turnaround time = (10 + 3+ 19 + 33)/4 = 17.5

round robin
Round Robin
  • Example

Time quantum: 5

  • Throughput = 60*4/(10+8+18+3) = 6
  • Turnaround = (23+24+33+8)/4 = 22

P1(5)

P2(5)

P3(5)

P4(3)

P1(5)

P2(3)

P3(13)

round robin1
Round Robin
  • Exercise
project 1
Project 1
  • Run the skeleton programs.
