Presentation Transcript
network power management fundamentals

Network Power Management Fundamentals

Bob Combs

Lead Program Manager

Microsoft Corporation

Narsi Nagampalli

Software Development Lead

Microsoft Corporation

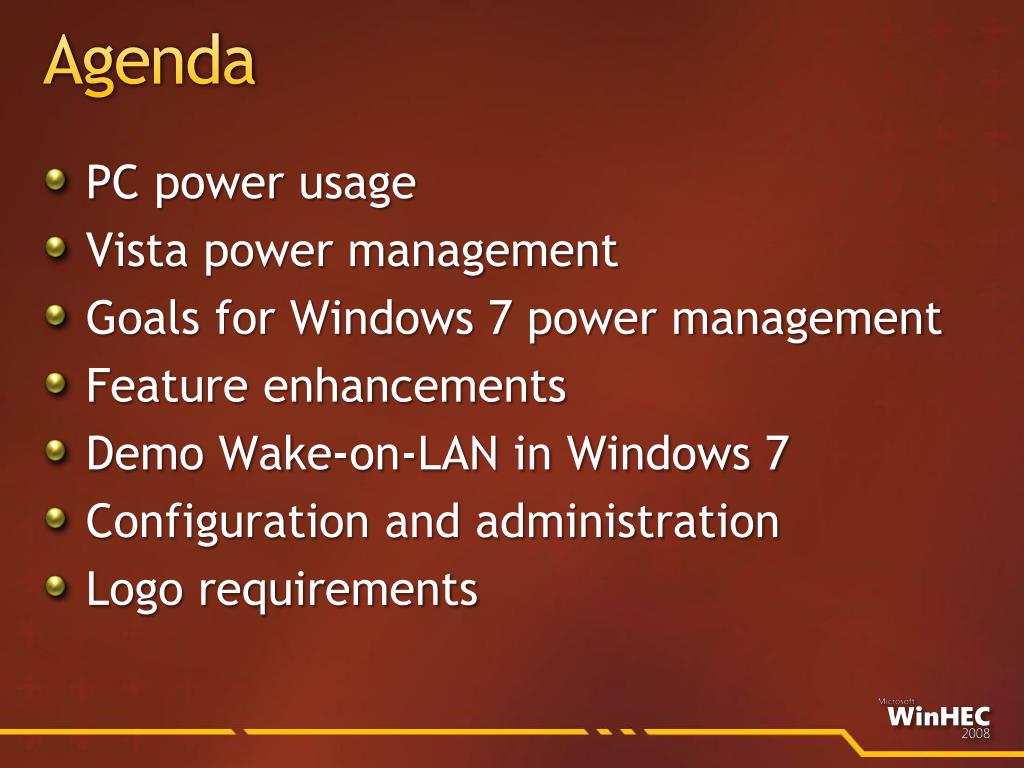

agenda
Agenda
  • PC power usage
  • Vista power management
  • Goals for Windows 7 power management
  • Feature enhancements

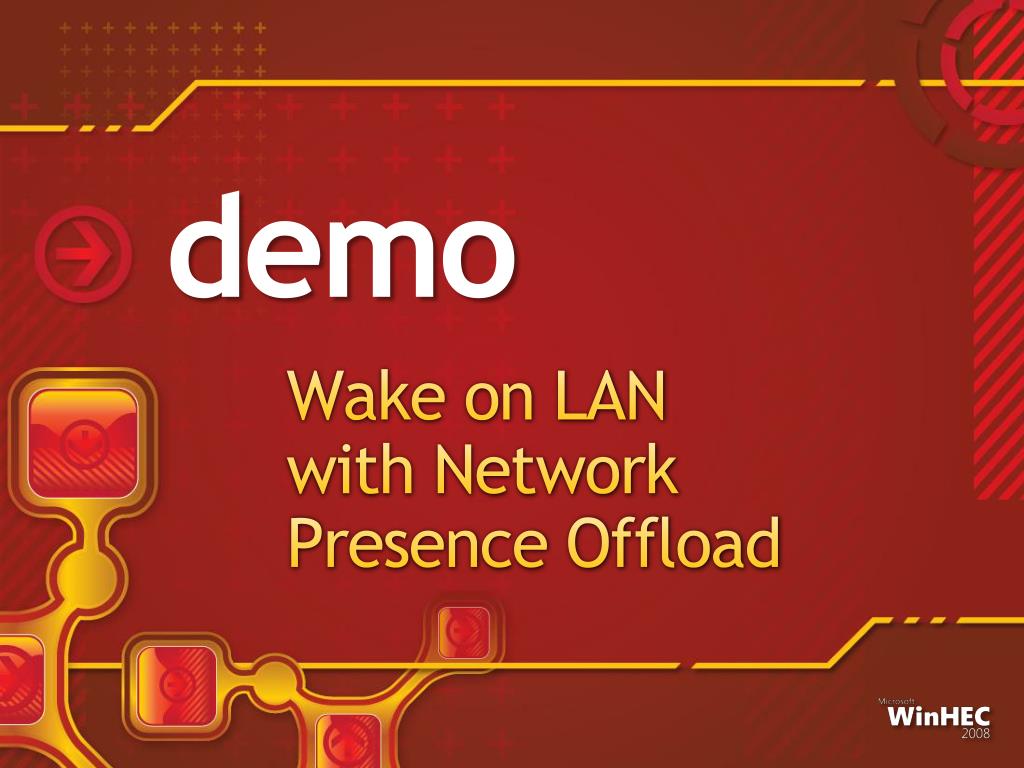

  • Demo Wake-on-LAN in Windows 7
  • Configuration and administration
  • Logo requirements
energy awareness for pcs

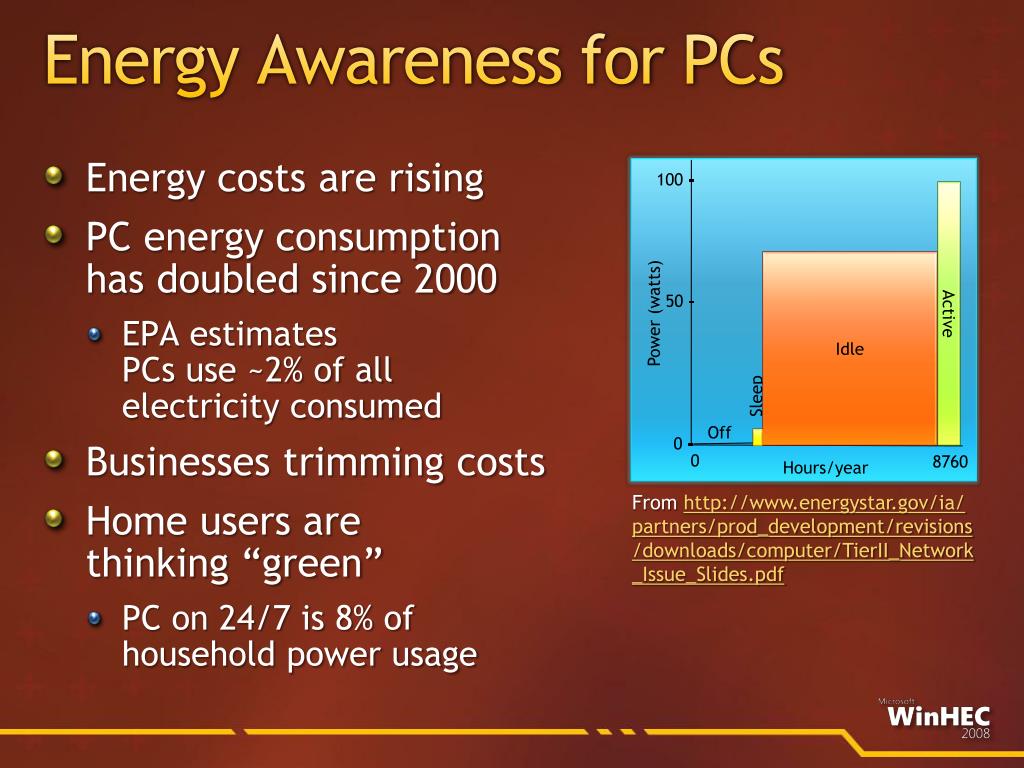

Energy Awareness for PCs
  • Energy costs are rising
  • PC energy consumption has doubled since 2000
    • EPA estimates PCs use ~2% of all electricity consumed
  • Businesses trimming costs
  • Home users are thinking “green”
    • PC on 24/7 is 8% of household power usage

100 -

Active

Power (watts)

Idle

50 -

Sleep

Off

0 -

0

8760

Hours/year

From http://www.energystar.gov/ia/partners/prod_development/revisions/downloads/computer/TierII_Network_Issue_Slides.pdf

sleeping pc equals real savings

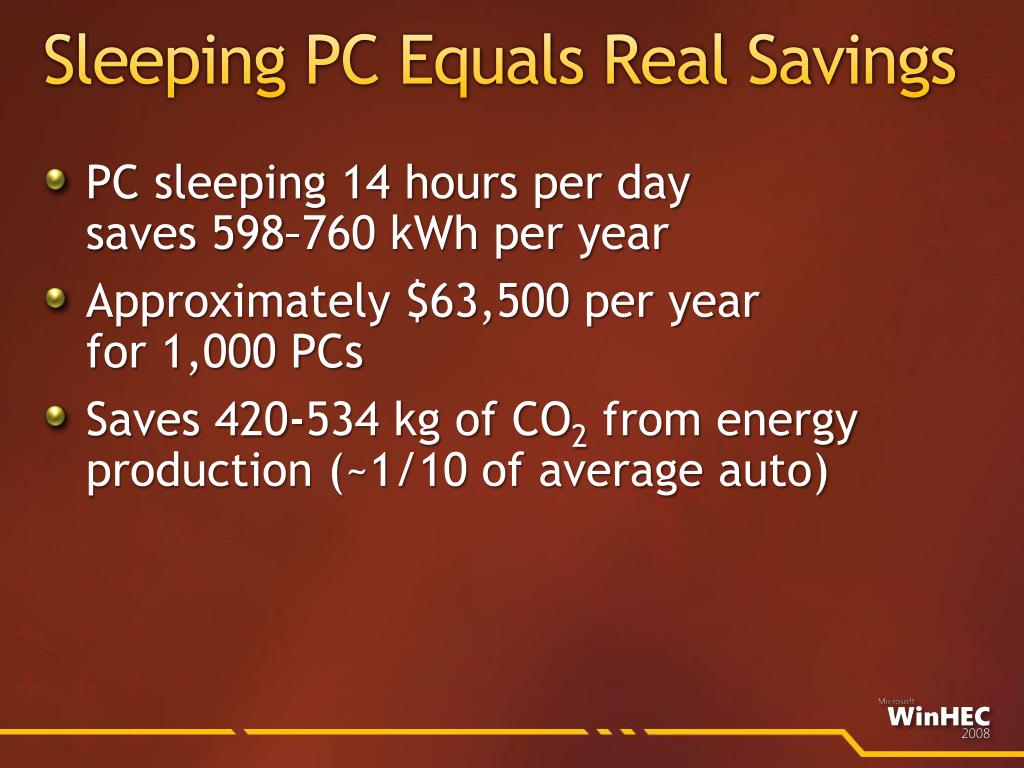

Sleeping PC Equals Real Savings
  • PC sleeping 14 hours per day saves 598–760 kWh per year
  • Approximately $63,500 per year for 1,000 PCs
  • Saves 420-534 kg of CO2 from energy production (~1/10 of average auto)
wake on lan in vista
Wake-on-LAN in Vista
  • Wake-on-LAN (WoL) off by default
  • Wake patterns
    • Magic packet
    • Directed layer2 packet
    • NetBIOS name query packet
    • IPv4 Address Resolution Protocol (ARP) request packet
    • IPv6 Neighbor Solicitation (NS) packet

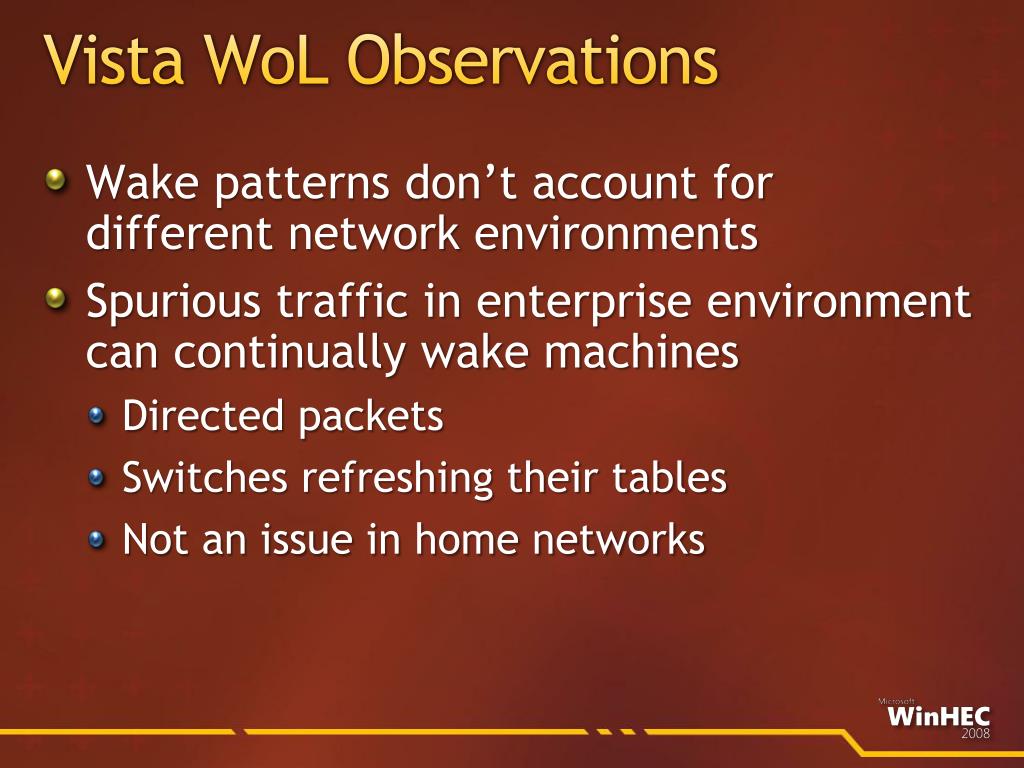

vista wol observations
Vista WoL Observations
  • Wake patterns don’t account for different network environments
  • Spurious traffic in enterprise environment can continually wake machines
    • Directed packets
    • Switches refreshing their tables
    • Not an issue in home networks

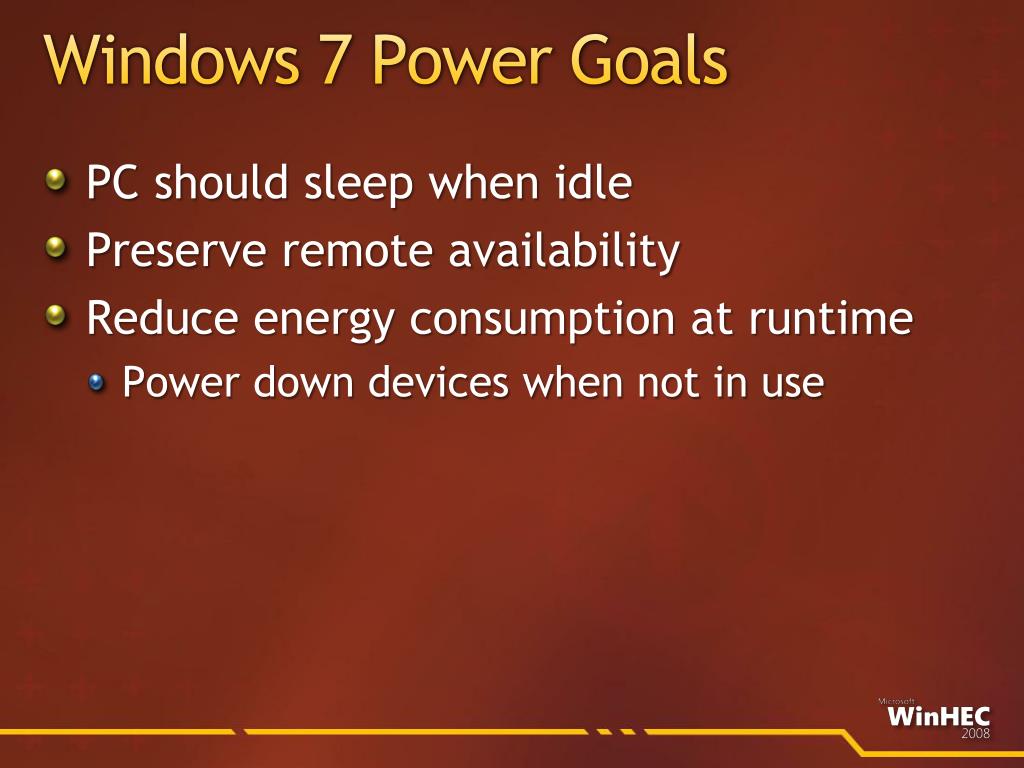

windows 7 power goals
Windows 7 Power Goals
  • PC should sleep when idle
  • Preserve remote availability
  • Reduce energy consumption at runtime
    • Power down devices when not in use

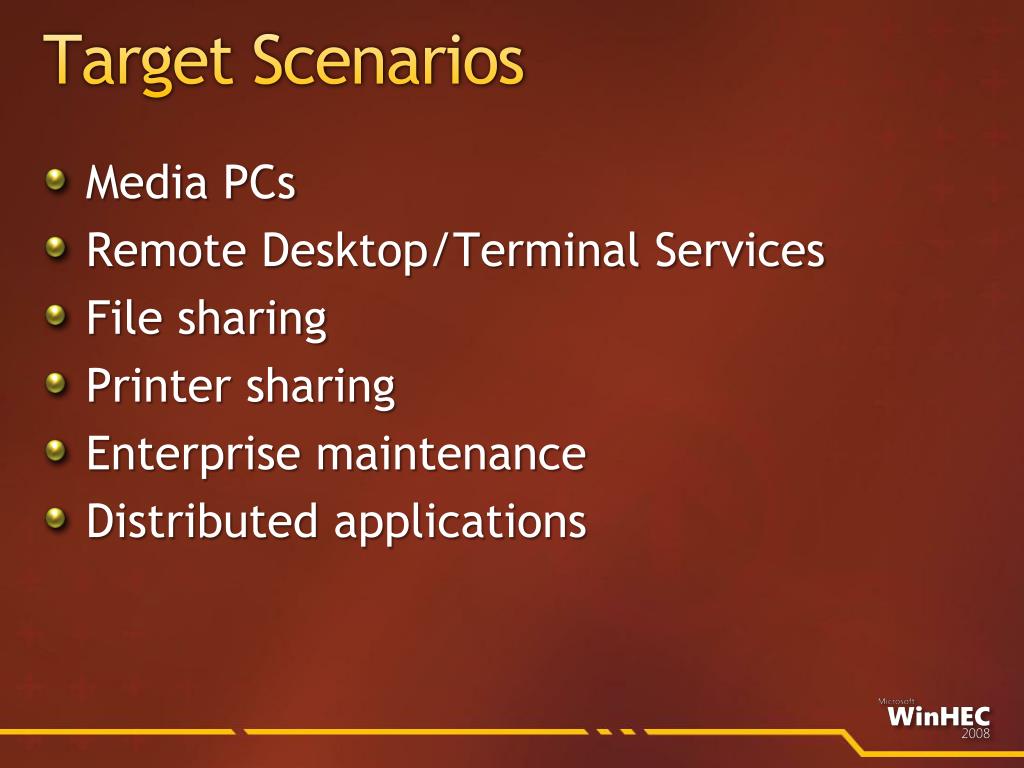

target scenarios
Target Scenarios
  • Media PCs
  • Remote Desktop/Terminal Services
  • File sharing
  • Printer sharing
  • Enterprise maintenance
  • Distributed applications

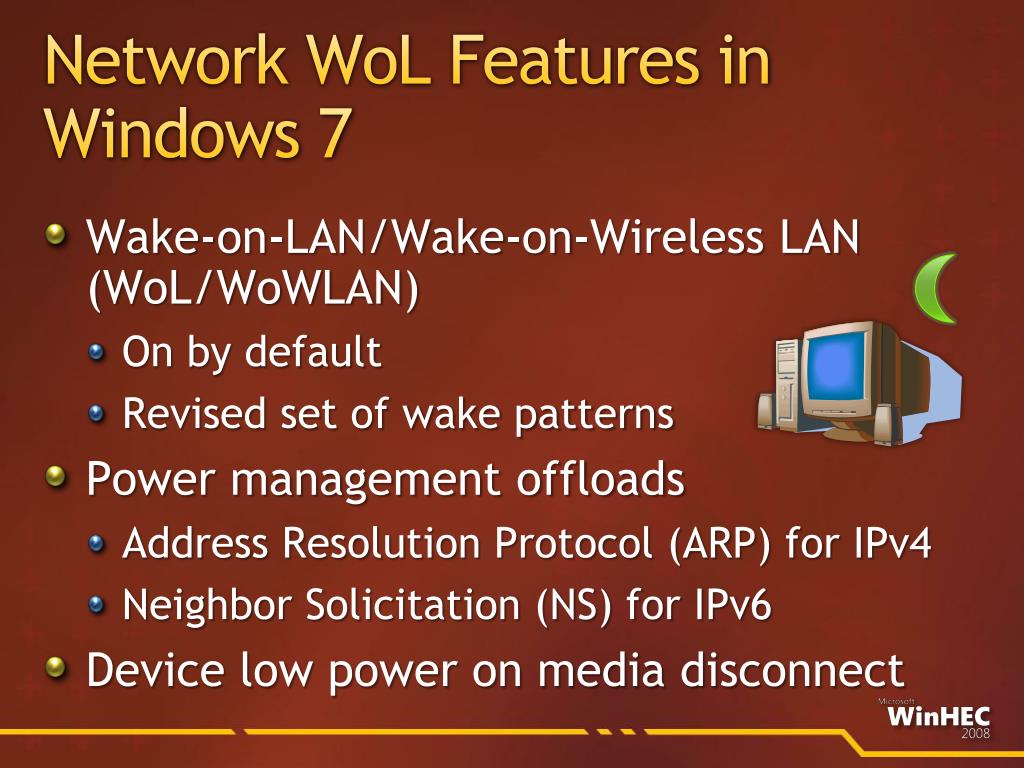

network wol features in windows 7
Network WoL Features in Windows 7
  • Wake-on-LAN/Wake-on-Wireless LAN (WoL/WoWLAN)
    • On by default
    • Revised set of wake patterns
  • Power management offloads
    • Address Resolution Protocol (ARP) for IPv4
    • Neighbor Solicitation (NS) for IPv6
  • Device low power on media disconnect

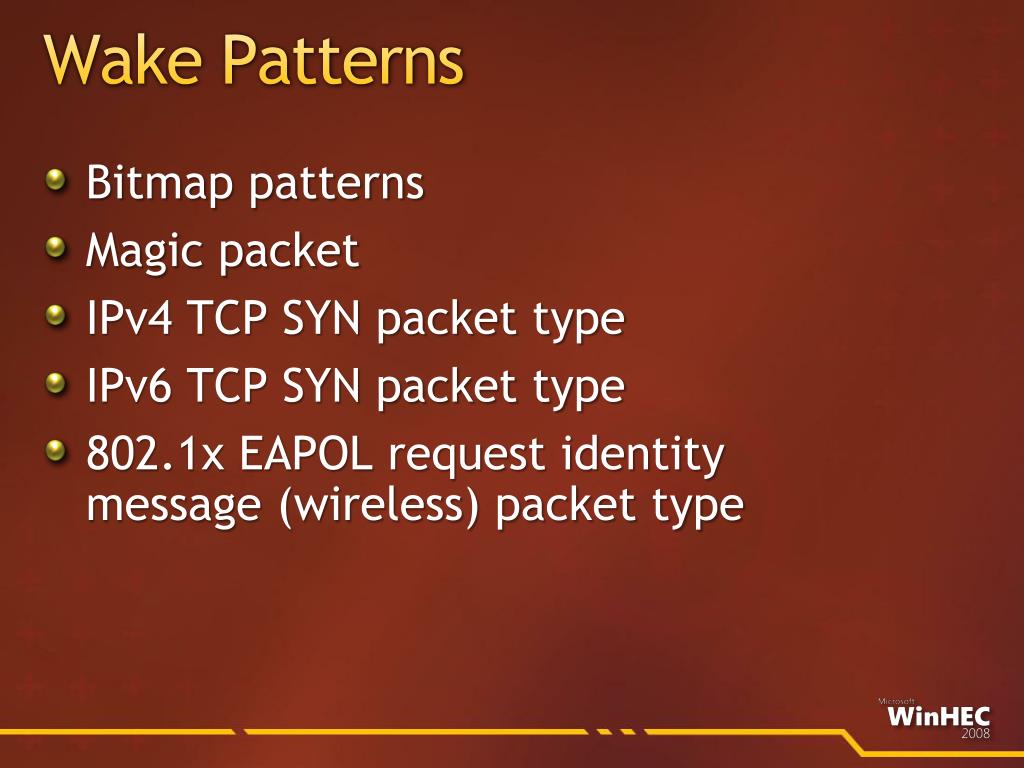

wake patterns
Wake Patterns
  • Bitmap patterns
  • Magic packet
  • IPv4 TCP SYN packet type
  • IPv6 TCP SYN packet type
  • 802.1x EAPOL request identity message (wireless) packet type
network presence offloads when the system is asleep
Network Presence Offloads When the System is Asleep
  • ARP request processing in the NIC
    • Responds to IPv4 address resolution requests with the host MAC address
    • No ARP caching/management
  • NS processing in the NIC
    • Responds to IPv6 Neighbor Solicitation requests with the host MAC address
    • Supports public, link-local, and temporary IPv6 addresses
wake patterns according to network environment
Wake Patterns According to Network Environment
  • Determined by location: Home vs. work
  • Magic Packet is a common wake pattern
  • TCP SYN IPv4/IPv6 indicates new connection requests; e.g., file sharing
  • Wake for name resolution requests
    • NetBIOS – IPv4 only
    • LLMNR – environments without DNS
  • ARP, NS – if no offloads available
low power on media disconnect
Low Power on Media Disconnect
  • While PC is in system working state (S0)
  • On LAN cable disconnect, the NIC is placed in device sleep (D3)
  • On LAN cable reconnect, the NIC into working state (D0)
  • If the system goes to sleep while the cable is disconnected, this feature is canceled

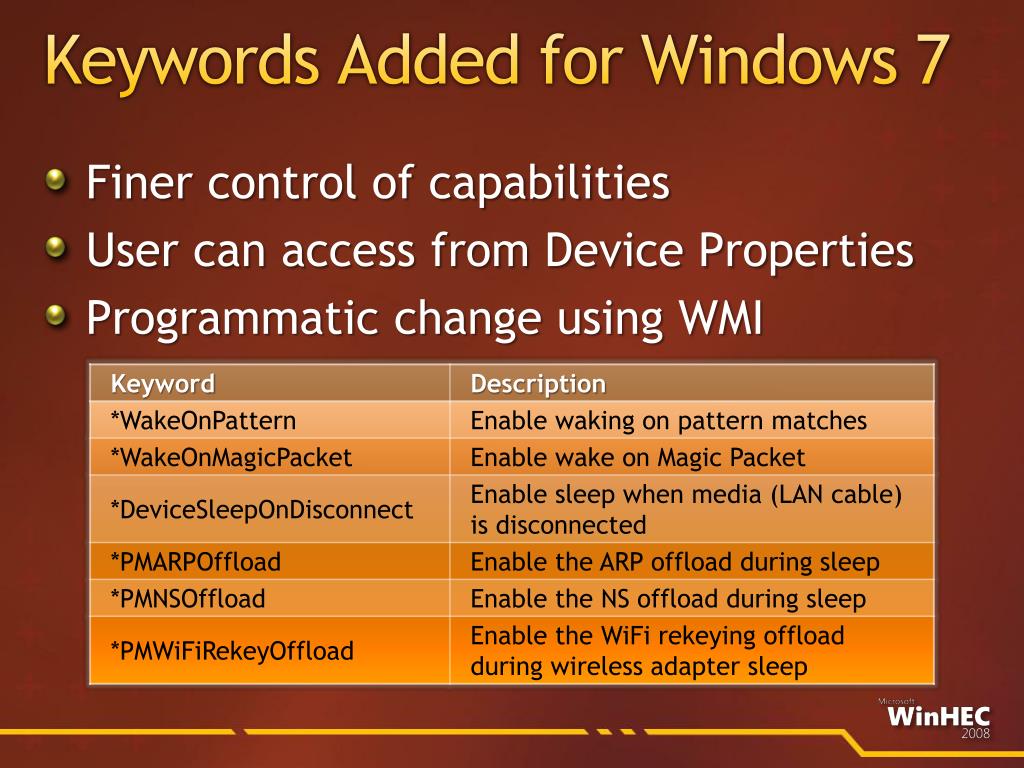

keywords added for windows 7
Keywords Added for Windows 7
  • Finer control of capabilities
  • User can access from Device Properties
  • Programmatic change using WMI
configuration and administration

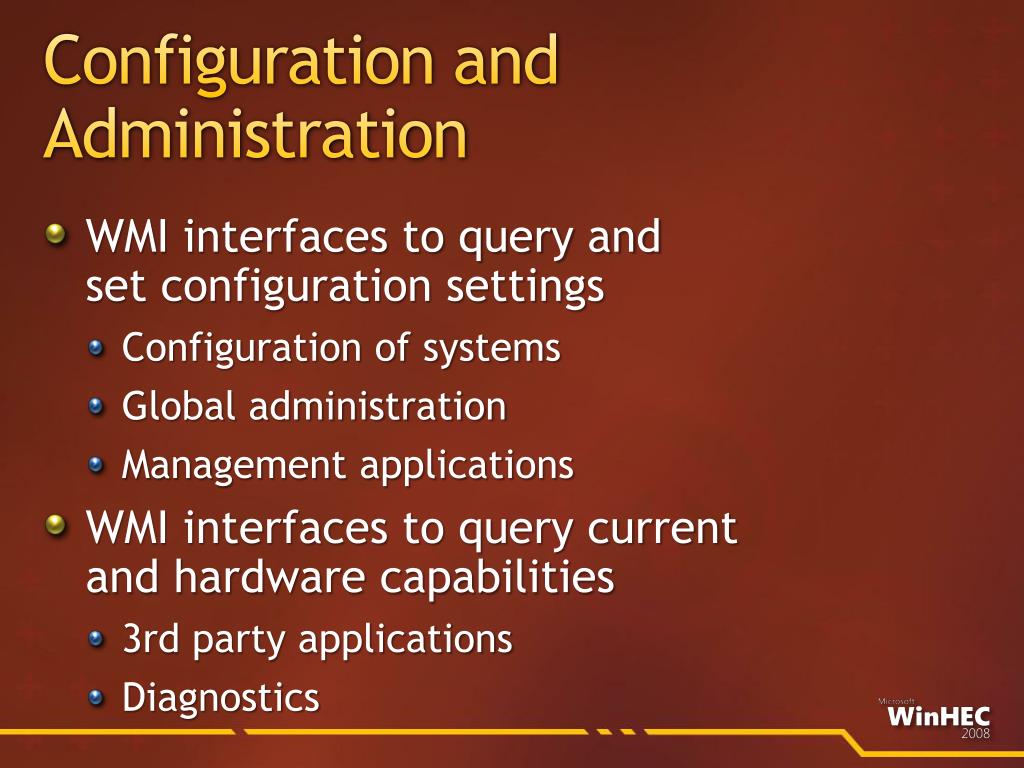

Configuration and Administration
  • WMI interfaces to query and set configuration settings
    • Configuration of systems
    • Global administration
    • Management applications
  • WMI interfaces to query current and hardware capabilities
    • 3rd party applications
    • Diagnostics
network logo requirements
Network Logo Requirements
  • WoL logo
    • Must support at least 6 WoL patterns
    • By 2010, must support at least 8 WoL patterns
  • Network presence offloads
    • Support ARP and NS optionally
    • ARP and NS offloads required by 2010
call to action

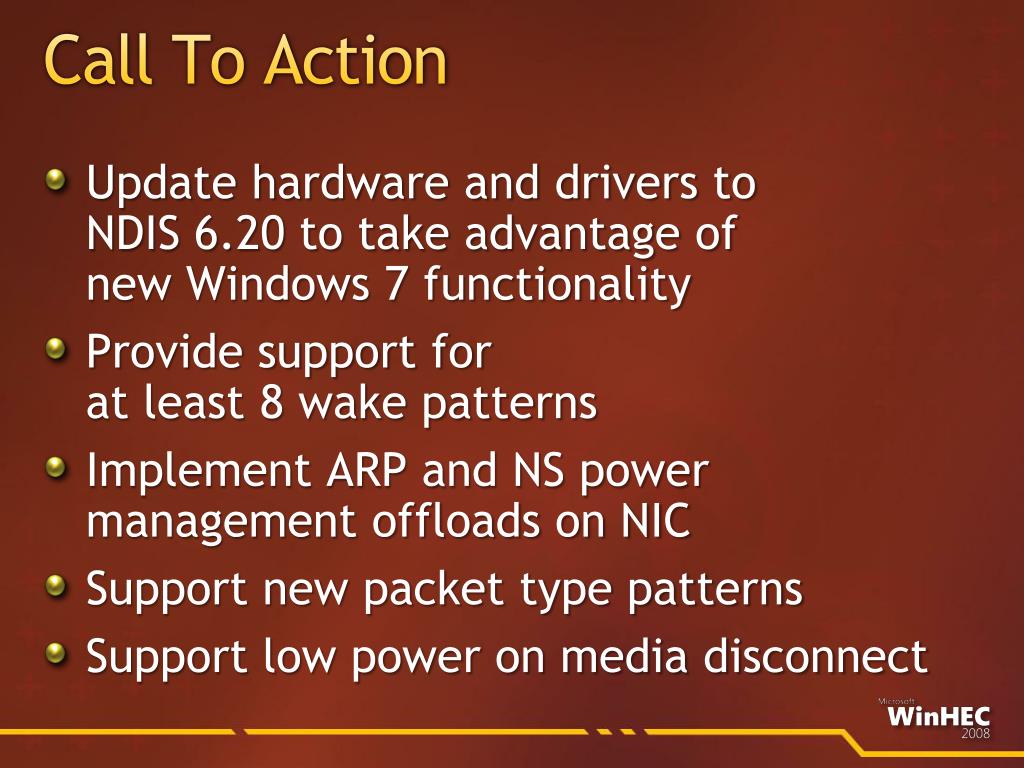

Call To Action
  • Update hardware and drivers to NDIS 6.20 to take advantage of new Windows 7 functionality
  • Provide support for at least 8 wake patterns
  • Implement ARP and NS power management offloads on NIC
  • Support new packet type patterns
  • Support low power on media disconnect
additional resources
Additional Resources
  • Windows 7 WDK available with Beta
  • Released DDI is available on MSDN:http://msdn.microsoft.com
  • Device driver questions
  • Windows Logo Program Web site:http://www.microsoft.com/whdc/winlogo/default.mspx
  • Related Sessions
    • COR-T525 Network Device Overview
    • COR-T540 Windows 7 Power Management Overview
    • ENT-T551 Windows Server Power Management Overview
