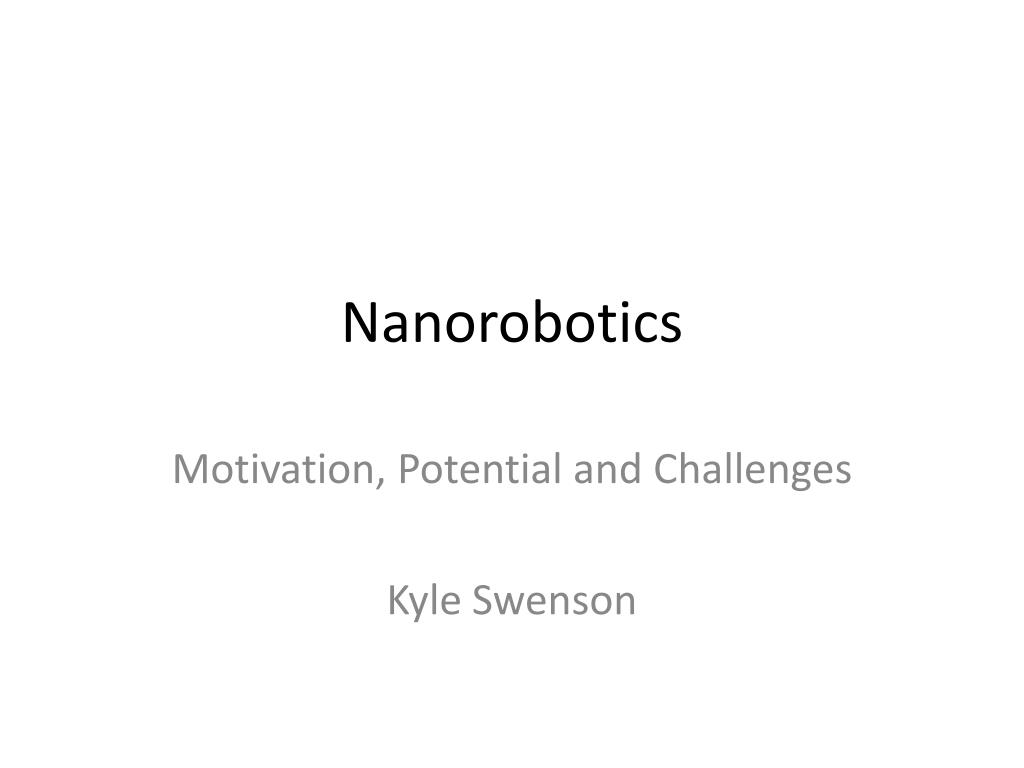

  1. Nanorobotics Motivation, Potential and Challenges Kyle Swenson

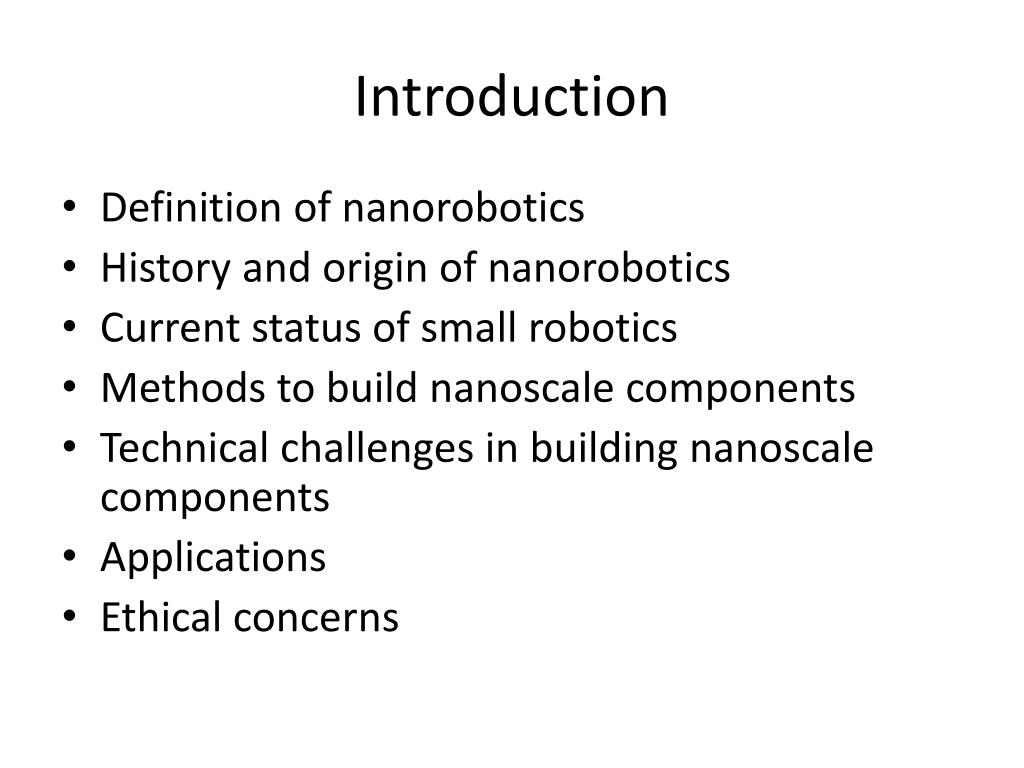

  2. Introduction • Definition of nanorobotics • History and origin of nanorobotics • Current status of small robotics • Methods to build nanoscale components • Technical challenges in building nanoscale components • Applications • Ethical concerns

  3. Nanorobotics • Two definitions • An automated or semi-automated device used in the construction of nanorobots • An active structure at the nanoscale (1 nm to 1 µm) that has movement, sensing, signaling, information processing, or swarm behavior capabilities.

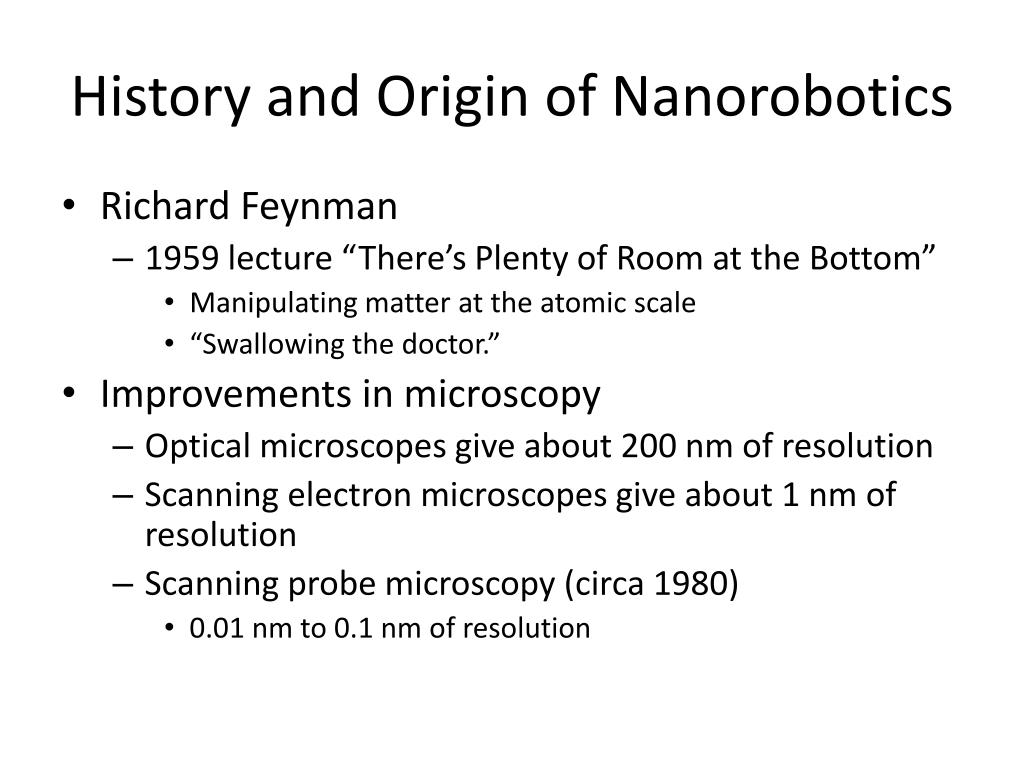

  4. History and Origin of Nanorobotics • Richard Feynman • 1959 lecture “There’s Plenty of Room at the Bottom” • Manipulating matter at the atomic scale • “Swallowing the doctor.” • Improvements in microscopy • Optical microscopes give about 200 nm of resolution • Scanning electron microscopes give about 1 nm of resolution • Scanning probe microscopy (circa 1980) • 0.01 nm to 0.1 nm of resolution

  5. First Nanomanipulation • In 1990s, D.M. Eigler and E.K. Schweizer at IBM • Positioned single atoms with a scanning tunneling microscope • First realization of nanomanipulation • Used an ultra high vacuum (UHV) at about 4 °K http://upload.wikimedia.org/wikipedia/en/0/07/IBM_in_atoms.gif

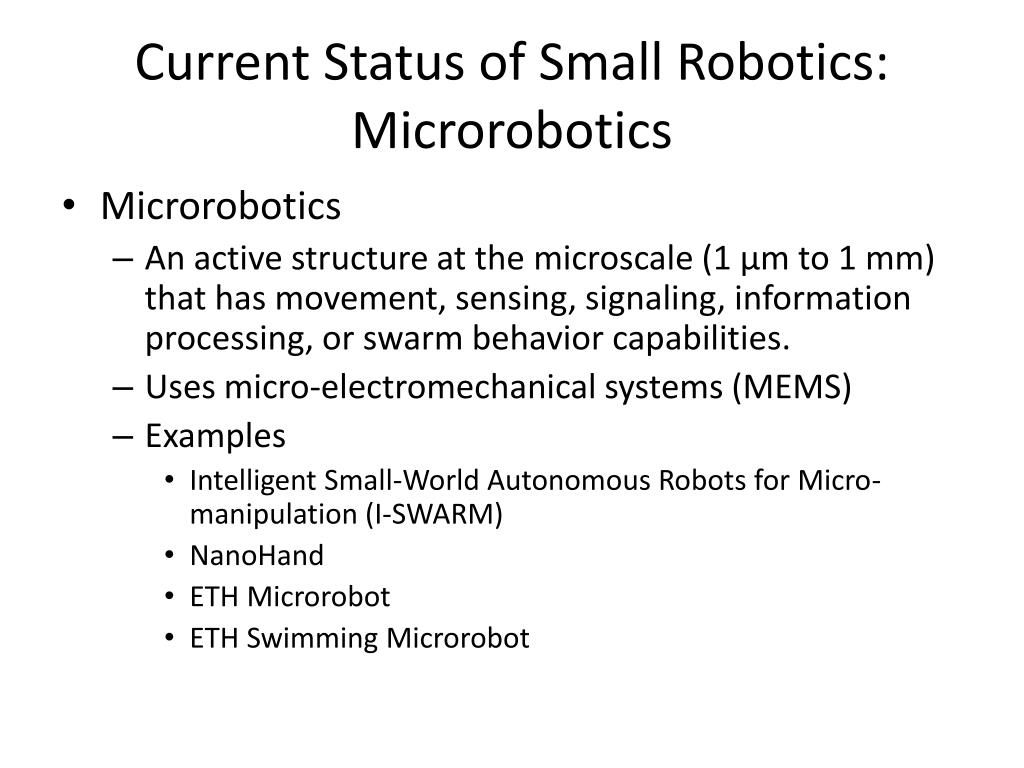

  6. Current Status of Small Robotics: Microrobotics • Microrobotics • An active structure at the microscale (1 µm to 1 mm) that has movement, sensing, signaling, information processing, or swarm behavior capabilities. • Uses micro-electromechanical systems (MEMS) • Examples • Intelligent Small-World Autonomous Robots for Micro-manipulation (I-SWARM) • NanoHand • ETH Microrobot • ETH Swimming Microrobot

  7. I-SWARM • Purpose: Investigate robot swarming technology • 3 legs that are piezoelectrically actuated • Weighs 65 mg, volume of 23 mm3 • Solar cells for power (2.5 mW) • Flexible PCB with: • IR communication module • Capacitors • ASIC • Locomotion module

  8. I-SWARM: Diagram • Solar panel • IR communications module • ASIC • Capacitors • Piezoelectric module

  9. NanoHand • Microgripper designed to grab and accurately place a signal carbon nanotube • Electrothermal principles • Can pick up and place objects from about 100 nm to about 20 nm • Easy to pick up objects, difficult to drop them • Intermolecular forces are much stronger than gravity at this scale. • “Glue” the CNT in place using electron beam-induced deposition

  10. ETH Microrobot • Magnetic approach to moving microrobots • Can only move along an engineered substrate, limiting it’s usability • The microrobot aligns itself depending on the orientation of the magnetic field • A changing magnetic field causes the gap to narrow, and the spring gets compressed • This force creates a frictional difference and the microrobot moves

  11. ETH Swimming Microrobot • Based off flagellum • Some bacteria (E. Coli) use flagella for propulsion • In the presence of a small rotating magnetic field (1 – 2 mT) they can “swim” through water • 20 um/sec • About 25 to 60 um long • Body: indium, gallium, arsenic and chromium • Head: chrome, nickel and gold

  12. Current Status of Small Robotics: Nanorobotics • In the research and theoretical phase • Global research effort increased from $432 million in 1997 to $3 billion in 2003 • Expected to exceed $1 trillion in next 10 to 15 years • Two primary research foci • Using macroscale tools to manipulate nanoscale objects • Virtual reality representations of nanoscale objects • Adaptations of CAD tools • Developing and investigating nanoscale components • Carbon nanotubes (CNT) • Pharmaceutical drug delivery mechanisms • DNA computation

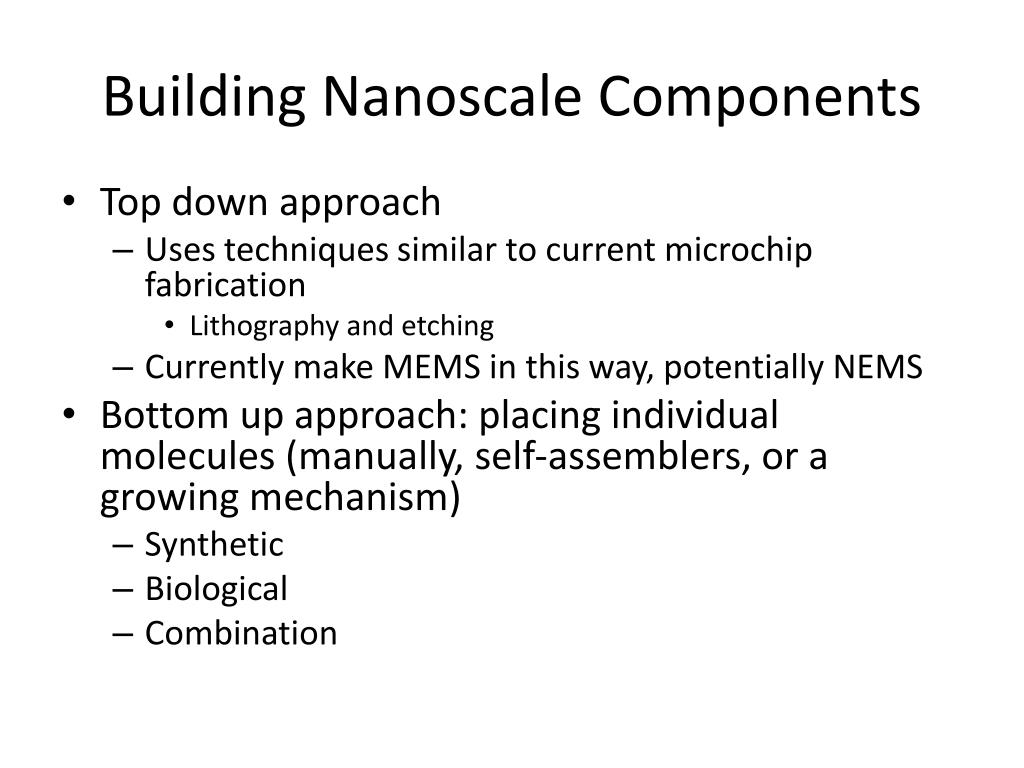

  13. Building Nanoscale Components • Top down approach • Uses techniques similar to current microchip fabrication • Lithography and etching • Currently make MEMS in this way, potentially NEMS • Bottom up approach: placing individual molecules (manually, self-assemblers, or a growing mechanism) • Synthetic • Biological • Combination

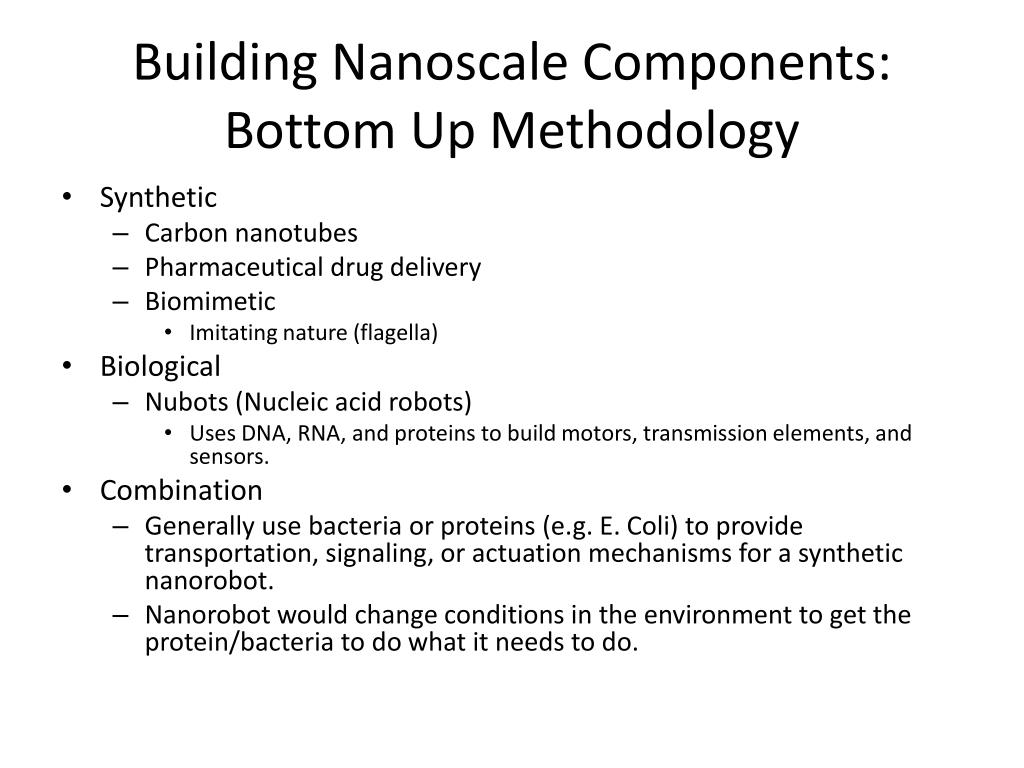

  14. Building Nanoscale Components: Bottom Up Methodology • Synthetic • Carbon nanotubes • Pharmaceutical drug delivery • Biomimetic • Imitating nature (flagella) • Biological • Nubots (Nucleic acid robots) • Uses DNA, RNA, and proteins to build motors, transmission elements, and sensors. • Combination • Generally use bacteria or proteins (e.g. E. Coli) to provide transportation, signaling, or actuation mechanisms for a synthetic nanorobot. • Nanorobot would change conditions in the environment to get the protein/bacteria to do what it needs to do.

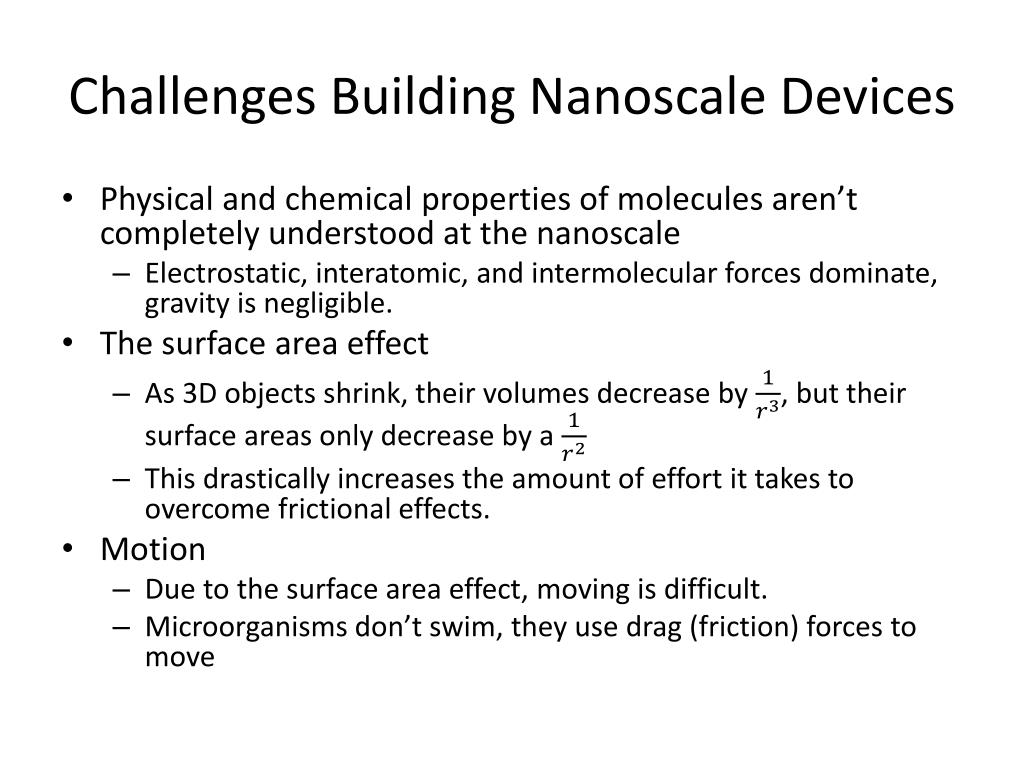

  15. Challenges Building Nanoscale Devices • Physical and chemical properties of molecules aren’t completely understood at the nanoscale • Electrostatic, interatomic, and intermolecular forces dominate, gravity is negligible. • The surface area effect • As 3D objects shrink, their volumes decrease by , but their surface areas only decrease by a • This drastically increases the amount of effort it takes to overcome frictional effects. • Motion • Due to the surface area effect, moving is difficult. • Microorganisms don’t swim, they use drag (friction) forces to move

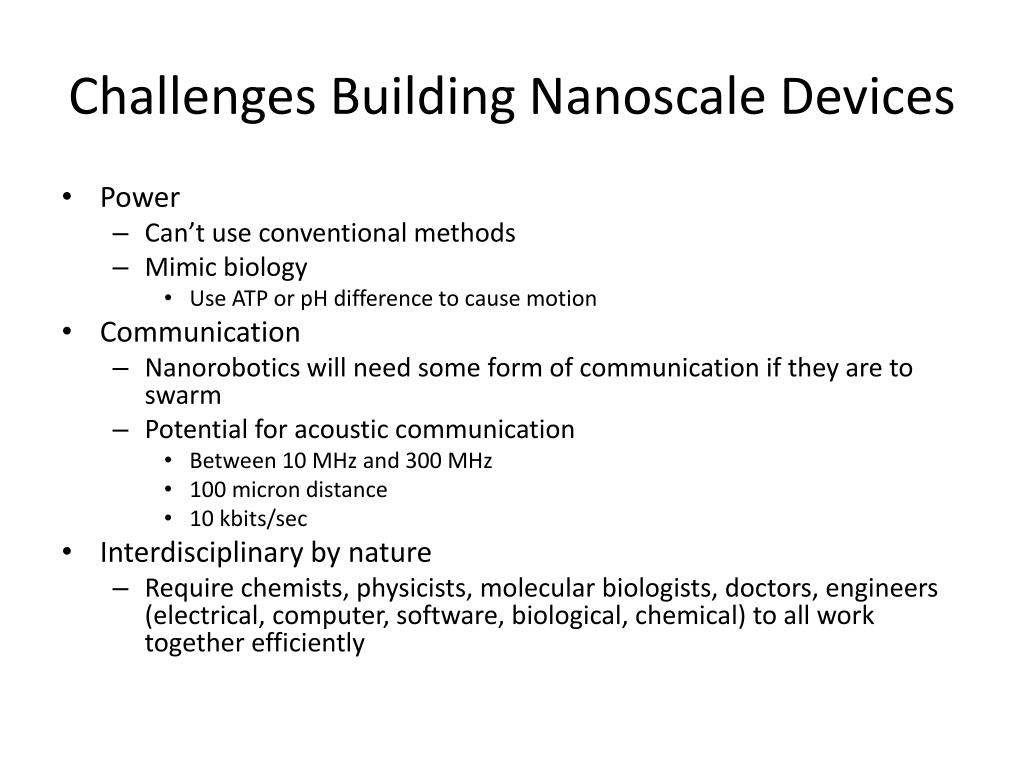

  16. Challenges Building Nanoscale Devices • Power • Can’t use conventional methods • Mimic biology • Use ATP or pH difference to cause motion • Communication • Nanorobotics will need some form of communication if they are to swarm • Potential for acoustic communication • Between 10 MHz and 300 MHz • 100 micron distance • 10 kbits/sec • Interdisciplinary by nature • Require chemists, physicists, molecular biologists, doctors, engineers (electrical, computer, software, biological, chemical) to all work together efficiently

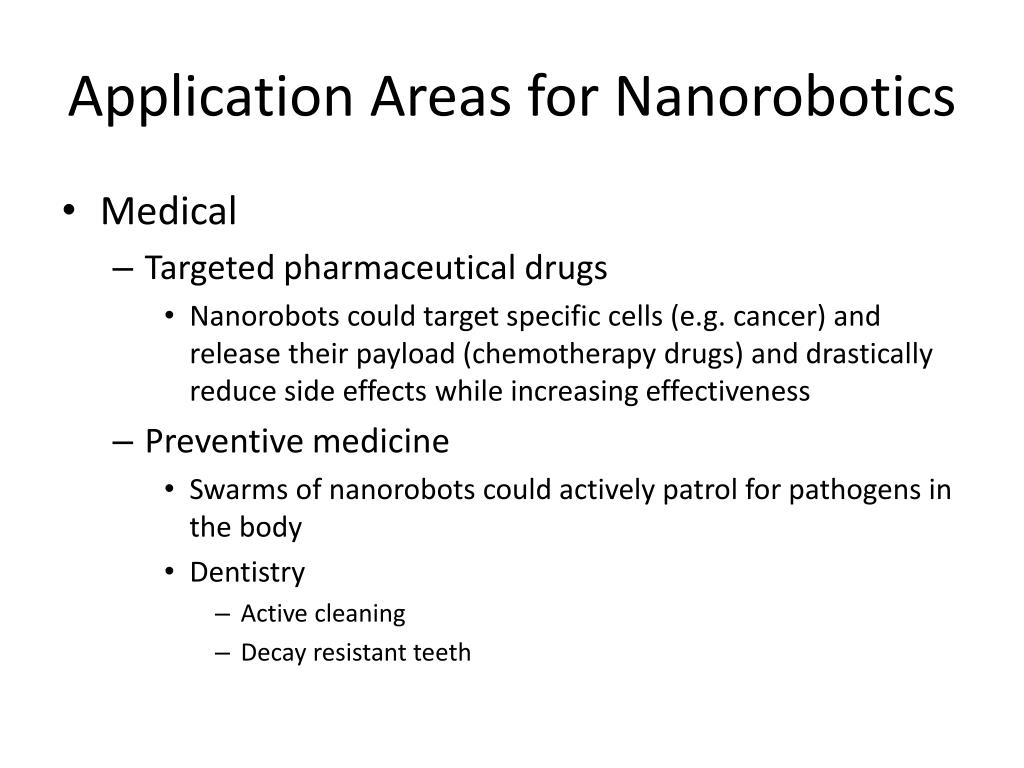

  17. Application Areas for Nanorobotics • Medical • Targeted pharmaceutical drugs • Nanorobots could target specific cells (e.g. cancer) and release their payload (chemotherapy drugs) and drastically reduce side effects while increasing effectiveness • Preventive medicine • Swarms of nanorobots could actively patrol for pathogens in the body • Dentistry • Active cleaning • Decay resistant teeth

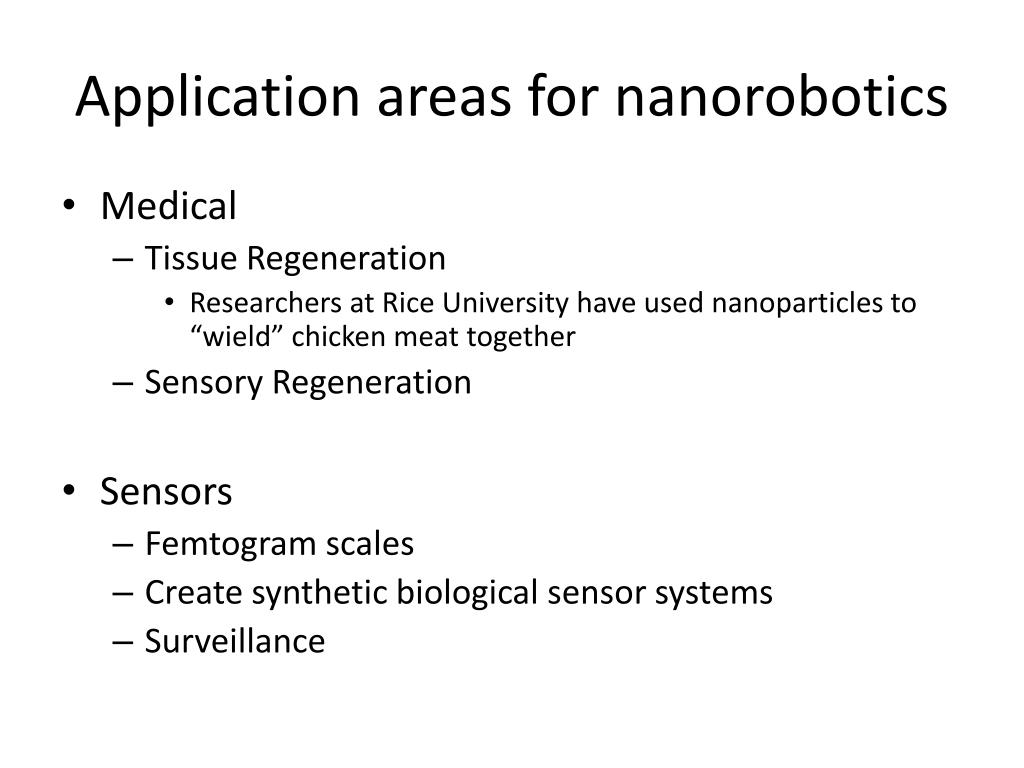

  18. Application areas for nanorobotics • Medical • Tissue Regeneration • Researchers at Rice University have used nanoparticles to “wield” chicken meat together • Sensory Regeneration • Sensors • Femtogram scales • Create synthetic biological sensor systems • Surveillance

  19. Ethical concerns • Patents • At what point is the line drawn between invention and nature? • Privacy • Massive amount of personal information could be gained from something we can’t see • Big knowledge gap between manufacturers and users • Potential health issue disclosure • Human enhancement • What is the limit? • Who benefits? • Autonomous nanorobots • Uncontrolled replication

  20. Questions?

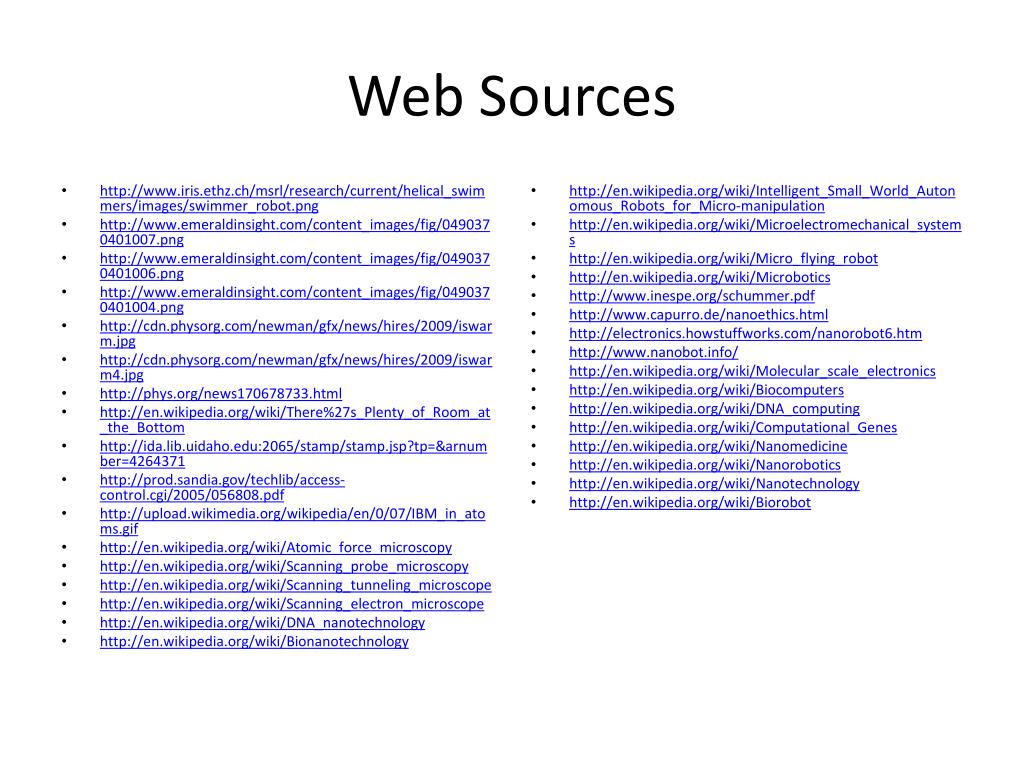

  21. Web Sources • http://www.iris.ethz.ch/msrl/research/current/helical_swimmers/images/swimmer_robot.png • http://www.emeraldinsight.com/content_images/fig/0490370401007.png • http://www.emeraldinsight.com/content_images/fig/0490370401006.png • http://www.emeraldinsight.com/content_images/fig/0490370401004.png • http://cdn.physorg.com/newman/gfx/news/hires/2009/iswarm.jpg • http://cdn.physorg.com/newman/gfx/news/hires/2009/iswarm4.jpg • http://phys.org/news170678733.html • http://en.wikipedia.org/wiki/There%27s_Plenty_of_Room_at_the_Bottom • http://ida.lib.uidaho.edu:2065/stamp/stamp.jsp?tp=&arnumber=4264371 • http://prod.sandia.gov/techlib/access-control.cgi/2005/056808.pdf • http://upload.wikimedia.org/wikipedia/en/0/07/IBM_in_atoms.gif • http://en.wikipedia.org/wiki/Atomic_force_microscopy • http://en.wikipedia.org/wiki/Scanning_probe_microscopy • http://en.wikipedia.org/wiki/Scanning_tunneling_microscope • http://en.wikipedia.org/wiki/Scanning_electron_microscope • http://en.wikipedia.org/wiki/DNA_nanotechnology • http://en.wikipedia.org/wiki/Bionanotechnology • http://en.wikipedia.org/wiki/Intelligent_Small_World_Autonomous_Robots_for_Micro-manipulation • http://en.wikipedia.org/wiki/Microelectromechanical_systems • http://en.wikipedia.org/wiki/Micro_flying_robot • http://en.wikipedia.org/wiki/Microbotics • http://www.inespe.org/schummer.pdf • http://www.capurro.de/nanoethics.html • http://electronics.howstuffworks.com/nanorobot6.htm • http://www.nanobot.info/ • http://en.wikipedia.org/wiki/Molecular_scale_electronics • http://en.wikipedia.org/wiki/Biocomputers • http://en.wikipedia.org/wiki/DNA_computing • http://en.wikipedia.org/wiki/Computational_Genes • http://en.wikipedia.org/wiki/Nanomedicine • http://en.wikipedia.org/wiki/Nanorobotics • http://en.wikipedia.org/wiki/Nanotechnology • http://en.wikipedia.org/wiki/Biorobot

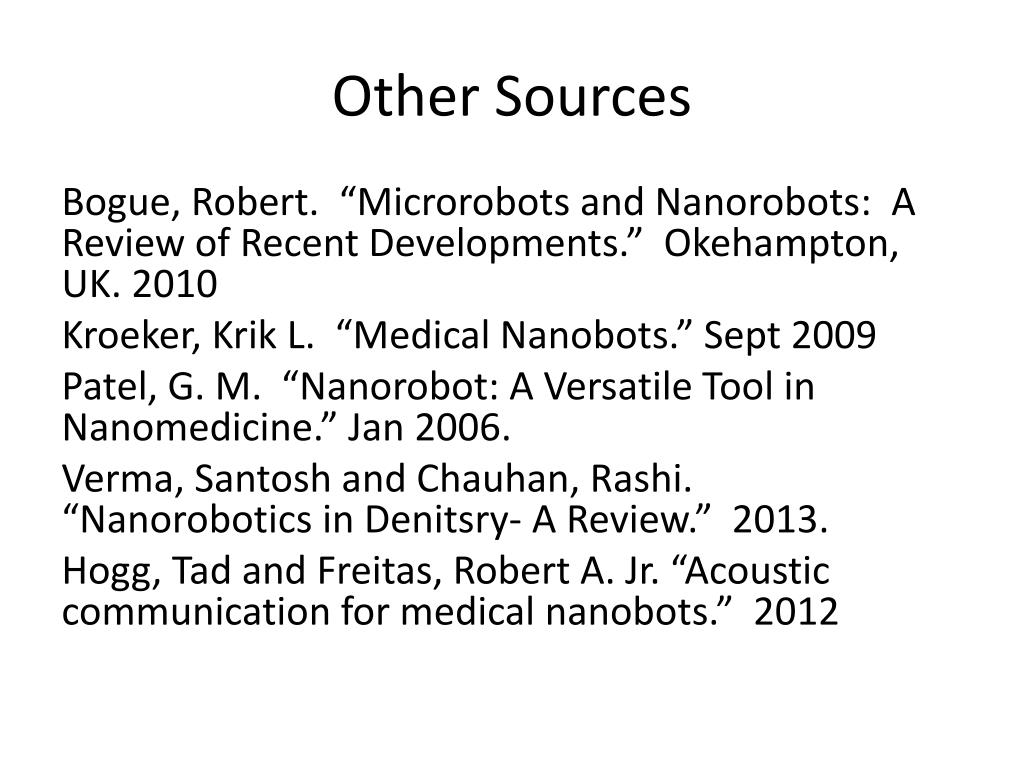

  22. Other Sources Bogue, Robert. “Microrobots and Nanorobots: A Review of Recent Developments.” Okehampton, UK. 2010 Kroeker, KrikL. “Medical Nanobots.” Sept 2009 Patel, G. M. “Nanorobot: A Versatile Tool in Nanomedicine.” Jan 2006. Verma, Santosh and Chauhan, Rashi. “Nanorobotics in Denitsry- A Review.” 2013. Hogg, Tad and Freitas, Robert A. Jr. “Acoustic communication for medical nanobots.” 2012
