Pixel integrated stave concepts

1. Pixel integrated stave concepts Valencia 2007 SLHC workshop Switched Capacitor DCDC Update --- M. Garcia-Sciveres

2. Introduction • We now have modules on staves, how is the integrated stave approach different? • What are the schemes that have been proposed? • Common requirements for the active elements • How much material or CHF can be saved? Switched Capacitor DCDC Update --- M. Garcia-Sciveres

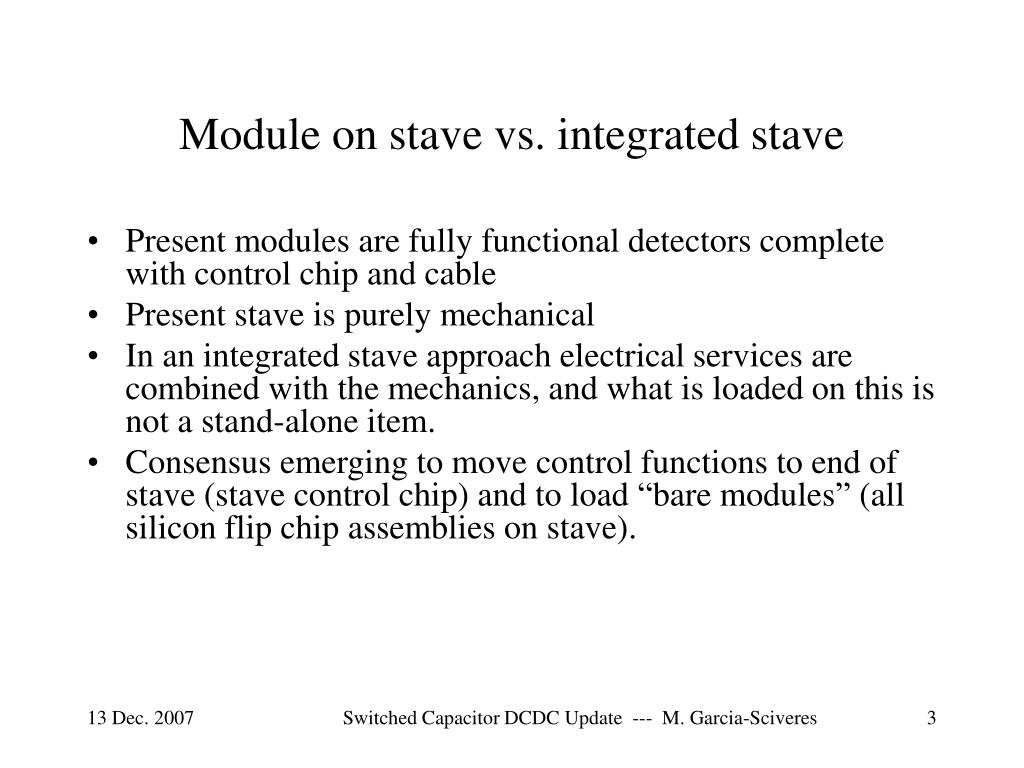

3. Module on stave vs. integrated stave • Present modules are fully functional detectors complete with control chip and cable • Present stave is purely mechanical • In an integrated stave approach electrical services are combined with the mechanics, and what is loaded on this is not a stand-alone item. • Consensus emerging to move control functions to end of stave (stave control chip) and to load “bare modules” (all silicon flip chip assemblies on stave). Switched Capacitor DCDC Update --- M. Garcia-Sciveres

4. SCC power SCC data SCC data 37.5mm 24.4mm 88mm Examples from BL workshop SP stave example (not maximally integrated) Fully integrated stave Monolithic structure Switched Capacitor DCDC Update --- M. Garcia-Sciveres

5. Single chip vs. multi-chip bare module • 3D sensor processing has introduced the possibility of active edges as a natural byproduct. • But active edges can also be implemented on planar sensors • If active edges are used, multi-flip chip assembly is an unnecessary complication at non-trivial added cost • There is no acceptance to be gained by using a big sensor tile vs. smaller active edge tiles • Sensor production and flip chip are cheaper for single-chip assemblies than multi-chip assemblies, if nothing else because the yield is higher in both cases. Switched Capacitor DCDC Update --- M. Garcia-Sciveres

6. Shingling along Z • Mechanical structures proposed at BL workshop all showed flat surfaces (maybe not intended as final, but nevertheless)=> no shingling along Z • This helps thermal performance and manufacturability • Active edges (or 2-sided staves) are required to avoid shingling and preserve full acceptance. Switched Capacitor DCDC Update --- M. Garcia-Sciveres

7. Assembly flow simplification NOW SIMPLER Wafer probe wafer probe Bump deposition, Thin and dice More standard and higher yield 1 to 1 bump bonding: no need for ultra high KGD yield. Bump deposition, Thin and dice Chip probe/select 16-to-1 Flip chip 1-to-1 flip-chip rework Bare module probe Toss bad ones SC module full probe Module assembly Higher level of integration at IC stage: no separate “module control chip” Module full test Stave/sector assembly Stave/sector assembly Stave/sector test Stave/sector test Switched Capacitor DCDC Update --- M. Garcia-Sciveres

8. Outer layers • 3-D sensors and therefore active edges apply naturally to B-Layer • But many advantages of active edges are more important for outer layers, where cost is critical: • Cost savings from using single chip modules and no shingling • Simplified assembly flow (faster and cheaper) • Integrated stave using SC modules is therefore a good model for entire detector • Readout modularity needs to be studied for outer layers. • Full development of active edges even for planar sensors in important for pixel upgrade! Switched Capacitor DCDC Update --- M. Garcia-Sciveres

9. The integrated stave conceptual parts(examples can be replaced by equivalent function) End of stave card could be built-in Stave controller chip goes here Signal cable with 24 flaps before lamination. Could also be multiple cables. Al power planes added to signal cable. May contain DC-DC converters at a few points, or serial power taps. Mechanical support with cooling. Combine all the above and test. Then add SC modules. Tab wraps around and is w-bonded to SC module Switched Capacitor DCDC Update --- M. Garcia-Sciveres

10. End of stave card I/O ~15m miniature coax to PP2 Traces on flex End of stave card 40MHz clock 24 40MHz clock 1GHz command Clock fanout 24 40MHz clock bar 2GHz data 24 40MHz command command De-serializer 24 2GHz data 40MHz command bar 24 160MHz data 2 Data serializers 3 24 Muxed NTCs 160MHz data bar 4-12 4-12 HV bias groups HV bias groups NTC mux LV power (eg) Power at “HV” DC-DC 12-24 Twisted pairs Switched Capacitor DCDC Update --- M. Garcia-Sciveres

11. NTCs for independent monitoring AND safety NTC1 W interlock NTC2 next A W Mux Sense IC NTC3 W NTCn V DCS W W Switched Capacitor DCDC Update --- M. Garcia-Sciveres

12. Material savings • Items no longer used: • Module control chip • Module pigtail connectors • Shingled carbon surface • Lighter items • Power conductors • Less massive if SP or DC-DC • Or could tolerate larger Vdrop if DCDC placed at ends of stave. • Mechanical structure • See mechanics pixel talk Thu. New developments not central to integrated stave • New items needed • DC-DC (unless placed only at ends) or SP signal level shifters & control. • Want even more reductions? • See monolithic structures tomorrow. Switched Capacitor DCDC Update --- M. Garcia-Sciveres

13. Conclusion • Many ideas, but prototyping is needed to understand details. • Good start on mechanical items (see tomorrow) • Not much done on passive electrical components. Switched Capacitor DCDC Update --- M. Garcia-Sciveres
