Trapped!. 60 °. The Concept. To create a vehicle, using no power sources outside of two mouse trap springs, that has the ability to climb a rope coming out of the ground at approximately 60 °. Initial Design Concept. Frame. Drive Wheel. Traction Wheel. Gears. Frame. Design Components.

Download Presentation

Trapped!

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Trapped! 60°

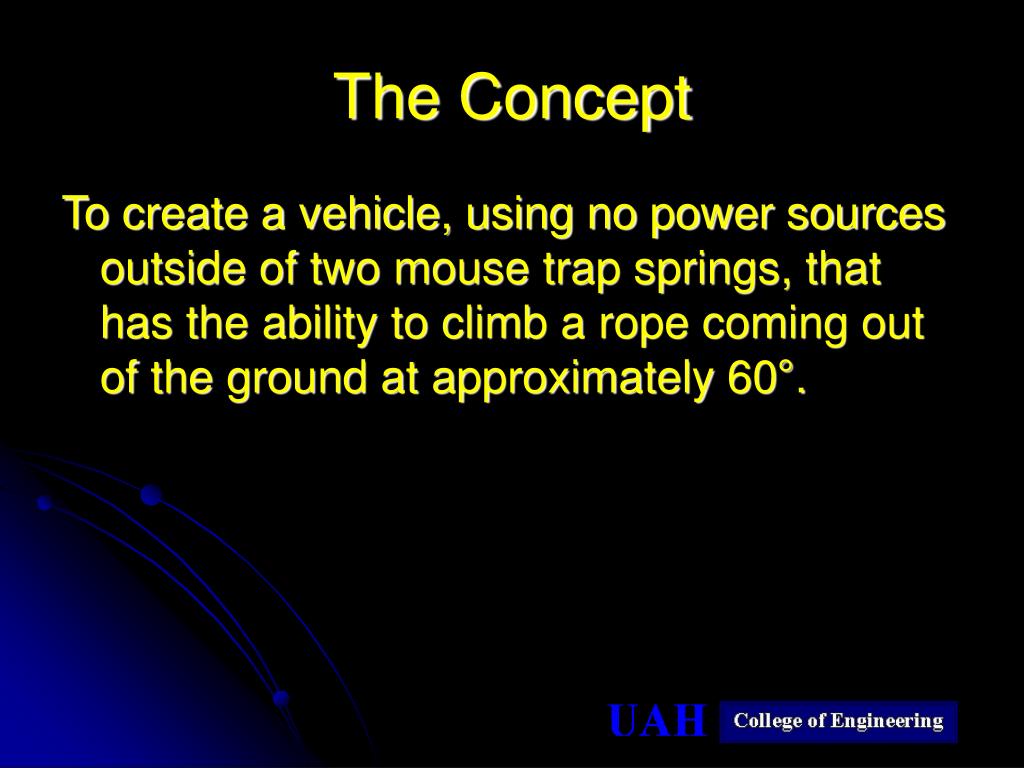

  2. The Concept To create a vehicle, using no power sources outside of two mouse trap springs, that has the ability to climb a rope coming out of the ground at approximately 60°.

  3. Initial Design Concept Frame Drive Wheel Traction Wheel Gears Frame

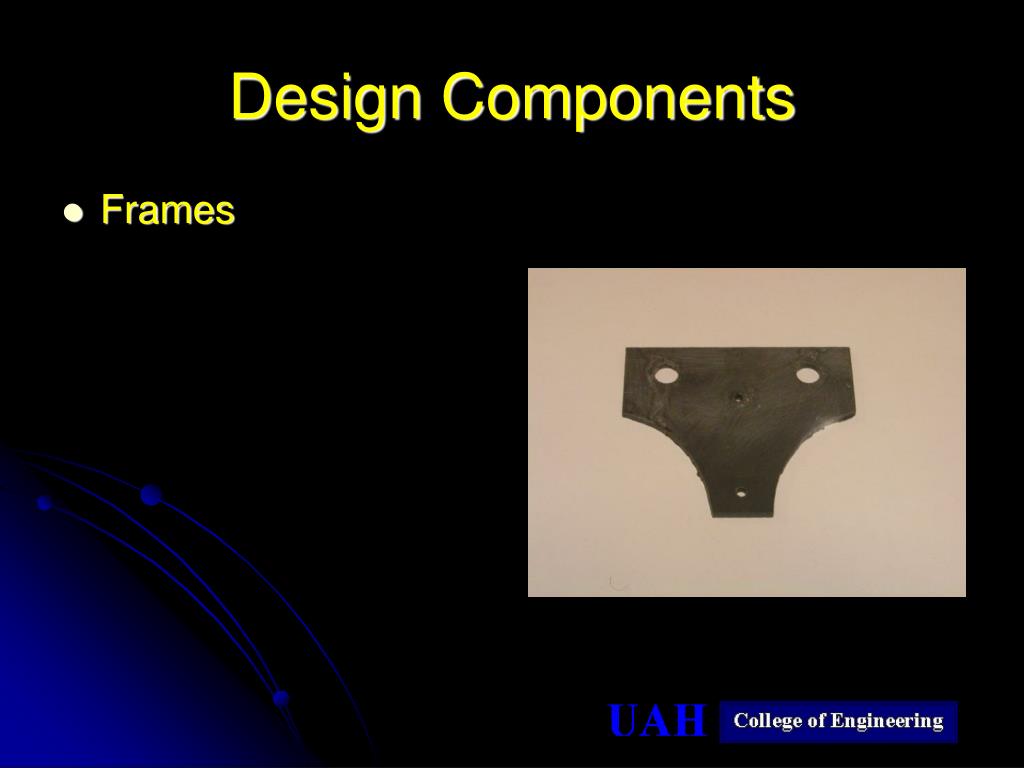

  4. Design Components • Frames

  5. Frames Steel Axles Design Components

  6. Frames Steel Axles Aluminum Axles Design Components

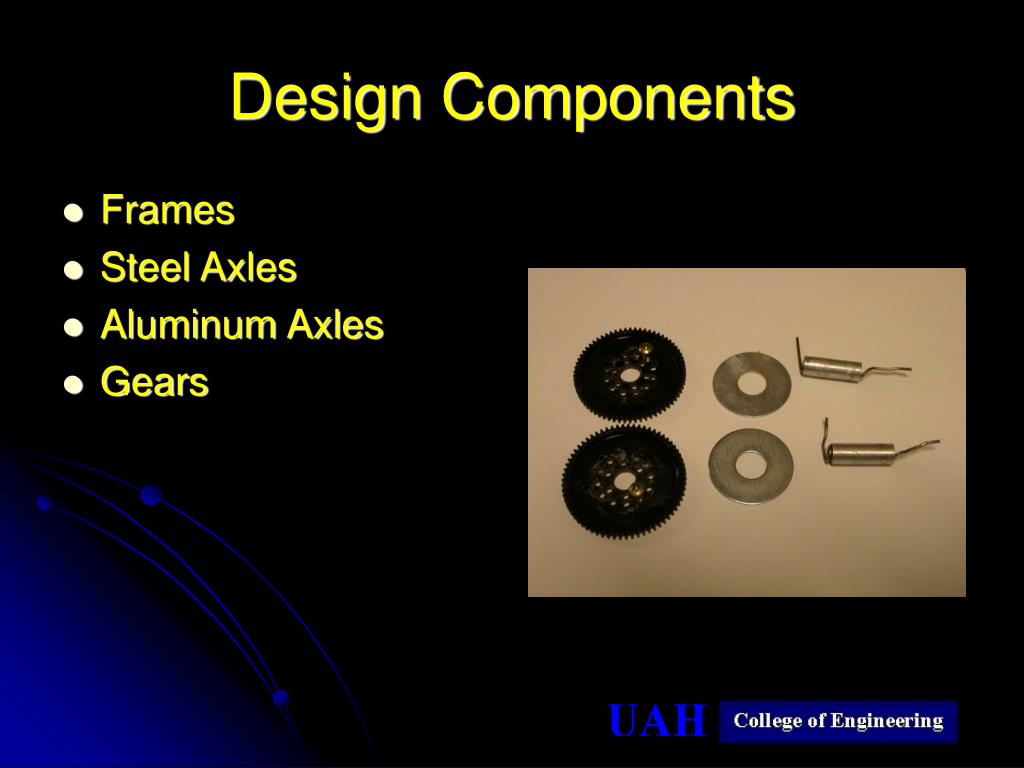

  7. Design Components • Frames • Steel Axles • Aluminum Axles • Gears

  8. Design Components • Frames • Steel Axles • Aluminum Axles • Gears • Drive and Traction Wheels

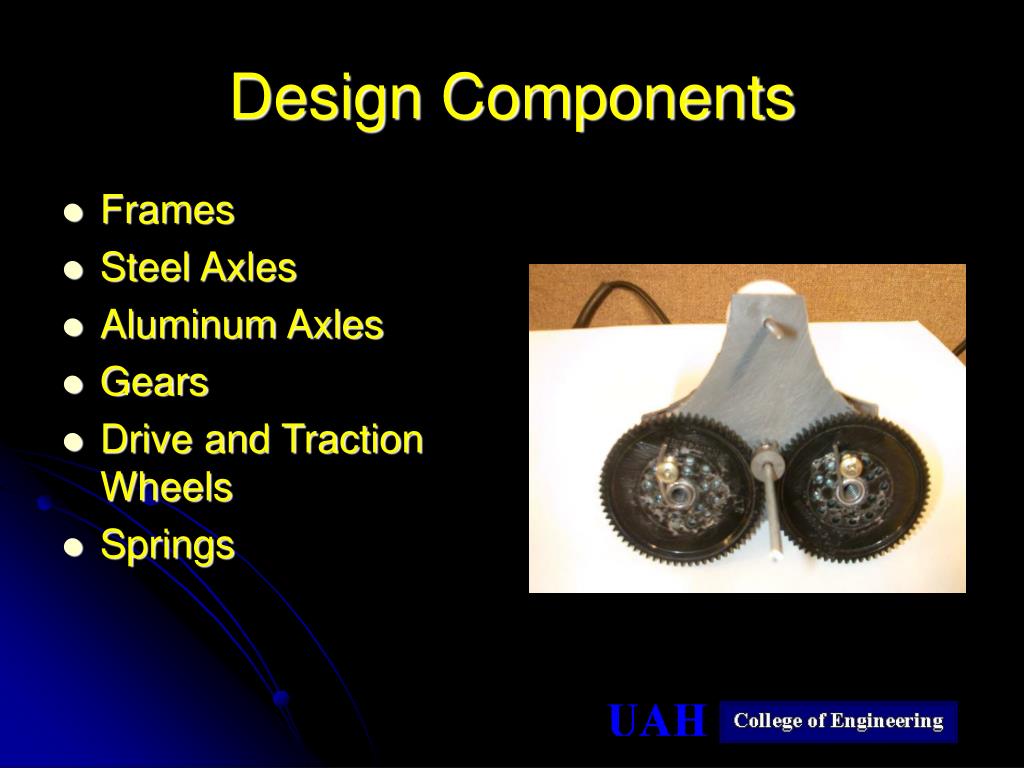

  9. Design Components • Frames • Steel Axles • Aluminum Axles • Gears • Drive and Traction Wheels • Springs

  10. Design Components • Frames • Steel Axles • Aluminum Axles • Gears • Drive and Traction Wheels • Springs • Screws

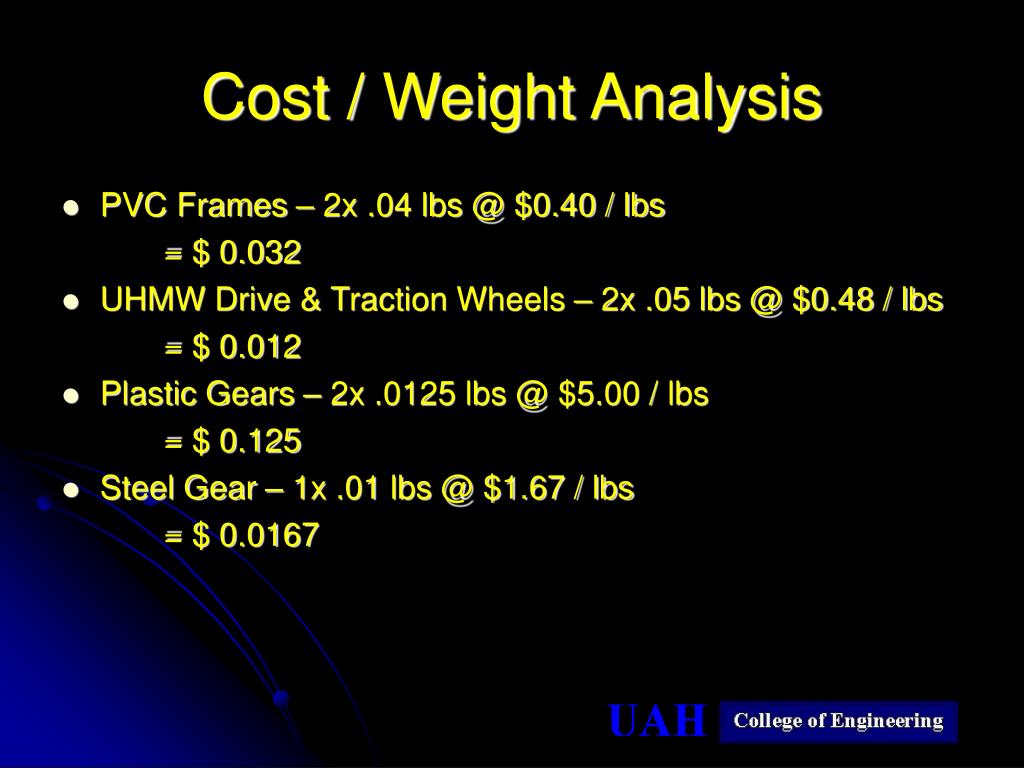

  11. Cost / Weight Analysis • PVC Frames – 2x .04 lbs @ $0.40 / lbs = $ 0.032 • UHMW Drive & Traction Wheels – 2x .05 lbs @ $0.48 / lbs = $ 0.012 • Plastic Gears – 2x .0125 lbs @ $5.00 / lbs = $ 0.125 • Steel Gear – 1x .01 lbs @ $1.67 / lbs = $ 0.0167

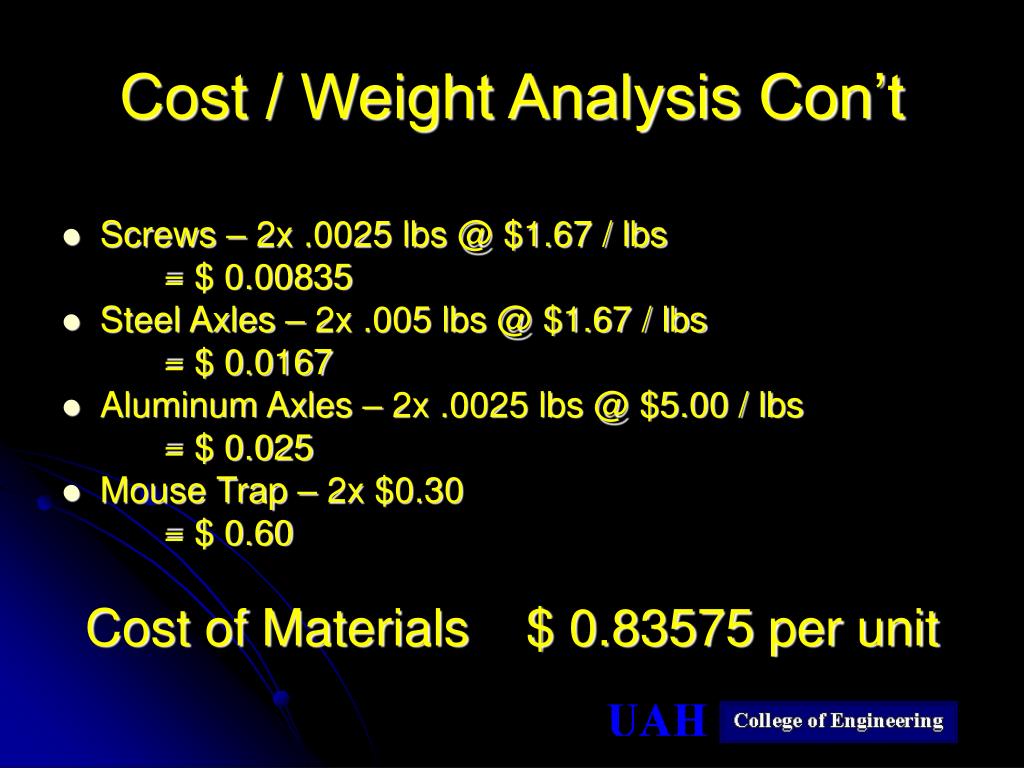

  12. Cost / Weight Analysis Con’t • Screws – 2x .0025 lbs @ $1.67 / lbs = $ 0.00835 • Steel Axles – 2x .005 lbs @ $1.67 / lbs = $ 0.0167 • Aluminum Axles – 2x .0025 lbs @ $5.00 / lbs = $ 0.025 • Mouse Trap – 2x $0.30 = $ 0.60 Cost of Materials $ 0.83575 per unit

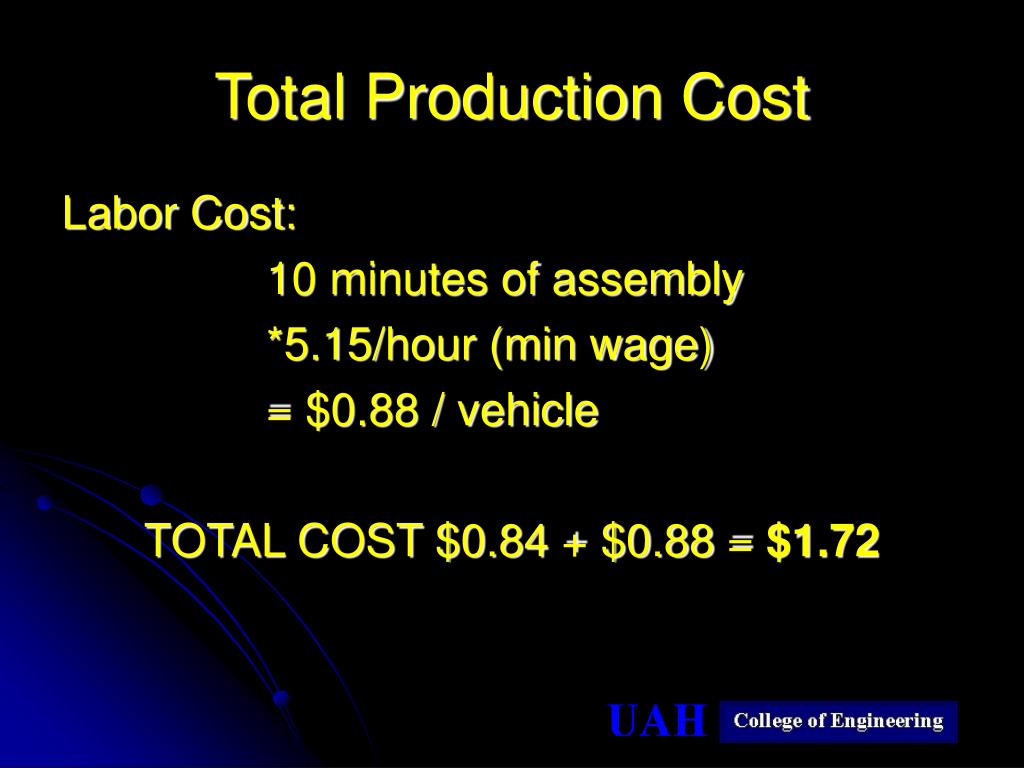

  13. Total Production Cost Labor Cost: 10 minutes of assembly *5.15/hour (min wage) = $0.88 / vehicle TOTAL COST $0.84 + $0.88 = $1.72

  14. Pending Design Modifications • More rigid driving axle • Thicker gears • Horizontal alignment (gears) • Adjustable tension wheel • Better traction

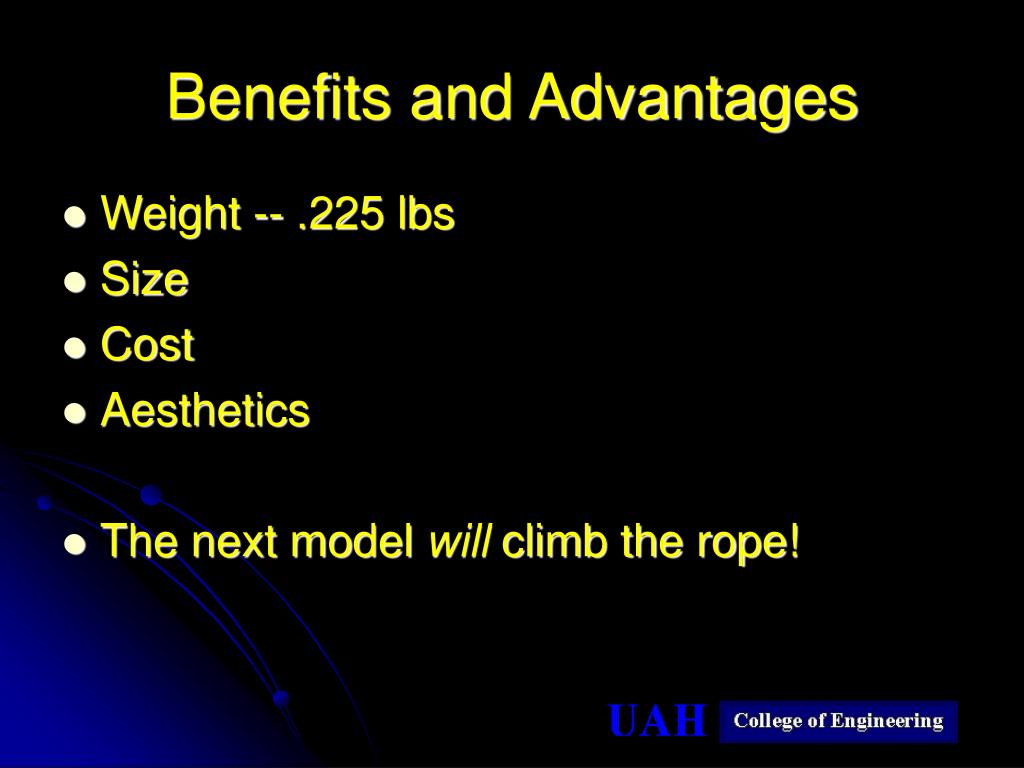

  15. Benefits and Advantages • Weight -- .225 lbs • Size • Cost • Aesthetics • The next model will climb the rope!
