Genetic Marker Analysis in Family Pedigree: Lod Score Calculation

Analyze a family pedigree to determine disease-tracking marker, calculate lod score, and identify marker with recombination event.

jelani-simmons
Download Presentation

Genetic Marker Analysis in Family Pedigree: Lod Score Calculation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

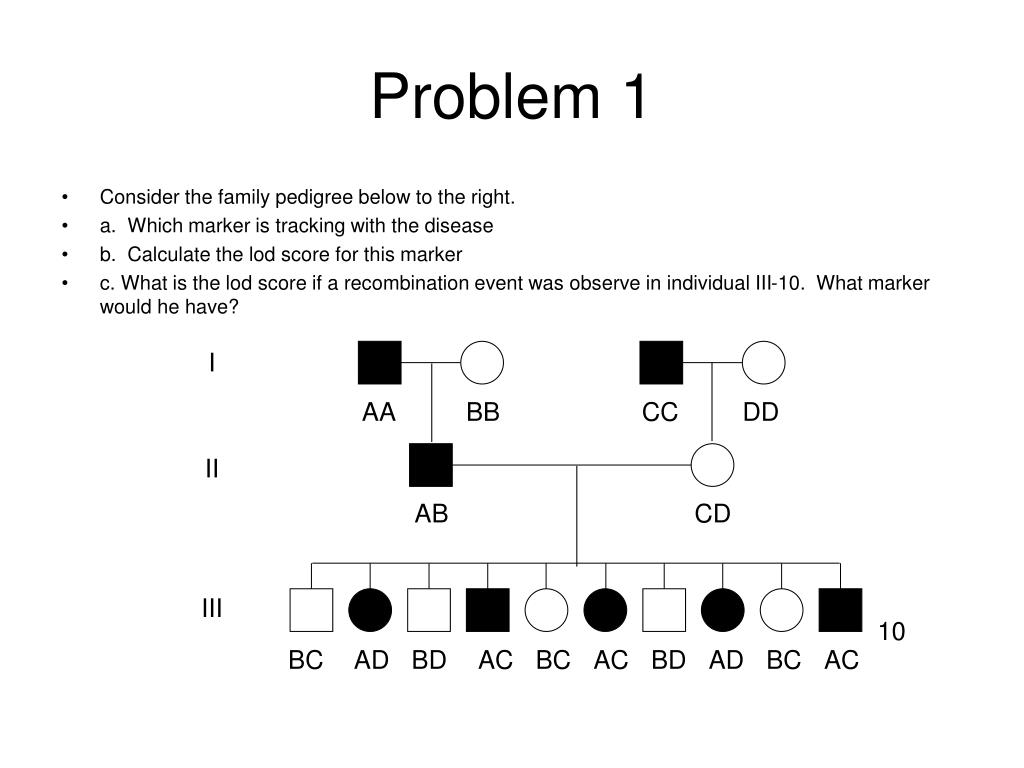

  1. I AA BB CC DD II CD AB III BC AD BD AC BC AC BD AD BC AC Problem 1 • Consider the family pedigree below to the right. • a. Which marker is tracking with the disease • b. Calculate the lod score for this marker • c. What is the lod score if a recombination event was observe in individual III-10. What marker would he have? 10

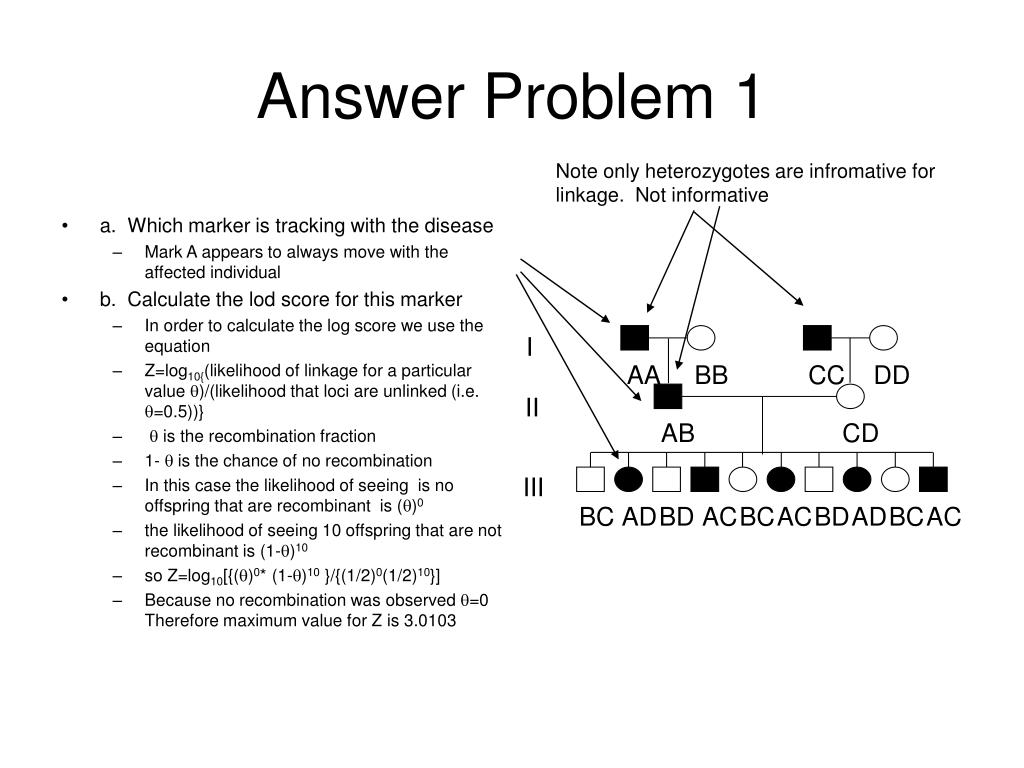

  2. I AA BB CC DD II CD AB III BC AD BD AC BC AC BD AD BC AC Answer Problem 1 Note only heterozygotes are infromative for linkage. Not informative • a. Which marker is tracking with the disease • Mark A appears to always move with the affected individual • b. Calculate the lod score for this marker • In order to calculate the log score we use the equation • Z=log10{(likelihood of linkage for a particular value q)/(likelihood that loci are unlinked (i.e. q=0.5))} • q is the recombination fraction • 1- q is the chance of no recombination • In this case the likelihood of seeing is no offspring that are recombinant is (q)0 • the likelihood of seeing 10 offspring that are not recombinant is (1-q)10 • so Z=log10[{(q)0* (1-q)10 }/{(1/2)0(1/2)10}] • Because no recombination was observed q=0 Therefore maximum value for Z is 3.0103

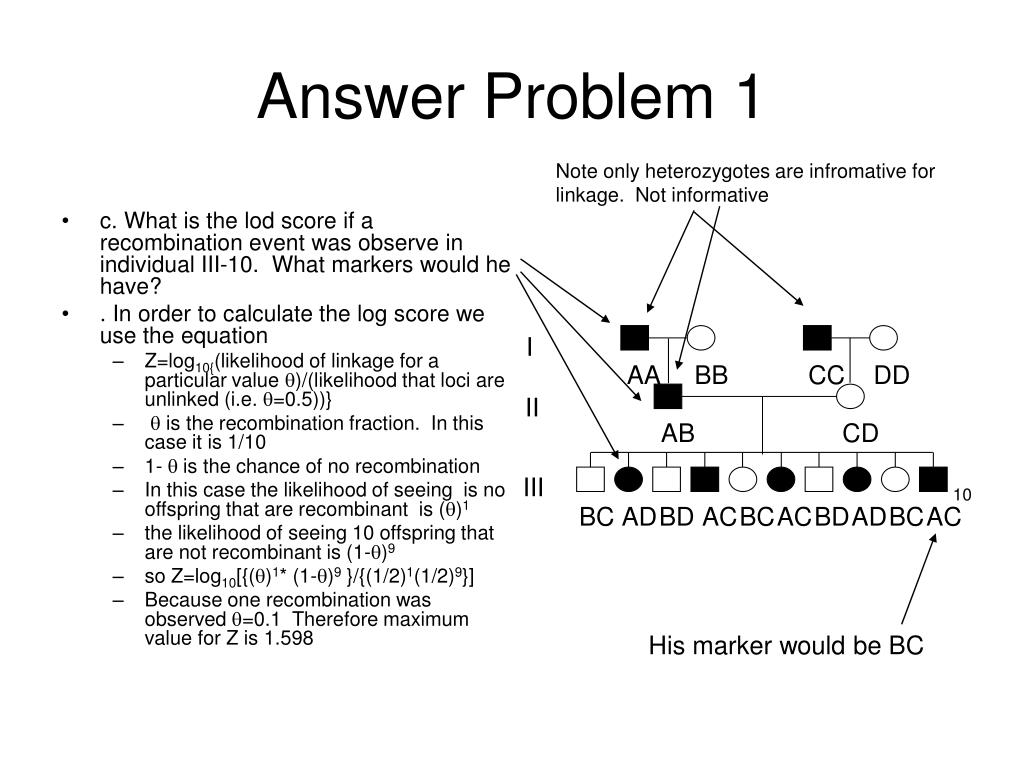

  3. I AA BB CC DD II CD AB III BC AD BD AC BC AC BD AD BC AC Answer Problem 1 Note only heterozygotes are infromative for linkage. Not informative • c. What is the lod score if a recombination event was observe in individual III-10. What markers would he have? • . In order to calculate the log score we use the equation • Z=log10{(likelihood of linkage for a particular value q)/(likelihood that loci are unlinked (i.e. q=0.5))} • q is the recombination fraction. In this case it is 1/10 • 1- q is the chance of no recombination • In this case the likelihood of seeing is no offspring that are recombinant is (q)1 • the likelihood of seeing 10 offspring that are not recombinant is (1-q)9 • so Z=log10[{(q)1* (1-q)9 }/{(1/2)1(1/2)9}] • Because one recombination was observed q=0.1 Therefore maximum value for Z is 1.598 10 His marker would be BC
