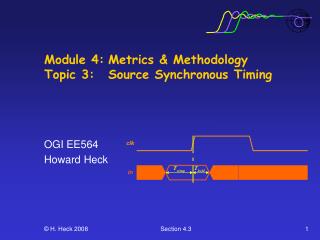

Module 4: Metrics & Methodology Topic 3: Source Synchronous Timing PowerPoint Presentation
Download Presentation
Module 4: Metrics & Methodology Topic 3: Source Synchronous Timing

Loading in 2 Seconds...

play fullscreen
1 / 27

Module 4: Metrics & Methodology Topic 3: Source Synchronous Timing - PowerPoint PPT Presentation


  • 194 Views
  • Uploaded on

Module 4: Metrics & Methodology Topic 3: Source Synchronous Timing. OGI EE564 Howard Heck. Where Are We? . Introduction Transmission Line Basics Analysis Tools Metrics & Methodology Synchronous Timing Signal Quality Source Synchronous Timing Recovered Clock Timing Design Methodology

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Module 4: Metrics & Methodology Topic 3: Source Synchronous Timing' - jeanne


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
where are we
Where Are We?
  • Introduction
  • Transmission Line Basics
  • Analysis Tools
  • Metrics & Methodology
    • Synchronous Timing
    • Signal Quality
    • Source Synchronous Timing
    • Recovered Clock Timing
    • Design Methodology
  • Advanced Transmission Lines
  • Multi-Gb/s Signaling
  • Special Topics

Section 4.3

contents
Contents
  • Synchronous Bus Limitations
  • Source Synchronous Concept & Advantages
  • Operation
  • Timing Equations
  • Maximum Transfer Rate
  • Summary
  • References
  • Appendix: Timing Equation Derivation

Section 4.3

common clock limitations
Common Clock Limitations

clk

  • Max frequency is defined by min cycle time
  • Min cycle time is limited by maximum delays.
  • Can we find a way to remove the dependence on absolute delays?

CLK

CLK

CORE

TO

CORE

FROM

Q

Q

D

D

a

b

Section 4.3

source synchronous signaling concept
Source Synchronous Signaling Concept
  • The transmitting agent sends the clock (a.k.a. strobe), along with the data signal.
  • Overview:
    • Drive the clock and data signals with a known phase relationship.
    • Design the clock and data signals to be identical in order to preserve the phase relationship.
    • As long as the phase relationship can be maintained, the lines can be much longer.

Section 4.3

source synchronous concept example
Source Synchronous Concept Example

5.5 ns

CLK/CLK#

1.0 ns

@ Tx

DATA

@ Tx

5.7 ns

DATA

@ Rx

300 ps

CLK/CLK#

T

= 500 ps

@ Rx

su

  • Suppose that we transmit a data signal 1 ns prior to transmitting the strobe.
  • You’re given a 500 ps receiver setup requirement.
  • You find that the flight time for the data signal varies between 5.5 ns and 5.7 ns.
  • The flight time for the clock signal also varies between 5.5 ns and 5.7 ns, independent from the data.
  • Can we meet the setup requirement?

Section 4.3

source synchronous advantage
Source Synchronous Advantage
  • From the preceding example, it should be apparent that source synchronous performance depends on relative, rather than absolute delays.
    • True for drivers and interconnect, though we must still meet the absolute setup/hold requirements for the receiver.
  • In real systems, the difference in delay between signals can be made much smaller than the absolute delays.
  • Therefore, with source synchronous signaling we can expect
    • to achieve higher performance
    • to be able to use longer traces

Section 4.3

operation
Operation
  • Typically, there is one strobe signal (or pair of signals) per two bytes of data signals.
    • Varies by design
  • Signal relationships at the transmitter are shown below.

Section 4.3

source synchronous operation
Source Synchronous Operation

@ RECEIVER

Tsumar

Thmar

Tsu

Th

STROBE/STROBE

Thskew

Tsuskew

Tvb

Tva

@ DRIVER

DATA

t

Tsuskew: flight time skew for setup

Tsumar: setup margin

Tvb: min driver phase offset (setup)

Thskew: flight time skew for hold

Thmar: hold margin

Tva: min driver phase offset (hold)

Section 4.3

source synchronous equations
Source Synchronous Equations

@ RECEIVER

Tsumar

Thmar

Tsu

Th

STROBE/STROBE

Thskew

Tsuskew

Tvb

Tva

@ DRIVER

DATA

t

The sum of the timings at the receiver must not exceed the phase offsets at the driver:

[4.3.1]

[4.3.2]

the transmitter design requires minimum offsets:

[4.3.3]

[4.3.4]

Section 4.3

source synchronous equations 2
Source Synchronous Equations #2

@ RECEIVER

Tsumar

Thmar

Tsu

Th

STROBE/STROBE

Thskew

Tsuskew

Tvb

Tva

@ DRIVER

DATA

t

We must also satisfy the following relationship:

Tbit: data bit width

[4.3.5]

This determines our maximum transfer rate.

TRmax: max transfer rate

[4.3.6]

Section 4.3

question
Question
  • Based on what we’ve covered in the previous slides, what are the implications to:
    • The transmitter design?
    • The receiver design?
    • The interconnect design?

Section 4.3

example
Example
  • Tsu = 500 ps, Th = 500 ps
  • The target transfer rate is 500 MT/s.
  • What are reasonable flight time skew targets?

Section 4.3

source synchronous timing summary
Source Synchronous Timing Summary
  • Synchronous timings are limited by absolute delays.
  • Source synchronous timings use a strobe eliminate dependence on absolute delay.
    • Performance depends on our ability to maintain known phase relationship between data & strobe
  • As a result, source synchronous interfaces typically operate at 2x-8x the clock frequency.
    • Expect that ratio to scale much higher in the future.
  • Matching of delays (transmitter & interconnect) is a key design consideration for designing high speed source synchronous interfaces.

Section 4.3

references
References
  • S. Hall, G. Hall, and J. McCall, High Speed Digital System Design, John Wiley & Sons, Inc. (Wiley Interscience), 2000, 1st edition.
  • W. Dally and J. Poulton, Digital Systems Engineering, Cambridge University Press, 1998.
  • R. Poon, Computer Circuits Electrical Design, Prentice Hall, 1st edition, 1995.
  • H.B.Bakoglu, Circuits, Interconnections, and Packaging for VLSI, Addison Wesley, 1990.
  • H. Johnson and M. Graham, High Speed Digital Design: A Handbook of Black Magic, PTR Prentice Hall, 1993.
  • S. Dabral and T. Maloney, Basic ESD and I/O Design, John Wiley and Sons, New York, 1998.

Section 4.3

source synchronous bus operation
Source Synchronous Bus Operation

Driver Chip

From Core

D Q

D

DELAY

Strobe

n

n

From Core

D Q

P

L

Data

L

Clock Distribution Tree

Data

Receiver Chip

To Core

Q D

Q D

System

n

Clock

Strobe

P

L

L

Clock Distribution Tree

Section 4.3

operation 2
Operation #2

Driver Chip

From Core

D Q

D

DELAY

Strobe

n

n

From Core

D Q

P

L

Data

L

Clock Distribution Tree

Data

Receiver Chip

To Core

Q D

Q D

System

n

Clock

Strobe

P

L

L

Clock Distribution Tree

  • The timing path starts at the flip-flop of the transmitting agent and ends at the flip-flop of the receiving agent.
  • The strobe signal is used as the clock input of the receiver flip-flop.
  • The transmitted strobe (and data) signals are generated from the on-chip bus clock.
  • Typically, the strobe is phase shifted by ½ cycle from the data signal.
    • Duty cycle variations will cause variation on the phase relationship

Section 4.3

setup timing diagram loop analysis
Setup Timing Diagram & Loop Analysis

TBCLK

BCLK

TBCLK

/4

DCLK

Tco(STB)

DRIVER

STB/STB

Tco(DATA)

Tflight(STB)

DRIVER

DATA

RECEIVER

STB/STB

Tflight(DATA)

Tsu

RECEIVER

DATA

Tsumar

t

[4.3.1a]

Section 4.3

setup analysis
Setup Analysis

[4.3.1a]

[4.3.2a]

[4.3.3a]

  • For a “double pumped” bus, the difference between Tco(DATA) and Tco(STB) is typically set to one-half of the cycle time (TDCLK/2 = TBCLK/4) to center the strobe in the data valid window.
    • Double pumped: source synchronous transfer rate is 2x the central clock rate.
  • This relationship is typically specified as Tvb (data “valid before” strobe ), which signifies the minimum time for which the data at the transmitter is valid prior to transmission of the strobe.
  • Mathematically:
  • Simplify the loop equation:

Section 4.3

setup analysis 2
Setup Analysis #2

[4.3.4a]

[4.3.5a]

[4.3.6a]

  • Both data & strobe propagate over the interconnect.
    • Goal: identical flight times.
  • In reality, there will be some difference in flight times between data and strobe.
    • trace length, loading, crosstalk, ISI, etc.
  • Define flight time skew for the setup condition:
  • Simplify the loop equation:

Section 4.3

notes on the setup equation
Notes on the Setup Equation

[4.3.7a]

  • You may see the timing equation written in other forms.
  • The way I defined Tvb makes it a negative quantity. Others may define it to be positive.
  • I defined Tsuskew to be a positive quantity.

Section 4.3

hold timing diagram loop analysis
Hold Timing Diagram & Loop Analysis

TBCLK

BCLK

TBCLK/4

DCLK

Tco(STB)

Tco(DATA)

DRIVER

STB/STB

Tflight(STB)

DRIVER

DATA

Th

RECEIVER

STB/STB

Tflight(DATA)

Thmar

RECEIVER

DATA

t

Section 4.3

hold analysis
Hold Analysis

[4.3.9a]

[4.3.10a]

[4.3.11a]

  • Just as for the setup case, we need to specify the minimum phase relationship between data and strobe:

[4.3.8a]

  • In addition, define the flight time skew for the hold case:
  • In addition, define the flight time skew for the hold case:
  • Note that the Thskew is defined such that it is a negative quantity, while Tva is defined to be positive.

Section 4.3

maximum transfer rate
Maximum Transfer Rate

-T

T

vb,min

va,min

STB/STB

DATA

T

cycle,min

  • The maximum transfer rate can be determined using the definitions for Tva and Tvb.
  • We can calculate the limit of TBCLK (for a double pumped bus) by adding the two equations above.

[4.3.12a]

Section 4.3

higher transfer rates e g quad pumped
Higher Transfer Rates (e.g. “Quad Pumped”)
  • The setup and hold equations remain the same.
  • What changes are the Tva and Tvb definitions:

[4.3.13a]

[4.3.14a]
