This guide provides a comprehensive overview of loop constructs in C programming, focusing on `for`, `while`, and `do-while` loops. Each loop type is explained with examples to demonstrate their structure and usage. Learn how to iterate over ranges with the `for` loop, control execution based on conditions with the `while` loop, and ensure at least one execution with the `do-while` loop. Discover practical applications such as printing patterns and tables, essential for deepening your programming skills.

Understanding Loops in C Programming: For, While, and Do-While - slide 1
01 / 20Understanding Loops in C Programming: For, While, and Do-While
1 / 17

Download Presentation

Understanding Loops in C Programming: For, While, and Do-While
An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

More Related Content

Presentation Transcript
  1. Loop

  2. for(…) {…} • for (expression;condition;increment) • statement; • ----------- หรือ ------------------------------- • for (expression;condition;increment) • {statement; • statement; • statement; • }

  3. for(…) {…} • int i • for ( i=1;i<10;i=i+1) • printf( “*” ) ; • ----------- หรือ ------------------------------- • int i • for (i=1;i<10;i=i+1) • {printf( “*****” ) ; • printf( “*****\n” ) ; • }

  4. 1 2 3 4 for(…) {…} • for ( int i=1;i<10;i=i+1) • printf( “*” ) ; • ----------- หรือ ------------------------------- • for (int i=1;i<10;i=i+1) • {printf( “*****” ) ; • printf( “*****\n” ) ; • } 1 2 4 N 3 Y

  5. for(…) {…} • for (int i=1;i<=25;i=i+1) • { • printf( “*” ) ; • if((i%5)= =0 ) printf( “\n” ) ; • }

  6. for(…) {…} • scanf(“%d”,&n); • for (int i=1;i<=(n*n);i=i+1) • { • printf( “*” ) ; • if((i%n)= =0 ) printf( “\n” ) ; • }

  7. while(…) while (condition) statement ; -- หรือ -- while (condition) { statement ; statement ; statement ; }

  8. N 1 2 3 4 Y while(…) {…} • int i= 1; • while (i<=25) • { • printf( “*” ) ; • if((i%5)= =0 ) printf( “\n” ) ; • i=i+1; • } 1 2 3 4

  9. do { ... } while(…); do statement ; while ( condition ) ; -- หรือ -- do { statement ; statement ; … } while ( condition ) ;

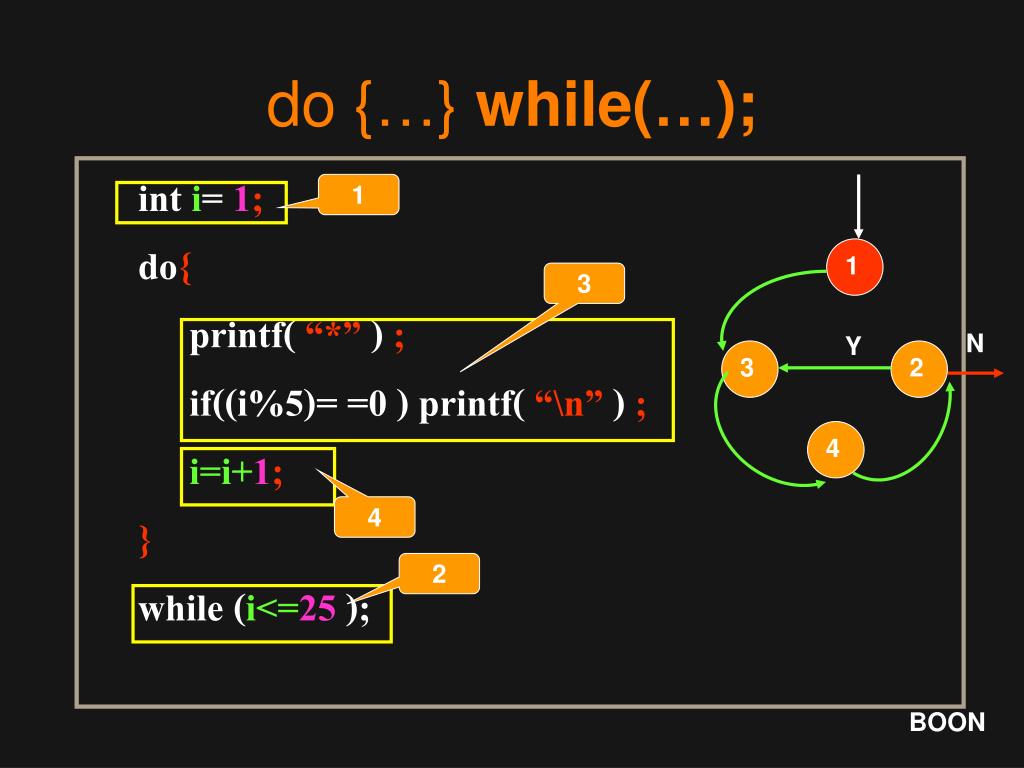

  10. N Y 1 2 4 3 do {…} while(…); • int i= 1; • do{ • printf( “*” ) ; • if((i%5)= =0 ) printf( “\n” ) ; • i=i+1; • } • while (i<=25); 1 3 4 2

  11. N Y 3 4 2 4 3 1 1 4 3 2 1 2 N N Y Y [1]do{[3][4]} while([2]); [1]while([2]){[3][4]} for([1];[2];[4]){ [3] }

  12. for(…) {…} • int n; • scanf(“%d”,&n); • for ( int i=1;i<=12;i=i+1) • printf( “%d x %d = %d\n”, n, i, (n*i)) ;

  13. for(…) {…} 2 x 1 = 2 2 x 2 = 4 2 x 3 = 6 2 x 4 = 8 2 x 5 = 10 2 x 6 = 12 2 x 7 = 14 2 x 8 = 16 2 x 9 = 18 2 x 10 = 20 2 x 11 = 22 2 x 12 = 24

  14. for(…) {…} • int n; • scanf(“%d”,&n); • for ( int i=1;i<=12;i=i+1) • printf( “%2d x %2d = %2d\n”, n, i, (n*i)) ;

  15. for(…) {…} n=2 n+2 n+1 n+0 i=1 2 x 1 = 2 2 x 2 = 4 2 x 3 = 6 2 x 4 = 8 2 x 5 = 10 2 x 6 = 12 2 x 7 = 14 2 x 8 = 16 2 x 9 = 18 2 x 10 = 20 2 x 11 = 22 2 x 12 = 24 3 x 1 = 3 3 x 2 = 6 3 x 3 = 9 3 x 4 = 12 3 x 5 = 15 3 x 6 = 18 3 x 7 = 21 3 x 8 = 24 3 x 9 = 27 3 x 10 = 30 3 x 11 = 33 3 x 12 = 36 4 x 1 = 4 4 x 2 = 8 4 x 3 = 12 4 x 4 = 16 4 x 5 = 20 4 x 6 = 24 4 x 7 = 28 4 x 8 = 32 4 x 9 = 36 4 x 10 = 40 4 x 11 = 44 4 x 12 = 48 i=2 i=3 i=12

  16. for(…) { for(…){…} …} • int n; • scanf(“%d”,&n); • for (int i=1;i<=n;i=i+1){ • for (int j=1;j <= i;j=j+1) • printf( “*” ) ; • printf( “\n” ) ; • }

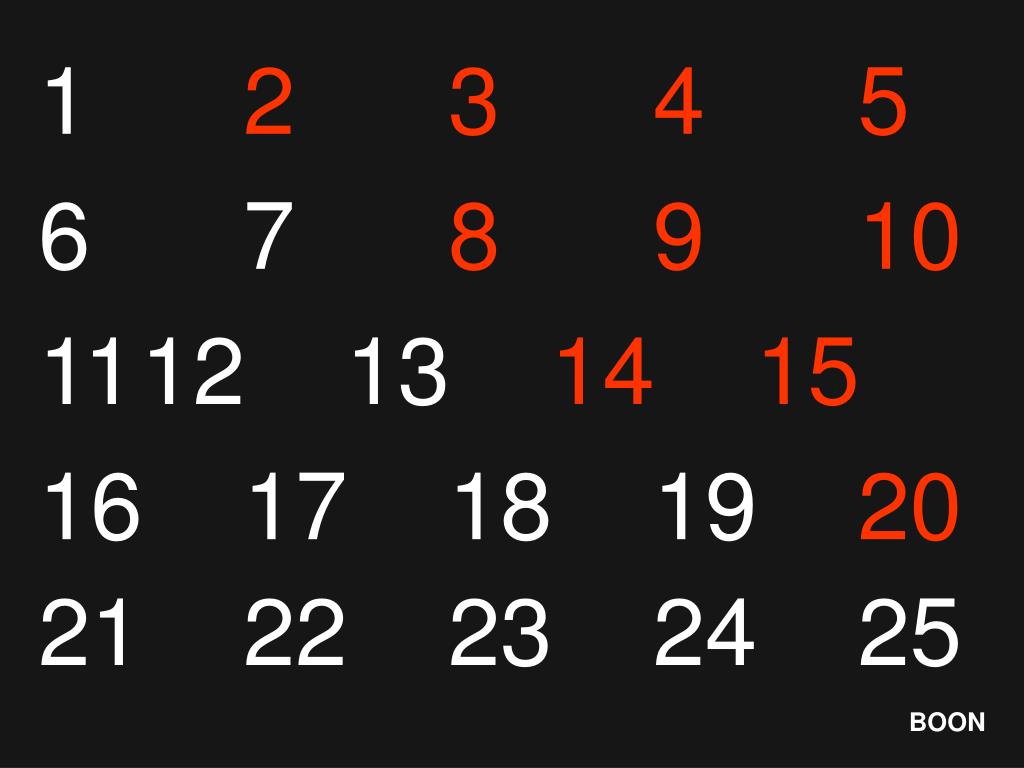

  17. 1 23 4 5 6 7 89 10 11 12 13 1415 16 17 18 19 20 21 22 23 24 25

  18. 1 6 7 11 12 13 16 17 18 19 21 22 23 24 25 n=5 (n*0)+1 (n*1)+1 (n*2)+1 (n*3)+1 (n*n) (n*4)+1

  19. 1 6 7 11 12 13 16 17 18 19 21 22 23 24 25 n=5, k=0, i=1..5, (n*k)+1 k= i / n (n*k)+1 n=5, k=1, i=6..10 (n*k)+1 n=5, k=2, i=11..15 (n*k)+1 n=5, k=3, i=16..20 (n*k)+1 n=5, k=4, i=21..25

  20. int i,k,n; scanf("%d",&n); k=0; for(i=1;i<=(n*n);i++){ if(i<=(n*k+k)+1) printf("*"); if((i%n)==0){ printf("\n"); k=i/n; } }
