  1. TheAtom I-Theories About the Atom:A-The term Atom comes from the Greek word meaning “invisible” or “that which cannot be further cut”. This comes for the Greek thinker Democritus more than 2000 year ago.

  2. 1-The Greeks believed that all matter was made up four basic elements Air Fire Water Earth

  3. B-Dalton’sModel: in the early 1800’ John Dalton said the atom was a solid particle that could not be divided, and each element had its own kind of atom.

  4. C-Thomson’sModel: in 1897 J.J. Thomson discovered that the atom was made up of smaller particle. Thomson discovered the electron. 1- The atom was known to be neutral. The atom must also have a positive charged particle.

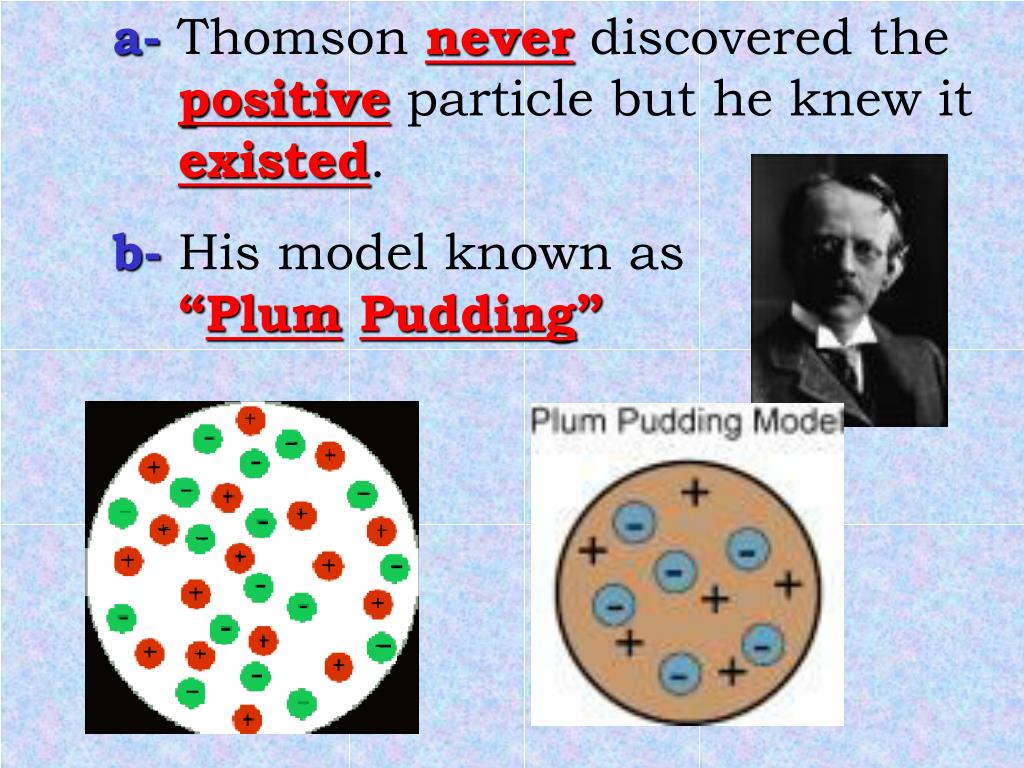

  5. a- Thomson never discovered the positive particle but he knew it existed. b- His model known as “PlumPudding”

  6. D-Rutherford’sModel: In 1908, Ernest Rutherford fired a stream of tiny positively charged particle at a very thin sheet of gold foil. He discovered the Nucleus of the atom and found that it contained what Thomson was looking for the positively charged particle the Proton.

  7. 1-Ruther Model is known as “The Solar system”.

  8. E-Bohr Model: In 1913 Niel Bohr said that the electrons move in a definiteorbit around the nucleus known as. 1-EnergyLevel: is the path an electron takes around the nucleus of the atom, it related to the amount of energy it has.

  9. 2-ElectronsEnergies: By heating up or passing electricity through the atom you can increase its energy. a-If the atom gains enough energy the electron can jump to a higher energy level called an ExcitedState. b-To return to it’s original state the atom releases the extra energy in the form of a PHOTON.

  10. c-Spectrum is the finger print of an element each element has its own spectrum.

  11. F-Chadwick’sModel: In 1932 Chadwick discovered a particle in the nucleus of the atom. The Neutron has NOCHARGE but has more mass than the proton. This completed the model of the atom.

  12. Neutron Electron Proton

  13. 1-Today: the atom is described as a central mass surrounded by an electroncloud.

  14. II- HowAtomsDiffer A- All atoms of an element have the same number of protons. The number of protons determines what the element is. 1- AtomicNumber is the number of protons of an atom.

  15. 2- MassNumber: is the total number of Protons and Neutrons in an atom. a- To find the number of neutrons in an atom all you do is subtract the atomicnumber from the massnumber.

  16. Mass Number

  17. B-Isotopes: Atoms of the same element with the same atomic number but a different number of neutrons.

  18. III-ClassifyingElements: A-ThePeriodicTable: Was created by Mendeleev, he put the elements with the same characteristics into columns. 1-The elements line up in increasingatomic numbers.

  19. B- ArrangementofTable: 1-Each row is called a period and each column is called a group. 2-If you know something about an element in a group you know something about them all.

  20. 3-Each box has an element’s symbol, name, atomicnumber,massnumber, and the number of electrons in each energy level.

  21. Atomic Number Number of electrons in each energy level 13 2 8 3 Al Symbol Aluminum Name 26.98 Average atomic mass
