  1. Making the Edible Landscape McGill Downtown Campus Survey for an adequate site in partnership with Santropol Roulant Minimum Cost Housing Group School of Architecture, McGill University Tel: 514-398-1619 March, 13th 2007

  2. MAKING THE EDIBLE LANDSCAPE I. Previous Rooftop Garden II. Proposed New Site III. Sunlight Study IV. Proposed Plan V. Proposed Views

  3. I Previous Rooftop Garden Ms. Helen Fotopulos, mayor of the borough of Plateau-Mont-Royal & Ismael Hautecoeur on the rooftop Edge view of the rooftop garden

  4. I Previous Rooftop Garden Low Cost Plastic Containers and the watering system Planted Containers

  5. I Previous Rooftop Garden Planted Containers, other alternatives

  6. I Previous Rooftop Garden Organic Buffet on the Rooftop Garden

  7. II Proposed New Site Location On McGill Downtown Campus

  8. II Proposed New Site Garden Staircase Garden Strip Schematical plan of the proposed sites

  9. III Sunlight - May 8 am 7 am 9 am 10 am 11 am 12 pm 1 pm 2 pm 3 pm 4 pm 5 pm 6 pm Sunlight on the proposed sites during the month of May

  10. III Sunlight - May Natural sunlight, May 1st 1 Garden Staircase : 10.00 am – 06.00 pm 2 Garden Strip : 07.00 am – 10.15 am : + 2 hours in the afternoon Total sunlight 1 Garden Staircase : 8 hours 2 Garden Strip : 5 h 15* *Amount of total sunlight, however it takes an extra 45 min before x is in complete shadow. As an average, we could add 22 min x

  11. III Sunlight - June 8 am 7 am 9 am 10 am 11 am 12 pm 1 pm 2 pm 3 pm 4 pm 5 pm 6 pm Sunlight on the proposed sites during the month of June

  12. III Sunlight - June Natural sunlight, June 1st 1 Garden Staircase : 10.30 am – 06.00 pm 2 Garden Strip : 07.00 am – 10.45am : + 2 hours in the afternoon Total sunlight 1 Garden Staircase : 7.30 hours 2 Garden Strip : 5.45 hours* *Amount of total sunlight, however it takes an extra 65 min before x is in complete shadow. As an average, we could add 32 min x

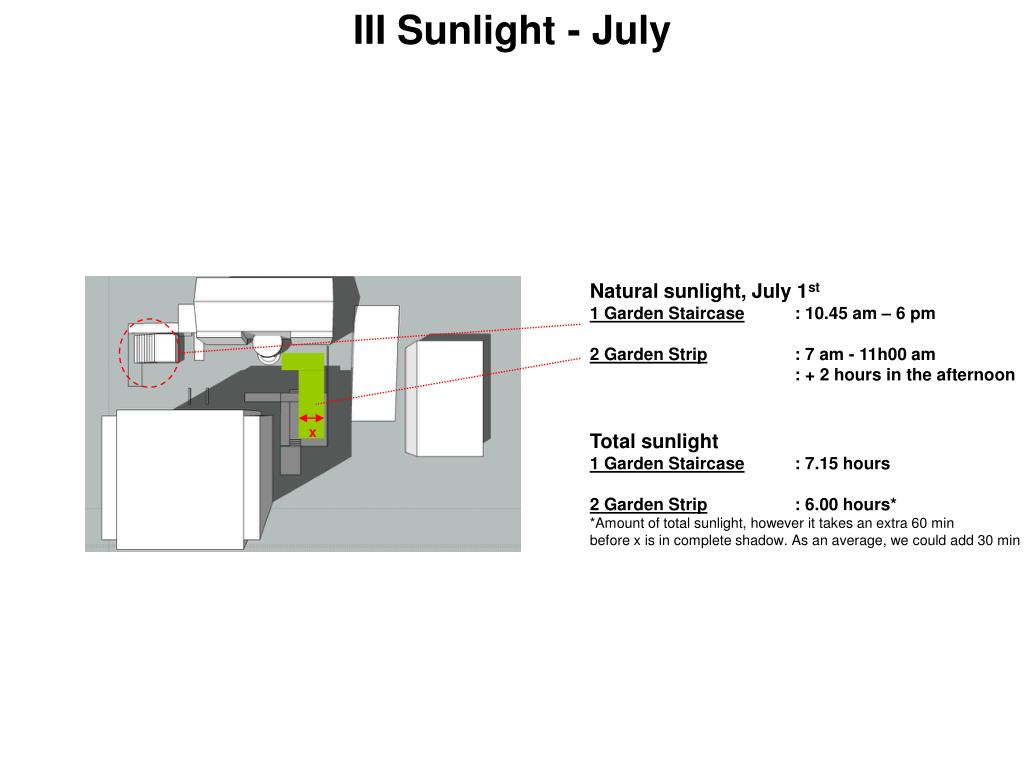

  13. III Sunlight - July 8 am 7 am 9 am 10 am 11 am 12 pm 1 pm 2 pm 3 pm 4 pm 5 pm 6 pm Sunlight on the proposed sites during the month of July

  14. III Sunlight - July Natural sunlight, July 1st 1 Garden Staircase : 10.45 am – 6 pm 2 Garden Strip : 7 am - 11h00 am : + 2 hours in the afternoon Total sunlight 1 Garden Staircase : 7.15 hours 2 Garden Strip : 6.00 hours* *Amount of total sunlight, however it takes an extra 60 min before x is in complete shadow. As an average, we could add 30 min x

  15. III Sunlight - August 8 am 7 am 9 am 10 am 11 am 12 pm 1 pm 2 pm 3 pm 4 pm 5 pm 6 pm Sunlight on the proposed sites during the month of August

  16. III Sunlight - August Natural sunlight, August 1st 1 Garden Staircase : 10.25 am – 06.00 pm 2 Garden Strip : 07.00 am – 10.40 am : + 2 hours in the afternoon Total sunlight 1 Garden Staircase : 7.35 hours 2 Garden Strip : 5.40 hours* *Amount of total sunlight, however it takes an extra 50 min before x is in complete shadow. As an average, we could add 25 min x

  17. III Sunlight - September 8 am 7 am 9 am 10 am 11 am 12 pm 1 pm 2 pm 3 pm 4 pm 5 pm 6 pm Sunlight on the proposed sites during the month of September

  18. III Sunlight - September Natural sunlight, September 1st 1 Garden Staircase : 10.00 am – 06.00 pm 2 Garden Strip : 07.00 am – 09.50 am : + 2 hours in the afternoon Total sunlight 1 Garden Staircase : 8.00 hours 2 Garden Strip : 4.50 hours* *Amount of total sunlight, however it takes an extra 70 min before x is in complete shadow. As an average, we could add 35 min x

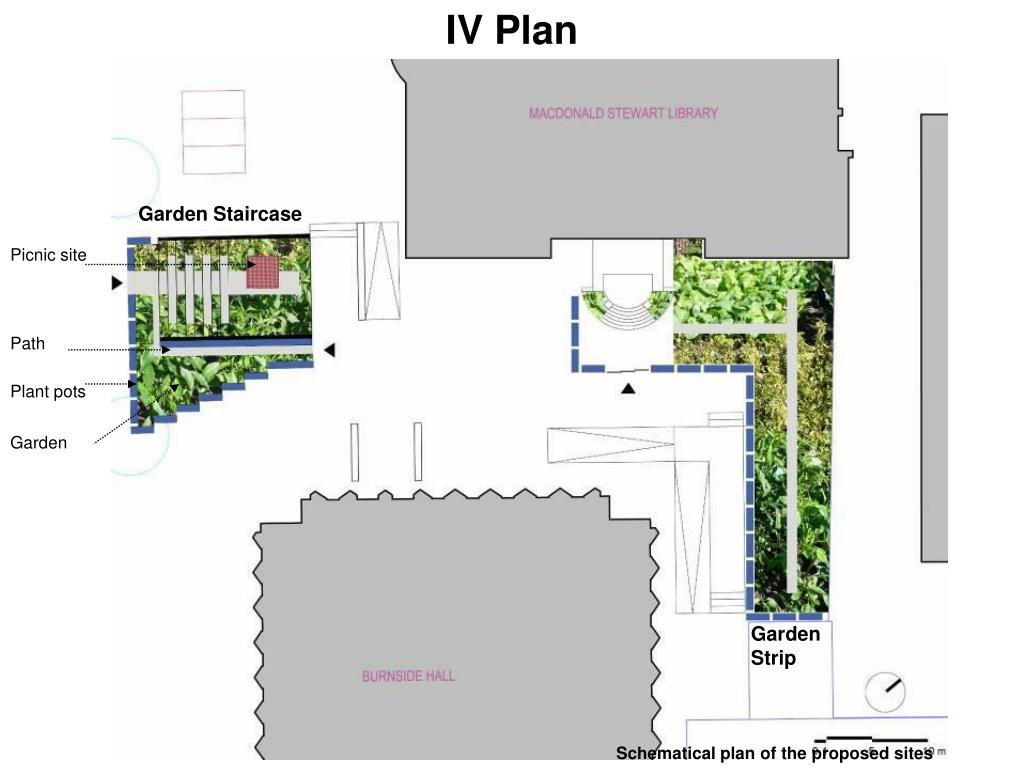

  19. IV Plan Garden Staircase Picnic site Path Plant pots Garden Garden Strip Schematical plan of the proposed sites

  20. V Views Proposed view of the garden staircase + surroundings

  21. V Views Proposed view of the garden strip
