  1. PHYS 252: Image Formation with Mirrors PHYS 252

  2. Image Formation - Reflection virtual image PHYS 252

  3. M = h’ h Image Formation - Reflection Ray Trace • virtual image • upright image • magnification of one (1x) PHYS 252

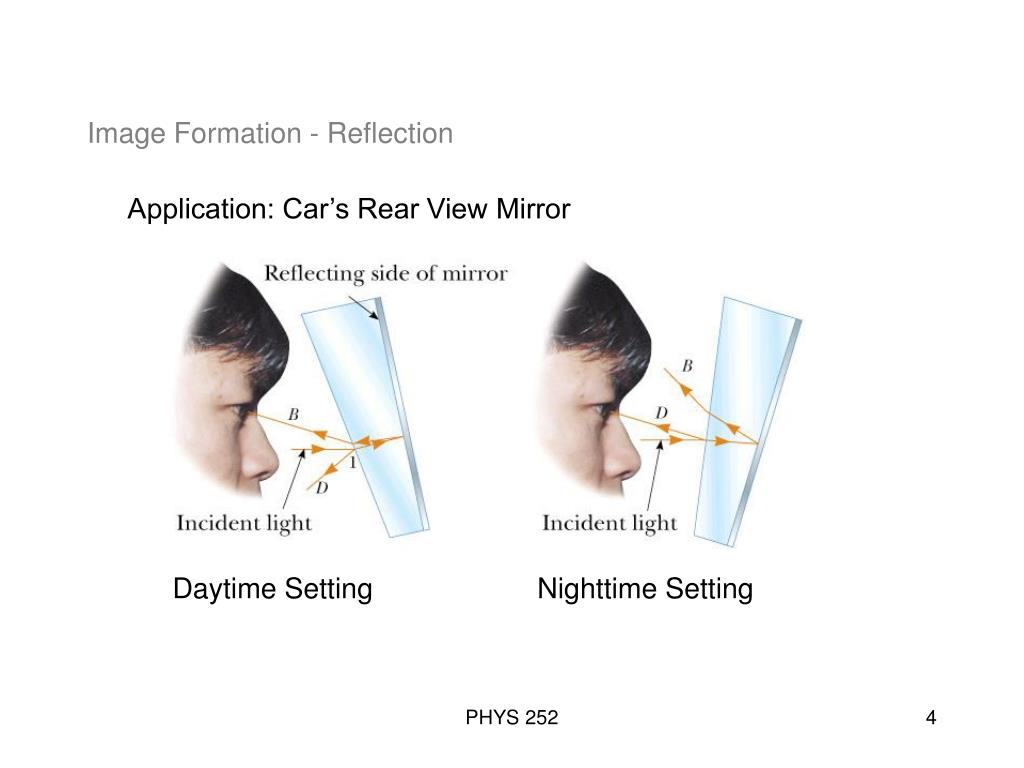

  4. Image Formation - Reflection Application: Car’s Rear View Mirror Daytime Setting Nighttime Setting PHYS 252

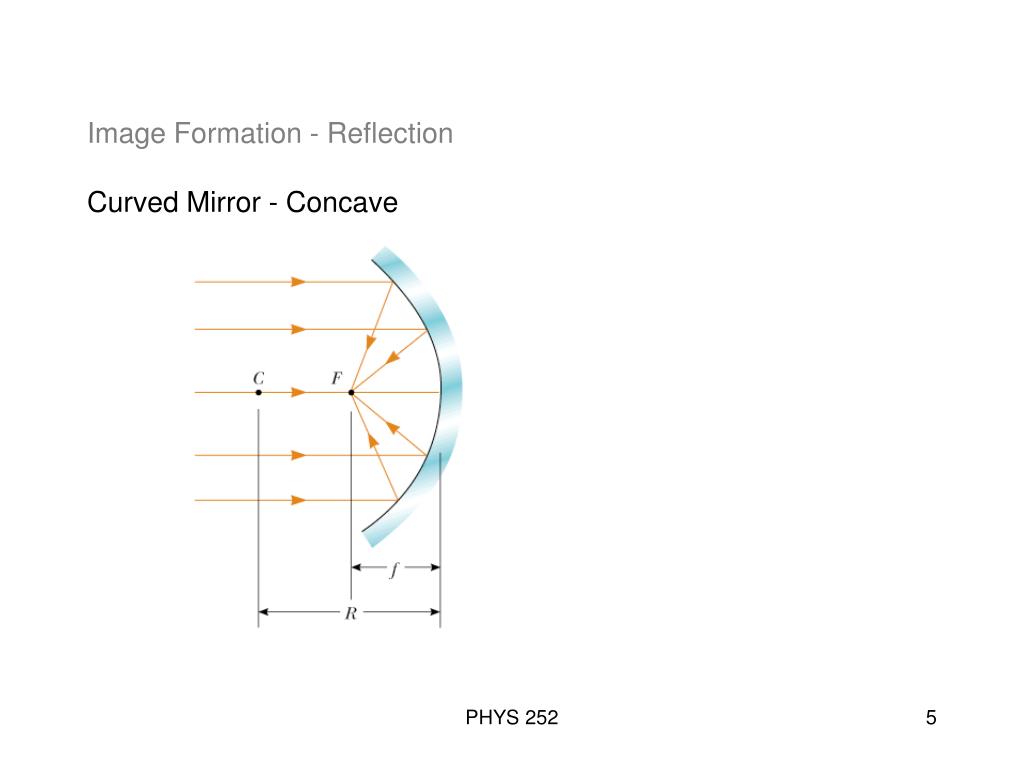

  5. Image Formation - Reflection Curved Mirror - Concave PHYS 252

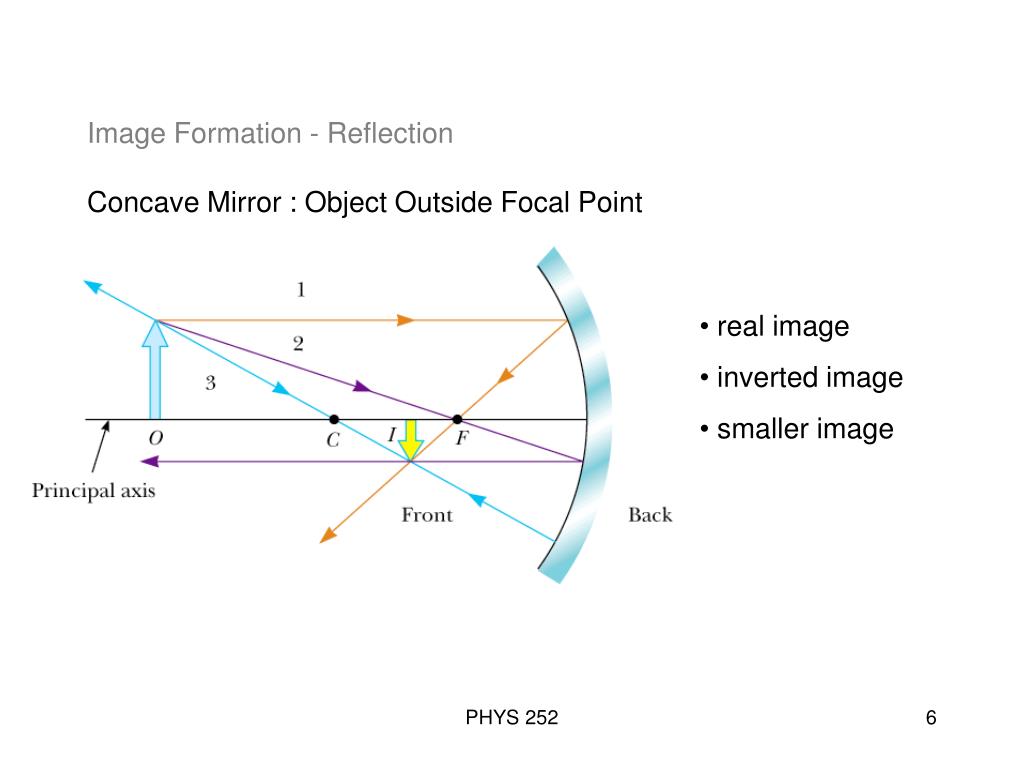

  6. Image Formation - Reflection Concave Mirror : Object Outside Focal Point • real image • inverted image • smaller image PHYS 252

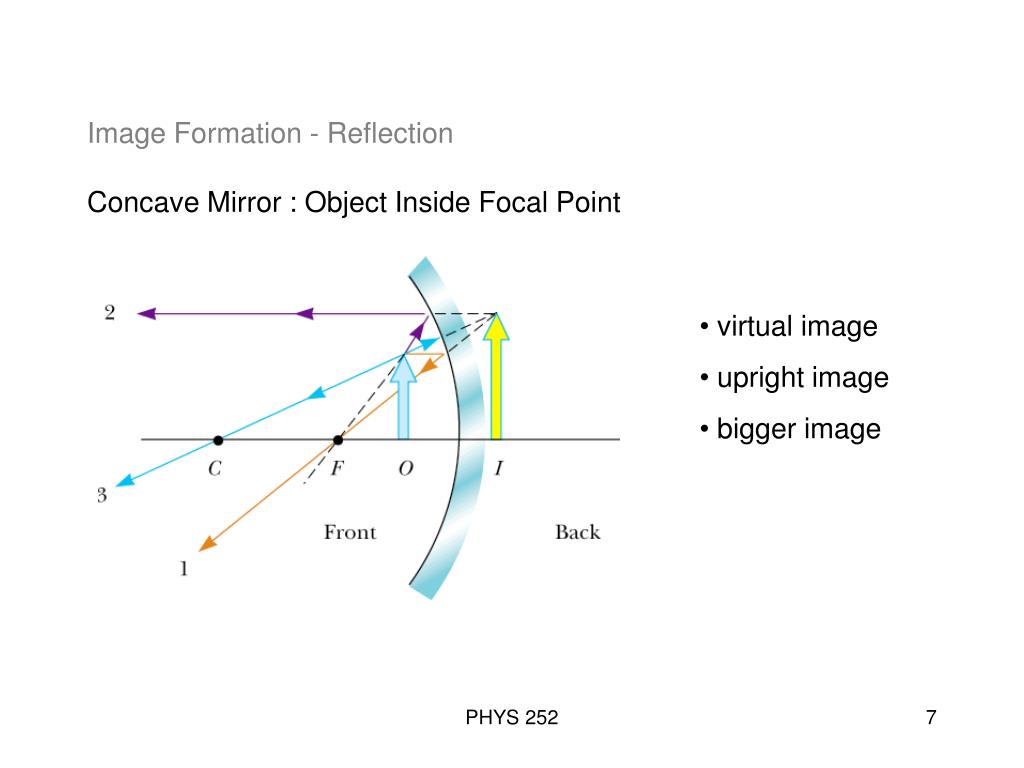

  7. Image Formation - Reflection Concave Mirror : Object Inside Focal Point • virtual image • upright image • bigger image PHYS 252

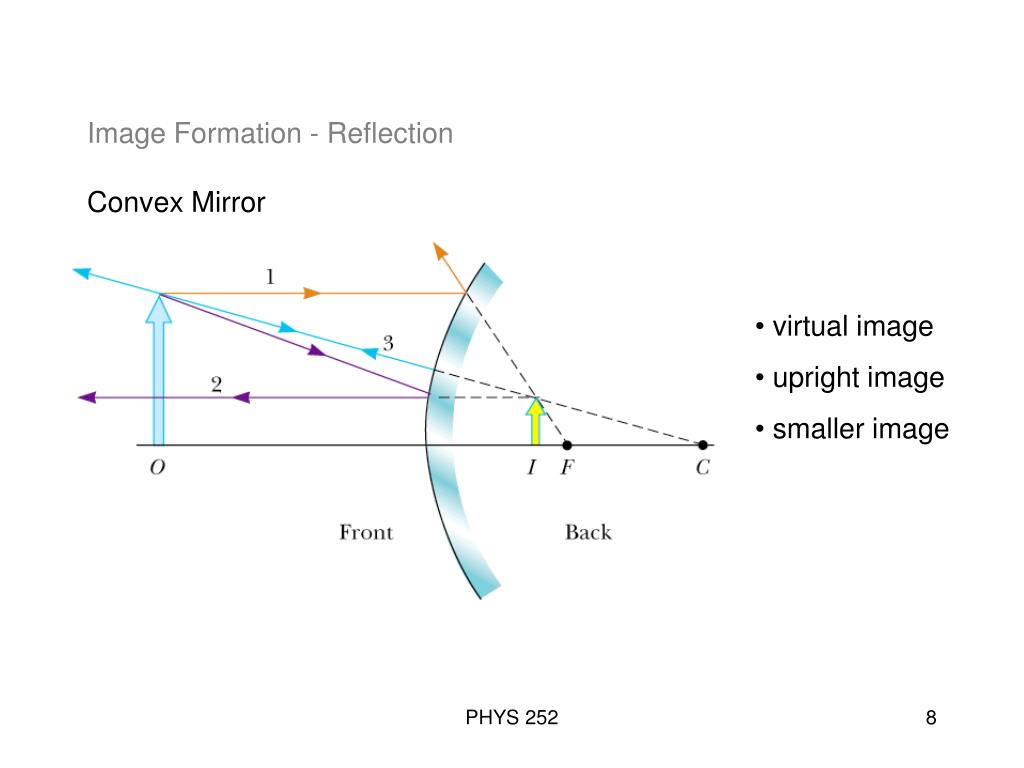

  8. Image Formation - Reflection Convex Mirror • virtual image • upright image • smaller image PHYS 252
