  1. EECS 312 Discussion 3 09/20 Shengshuo Lu (luss@umich.edu)

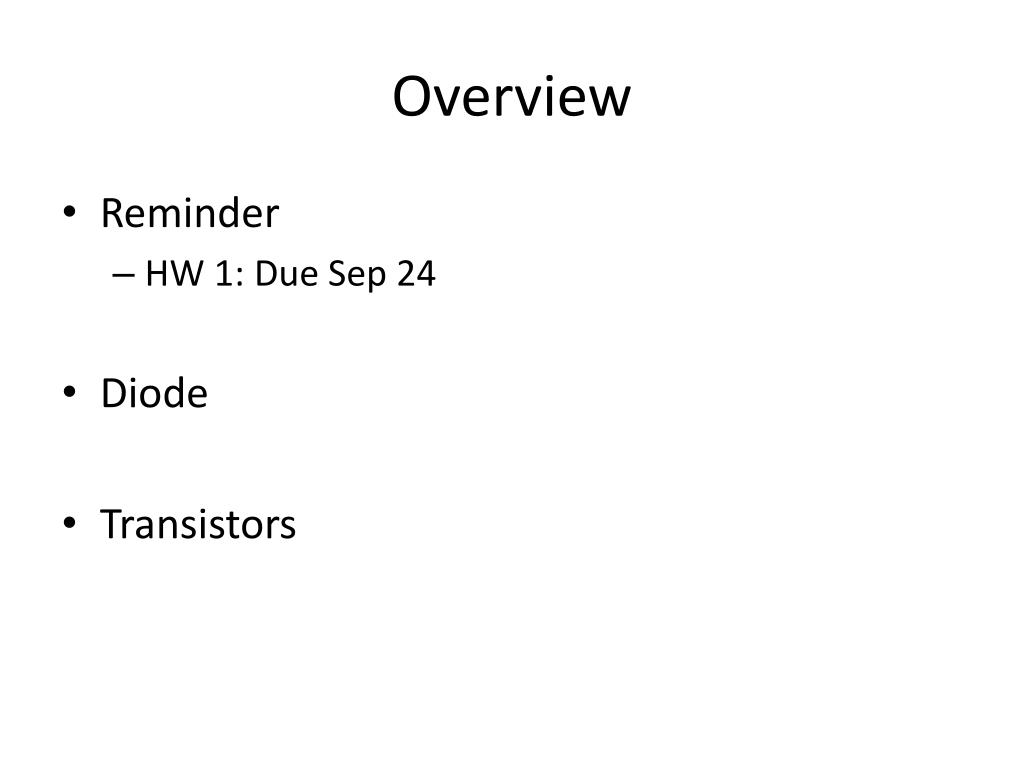

  2. Overview • Reminder • HW 1: Due Sep 24 • Diode • Transistors

  3. Diode G S D

  4. Diode

  5. Diode

  6. Built-in PotentialDepletion Region Width

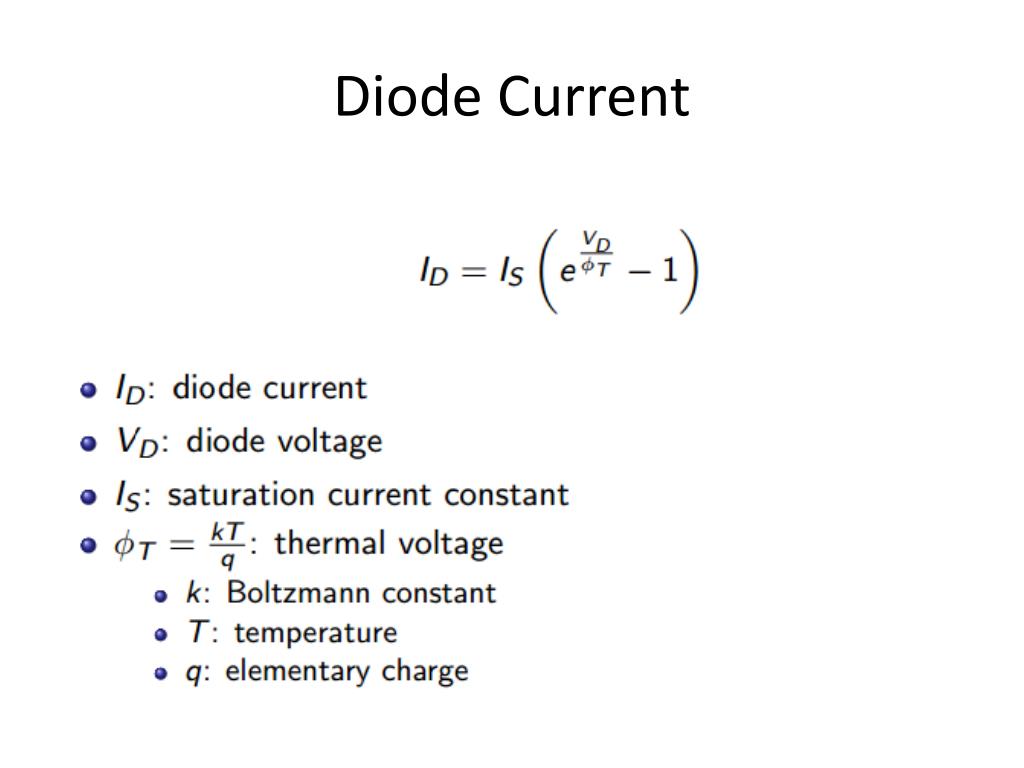

  7. Diode Current

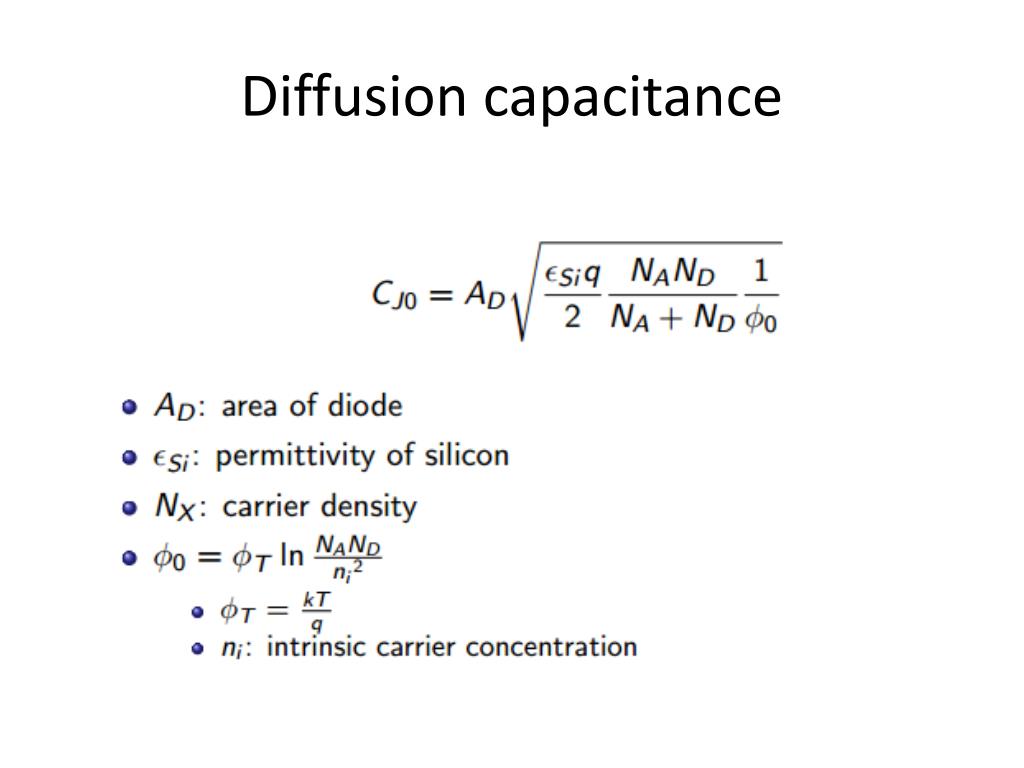

  8. Diffusion capacitance

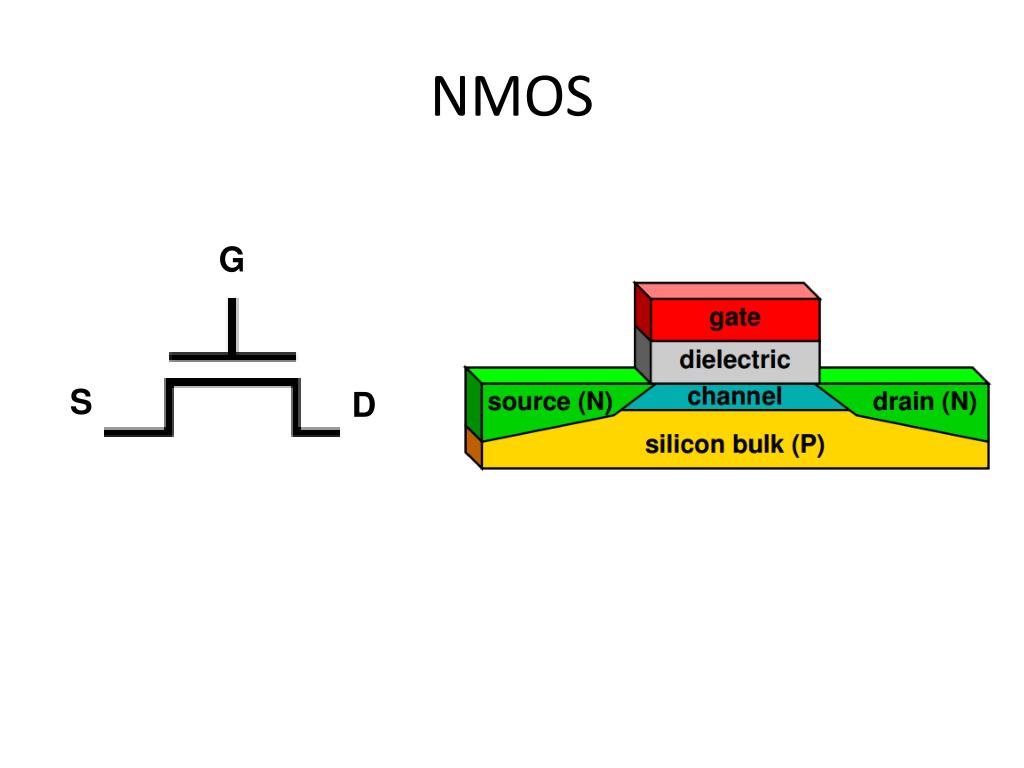

  9. NMOS G S D

  10. Threshold Voltage • 0 < VGS < VT • Repel mobile holesand accumulation of electron beneaththe gate oxide • VGS > VT • Surface is as strongly n-type asthe substrate is p-type

  11. Operation Regions – Linear (lab 2) • VGS > VT • VGS – VT > VDS • Linear contribution of VGT to ID In case of a P-type MOSFET, the inequalities used above should be directed opposite

  12. Operation Regions – Saturation (lab 2) • VGS > VT • VGS – VT ≤ VDS • Quadratic contribution of VGTto ID • channel-length modulation parameter In case of a P-type MOSFET, the inequalities used above should be directed opposite

  13. -4 x 10 2.5 VGS= 2.5 V Early Saturation 2 VGS= 2.0 V 1.5 Linear Dependence (A) D I VGS= 1.5 V 1 VGS= 1.0 V 0.5 0 0 0.5 1 1.5 2 2.5 V (V) DS Operation Regions – Velocity Saturated Short Channel Effects Strong electric field causes carrier mobility degradation : Compared to feature scaling, voltage scaling is lagging behind

  14. A unified model • If VDS is minimum: • Linear region • 2. If VGT is minimum: • Saturation Region • 3. If VDSAT is minimum : • Velocity saturated region
