Presentation Transcript
slide1

Electron probe microanalysis

E P M A

Diffraction:

Electron and X-ray

X-ray diffraction

Electron Backscattered Diffraction

Orientation Contrast Imaging

Updated 12/10/09

why do we care

Up to now, we have only been concerned with determining sample chemistry quantitatively by EPMA and SEM

  • Chemistry is only half the story. How to tell polymorphs, like coesite from quartz, both are SiO2?
  • All minerals and most geologic and synthesized materials have a crystalline structure (except amorphous)
  • Diffraction uses either electron or x-ray sources to characterize the crystal structure
  • Bulk (XRD), micro (XRD, EBSD) or nano (TEM) diffraction techniques are used
  • Electron Back Scatter Diffraction (EBSD) is a relatively new technique for micro-diffraction by SEM

Why do we care?

coherent scattering

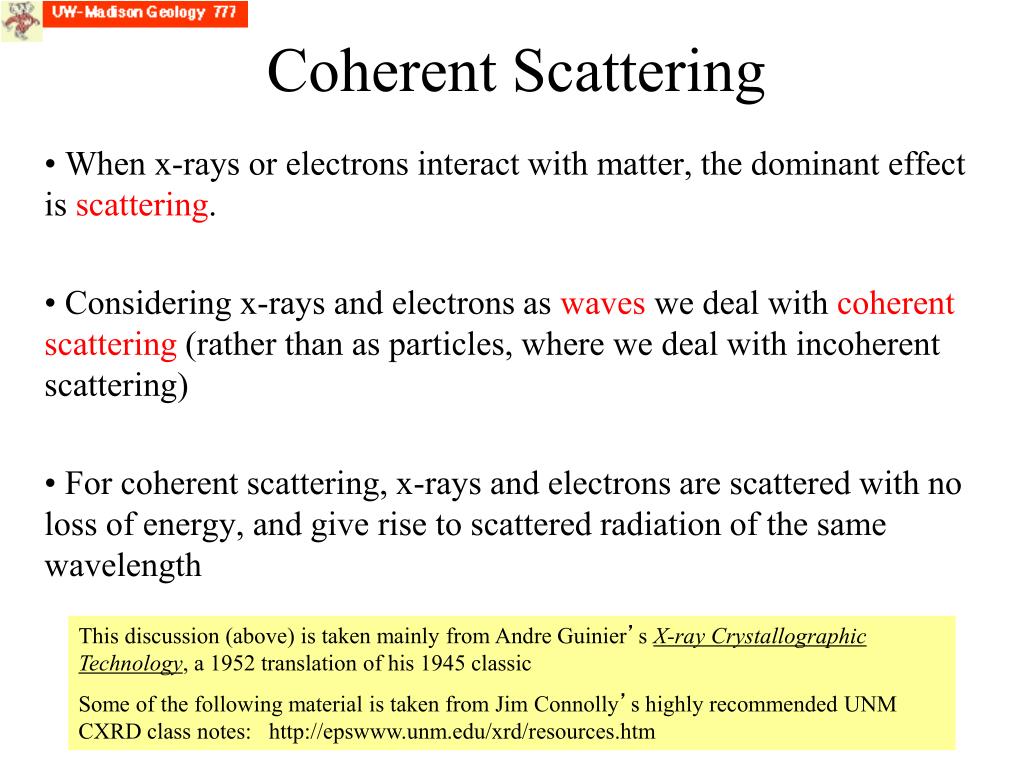

Coherent Scattering

When x-rays or electrons interact with matter, the dominant effect is scattering.

Considering x-rays and electrons as waves we deal with coherent scattering (rather than as particles, where we deal with incoherent scattering)

For coherent scattering, x-rays and electrons are scattered with no loss of energy, and give rise to scattered radiation of the same wavelength

This discussion (above) is taken mainly from Andre Guinier’s X-ray Crystallographic Technology, a 1952 translation of his 1945 classic

Some of the following material is taken from Jim Connolly’s highly recommended UNM CXRD class notes: http://epswww.unm.edu/xrd/resources.htm

constructive interference

Constructive Interference

The distance between atoms (dhkl) are on the same order of size as the wavelength of an x-ray Cu Ka =1.54Å)

Interference phenomena is concentrated in directions related to the crystal lattice

The intensity of the diffracted x-rays gives rise to peaks for each set of wave vectors which make up diffraction patterns

The positions of the atoms in the material (the crystal lattice of the solid) and the wavelength of the x-rays determines the positions and intensities of the diffracted peaks.

Another kind of scattering, incoherent (Compton), is easiest understood in terms of the particle nature of photons: the photon deviates from path and electron takes part of its energy. The scattered photon has lost energy (so has a longer wavelength), and there is no relationship between the phases of the two waves. There is no interference and of little significance here (though it is for XRF) and we will not consider it further.

diffraction methods

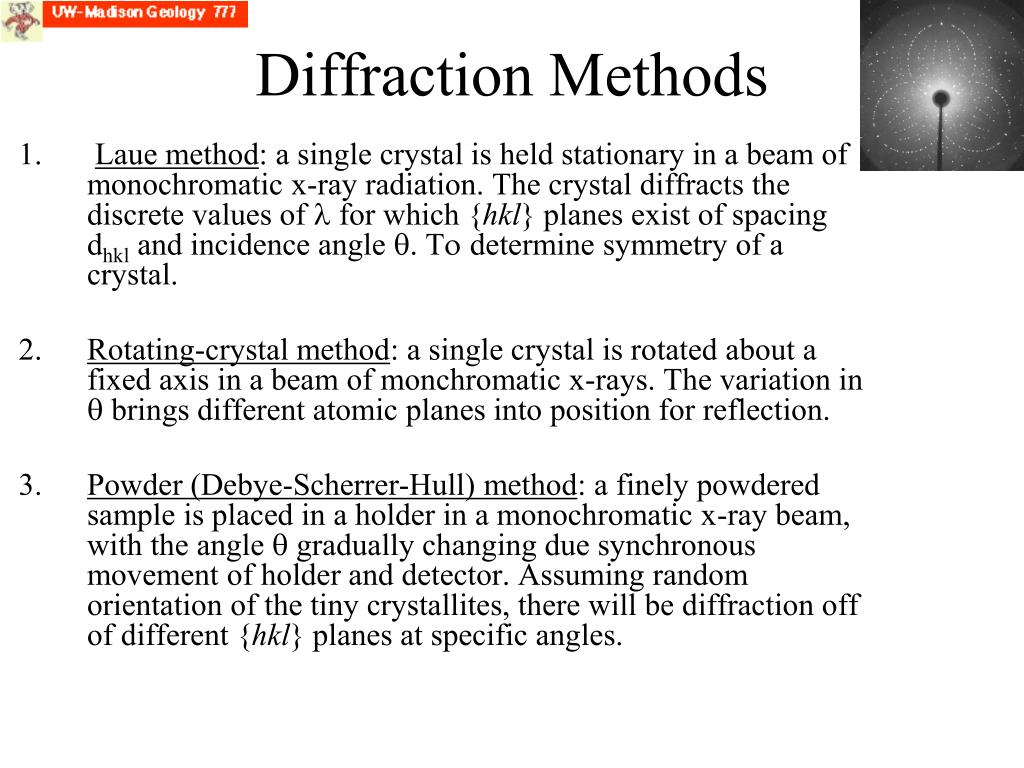

Diffraction Methods

Laue method: a single crystal is held stationary in a beam of monochromatic x-ray radiation. The crystal diffracts the discrete values of l for which {hkl} planes exist of spacing dhkl and incidence angle q. To determine symmetry of a crystal.

Rotating-crystal method: a single crystal is rotated about a fixed axis in a beam of monchromatic x-rays. The variation in q brings different atomic planes into position for reflection.

Powder (Debye-Scherrer-Hull) method: a finely powdered sample is placed in a holder in a monochromatic x-ray beam, with the angle q gradually changing due synchronous movement of holder and detector. Assuming random orientation of the tiny crystallites, there will be diffraction off of different {hkl} planes at specific angles.

diffraction or coherent scattering

Intensity

Diffraction, or coherent scattering

Gas

Intensity

Diffraction angle 2q

Liquid

Amorphous

Diffraction angle 2q

Intensity

Crystal

Diffraction angle 2q

bragg s law

q

q

Scattered x-ray

l

Incident x-ray

l

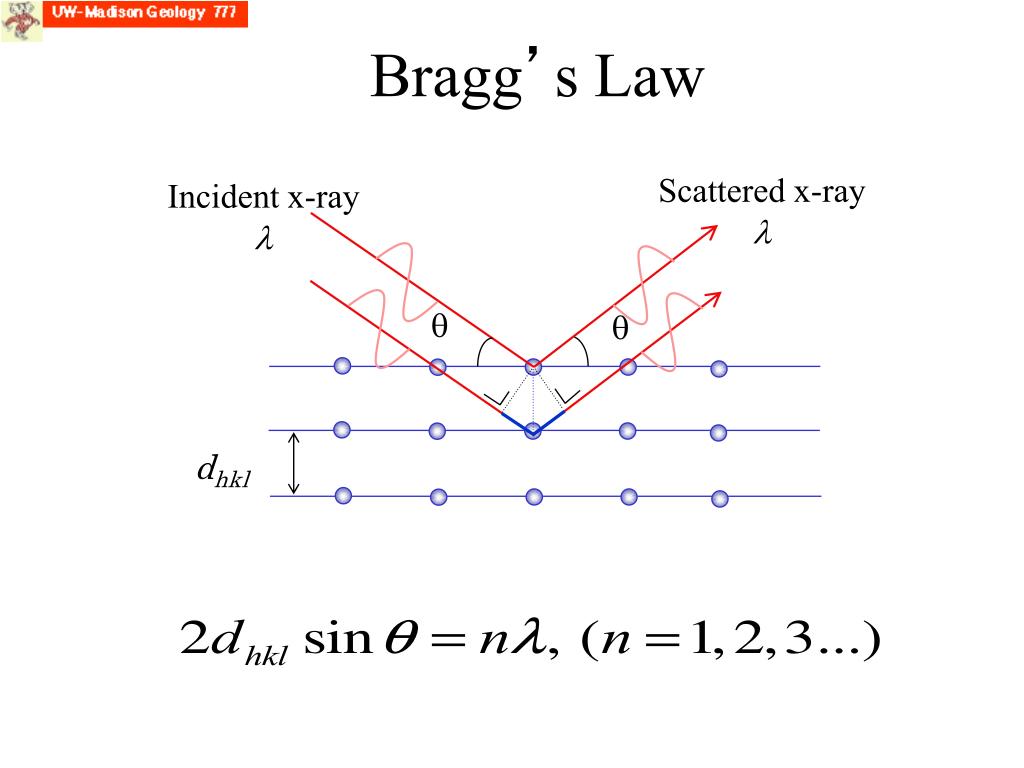

Bragg’s Law

dhkl

ewald sphere of reflection diffraction
Ewald Sphere of Reflection / Diffraction

Crystal

Real space

Reciprocal lattice

2dhkl sinθ = λ

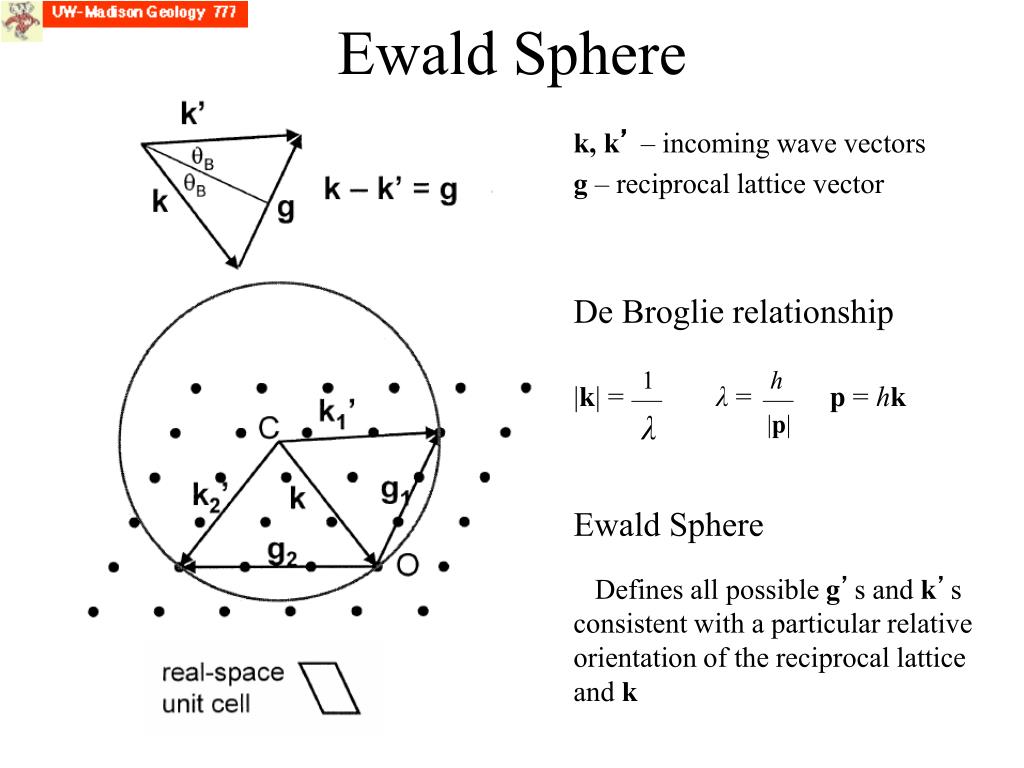

ewald sphere

k, k’ – incoming wave vectors

g – reciprocal lattice vector

De Broglie relationship

|k| = λ = p = hk

Ewald Sphere

Defines all possible g’s and k’s consistent with a particular relative orientation of the reciprocal lattice and k

Ewald Sphere

1

h

λ

|p|

what does a powder really mean

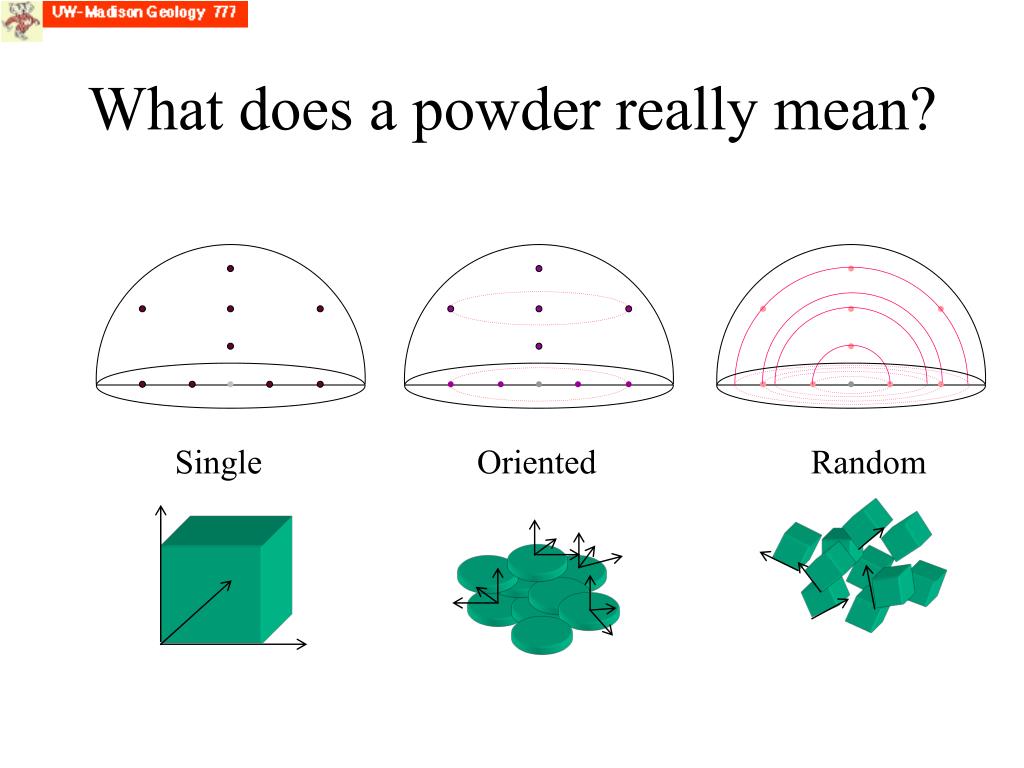

What does a powder really mean?

Single

Oriented

Random

powder x ray diffractometer
Powder X-ray Diffractometer

LN

Dewar

X-ray tube

Specimen

Detector

X-ray Diffractometer

Controller and

Data Collection

Detector

(Moving)

θ

(Fixed)

θ

HV

X-ray tube

(Moving)

Crystal

xrd applications

Crystallographic structural analysis and unit-cell calculations

  • Quantitative determination of amounts of different phases (in multi-phase mixture) by peak-ratio calculations
  • Quantitative determination of phases by whole-pattern (Rietveld) refinement
  • Determination of crystallite size from peak broadening
  • Determination of crystallite shape from peak symmetry
  • Study of thermal expansion by using in-situ heating stage.

XRD Applications

slide17

Ewald Sphere

18x larger

X-ray diffraction

EBSD

CuKα x-ray λ=1.5418 Å e- (20 kV) λ=0.0859 Å

|k| = = 0.65 Å-1|k| = = 11.64 Å-1

1

1

λ

λ

slide18

EBSD

The sample is tilted steeply (55-70°) which enhances the number of HV electrons able to undergo diffraction and escape the surface

The HV electrons are scattered by the electrons of the atoms in the upper ~40 nm of the sample, scattering from electrons in {hkl} planes

Kossel cones are the set of wave vectors for a given {hkl} and intersect with a phosphor screen forming Kikuchi patterns

  • The Kikuchi pattern provides information about the crystal structure:
  • Point symmetry of the crystal lattice
  • Width and intensity of bands are related to dhkl and the unit volume
  • Angles between bands are related to the angles between {hkl} planes
slide19

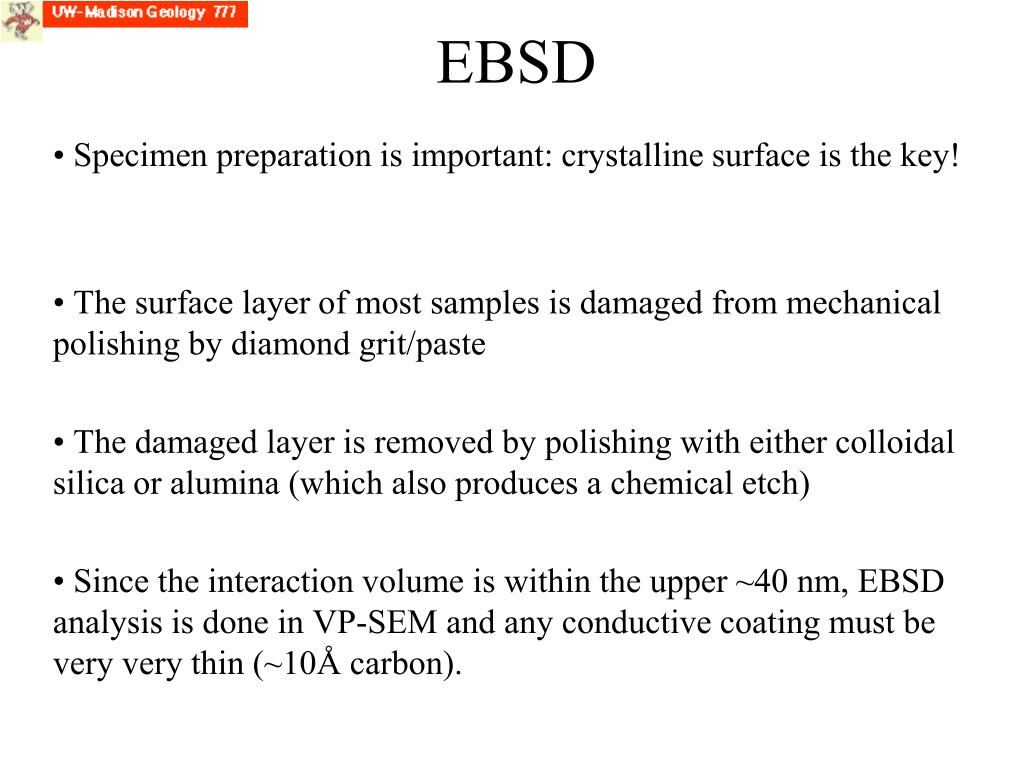

EBSD

Specimen preparation is important: crystalline surface is the key!

The surface layer of most samples is damaged from mechanical polishing by diamond grit/paste

The damaged layer is removed by polishing with either colloidal silica or alumina (which also produces a chemical etch)

Since the interaction volume is within the upper ~40 nm, EBSD analysis is done in VP-SEM and any conductive coating must be very very thin (~10Å carbon).

slide20

Shoji Nishikawa and Seishi KikuchiThe Diffraction of Cathode Rays by Calcite.Proc. Imperial Academy (of Japan) 4 (1928) 475-477

L-R: Yoshio Nishina, Seishi Kikuchi, Niels Bohr, laboratory in Japan.1937. Nishina Memorial Foundation, courtesy AIP Emilio Segre Visual Archives

slide21

Kikuchi bands:

a 2-D pattern with 3-D information

prior et al 1999 american mineralogist 84 1741 1759

EBSD

Prior et al. (1999) American Mineralogist: 84, 1741-1759.

slide23

EBSD

Prior et al. (1999) American Mineralogist: 84, 1741-1759.

slide25

Orientation Contrast Imaging

  • The upper two diodes detect backscattered electrons (BSE imaging)
  • Intensity varies with mean atomic number (Z) and is proportional to Z1.7
  • The lower two diodes detect forescattered electrons (OC imaging)
  • Intensity varies due to differences in crystal orientation >> Z

Exact same sample area

www.oxford-instruments.com/products/microanalysis/ebsd

slide26

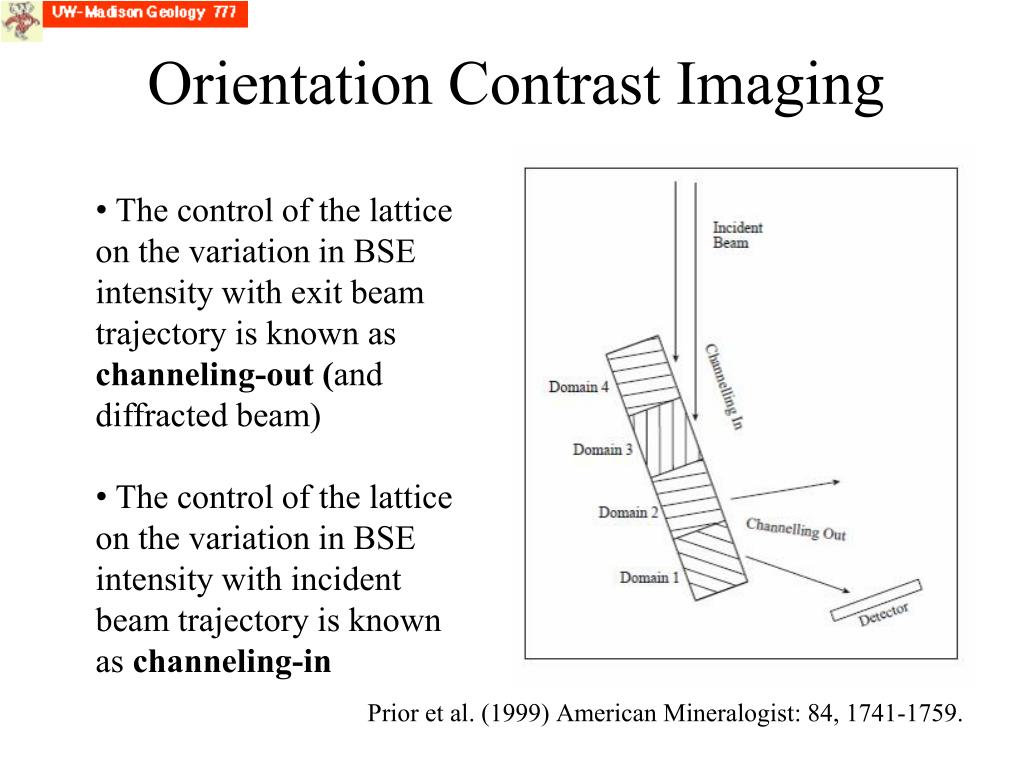

Orientation Contrast Imaging

  • The control of the lattice on the variation in BSE intensity with exit beam trajectory is known as channeling-out (and diffracted beam)
  • The control of the lattice on the variation in BSE intensity with incident beam trajectory is known as channeling-in

Prior et al. (1999) American Mineralogist: 84, 1741-1759.

some references

Some References

Prior, D.J. et al. (1999) The application of electron backscatter diffraction and orientation contrast imaging in the SEM to textural problems in rocks. American Mineralogist: 84, 1741-1759.

Introduction to X-Ray Powder Diffraction, by Jim Connolly (notes for U NM EPS400-002, http://epswww.unm.edu/xrd/resources.htm)

X-Ray Crystallographic Technology by Andre Guinier (English Translation, 1952)

Modern Powder Diffraction by D. L. Bish and J. E. Post (eds), Mineralogical Society of America Reviews in Mineralogy, Vol 20, 1989

Electron Backscatter Diffraction in Materials Science, Edited by Adam J. Schwartz, Mukul Kumar and Brent L. Adams, Kluwer/Plenum, 2000, ISBN 0-306-46487-X (25 articles)

An Atlas of Electron Backscatter Diffraction Patterns by D. J. Dingley, K. Baba-Kishi, and V. Randle, 1994, Institute of Physics Publishing.
