    1. KEY RESULT AREAS IN THERMAL POWER PLANT • A) HT/LT AUXILIARIES • FD fans • ID fans • Boiler feed Water pumps • Condensate extraction pumps • Circulation Cooling Water Pumping system • Cooling Towers • CT Fans • PA fans • Coal Mills

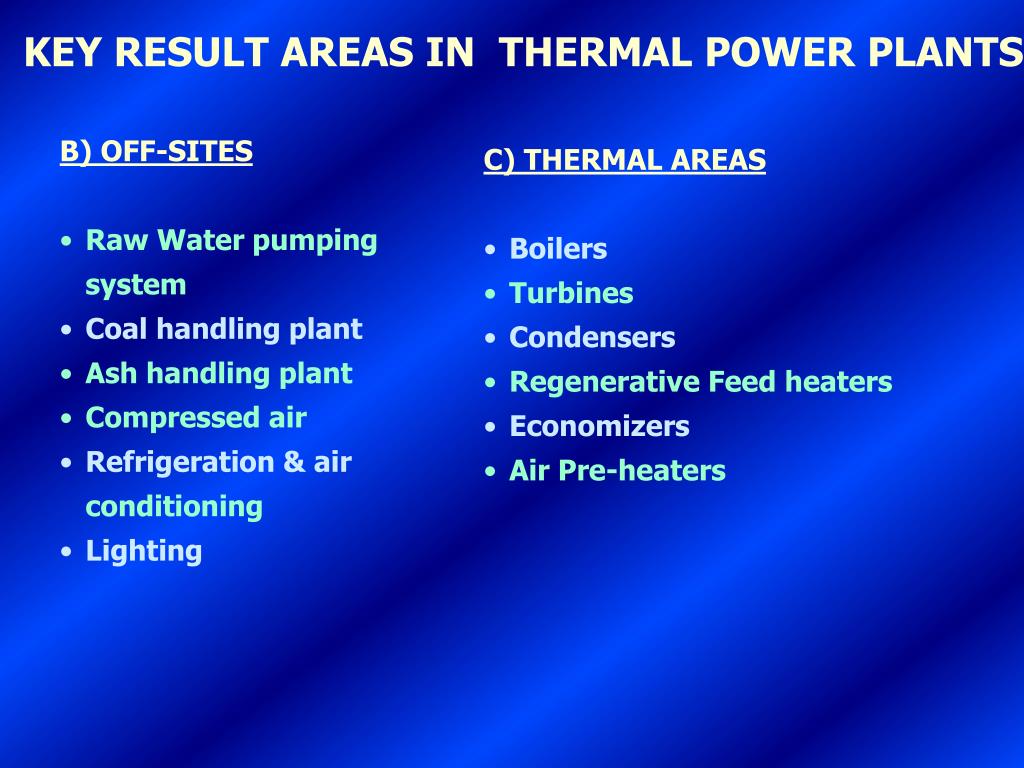

    2. KEY RESULT AREAS IN THERMAL POWER PLANTS • B) OFF-SITES • Raw Water pumping system • Coal handling plant • Ash handling plant • Compressed air • Refrigeration & air conditioning • Lighting • C) THERMAL AREAS • Boilers • Turbines • Condensers • Regenerative Feed heaters • Economizers • Air Pre-heaters

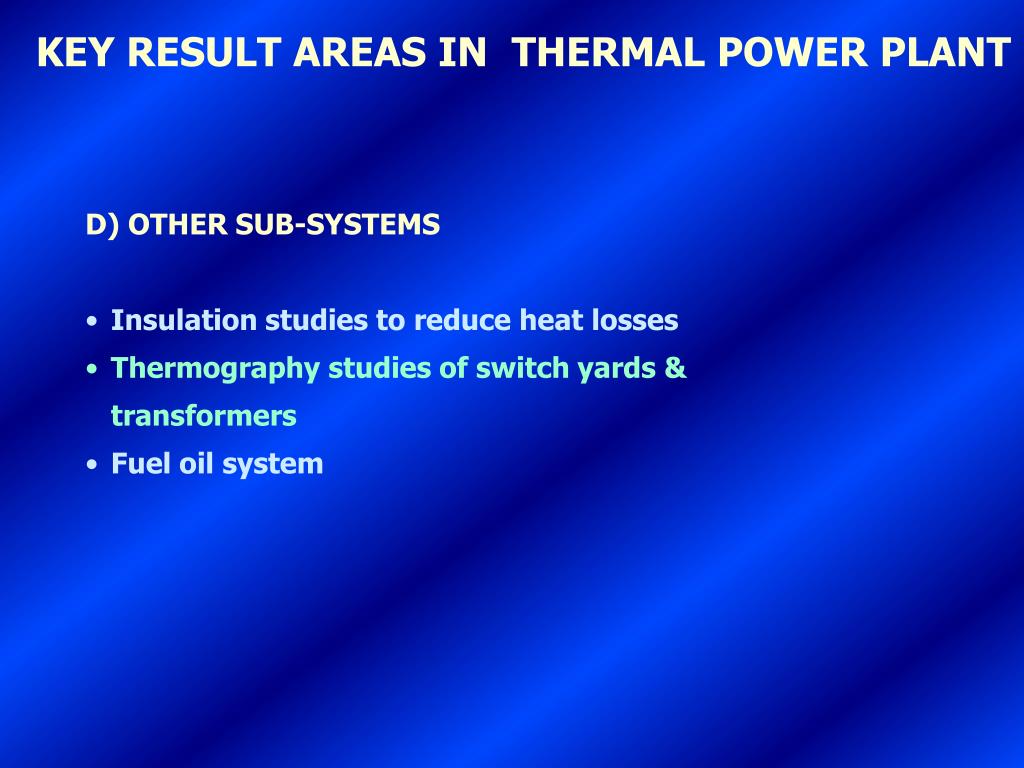

    3. KEY RESULT AREAS IN THERMAL POWER PLANT • D) OTHER SUB-SYSTEMS • Insulation studies to reduce heat losses • Thermography studies of switch yards & transformers • Fuel oil system

    4. TYPICAL ENERGY AUDIT SPECIFICS BOILER FEED PUMPS • 20 % OF TPS AUXILIARY CONSUMPTION IN BFP’s ALONE • ESTABLISH PERCENTAGE LOADING ON HEAD, FLOW, AND EFFICIENCY • IMPROVEMENT AREAS INCLUDE: • FRS PRESSURE DROP OPTIMISATION • TIMELY CATRIDGE REPLACEMENT • TDBFP IN PLACE OF MD BFP • O & M RELATED MEASURES AND IMPROVEMENTS

    5. TYPICAL ENERGY AUDIT SPECIFICS DRAFT SYSTEM

    6. TYPICAL ENERGY AUDIT SPECIFICS COAL HANDLING PLANT • SPECIFIC ENERGY CONSUMPTION • COMPARISON BETWEEN DIRECT BUNKERING VERSUS STACKER RECLAIMER ROUTE • AVOIDING SHORT TIME OPERATION OF THE SYSTEMS • MINIMISING IDLE/LOW LOAD CONVEYOR RUNS • O & M MEASURES ON CONVEYORS, CRUSHERS • BETTER SCREENING OF COAL BY GRIZZLEYS, BYPASSING, ETC. • DELSTAR STARTERS IN DE FANS

    7. TYPICAL ENERGY AUDIT SPECIFICS ASH HANDLING PLANT • OPTIMISING ASH TO WATER RATIOS CLOSE TO DESIGN (1 : 7 CAN GO UPTO 1 : 20) • TIMELY REPLACEMENT OF SLURRY PUMP INTERNALS AND SLURRY PUMP FOR HIGH ENERGY • OPTIMISING SYSTEM RUNNING HOURS • WATER SAVINGS BY BETTER NOZZLES, NOZZLE SIZE REDUCTION

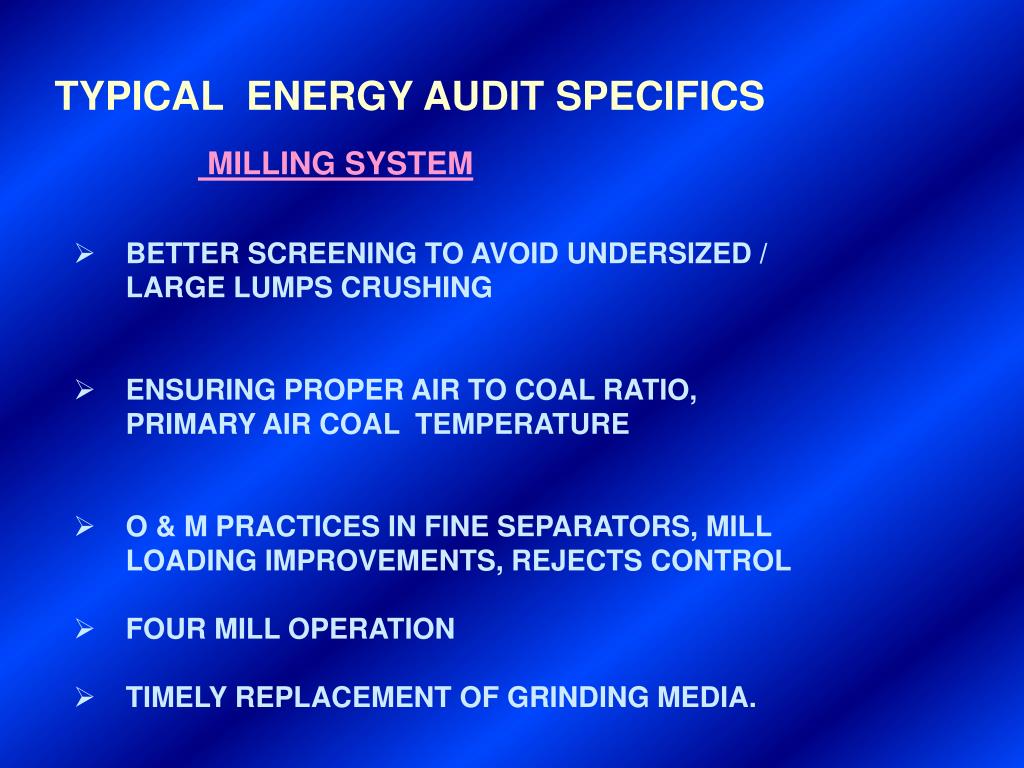

    8. TYPICAL ENERGY AUDIT SPECIFICS MILLING SYSTEM • BETTER SCREENING TO AVOID UNDERSIZED / LARGE LUMPS CRUSHING • ENSURING PROPER AIR TO COAL RATIO, PRIMARY AIR COAL TEMPERATURE • O & M PRACTICES IN FINE SEPARATORS, MILL LOADING IMPROVEMENTS, REJECTS CONTROL • FOUR MILL OPERATION • TIMELY REPLACEMENT OF GRINDING MEDIA.

    9. TYPICAL ENERGY AUDIT SPECIFICS CW SYSTEM • ON-LINE CLEANING FOR MINIMISING FOULING FACTOR, HEAT TRANSFER EFFECTIVENESS • ENSURING ADEQUACY OF CW FLOW FOR GIVEN THERMAL LOAD • BETTER CT OPERATIONS FOR MINIMISING INLET CWT • 1OC CWT = 5 k Cal HEAT RATE BENEFITS

    10. TYPICAL ENERGY AUDIT SPECIFICS CW SYSTEM – COOLING TOWERS • ESTABLISH RANGE, APPROACH, TTD, THERMAL LOAD W.R.T. DESIGN • ESTABLISH ACTUAL L / G RATIOS VIS-À-VIS DESIGN • OPTIONS TO IMPROVE INCLUDE: • COC IMPROVEMENTS AS TECHNOLOGY MEASURE • ADJUSTING WATER LOADING IN CT CELLS • BLADE ANGLE ADJUSTMENT IN CT FANS • FRP BLADES IN CT FANS

    11. TYPICAL ENERGY AUDIT SPECIFICS WATER BALANCE • ADEQUACY OF CW FLOW TO CONDENSERS • OPTIONS FOR ASH-WATER RATIO IMPROVEMENTS • LOSSES AVOIDABLE IN RAW WATER, CLARIFIED WATER, DM WATER STREAMS

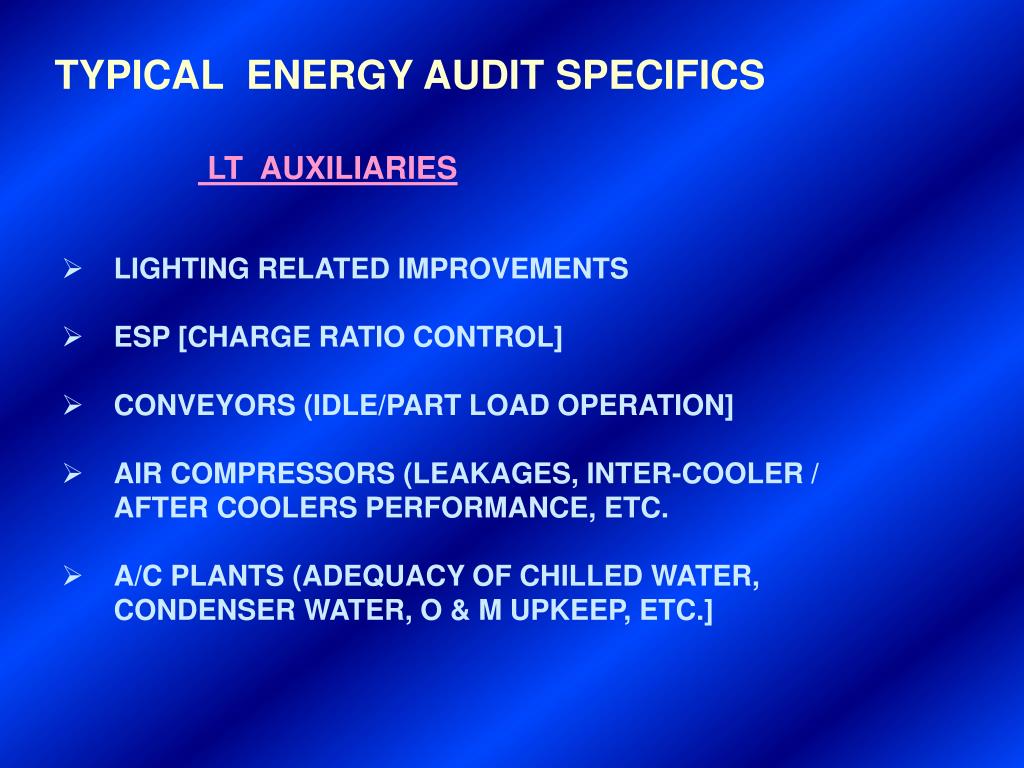

    12. TYPICAL ENERGY AUDIT SPECIFICS LT AUXILIARIES • LIGHTING RELATED IMPROVEMENTS • ESP [CHARGE RATIO CONTROL] • CONVEYORS (IDLE/PART LOAD OPERATION] • AIR COMPRESSORS (LEAKAGES, INTER-COOLER / AFTER COOLERS PERFORMANCE, ETC. • A/C PLANTS (ADEQUACY OF CHILLED WATER, CONDENSER WATER, O & M UPKEEP, ETC.]

    13. TYPICAL ENERGY AUDIT SPECIFICS INFRA-RED THERMOGRAPHY • SURVEY SWITCHYARD EQUIPMENTS, OVERHEAD TRANSMISSION LINES, • THERMAL INSULATION FOR HOT SPOTS, • O & M IMPROVEMENT OPTIONS

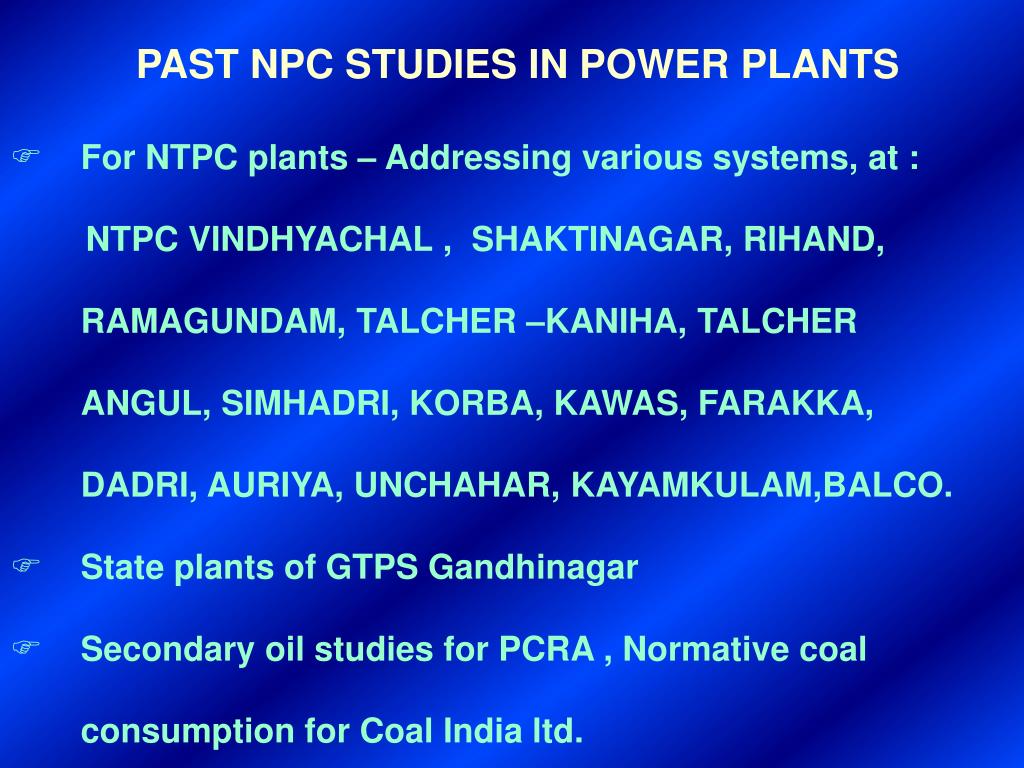

    14. PAST NPC STUDIES IN POWER PLANTS • For NTPC plants – Addressing various systems, at : NTPC VINDHYACHAL , SHAKTINAGAR, RIHAND, RAMAGUNDAM, TALCHER –KANIHA, TALCHER ANGUL, SIMHADRI, KORBA, KAWAS, FARAKKA, DADRI, AURIYA, UNCHAHAR, KAYAMKULAM,BALCO. • State plants of GTPS Gandhinagar • Secondary oil studies for PCRA , Normative coal consumption for Coal India ltd.

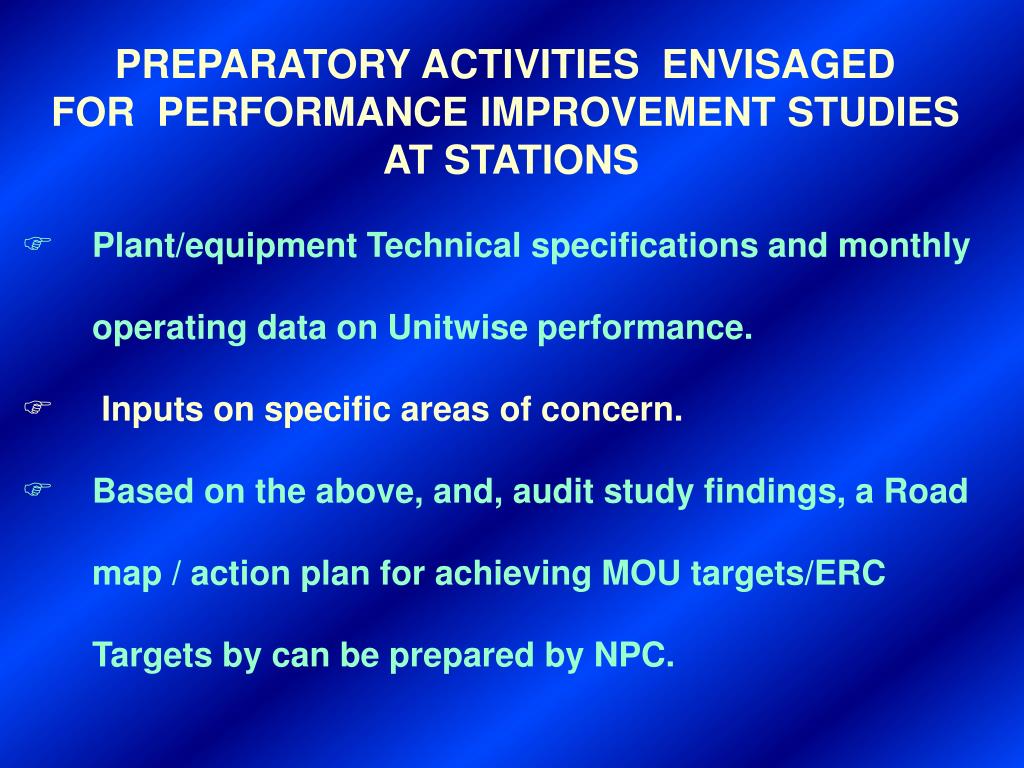

    15. PREPARATORY ACTIVITIES ENVISAGED FOR PERFORMANCE IMPROVEMENT STUDIES AT STATIONS • Plant/equipment Technical specifications and monthly operating data on Unitwise performance. • Inputs on specific areas of concern. • Based on the above, and, audit study findings, a Road map / action plan for achieving MOU targets/ERC Targets by can be prepared by NPC.

    16. Any Questions ?
