Find Arc Measures

Find Arc Measures. Lesson 6.2 Page 191. Definitions. Central Angle- and angle whose vertex is the center of the circle. Minor Arc- an arc measure less than 180˚. Major Arc- an arc measure more than 180˚. Measuring Arcs. The measure of a minor arc is equal to its central angle.

jamil
Download Presentation

Find Arc Measures

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Find Arc Measures Lesson 6.2 Page 191

  2. Definitions • Central Angle- and angle whose vertex is the center of the circle. • Minor Arc- an arc measure less than 180˚. • Major Arc- an arc measure more than 180˚.

  3. Measuring Arcs • The measure of a minor arc is equal to its central angle. • The measure of a major arc is equal to 360˚ - minor arc associated with it.

  4. Find the measure of each arc of P, where RTis a diameter. c. a. RTS RST RS b. a. RSis a minor arc, so mRS=mRPS=110o. b. – RTSis a major arc, so mRTS = 360o 110o = 250o. c. RT is a diameter, so RSTis a semicircle, and mRST=180o. EXAMPLE 1 Find measures of arcs SOLUTION

  5. Survey a. = + A recent survey asked teenagers if they would rather meet a famous musician, athlete, actor, inventor, or other person. The results are shown in the circle graph. Find the indicated arc measures. a. mAC mAB mBC mAC EXAMPLE 2 Find measures of arcs SOLUTION = 29o + 108o = 137o

  6. Survey b. A recent survey asked teenagers if they would rather meet a famous musician, athlete, actor, inventor, or other person. The results are shown in the circle graph. Find the indicated arc measures. mACD = mAC + mCD b. mACD EXAMPLE 2 Find measures of arcs SOLUTION = 137o + 83o = 220o

  7. Survey – mADC = 360o A recent survey asked teenagers if they would rather meet a famous musician, athlete, actor, inventor, or other person. The results are shown in the circle graph. Find the indicated arc measures. c. mAC c. mADC EXAMPLE 2 Find measures of arcs SOLUTION = 360o – 137o = 223o

  8. Survey A recent survey asked teenagers if they would rather meet a famous musician, athlete, actor, inventor, or other person. The results are shown in the circle graph. Find the indicated arc measures. mEBD = 360o – mED d. d. mEBD EXAMPLE 2 Find measures of arcs SOLUTION = 360o – 61o = 299o

  9. for Examples 1 and 2 GUIDED PRACTICE Identify the given arc as a major arc, minor arc, or semicircle, and find the measure of the arc.

  10. 1 . TQ TQis a minor arc, so m TQ=120o. 2 . QRT QRTis a major arc, so m QRT=240o. for Examples 1 and 2 GUIDED PRACTICE SOLUTION SOLUTION

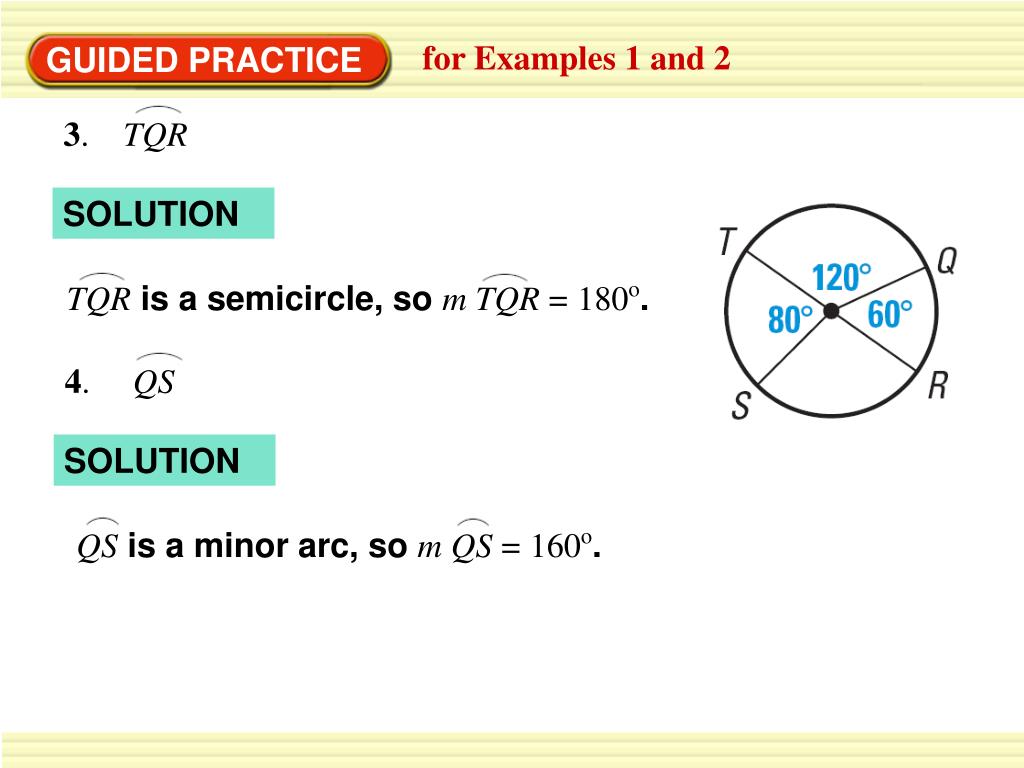

  11. 3 TQRis a semicircle, so m TQR =180o. 4 . TQR . QS QSis a minor arc, so m QS =160o. for Examples 1 and 2 GUIDED PRACTICE SOLUTION SOLUTION

  12. 5 TSis a minor arc, so m TS =80o. 6 . TS . RST RSTis a semicircle, so m RST =180o. for Examples 1 and 2 GUIDED PRACTICE SOLUTION SOLUTION

  13. a. b. c. a. CDEF because they are in the same circle and mCD = mEF b. RSand TUhave the same measure, but are not congruent because they are arcs of circles that are not congruent. EXAMPLE 3 Identify congruent arcs Tell whether the red arcs are congruent. Explain why or why not. SOLUTION

  14. VXYZ because they are in congruent circles and mVX=mYZ . c. c. EXAMPLE 3 Identify congruent arcs Tell whether the red arcs are congruent. Explain why or why not. SOLUTION

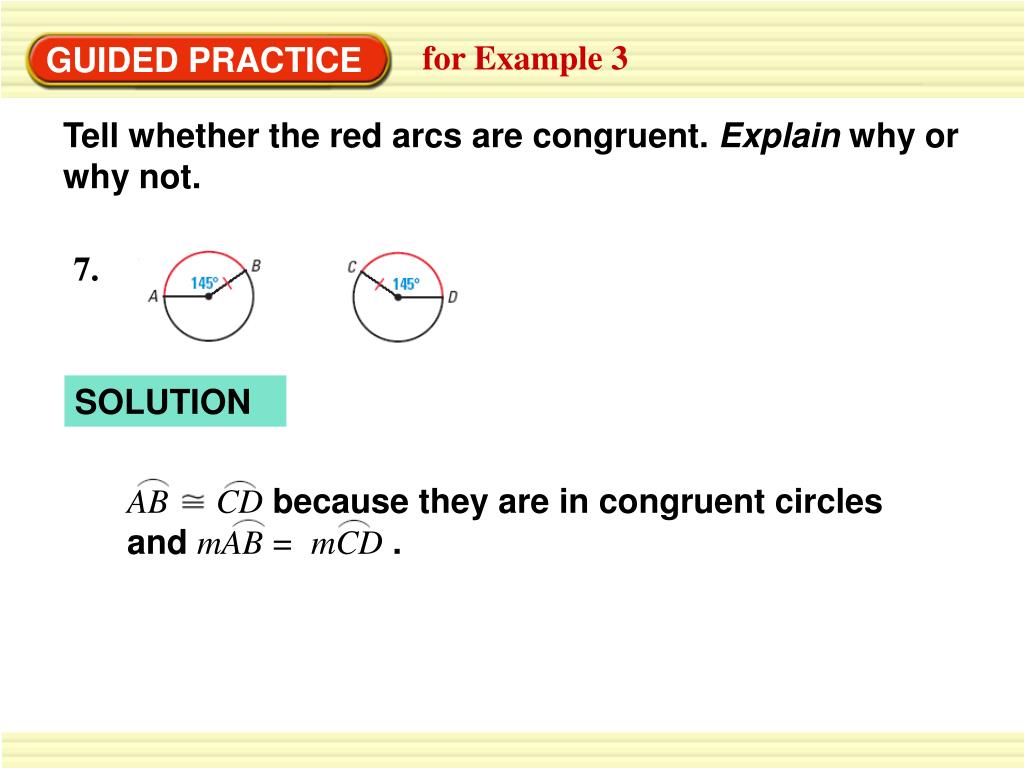

  15. ABCD because they are in congruent circles and mAB=mCD . 7. for Example 3 GUIDED PRACTICE Tell whether the red arcs are congruent. Explain why or why not. SOLUTION

  16. 8. MNand PQhave the same measure, but are not congruent because they are arcs of circles that are not congruent. for Example 3 GUIDED PRACTICE Tell whether the red arcs are congruent. Explain why or why not. SOLUTION

  17. Homework 6.2 • Exercise set B page 195 • 1-41 odd
