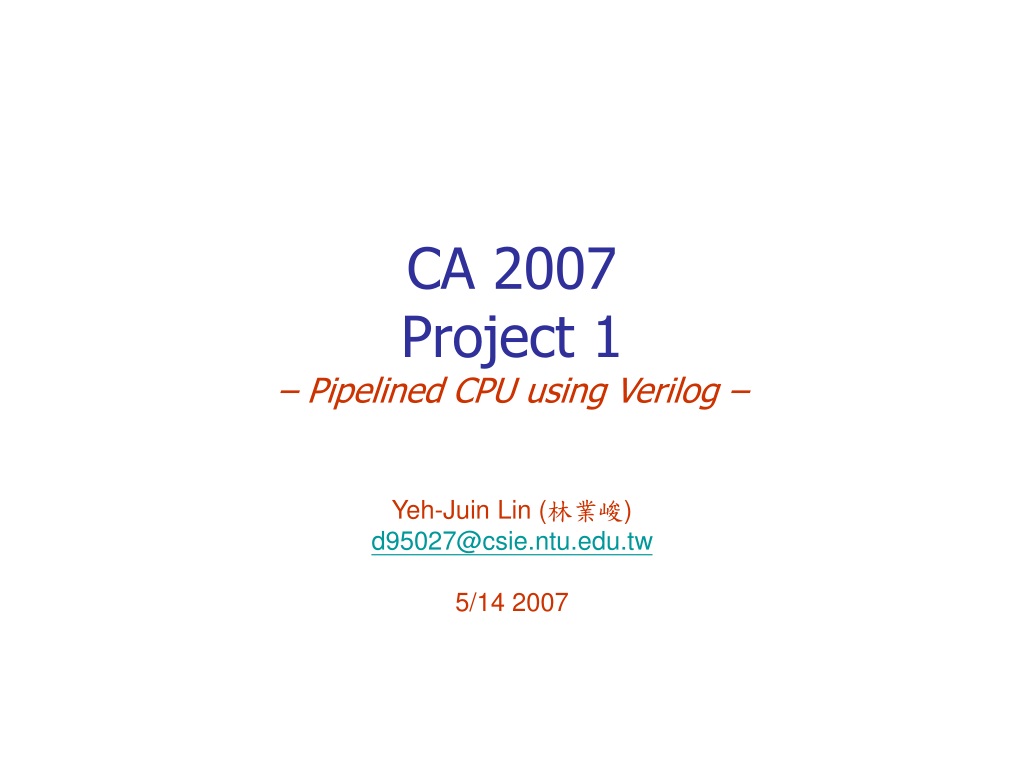

CA 2007Project 1– Pipelined CPU using Verilog – Yeh-Juin Lin (林業峻) d95027@csie.ntu.edu.tw 5/14 2007
Project 1 – Pipelined CPU using Verilog – • Write a Verilog behavior Pipelined Cycle CPU program • Required Instruction Set： • and • or • add • sub • mul • lw • sw • beq • j • addi
Requirement • Register File：32 Registers • Data Memory：32 Bytes • Data Path & Module Name • (In page 6) • MUL OpCode： • Hazard handling • Data hazard: • implement the Forwarding Unit to reduce or avoid the stall cycles. • The data dependency instruction follow “lw” must stall 1 cycle. • Control hazard: • Branch result must be find in ID stage. • The instruction follow ‘beq’ or ‘j’ instruction must stall 1 cycle.
Requirement (Cont’d) • Source code (put all .v file into “code” directory) • TestBench (Design by yourself~!) • Initialize storage units • Load instruction.txt into instruction memory • Create clock signal • Output cycle count in each cycle • Output Register File & Data Memory in each cycle • Print result to output.txt • Report (project1_teamXX.doc) • Members & Team Work • How do you implement this Pipelined CPU. • How do you implement the TestBench. • Problems and solution of this project. • Put all files and directory into project1_teamXX.rar
Due Date • Deadline: • Deadline: 6/4 (3 weeks) • Before the Project • Team work, 3 persons at most • Please reply the title about ” Project分組” in the forum. • Must include student ID and student name.
