Blown Film Unit 300

Blown Film Unit 300. A compact unit for blowing, cooling, take off and wind up of extruded hoses. It is suitable for production of small films used by the food industry and in the packaging field where the application of big production machines is often not profitable. application.

jamar
Download Presentation

Blown Film Unit 300

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Blown Film Unit 300 A compact unit for blowing, cooling, take off and wind up of extruded hoses. It is suitable for production of small films used by the food industry and in the packaging field where the application of big production machines is often not profitable.

  2. application • Production control: • Monitoring the dispersion performance of compounders or extruders used in batch production • Inspection of incoming goods for gels and color distribution • Inspection in polymer processing • Production: • Production of small films used by food industry and in the packaging field • Development: • For control of the maximum polymer extensibility • To monitor the suitability of polymers or polymer blends in the laboratory

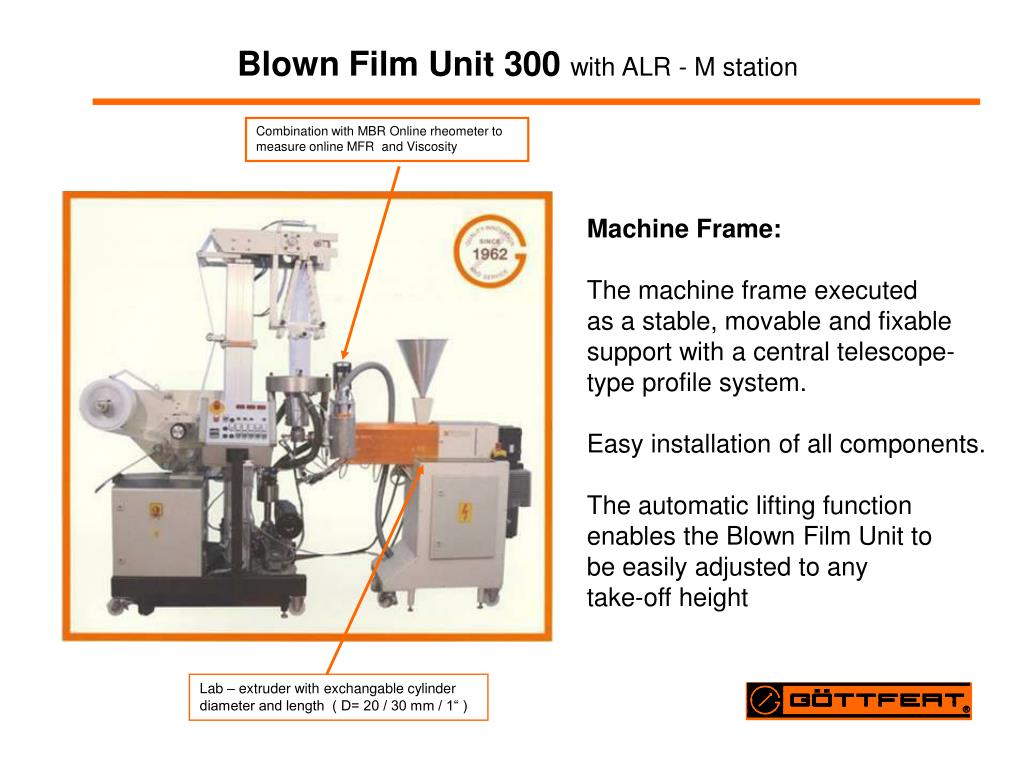

  3. Blown Film Unit 300 with ALR - M station Combination with MBR Online rheometer to measure online MFR and Viscosity Machine Frame: The machine frame executed as a stable, movable and fixable support with a central telescope- type profile system. Easy installation of all components. The automatic lifting function enables the Blown Film Unit to be easily adjusted to any take-off height Lab – extruder with exchangable cylinder diameter and length ( D= 20 / 30 mm / 1“ )

  4. Blow Film Unit 300 – Göttfert Laboratory extruder 32bit Software running under Windows 2000 and XP • Trends and Display • Free definition of single display trends • windows for measured and evaluated parameters • Shear Viscosity • Extensional Viscosity • Correlation for IV • Data base structure with possibility of data export to Microsoft Excel • with PC- Control – Software ROSwin • Calculation • Viscosity / Stress / Extensional Viscosity Curves • Rheological Model Fits • First Normal Stress Difference • with touch srceen operating panel

  5. Lab-Extrusion single screw Drive: Laboratory extruder 2.2 kW max.screw diameter 30mm Extrusiometer 7.5 kW max.screw diameter 30mm Extrusiometer 25-30 kW screw diameter 45mm Screw diameter: Screw length [L/D] 20 mm 20/25 1” 20 30 mm 20/25 45 mm 20/25/30 Dies: rheometer die, round hole die Downstream equipment: flat film, film blow, tubing device, filter measuring head, cable sheeting head, other equipment available

  6. Blow Film Unit 300 - schematic Deflection rolls Tubelesswinding ROSWIN software Tubeless winding Decouplingunit Decoupling unit Force transducer Force transducer

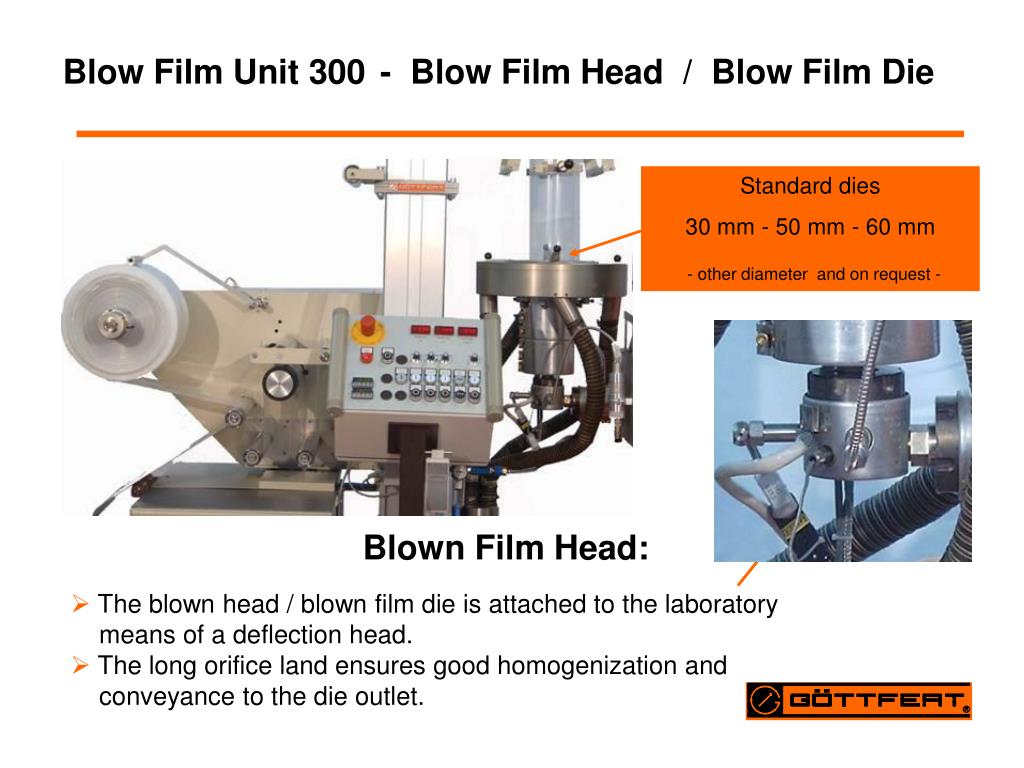

  7. Blow Film Unit 300- Blow Film Head / Blow Film Die Standard dies 30 mm - 50 mm - 60 mm - other diameter and on request - • Blown Film Head: • The blown head / blown film die is attached to the laboratory means of a deflection head. • The long orifice land ensures good homogenization and conveyance to the die outlet.

  8. Applications for Polyethylen • 1 x mandrel D = 50 mm • 1 x orifice D = 51,0 mm = • > gap width of 0.50 mm -> LDPE • 1 x orifice D = 51.5 mm = • > gap width of 0.75 mm -> HDPE • 1 x orifice D = 52,0 mm = • > gap width of 1.0 mm -> HDPE • 1 x orifice D = 52.4 mm = • > gap width of 1.2 mm -> LLDPE • 1 x orifice D = 53,0 mm = • > gap width of 1.5 mm -> LLDPE

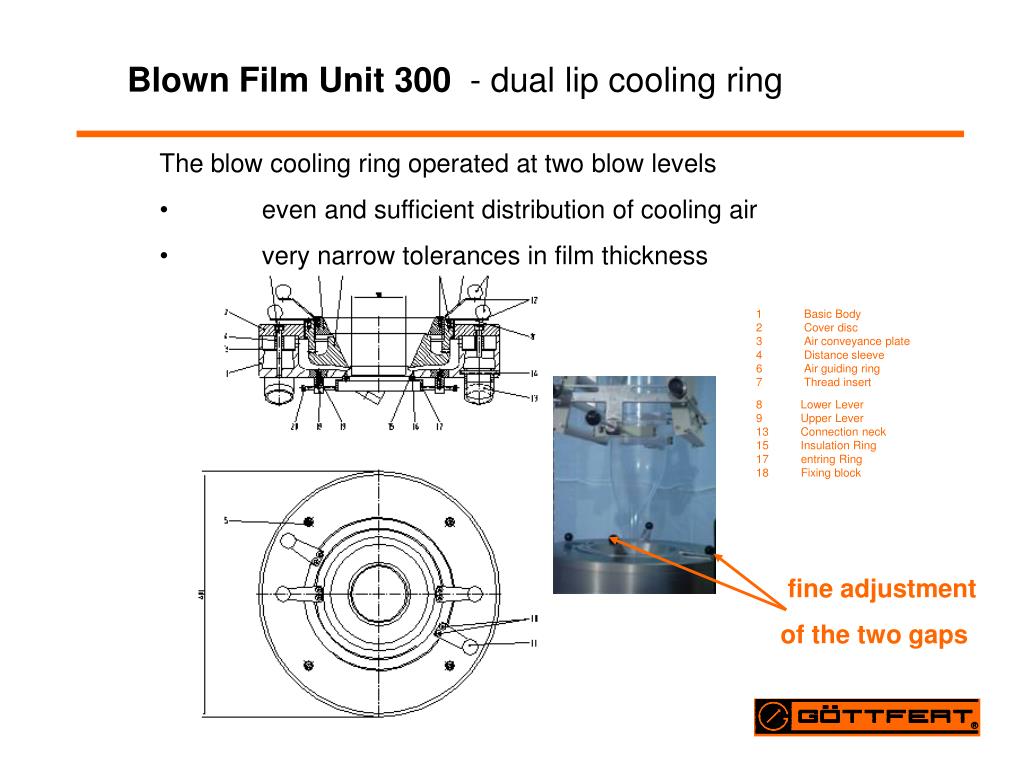

  9. Blown Film Unit 300 - dual lip cooling ring • The blow cooling ring operated at two blow levels • even and sufficient distribution of cooling air • very narrow tolerances in film thickness 1 Basic Body 2 Cover disc 3 Air conveyance plate 4 Distance sleeve 6 Air guiding ring 7 Thread insert • 8 Lower Lever • 9 Upper Lever • 13 Connection neck • 15 Insulation Ring • entring Ring • Fixing block fine adjustment of the two gaps

  10. Blown Film Unit 300 - Option cooling of cooling air • The additional cooling of the cooling air is • needed for the production of high • transparency films • Additional automatic Haze measurement • for QC is available Display for set and actual temperature Temperature range -0 - + 40°C

  11. Blow film unit 300 - take off unit / windig motor Take-off speed 0.1 - 50 m / min Maximum winding diameter 600 mm Roll width: 320mm Flattening width max. 300 mm Core-free winding up

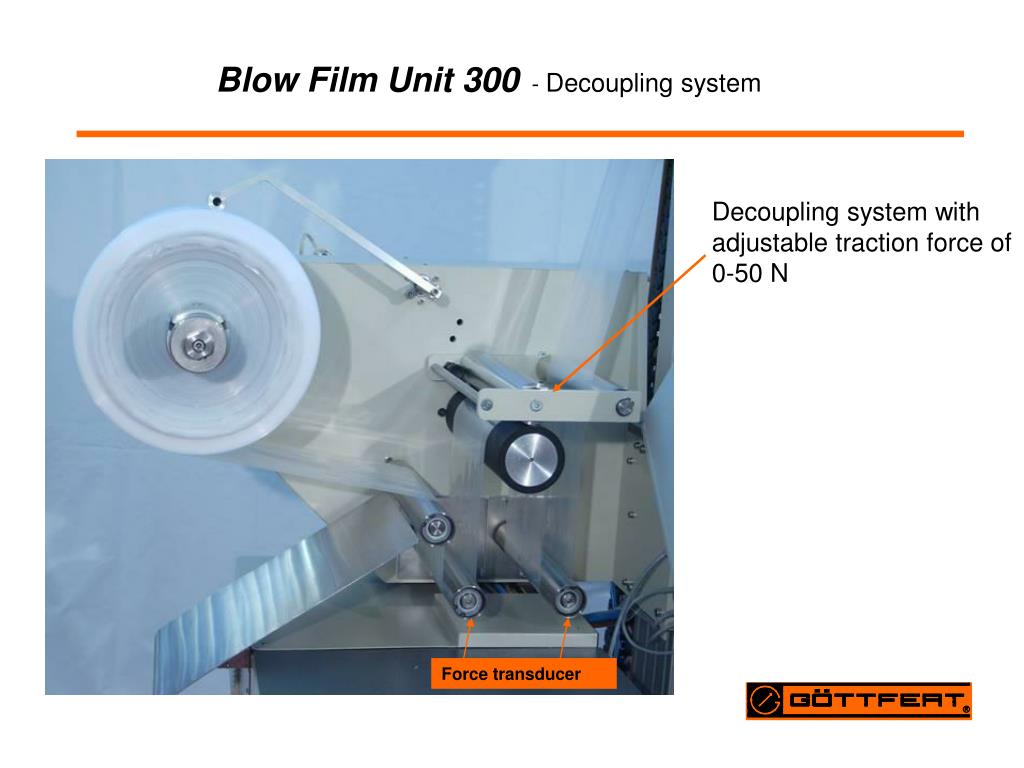

  12. Blow Film Unit 300 - Decoupling system Decoupling system with adjustable traction force of 0-50 N Forcetransducer

  13. Blow Film Unit 300 – Film control system optional • inspection of surfaces. • quality control of transparent • materials such as films, glass • acrylic glass as well. • detect fisheyes, blackspots, holes • and other inhomogeneities in 10 • different class sizes from 5 µm and • upwards. • lighting unitandhigh-speed line- • sensor connected to a high • performance image processing • computer

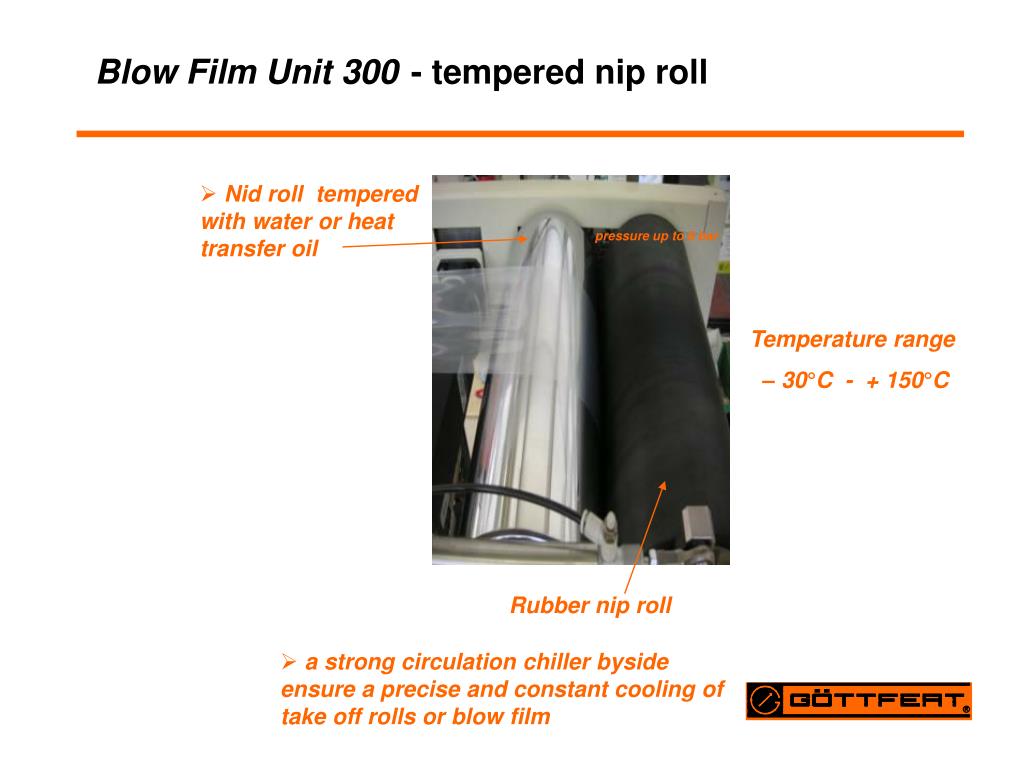

  14. Blow Film Unit 300- tempered nip roll • Nid roll tempered with water or heat transfer oil pressure up to 6 bar Temperature range – 30°C - + 150°C • Rubber nip roll • a strong circulation chiller byside ensure a precise and constant cooling of take off rolls or blow film

  15. Blow Film Unit 300blow support with central adjustment

  16. Blow Film Unit 300 – Features • Modular system: • It's easy to add options and / or design it to a custom system. • Control: • User friendly control panel: • Clear arrangement of all control modules and displays • Build in SPS control with adjustable parameter • Error diagnosis • Central alarm output makes it easy to handle Decoupling arrangement: • Isolates the forces of the pull off motor and enables the user to set a force of 0- 50 N with a constant force on the film

  17. Blow Film Unit 300- features / options • Features • - Decoupling system • Winding-up reels for • core-free winding up • Central blow support adjustment • Roll width 320 mm • (other on request) • - Die dimensions 30/50/60 mm (other on request) • - Take-off speed 0,1-50 m/min • - Controlled max. 50N • take-off force • Options • Dual-lip cooling ring • - Cooling of the cooling air • Film quality testing system • Film tear monitoring • Film width measurement controlled • Haze measurement • Gloss measurement
