  1. Lifecycle of an Email The care and feeding of electronic communications in their natural habitat

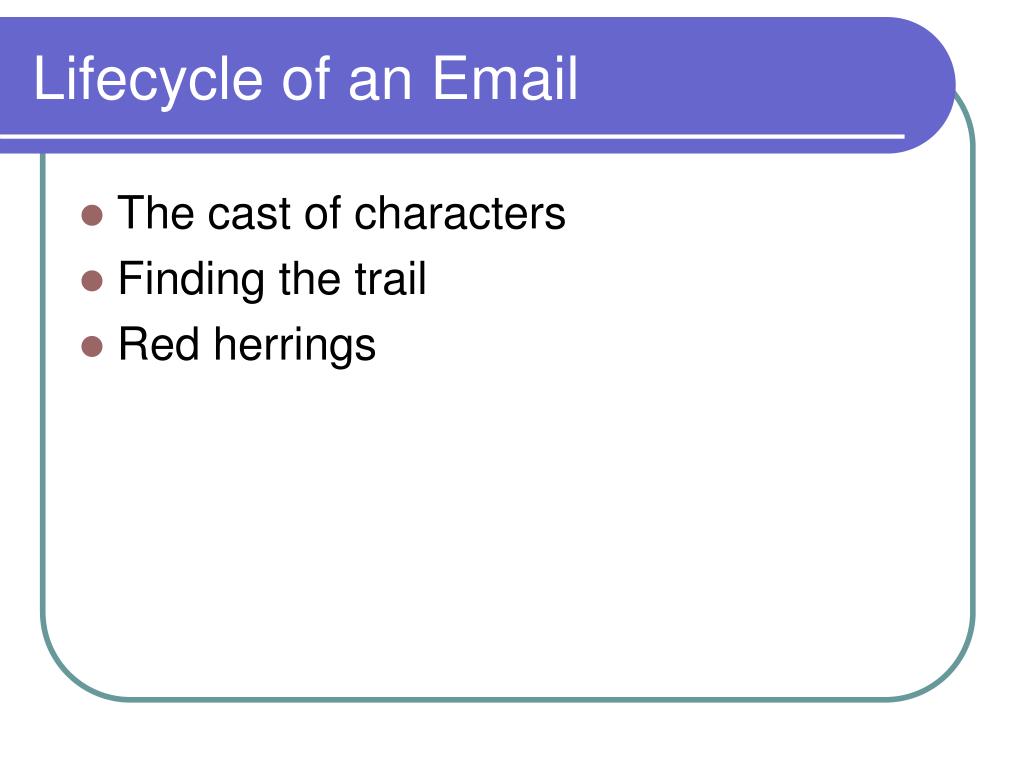

  2. Lifecycle of an Email • The cast of characters • Finding the trail • Red herrings

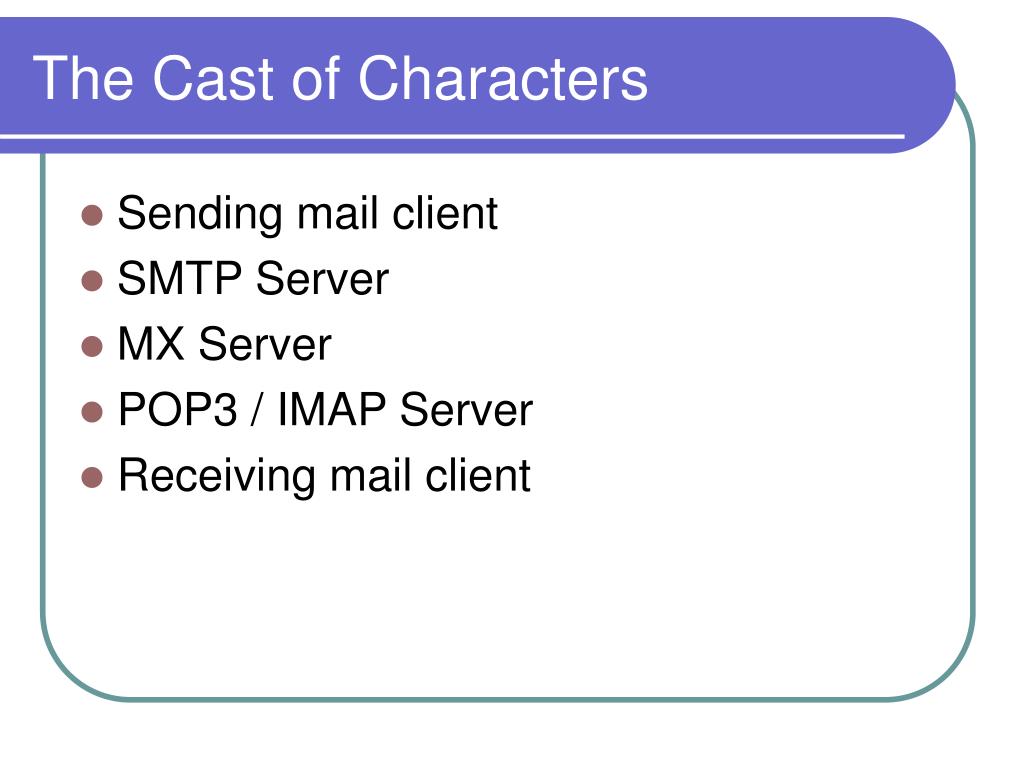

  3. The Cast of Characters • Sending mail client • SMTP Server • MX Server • POP3 / IMAP Server • Receiving mail client

  4. Supporting Cast • DNS sanity-checking • MTA-level blocklists • DCC • ClamAV • LDS • SpamAssassin • Graymail

  5. The General Case

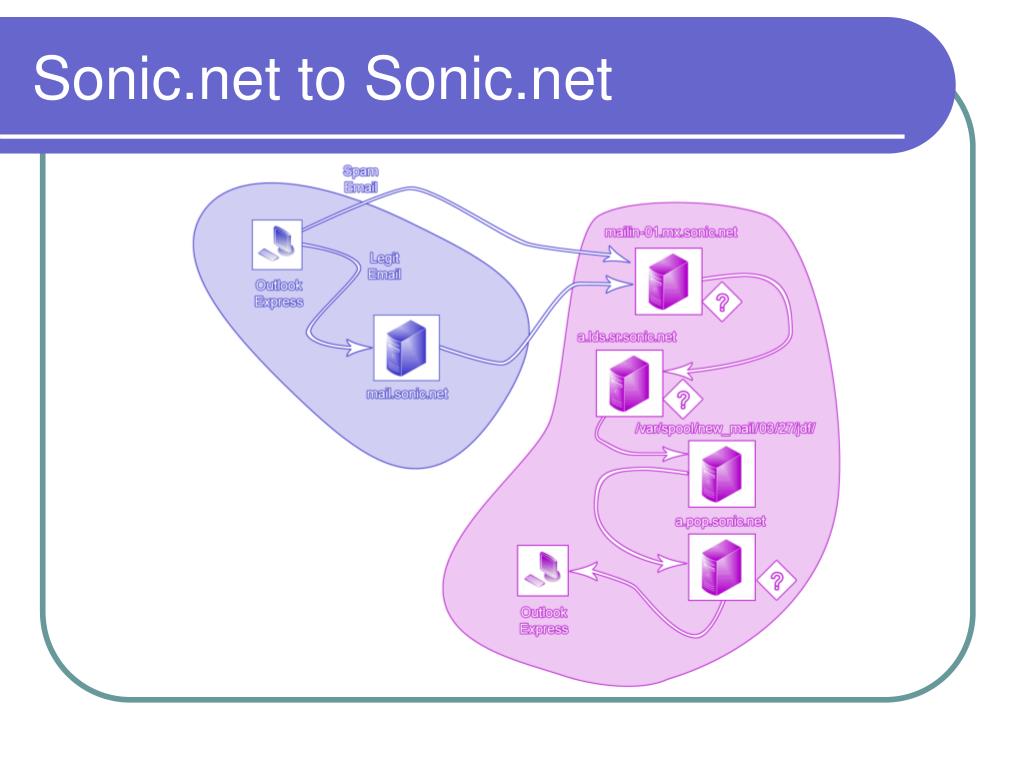

  6. Sonic.net to Sonic.net

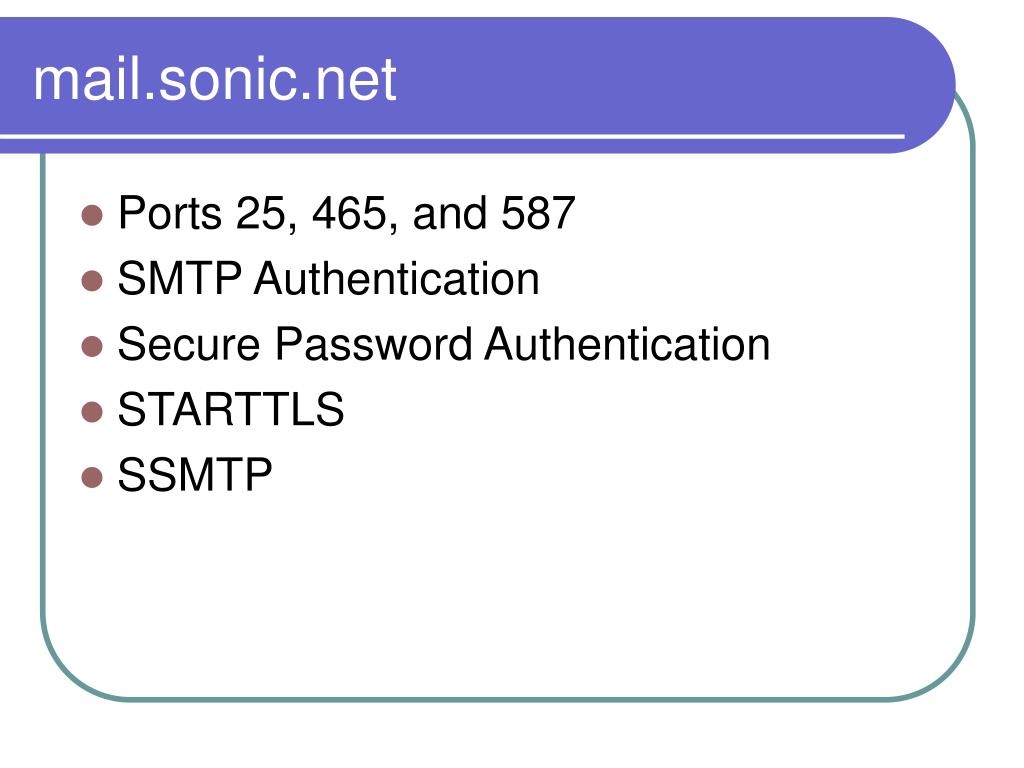

  7. mail.sonic.net • Ports 25, 465, and 587 • SMTP Authentication • Secure Password Authentication • STARTTLS • SSMTP

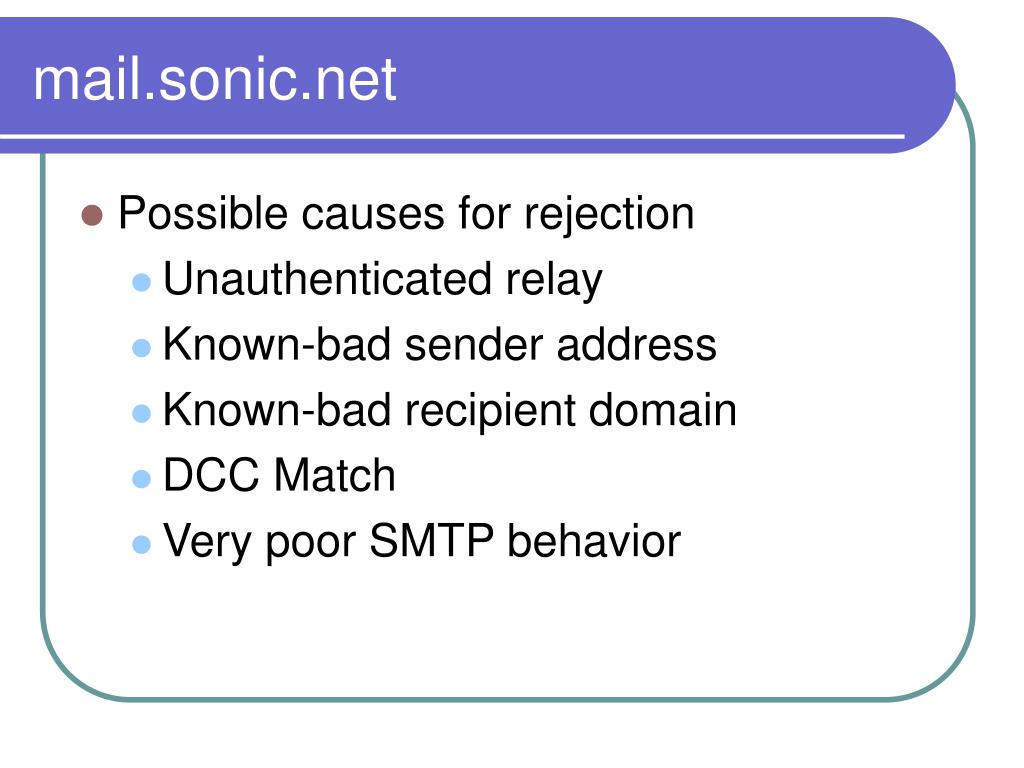

  8. mail.sonic.net • Possible causes for rejection • Unauthenticated relay • Known-bad sender address • Known-bad recipient domain • DCC Match • Very poor SMTP behavior

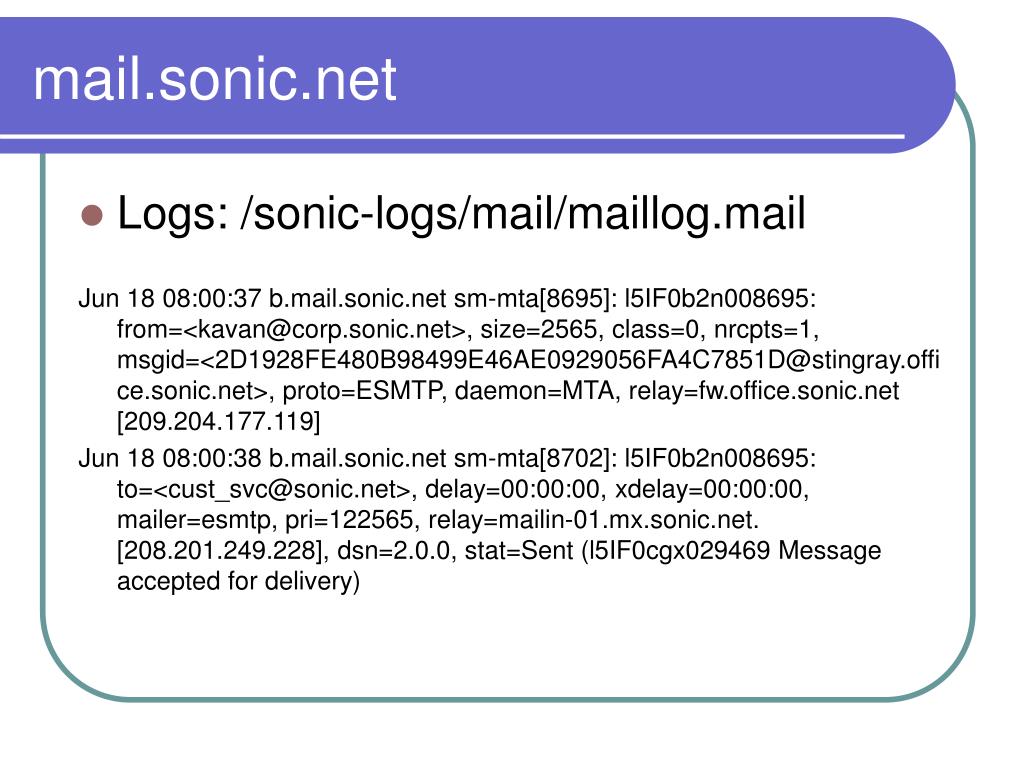

  9. mail.sonic.net • Logs: /sonic-logs/mail/maillog.mail Jun 18 08:00:37 b.mail.sonic.net sm-mta[8695]: l5IF0b2n008695: from=<kavan@corp.sonic.net>, size=2565, class=0, nrcpts=1, msgid=<2D1928FE480B98499E46AE0929056FA4C7851D@stingray.office.sonic.net>, proto=ESMTP, daemon=MTA, relay=fw.office.sonic.net [209.204.177.119] Jun 18 08:00:38 b.mail.sonic.net sm-mta[8702]: l5IF0b2n008695: to=<cust_svc@sonic.net>, delay=00:00:00, xdelay=00:00:00, mailer=esmtp, pri=122565, relay=mailin-01.mx.sonic.net. [208.201.249.228], dsn=2.0.0, stat=Sent (l5IF0cgx029469 Message accepted for delivery)

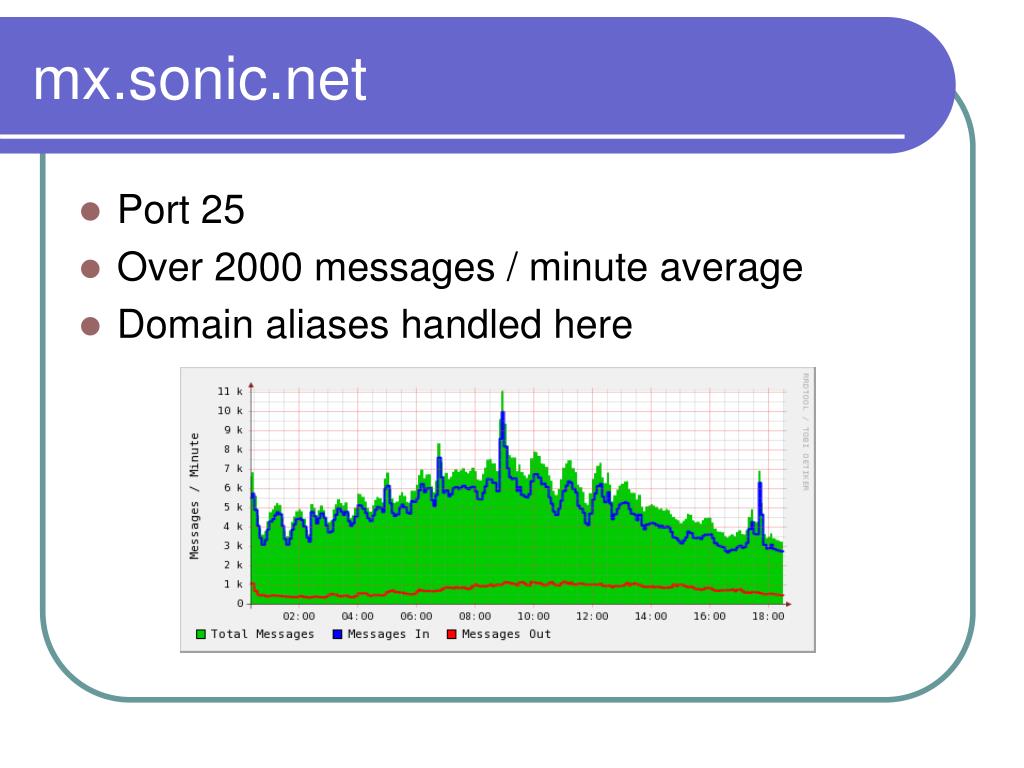

  10. mx.sonic.net • Port 25 • Over 2000 messages / minute average • Domain aliases handled here

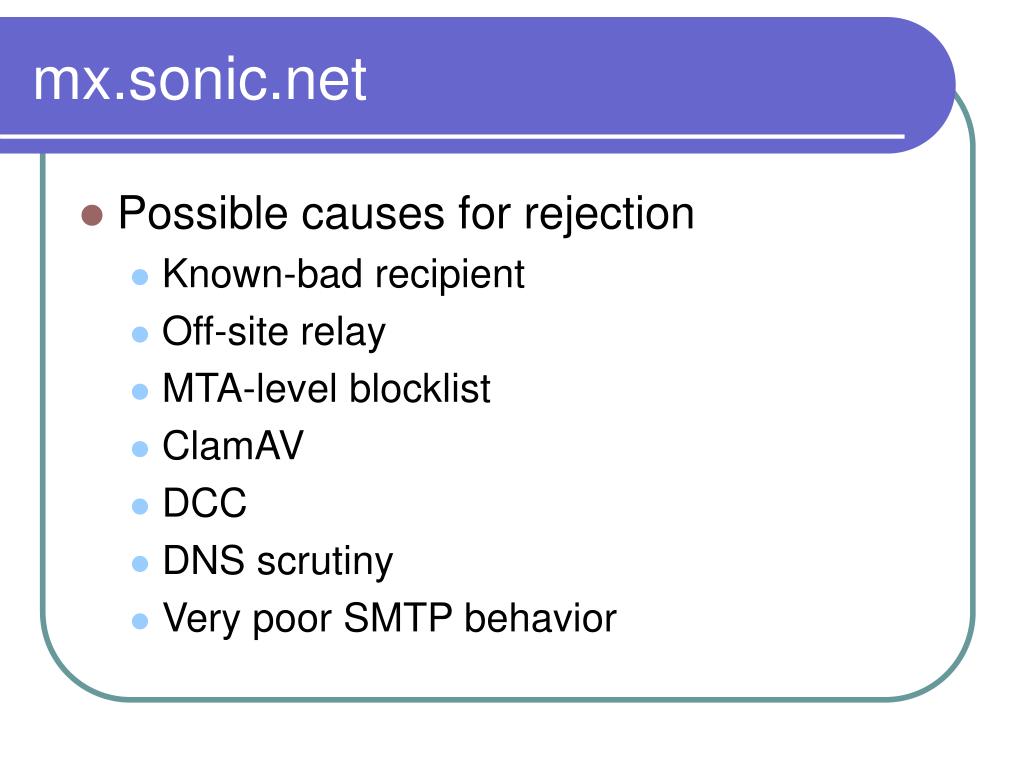

  11. mx.sonic.net • Possible causes for rejection • Known-bad recipient • Off-site relay • MTA-level blocklist • ClamAV • DCC • DNS scrutiny • Very poor SMTP behavior

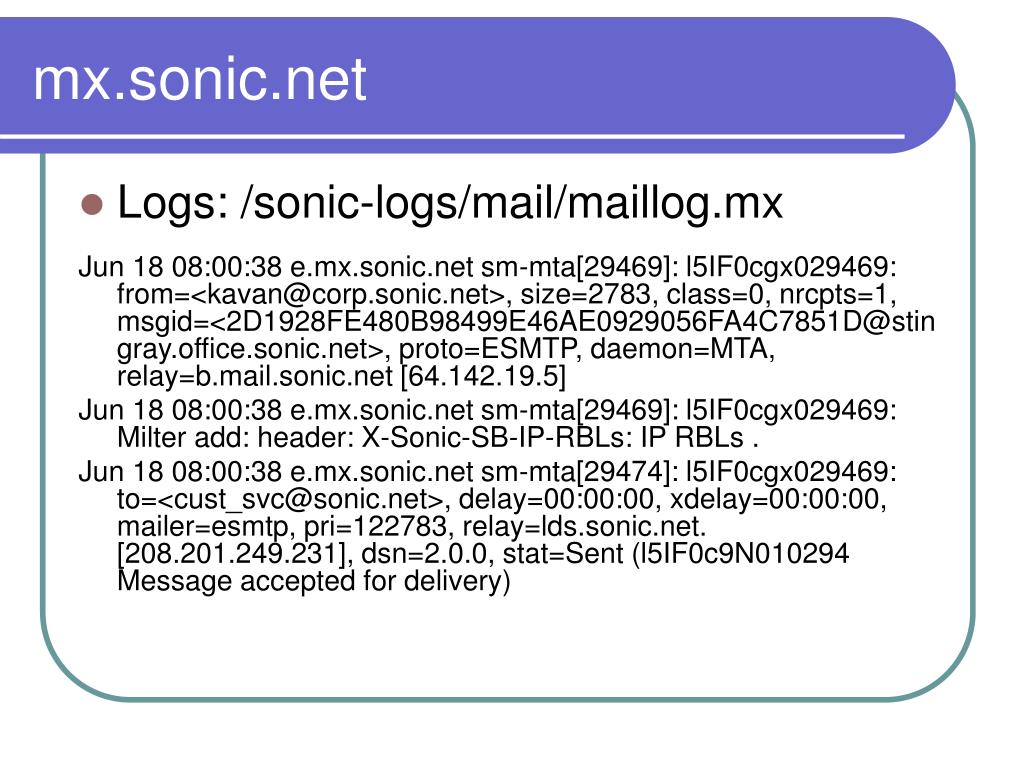

  12. mx.sonic.net • Logs: /sonic-logs/mail/maillog.mx Jun 18 08:00:38 e.mx.sonic.net sm-mta[29469]: l5IF0cgx029469: from=<kavan@corp.sonic.net>, size=2783, class=0, nrcpts=1, msgid=<2D1928FE480B98499E46AE0929056FA4C7851D@stingray.office.sonic.net>, proto=ESMTP, daemon=MTA, relay=b.mail.sonic.net [64.142.19.5] Jun 18 08:00:38 e.mx.sonic.net sm-mta[29469]: l5IF0cgx029469: Milter add: header: X-Sonic-SB-IP-RBLs: IP RBLs . Jun 18 08:00:38 e.mx.sonic.net sm-mta[29474]: l5IF0cgx029469: to=<cust_svc@sonic.net>, delay=00:00:00, xdelay=00:00:00, mailer=esmtp, pri=122783, relay=lds.sonic.net. [208.201.249.231], dsn=2.0.0, stat=Sent (l5IF0c9N010294 Message accepted for delivery)

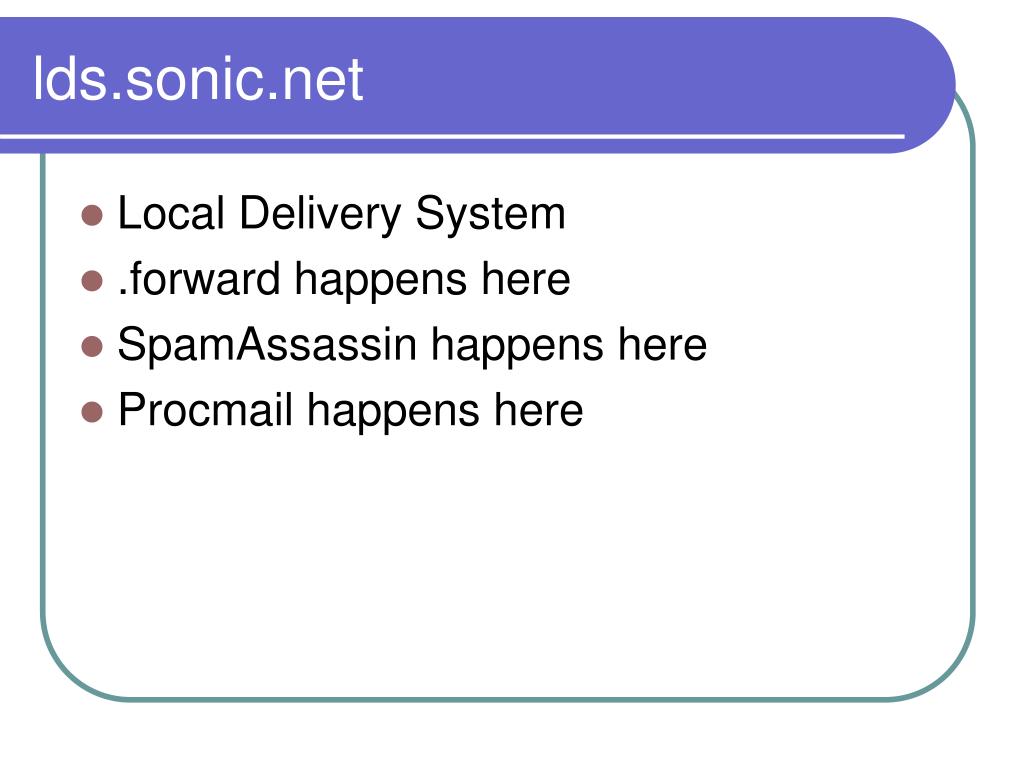

  13. lds.sonic.net • Local Delivery System • .forward happens here • SpamAssassin happens here • Procmail happens here

  14. lds.sonic.net • Possible causes for rejection • Just about everything on the last slide • Few proper bounces from lds

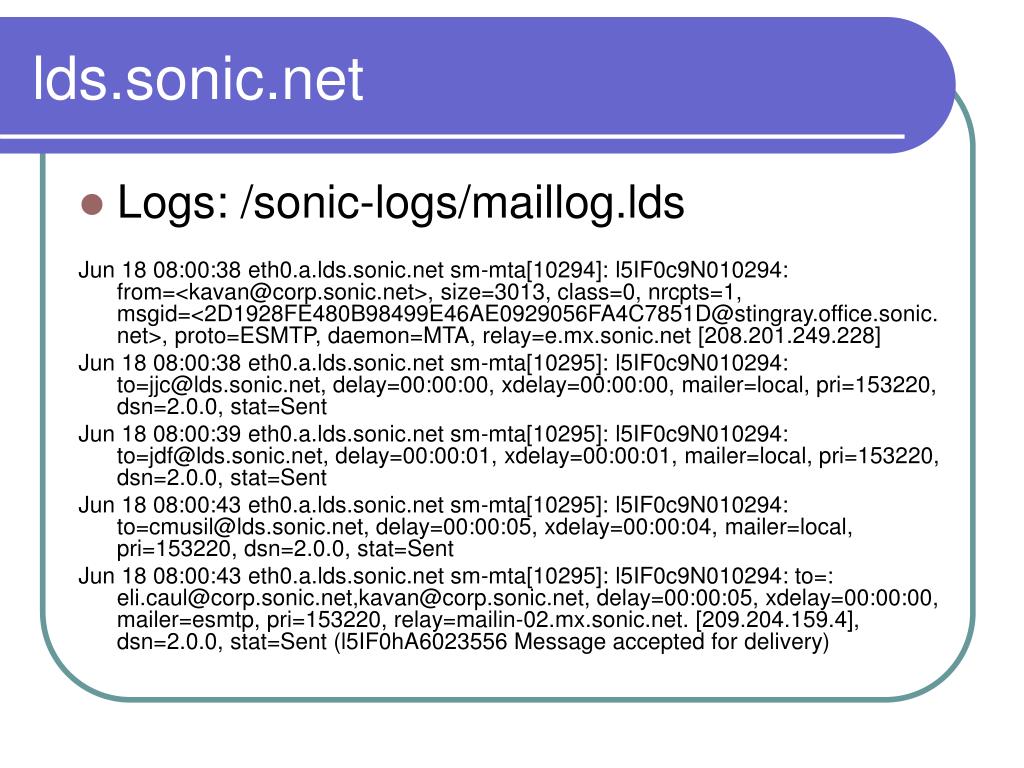

  15. lds.sonic.net • Logs: /sonic-logs/maillog.lds Jun 18 08:00:38 eth0.a.lds.sonic.net sm-mta[10294]: l5IF0c9N010294: from=<kavan@corp.sonic.net>, size=3013, class=0, nrcpts=1, msgid=<2D1928FE480B98499E46AE0929056FA4C7851D@stingray.office.sonic.net>, proto=ESMTP, daemon=MTA, relay=e.mx.sonic.net [208.201.249.228] Jun 18 08:00:38 eth0.a.lds.sonic.net sm-mta[10295]: l5IF0c9N010294: to=jjc@lds.sonic.net, delay=00:00:00, xdelay=00:00:00, mailer=local, pri=153220, dsn=2.0.0, stat=Sent Jun 18 08:00:39 eth0.a.lds.sonic.net sm-mta[10295]: l5IF0c9N010294: to=jdf@lds.sonic.net, delay=00:00:01, xdelay=00:00:01, mailer=local, pri=153220, dsn=2.0.0, stat=Sent Jun 18 08:00:43 eth0.a.lds.sonic.net sm-mta[10295]: l5IF0c9N010294: to=cmusil@lds.sonic.net, delay=00:00:05, xdelay=00:00:04, mailer=local, pri=153220, dsn=2.0.0, stat=Sent Jun 18 08:00:43 eth0.a.lds.sonic.net sm-mta[10295]: l5IF0c9N010294: to=: eli.caul@corp.sonic.net,kavan@corp.sonic.net, delay=00:00:05, xdelay=00:00:00, mailer=esmtp, pri=153220, relay=mailin-02.mx.sonic.net. [209.204.159.4], dsn=2.0.0, stat=Sent (l5IF0hA6023556 Message accepted for delivery)

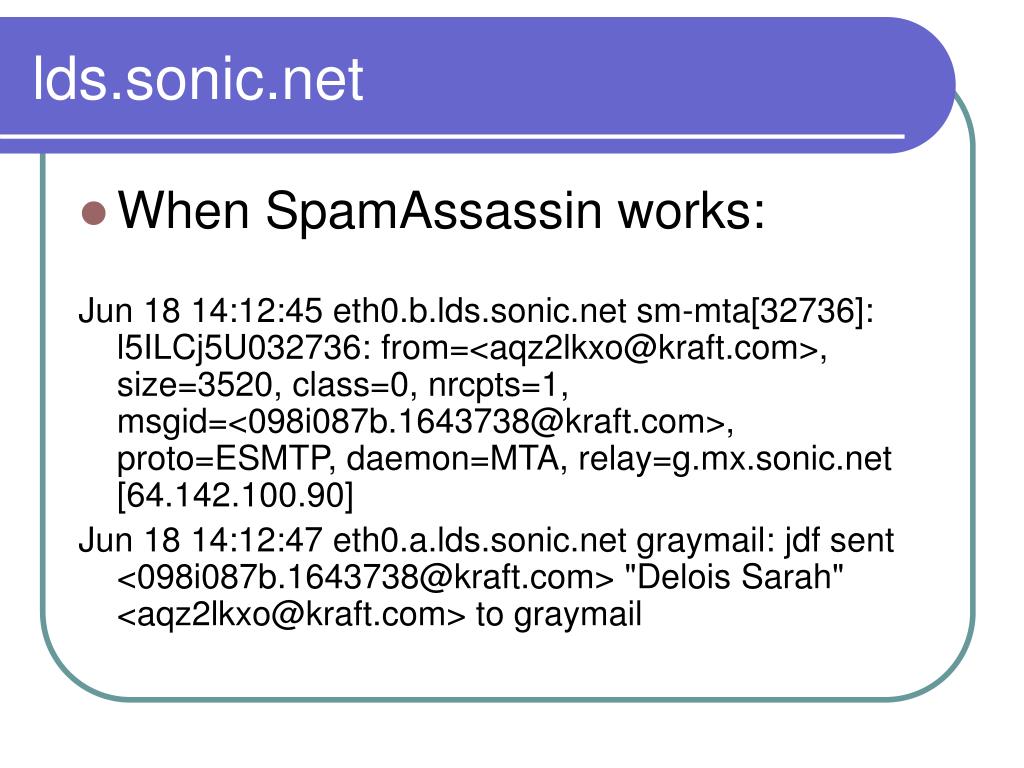

  16. lds.sonic.net • When SpamAssassin works: Jun 18 14:12:45 eth0.b.lds.sonic.net sm-mta[32736]: l5ILCj5U032736: from=<aqz2lkxo@kraft.com>, size=3520, class=0, nrcpts=1, msgid=<098i087b.1643738@kraft.com>, proto=ESMTP, daemon=MTA, relay=g.mx.sonic.net [64.142.100.90] Jun 18 14:12:47 eth0.a.lds.sonic.net graymail: jdf sent <098i087b.1643738@kraft.com> "Delois Sarah" <aqz2lkxo@kraft.com> to graymail

  17. spam.sonic.net • Logs: /sonic-logs/mail/maillog.spam Jun 18 14:12:42 eth0.d.spam.sonic.net spamd[2017]: spamd: processing message <098i087b.1643738@kraft.com> for jdf:99 Jun 18 14:12:47 eth0.d.spam.sonic.net spamd[2017]: spamd: result: Y 5 - DKIM_POLICY_SIGNS OME,HTML_MESSAGE,MIME_HTML_ONLY,MONEY_BACK,RAZOR2_CF_RANGE_51_100,RAZOR2_CF_RANGE_E4_51_1 00,RAZOR2_CF_RANGE_E8_51_100,RAZOR2_CHECK,RDNS_NONE scantime=5.0,size=3759,user=jdf,uid=9 9,required_score=5.0,rhost=eth0.a.lds.sonic.net,raddr=208.201.249.231,rport=44935,mid=<098i087b.1643738@kraft.com>,autolearn=disabled

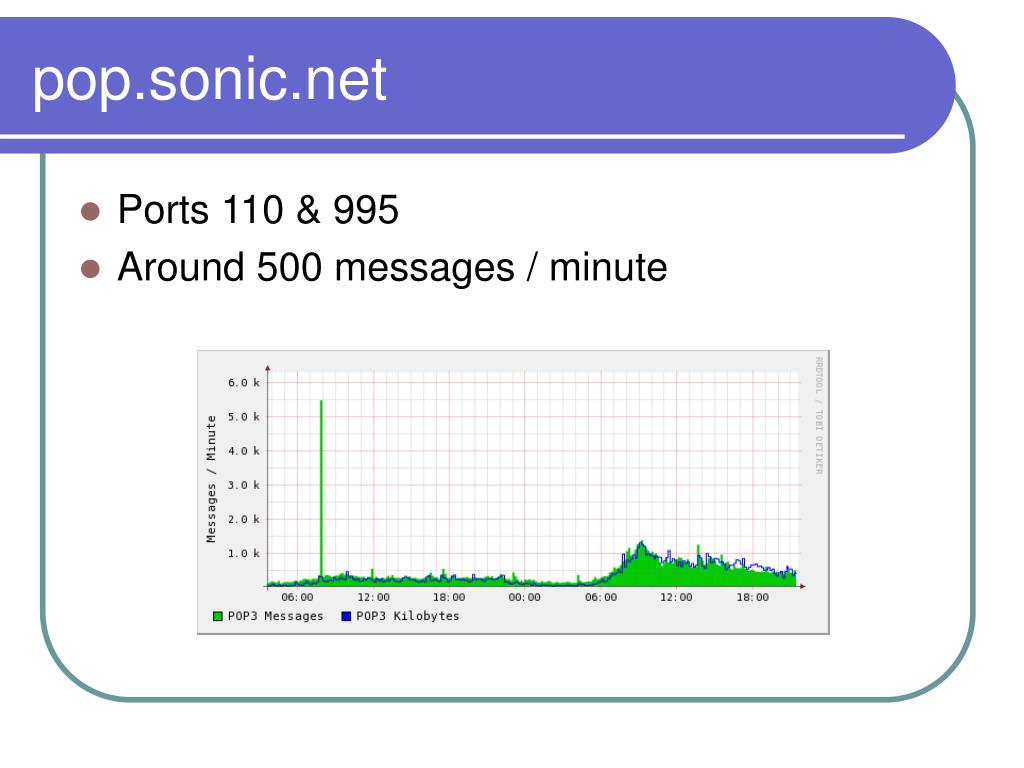

  18. pop.sonic.net • Ports 110 & 995 • Around 500 messages / minute

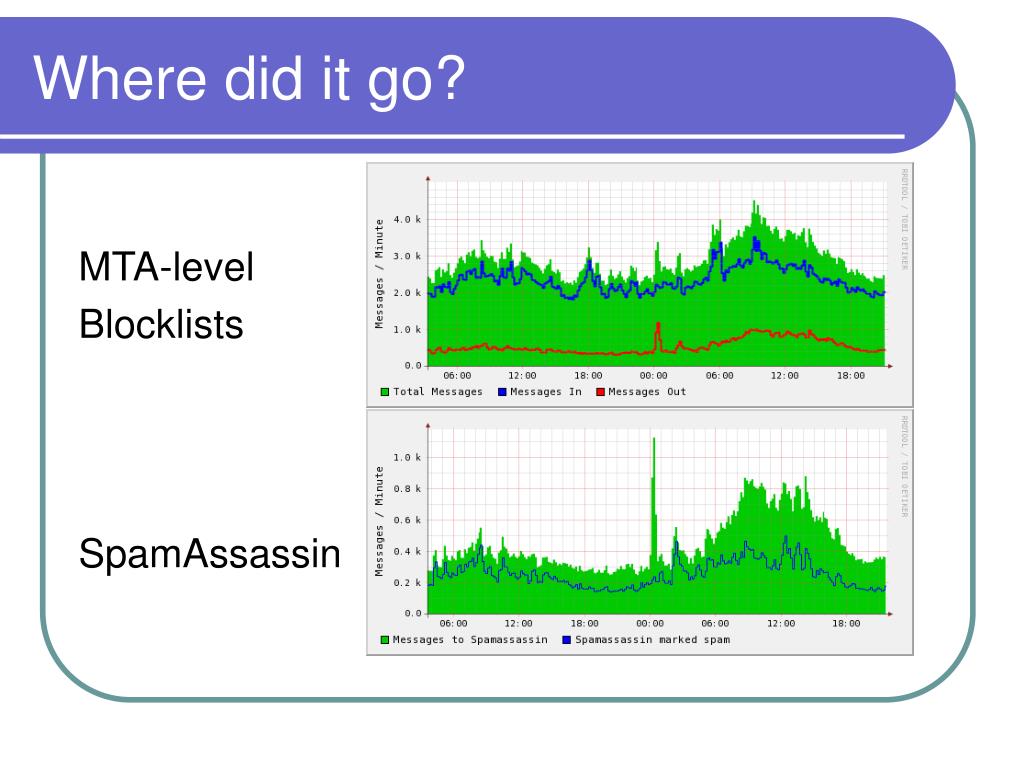

  19. Where did it go? MTA-level Blocklists SpamAssassin

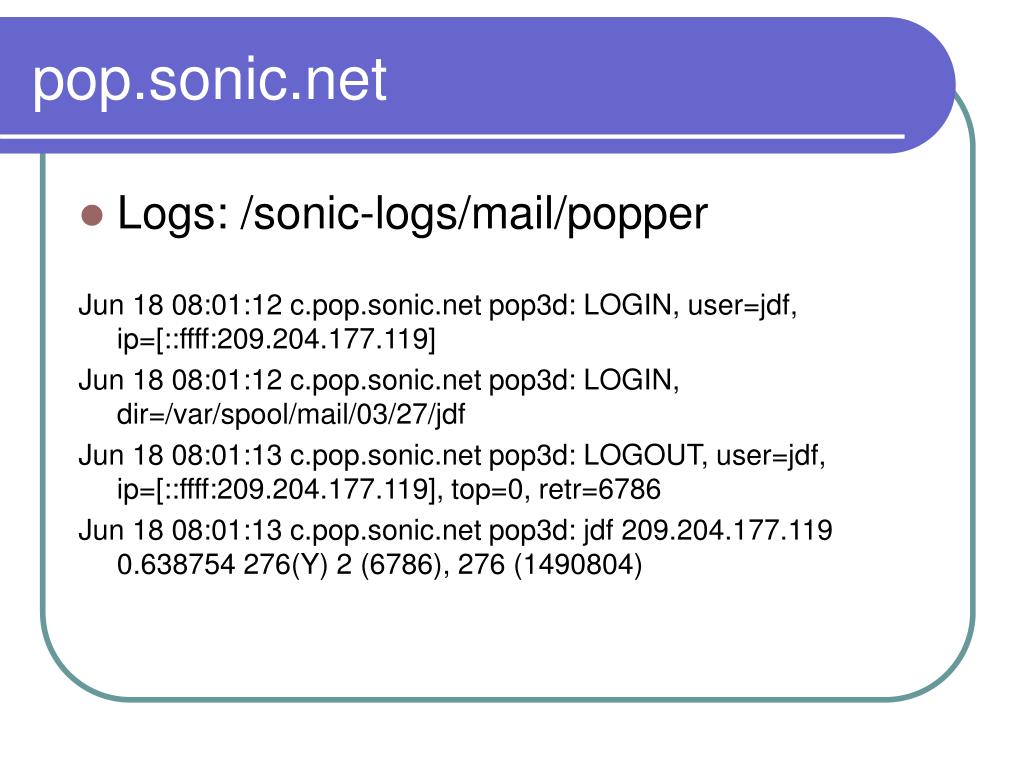

  20. pop.sonic.net • Logs: /sonic-logs/mail/popper Jun 18 08:01:12 c.pop.sonic.net pop3d: LOGIN, user=jdf, ip=[::ffff:209.204.177.119] Jun 18 08:01:12 c.pop.sonic.net pop3d: LOGIN, dir=/var/spool/mail/03/27/jdf Jun 18 08:01:13 c.pop.sonic.net pop3d: LOGOUT, user=jdf, ip=[::ffff:209.204.177.119], top=0, retr=6786 Jun 18 08:01:13 c.pop.sonic.net pop3d: jdf 209.204.177.119 0.638754 276(Y) 2 (6786), 276 (1490804)

  21. Red Herrings • Not all mail goes through mx • Not all activity on lds is logged • Some “missing” mail isn’t • Blocklists • Aliases • Forwards • Graymail • MUA-level sorting

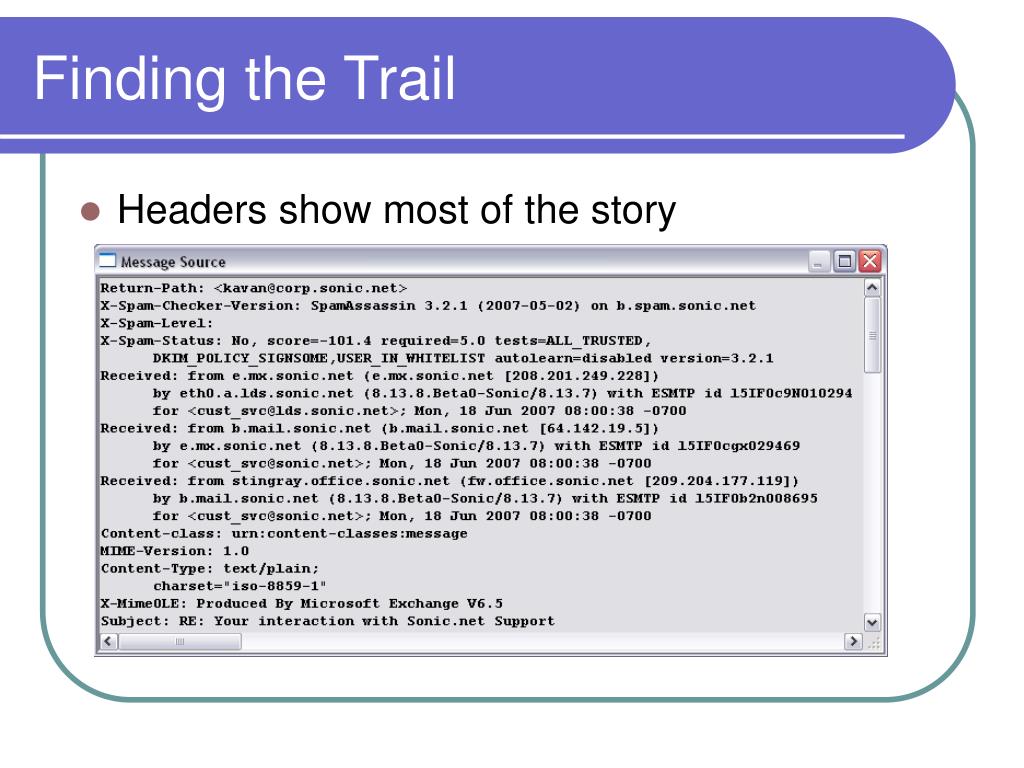

  22. Finding the Trail • Headers show most of the story

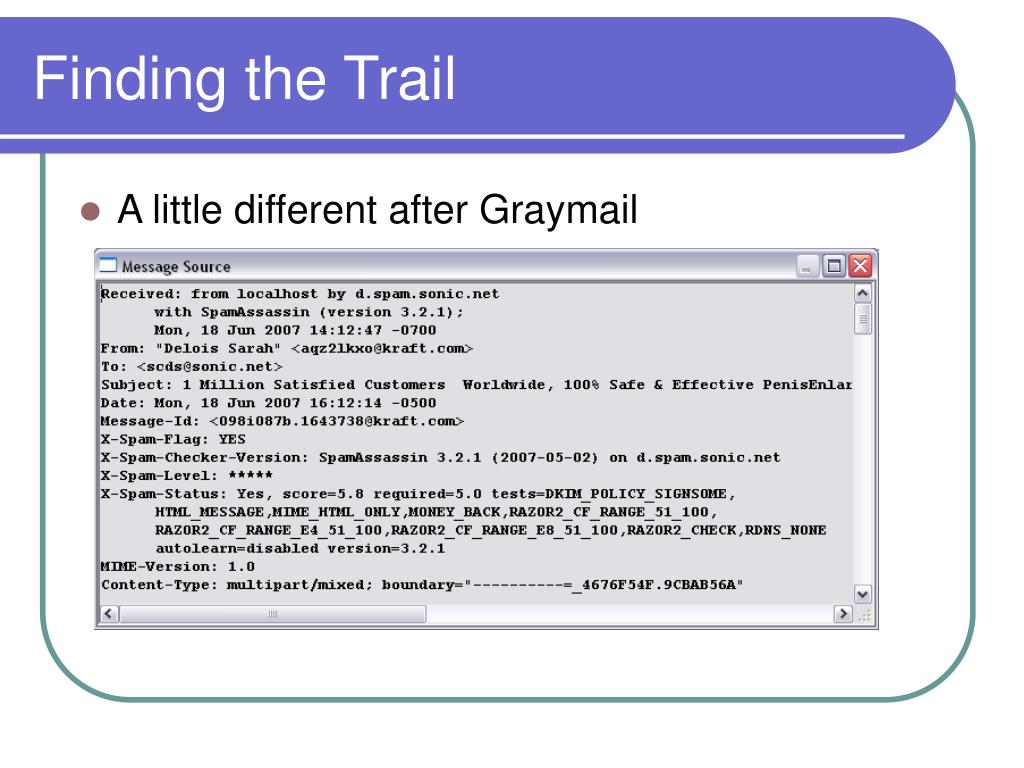

  23. Finding the Trail • A little different after Graymail

  24. Lifecycle of an Email • /sonic-logs/mail/maillog.mail Jun 14 21:54:28 b.mail.sonic.net sm-mta[25018]: l5F4sSsY025018: from=<support@sonic.net>, size=446, class=0, nrcpts=1, msgid=<000c01c7af09$41126700$0cb1ccd1@office.sonic.net>, proto=ESMTP, daemon=MTA, relay=fw.office.sonic.net [209.204.177.119] Jun 14 21:54:28 b.mail.sonic.net sm-mta[25025]: l5F4sSsY025018: to=<spasmcc@sonic.net>, delay=00:00:00, xdelay=00:00:00, mailer=esmtp, pri=120446, relay=mailin-02.mx.sonic.net. [209.204.159.4], dsn=2.0.0, stat=Sent (l5F4sS8F011121 Message accepted for delivery) • /sonic-logs/mail/maillog.mx Jun 14 21:54:28 b.mx.sonic.net sm-mta[11121]: l5F4sS8F011121: from=<support@sonic.net>, size=643, class=0, nrcpts=1, msgid=<000c01c7af09$41126700$0cb1ccd1@office.sonic.net>, proto=ESMTP, daemon=MTA, relay=b.mail.sonic.net [64.142.19.5] Jun 14 21:54:28 b.mx.sonic.net sm-mta[11129]: l5F4sS8F011121: to=<spasmcc@sonic.net>, delay=00:00:00, xdelay=00:00:00, mailer=esmtp, pri=120643, relay=lds.sonic.net. [208.201.249.231], dsn=2.0.0, stat=Sent (l5F4sSju023934 Message accepted for delivery) • /sonic-logs/mail/maillog.lds Jun 14 21:54:28 eth0.a.lds.sonic.net sm-mta[23934]: l5F4sSju023934: from=<support@sonic.net>, size=842, class=0, nrcpts=1, msgid=<000c01c7af09$41126700$0cb1ccd1@office.sonic.net>, proto=ESMTP, daemon=MTA, relay=b.mx.sonic.net [209.204.159.4] Jun 14 21:54:30 eth0.a.lds.sonic.net sm-mta[23945]: l5F4sSju023934: to=<spasmcc@lds.sonic.net>, delay=00:00:02, xdelay=00:00:02, mailer=local, pri=31052, dsn=2.0.0, stat=Sent

  25. Lifecycle of an Email
