  1. SAFE: A Data Dissemination Protocol for Periodic Updates in Sensor Networks Authors: Sooyeon Kim, Sang H. Sony, John A. Stankovicy, Shuoqi Liy, Yanghee Choi Presented by: Chih-Ping Chou

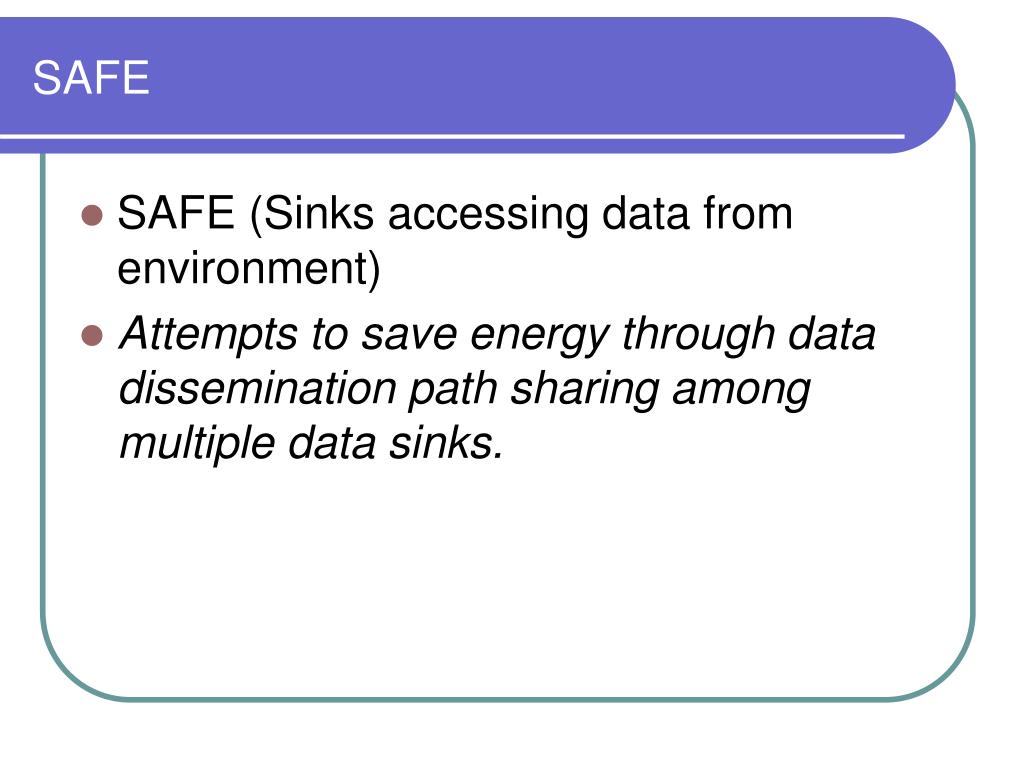

  2. SAFE • SAFE (Sinks accessing data from environment) • Attempts to save energy through data dissemination path sharing among multiple data sinks.

  3. Intended data dissemination path

  4. Why SAFE? • TTDD • Directed Diffusion

  5. Why SAFE? (cont.) • It's a heavy load to construct grid networks per data source. • It's infeasible to let every potential data source keep flooding their measurement before any explicit user requests. • Complicated setup phase of grid construction • Long-term comparison between multiple data delivery paths -fast reaction to a data update request is required

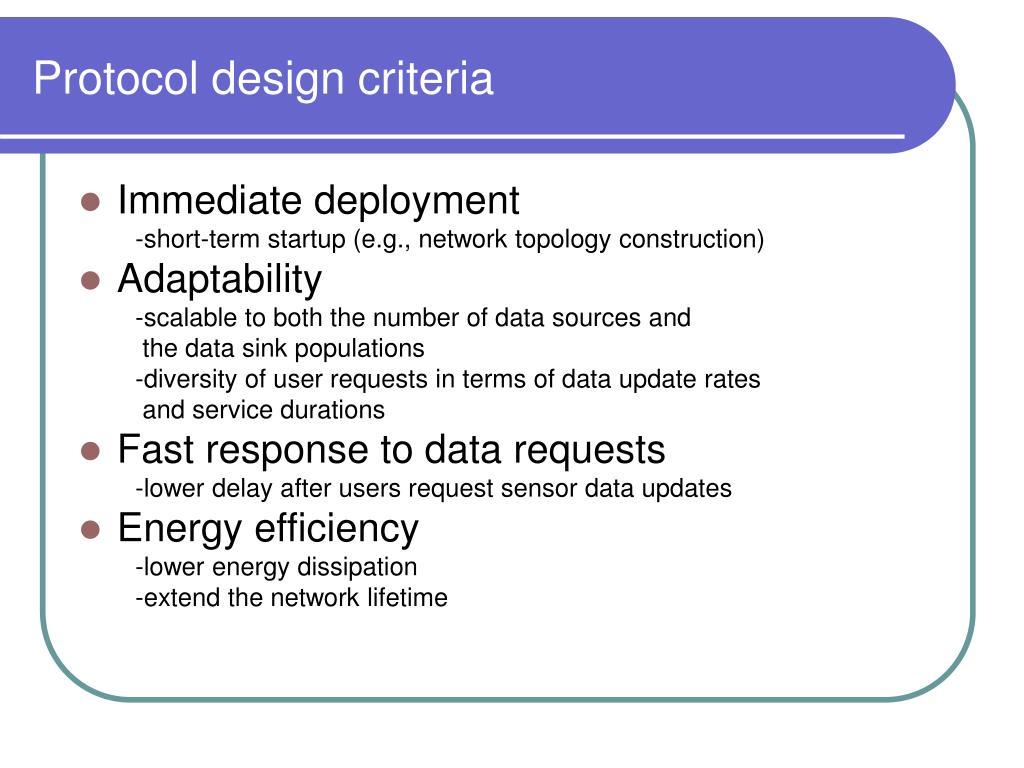

  6. Protocol design criteria • Immediate deployment -short-term startup (e.g., network topology construction) • Adaptability -scalable to both the number of data sources and the data sink populations -diversity of user requests in terms of data update rates and service durations • Fast response to data requests -lower delay after users request sensor data updates • Energy efficiency -lower energy dissipation -extend the network lifetime

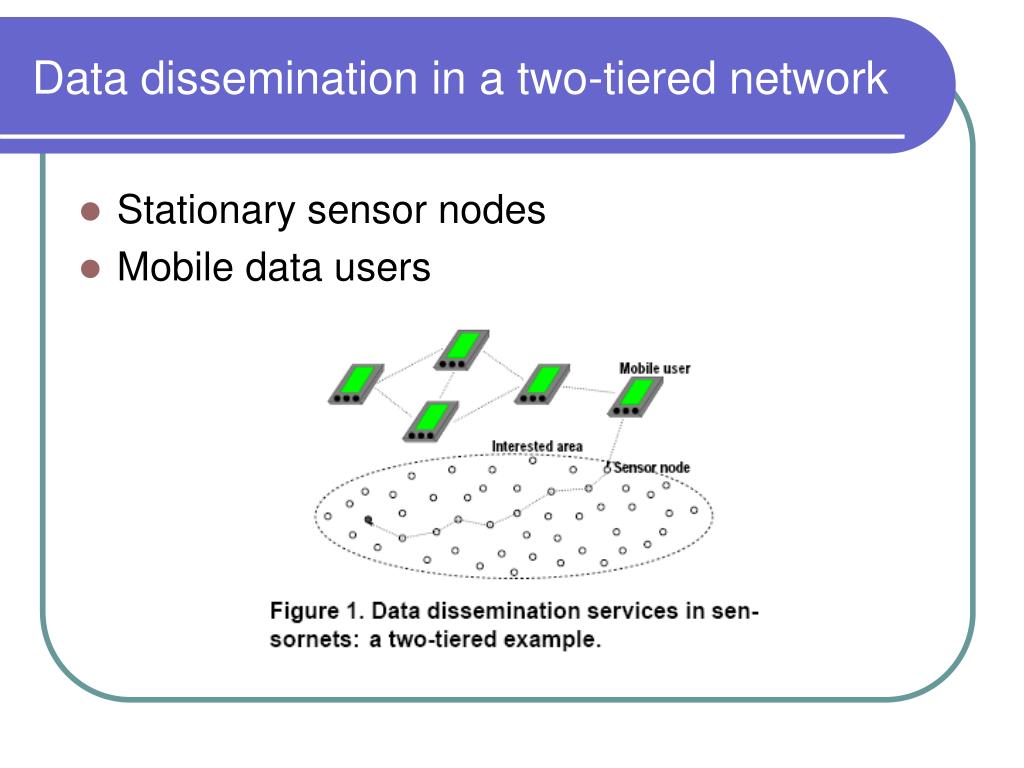

  7. Data dissemination in a two-tiered network • Stationary sensor nodes • Mobile data users

  8. Environmental model • ATMEL 90LS8535 processor • 8 KB flash program memory • 512 byte SRAM data memory • RF Monolithic 916.50 MHz transceiver • Photo/Temperature sensors

  9. Proposed Protocol Two major phases: • Query transfer • Dissemination path setup Query format: -area = [1850, 2150, 60, 900] -attribute = carbon monoxide -interval = 0.5 second -duration = 70 seconds

  10. Data management table

  11. Query transfer recvQuery(q) 1 if isRecentlyDealtWith (q) 2 then return 3 saveQueryAsRecentOne (q) 4 if isSource (q) 5 then sendPathSetup (sender(q)) 6 else if isJunction (q) 7 then sendJunctionInfo (sender(q)) 8 else if isApproachingToSource (q) 9 then forwardQueryToNextHop (q)

  12. Dissemination path setup recvPathSetup (p) 1 if destination (p) 6= myAddr 2 then if noEntryInDataManTable (p) 3 then e createEntry (p) 4 waitForAckFromSink (e) 5 else /* if the PathSetup p is destined for this node */ 6 then e findEntry (p) 7 if currState (e) = QUERY SENT 8 then sendAck (hopSender (p)) 9 changeMyState (e, SUBSCRIBE SENT) 10 else if currState (e) = FEEDBACK RCVD 11 then if bestFeedbackCost (e) > cost (p) 12 then saveAsBestFeedback (p)

  13. Data delivery paths

  14. Data delivery paths (cont.)

  15. Data delivery paths (cont.)

  16. Data delivery paths (cont.)

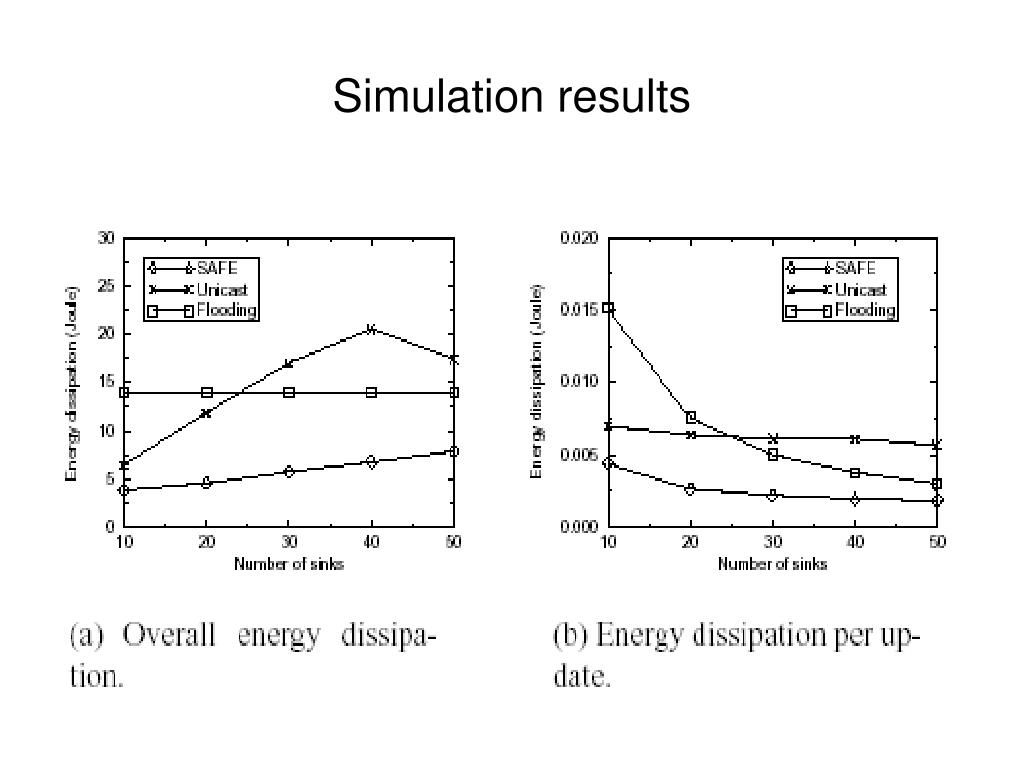

  17. Simulation results

  18. Conclusion • Energy efficiency • Scalability Both of which are crucial for large-scale battery-powered sensor networks

  19. Future work • Data aggregation that accumulates multiple data provision into a single hop-by-hop transfer • Timeliness

  20. Question?
