Presentation Transcript
voice over ip fundamentals

CHAPTER 14

  • PSTN and VoIP Interworking
Voice over IP Fundamentals
slide2

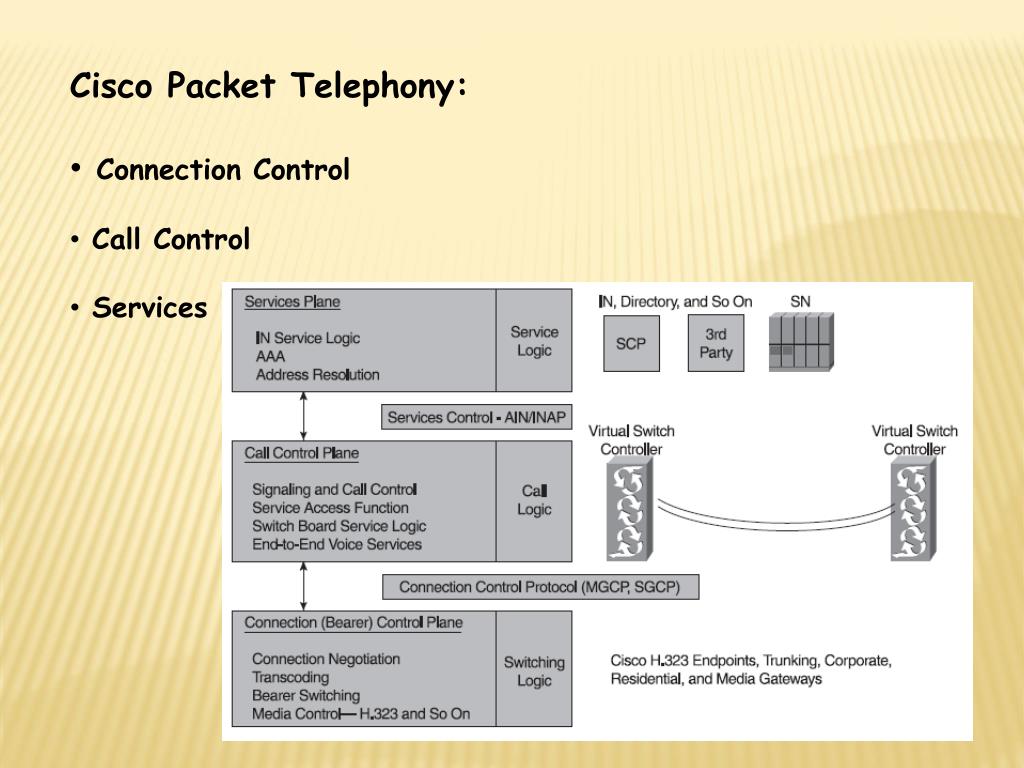

Cisco Packet Telephony:

  • Connection Control
  • Call Control
  • Services
slide3

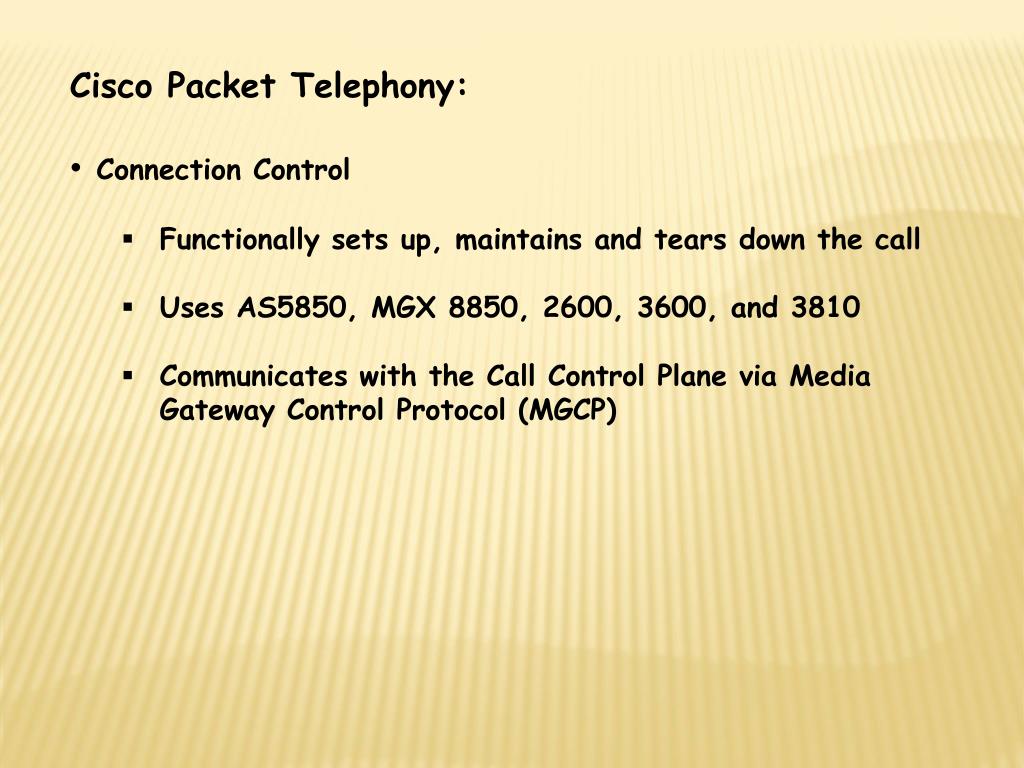

Cisco Packet Telephony:

  • Connection Control
    • Functionally sets up, maintains and tears down the call
    • Uses AS5850, MGX 8850, 2600, 3600, and 3810
    • Communicates with the Call Control Plane via Media Gateway Control Protocol (MGCP)
slide4

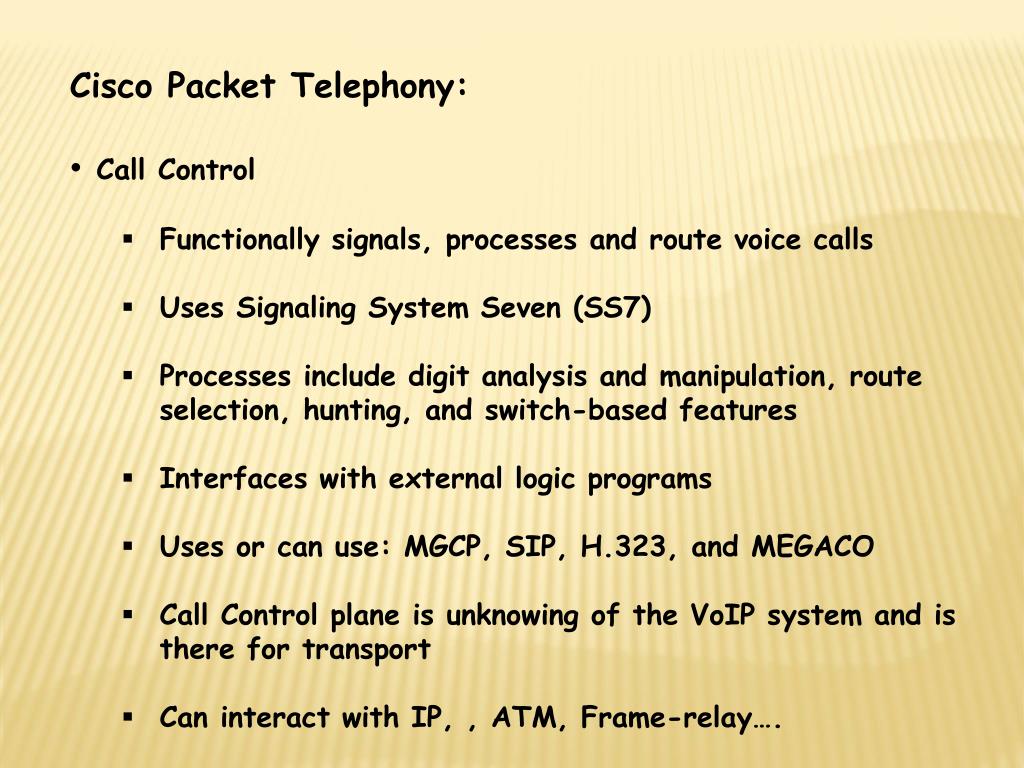

Cisco Packet Telephony:

  • Call Control
    • Functionally signals, processes and route voice calls
    • Uses Signaling System Seven (SS7)
    • Processes include digit analysis and manipulation, route selection, hunting, and switch-based features
    • Interfaces with external logic programs
    • Uses or can use: MGCP, SIP, H.323, and MEGACO
    • Call Control plane is unknowing of the VoIP system and is there for transport
    • Can interact with IP, , ATM, Frame-relay….
slide5

Cisco Packet Telephony:

  • Service Plane
    • Logic that provides enhanced services
    • Number translation
    • Account code authentication
    • Credit card validation
    • Virtual Private Network (VPN)
slide6

Cisco Packet Telephony:

  • Packet Voice Network
    • Packet Voice Interexchange Carrier (IXC) tandem applications
    • Packet Voice Local Exchange Carrier (LEC) Class 4 relief applications
    • Endpoint client multimedia applications
    • Corporate voice on-net and off-net services
    • VoIP local/end office applications on cable infrastructure
slide8

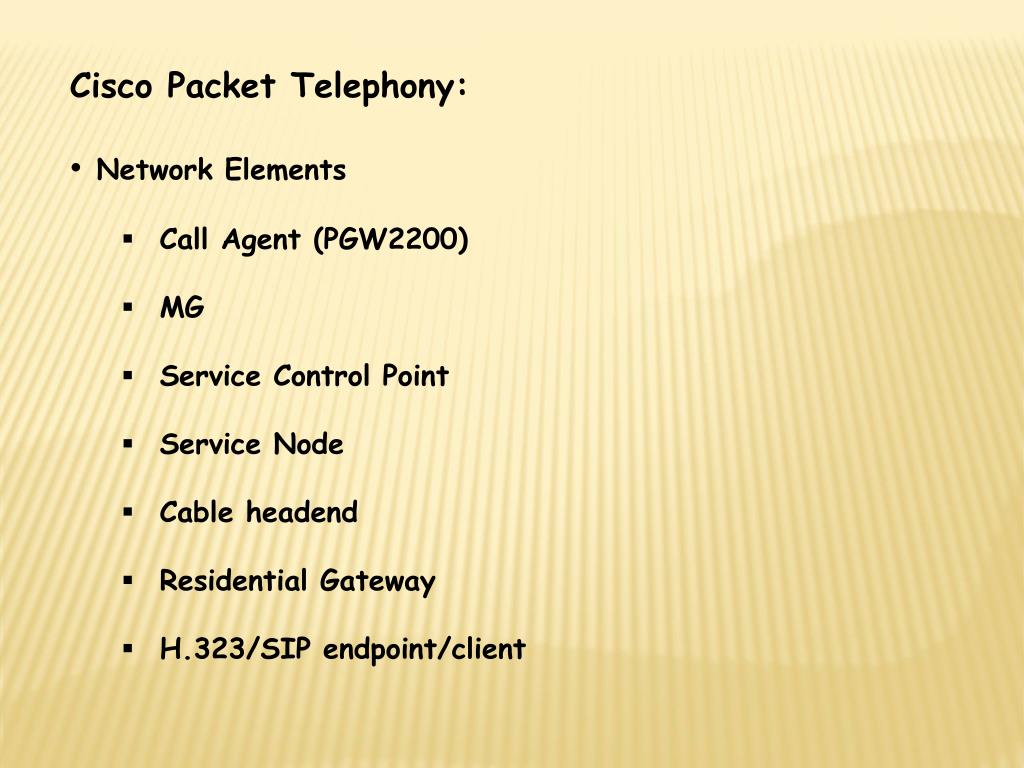

Cisco Packet Telephony:

  • Network Elements
    • Call Agent (PGW2200)
    • MG
    • Service Control Point
    • Service Node
    • Cable headend
    • Residential Gateway
    • H.323/SIP endpoint/client
slide9

Cisco Packet Telephony:

    • Call Agent (PGW2200)
    • Cisco Media Gateway Controller (MGC) software, running on Sun Microsystems general computing platforms
    • Cisco Signaling Link Terminals (SLT)
    • LAN switch for IP interconnectivity of Cisco PGW2200 elements
    • (optional) H.323 Signaling Interface (HIS) adjunct processor
    • (optional) Management products, including the Cisco MGC Node Manager, Cisco Voice Services Provisioning Tool (VSPT), and Cisco Billing and Management Server (BAMS)
slide10

Cisco Packet Telephony:

    • Call Agent (PGW2200) Gateway Applications
    • VoIP Transit
    • Primary Rate Interface (PRI) Grooming and TDM offload
    • SIP PSTN gateway
    • H.323 PSTN gateway
slide11

Cisco Packet Telephony:

    • Call Agent (PGW2200) Core Capabilities
    • Call-Signal processing
    • Address resolution, call routing, resource management, connection control, and call detail record (CDR) generation
    • Service Access Functions
    • Management Interfaces
slide12

Cisco Packet Telephony:

  • MG
    • Physical T1/E1 facility termination
    • Echo Cancelation
    • Balance of Jitter buffers
    • Voice Activity Detection (VAD)
    • Voice compression using, G.711, G.723, G.729 and others
    • Tone Generation
    • Dual-tone multifrequency (DTMF) transport
    • U-law and a-law transcoding
    • Quality of Service (QOS)
slide13

Cisco Packet Telephony:

  • Service Control Point
    • Provides an execution environment for service logic
    • Transaction request (number translation)
    • 800 Toll free service
    • Local Number Policy
slide14

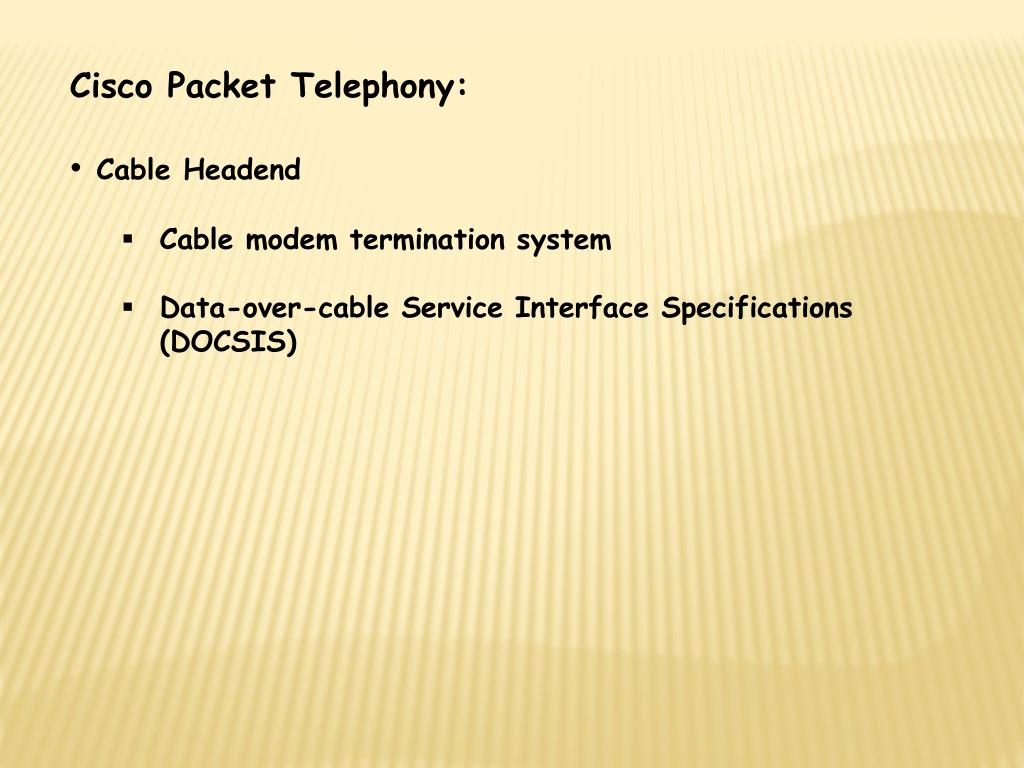

Cisco Packet Telephony:

  • Cable Headend
    • Cable modem termination system
    • Data-over-cable Service Interface Specifications (DOCSIS)
slide15

Cisco Packet Telephony:

  • Residential Gateway
    • Provides POTS ports to the home
    • Runs DOCSIS protocol
    • Example: DSL Modem
slide16

Cisco Packet Telephony:

  • H.323/SIP
    • Wide range of voice/multimedia applications
slide17

Cisco Packet Telephony:

  • Network Interfaces
    • Signaling Termination
    • Inter-call agent signaling
    • Connection control
    • Services Control
slide19

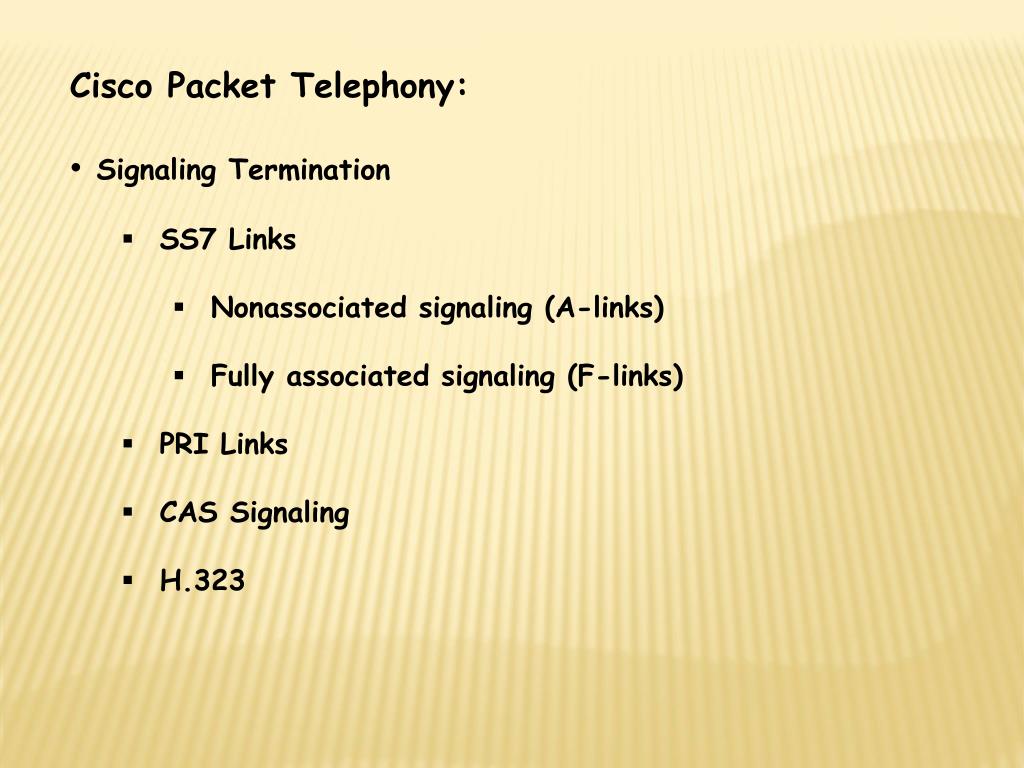

Cisco Packet Telephony:

  • Signaling Termination
    • SS7 Links
      • Nonassociated signaling (A-links)
      • Fully associated signaling (F-links)
    • PRI Links
    • CAS Signaling
    • H.323
slide20

Cisco Packet Telephony:

  • Inter-PGW2200 Signaling
    • Connection Control via MGCP
    • Services Control
slide21

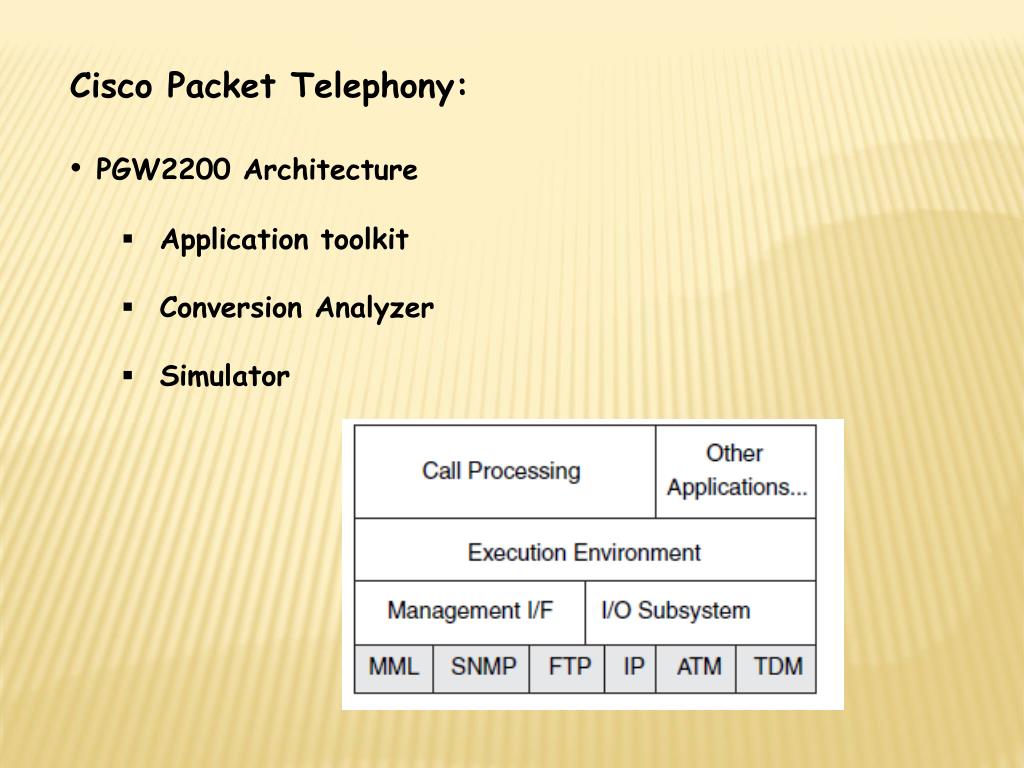

Cisco Packet Telephony:

  • PGW2200 Architecture
    • Application toolkit
    • Conversion Analyzer
    • Simulator
slide22

Cisco Packet Telephony:

  • PGW2200
    • Execution Environment
    • North American Numbering Plan
    • Route Analysis
    • Digit Analysis
    • Reroute on Congestion
slide23

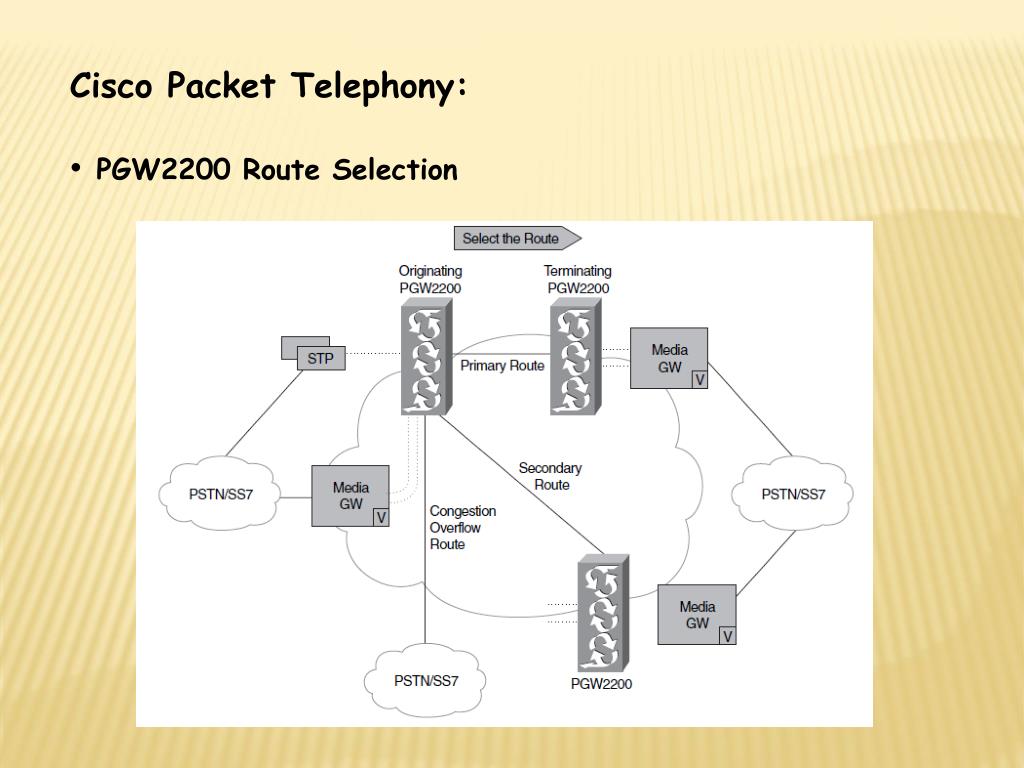

Cisco Packet Telephony:

  • PGW2200 Route Selection
slide24

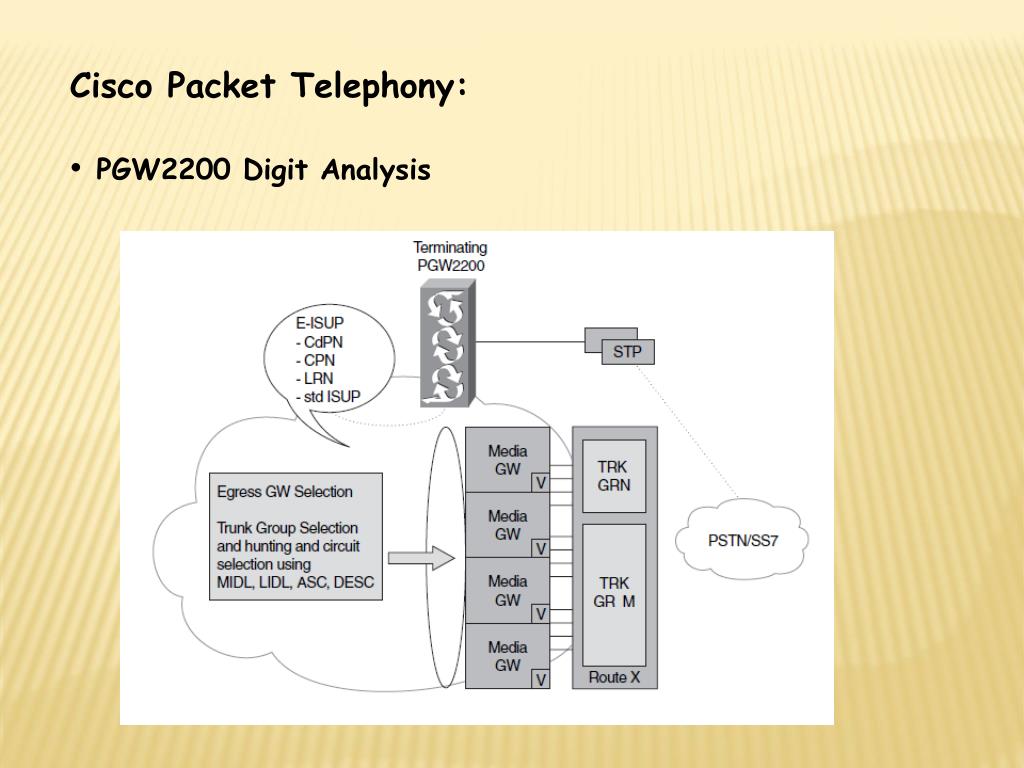

Cisco Packet Telephony:

  • PGW2200 Digit Analysis
slide25

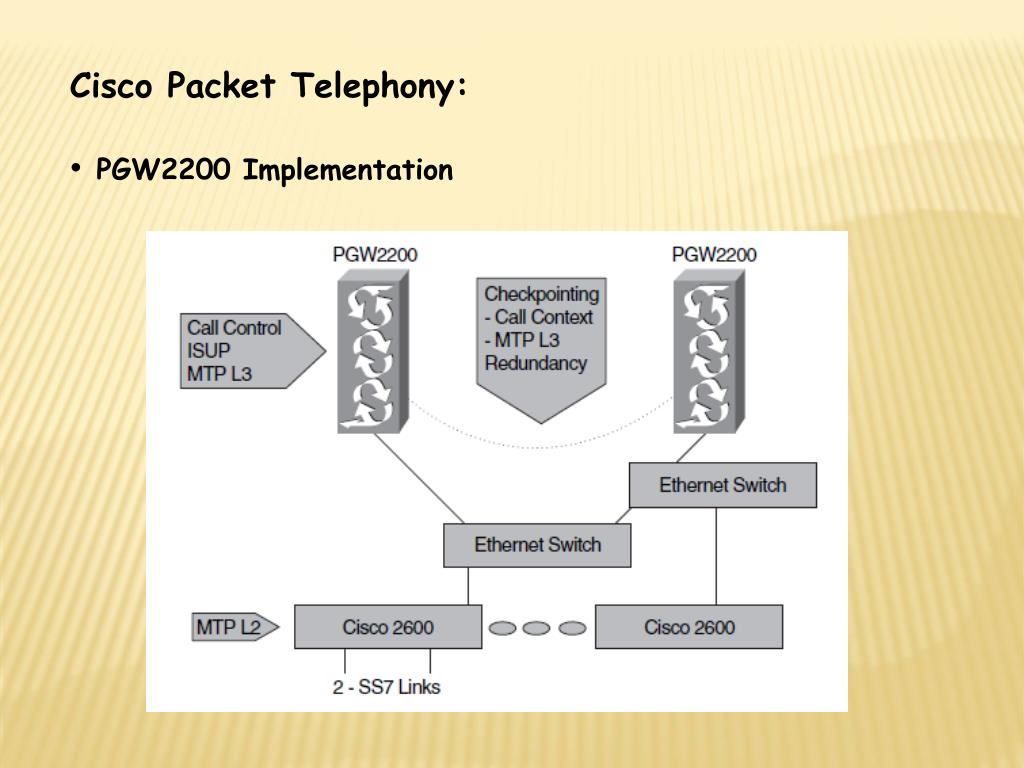

Cisco Packet Telephony:

  • PGW2200 Implementation
slide26

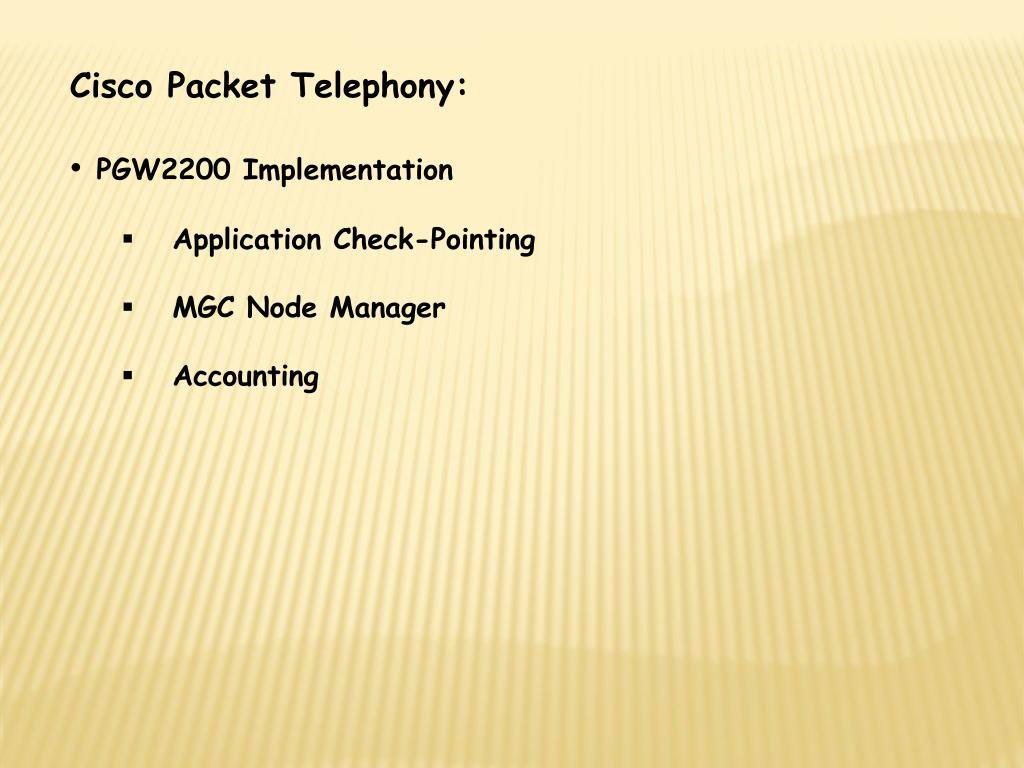

Cisco Packet Telephony:

  • PGW2200 Implementation
    • Application Check-Pointing
    • MGC Node Manager
    • Accounting
slide27

Cisco Packet Telephony:

  • PSTN Signaling Over IP
    • SCTP
    • IUA
slide28

Cisco Packet Telephony:

  • Changing Landscape of PSTN-IP Interworking
slide29

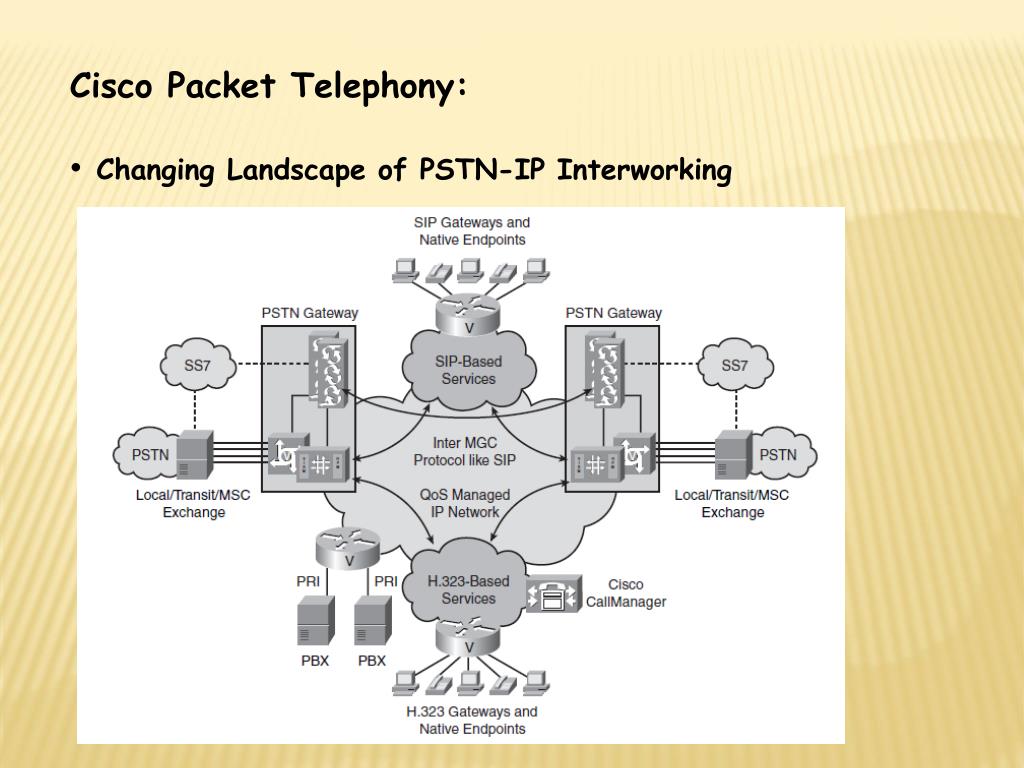

Cisco Packet Telephony:

  • Changing Landscape of PSTN-IP Interworking
slide30

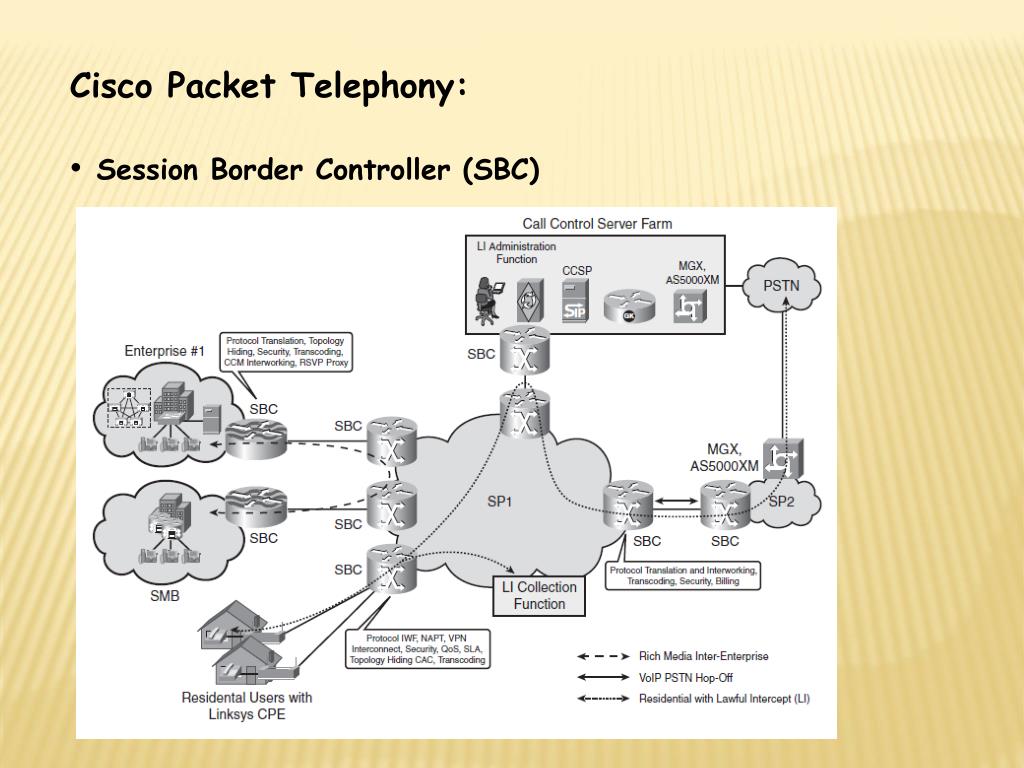

Cisco Packet Telephony:

  • Session Border Controller (SBC)
