  1. Cosmic Rays, Global Warmingand the Origin of life. Sir Arnold Wolfendale FRS, 14th Astronomer Royal.

  2. Topics to be covered. 1. Low Cloud Cover and the CR correlations. 2. Lightning. 3. Origin of life.

  3. Low cloud cover anomalies and CR intensity (Huancayo) – Svensmark (2007)

  4. There is a correlation – in time – between ‘cloud cover’, at low altitudes, and ‘cosmic ray intensity’. Is it a case of ‘cause and effect’?

  5. Cosmic ray ionization Charged cosmic rays produce ionization. Although unlikely, CR ions help the growth of cloud nuclei by attaching to aerosols. Check, first, by examining the cloud cover – CR correlation over the earth. Earth’s magnetic field causes a variation of CR intensity over the surface of the earth. Correlate with CR intensity or sun-spot number.

  6. Ions as condensation centres for clouds ? CR produce ~ 3 ion pairs cm-3s-1 in the lower atmosphere. Lifetime is ~ 50sec, so ~ 150cm-3. Clouds have ~ 100 droplets cm-3 so a link would appear to be obvious. But Supersaturations in atmosphere far too low for ions to be at an advantage. Aerosols (salt particles, dust, industrial emissions…) dominate. Sizes 10-1(10±2). ~ ~

  7. April 26, 1986 2 Mt of fall-out. No increase in cloud cover. (ions cloud droplets)  3% ~ ~ ~ Evidence from radioactive ‘events’ Chernobyl

  8.  10-4 ~ < Nuclear Bomb Tests E.g.BRAVO - Bikini Atoll, March1,1954. ~ 15 Mt radioactive particles,10 -100 300 miles from Ground Zero, dose rate ~ 100 Rh-1, after 4 days. Yields 5.107 ions cm-1s-1 Averaging over space and time and allowing for size distribution yields.

  9. ~ < Radon Radon is an important contributor to atmospheric ionization over land. Indian ‘hot spots’, particularly in the SW. Scans of low CC over two regions show no excess and  25%

  10. Dorman’s rigidity map

  11. Magnitude of the CC modulation vs. VRCO

  12. Possible explanations for the correlations – i.e. the 11 – year cycle. 1. Cosmic Rays a. LCC directly (difficult) b. Effect on atmospheric transparency – ht. ~10km (aerosols.) Kudryavstevetal,(2005) c. Electrical effects. CR affect the ‘global atmospheric circuit’ (Tinsley, Harrison, Rycroft…). Cloud edges?

  13. 2. Solar Irradiance Global mean Surface Temperature: peak to peak 0.07oc for change in radiation of 0.24Wm-2 Mt. Pinatubo Volcano (1991) Temperature reduction 0.8 deg C. year Change in radiation of 3.6 Wm-2 year A similar ratio (but energies very different): Pinatubo 1016J; oceanic change 2.1022J, - a factor of 1 million. Also problems with 22y/11y conversion and geographical distribution of temperature change for 11-y cycle.

  14. The ‘atmosphere’

  15. 1. CR contribution to 11-year cycle variability of mean global temperature < 15%. Tentative Conclusions ~ 2. CR contribution to slow increase of mean global temperature over last 35 years < 1%. ~ 3. Solar irradiance variations probably cause the solar cycle (11-year) oscillation.

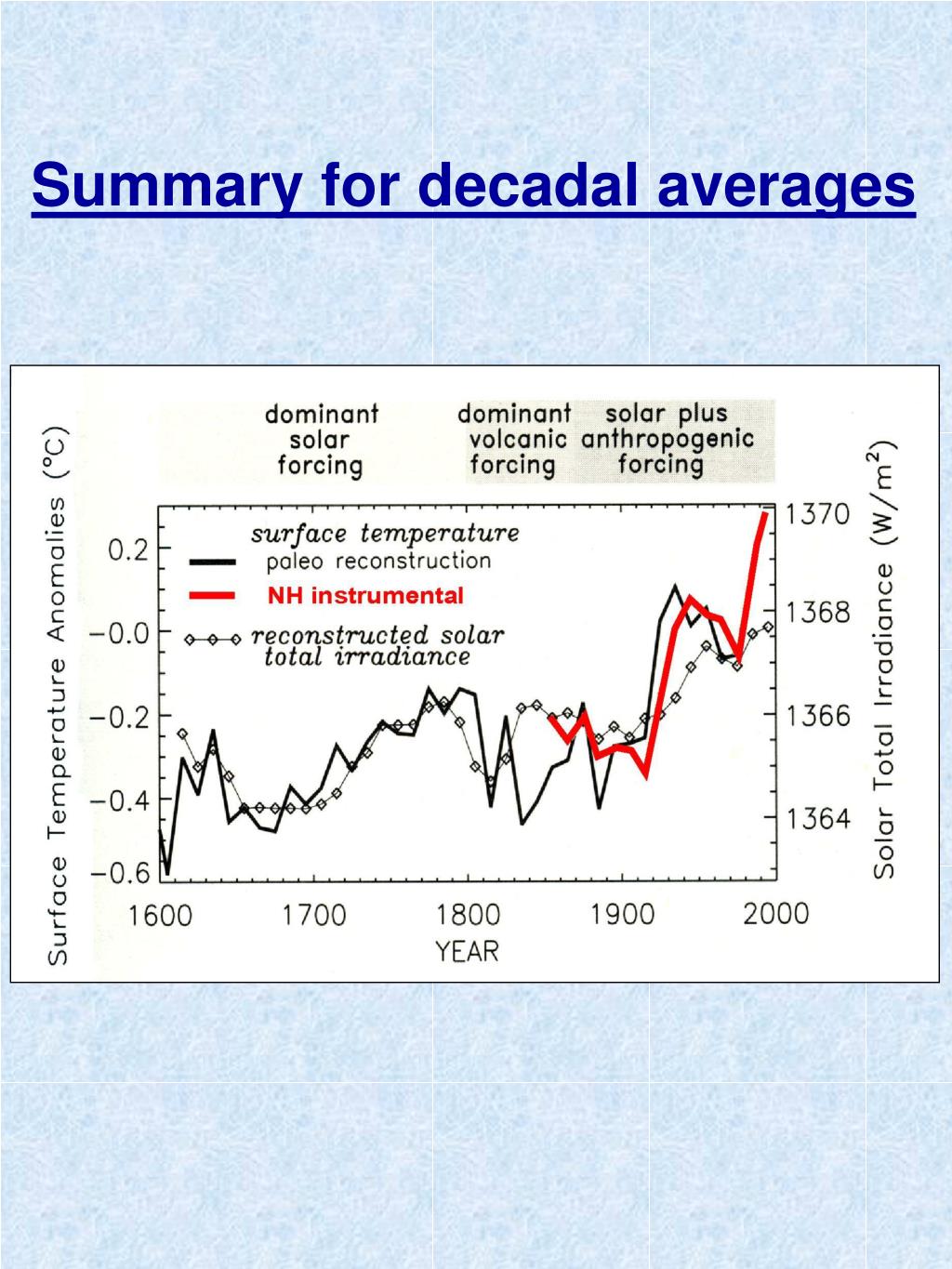

  16. Summary for decadal averages

  17. “Man made Global Warming”

  18. “Man made Global Warming”

  19. Global and continental temperature change

  20. CO2 Ozone Man – made Aerosols Natural Total Response Imbalance

  21. F2: Percentage cloud change for a 2% change in CR intensity

  22. Possible ‘natural causes’ of Global Warming 1. Cosmic Rays 2. Solar Effects 3. Milankovich Effects 4. Geothermal Changes 5. Volcanoes 6. Meteoritic and Cometary Dust 7.Oceanic Heat Re-distribution 8. Past ‘random’ changes. (10,000 y ago)

  23. Lightning

  24. Miller (1953) – and Miller & Urey water, methane, ammonia, etc. (the ‘pre-biotic soup’) Amino-acids RNA Monomers

  25. SNR Model : A.D. Erlykin & AWW (2001)

  26. On average, every million years, ICR(>1016eV) up by ~ 105 for ~ 30,000 years. Probably enough to cause a sufficiently large frequency of lightning discharges to cause production of RNA, monomers, etc. in the window : 4.5 – 3.5 By BP.

  27. After Parman (2009)

  28. More recently – and more probably – the generation of NOX by lightning will have had relevance to evolution. NOX is welcome to plants and bad for humans.
