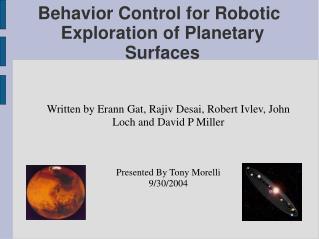

Written by Erann Gat, Rajiv Desai, Robert Ivlev, John Loch and David P Miller Presented By Tony Morelli 9/30/2004. Behavior Control for Robotic Exploration of Planetary Surfaces. Abstract. Describes robots developed at JPL (Jet Propulsion Laboratory)

I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
Download Presentation

PowerPoint Slideshow about 'Behavior Control for Robotic Exploration of Planetary Surfaces' - jadon

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.

- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
  • Describes robots developed at JPL (Jet Propulsion Laboratory)
  • Demonstrate using behavior-control approach to control small robots on planetary surfaces
  • Behavior-Control uses very little computation.
  • Cannot remote control robots from Earth because of the delay
  • Size is limited by power, not physical size
  • 3 ways to power a robot
    • Radioisotope Thermal Generators (decay of Plutonium)
    • Photovoltaic cells – Require heavy batteries
    • Non-Rechargable batteries – Short life
behavior control
Behavior control
  • (Rod) Brooks – Decompose the problem by task rather than function – Subsumption
  • Advantages of Behavior Based Control
    • Fast behaviors are not slowed down by slow behaviors (act independent of each other)
    • Task Specific so designers can simplify the behavior
alfa a language for action
ALFA – A Language For Action
  • Programming Language to describe reactive behavior-control mechanisms for autonomous robots
  • Consists of Modules connected by Channels
    • Module – Converts inputs to a set of outputs
    • Channel – Dataflow – Data from Modules or sensors
  • Similar to Subsumption
    • No Wires
    • Easier to add modules
    • Provide layers of computational abstraction rather than layers of functionality
tooth overview
Tooth - Overview
  • 30 cm X 20 cm – Indoor Robot
  • 1 Bit Sensors
    • Grippers and rear bumper
    • Infrared Proximity Sensors
  • Analog Sensors
    • Photo Cells (Find Light Beacon)
    • Tachometer on the drive motors
  • Used 3.5kBytes of EEPROM and 100 bytes of RAM
tooth control structure
Tooth – Control Structure
  • Drive Processor/Grasp Processor
  • Bottom Up Design
    • Cooridinating the Drive and Steering Motors
    • Backing up and getting out of endless loops
    • Picking up/Dropping objects – Head to beacon
tooth getting out of loops and dead ends
Tooth – Getting Out of Loops and Dead Ends
  • Unthrash Module
    • Lower priority than obstacle avoidance
    • Counts the number of times the robot changes direction in a certain amount of time and tunrs at a random direction if it thinks it's stuck
  • Dead ends – If the Robot hits a dead end it will back up, then try to go forward. If it hits a wall again, it will back up more the next time.
  • Grasp Module – If it tries too many times to pick up something, it will give up
  • Forward turning radius is different than backwards
tooth results
Tooth - Results
  • No way of searching out objects, just finds them while wandering around
  • Very Robust
  • Could not handle wires, holes or bright lights
rocky iii overview
Rocky III - Overview
  • Demonstrate behavior control could be used in a realistic planetary mission
  • Infrared beacon detector
  • 10 kBytes of RAM
  • Weighs 18kg
rocky iii control structure
Rocky III – Control Structure
  • 3 Layers nearly identical to Tooth
    • Speed and Direction
    • Obstacle Avoidance
    • Sequencer
rocky iii results
Rocky III - Results
  • Very Reliable
    • 90% of the time completes its mission
  • First example of an autonomous that operates in outdoor natural terrain that performs both navigation and manipulation
rocky iv overview
Rocky IV - Overview
  • Chasis is virtually identical to Rocky III
  • Weighs 7.5kg
  • Construction Materials were modified to work in the climate on mars.
  • 1 Master Processor and 3 slave processors
rocky iv status
Rocky IV - Status
  • Not yet complete
  • Every aspect of a Mars mission has been demonstrated
  • Hardware Issues – Activating the rock chipper caused the computer to crash (Obviously not software related)
  • Behavior control succeeds because action selection is not a difficult problem.
  • ALFA code is easy to write, debug, and re-use
  • Other robots were larger because they were required to scale a 1 meter tall objects
  • Few simple sensors work as well as a lot of complex sensors
summary and conclusion
Summary and Conclusion
  • Low power consumption is a necessity
  • Low CPU usage to save power
  • Used a modified version of subsumption
  • ALFA seperates data flow computations from state machine computations
  • As complex as other State of the Art robots
