wastewater collection systems

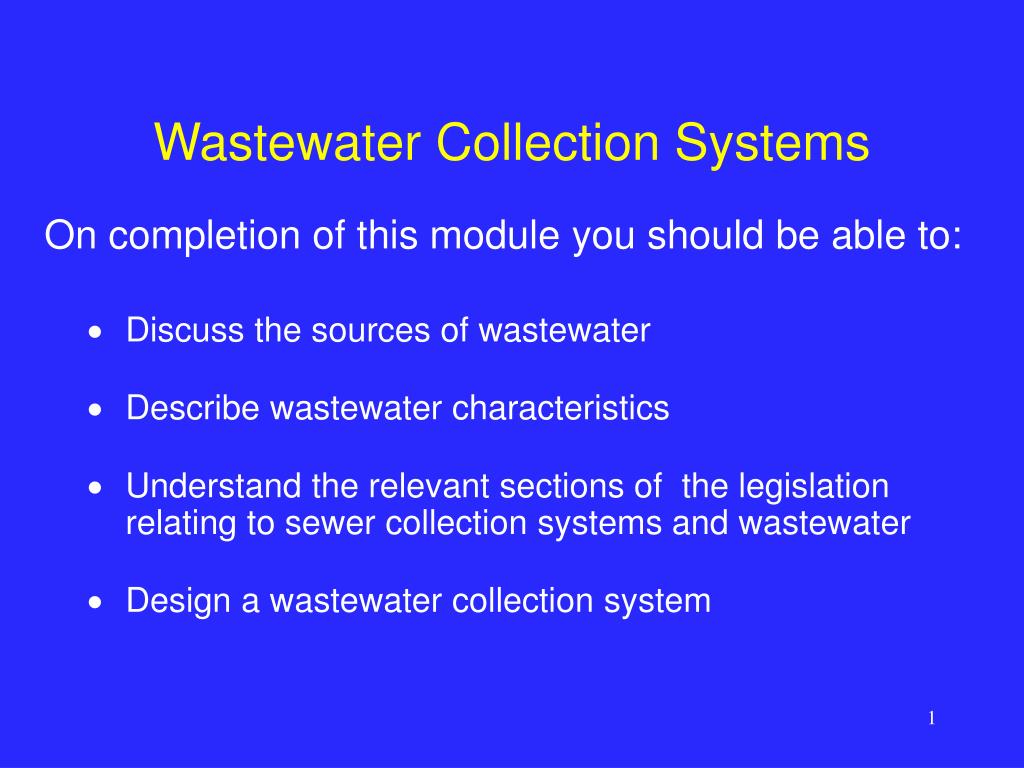

Wastewater Collection Systems

On completion of this module you should be able to:

  • Discuss the sources of wastewater
  • Describe wastewater characteristics
  • Understand the relevant sections of the legislation relating to sewer collection systems and wastewater
  • Design a wastewater collection system
wastewater collection systems1
Wastewater Collection Systems

Sources of wastewater

  • Domestic flows
  • Industrial and trade wastes
  • Urban stormwater
  • Infiltration/inflow
wastewater collection systems2
Wastewater Collection Systems

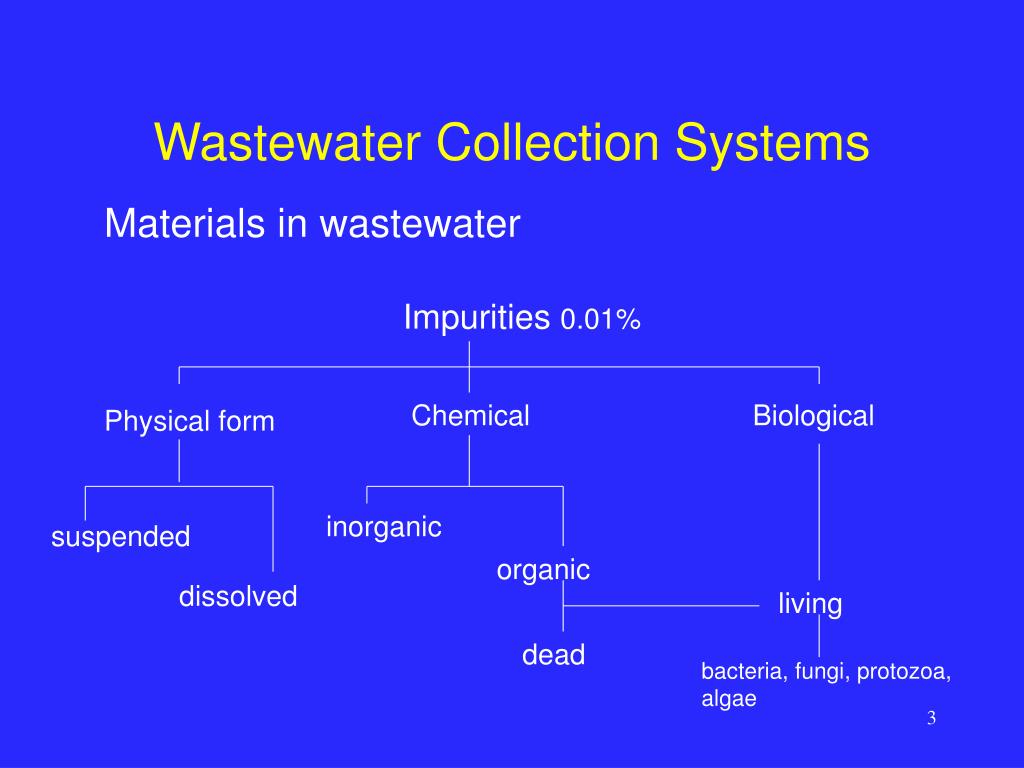

Materials in wastewater

Impurities 0.01%



Physical form







bacteria, fungi, protozoa,


wastewater collection systems3

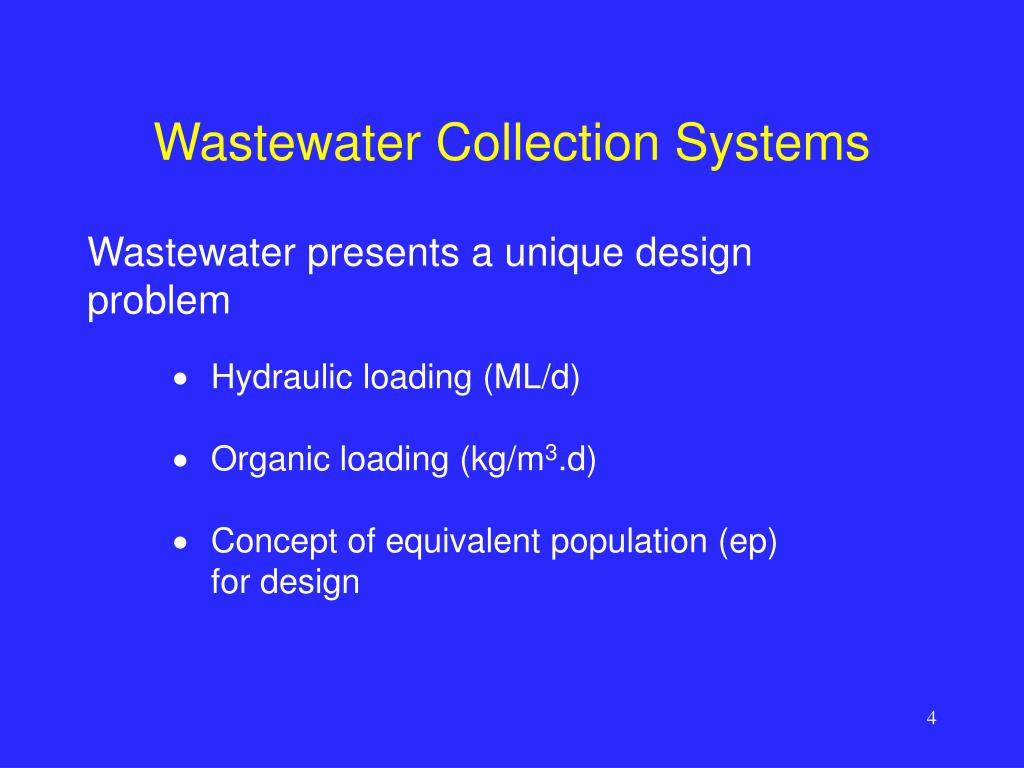

Wastewater Collection Systems
  • Hydraulic loading (ML/d)
  • Organic loading (kg/m3.d)
  • Concept of equivalent population (ep) for design

Wastewater presents a unique design problem

wastewater collection systems4
Wastewater Collection Systems

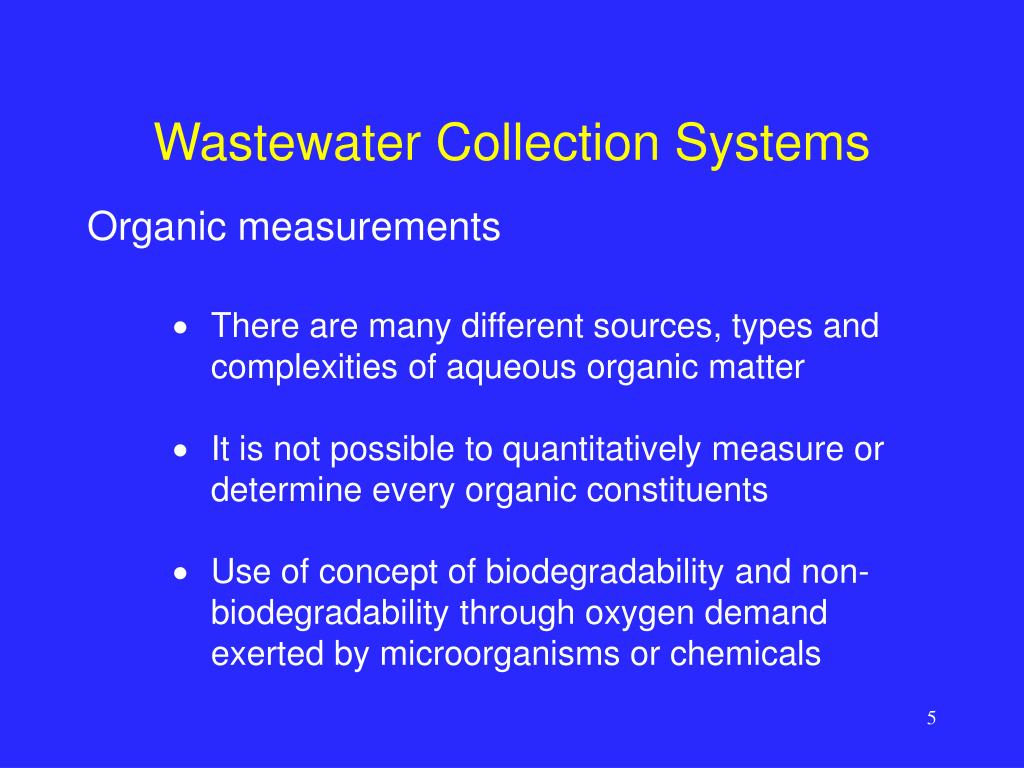

Organic measurements

  • There are many different sources, types and complexities of aqueous organic matter
  • It is not possible to quantitatively measure or determine every organic constituents
  • Use of concept of biodegradability and non-biodegradability through oxygen demand exerted by microorganisms or chemicals
biochemical oxygen demand bod 5

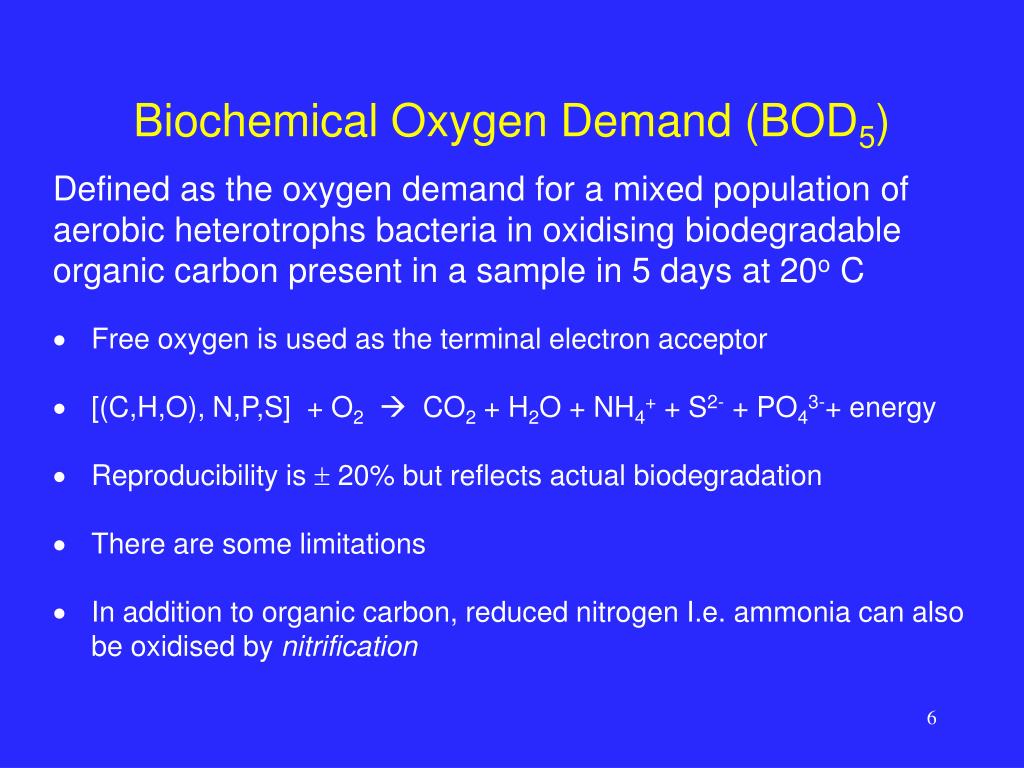

Biochemical Oxygen Demand (BOD5)

Defined as the oxygen demand for a mixed population of aerobic heterotrophs bacteria in oxidising biodegradable organic carbon present in a sample in 5 days at 20o C

  • Free oxygen is used as the terminal electron acceptor
  • [(C,H,O), N,P,S] + O2 CO2 + H2O + NH4+ + S2- + PO43-+ energy
  • Reproducibility is  20% but reflects actual biodegradation
  • There are some limitations
  • In addition to organic carbon, reduced nitrogen I.e. ammonia can also be oxidised by nitrification
chemical oxygen demand cod

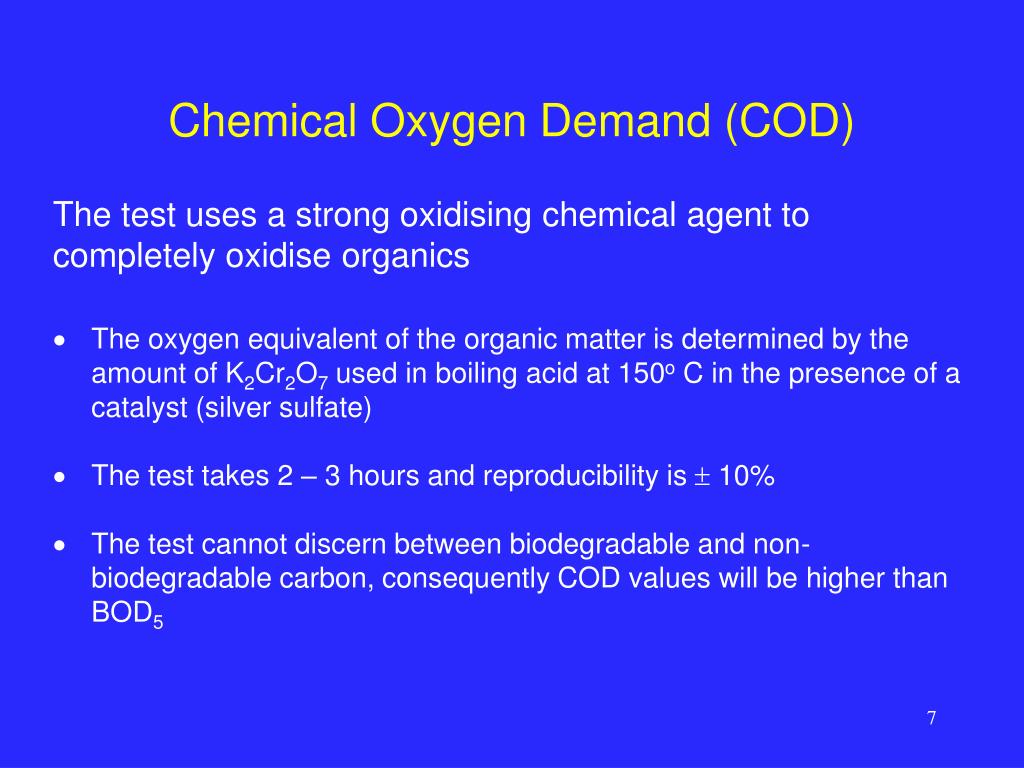

Chemical Oxygen Demand (COD)

The test uses a strong oxidising chemical agent to completely oxidise organics

  • The oxygen equivalent of the organic matter is determined by the amount of K2Cr2O7 used in boiling acid at 150o C in the presence of a catalyst (silver sulfate)
  • The test takes 2 – 3 hours and reproducibility is  10%
  • The test cannot discern between biodegradable and non-biodegradable carbon, consequently COD values will be higher than BOD5
solids in wastewater

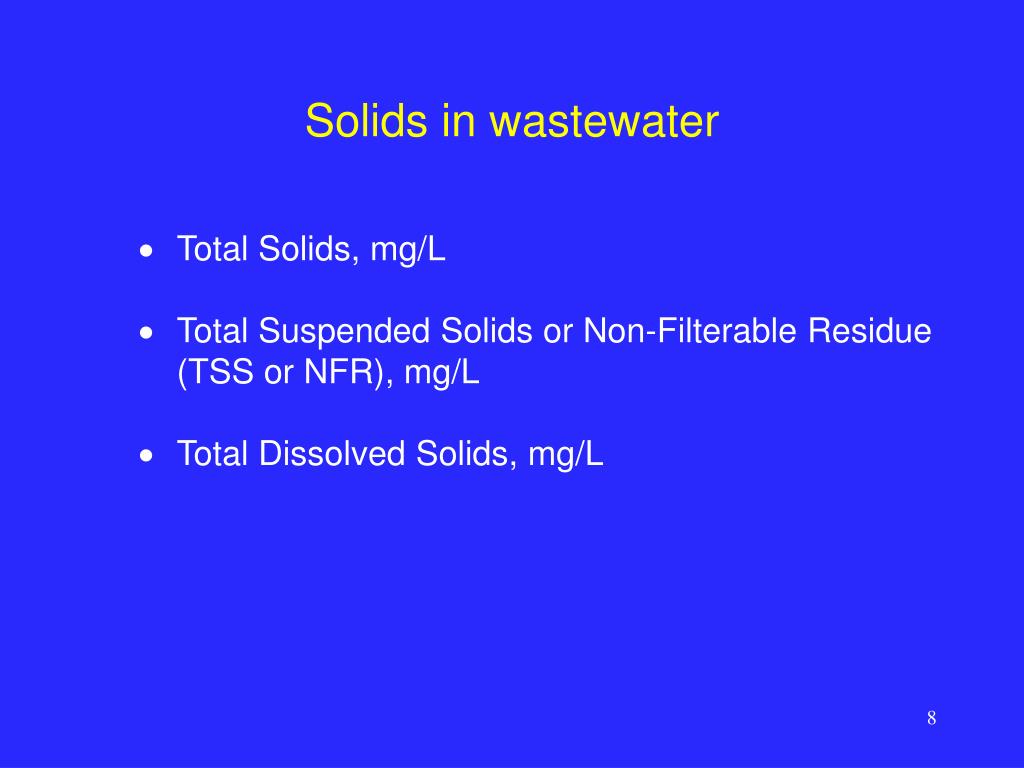

Solids in wastewater
  • Total Solids, mg/L
  • Total Suspended Solids or Non-Filterable Residue (TSS or NFR), mg/L
  • Total Dissolved Solids, mg/L
wastewater collection systems5
Wastewater Collection Systems

Relevant legislations

  • Sewerage and Water Supply Act is replaced with the Plumbing and Drainage Act 2002 and the Standard Plumbing & Drainage Regulation 2003
  • Environmental Protection Act 1994that relates to quantity and quality of flows into the environment
plumbing and drainage act 2002
Plumbing and Drainage Act 2002

The act and its supporting Standard Plumbing & Drainage Regulation 2003 generally deals with

  • Assessing plumbing and drainage work
  • Product certification
  • Installation on premises
environmental protection act 1994

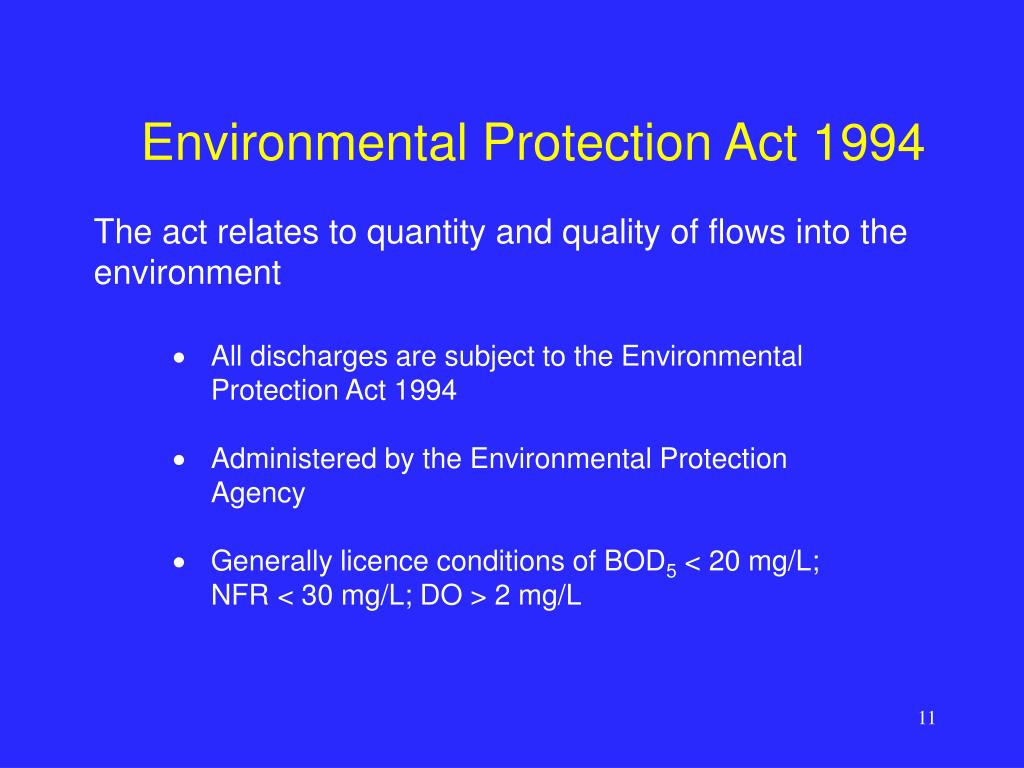

Environmental Protection Act 1994

The act relates to quantity and quality of flows into the environment

  • All discharges are subject to the Environmental Protection Act 1994
  • Administered by the Environmental Protection Agency
  • Generally licence conditions of BOD5 < 20 mg/L; NFR < 30 mg/L; DO > 2 mg/L
wastewater collection systems6
Wastewater Collection Systems

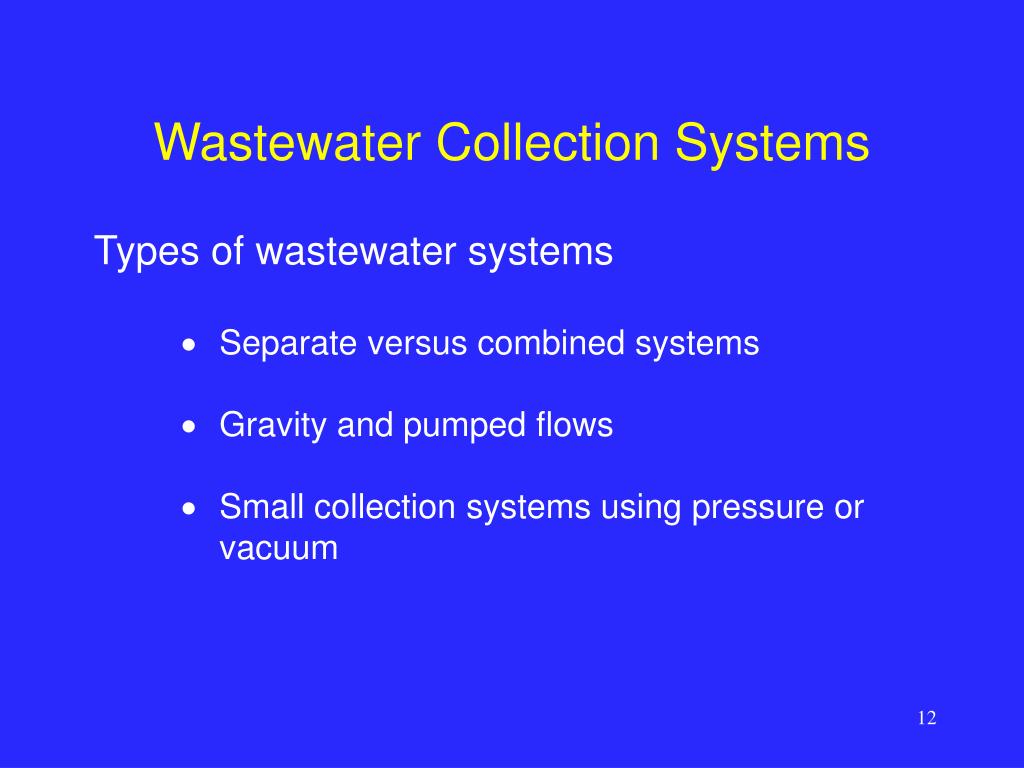

Types of wastewater systems

  • Separate versus combined systems
  • Gravity and pumped flows

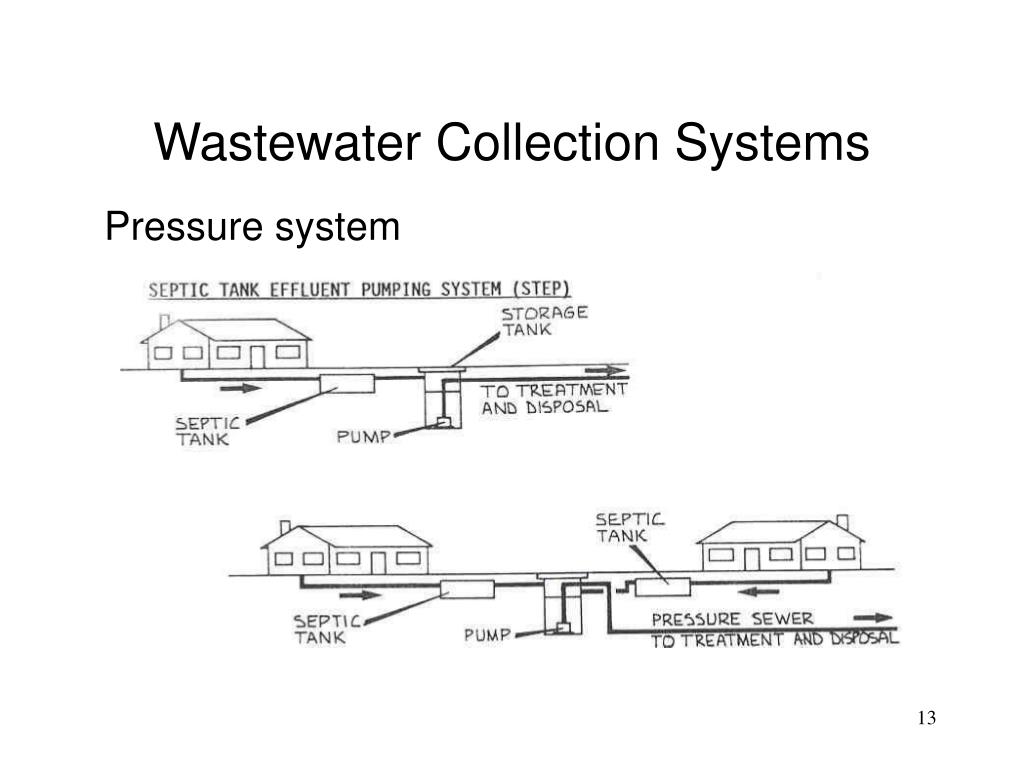

  • Small collection systems using pressure or vacuum
wastewater collection systems9
Wastewater Collection Systems

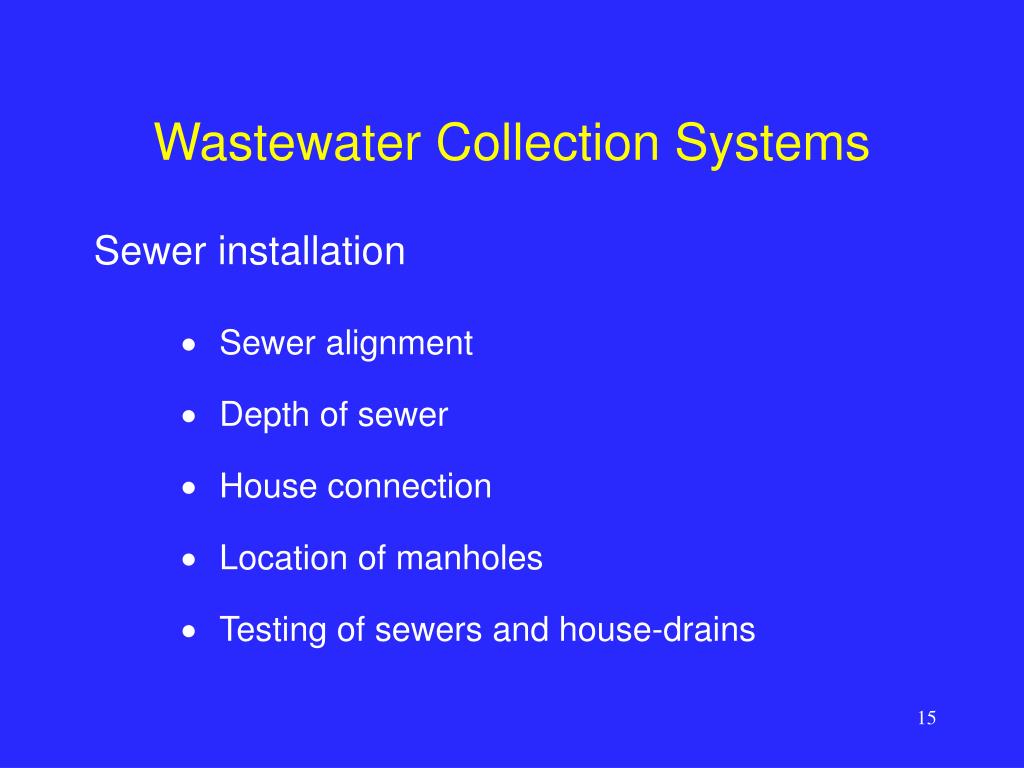

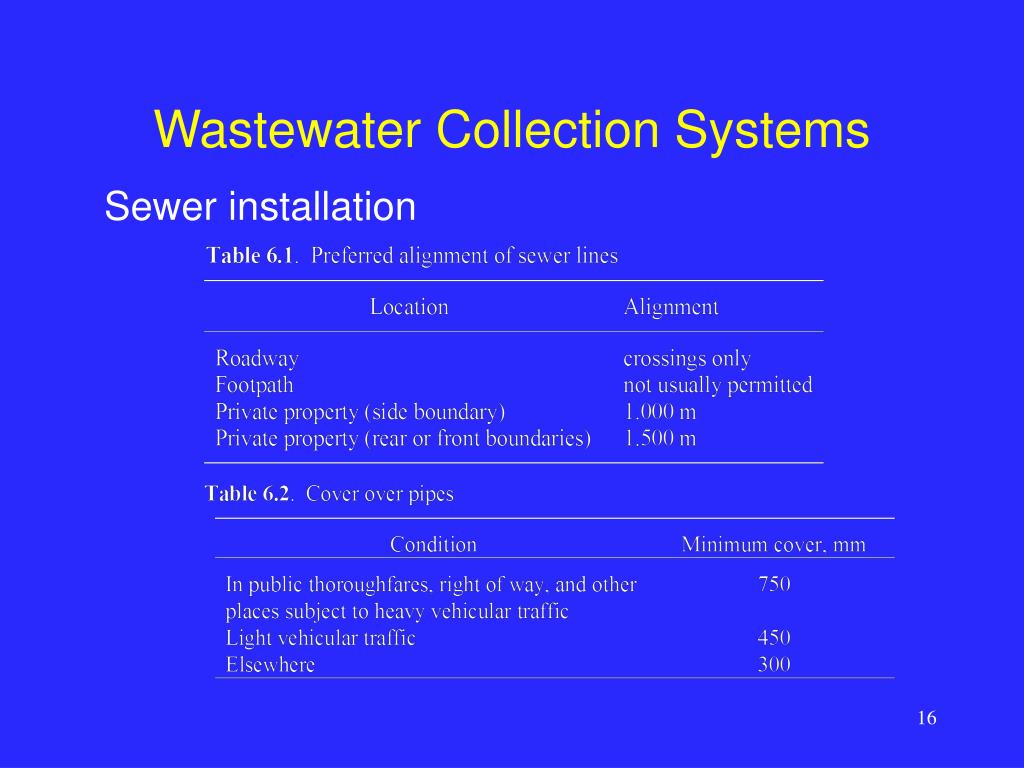

Sewer installation

  • Sewer alignment
  • Depth of sewer
  • House connection
  • Location of manholes
  • Testing of sewers and house-drains

Factors that control the depth of sewers

  • Self-cleansing velocity ie. minimum slope
  • Minimum cover to protect the sewer
  • Required depth to drain properties serviced
  • Sufficient depth to avoid other services

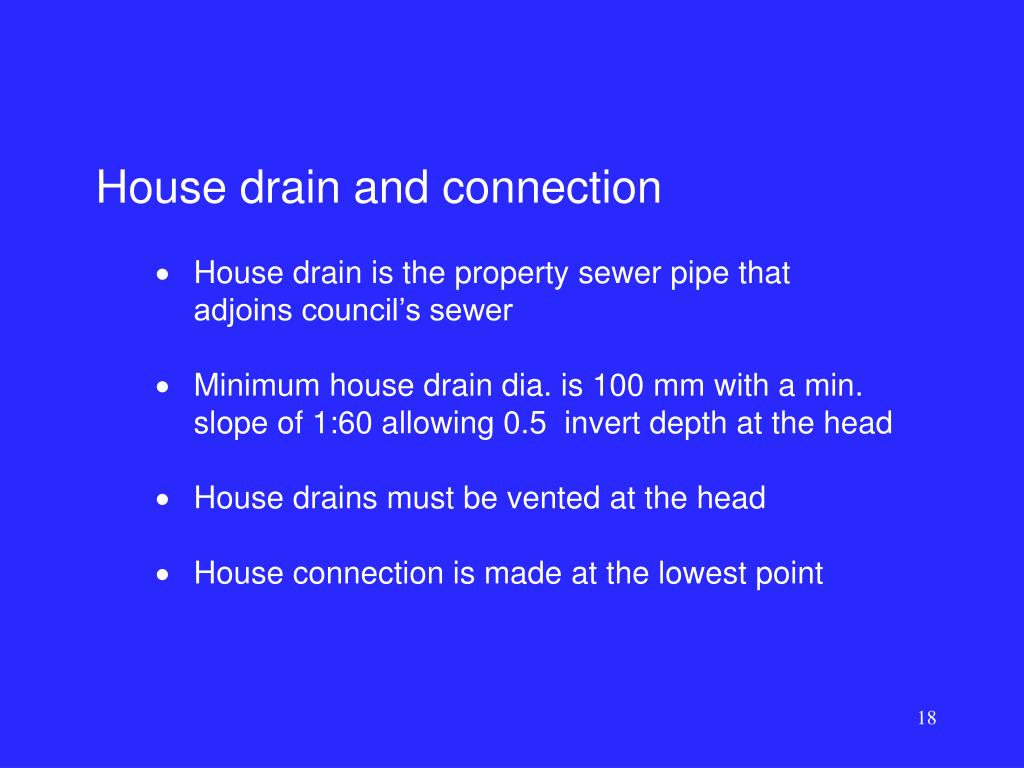

House drain and connection

  • House drain is the property sewer pipe that adjoins council’s sewer
  • Minimum house drain dia. is 100 mm with a min. slope of 1:60 allowing 0.5 invert depth at the head
  • House drains must be vented at the head
  • House connection is made at the lowest point
wastewater collection systems11
Wastewater Collection Systems

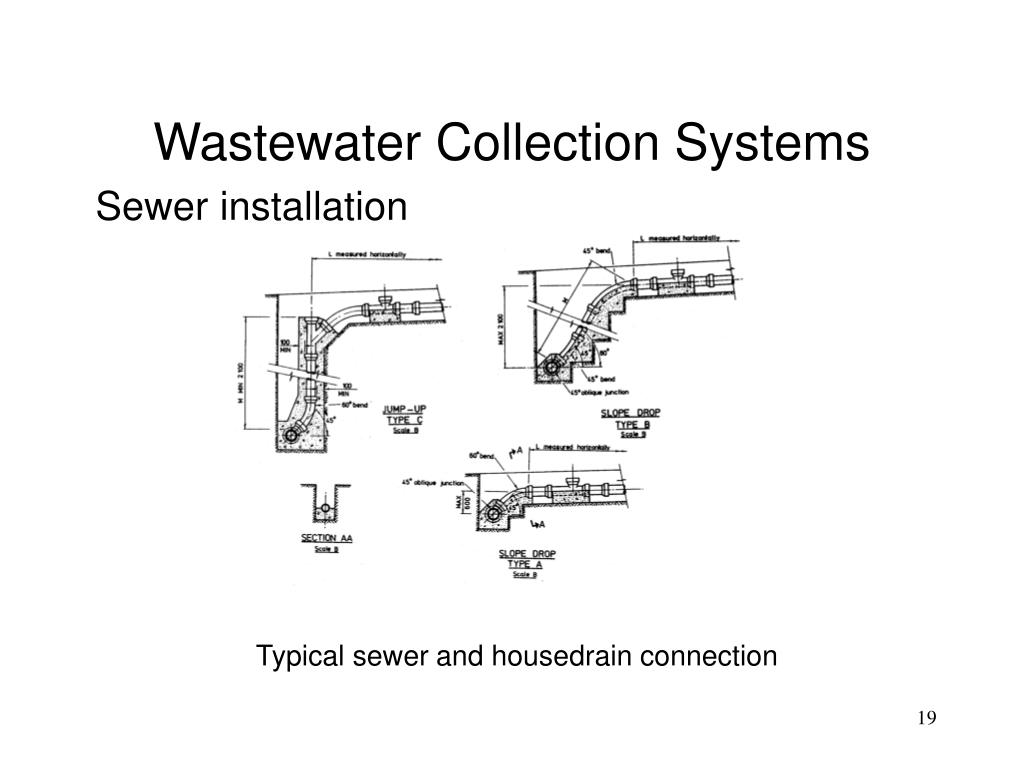

Sewer installation

Typical sewer and housedrain connection

wastewater collection systems12
Wastewater Collection Systems

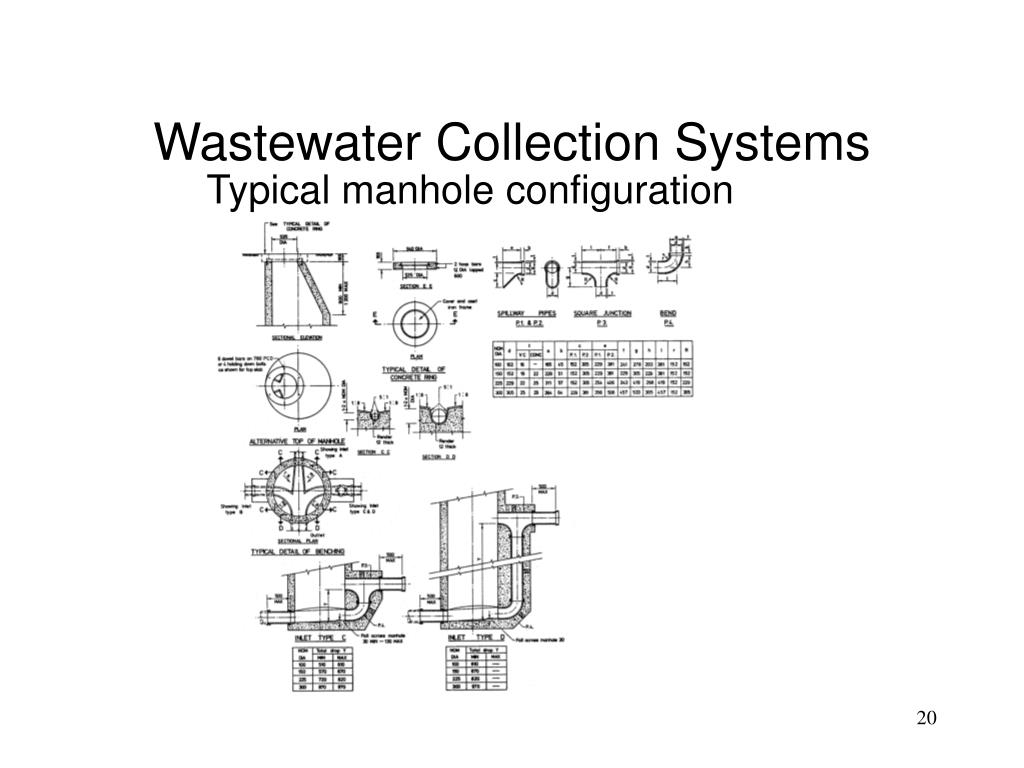

Typical manhole configuration

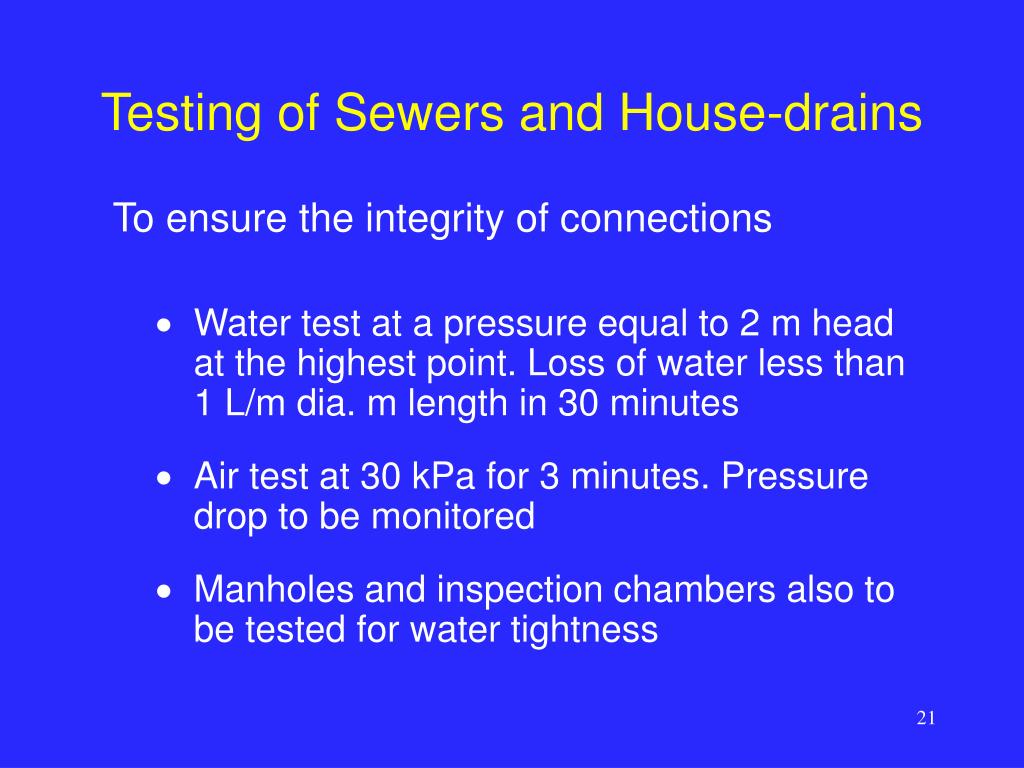

testing of sewers and house drains
Testing of Sewers and House-drains

To ensure the integrity of connections

  • Water test at a pressure equal to 2 m head at the highest point. Loss of water less than 1 L/m dia. m length in 30 minutes
  • Air test at 30 kPa for 3 minutes. Pressure drop to be monitored
  • Manholes and inspection chambers also to be tested for water tightness

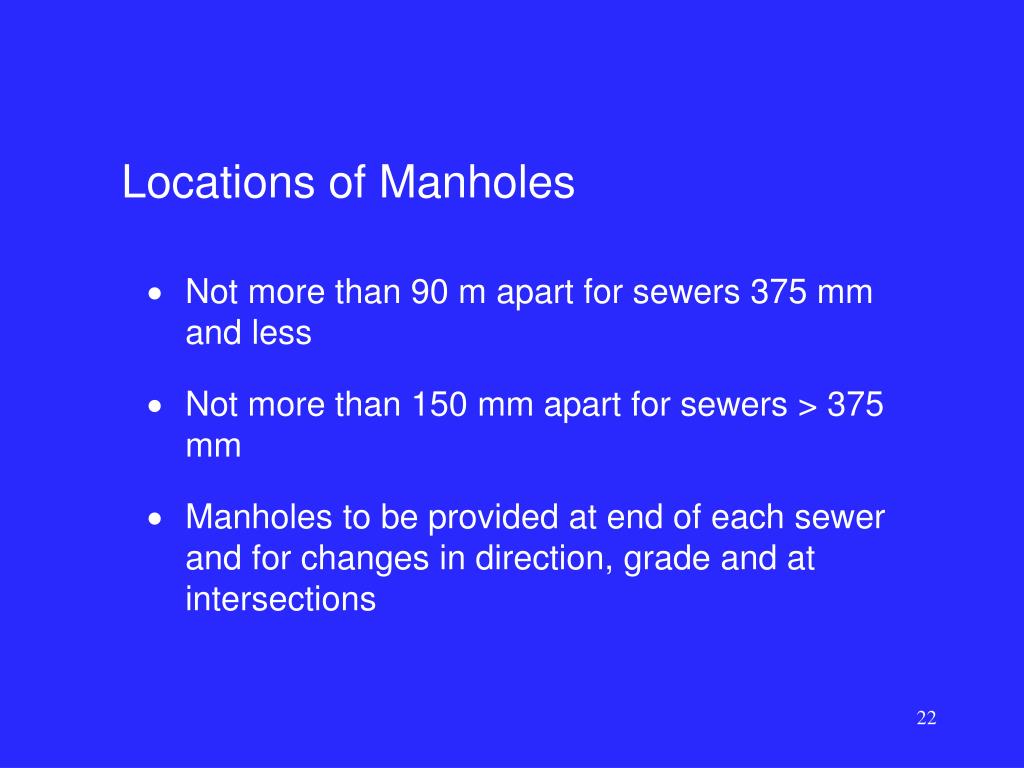

Locations of Manholes

  • Not more than 90 m apart for sewers 375 mm and less
  • Not more than 150 mm apart for sewers > 375 mm
  • Manholes to be provided at end of each sewer and for changes in direction, grade and at intersections
design of gravity sewers

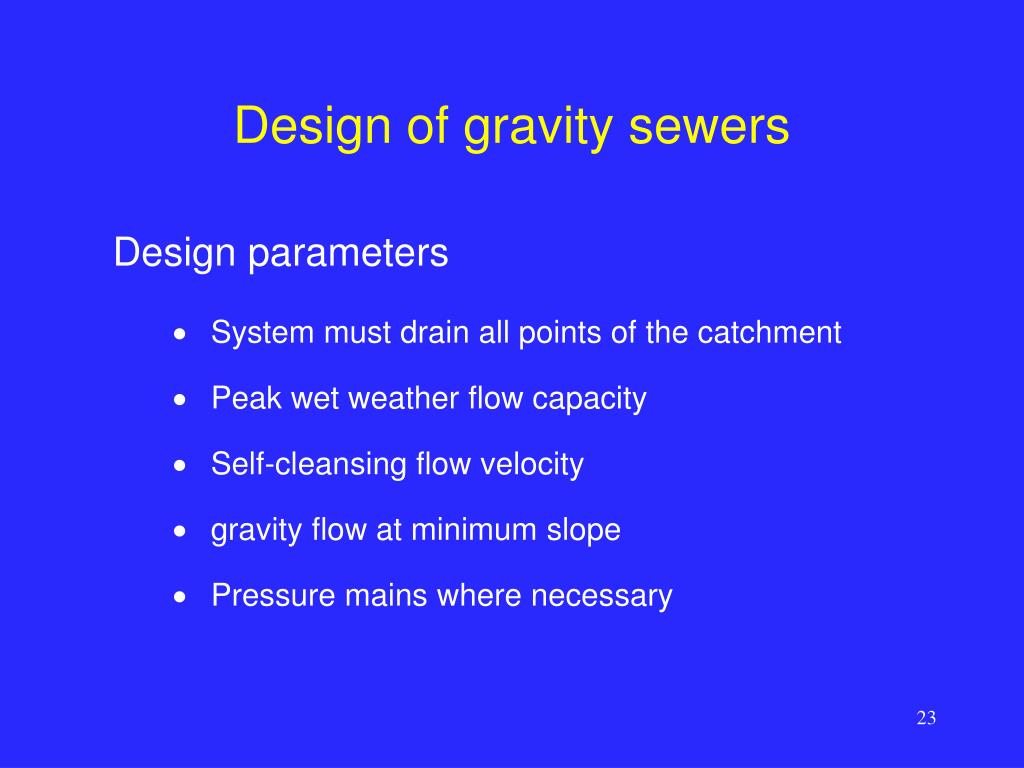

Design of gravity sewers
  • System must drain all points of the catchment
  • Peak wet weather flow capacity
  • Self-cleansing flow velocity
  • gravity flow at minimum slope
  • Pressure mains where necessary

Design parameters


Design for maximum flow

Queensland Planning Guidelines for Water Supply and Sewerage

  • Average dry weather flow (ADWF) 275 L/c.d

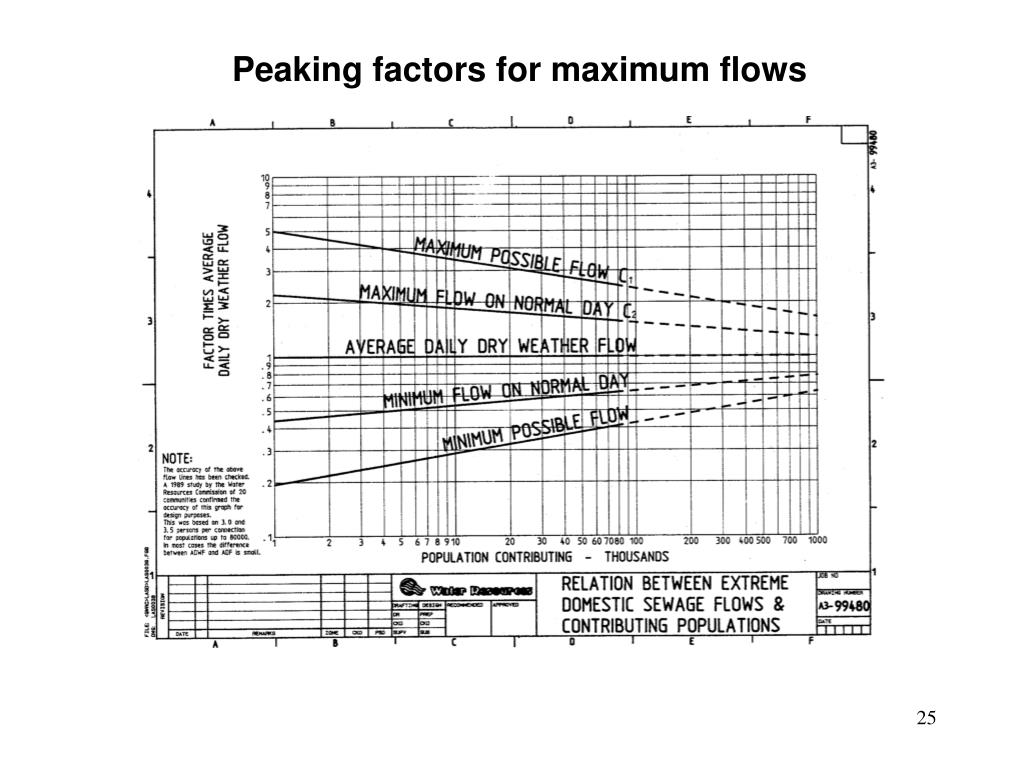

  • Peak dry weather flow, PDWF = C1 x ADWF
  • Peak wet weather flow, PWWF = C1 .ADWF + I/I

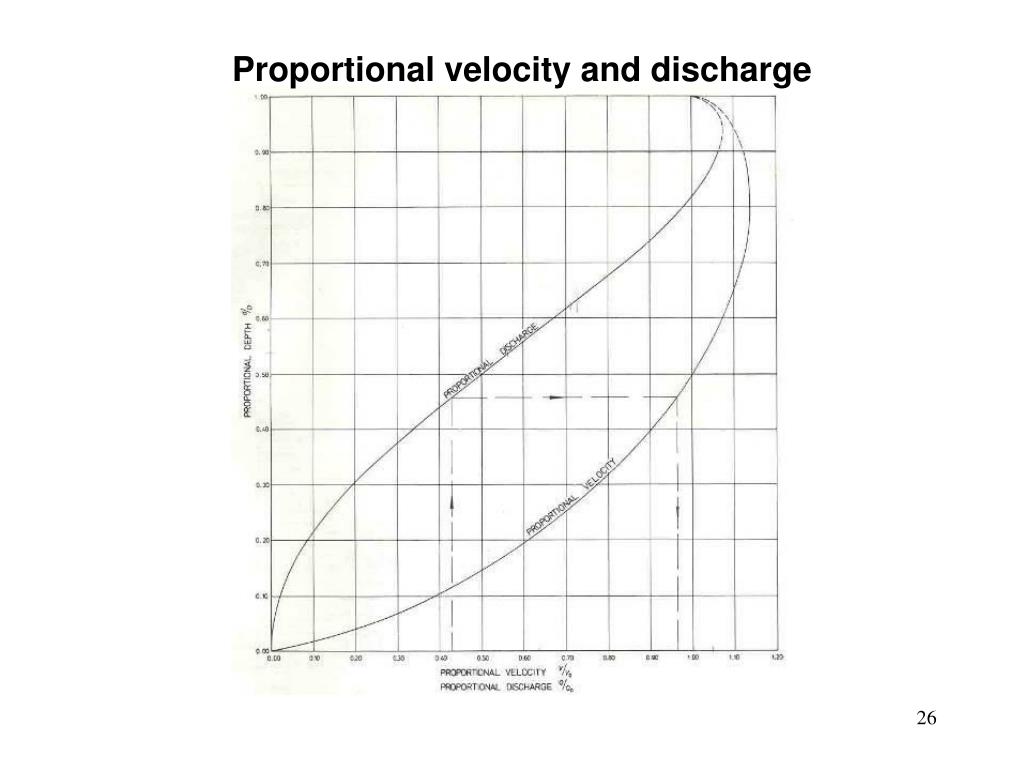

  • Maximum flow at 3/4 pipe depth
wastewater collection systems13
Wastewater Collection Systems

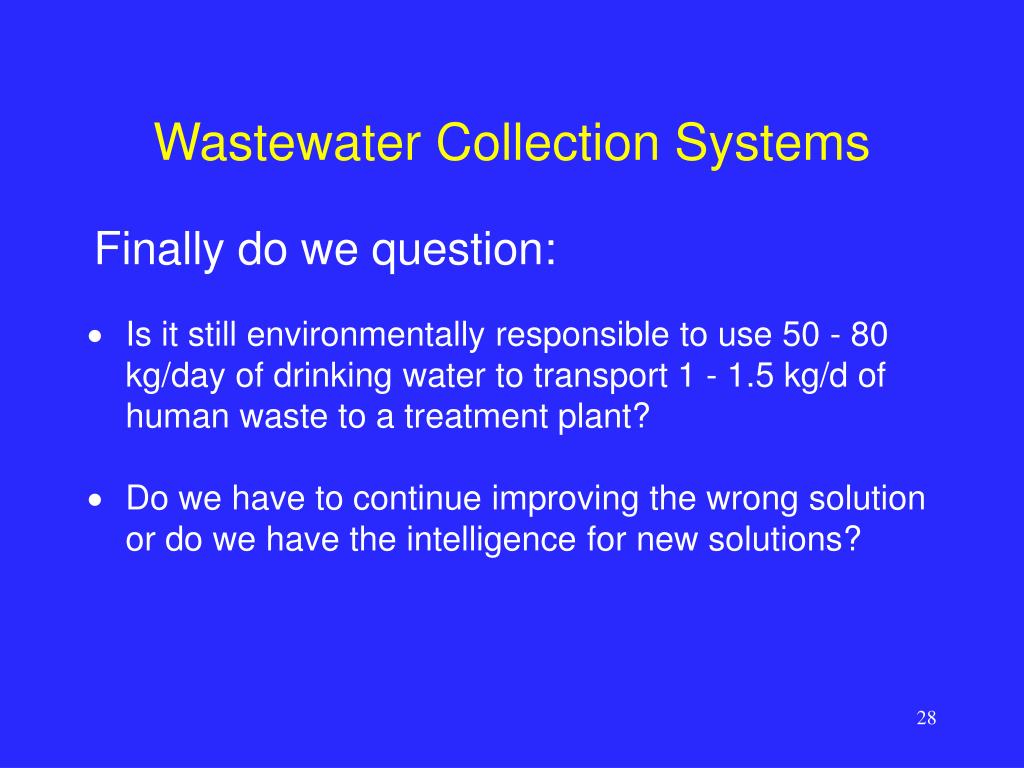

Finally do we question:

  • Is it still environmentally responsible to use 50 - 80 kg/day of drinking water to transport 1 - 1.5 kg/d of human waste to a treatment plant?
  • Do we have to continue improving the wrong solution or do we have the intelligence for new solutions?
