presentation outline
Presentation Outline

How does this system work?

  • Systems Techniques
  • Flowcharting Techniques
  • System Technique Symbols
  • The Use of Systems Techniques
i systems techniques
I. Systems Techniques

Systems techniques are tools used in analysis, design, and documentation of system and subsystem relationships.

  • Flowcharting
  • Logical Data Flow Diagrams (DFDs)
  • Charting Techniques
  • Narrative Techniques
  • Resource Utilization Analysis
  • Decision Analysis Techniques
a flowcharting
A. Flowcharting

Read

Record

A flowchart is a symbolic diagram that shows the data flow and sequence of operations in a system.

Decision

Process

1

Process

2

Output

b logical data flow diagrams dfds
B. Logical Data Flow Diagrams (DFDs)

A systems analyst often acts as the communication link between users of a system and the programmers/systems support staff who will physically design the system to meet the user needs.

The intent of using DFDs is to separate clearly the logical process of systems analysis from the physical process of systems design. The systems analyst provides a logical description to the systems designer/programmer, who then designs the physical specification..

c charting techniques
C. Charting Techniques

HIPO charts consist of two segments.

  • Hierarchy chart breaking down processing tasks into modules. See Figure 2-6 on page 38.
  • IPO (Input-Process-Output) chart describing the input- process-output requirements of each module. See Figure 2-5 on page 38.
d narrative techniques
D. Narrative Techniques

Narrative techniques are often particularly useful in the fact finding stage of systems analysis. Various techniques include:

  • In depth and structured interviews
  • Open-ended and closed-ended questionnaires
  • Document reviews
e resource utilization analysis
E. Resource Utilization Analysis
  • Work measurement involves techniques used to identify tasks, obtain and adjust time estimates for the tasks, and analyze requirements in terms of total task time and capacity utilization
  • Work distribution analysis involves assignment of tasks to employees. See Table 2-2 on page 50.
f decision analysis techniques
F. Decision Analysis Techniques

A decision symbol in a flowchart can only show two flow condition. More complex decision functions may be represented using one of the following:

  • Branching tables
  • Decision tables
1 branching tables

Code Equal to

Freshman

Sophomore

Junior

Senior

Go to

A

B

Orientation

Exit

Evaluation

1. Branching Tables

A branching table consists of a single condition that can result in more than two paths of processing.

The “Go to” section contains either a connector symbol reference or a single flowline to another symbol.

2 decision tables
2. Decision Tables

A decision table is similar to a branching table but more complex in that it incorporates multiple decision criteria.

Illustration

An analyst wishes to prepare a decision table for

purchase order procedures. First, there is a credit

check of the customer. If credit is approved, the

order is accepted. If the order calls for 0 to 25 units,

there is no discount on the order. If the order calls

for 26 to 55 units, it is eligible for a 5 percent

discount; if more than 55 units are ordered, the

discount is 10 percent.

slide12

An Example of a Limited-Entry Decision Table

Condition entries are limited to Y, N, or N/A (-). Processing actions are either present or absent.

slide13

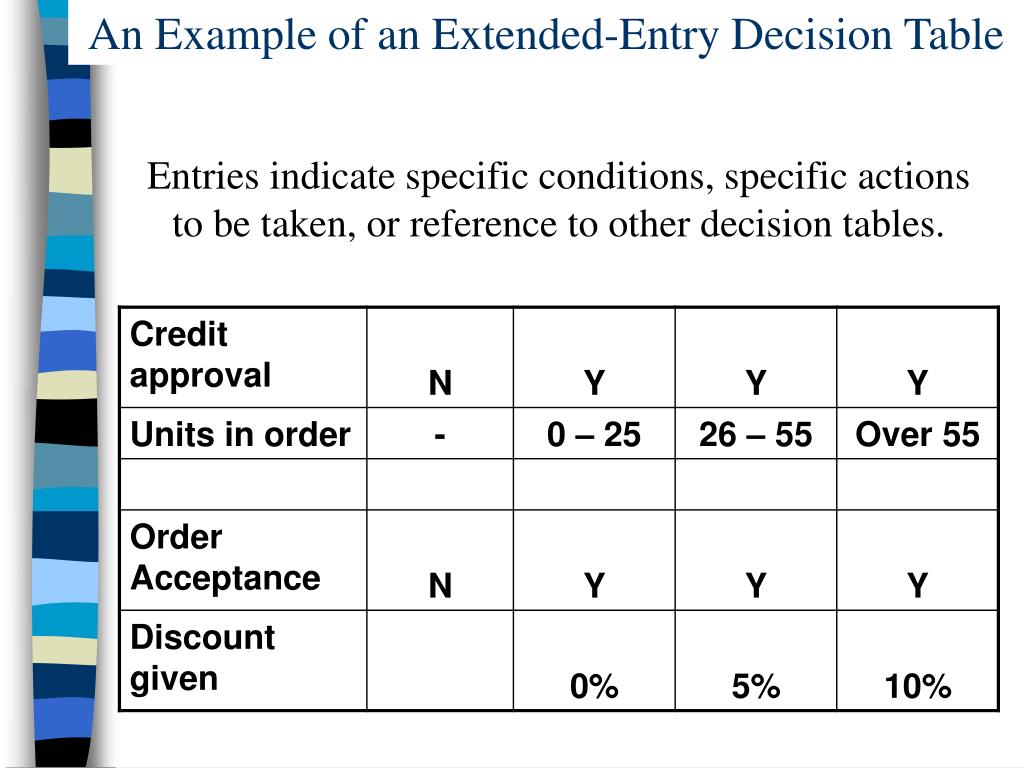

An Example of an Extended-Entry Decision Table

Entries indicate specific conditions, specific actions to be taken, or reference to other decision tables.

ii flowcharting techniques
II. Flowcharting Techniques
  • Systems Flowchart
  • Analytic Flowcharts
  • Document Flowcharts
  • Forms Distribution Chart
  • Program or Block Flowcharts
a systems flowcharts

Cash

Payments

Remittance

Advices

Prepare

Batch

Control

Total

Cash

Payments

Remittance

Advices

Batch

Control

Total

A. Systems Flowcharts

A systems flowchart is a graphical representation of the overall flow of work, documents, and operations in an application system. The sandwich rule states that every process should be “sandwiched” between an input symbol and and output symbol.

b analytic flowcharts
B. Analytic Flowcharts

Analytic flowcharts identify all significant processing in an application, emphasizing processing tasks that apply controls. In other words, functional areas are separated by columns. See Figure 2-10 on page 42.

b document flowcharts
B. Document Flowcharts

Identifies the point of origin, distribution, and ultimate disposition of each document used in an application system. See Figure 2-11 on page 43.

c forms distribution chart

Purchasing

Stores

Receiving

Vendor

Acc. Payable

1

1

2

3

3

4

4

5

5

6

C. Forms Distribution Chart

Illustrates the distribution of a single multiple copy form within an organization. Emphasis is on form recipient rather than processing. (The following illustrates the Purchase Order in Figure 2-11 on page 43)

e program or block flowcharts

Payroll Processing

Compute

Gross Pay

Hours

Worked

Compute

Withholdings

Payroll

Printing

Payroll

Register

Payroll

Checks

E. Program or Block Flowcharts

Program flowcharts are used by system developers to provide detail about individual processing functions. The clutter of the additional processing detail is thus removed from a flowchart showing overall processing.

iii system technique symbols
III. System Technique Symbols
  • Basic Flowcharting Symbols
  • Other Symbols
a basic flowcharting symbols
A. Basic Flowcharting Symbols

Basic Input/Output Symbol – Making data available for processing or the recording of processed information.

Process – Transforming data into information or other data.

Flowline Symbol – Used to show the sequence of information and processing.

Annotation – Used to show descriptive comments.

- - - - -

b other symbols
B. Other Symbols
  • Specialized Input/Output Symbols – See Figure 2-2 on page 35.
  • Data Flow Diagram Symbols – See Symbols in Table 2-1 on page 39. See Illustrations in Figures 2-7 through 2-9 on pages 40-41.
iv the use of systems techniques
IV. The Use of Systems Techniques
  • Auditing
  • Systems Development
a auditing
A. Auditing

Two basic components of an external audit of financial statements include:

  • Compliance testing is used to determine the extent to which established control procedures are actually being carried out.
  • Substantive testing to verify amounts shown on financial statements. The level of substantive testing will depend on the extent to which the auditor depends on an entity’s system of internal control.
b systems development
B. Systems Development

Systems development generally consists of the following three phases:

  • Systems Analysis – Logical data flow diagrams and analytic flowcharts help in providing an overall picture of the how the organization functions.
  • Systems Design – A blueprint of how the proposed system will function.
  • Systems Implementation – Taking steps to put system into operation by doing things like training personnel, and acquiring equipment and software.
summary
Summary
  • Five Types of Systems Techniques
  • Five Types of Flowcharting Techniques
  • Basic Flowcharting Symbols
  • Uses of Systems Techniques
