body fluids

BODY FLUIDS

DEPARTMENT OF PATHOLOGY AND LABORATORY DIAGNOSIS

FATIMA COLLEGE OF MEDICINE

cerebrospinal fluid3

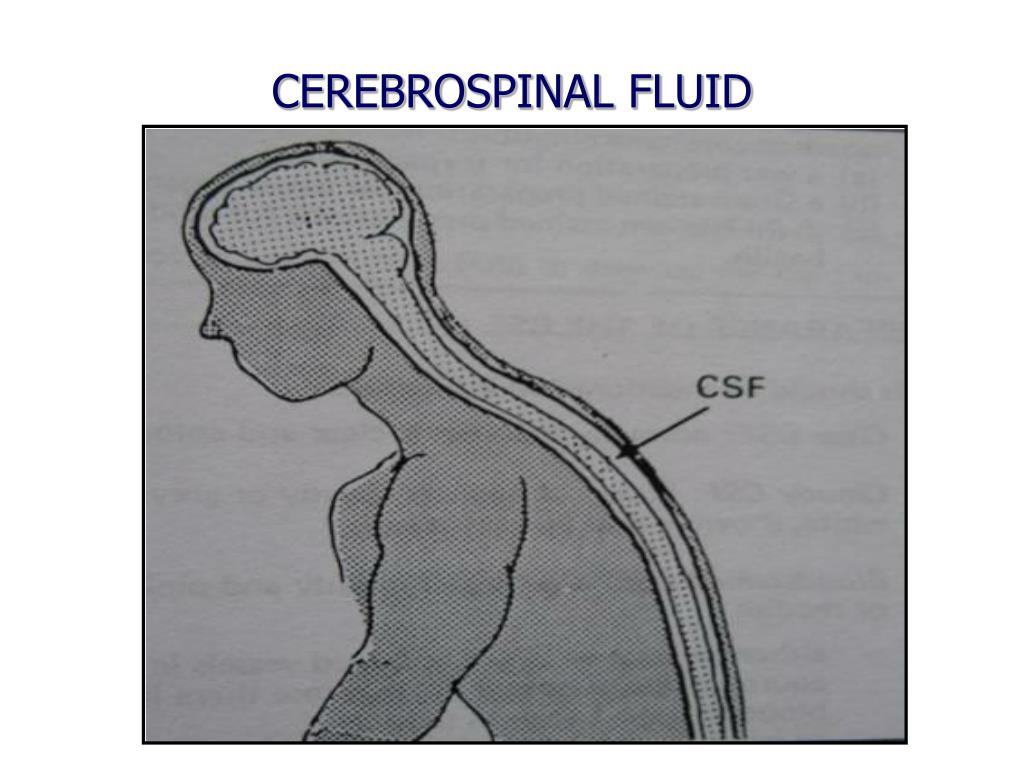

CEREBROSPINAL FLUID

SPECIMEN OBTAINED BY LUMBAR PUNCTURE

cerebrospinal fluid4
CEREBROSPINAL FLUID

TUBE 1 = CHEMISTRY, SEROLOGY

TUBE 2 = MICROBIOLOGY

TUBE 3 = HEMATOLOGY

cerebrospinal fluid5
CEREBROSPINAL FLUID

TUBES OF CSF: APPEARANCE LEFT TO RIGHT IS NORMAL, XANTHOCHROMIC, HEMOLYZED AND CLOUDY.

cerebrospinal fluid6

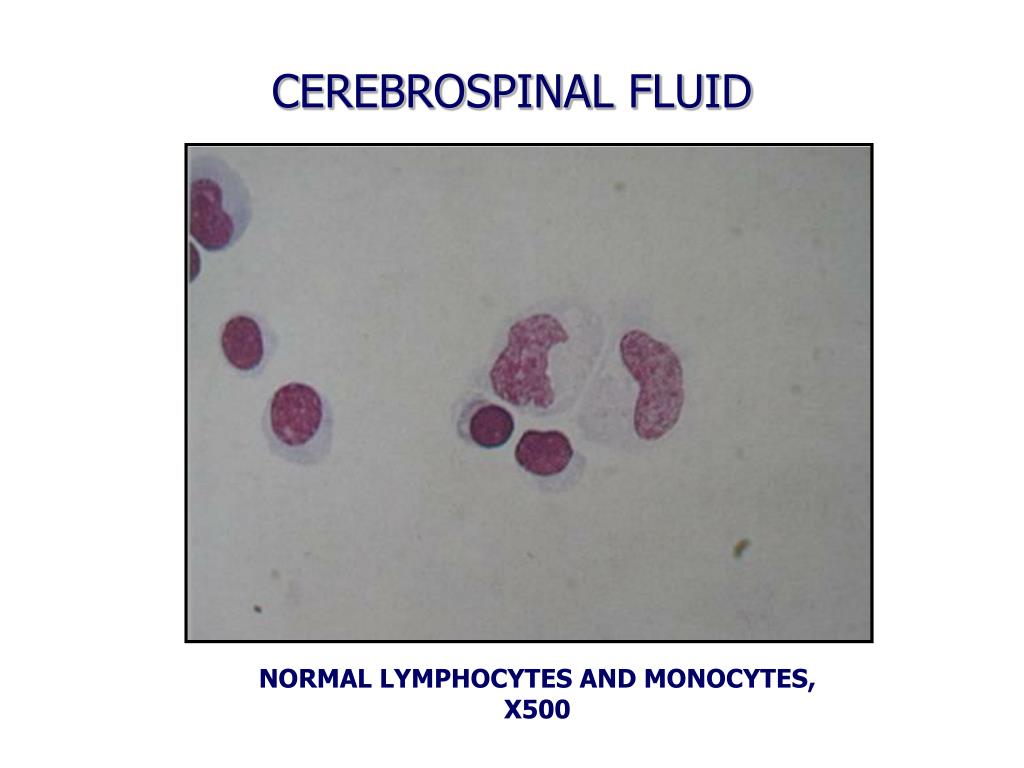

CEREBROSPINAL FLUID

NORMAL LYMPHOCYTES AND MONOCYTES, X500

cerebrospinal fluid7

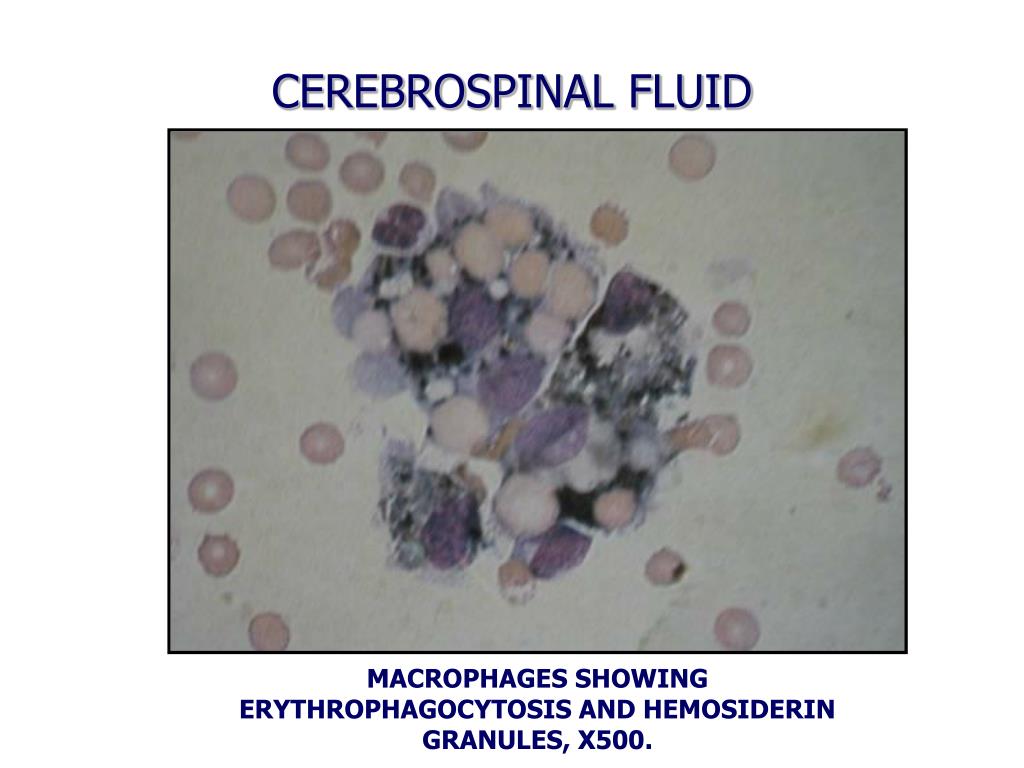

CEREBROSPINAL FLUID

MACROPHAGES SHOWING ERYTHROPHAGOCYTOSIS AND HEMOSIDERIN GRANULES, X500.

cerebrospinal fluid8
CEREBROSPINAL FLUID

MALIGNANT MELANOMA CELL CONTAINING DUST-LIKE GRANULES. GRANULES ARE MUCH FINER THAN HEMOSIDERIN GRANULES. X500.

cerebrospinal fluid9
CEREBROSPINAL FLUID

CHOROID PLEXUS CELLS: CAN BE DISTINGUISHED FROM MALIGNANT CELLS BY THE NUCLEAR UNIFORMITY AND DISTINCT CELL BORDERS. X500.

cerebrospinal fluid10
CEREBROSPINAL FLUID

EOSINOPHILS: NOTICE CYTOCENTRIFUGE DISTORTION. X1000.

cerebrospinal fluid11
CEREBROSPINAL FLUID

NUCLEATED RED BLOOD CELLS SEEN WITH BONE MARROW CONTAMINATION. X1000.

cerebrospinal fluid12
CEREBROSPINAL FLUID

BROAD SPECTRUM OF LYMPHOCYTES SEEN IN VIRAL MENINGITIS. X1000.

cerebrospinal fluid13
CEREBROSPINAL FLUID

NEUTROPHILS WITH INTRACELLULAR BACTERIA SEEN IN BACTERIAL MENINGITIS. X1000.

cerebrospinal fluid14
CEREBROSPINAL FLUID

LYMPHOMA CELLS. NOTICE PROMINENT NUCLEOLI AND FINE NUCLEAR CHROMATIN. X1000.

cerebrospinal fluid15
CEREBROSPINAL FLUID

MYELOBLASTS FROM ACUTE MYELOCYTIC LEUKEMIA. NOTICE PROMINENT NUCLEOLI. X1000.

cerebrospinal fluid16

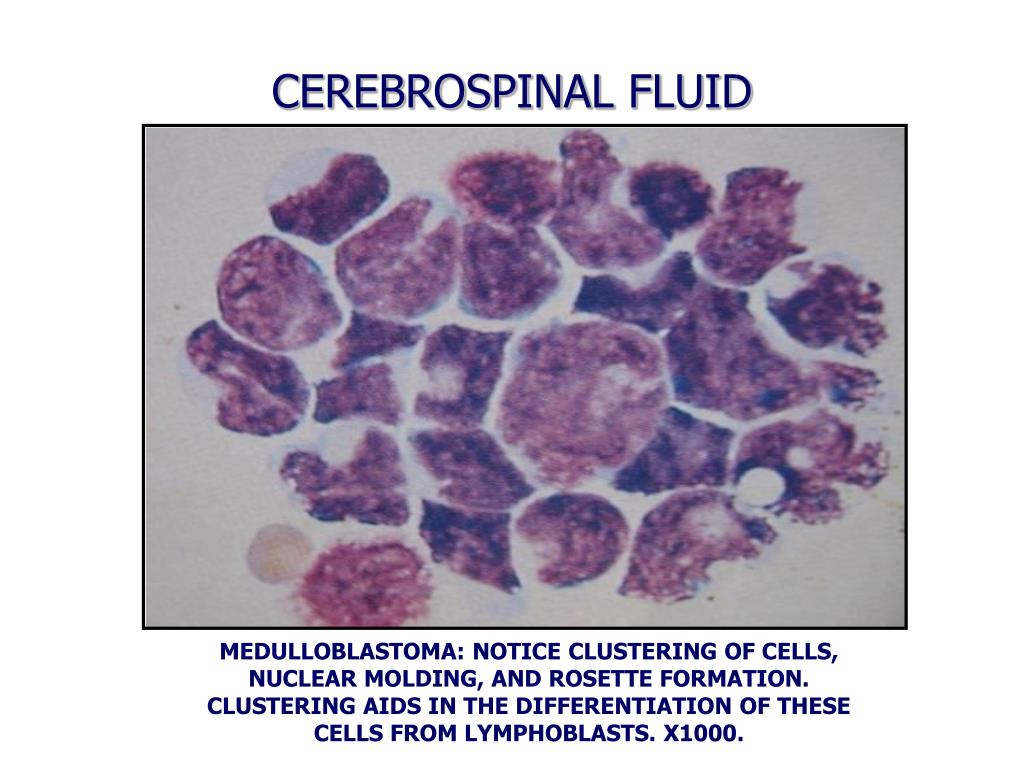

CEREBROSPINAL FLUID

MEDULLOBLASTOMA: NOTICE CLUSTERING OF CELLS, NUCLEAR MOLDING, AND ROSETTE FORMATION. CLUSTERING AIDS IN THE DIFFERENTIATION OF THESE CELLS FROM LYMPHOBLASTS. X1000.

cerebrospinal fluid17
CEREBROSPINAL FLUID

GRAM STAIN OF CRYPTOCOCCUS NEOFORMANS. X1000.

cerebrospinal fluid18
CEREBROSPINAL FLUID

INDIA INK PREPARATION OF CRYPTOCOCCUS NEOFORMANS: NOTICE BUDDING YEAST FORM. X400.

synovial fluid
SYNOVIAL FLUID

POLARIZED URIC ACID CRYSTALS; INTRACELLULAR NEEDLE-SHAPED CRYSTALS. X500.

synovial fluid20
SYNOVIAL FLUID

WRIGHT’S STAINED CELLS CONTAINING CALCIUM PYROPHOSPHATE CRYSTALS. X1000.

synovial fluid21
SYNOVIAL FLUID

POLARIZED CALCIUM PYROPHOSPHATE CRYSTALS; INTRACELLULAR RHOMBIC-SHAPED CRYSTALS. X1000.

pleural fluid

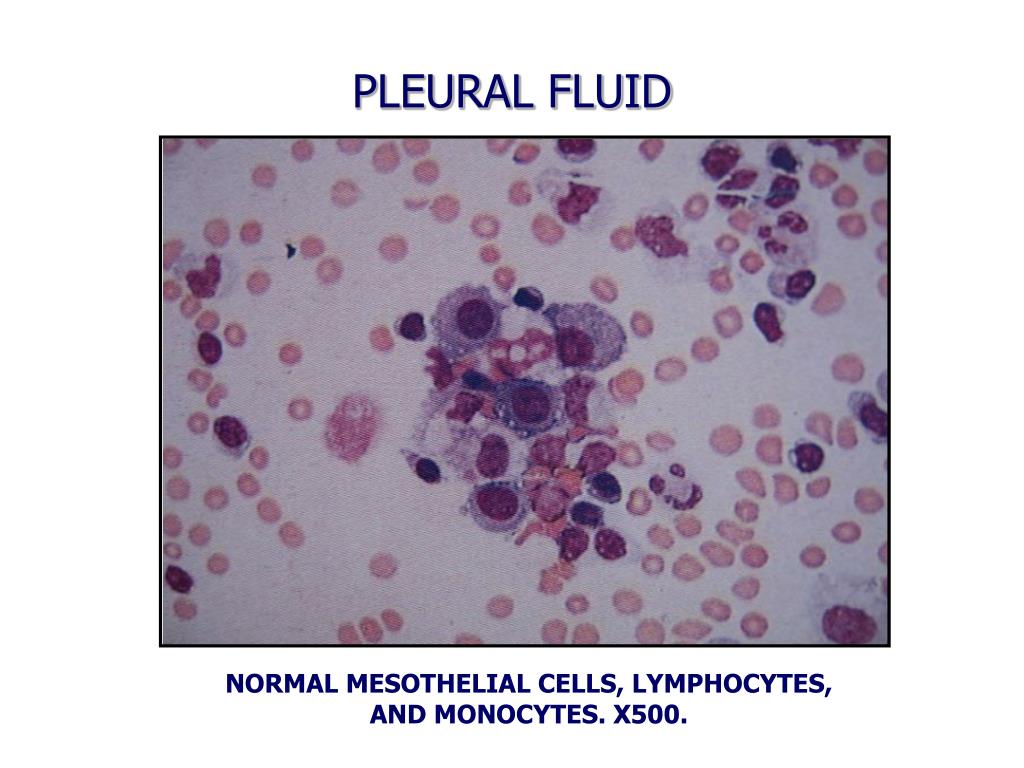

PLEURAL FLUID

NORMAL MESOTHELIAL CELLS, LYMPHOCYTES, AND MONOCYTES. X500.

pleural fluid23
PLEURAL FLUID

ONE NORMAL AND TWO REACTIVE MESOTHELIAL CELLS WITH MULTINUCLEATE FORM. X1000.

pleural fluid24
PLEURAL FLUID

LUPUS ERYTRHEMATOSUS (LE) CELL; NOTICE THE INGESTED “ROUND BODY”. X1000.

pleural fluid25
PLEURAL FLUID

METASTATIC CELLS FROM BREAST CANCER. A CLASSIC “CANNONBALL” FORMATION IS SEEN UNDER LOW POWER AIDING IN DIFFERENTIATING THESE CELLS FROM MESOTHELIAL CELLS. X1000.

pleural fluid26
PLEURAL FLUID

ADENOCARCINOMA SHOWING FINE NUCLEAR CHROMATIN, NUCLEAR AND CYTOPLASMIC MOLDING, AND VACUOLATED CYTOPLASM. X1000.

pleural fluid27
PLEURAL FLUID

SMALL CELL CARCINOMA SHOWING NUCLEAR MOLDING. X250.

peritoneal fluid
PERITONEAL FLUID

COLON CARCINOMA SHOWING MUCIN-CONTAINING VACUOLES. X500.
