slide1

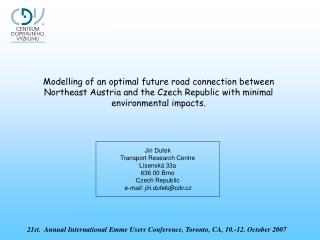

Modelling of an optimal future road connection between Northeast Austria and the Czech Republic with minimal environmental impacts.

Jiri DufekTransport Research Centre Lísenská 33a636 00 BrnoCzech Republice-mail: jiri.dufek@cdv.cz

slide2

Outline

  • Project objective and brief description of traffic situation
  • Problems with environmentally protected areas
  • Description of transport plans in 2 scenarios
  • Model approach:

- creation of model transport network

- demand modelling

- traffic assignment

- matrix and network calibration

- freight transport

- supposed general transport growth to 2020 (in all Czech Republic)

slide3

Outline

5. Resulted traffic volumes in 2020 year:

-“Do nothing” scenario

-Official scenario

- Alternative scenario

6. Scenarios comparison

-  “do nothing” vs. official

-    “do nothing” vs. alternative

-    official vs. alternative

7. Conclusions

slide4

1. Project objective and brief description of traffic situation

Project objective

  • to optimise future road connection between North East (NE) Austria and the Czech Republic
  • to increase the vehicle speed, to mitigate congestions
  • to minimize environmental impacts - the intersection of future infrastructure and protected natural areas

Alternatives (year 2020)

  • zero – no new infrastructure
  • official – one new, two widened roads, onemotorway and one road city bypasses
  • alternative – one new (different route), one widened, one motorway city bypass
slide5

1. Project objective and brief description of traffic situation

The model area

  • a sub-model of the national Czech Republic model: two from totally fourteen regions
  • a 1/7 of the whole Czech Republic area – about 10 000 sq.km
  • added on North East part of Austria
slide6

B

A

2. Problems with environmentally protected areas

Two protected natural areas in the vicinity of roads

  • A – natural wetland „Nove Mlyny: many endangered species
  • B – protected natural forest area „Vate Pisky“ („Drifted Sand)
  • pure regime: both are in European „Natura 2000“ structure – no building of new infrastructure allowed (unless it would be „public interest“)
slide7

B

A

3. Description of transport plans in 2 scenarios

The „official“

R52

R55

bypass 2

bypass 1

  • 4-lane motorway (R52) enlarged to the south, a new 4-lane motorway (R55)is designed western form present road I/55, two towns bypasses planned
  • very old: planned since 70-ties (lack of environmental protection at this time), impact on traffic already modelled, an implementation is problematic – many mitigation measures required (i.e. fauna passages)
slide8

B

A

3. Description of transport plans in 2 scenarios

The „alternative“

R52

R55

bypass 1

  • 4-lane motorway (R52) not enlarged, a new motorway (R55) is designed eastern from the present road I/55, motorway, one town bypass planned (town of Breclav, 4-lanes)
  • environmentally frendlier - avoidance of natural areas
  • impact of traffic unknown – that is why this project was started (by NGO´s)
slide9

4. The model approach

The model approach

  • subnetwork of the our National Czech Model (also done in EMME)
  • zones: cities towns, big villages,
  • the sub-model contains two from totally 14 Czech regions, about 1/7 of the total area
  • the North East Austria network added
  • new zones added: smaller villages, new external zones (traffic from/to another Czech regions)

The model contains

  • 3 network scenarios: „zero“, „official“ and „alternative“
  • each scenario contains 172 zones:
  • 111 Czech internal zones (cties, towns, villages)
  • 7 Austrian internal zones (cities, towns)
  • 49 Czech external zones (entries to/from model area)
  • 5 Austrian external zones
slide10

4. The model approach

Demand modelling

  • No. of inhabitants of the cities and villages
  • data from population census: no. of people leaving a zone (commuting, schools)
  • attractivity: No. of jobs, area of shopping centres
  • enthropy model used: e^-θ.Upq
  • model does not involve public transport
  • that is why - no modal split modelling done: used an average split (42 % of car transport) in the Czech Republic

Calibration of demand matrix

  • modification of θ parameter: θ = 0.05 – avg. travel time 28,8 min (corresponds to statistics available)
  • monitoring of demand changes betwen selected big zones due to the change of θ parameter:
  • final calibration: help of the macro „demadj22“ – improvement of R2 from 0.895 to 0.975
slide11

4. The model approach

Calibration of demand matrix – graphic example

  • example - monitoring of changes in demand between selected big cities by modification of θ parameter
  • selection is done with a help of zone groups
slide12

4. The model approach

Differences between the Czech and Austrian part of the model

  • Czech Rep: enough data – a standard model approach
  • good socioeconomic data (population census)
  • good traffic data (from traffic census)
  • all passenger traffic modeled
  • Austria – lack of the data – a specific approach
  • no socioeconomic data, no access to traffic census
  • only data from border crossings – a fundament for finding the total demand between NorthEast Austria and the Czech Republic)
  • this demand (from AUS to Czech) has been split to main traffic origins in NE AUS: 7 internal (most to Vienna) and 5 external (highways to Vienna from south)
  • the Austrian OD pair in input matrix (e^-θ.Upq) had to be set to zero
  • resulted volumes - only trans-boundary passenger traffic
slide13

4. The model approach

Differences between the Czech and Austrian part of the model

  • displayed link value: observed counts
  • five CZE-AUS border crossings
  • No. of cars passing known
  • total of crossing is considered as a total demand between NE AUS and CZE
slide14

4. The model approach

Differences between the Czech and Austrian part of the model

  • total: 7289 cars per a day in each direction
  • displayed: observed counts – passenger transport (ul3)

7289

7289

slide15

4. The model approach

Freight traffic in model

  • freight transport – not especially modelled – no freight demand matrix calculated
  • averages of heavy vehicles percentage (to all traffic)
    • 40.3 % of heavy hehicles in motorways (average)
    • 25.0 % of heavy hehicles in 1st class roads
    • 20.6 % vehicles on 2nd class roads
    • 18.3 % on country roads (3rd class)
  • extra link attribute: @hdvpr used – observed percentage of heavy vehicles
  • in future scenarios – supposed changes:
    • traffic calming in 1 border cross „Valtice – Schrattenberg (now heavy vehicles permitted)
    • a permission of heavy vehicles in 1 border crossing „Postorna – Reintal“ (now heavy vehicles prohibited)
slide16

5. Resulted traffic volumes in 2020 year

Resulted traffic in 2020

  • assignment of 3 network scenarios by a present and a future matrix
  • equilibrium assignment: VDF : BPR function:
  • variables: free flow speed, No. of lanes, link capacity
  • differences between present and future matrices:
    • different future demand of OD pairs when future infrastructure exceed modeled area
    • official traffic growth coefficients applied for 2020 year, compared to 2005 :
    • 1.29 for cars (car traffic increase by 29 % supposed)
    • 1.06 for heavy vehicles (supposed freight traffic increase by 6 %)
slide17

5. Resulted traffic volumes in 2020 year

Resulted traffic in 2020 – „zero“ scenario

  • southern part of the model zoomed
  • „no new infrastructure“ alternative
  • Czech volumes: black text (all traffic)
  • Austrian volumes: red text (only trips to/fro the Czech Republic)
  • shortest path Brno – Vienna – through R52 motorway
slide18

5. Resulted traffic volumes in 2020 year

Resulted traffic in 2020 – „official“ scenario

  • southern part of the model displayed
  • Czech volumes black text (all)
  • Austrian volumes red text (only transboundary)
  • green links – new (or widened) infrastructure
  • in Czech R: 2 bypasses, 2 new motorways
  • in Ausatria: Vienna bypass (planned), A5 motorway
  • shortest path Brno – Vienna – through R52 motorway UNCHANGED
slide19

5. Resulted traffic volumes in 2020 year

Resulted traffic in 2020 – „alternative“ scenario

  • southern part of the model zoomed
  • Czech volumes black text (all)
  • Austrian volumes red text (only transboundary)
  • green links – new (or widened) infrastructure
  • in Czechia: 2 bypasses, 2 new motorways
  • in Austria: Vienna bypass (planned), A5 motorway
  • shortest path Brno – Vienna – through D1 motorway CHANGED
slide20

6. Scenarios comparison

Scenarios comparison: „zero“ vs. „official“

Positive effect:

reduction on I/55

road

on 80%

on 30%

on 50%

slide21

6. Scenarios comparison

Scenarios comparison: „zero“ vs. „alternative“

the same

positive effect:

reduction on I/55

road:

on 50%

on 40%

on 60%

Second positive effect:

reduction on I/52 road,

traffic shift to D2

motorway

slide22

6. Scenarios comparison

Scenarios comparison: „A“ vs „O“ („ alternative: vs “official“)

  • green links– A<Ol
  • red links– A>O
  • future roads are not displayed

GREEN - traffic

decrease in „A“,

RED - traffic

increase in „A“,

slide23

7. Conclusions

  • „zero“ scenario is unsustainable – new infrastructure needed,
  • „official“ and „alternative“ scenarios have approx. the same (positive) impact on traffic in eastern part of the modeled area (planned R55 motorway),
  • „official“ and „alternative“ scenarios have a different impact in western part of the modeled area (alternative scenario will shift traffic to present highway D2),
  • the „alternative“ scenario should change shortest path between Brno and Vienna cities,
  • „alternative“ scenario will affect environmentally sensitive areas substantially less that the „official“ one – IT SHOULD BE PREFERED,
  • a new EIA study comparing all 3 scenarios is desirable.

Thank you for your attention !
