  1. Highlights of the 36thAnnual International Symposium on MicroarchitectureDecember 2003 Theo Theocharides Embedded and Mobile Computing Center Department of Computer Science and Engineering The Pennsylvania State University Acknowledgements: K. Bernstein, T. Austin, D. Blaauw, L. Peh, D. Jimenez

  2. Introduction • The International Symposium on Microarchitecture is the premier forum for discussing new microarchitecture and software techniques • Processor architecture, compilers, and systems for technical interaction on traditional MICRO topics • special emphasis on optimizations to take advantage of application specific opportunities • microarchitecture and embedded architecture communities • •

  3. Symposium Outline • Session 1: Voltage Scaling & Transient • Session 2: Cache • Session 3: Power and Energy Efficient Architectures • Session 4: Application-Specific Optimization and Analysis • Session 5: Dynamic Optimization Systems • Session 6: Dynamic Program Analysis and Optimization • Session 7: Branch, Value, and Scheduling Optimization • Session 8: Dataflow, Data Parallel, and Clustered Architectures • Session 9: Secure and Network Processors • Session 10: Scaling Design

  4. Highlights Keynote Speech • Caution Flag Out: Microarchitecture's Race for Power Performance • Kerry Bernstein, IBM T. J. Watson Research Center Interesting Papers • Razor: A Low-Power Pipeline Based on Circuit-Level Timing Speculation, D. Ernst, et. al • Power-Driven Design of Router Microarchitectures in On-Chip Networks, H. Wang, Li-Shiuan Peh, S. Malik • Fast Path-Based Neural Branch Prediction, D. Jimenez

  5. Workshops and Tutorials • 5th Workshop on Media and Streaming Processors (MSP) • 3rd Workshop on Power-Aware Computer Systems (PACS) • 2nd Workshop on Application Specific Processors (WASP) • Tutorial: Challenges in Embedded Computing • Tutorial: Open Research Compiler (ORC): Proliferation of Technologies and Tools • Tutorial: Microarchitecture-Level Power-Performance Simulators: Modeling, Validation, and Impact on Design • Tutorial: Network Processors • Tutorial: Architectural Exploration with Liberty

  6. Keynote Speech • Given by Kerry Bernstein, IBM T.J. Watson Research Center • Microarchitecture and technology relationship • We cannot continue to scale down to achieve higher frequencies without any catch • Increasing pipeline depth does not necessarily help • Power consumption, process variation, soft errors, die area erosion becoming more and more important • Keynote explored how past technologies have influenced high speed microarchitectures • Keynote showed how characteristics of proposed new devices and interconnects for lithographies beyond 90nm may shape future machine design. • Given the present issues and incoming trends, role of microarchitecture in extending CMOS performance will be more important than ever

  7. Where Scaling fails…

  8. Cost of Performance in terms of power

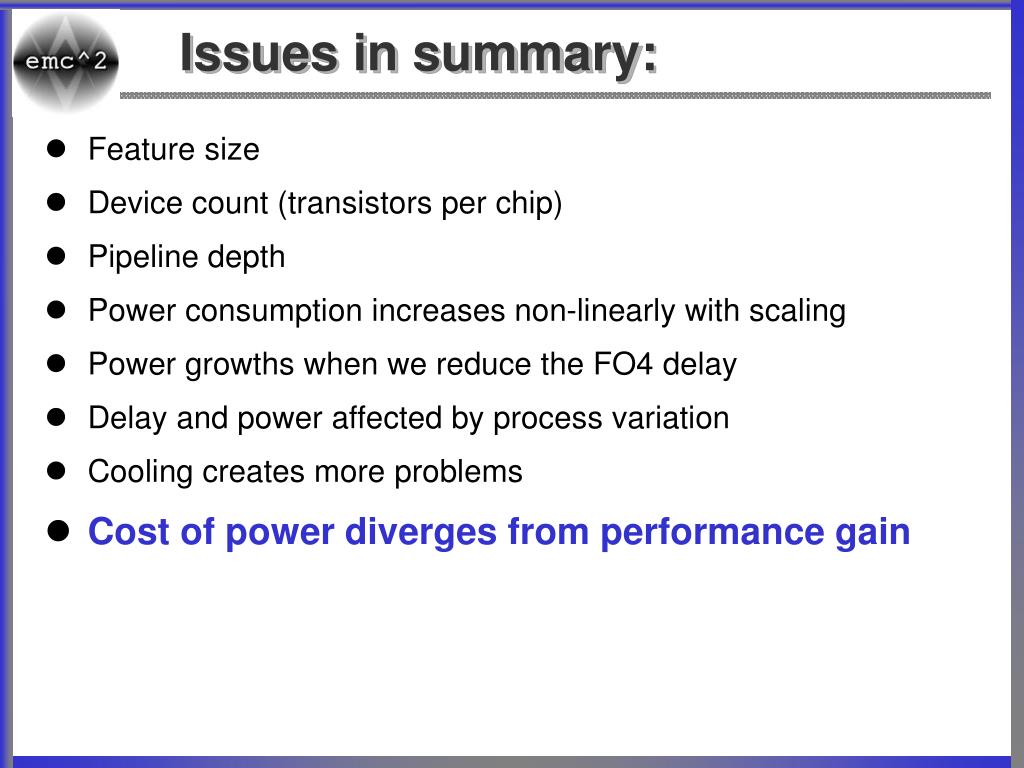

  9. Issues in summary: • Feature size • Device count (transistors per chip) • Pipeline depth • Power consumption increases non-linearly with scaling • Power growths when we reduce the FO4 delay • Delay and power affected by process variation • Cooling creates more problems • Cost of power diverges from performance gain

  10. How does Microarchitecture help?

  11. Repairs • Monitor-based Full Chip Voltage, Clock Throttling • Voltage Islands • Technology aid required here • Latency required • Low-activity FET count increase • Clock Gating • So far has been a nice solution… • Pipeline depth optimization • Performance accelerators for ASICs (DSP, GPU’s, etc.) • As in, they need power anyways, at least make them efficient • Software solutions should be developed here • Compute-Informed Power Management • Instruction Stream • Dynamic Resource Assertion • Power Aware OS • Thermal Modeling

  12. New Ideas • “Evolutionary” • Strained Silicon • High-K Gate Dielectrics • Hybrid Crystal Silicon • Increase current drive/micron of device • Allow transistor density improvement • Introduce Features which enable active static power management • “Revolutionary” • Double Gated MOSFETs • 3D Integration • Molecular Computing • Reduce Power Density without architectural management • Eliminate power dependence on frequency • Return the industry to threshold and supply voltage scaling

  13. Molecular Computing

  14. Keynote Conclusions • New technologies will likelyhelp, not necessarily • Power is by far the predominant factor in scaling – we need to see what new technologies can give us • Staying ahead requires power-aware systems

  15. Razor Project (T. Austin, D. Blaauw, T. Mudge) • We (designers/architects) have been scaling the voltage down but up to a point where it was proven that under all possible worst cases, there were no errors • Very conservative voltage scaling • IDEA! • Instead of trying to avoid ALL errors, ALLOW some errors to happen and correct them! • Major argument: Scaling the voltage supply by almost 0.25V down, gives an average error rate of less than 5% • Instead of spending energy, logic, effort, time and so many other useful factors into avoiding error, allow a very small error percentage to happen, and gain huge power savings • Cost of fixing errors is minimal when the error percentage is kept under control

  16. Razor Project

  17. Razor Pipeline Flip-Flop

  18. Error-Rate vs. Power Savings

  19. IPC vs. Error Rate

  20. DVS

  21. Razor Advantages • Eliminate safety margins • Process variation, IR-drop, temperature fluctuation, data-dependent latencies, model uncertainty • Operate at sub-critical voltage for optimal trade-off between: • Energy gain from voltage scaling • Energy overhead from dynamic error correction • Tune voltage for average instruction data • Exploit delay dependence in data • Tolerate delay degradation due to infrequent noise events • SER, capacitive, inductive noise, charge sharing, floating body effect… • Most severe noise also least frequent

  22. Power-driven Design of Router Microarchitectures in On-chip Networks (Hangsheng Wang, Li-Shiuan Peh, Sharad Malik) • Investigates on-chip network microarchitectures from a power-driven perspective • Power-efficient network microarchitectures: • segmented crossbar, cut-through crossbar and write-through buffer • Studies and uncovers the power saving potential of an existing network architecture: Express cube • Reduction in network power of up to 44.9%, • NO degradation in network performance • Improved latency throughput in some cases.

  23. Power in NoC • Ewrtis the average energy dissipated when writing a flit into the input buffer • Erdis the average energy dissipated when reading a flit from the input buffer • Ebuf = Ewrt + Erdis average buffer energy • Earbis average arbitration energy • Exbis average crossbar traversal energy • Elnkis average link traversal energy • His the number of hops traversed by this flit

  24. Architectural Methods • Segmented crossbar • Cut-through crossbar • Write-through input buffer • Express cube

  25. Segmented Crossbar Schematic of a matrix crossbar and a segmented crossbar. F is flit size in bits, dw is track width, E, W, N, S are ports.

  26. Cut-through crossbar Schematic of cut-through crossbars F is flit size, dw is track width, E, W, N, S are ports

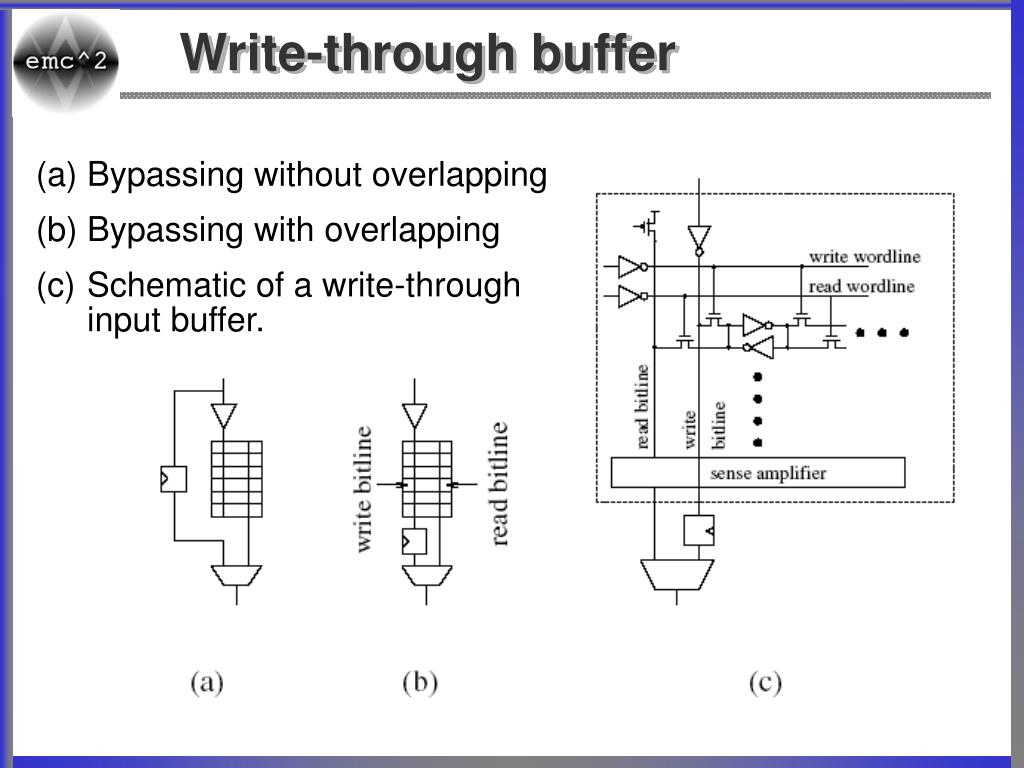

  27. Write-through buffer • Bypassing without overlapping • Bypassing with overlapping • Schematic of a write-through input buffer.

  28. Express cube topology and microarchitecture

  29. Power savings and conclusions • Importance of a power-driven approach to on-chip network design • Need to investigate the interactions between traffic patterns and On Chip Network architectures • Need to reach a systematic design methodology for on-chip networks

  30. Fast Path-Based Neural Branch Prediction(J. Himenez) • Paper presented a new neural branch predictor • both more accurate and much faster than previous neural predictors • Accuracy far superior to conventional predictors • Latency comparable to predictors from industrial designs • Improves the instructions-per-cycle (IPC) rate of an aggressively clocked microarchitecture by 16%

  31. Latency - Accuracy Gain Rather than being done all at once (above), computation is staggered (below) • Train a neural network with path history, and update it dynamically. • Choose the weight vectors according to the path leading up to the branch rather than branch address alone • Directly reduces latency (can begin prior to the prediction – see figure on the left) • Improves accuracy as the predictor incorporates path information

  32. Comparative Results – Misprediction rate

  33. IPC per hardware cost • Faster and more accurate than existing neural branch predictors

  34. Conclusion • Overview of MICRO36 • Conference lasted 5 days – impossible to review in half hour! • If you are interested, you should read the proceedings on-line at The Call For Papers for MICRO37 is available, at DEADLINE FOR PAPER SUBMISSION: May 28th, 2004

  35. Links to the papers reviewed • Razor • • NoC Router Power-Driven Design • • Fast-Path Neural Branch Predictor •

  36. Questions? THANK YOU !

  37. 36th Annual International Symposium on Micro-Architecture - A Review Rajaraman Ramanarayanan

  38. Talk Overview • Session covered in this presentation • Review papers • Architectural vulnerability factors • Introduction • Proposed technique • Soft error terminology • Computing AVF’s • Results • Conclusion • L2-Miss Drive Variable Supply voltage scaling • Introduction • Proposed Solution • Transitions • Results • Achievements

  39. Session Covered • Voltage Scaling & Transient Faults • Methodology to compute Artificial vulnerability factors • VSV: L2-Miss-Driven Variable Supply-Voltage Scaling for Low Power

  40. Architectural Vulnerability Factors(S. S. Mukherjee, C. T. Weaver, J. Emer, S. K. Reinhardt, T. Austin) • Single-event upsets from particle strikes have become a key challenge in microprocessor design. • Soft errors due to cosmic rays making an impact in industry. • In 2000, Sun Microsystems acknowledged cosmic ray strikes on unprotected cache memories as the cause of random crashes at major customer sites in its flagship Enterprise server line • The fear of cosmic ray strikes prompted Fujitsu to protect 80% of its 200,000 latches in its recent SPARC processor with some form of error detection • require accurate estimates of processor error rates to make appropriate cost/reliability trade-offs.

  41. Introduction • All existing approaches introduce a significant penalty in performance, power, die size, and design time • Tools and techniques to estimate processor transient error rates are not readily available or fully understood. • Estimates are needed early in the design cycle. • In this Paper : • Define architectural vulnerability factor (AVF) • identify numerous cases, such as pre-fetches, dynamically dead code, and wrong-path instructions, in which a fault will not affect correct execution

  42. Proposed technique • Not all faults in a micro-architectural structure affect the final outcome of a program. • Architectural Vulnerability factor (AVF) • probability that a fault in that particular structure will result in an error in the final output of the program • The overall error rate = product of raw fault rate and AVF. • Can examine the relative contributions of various structures • identify cost-effective areas to employ fault protection techniques • Tracks the subset of processor state bits required for architecturally correct execution (ACE) • fault in a storage cell containing one of these bits affects output • For example, a branch predictor’s AVF is 0% • predictor bits are always un-ACE bits. • Bits in the committed PC are always ACE bits, has an AVF of 100%

  43. Soft error terminology • Error budget expressed in terms of: • Mean Time Between Failures (MTBF). • Failures In Time (FIT) - inversely related to MTBF. • Errors are often classified as: • Undetected - silent data corruption (SDC) • Detected - detected unrecoverable errors (DUE) • Effective FIT rate for a structure is the product of its raw circuit FIT rate and the structure’s vulnerability factor • effective FIT rate per bit is influenced by several vulnerability factors • also known as de-rating factors or soft error sensitivity factor • Examples include timing vulnerability factor for latches and AVF

  44. Silent data corruption in the future

  45. Identifying Un-ACE Bits • Bits that do not affect final program output • Analyzed a uniprocessor system • Micro-architectural Un-ACE bits • Idle or Invalid State. • Miss-speculated State. • Predictor Structures. • Ex-ACE State. • Architectural Un-ACE Bits • NOP instructions. • Performance-enhancing instructions. • Predicated-false instructions. • Dynamically dead instructions. • Logical masking.

  46. Computing AVF • AVFs for storage cells - fraction of time an upset in that cell will cause a visible error in the final output of a program • AVF Equations for a Hardware Structure • average AVF for all its bits in that structure • ∑ residency (in cycles) of all ACE bits in a structure -------------------------------------------------------------------------------- total number of bits in the hardware structure × total execution cycles • Little’s Law: • N = B×L, where • N = average number of bits in a box, • B = average bandwidth per cycle into the box, and • L = average latency of an individual bit through the box. • Bace × Lace AVF = -------------------------------------------------------------- total number of bits in the hardware structure

  47. Computing AVFs using a Performance Model • Two structures—the instruction queue and execution units—using the Asim performance model framework • Need following information • Sum of all residence cycles of all ACE bits of the objects resident in the structure during the execution of the program, • Total execution cycles for which we observe the ACE bits’ residence time, and • Total number of bits in a hardware structure. • AVF algorithm • Record the residence time of the instruction in the structure as an instruction flows through different structures in the pipeline • Update the structures the instruction flowed through • Put the instruction in a post-commit analysis window to • Determine if the instruction is dynamically dead or • Determine if there are any bits that are logically masked

  48. Methodology for evaluation • Use an Itanium2®-like IA64 processor [14] scaled to current technology • Modeled in detail in Asim performance model framework.

  49. Results – Program level Decomposition

  50. Results • Program-level Decomposition • We get about 45% ACE instructions. The rest—55% of the instructions—are un-ACE instructions • Some of these un- ACE instructions still contain ACE bits, such as the op-code bits of pre-fetch instructions • UNKNOWN and NOT_PROCESSED instructions account for about 1% of the total instructions • NOPs, predicated false instructions, and prefetch instructions account for 26%, 6.7%, and 1.5%, respectively. • FDD_reg and FDD_mem denote results that are written back to registers and memory, respectively • Account for about 9.4% and 2% of the dynamic instructions • IA64 has a large number of registers • TDD_reg and TDD_mem account for 6.6% and 1.6% of the dynamic instructions
