  1. AutoCAD: Secrets Every User Should Know Chapter 8 - AutoLISP by Example: Getting Started

  2. Key Topics • Entity Selection and Manipulation • Constructing New Points • String Conversion and Manipulation • Debugging and Troubleshooting Techniques • Annotating and Error-Trapping

  3. Programming Tools • AutoLISP • Based on LISP from 1950s • Good User Language • Can use AutoCAD commands • Can use AutoCAD variables • VLISP Added AutoCAD 200 • Uses AutoCAD Commands VBA and VB.NET C++

  4. Saving AutoLISP Programs • Writing • Text Editor • Visual LISP Editor • NO Word Processors • Saving • ASCII Text File • .LSP extension • ACADDOC.lsp Loads in Each Drawing • ACAD.lsp Loads Only When AutoCAD Fires Up

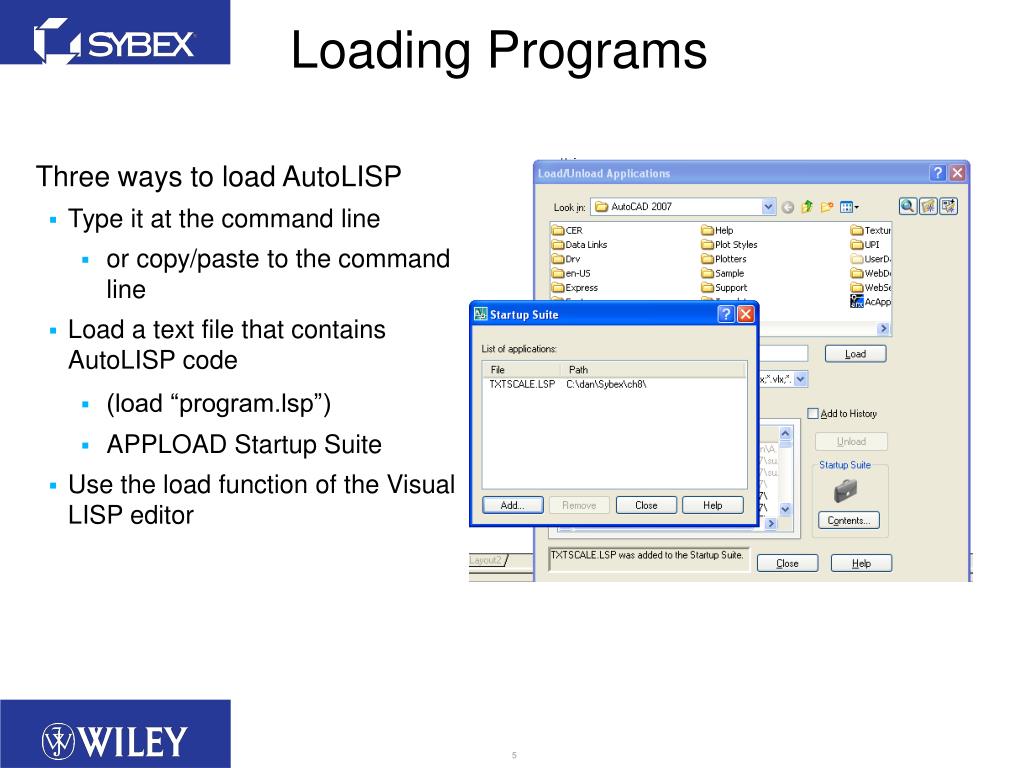

  5. Loading Programs • Three ways to load AutoLISP • Type it at the command line • or copy/paste to the command line • Load a text file that contains AutoLISP code • (load “program.lsp”) • APPLOAD Startup Suite • Use the load function of the Visual LISP editor

  6. Visual LISP Editor • Start Visual LISP Editor • VLISP or VLIDE • ToolsAutoLISPVisual LISP Editor • Four Windows • Text editor: type your program (more than one can be open) • Visual LISP console: type variable names or pieces of code • Trace window: use while debugging • Build Output window: warnings and error messages

  7. Visual LISP - Color Coding

  8. VLISP Tools

  9. AutoLISP by Example • Or format like this:

  10. Program Structure • Programs Contain AutoLISP Functions • DEFUN, SETVAR, +, and - • Function Name Is Preceded by an Opening Parenthesis • (defun, or (command, or (+ • Balance Parentheses • Separate Atoms with Spaces or Quotation Marks • Functions Are Followed by Arguments, if They’re Necessary

  11. Breaking Down the Code (defun c:00() Defun is an AutoLISP expression C: means “command” not drive (setvar “osmode” 4143) Setvar is an AutoLISP expression “osmode” is a system variable 4143 is a bit sum setting ) Closes opening parenthesis in line 1

  12. Bit Sum 1, 2, 4, 8, 16, 32, 64, 128, etc. • Why 4143? • End, Mid, Cen, Nod, Int, and Ext as running osnaps • Type OSMODE at the command line • Returns 4143 • 1+2+4+8+32+4098 = 4143.

  13. Building on the Basics

  14. Background - Variables • System Variables • Over 550 in AutoCAD 2007 • Examples: APERTURE; AUPREC; LUPREC • Some saved in drawing, others in Registry • (getvar “aperture”) (setvar “aperture” 3) • Environment Variables – Operating System • Examples: “MaxHatch” "HideSystemPrinters" • Saved in Registry • (getenv “MaxHatch”) (setenv “MaxHatch” “100000000”)

  15. Background - Variables • Program Variables • Defined by the programmer using SETQ • Global (defun C:MID () • Retain their value when program terminates • Useful for debugging • Often Changed to Local • Can be used to create a persistent default value • Local (defun C:MID (/ os ap m) • Return to nil when program terminates • !variable at command line to get value

  16. SETQ

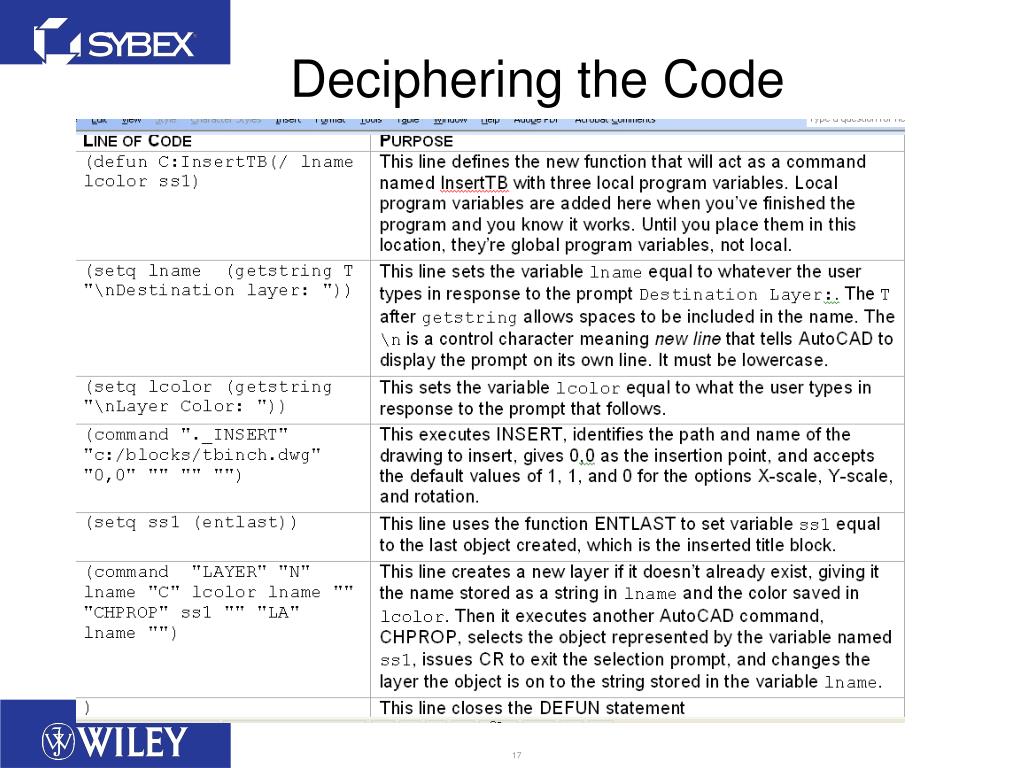

  17. Deciphering the Code

  18. Creating New Coordinates Structural Lumber Symbol Get Point1 and Point 2 from User Create Point3 from X of Point 1 and Y of Point2 Create Point4 from X of Point 2 and Y of Point1

  19. Creating New Coordinate Points - LIST

  20. Creating New Points - POLAR Dimension Between Walls

  21. Creating New Points - POLAR Polar pt Angle Distance

  22. Calculations

  23. Calculations - More

  24. Calculations in Programs

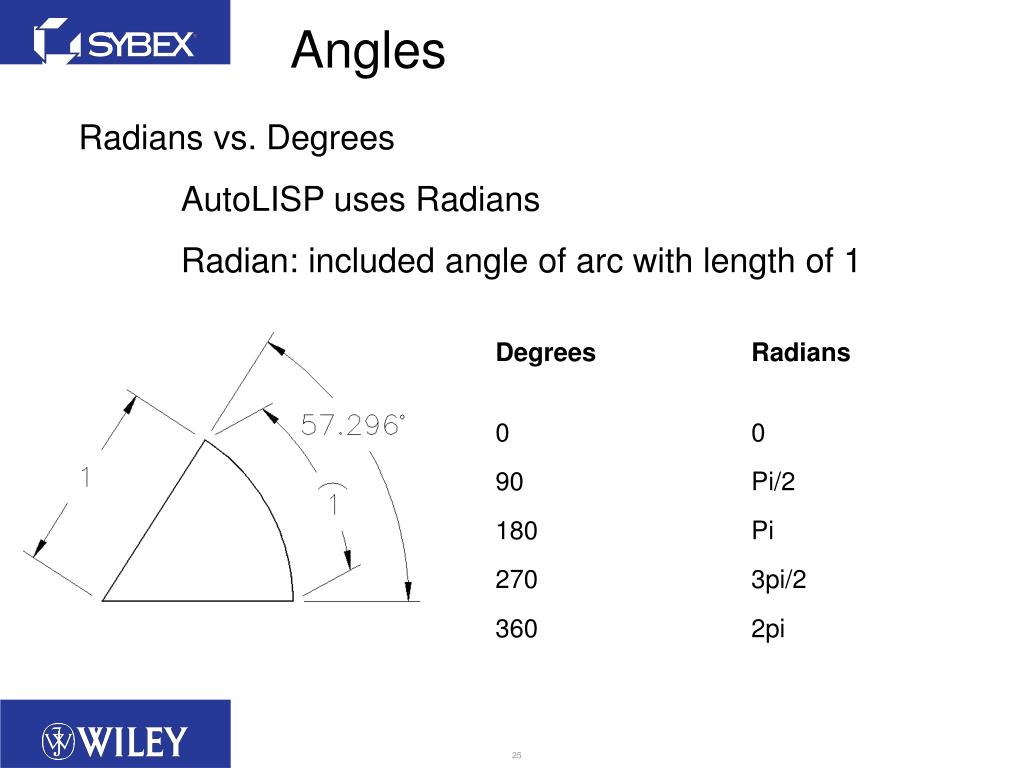

  25. Angles Radians vs. Degrees AutoLISP uses Radians Radian: included angle of arc with length of 1

  26. Angles Radian Problems

  27. Angles Radians vs. Degrees Conversion Functions

  28. Transparent Commands Two Methods ‘I2M will work for many command functions Call non-command functions as Lisp

  29. Combining Programs SSECT and RC

  30. Ten Basic Rules • Save as ASCII. • Use Equal Number of Opening and Closing Parens. • DEFUN Means Define Function; C:ZX Is a Command. • Balance Quotation Marks. • Backslash Is a Control Character: \\ or / for Folders. • Leave Space After Forward Slash for Local Variables. • \n Controls New Line in Prompt and Is Lowercase. • Use Semicolons for Comments. • Get Values at Beginning; Use SETQ to Save Them. • Don't Get Discouraged!

  31. Automatic Loading APPLOAD Startup Suite Any LSP program placed by user ACAD.lsp Loads when AutoCAD starts IF in the path Loads in subsequent drawings IF ACADLSPASDOC=1 ACADDOC.lsp Loads with each drawing IF in the path (There are some others, but you probably don’t want to mess them up)

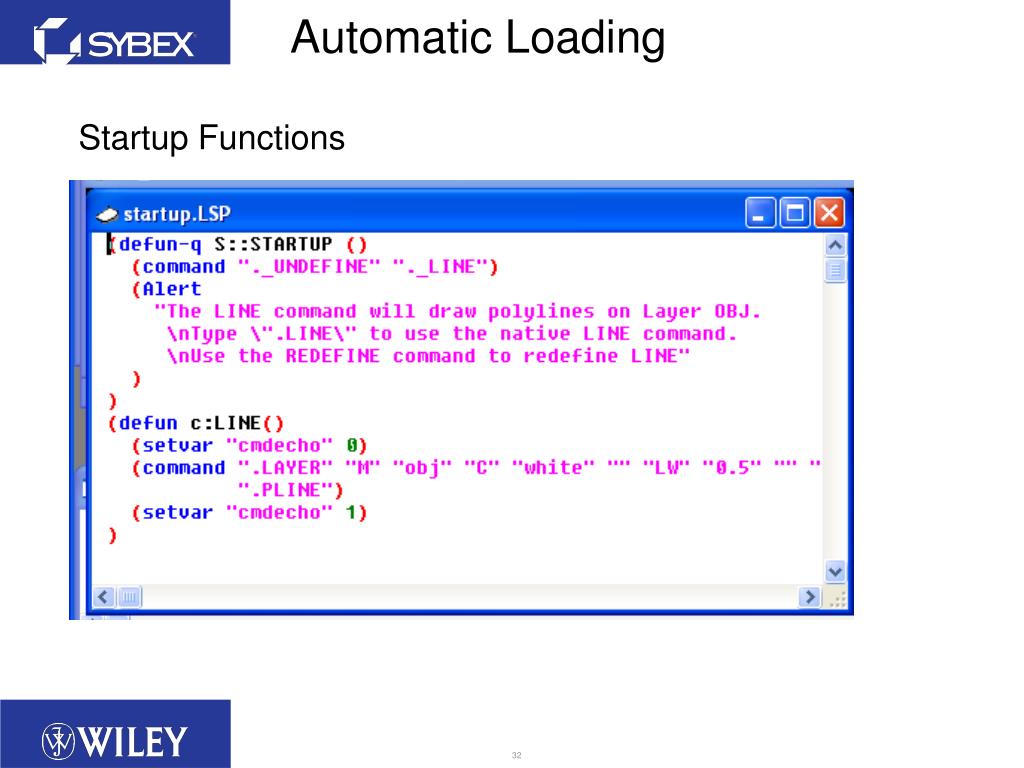

  32. Automatic Loading Startup Functions
