AP Statistics: Section 2.2 B. The Standard Normal Distribution As the 68-95-99.7 Rule suggests, all Normal distributions share many common properties. In fact, all Normal distributions are the same if we measure in units of size with the mean as center. .

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'AP Statistics: Section 2.2 B' - jaclyn


Download Now An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
slide2

The Standard Normal DistributionAs the 68-95-99.7 Rule suggests, all Normal distributions share many common properties. In fact, all Normal distributions are the same if we measure in units of size with the mean as center.

slide4

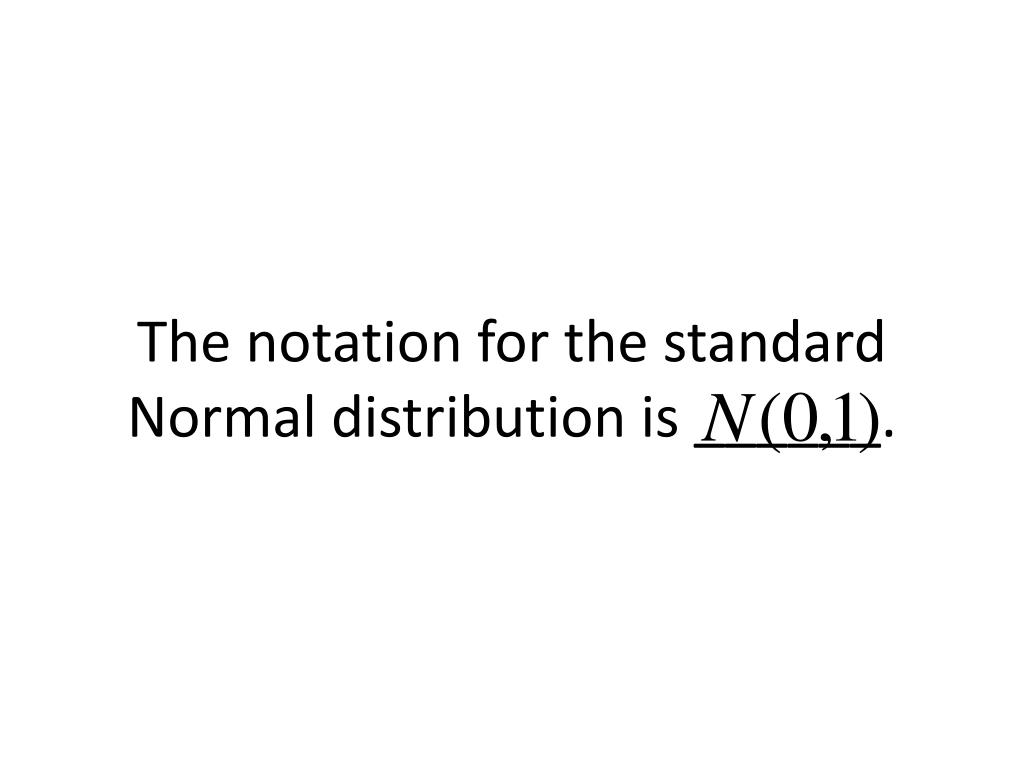

If the variable we standardize has a Normal distribution, then so does the new variable z. This is true because standardizing is a linear transformation and does not change the shape of a distribution. This new distribution is called the

Standard Normal distribution.

slide6

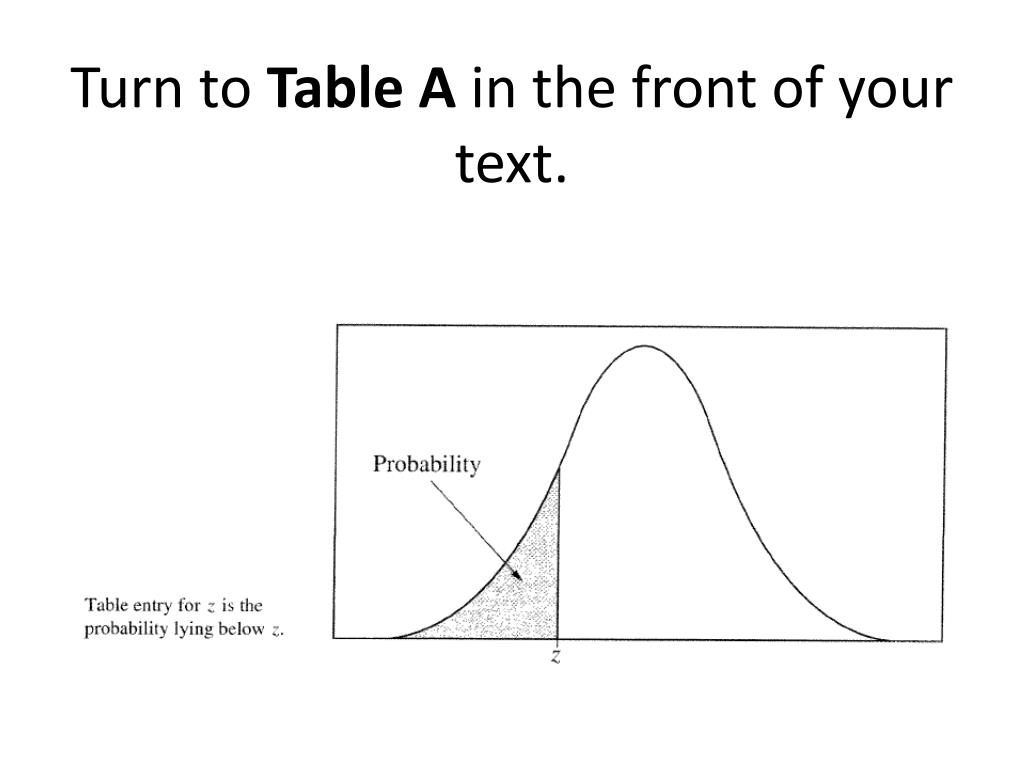

The standard Normal distribution is a density curve. Any question about the proportion of observations can be answered by finding the area under the curve. Because all Normal distributions are the same when we standardize, we can find areas under any Normal curve from a table (or calculator).

calculator 2 nd vars distr 2 normalcdf enter normalcdf lower limit upper limit normalcdf 1 32 10000
Calculator:2nd VARS (DISTR)2:normalcdf(ENTERnormalcdf(lower limit, upper limit)normalcdf(1.32, 10000)
slide16

Normal Distribution CalculationsWe can answer any question about proportions of observations in a Normal distribution by ____________ and then using the Standard Normal table.

standardizing

slide17

Here is a recipe to do so.1. State the problem in terms of the observed variable x. Draw a picture of the distribution and _____the area of interest under the curve.2. Standardize x to restate the problem in terms of a standard Normal variable z. 3. Use the table or calculator and find the required area under the standard Normal curve.4. Write your conclusion in the context of the problem.

find
