5 Axis CNC Machining Services | GEMSONS

1. WELCOME 5 AXIS CNC MACHINING SERVICES | GEMSONS

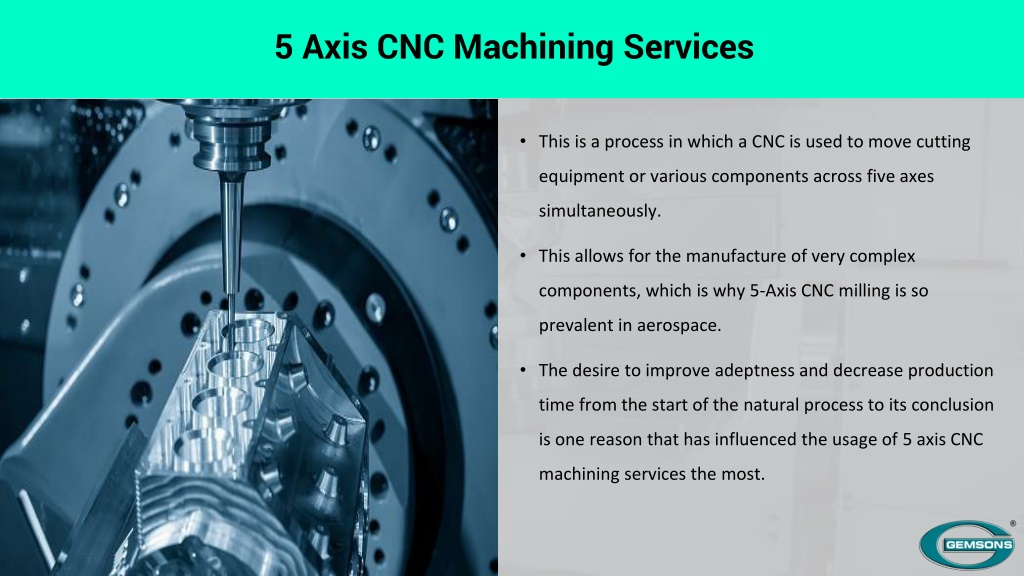

2. 5 Axis CNC Machining Services • This is a process in which a CNC is used to move cutting equipment or various components across five axes simultaneously. • This allows for the manufacture of very complex components, which is why 5-Axis CNC milling is so prevalent in aerospace. • The desire to improve adeptness and decrease production time from the start of the natural process to its conclusion is one reason that has influenced the usage of 5 axis CNC machining services the most.

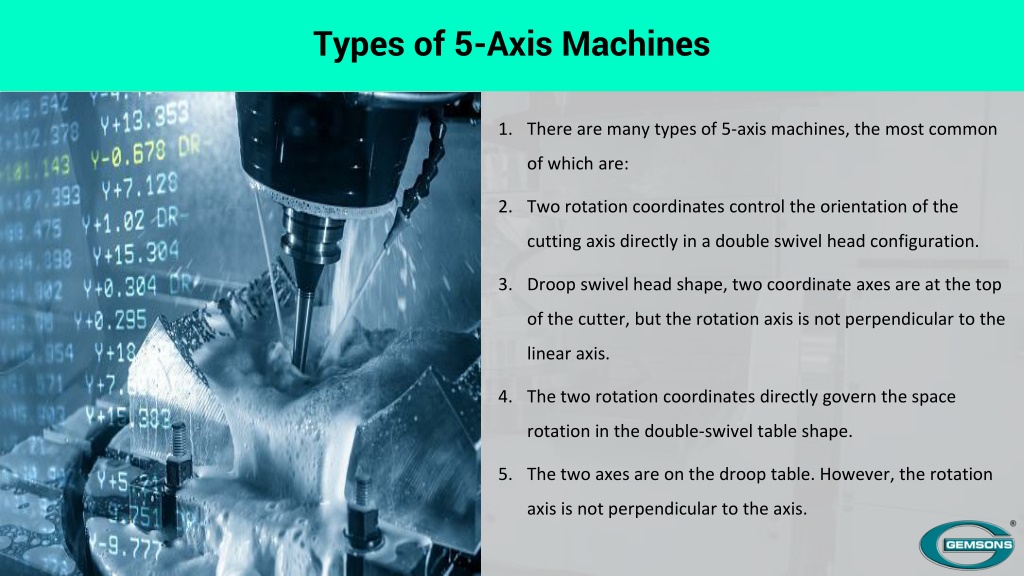

3. Types of 5-Axis Machines • There are many types of 5-axis machines, the most common of which are: • Two rotation coordinates control the orientation of the cutting axis directly in a double swivel head configuration. • Droop swivel head shape, two coordinate axes are at the top of the cutter, but the rotation axis is not perpendicular to the linear axis. • The two rotation coordinates directly govern the space rotation in the double-swivel table shape. • The two axes are on the droop table. However, the rotation axis is not perpendicular to the axis.

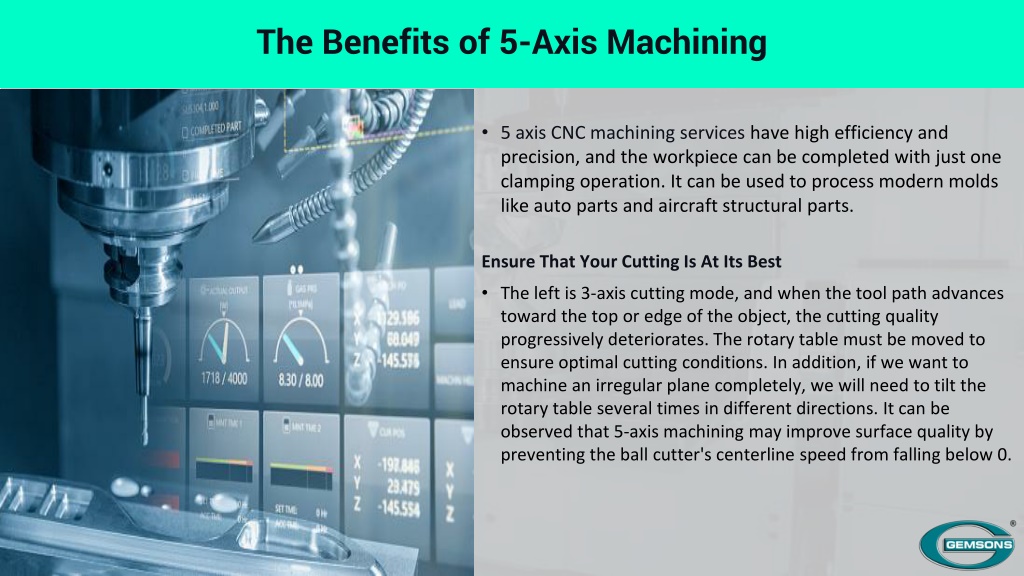

4. The Benefits of 5-Axis Machining • 5 axis CNC machining services have high efficiency and precision, and the workpiece can be completed with just one clamping operation. It can be used to process modern molds like auto parts and aircraft structural parts. Ensure That Your Cutting Is At Its Best • The left is 3-axis cutting mode, and when the tool path advances toward the top or edge of the object, the cutting quality progressively deteriorates. The rotary table must be moved to ensure optimal cutting conditions. In addition, if we want to machine an irregular plane completely, we will need to tilt the rotary table several times in different directions. It can be observed that 5-axis machining may improve surface quality by preventing the ball cutter's centerline speed from falling below 0.

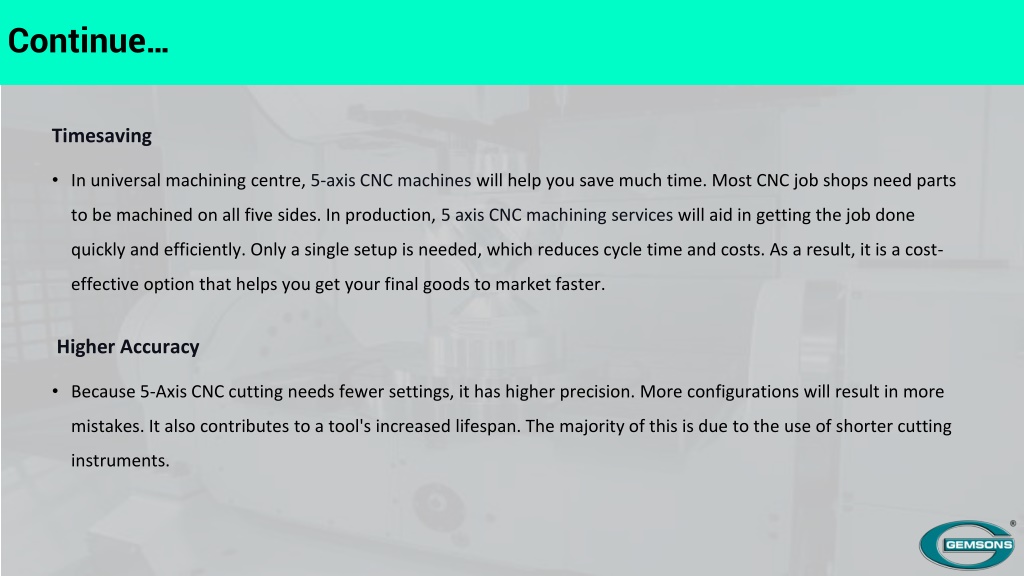

5. Continue… Timesaving • In universal machining centre, 5-axis CNC machines will help you save much time. Most CNC job shops need parts to be machined on all five sides. In production, 5 axis CNC machining services will aid in getting the job done quickly and efficiently. Only a single setup is needed, which reduces cycle time and costs. As a result, it is a cost-effective option that helps you get your final goods to market faster.  Higher Accuracy • Because 5-Axis CNC cutting needs fewer settings, it has higher precision. More configurations will result in more mistakes. It also contributes to a tool's increased lifespan. The majority of this is due to the use of shorter cutting instruments.

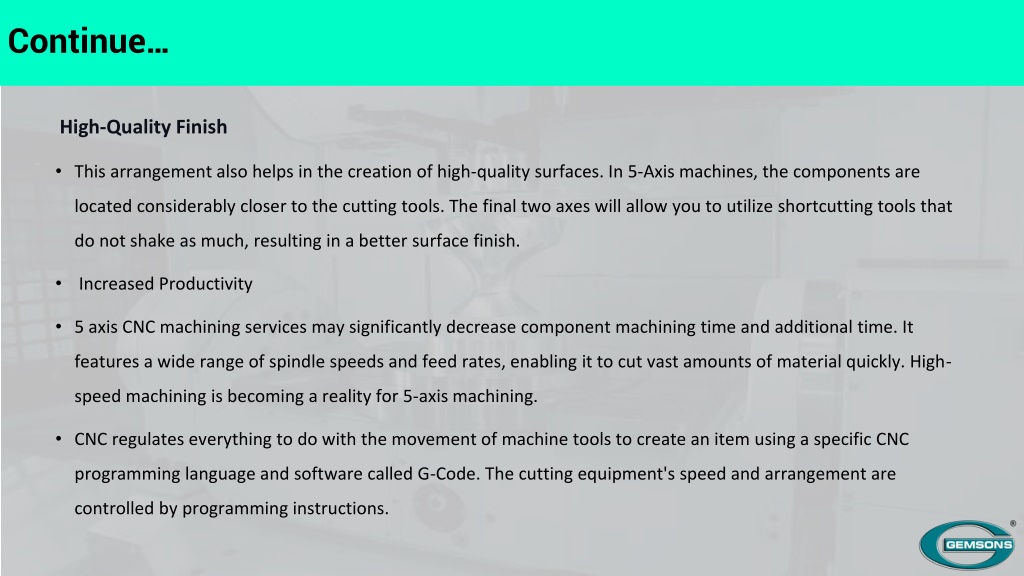

6. Continue… High-Quality Finish • This arrangement also helps in the creation of high-quality surfaces. In 5-Axis machines, the components are located considerably closer to the cutting tools. The final two axes will allow you to utilize shortcutting tools that do not shake as much, resulting in a better surface finish. •  Increased Productivity • 5 axis CNC machining services may significantly decrease component machining time and additional time. It features a wide range of spindle speeds and feed rates, enabling it to cut vast amounts of material quickly. High-speed machining is becoming a reality for 5-axis machining.  • CNC regulates everything to do with the movement of machine tools to create an item using a specific CNC programming language and software called G-Code. The cutting equipment's speed and arrangement are controlled by programming instructions.
