  1. CNC MACHINING SERVICES

  2. Courser IncorporatedMachining Services • EXCELLENT QUALITY SYSTEMS • 98 % CUSTOMER ACCEPTANCE • ON TIME DELIVERIES • GENUINE CONCERN FOR YOU • SENSE OF URGENCY IN ALL PHASES • COMPETITIVE PRICING • FAST QUOTE TURNAROUND

  3. Excellent Quality Systems • Military quality standards and systems • Calibrated instruments and traceable standards • Two CMM’s for accurate and fast throughput • Full inspection documentation available • In process and final inspections

  4. Thorough planning and scheduling systems assure on-time deliveries We pay the freight in the unusual occurrence a job is late You can depend on our proven ability to meet the promised due dates You know we will meet your delivery schedules On time deliveries are a top priority On Time Deliveries

  5. Genuine Concern for You • Experienced management at all levels • Sufficient capacity to meet schedules • Modern equipment is versatile and well maintained to avoid delays • We know our capabilities well – so surprises are rare • We know our success depends on your satisfaction

  6. Sense of Urgency in all Phases • Fast quotation turnaround • Quick response to e-mail communication • Can accept all drawing formats • Large printing capability, so no need to mail prints • SolidWorks solid modeling capability shortens lead times • Fast internet network

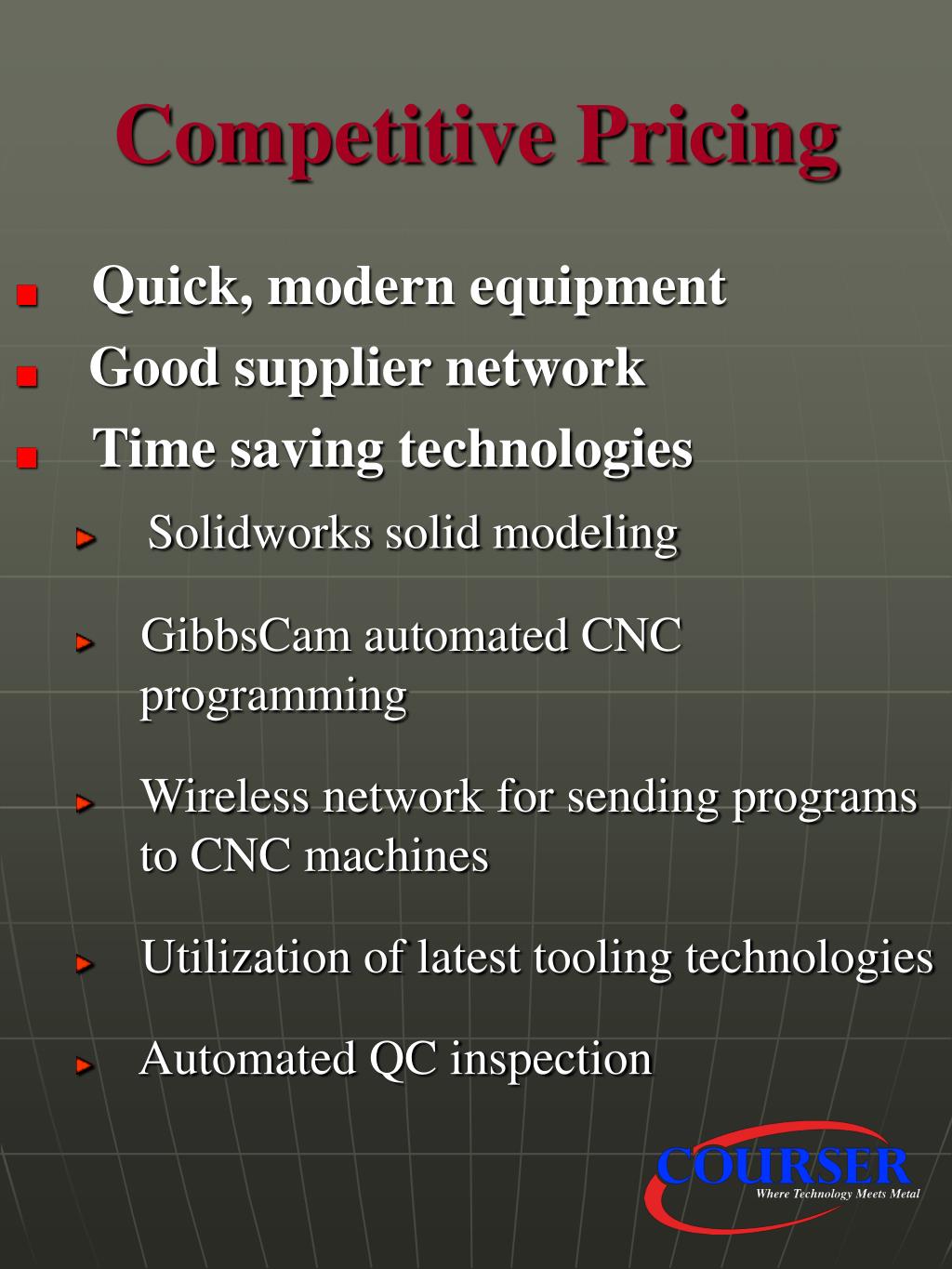

  7. Competitive Pricing • Quick, modern equipment • Good supplier network • Time saving technologies • Solidworks solid modeling • GibbsCam automated CNC programming • Wireless network for sending programs to CNC machines • Utilization of latest tooling technologies • Automated QC inspection

  8. End User ListCourser produces parts for these company’s products: • Dynabil Industries • Boeing • Xerox • Sikorsky • Corning Inc. • Kodak • Lockheed Martin • Raytheon • Mercury Aircraft • Philips Medical Systems • Schweizer Aircraft

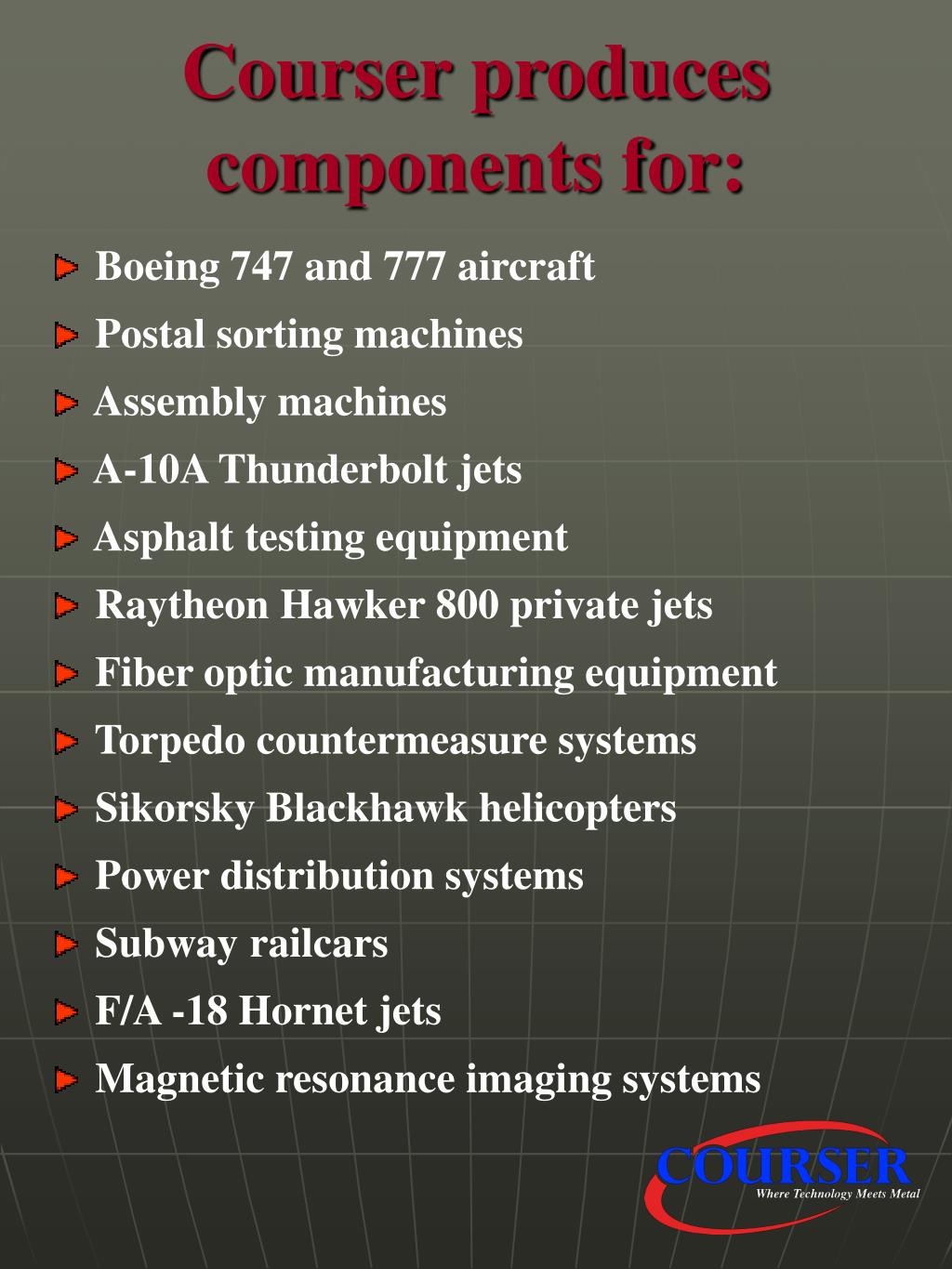

  9. Courser produces components for: • Boeing 747 and 777 aircraft • Postal sorting machines • Assembly machines • A-10A Thunderbolt jets • Asphalt testing equipment • Raytheon Hawker 800 private jets • Fiber optic manufacturing equipment • Torpedo countermeasure systems • Sikorsky Blackhawk helicopters • Power distribution systems • Subway railcars • F/A -18 Hornet jets • Magnetic resonance imaging systems

  10. Solid Model Machining

  11. Solid Model Machining

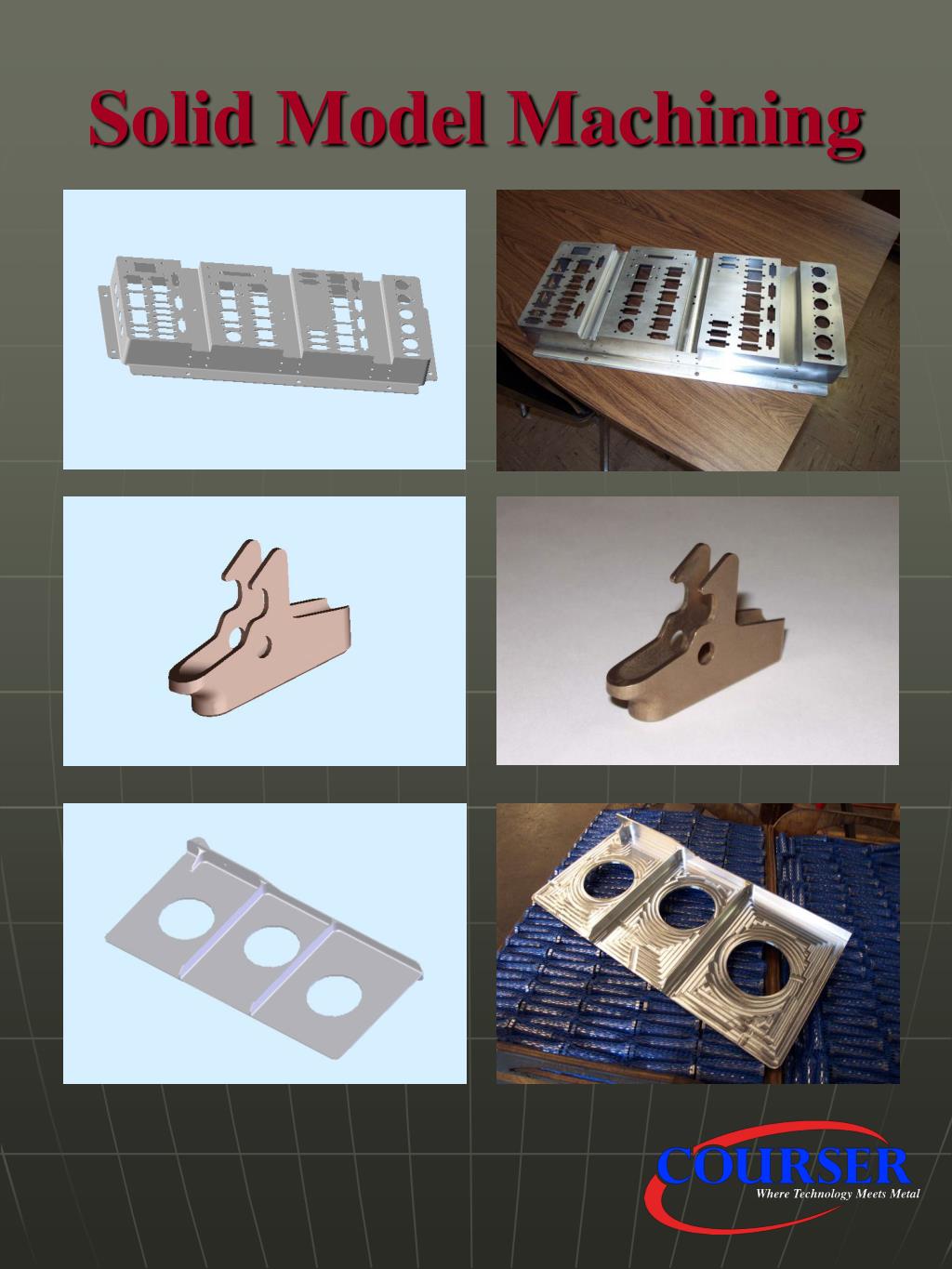

  12. Solid Model Machining

  13. Solid Model Machining

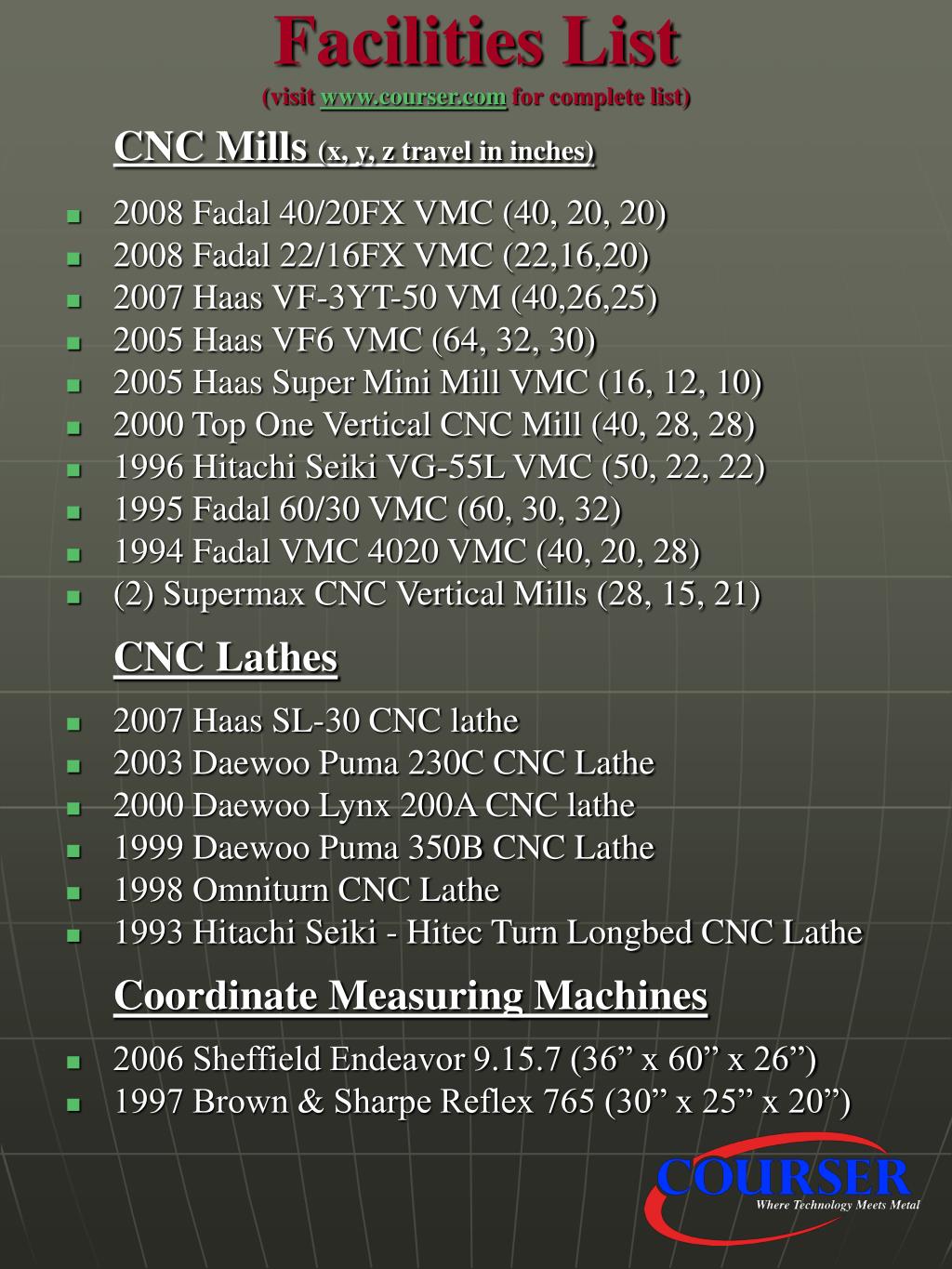

  14. Facilities List(visit www.courser.com for complete list) CNC Mills (x, y, z travel in inches) • 2008 Fadal 40/20FX VMC (40, 20, 20) • 2008 Fadal 22/16FX VMC (22,16,20) • 2007 Haas VF-3YT-50 VM (40,26,25) • 2005 Haas VF6 VMC (64, 32, 30) • 2005 Haas Super Mini Mill VMC (16, 12, 10) • 2000 Top One Vertical CNC Mill (40, 28, 28) • 1996 Hitachi Seiki VG-55L VMC (50, 22, 22) • 1995 Fadal 60/30 VMC (60, 30, 32) • 1994 Fadal VMC 4020 VMC (40, 20, 28) • (2) Supermax CNC Vertical Mills (28, 15, 21) CNC Lathes • 2007 Haas SL-30 CNC lathe • 2003 Daewoo Puma 230C CNC Lathe • 2000 Daewoo Lynx 200A CNC lathe • 1999 Daewoo Puma 350B CNC Lathe • 1998 Omniturn CNC Lathe • 1993 Hitachi Seiki - Hitec Turn Longbed CNC Lathe Coordinate Measuring Machines • 2006 Sheffield Endeavor 9.15.7 (36” x 60” x 26”) • 1997 Brown & Sharpe Reflex 765 (30” x 25” x 20”)
