Bsac wp

Antimicrobial susceptibility testing in Europe

- the role of national breakpoint committees and EUCAST

Gunnar Kahlmeter, EUCAST

gunnar.kahlmeter@ltkronoberg.se

NCCLS (USA)

BSAC wp

DIN

CA-SFM

CRG

NWGA

SRGA



Bsac wp

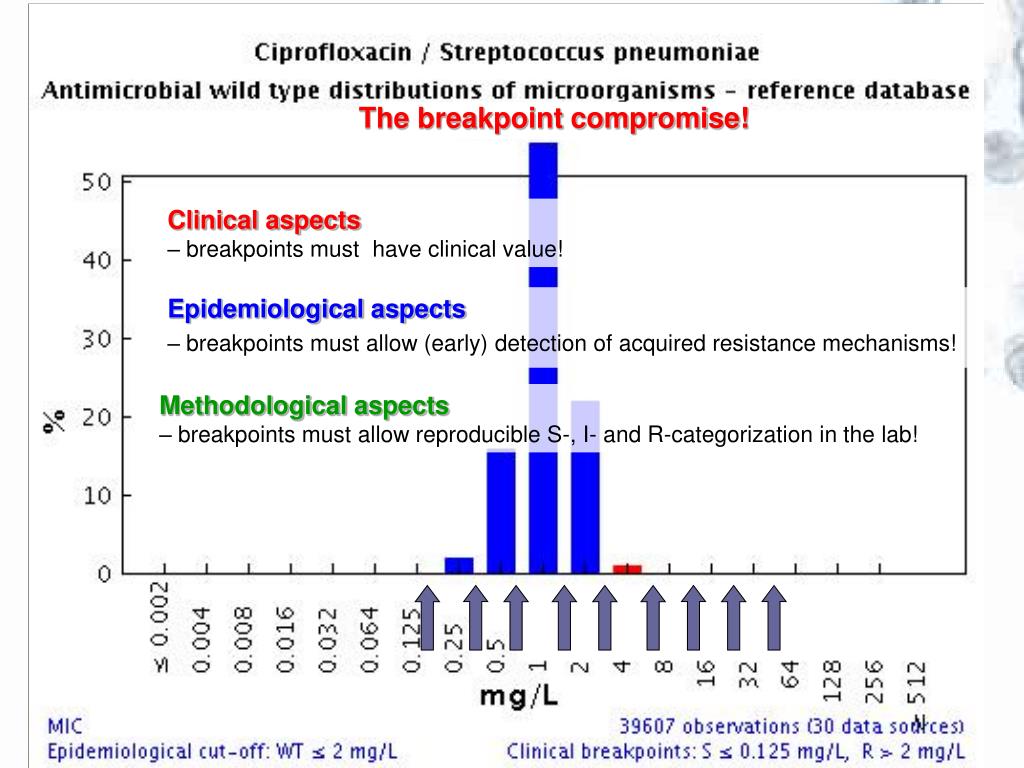

The breakpoint compromise!

Clinical aspects– breakpoints must have clinical value!

Epidemiological aspects

– breakpoints must allow (early) detection of acquired resistance mechanisms!

Methodological aspects– breakpoints must allow reproducible S-, I- and R-categorization in the lab!

<2.0


Eucast
EUCAST

European Committee on Antimicrobial Susceptibility Testing

formed in 1997 and restructured in 2002

convened by

European Society for Clinical Microbiology and Infectious Diseases (ESCMID)

National Breakpoint Committees in Europe

and financed by

ESCMID

National Breakpoint Committees in Europe

DG-SANCO of the European Union (3 year grant from May 2004)


Eucast1
EUCAST

  • EUCAST General Committee:

    -one representative, appointed by the appropriate medical associations, from each European country - one representative each from ISC and FESCI- Chairperson and Scientific secretary (appointed by ESCMID)- meets once a year at ECCMID - all Steering Committee proposals are referred to the General Committee for comments before decision

  • EUCAST Steering Committee:

    - Chairperson and a Scientific Secretary (appointed by ESCMID)- one representative each from the European national breakpoint committees (presently 6)- two representatives from the EUCAST General Committee - Czech Republic and Greece 2002-2004 - Russia and Spain 2004 -2006

  • EUCAST industry network - The network consists of all interested manufacturers of pharmaceuticals and susceptibility testing devices. All are invited to take an active part in EUCAST activities - Steering Committee proposals are referred to the industry network for comments before decision

    - relevant industry members can apply for inclusion on the email list by contacting the EUCAST secretariat


Eucast general committee 2004

Austria Prof Helmut Mittermayer

Belgium Prof Jan Verhaegen

Bosnia Dr Selma Uzunovic-Kamberovic

Bulgaria Prof Krassimir Metodiev

Croatia Dr Arjana Tambic-Andrasevic

Czech Republic Dr Pavla Urbaskova

Denmark Dr Niels Frimodt-Møller

Estonia Dr Paul Naaber

Finland Dr Antti Nissinen

France Prof Claude-James Soussy

Germany Prof Bernd Wiedemann

Greece Prof Alkiviadis Vatopoulos

Hungary Dr Éva Bán

Iceland Dr Karl Gustaf Kristinsson

Ireland Dr Martin Cormican

Italy Prof Pietro Emanuele Varaldo

Latvia Dr Arta Balode

Lithuania Prof Arvydsa Ambrozaitis

Netherlands Prof John Degener

Norway Dr Martin Steinbakk

Poland Prof Waleria Hryniewicz

Portugal Prof Jose Melo Cristino

Romania no official representative

Russia Dr Olga Stetsiouk

Serbia Dr Lazar Ranin

Slovak Republic Prof. Milan Niks

Slovenia Dr Jana Kolman

Spain Dr Francisco Soriano

Sweden Dr Barbro Olsson-Liljequist

Switzerland Prof Jaques Bille

Turkey Dr Deniz Gür

UK Prof Alasdair MacGowan

Yugoslavia no official representative

ISC – Prof Paul Tulkens

FESCI – Prof David Livermore

Email network of industry with interest in antimicrobials

Chairperson Gunnar Kahlmeter, Sweden

Scientific Secretary Derek Brown, UK

EUCAST General Committee 2004


Eucast steering committee membership

EUCAST Steering Committee Membership

Chairperson Gunnar Kahlmeter 2002 - 05

Scientific Secretary Derek Brown 2002 - 05

BSAC (The UK) Alasdair MacGowan 2002 - 05

CA-SFM (France) Fred Goldstein 2002 - 05

CRG (The Netherlands) Johan W. Mouton 2002 - 05

DIN (Germany) Arne Rodloff 2002 - 05

NWGA (Norway) Martin Steinbakk 2002 - 05

SRGA (Sweden) Anders Österlund 2002 - 05

General Committeerep Olga Stetsiouk (Russia) 2004 - 06

General Committeerep Francisco Soriano (Spain) 2004 - 06


Eucast definitions of clinical breakpoints available at www eucast org
EUCAST definitions of clinical breakpointsavailable at www.eucast.org

Clinically Susceptible (S)

  • a microorganism is defined as susceptible by a level of antimicrobial activity associated with a high likelihood of therapeutic success

  • a microorganism is categorized as susceptible (S) by applying the appropriate breakpoint in a defined phenotypic test system

    Clinically Intermediate (I)

  • a microorganism is defined as intermediate by a level of antimicrobial activity associated with indeterminate therapeutic effect

  • a microorganism is categorized as intermediate (I) by applying the appropriate breakpoints in a defined phenotypic test system

    Clinically Resistant (R)

  • a microorganism is defined as resistant by a level of antimicrobial activity associated with a high likelihood of therapeutic failure.

  • a microorganism is categorized as resistant (R) by applying the appropriate breakpoint in a defined phenotypic test system

    Clinical breakpoints may be altered with legitimate changes in circumstances

    Clinical breakpoints are presented as S<x mg/L; I>x, <y mg/L; R>y mg/L

EUCAST has re-defined susceptible, intermediate and resistant and defined the terms wild type and non-wild type microorganism…..

and agreed…

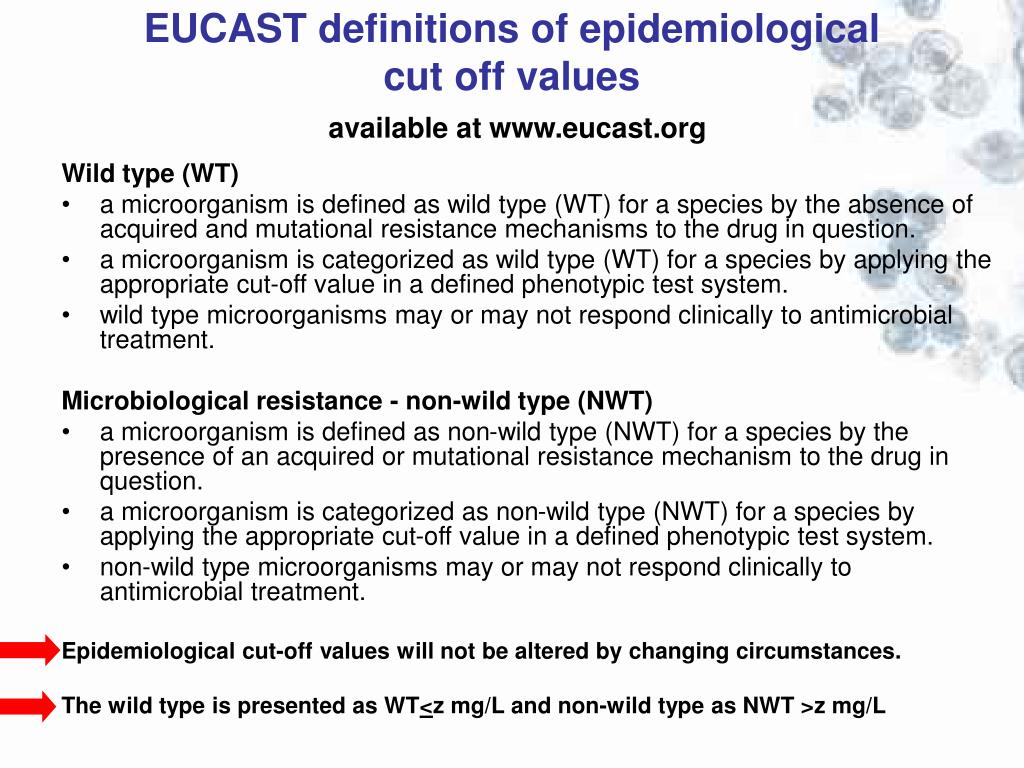

Eucast definitions of epidemiological cut off values available at www eucast org
EUCAST definitions of epidemiological cut off valuesavailable at www.eucast.org

Wild type (WT)

  • a microorganism is defined as wild type (WT) for a species by the absence of acquired and mutational resistance mechanisms to the drug in question.

  • a microorganism is categorized as wild type (WT) for a species by applying the appropriate cut-off value in a defined phenotypic test system.

  • wild type microorganisms may or may not respond clinically to antimicrobial treatment.

    Microbiological resistance - non-wild type (NWT)

  • a microorganism is defined as non-wild type (NWT) for a species by the presence of an acquired or mutational resistance mechanism to the drug in question.

  • a microorganism is categorized as non-wild type (NWT) for a species by applying the appropriate cut-off value in a defined phenotypic test system.

  • non-wild type microorganisms may or may not respond clinically to antimicrobial treatment.

    Epidemiological cut-off values will not be altered by changing circumstances.

    The wild type is presented as WT<z mg/L and non-wild type as NWT >z mg/L


Eucast publications
EUCAST publications

1. European Committee on Antimicrobial Susceptibility Testing. (2000). Terminology relating to methods for the determination of susceptibility of bacteria to antimicrobial agents. EUCAST Definitive Document E.Def 1.2. Clinical Microbiology and Infection 6, 503-8.

2. European Committee on Antimicrobial Susceptibility Testing. (2000). Determination of antimicrobial susceptibility test breakpoints. EUCAST Definitive Document E.Def 2.1. Clinical Microbiology and Infection 6, 570-2.

3. European Committee on Antimicrobial Susceptibility Testing. (2000). Determination of minimum inhibitory concentrations (MICs) of antibacterial agents by agar dilution. EUCAST Definitive Document E.Def 3.1. Clinical Microbiology and Infection 6, 509-15.

4. European Committee on Antimicrobial Susceptibility Testing. (2001). Linezolid breakpoints. EUCAST Definitive Document E.Def 4.1. Clinical Microbiology and Infection 7, 283-4.

5. European Committee on Antimicrobial Susceptibility Testing. (2003). Determination of minimum inhibitory concentrations (MICs) of antibacterial agents by broth microdilution. EUCAST Discussion Document E.Def 5.1. Clinical Microbiology and Infection 9 (issue 7 insert) 1-10.

6. Ridgway, G.L., Bébéar, C., Bébéar, C.M, et al. (2001). Antimicrobial susceptibility testing of intracellular and cell-associated pathogens. EUCAST Discussion Document E.Dis 6.1. Clinical Microbiology and Infection 7 (issue 12 insert),1-10.

7. Rodriguez-Tudela, J.L., Barchiesi, F., Bille, J. et al. (2003). Determination of minimum inhibitory concentrations by broth microdilution of fermentative yeasts. EUCAST Discussion Document E.Dis 7.1. Clinical Microbiology and Infection 9 (issue 8 insert), 1-8.

  • Drobniewski, F. (2002). Antimicrobial susceptibility testing of Mycobacterium tuberculosis. EUCAST Discussion Document E.Dis 8.1. Clinical Microbiology and Infection 8 (issue 10 insert),1-10.

  • Kahlmeter G, Brown DFJ, Goldstein FW et al. (2003) European harmonization of MIC breakpoints for antimicrobial susceptibility testing of bacteria. Journal of Antimicrobial Chemotherapy 52, 145-148.

  • Kahlmeter G & Brown D. Harmonisation of European breakpoints – can it be achieved? Clinical Microbiology Newsletter, in press.

Published documents, discussion documents and tentative decisions are posted on the EUCAST website.

Tentative decisions and discussion documents - after a period of consultation they will be submitted for publication and/or be made available on the EUCAST website as final documents or decisions (www.eucast.org).


Eucast subcommittee on antifungal susceptibility testing eucast afst

EUCAST Subcommittee on Antifungal Susceptibility Testing (EUCAST AFST)

  • develop reference methods for antifungal susceptibility testing

  • set breakpoints for antifungal drugs

  • Financed through EUCAST

  • EUCAST processes for breakpoint setting, decisions and consultation


Eucast collaborations
EUCAST collaborations

  • EMEA – SOP being developed which renders EUCAST the official European breakpoint committee (EUCAST breakpoints in the SPCs).

  • Expert groups and reference laboratories (Neisseria, Salmonella, European Veterinary working group, NEQAS)

  • EARSS

    • EUCAST permanently on the EARSS advisory board

  • NCCLS

    • NCCLS/EUCAST broth dilution method for the determination of MIC-values harmonised through CEN and ISO; finished document end of 2004.

    • NCCLS/EUCAST common QC type strain MIC-target values and ranges

    • NCCLS/EUCAST harmonised FQ breakpoints for staphylococci.

    • Collaborative process for revision of cephalosporin and carbapenem MIC breakpoints (first joint meeting in Tampa, January 2005).

  • Pharmaceutical industry information and consultation network



Breakpoints for new antimicrobials
Breakpoints for new antimicrobials

  • Daptomycin

  • Tigecycline


Eucast procedure for setting breakpoints
EUCAST procedure for setting breakpoints

The next 9 slides describe the EUCAST procedure for harmonising European breakpoints.


Bsac wp

1. Data on dosing, formulations, clinical indications and target organisms are reviewed and differences which might influence breakpoints are highlighted

Example: ciprofloxacin

National breakpoint committees


Bsac wp

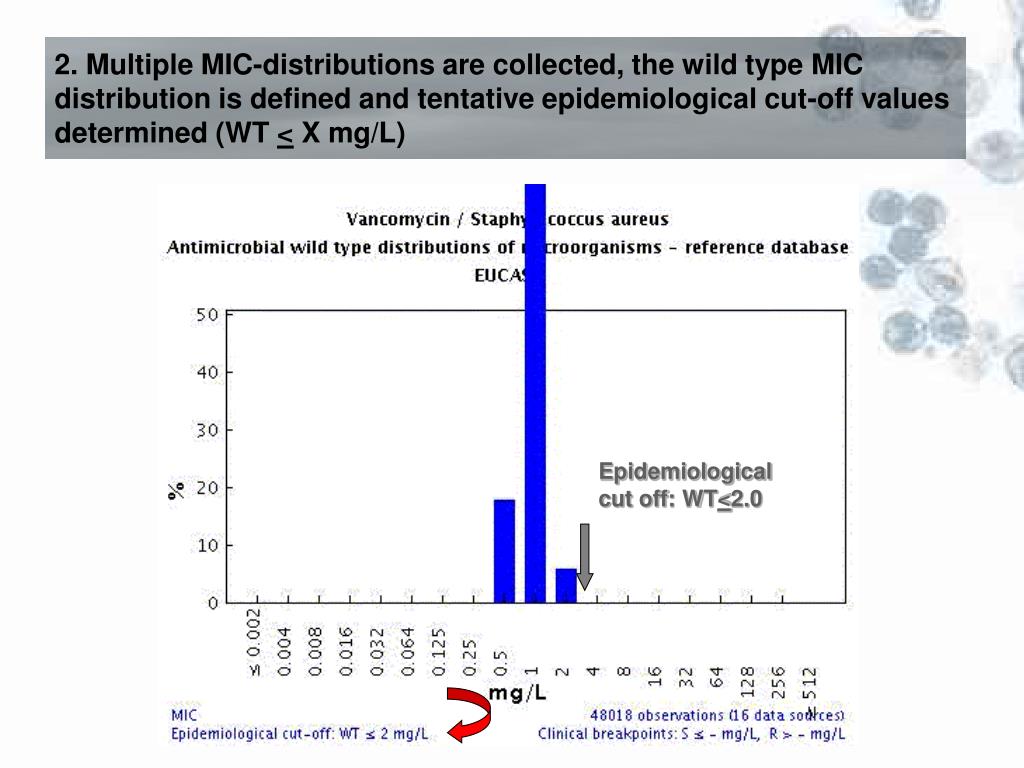

2. Multiple MIC-distributions are collected, the wild type MIC distribution is defined and tentative epidemiological cut-off values determined (WT < X mg/L)

Epidemiological cut off: WT<2.0


3 existing national clinical breakpoints are compared
3. Existing national clinical breakpoints are compared MIC distribution is defined and tentative epidemiological cut-off values determined (WT

Ciprofloxacinwas used in this example:


Bsac wp
4. Using available MIC distribution is defined and tentative epidemiological cut-off values determined (WT PK/PD data, Monte Carlo simulations are performed and a tentative breakpoint calculated

”Minimum requirement for S-category” is that the high MIC value of the wild type MIC-distribution is consistent with the MIC derived from the PK/PD index needed for optimal efficacy based on free drug”.


Bsac wp

5. Clinical data relating outcome to MIC-values and resistance mechanisms are assessed in relation to the tentative breakpoint

….and you´ve just heard Professor MacGowan adress that issue


Bsac wp
6. Tentative breakpoints are checked against target species wild type MIC distributions to avoid splitting the wild type

Epidemiological cut off: WT<2.0

  • …it was decided to set the break-point at S≤0.125 and R>2 mg/L, rendering wild type S.pneumoniae inter-mediately susceptible to ciprofloxacin.

To permit reproducible

susceptibility testing,

splitting of the wild type

must be avoided:

0.5 and 1 mg/L were not

acceptable….and 2 mg/L

was considered too high…

<2 mg/L

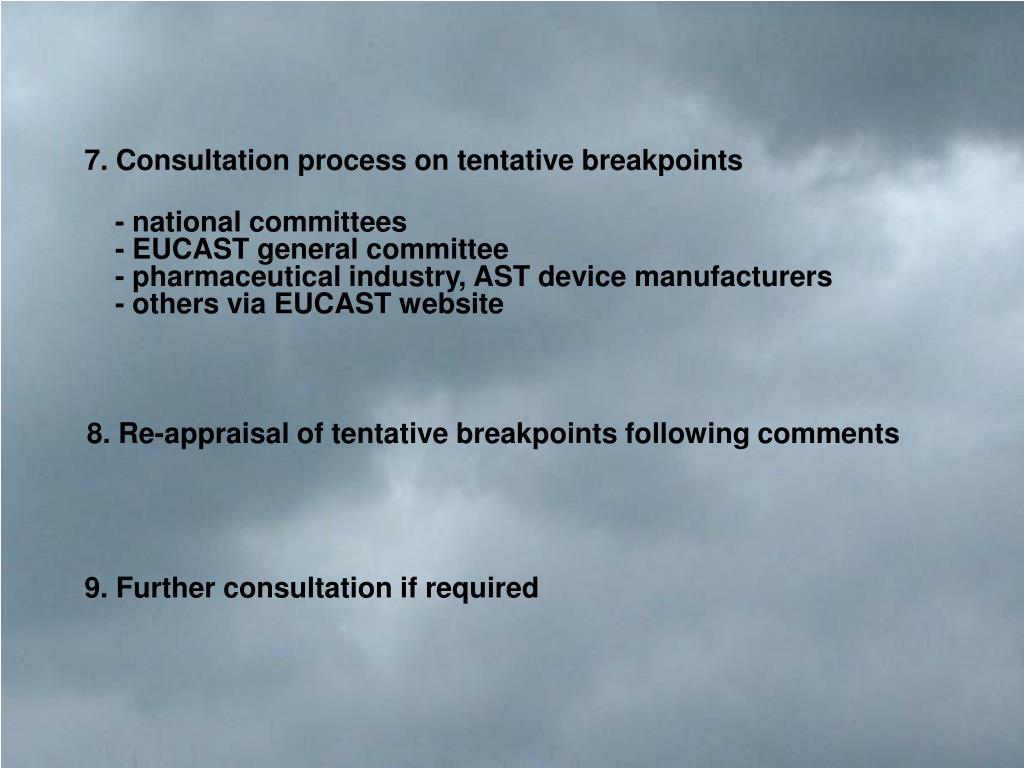

8 re appraisal of tentative breakpoints following comments
8. Re-appraisal of tentative breakpoints following comments wild type MIC distributions to avoid splitting the wild type

7. Consultation process on tentative breakpoints

- national committees- EUCAST general committee- pharmaceutical industry, AST device manufacturers - others via EUCAST website

9. Further consultation if required


Bsac wp

EUCAST has now finalised breakpoints for fluoroquinolones, wild type MIC distributions to avoid splitting the wild type

glycopeptides, aminoglycosides and linezolid and is now

working on cephalosporins, carbapenems and aztreonam.

EUCAST breakpoint tables are published

at www.eucast.org


Eucast websites are found at www eucast org
EUCAST websites are found at wild type MIC distributions to avoid splitting the wild typewww.eucast.org

The EUCAST website is a section of the official ESCMID website – it gives details of all EUCAST activities including

- constitution and organisation

- committee member lists

- meetings

- EUCAST documents

- EUCAST power-point presentation

- clinical MIC breakpoint tables

- MIC distributions for wild type bacteria and fungi

- epidemiological MIC cut-off values.


Bsac wp

www.eucast.org wild type MIC distributions to avoid splitting the wild type

This is the first screen of the EUCAST

general website.


Bsac wp

Choose to display in English, French or German wild type MIC distributions to avoid splitting the wild type

First screen of the EUCAST program for the display of wild type MIC distributions in microorganisms.

www.eucast.org


Eucast aggregated wild type mic distributions
EUCAST aggregated wild type MIC distributions wild type MIC distributions to avoid splitting the wild type

- the fact that wild type microrganisms of the same species exhibit identical MIC (and inhibition zone) distributions irrespective of origin provides an opportunity to aggregate multiple distributions and define a reference.

  • Data from scientific papers, breakpoint committees, reference laboratories, pharmaceutical industry, surveillance networks (EARSS, Sentry, Alexander Project, National surveillance networks)

  • All submitted full-range MIC distributions accepted

  • To date no systematic exclusions.

  • October, 2004 – 3500 MIC distributions


Bsac wp

S. pneumoniae wild type MIC distributions to avoid splitting the wild type and ciprofloxacin MIC distributions

This slide shows a portion of the data set for S.pneumoniae and ciprofloxacin.

Each MIC distribution is from a different investigator, surveillance program, breakpoint committee or pharmaceutical company.

The median of the uni- or of the first part of the bi- or multi-modal distribution has been marked in blue.


Bsac wp

Aggregated wild type MIC distributions to avoid splitting the wild typeS.pneumoniae ciprofloxacin MIC-data.Values of >1% are shown in graph as bars.


Bsac wp

Choose to display in English, French or German wild type MIC distributions to avoid splitting the wild type

www.eucast.org


Bsac wp

Specify the drug or the bug (never both) - after a moment a table of MIC-distributions is shown. Click on any species in the left hand column to display the data as a bar chart, with EUCAST epidemiological cut-off values and harmonised European clinical breakpoints.


Bsac wp

(1) To define epidemiological cut-off values table of MIC-distributions is shown. Click on any species in the left hand column to display the data as a bar chart, with EUCAST epidemiological cut-off values and harmonised European clinical breakpoints.


Bsac wp

(2) As a template for calibration of table of MIC-distributions is shown. Click on any species in the left hand column to display the data as a bar chart, with EUCAST epidemiological cut-off values and harmonised European clinical breakpoints. methodology (accuracy and imprecision).

”We have defined the result of antimicrobial susceptibility testing!”


Bsac wp

(3) Reference MIC database for breakpoint setting - to avoid clinical breakpoints that divide wild type bacteria


Bsac wp

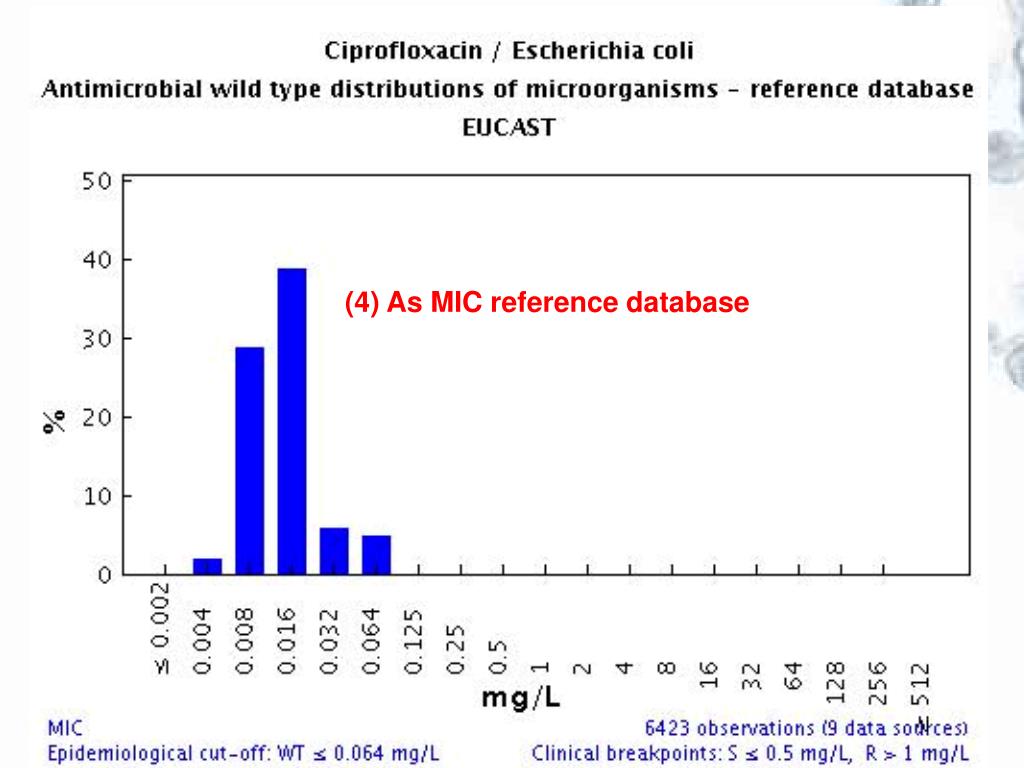

(4) As MIC reference database clinical breakpoints that divide wild type bacteria

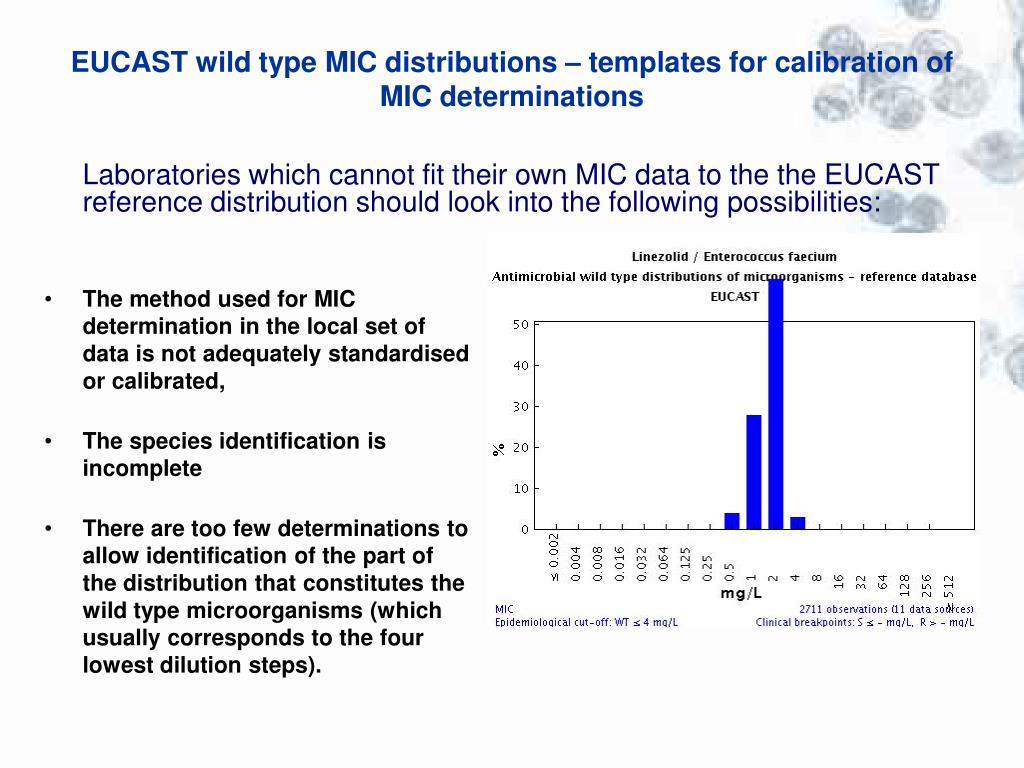

Eucast wild type mic distributions templates for calibration of mic determinations
EUCAST wild type MIC distributions – templates for calibration of MIC determinations

Laboratories which cannot fit their own MIC data to the the EUCAST reference distribution should look into the following possibilities:

  • The method used for MIC determination in the local set of data is not adequately standardised or calibrated,

  • The species identification is incomplete

  • There are too few determinations to allow identification of the part of the distribution that constitutes the wild type microorganisms (which usually corresponds to the four lowest dilution steps).


Bsac wp

Examples from the EUCAST wild type calibration of MIC determinations

MIC distribution program.

1


Bsac wp

The objectives of EUCAST are calibration of MIC determinations

  • to form in EUCAST, under the auspices of the European Society of Clinical Microbiology and Infectious Diseases", a professional network of- the national breakpoint committees and experts on antimicrobial susceptibility testing and - industry involved in the production and marketing of antimicrobial agents or of in-vitro diagnostic medical devices used in antimicrobial susceptibility testing;

  • to set common European breakpoints for surveillance of antimicrobial resistance;

  • to identify national differences in clinical breakpoints and to harmonise breakpoints for existing and new antimicrobial drugs;

  • to produce, disseminate and update a series of documents on the technology of in-vitro antimicrobial susceptibility testing, promoting standardisation of methods used in different parts of Europe and comparability of results obtained by different technologies;

  • to encourage internal and external national and international quality assessment schemes;

  • to collaborate with European and international groups concerned with antimicrobial susceptibility testing and/or the epidemiology of antimicrobial resistance;

  • to advise European Community Institutions on the technology and interpretation of antimicrobial susceptibility testing;

  • to work with groups outside Europe (eg NCCLS) to achieve international consensus on susceptibility testing;

  • to devise and participate in educational and training programmes for antimicrobial susceptibility testing (workshop with EARSS in 2005, two workshops for national breakpoint committees in 2005 & 2006).


Bsac wp

The End calibration of MIC determinations


Bsac wp

E.coli and ciprofloxacin in ECO•SENS calibration of MIC determinations

Wildtype distributions do not vary with geographical origin!

G Kahlmeter, JAC, 2003.



Bsac wp

Origin calibration of MIC determinations


Bsac wp

Origin calibration of MIC determinations


Summary of eucast procedure for setting clinical breakpoints
Summary of EUCAST procedure for setting clinical breakpoints calibration of MIC determinations

  • Data on dosing, formulations, clinical indications and target organisms are reviewed and differences which might influence breakpoints are highlighted.

  • Multiple MIC-distributions are collected, the wild type MIC distribution is defined and tentative epidemiological cut-off values determined (WT < X mg/L).

  • Existing national clinical breakpoints are compared.

  • Using available PK/PD data, Monte Carlo simulations are performed and a tentative breakpoint calculated. ”Minimum requirement for S-category” is that the high MIC value of the wild type MIC-distribution is consistent with the MIC derived from the PK/PD index needed for optimal efficacy based on free drug”.

  • Clinical data relating outcome to MIC-values and resistance mechanisms are assessed in relation to the tentative breakpoint.

  • Tentative breakpoints are checked against target species wild type MIC distributions to avoid splitting the wild type.

  • Consultation process (national committees, EUCAST general committee and pharmaceutical industry and AST device manufacturers).

  • EUCAST clinical breakpoint tables are published on the internet (www.eucast.org) with links to tables and graphs of wild type distributions of MIC values.

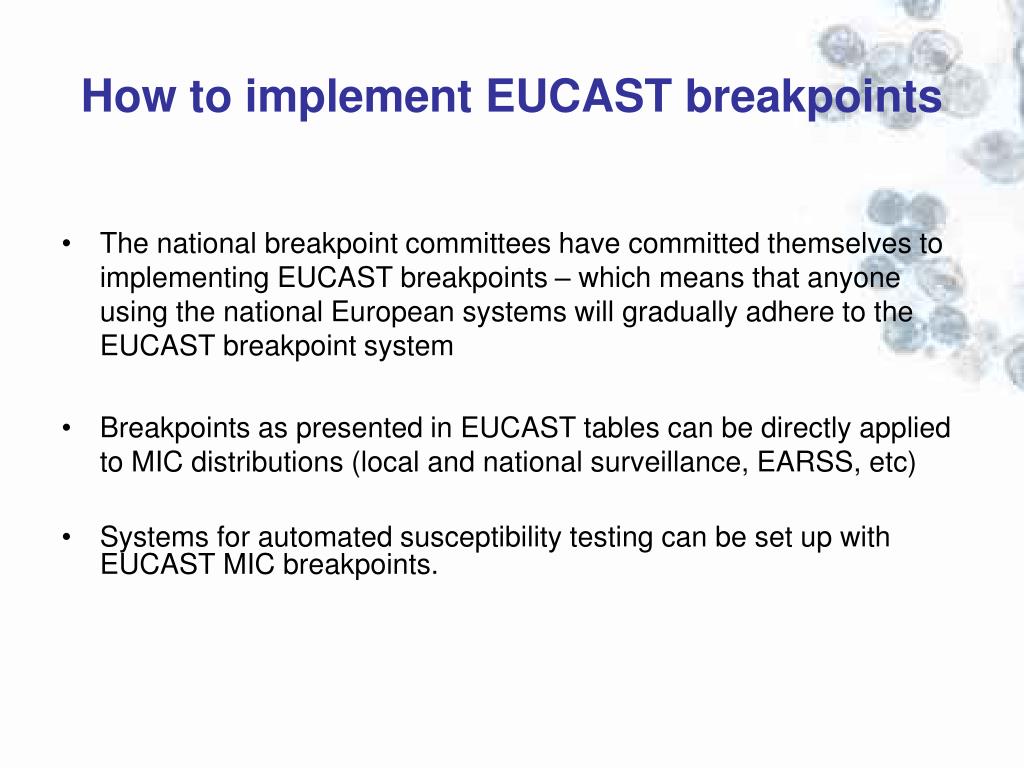

How to implement eucast breakpoints
How to implement EUCAST breakpoints calibration of MIC determinations

  • The national breakpoint committees have committed themselves to implementing EUCAST breakpoints – which means that anyone using the national European systems will gradually adhere to the EUCAST breakpoint system

  • Breakpoints as presented in EUCAST tables can be directly applied to MIC distributions (local and national surveillance, EARSS, etc)

  • Systems for automated susceptibility testing can be set up with EUCAST MIC breakpoints.


Bsac wp
EUCAST wild type MIC distributions and epidemiological cut-off values – the conceptJAC 2003; 52: 145-148

EUCAST developed the concept of antimicrobial wild type MIC distributions and epidemiological cut-off values (JAC 52:145-148, 2003).Software was created to receive and display large volumes of MIC data for bacteria and fungi over the Internet. It is freely available at http://www.eucast.org.

Distributions are displayed in an aggregated format. Tables and graphs show the part of the MIC distribution which, when EUCAST defines the ”epdemiological cut-off value”, is defined as the ”wild type distribution”.The epidemiological cut-off value separating microorganisms without (wild type) and with acquired or mutational resistance (non-wild type) and clinical breakpoints are, if defined, shown on the bottom line of the graph.

The epidemiological cut-off value (left hand lower corner) is shown as WT≤ X mg/L.

The clinical breakpoints (right hand lower corner) are shown as S≤ Y mg/L and R> Z mg/L.


Eucast wild type mic distributions and epidemiological cut off values methods and data
EUCAST wild type MIC distributions and epidemiological cut-off values – methods and data

Origin of MIC data

Each distribution is comprised of aggregated MIC data including individual MIC distributions from

- publications in international journals

- breakpoint committees

- antimicrobial surveillance systems such as EARSS, SENTRY, the Alexander Project

- pharmaceutical companies and susceptibility testing device manufacturers.

Thus, unless otherwise specifically stated, distributions include results obtained with different methods. These methods do not give exactly the same results but the results rarely vary by more than one doubling dilution step. In this way the aggregated EUCAST MIC distributions contain the random variation between different investigators and the systematic variation seen between different methods.

Origin of the organisms included in the MIC distributions

The data are from tests on bacteria and fungi collected from man and animals, of any geographic origin and over a wide timeframe.

MIC methods represented Species-specific distributions of MIC values collected from all over the world are included in the database. The distributions shown represent full range MIC values determined with methods described by EUCAST, BSAC (UK), CA-SFM (France), CRG (The Netherlands), DIN (Germany), NCCLS (USA), NWGA (Norway), and SRGA (Sweden) or methods calibrated to these methods (eg. commercial methods which give full range MIC values).


Eucast wild type mic distributions templates for calibration of mic determinations1
EUCAST wild type MIC distributions – templates for calibration of MIC determinations

Exclusion of data

All submitted full-range MIC distributions have been accepted. There has been no systematic exclusion of data from one contributor or from one method. The contributions are screened by the EUCAST Steering Committee and less than 10% have been excluded from the aggregated distributions. However, all data are held in the database and are accessible to the Steering Committee. The most common reason for exclusion has been that the data were not full-range MICs so that a significant proportion of MICs were outside the tested range.

Laboratories which cannot fit their own MIC data to the the EUCAST reference distribution should look into the following possibilities:

  • The method used for MIC determination in the local set of data is not adequately calibrated,

  • The species identification is incomplete,

  • There are too few determinations to allow identification of the part of the distribution that constitutes the wild type microorganisms. This usually corresponds to the four lowest dilution steps.


Eucast wild type mic distributions why are only the mics of wild type microorganisms displayed
EUCAST wild type MIC distributions calibration of MIC determinations– why are only the MICs of wild type microorganisms displayed?

The distributions consist of MIC-values determined over 30 years or more.

Resistance frequencies obtained through the aggregated MIC distributions would not be representative of current antimicrobial resistance frequencies and would be confusing and misleading.

When the epidemiological cut-off value has been determined by the EUCAST Steering Committee it blocks display of the non-wild type microorganisms (red bars, upper figure) and shows only the part representing the wild type (lower fig).


Eucast wild type mic distributions how to contribute data
EUCAST wild type MIC distributions calibration of MIC determinations– how to contribute data

Everyone is invited to contribute data

All who have full-range MIC data for bacteria or fungi are invited to contribute data as long as MICs are determined with an accepted standardised method, which should be named. Once entered on the database the data will not be identifiable as separate distributions but will help build the aggregate reference distributions. The biologically resistant (non-wild type) part of the distribution will be seen only by the EUCAST Steering Committee.

Submitting data to the EUCAST database does not interfere with publication of data.

Where can I get more information?

Contact EUCAST – email addresses and information can be obtained through the EUCAST website at http://www.eucast.org
