  1. Contrinex RFID J.-D. Chatelain

  2. RFID • provides the following benefits: • Saves time • Less paperwork • More reliability BENEFITS

  3. RFID Avoids the human error Provides flexibility Provides traceability Provides easy access to workstations Prevents fraud and counterfeiting ADVANTAGES

  4. A Contrinex interface links POWERLINK and ContriNet ContriNet is the fieldbus for Contrinex RFID system On ContriNet, it is possible to connect HF Read/Write Modules (RWM)… as well as LF Read/Write Modules (RWM) Just one interface for up to 32 RWMs and a length for ContriNet up to 200 m CHARACTERISTICS

  5. 24V Programming area Intermediate storage Painting area 24V APPLICATION RWM01 RWM02 An object to be transformed ContriNet network is developped to connect the RFID system A POWERLINK interface is also connected to the fieldbus Read/Write Modules (RWMs) are connected to ContriNet Let’s imagine a production facility with a painting area, A painting machine is connected to the fieldbus A PLC controls the POWERLINK fieldbus POWERLINK is the industrial fieldbus equipped with a RFID transponder Objects waiting to be transformed a storage area and a programming area

  6. The machine, programmed by the control console, does its work in accordance with the instructions stored in the transponder The command recorded in the transponder is read by RWM02, sent to the control console which, in turn, programs the painting machine It is transmitted to the transponder via an interface device and RWM01 A command is introduced into the control console YELLOW CYAN BLUE 24V 24V RWM01 RWM02

  7. VIOLET CYAN RED 24V 24V RWM01 RWM02

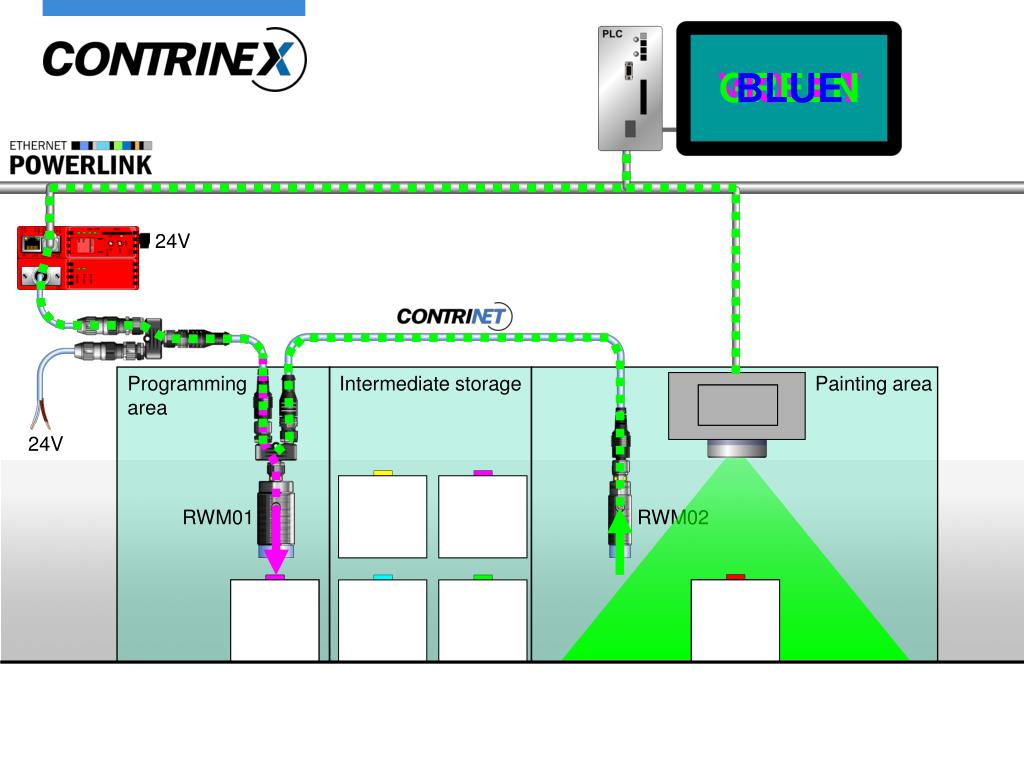

  8. VIOLET GREEN BLUE 24V 24V RWM01 RWM02

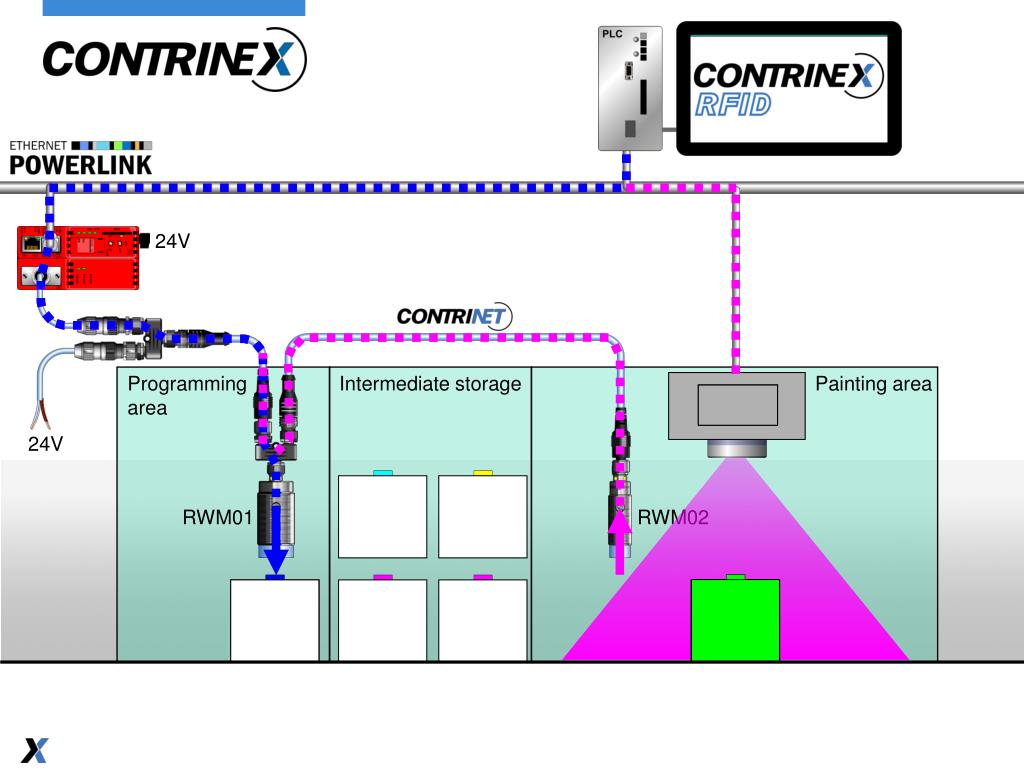

  9. VIOLET BLUE 24V 24V RWM01 RWM02

  10. THE END
