The Nitrogen Cycle

The Nitrogen Cycle. Sources of Nitrogen N is abundant on earth, but only about 2% is available to organisms as reactive nitrogen (NO x , NH x , Org N) N is made available by Nitrogen-fixation and by fertilizer production Gaseous N 2  NO 3

ivor-tucker
Download Presentation

The Nitrogen Cycle

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

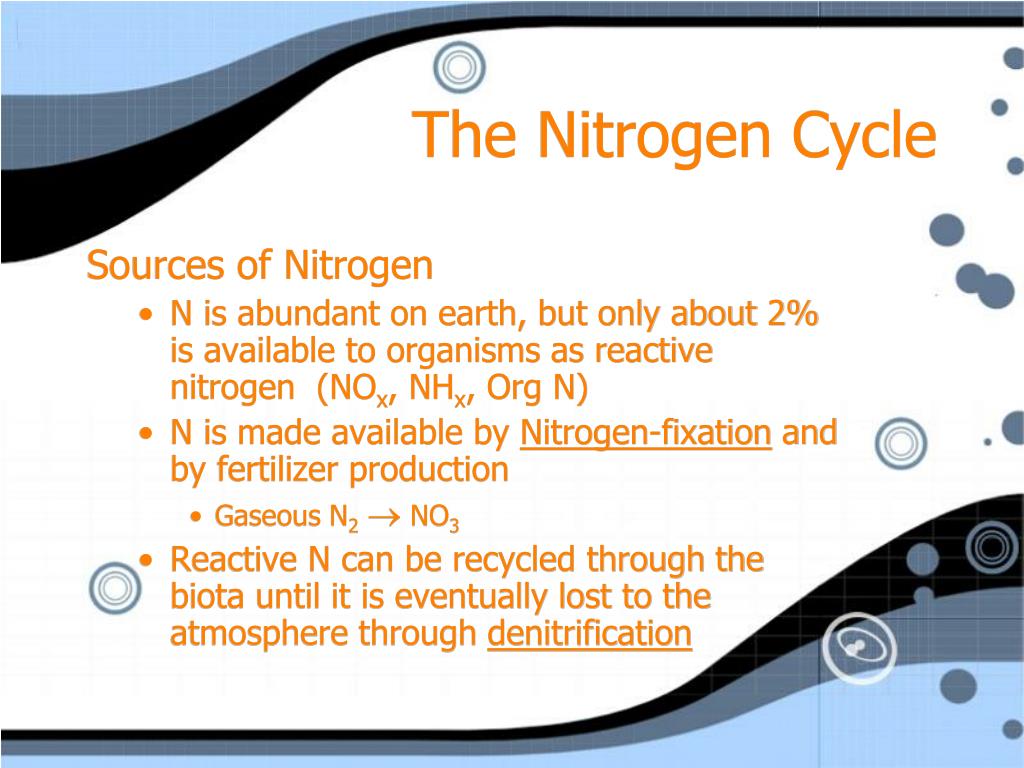

  1. The Nitrogen Cycle Sources of Nitrogen • N is abundant on earth, but only about 2% is available to organisms as reactive nitrogen (NOx, NHx, Org N) • N is made available by Nitrogen-fixation and by fertilizer production • Gaseous N2 NO3 • Reactive N can be recycled through the biota until it is eventually lost to the atmosphere through denitrification

  2. K. Schulz

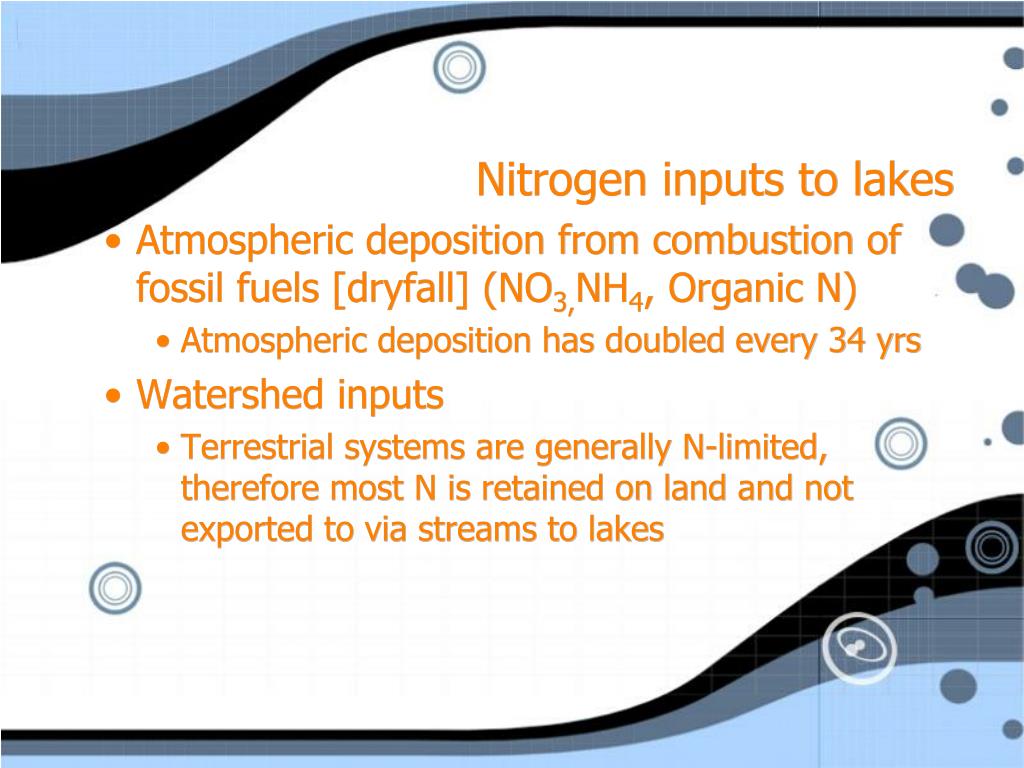

  3. Nitrogen inputs to lakes • Atmospheric deposition from combustion of fossil fuels [dryfall] (NO3,NH4, Organic N) • Atmospheric deposition has doubled every 34 yrs • Watershed inputs • Terrestrial systems are generally N-limited, therefore most N is retained on land and not exported to via streams to lakes

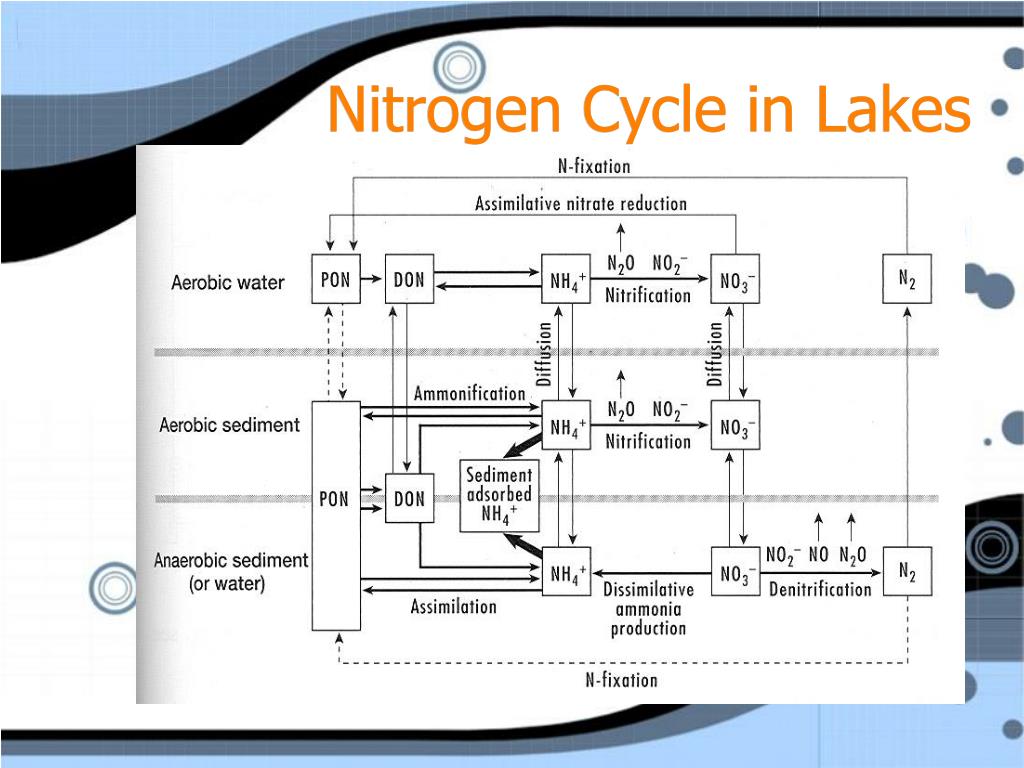

  4. Nitrogen Cycle in Lakes

  5. Nitrogen Cycle in Lakes

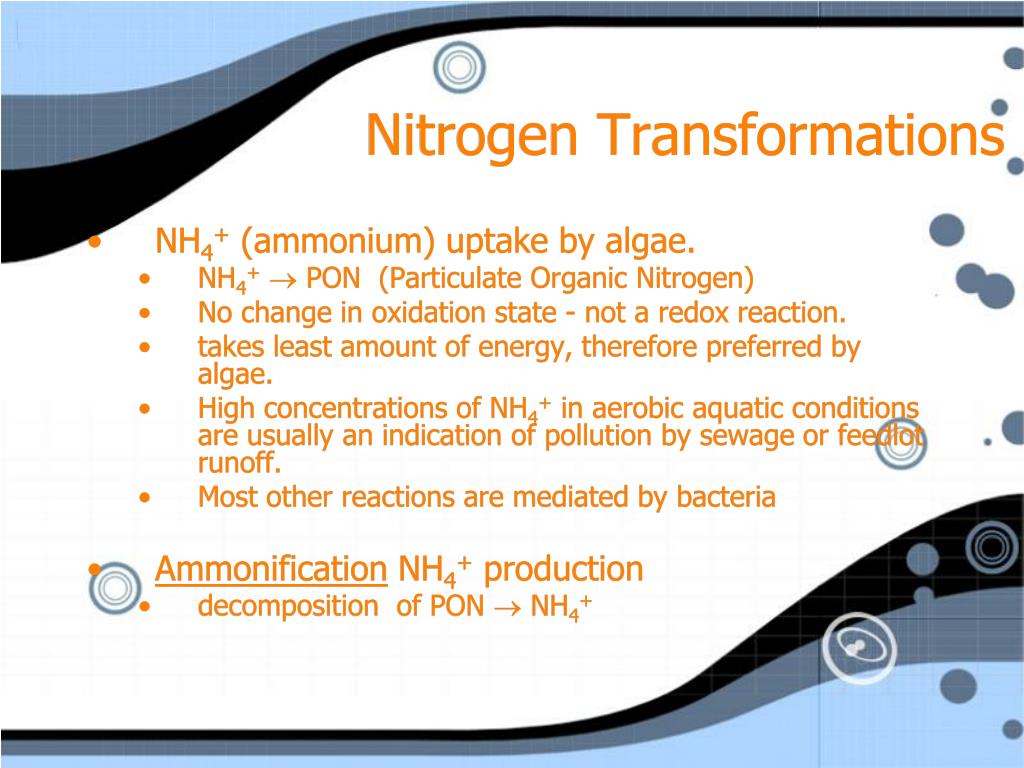

  6. Nitrogen Transformations • NH4+ (ammonium) uptake by algae. • NH4+ PON (Particulate Organic Nitrogen) • No change in oxidation state - not a redox reaction. • takes least amount of energy, therefore preferred by algae. • High concentrations of NH4+ in aerobic aquatic conditions are usually an indication of pollution by sewage or feedlot runoff. • Most other reactions are mediated by bacteria • Ammonification NH4+ production • decomposition of PON  NH4+

  7. Nitrogen Transformations • Nitrification NH4+(ammonium) + 3/2 O2  NO2–(nitrite) + 2H+ + H2O then, NO2– + 1/2 O2 NO3– (nitrate) • NO2– usually does not build up • NO3is the final product of nitrification. It may build up in conditions where there is much NH4+ being produced, oxygen is present, but there is little vegetation to take up NO3 • Assimilative nitrate reduction • NO3- uptake by algae • algal uptake of N to make more cells. NO3– ORG-N (NH3) • needs light, done with O2 present.

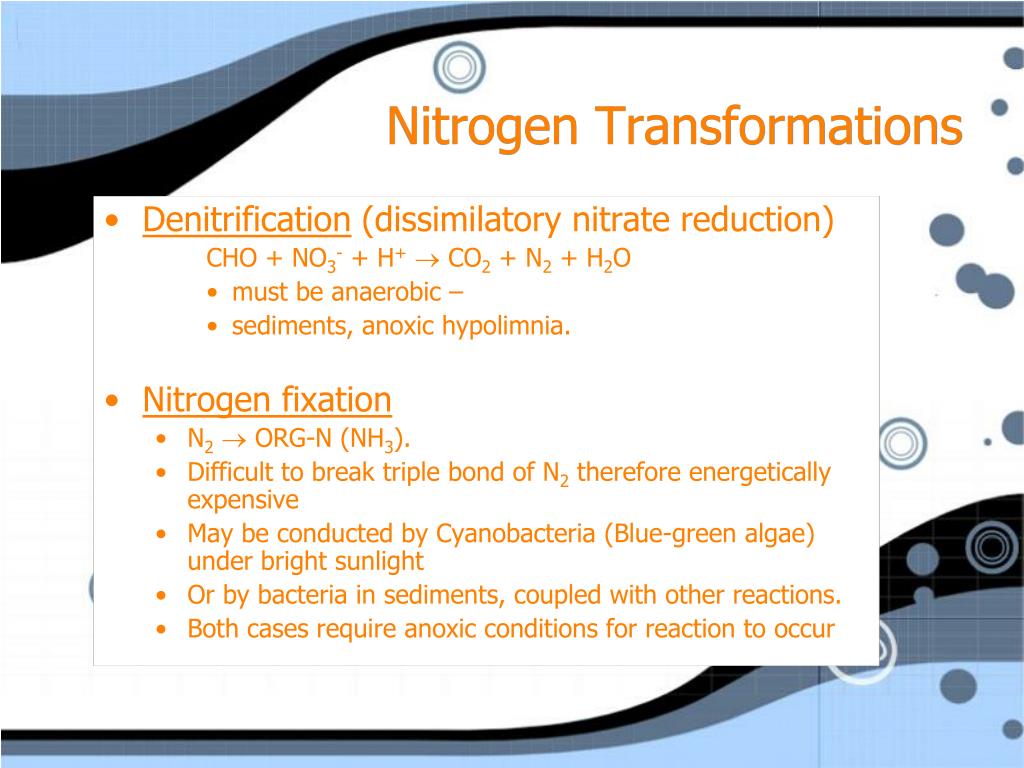

  8. Nitrogen Transformations • Denitrification (dissimilatory nitrate reduction) CHO + NO3- + H+ CO2 + N2 + H2O • must be anaerobic – • sediments, anoxic hypolimnia. • Nitrogen fixation • N2 ORG-N (NH3). • Difficult to break triple bond of N2 therefore energetically expensive • May be conducted by Cyanobacteria (Blue-green algae) under bright sunlight • Or by bacteria in sediments, coupled with other reactions. • Both cases require anoxic conditions for reaction to occur

  9. Nitrogen fixation in Cyanobacteria • Nitrogen fixation occurs in special cells called heterocysts, but • Not all cyanobacteria have heterocysts or can fix nitrogen • Some cyanobacteria can fix nitrogen without heterocysts www.micrographia.com/specbiol/bacteri/bacter/bact0200/anabae03.jpg www.bio.purdue.edu/people/faculty/sherman/ShermanLab

  10. Redfield ratios of ocean phytoplankton (by number of atoms) C       H      O      N     P    S Fe 106    263   110   16    1    0.7 0.01 Hecky et al. compiled data from lakes around the world to see if the ratios held true for lakes (as well as the ocean)

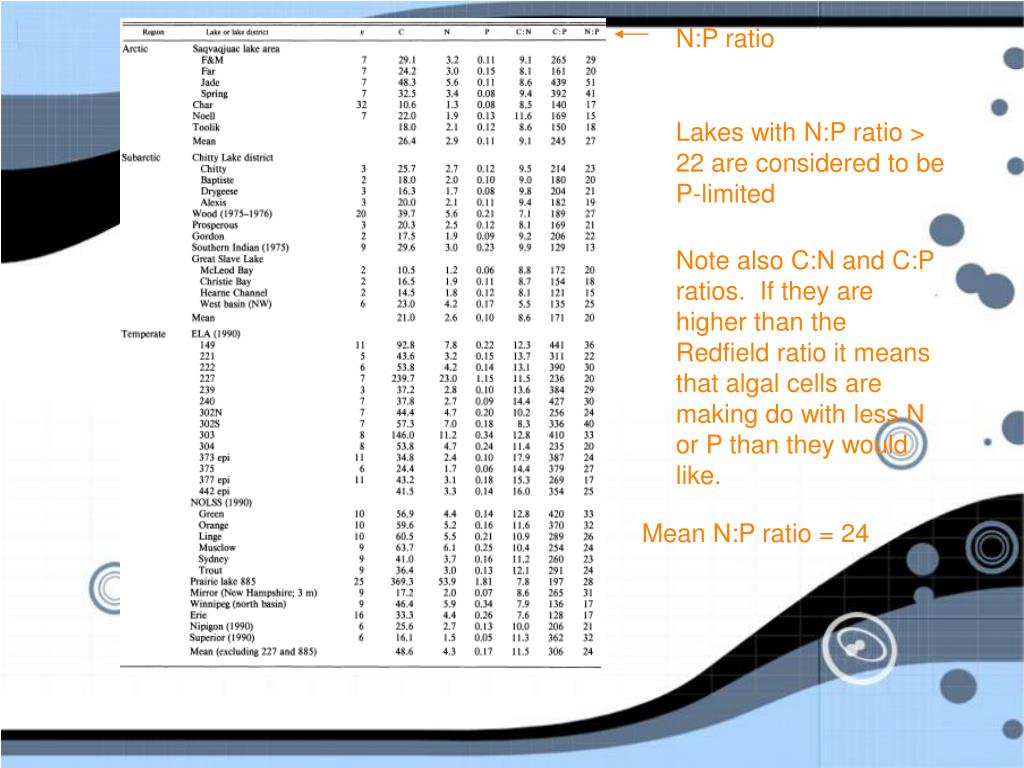

  11. N:P ratio Lakes with N:P ratio > 22 are considered to be P-limited Note also C:N and C:P ratios. If they are higher than the Redfield ratio it means that algal cells are making do with less N or P than they would like. Mean N:P ratio = 24

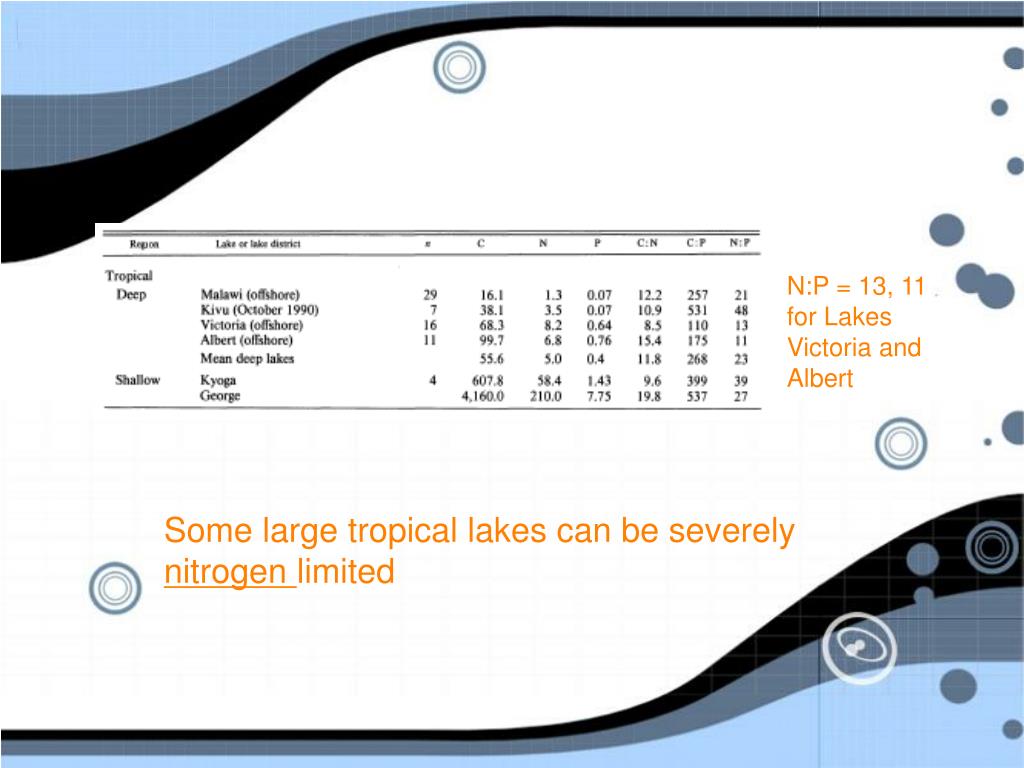

  12. N:P = 13, 11 for Lakes Victoria and Albert Some large tropical lakes can be severely nitrogen limited

  13. Most lakes are P deficient relative to N

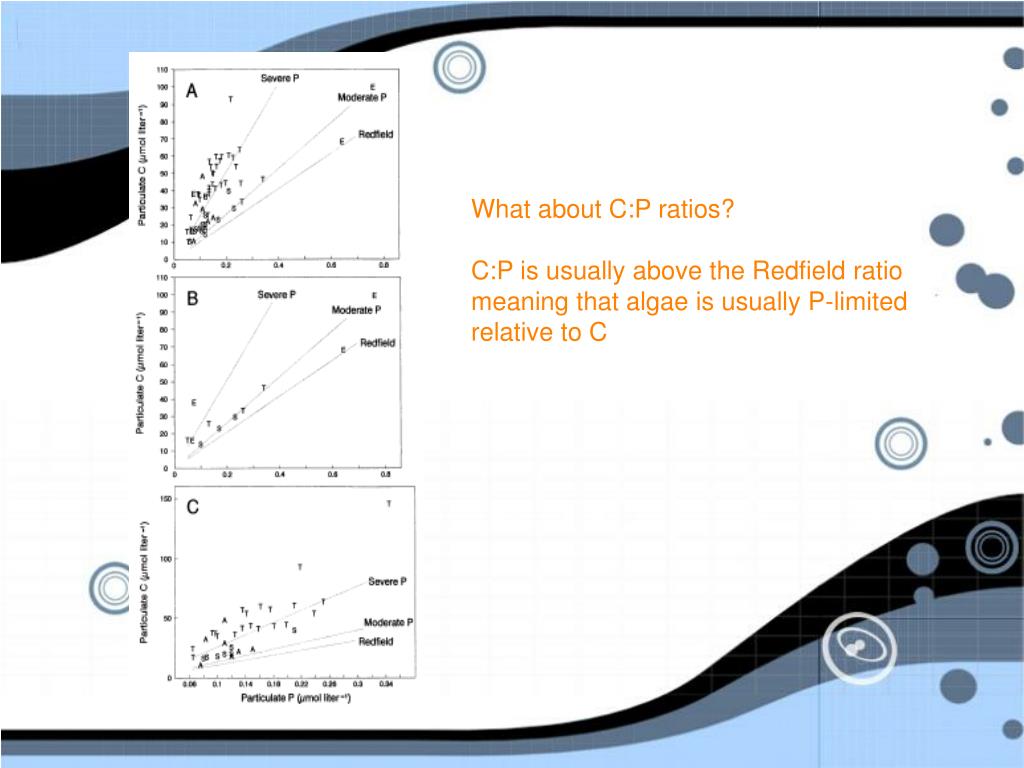

  14. What about C:P ratios? C:P is usually above the Redfield ratio meaning that algae is usually P-limited relative to C

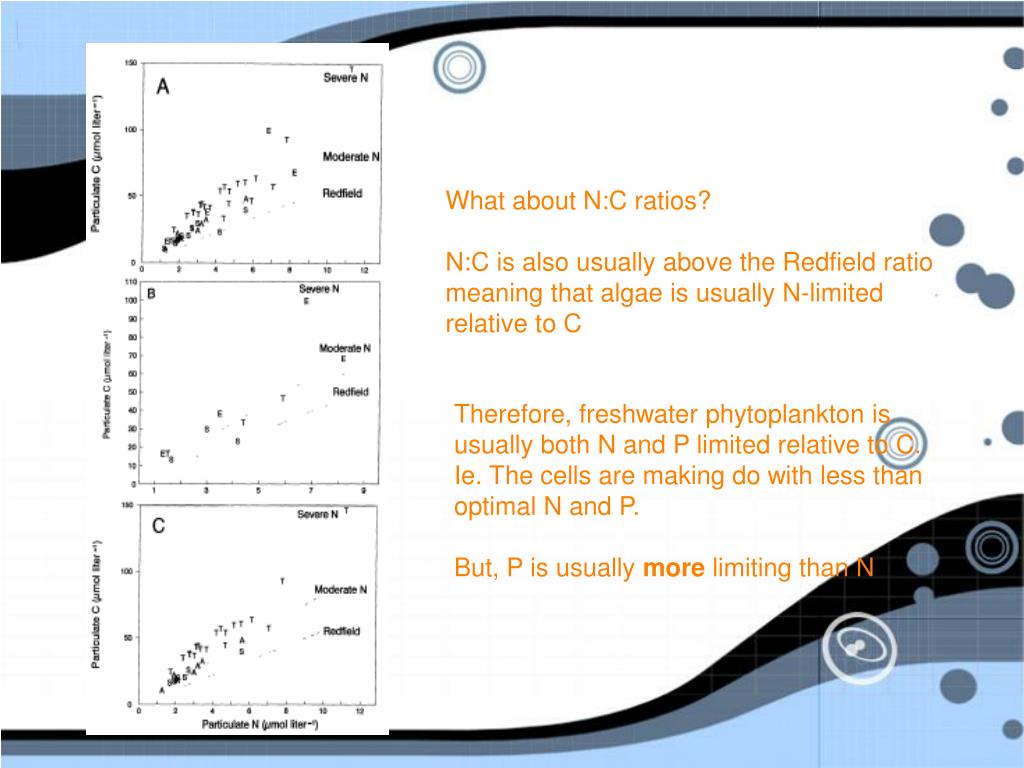

  15. What about N:C ratios? N:C is also usually above the Redfield ratio meaning that algae is usually N-limited relative to C Therefore, freshwater phytoplankton is usually both N and P limited relative to C. Ie. The cells are making do with less than optimal N and P. But, P is usually more limiting than N

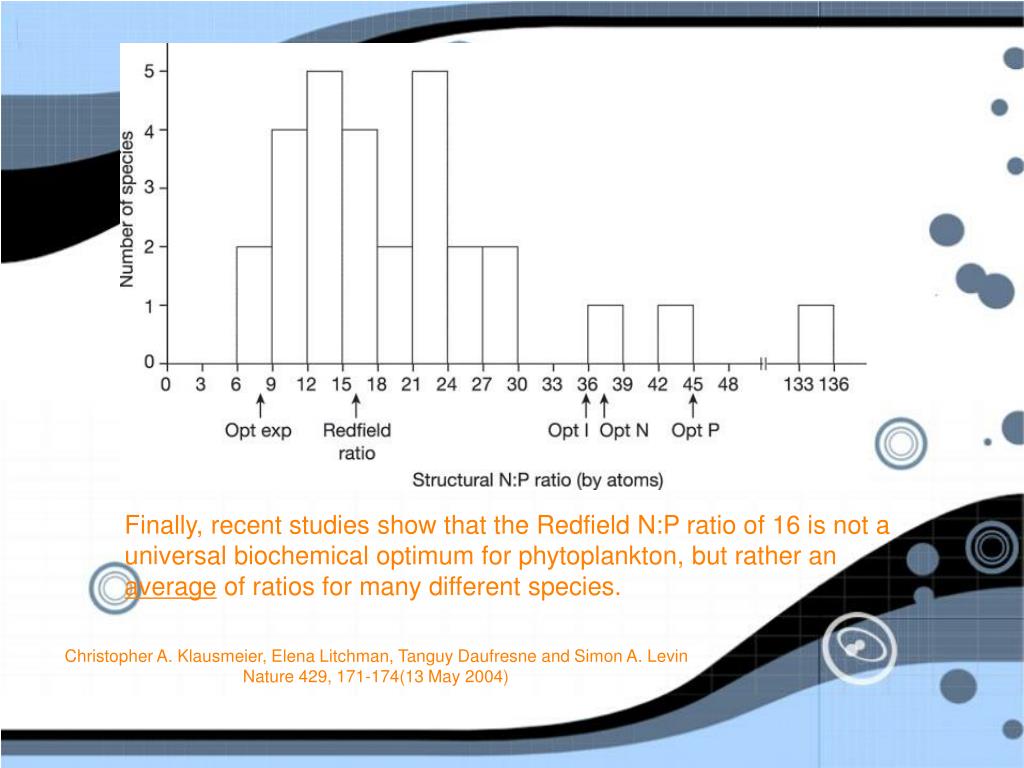

  16. Finally, recent studies show that the Redfield N:P ratio of 16 is not a universal biochemical optimum for phytoplankton, but rather an average of ratios for many different species. Christopher A. Klausmeier, Elena Litchman, Tanguy Daufresne and Simon A. Levin Nature 429, 171-174(13 May 2004)
