nervous tissue

Nervous Tissue

Graduate Microanatomy Spring 1999

Sandra H. Bolanos

central nervous system
Central Nervous System
  • Brain
  • Spinal Cord
  • Cranium (brain case)
  • Cortex

Gray matter

Nerve cell bodies

  • Interior Portion

White matter




spinal cord
Spinal Cord
  • Occupies two-thirds of the vertebral canal
  • Enveloped by meninges
  • Cervical and lumbar enlargements
  • Gray matter centrally located
  • 3 layers of connective tissue membranes
  • Surround and protect brain and spinal cord

Pia Mater


Dura Mater

peripheral nervous system
Peripheral Nervous System

31 pairs of spinal nerves

12 pairs of cranial nerves

  • Nerves that emerge from central nervous system:
cellular composition of cns
Cellular Composition of CNS
  • Neurons and their processes
  • Support cells:



Ependymal cells


  • In developing NS, form structural framework to guide migration of developing neurons
  • In developed NS, form
  • structural scaffolding for
  • more specialized neural
  • elements
  • Clear ECM of by-products
  • of neural activity and
  • contain glycogen reserves
  • Extend foot processes around
  • blood capillaries
blood brain barrier
Blood Brain Barrier
  • Capillaries of the CNS not fenestrated and have intercellular tight junctions between endothelial cells
  • Highly resistant to passage of ions or small molecules
  • Do not exhibit transendothelial transport in small vesicles
  • Astrocytes may influence capillaries to express these unique properties
  • Produce myelin within CNS
  • Each cell sends out several processes and myelinates several nearby axons
ependymal cells
Ependymal Cells
  • Epithelial-like
  • Ciliated
  • Line cavities of brain ventricles and central canal of spinal cord forming sheets of cuboidal cells in contact with CSF
  • Specialized macrophages
  • In areas of injury, proliferate and become actively phagocytic in clearing cellular debris and ingesting damaged myelin
composition of pns
Composition of PNS
  • Ganglia - a peripheral collection of nerve cell bodies together with efferent and afferent axons and support cells
  • Nerves - a collection of axons linked together by support tissue into an anatomically defined trunk
  • Sensory (spinal sensory ganglia)
  • Non-sensory (sympathetic or parasympathetic)
  • Dorsal root ganglia, cranial ganglia, autonomic ganglia
  • Neuron cell bodies, support cells, loose fibrocollagenous tissue
  • Motor

Innervate skeletal muscle (CNS)

Innervate smooth muscle (PNS)

  • Sensory
  • Myelinated or Non-myelinated
  • Axons, Schwann cells, fibroblast cells, blood vessels
3 types of support tissue in a nerve trunk
- 3 types of support tissue in a nerve trunk:
  • Endoneurium

Surrounds individual axons, their associated Schwann cells, and

capillary blood vessels

  • Perineurium

Surrounds groups of axons and endoneurium to form fascicles

  • Epineurium

binds individual nerve fascicles into a

nerve trunk

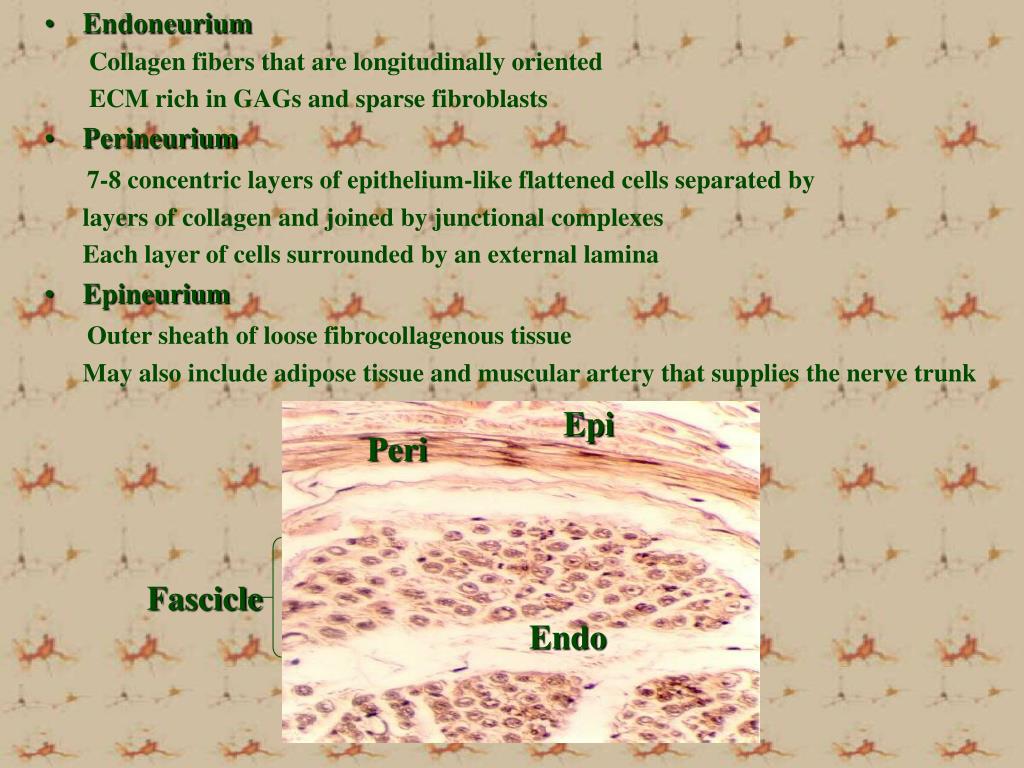

Collagen fibers that are longitudinally oriented

ECM rich in GAGs and sparse fibroblasts

  • Perineurium

7-8 concentric layers of epithelium-like flattened cells separated by

layers of collagen and joined by junctional complexes

Each layer of cells surrounded by an external lamina

  • Epineurium

Outer sheath of loose fibrocollagenous tissue

May also include adipose tissue and muscular artery that supplies the nerve trunk





schwann cells
Schwann Cells
  • PNS
  • Myelinate only one axon
  • Gather information from sensory receptors
  • Process information and provide a memory
  • Generate appropriate signals to effector cells
  • Cell body, dendrites, axon, and synaptic bouton
cell body
Cell Body
  • Pale-staining
  • Conspicuous nucleolus
  • Little heterochromatin
  • Nissl bodies
  • Golgi complex
  • Mitochondria
  • Lysosomes
  • Neurofilaments
  • Microfilaments
  • Microtubules
  • Radiating processes of the cell body
  • Receive signals (synapses) from other neurons
  • Broader than axons
  • Extensive branching increases cell surface available for receiving signals from other neurons
  • Organelles similar to those of the perikaryon (no Golgi bodies)
  • As distance from cell body increases, smooth ER and NFs reduced but MTs and mitochondria still prominent
  • A single long process capable of generating a nerve impulse
  • More slender and usually longer than dendrites
  • Branch at right angles
  • Can be quite long (spinal motor neurons that supply foot muscles 40 inches in length)
  • Axon Hillock is conical extension of cell body from which axon arises
  • Axoplasm lacks Nissl bodies
Branches as it approaches its end forming small expansions
  • Terminal boutons contact other cells to form a synapse
  • At synapse, chemicals or electrical signals pass from one neuron to another cell known as the effector cell
  • Neurotransmitters act rapidly and locally to activate their target cells and neuromodulators that regulate these events
  • Insulation

minimizes leakage of current from membrane

speeds up conduction along axons

  • Reduction of electrical capacitance

wide axons lower capacitance than narrow ones

increases diameter of axons

increases speed of nerve conduction

  • Myelin-producing cells

Oligodendrocytes (CNS)

Schwann cells (PNS)

  • Nodes of Ranvier

space between each unit of myelin

increase efficiency of nerve conduction

  • Specialized region of contact where NT released from axon to stimulate another cell
axonal transport
Axonal Transport
  • Anterograde or retrograde
  • Fast or slow
  • Microtubules
  • Motor proteins
  • Ca2+
  • ATP

Minus end

Plus end
