  1. LTS (Life Tracking System)

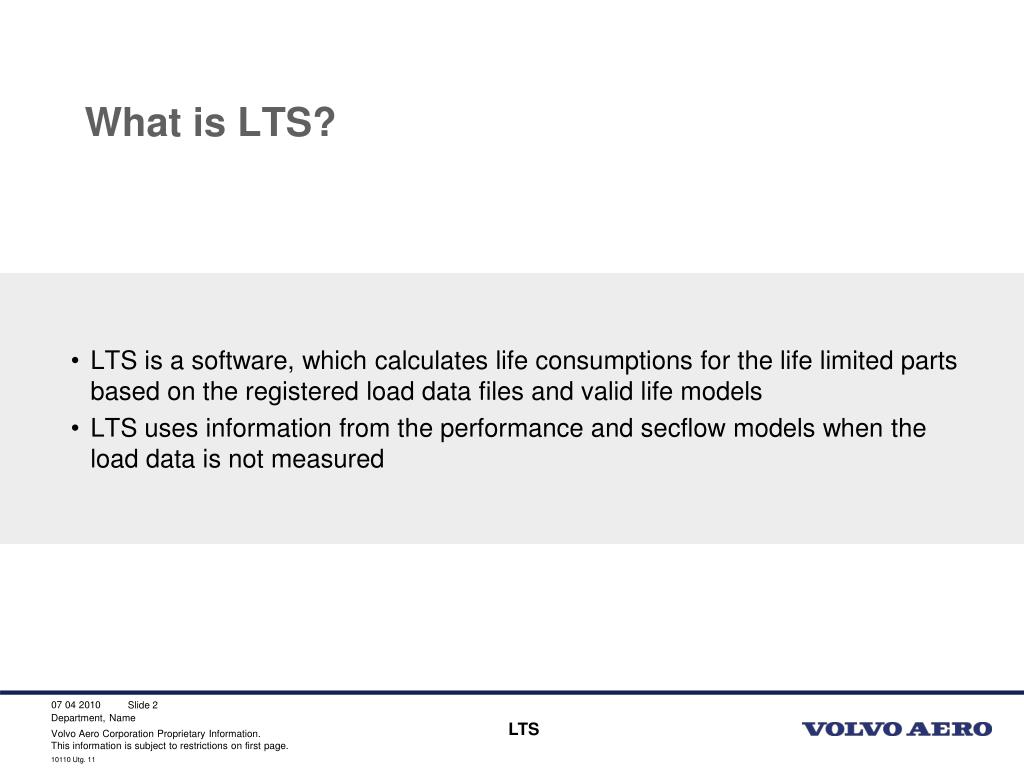

  2. What is LTS? • LTS is a software, which calculates life consumptions for the life limited parts based on the registered load data files and valid life models • LTS uses information from the performance and secflow models when the load data is not measured LTS

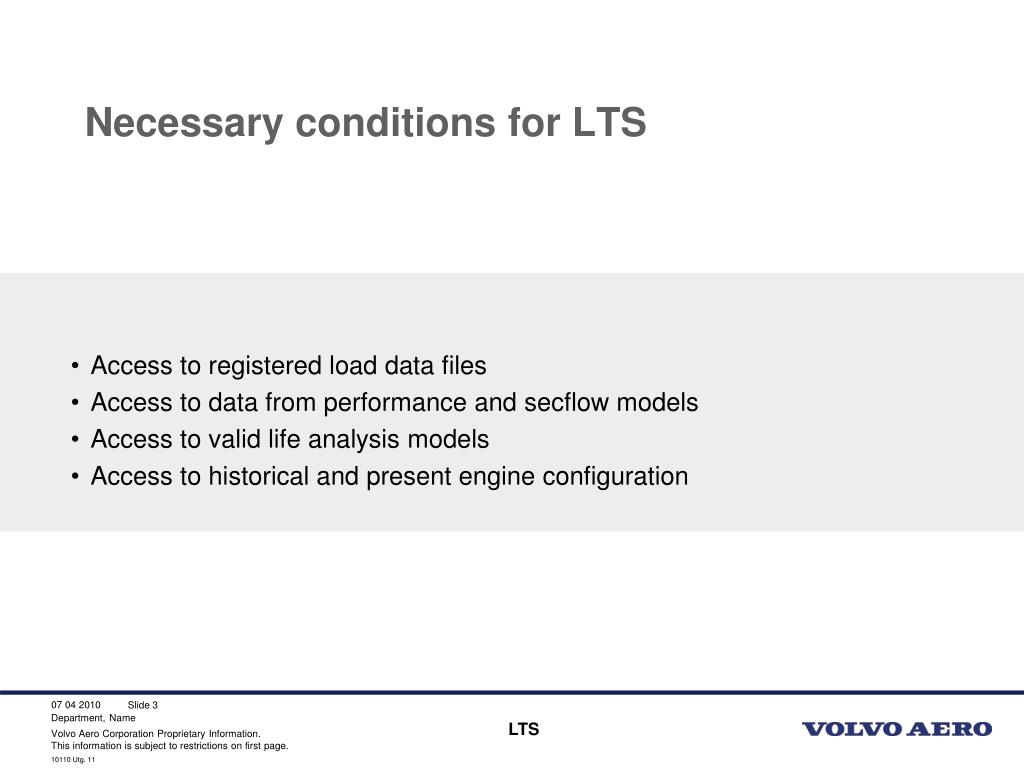

  3. Necessary conditions for LTS • Access to registered load data files • Access to data from performance and secflow models • Access to valid life analysis models • Access to historical and present engine configuration LTS

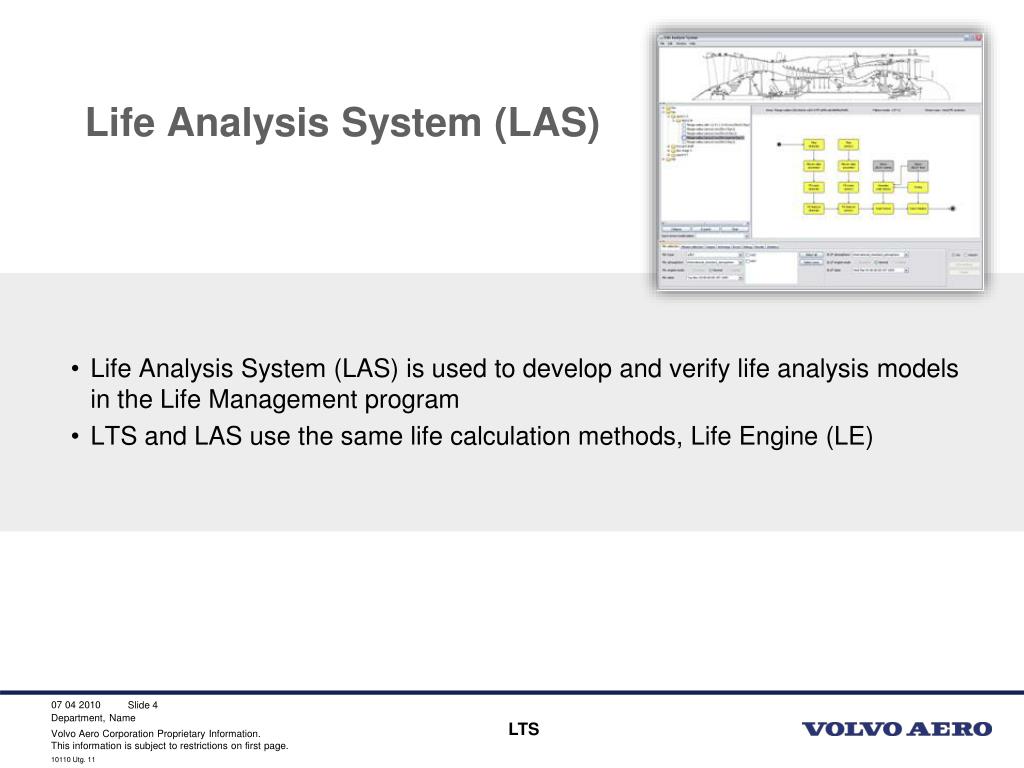

  4. Life Analysis System (LAS) • Life Analysis System (LAS) is used to develop and verify life analysis models in the Life Management program • LTS and LAS use the same life calculation methods, Life Engine (LE) LTS

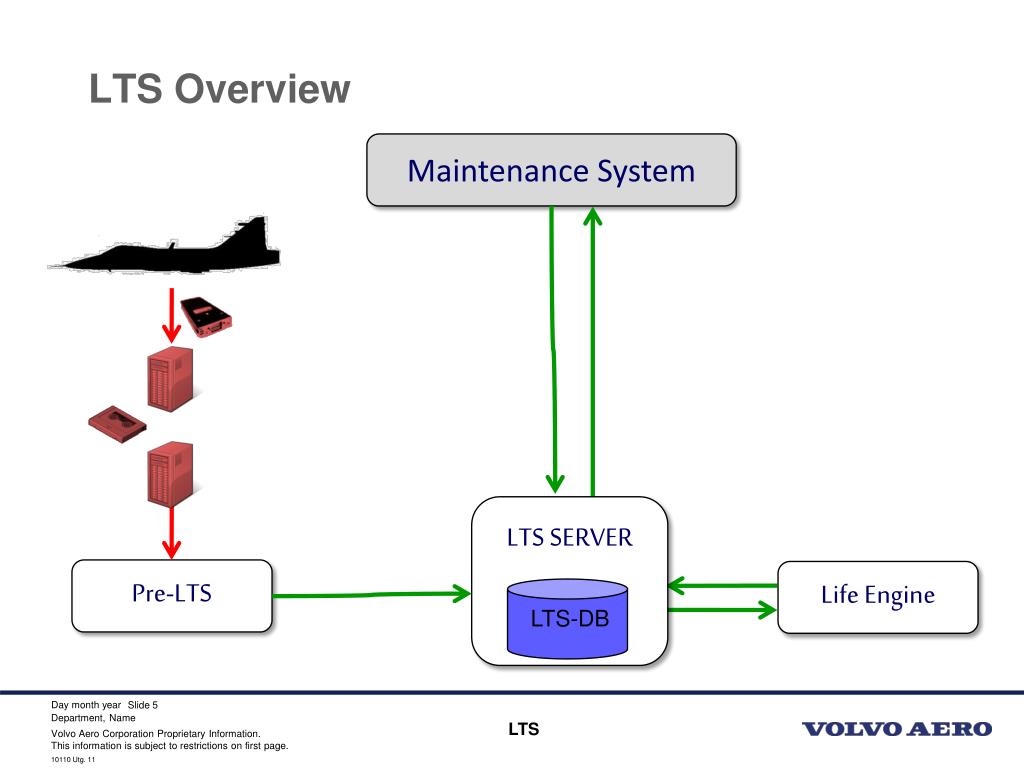

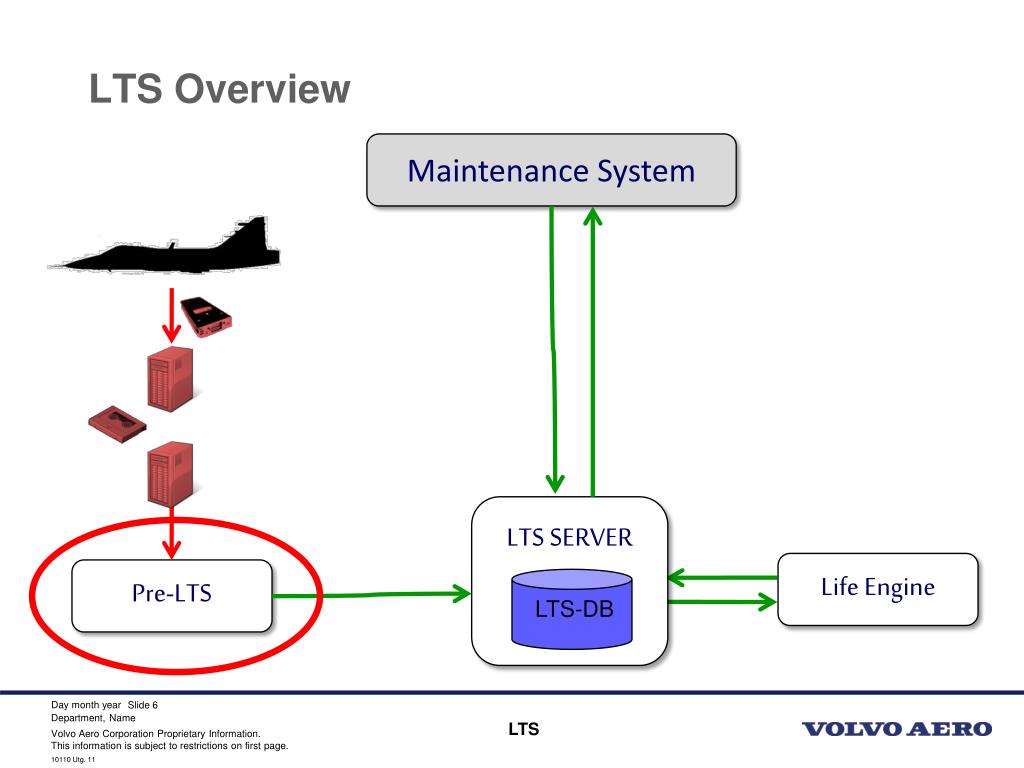

  5. LTS Overview Maintenance System LTS SERVER Pre-LTS Life Engine LTS-DB LTS

  6. LTS Overview Maintenance System LTS SERVER Life Engine Pre-LTS LTS-DB LTS

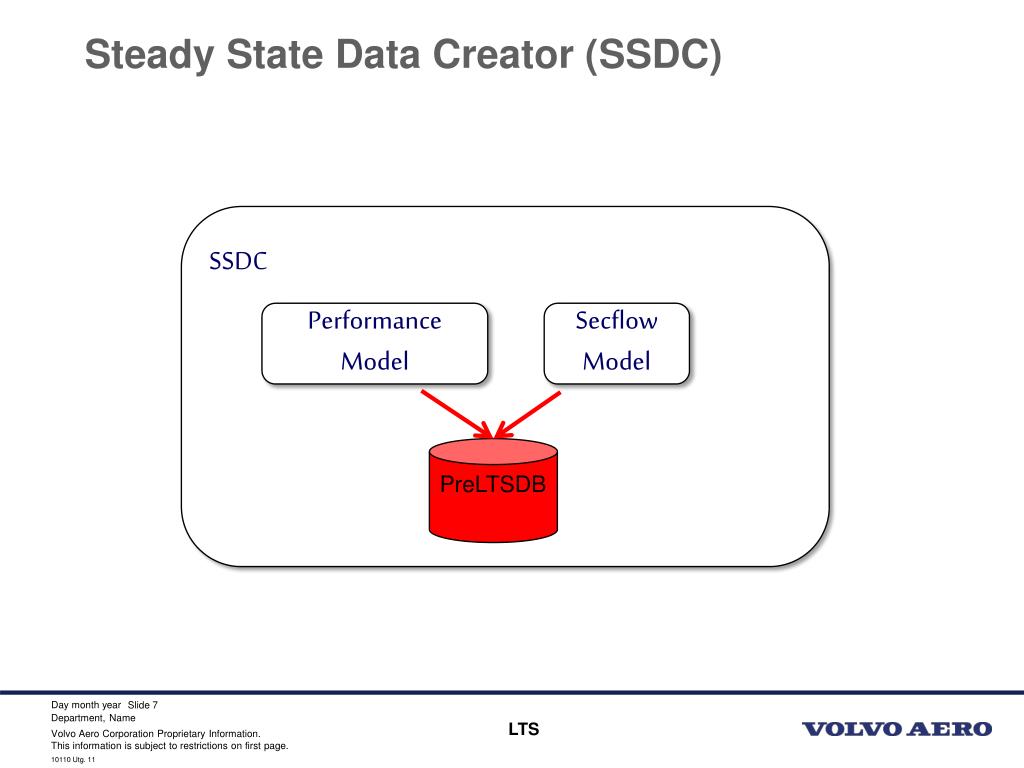

  7. Steady State Data Creator (SSDC) SSDC Performance Model SecflowModel PreLTSDB LTS

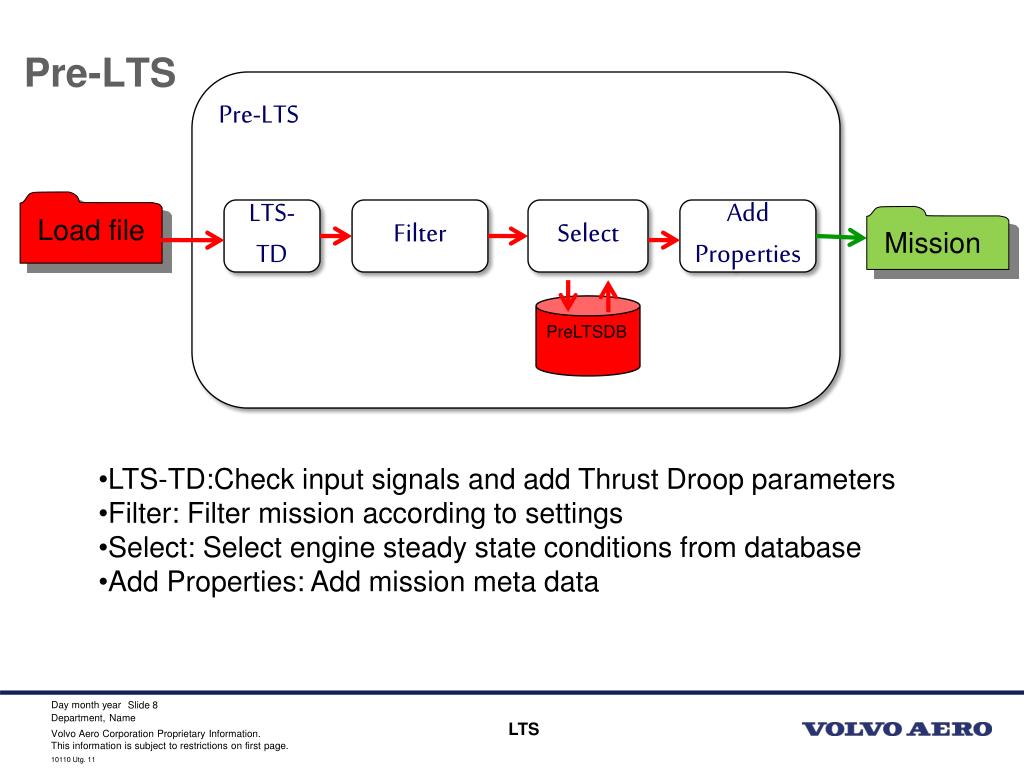

  8. Pre-LTS Pre-LTS Loadfile LTS-TD Filter Select AddProperties Mission PreLTSDB • LTS-TD:Check input signals and add Thrust Droop parameters • Filter: Filter mission according to settings • Select: Select engine steady state conditions from database • Add Properties: Add mission meta data LTS

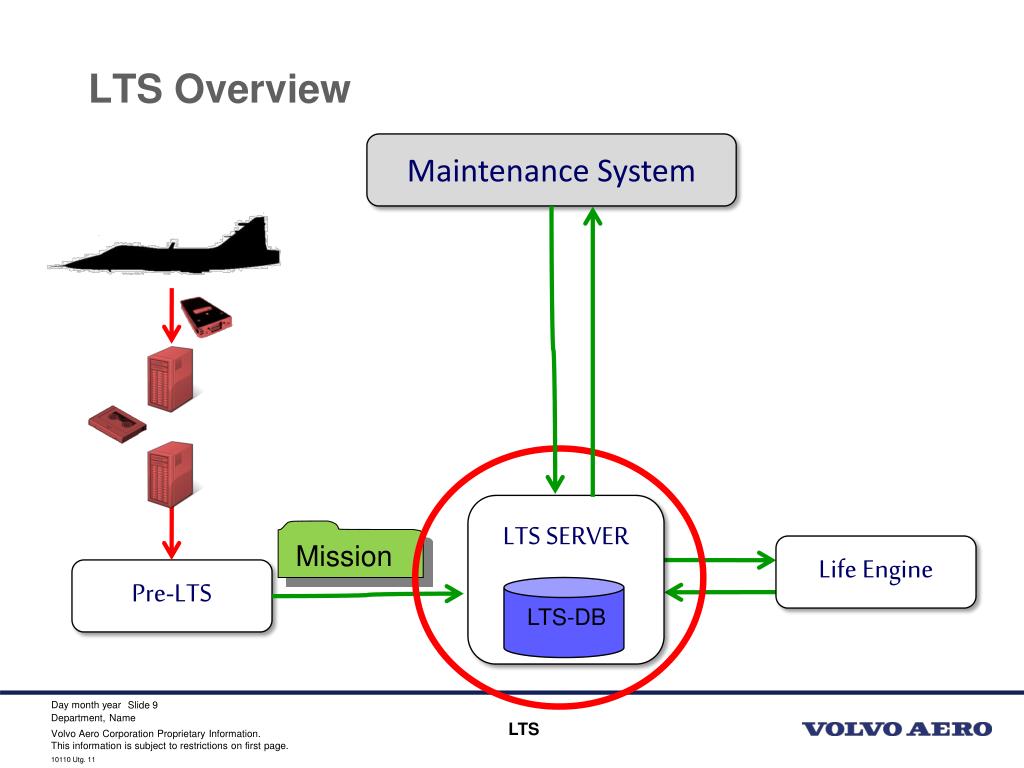

  9. LTS Overview Maintenance System LTS SERVER Mission Life Engine Pre-LTS LTS-DB LTS

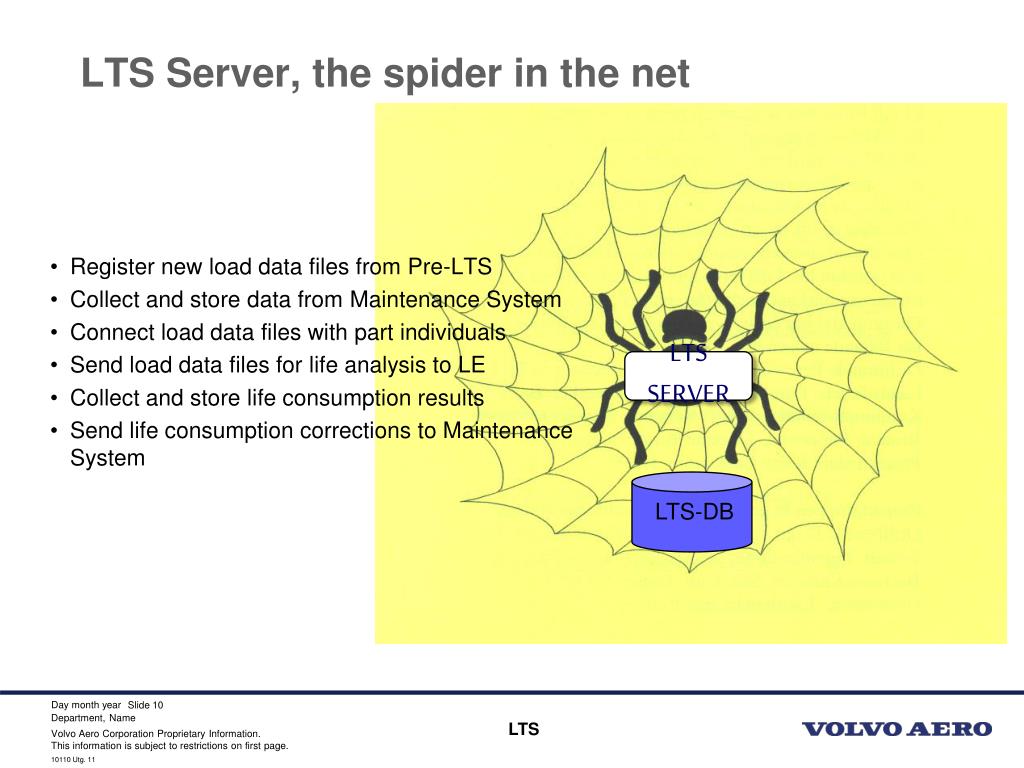

  10. LTS Server, the spider in the net LTS SERVER LTS-DB • Register new load data files from Pre-LTS • Collect and store data from Maintenance System • Connect load data files with part individuals • Send load data files for life analysis to LE • Collect and store life consumption results • Send life consumption corrections to Maintenance System LTS

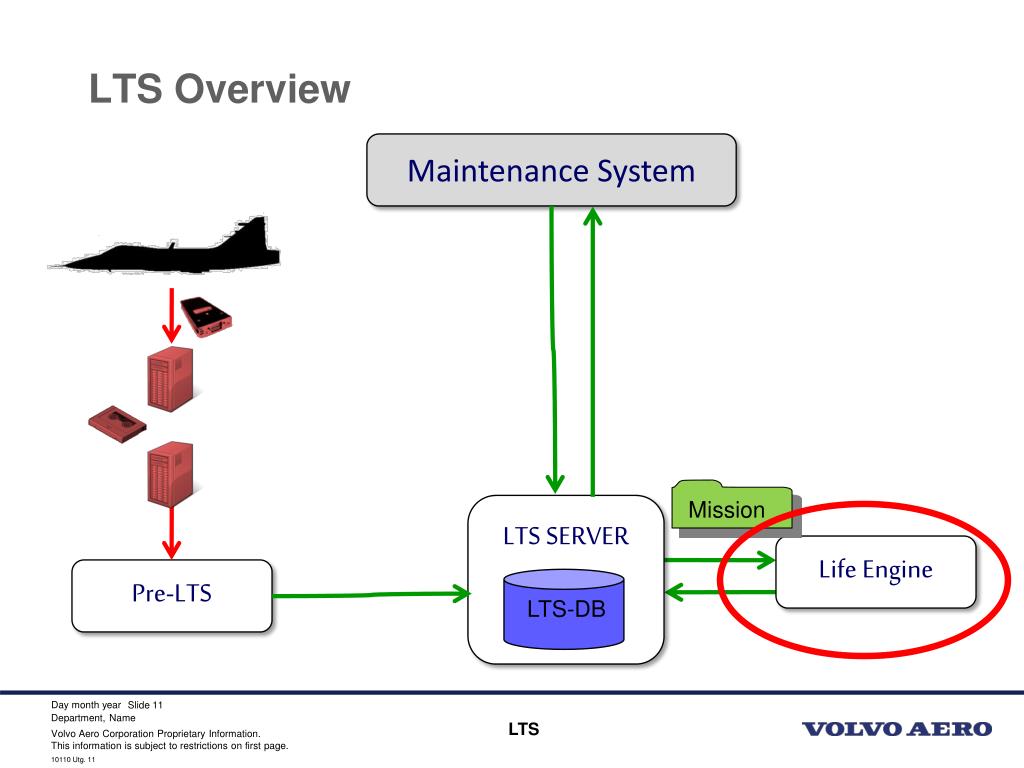

  11. LTS Overview Maintenance System Mission LTS SERVER Life Engine Pre-LTS LTS-DB LTS

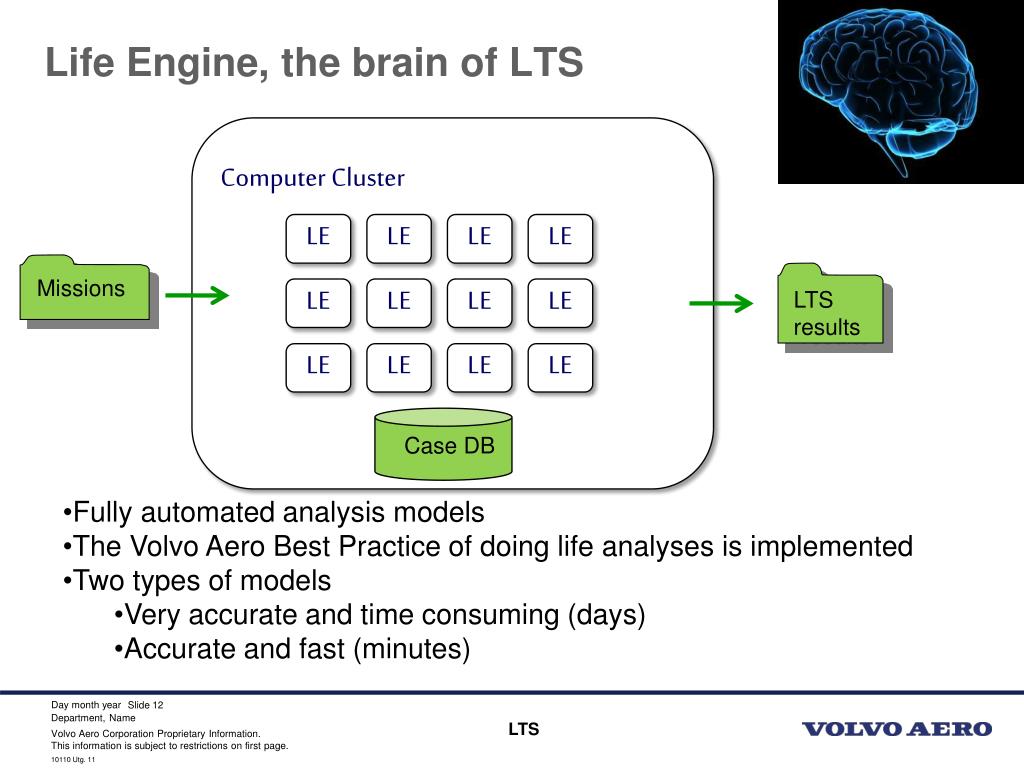

  12. Life Engine, the brain of LTS Computer Cluster LE LE LE LE Missions LTS results LE LE LE LE LE LE LE LE Case DB • Fully automated analysis models • The Volvo Aero Best Practice of doing life analyses is implemented • Two types of models • Very accurate and time consuming (days) • Accurate and fast (minutes) LTS

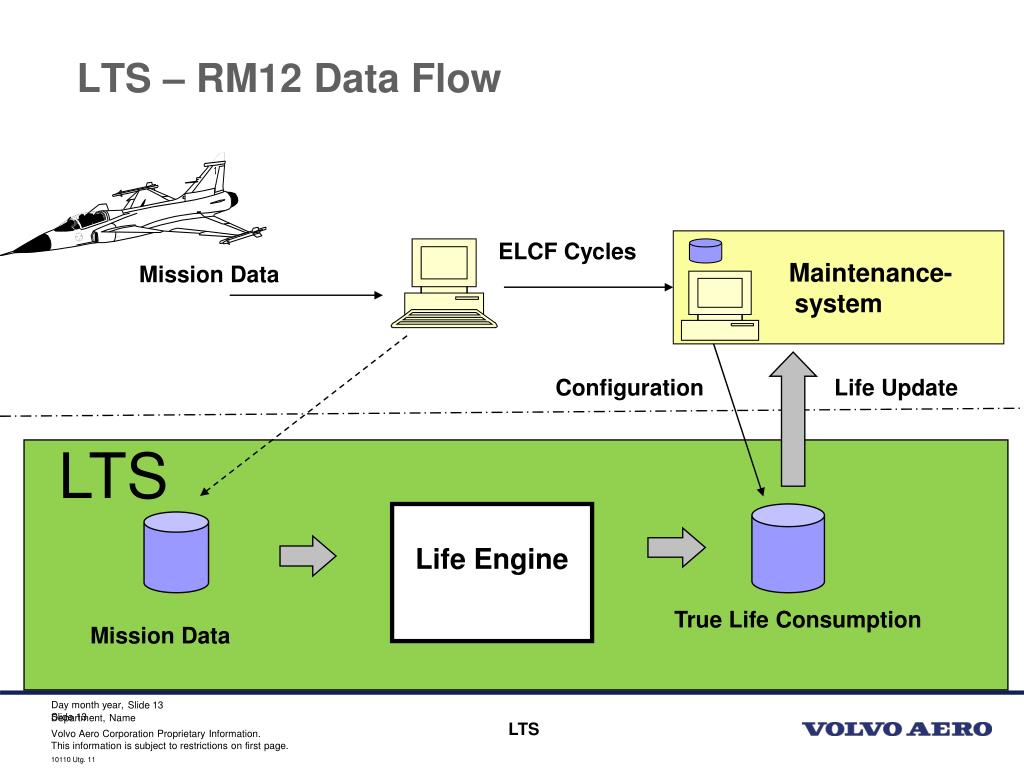

  13. Maintenance- system LTS – RM12 Data Flow ELCF Cycles Mission Data Configuration Life Update LTS Life Engine True Life Consumption Mission Data LTS

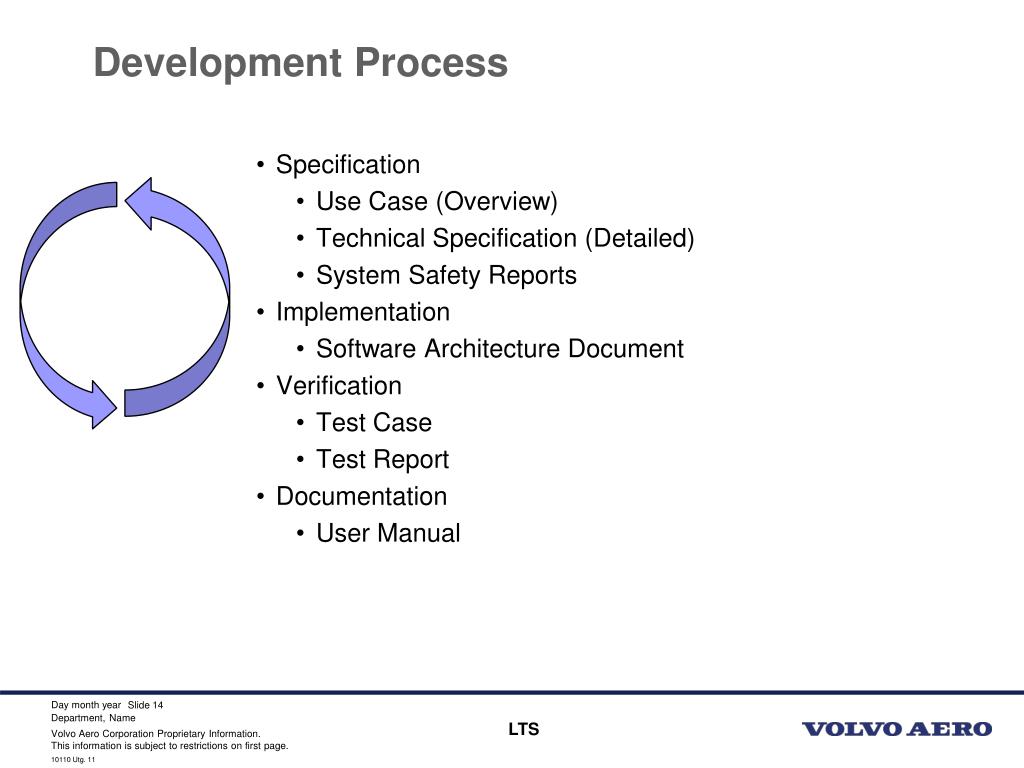

  14. Development Process • Specification • Use Case (Overview) • Technical Specification (Detailed) • System Safety Reports • Implementation • Software Architecture Document • Verification • Test Case • Test Report • Documentation • User Manual LTS
