slide1

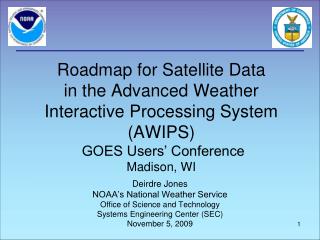

Roadmap for Satellite Data in the Advanced Weather Interactive Processing System (AWIPS) GOES Users’ ConferenceMadison, WI

Deirdre Jones

NOAA’s National Weather Service

Office of Science and Technology

Systems Engineering Center (SEC)

November 5, 2009

outline
Outline
  • Challenges meeting new customer weather needs
  • Architectural Vision
  • AWIPS Plan to Achieve Architecture
  • Next Steps
  • Summary
customers need improved weather services
Customers Need Improved Weather Services
  • Speed at which decisions are made
  • Demand for decision support services is increasing
  • US industry needs the most accurate, accessible, timely and reliable weather data to make critical decisions that impact our national economy
    • Aviation weather impacts were $41B in 2007
    • U.S. modeling and data assimilation lags other nations. We must do better to give the U.S. a competitive advantage in the global economy
  • Federal deficits and resource constraints
    • Integrated observations
    • More efficient R-T-O (projects, modeling)
    • Every dollar counts!
environmental data challenges
Environmental Data Challenges
  • Huge data explosion
    • Rapid data assimilation requirements (e.g., NextGen)—people, models
    • Demands on data management architecture
    • Data access on-demand within resource constraints
  • Integrating all observing data sources to achieve desired effect and outcome
nesdis archive data rate projections

Data Volume

(non-cumulative view)

AWIPS SBN

3-18 Mbps

NESDIS Archive Data Rate Projections

w/MPAR

w/GOES-S

w/GOES-R

w/NPOESS C2

w/NPOESS C1

w/NPP

slide6

Importance of Weather Information Database (WIDB)

Weather Industry

Private Industry

Observations

Forecasting

Private Sector

Numerical

Prediction

Systems

Network Enabled Operations

Postprocessed

Probabilistic

Output

NWS

Forecaster

Radars

Data Integration

WIDB Cube

Aircraft

Automated Forecast

Systems

Surface

Forecast Integration

Soundings

Grids

Decision

Support

Systems

Custom

Graphic

Generators

Custom

Alphanumeric

Generators

Governmental Decision Making

infrastructure readiness approach
Infrastructure Readiness Approach
  • View requirements in larger context of all future programs
  • Develop strategic enterprise infrastructure plan and roadmap for building infrastructure capability over next 10-15 years
    • Near term tasking to complete analysis of the GOES-R impact on NWS architecture: AWIPS, NCEP and NWS Telecommunications Gateway (NWSTG) (FY08-FY10)
    • Assess other aspects of the enterprise, as well as other system changes (FY10)
    • Select architecture for efficient access to new satellite data and products for forecast and warning operations (1QFY11)
    • Initiate acquisition (FY 11-12)
noaa cio s architectural vision

Customers

  • Experts
  • Informed
  • Novice

Governance

(e.g., SLAs)

Data Architecture

(e.g., GEO-IDE, IOOS)

Service

Registry

Infrastructure Services

Security

e.g., Threat Detection, Network Scanning

Transporte.g., LAN / MAN / WAN/Internet

Commoditye.g., Authentication, Discovery

Core e.g., Common, Storage, Compute, Enterprise Mgmt

NOAA CIO's Architectural Vision

Presentation Tier (i.e., Web Presence)

Mobile Devices

Portals

Collaboration

Mission Services

Web Service Interfaces- Utilizing Open Standards & Protocols

Critical Support (Satellites & Mission Support)

Climate Preparation & Response

Ecosystem Management & Protection

Modeling & Observing Infrastructure

Weather & Water

Preparation & Response

Commerce & Transportation Efficiency, Safety, and Environmental Soundness

noaa infrastructure framework
NOAA Infrastructure Framework
  • Consider environmental data changes in context of NOAA’s full infrastructure and in concert with each other
  • Service oriented enterprise focused on data and information
    • Infrastructure services: core, commodity, transport, and security
      • Transport migration: consolidate NOAA’s disparate networks into NOAANet architecture
    • Mission services: monitoring and observing, modeling and forecasting, disseminating, ecosystem management, etc.
    • Data architecture: data description, context, and sharing
    • Governance: service level agreements, data management
    • Dissemination Services
      • To include emerging technologies and Internet services: portals, mobile devices, and collaboration
awips in the goes r era fitting the pieces together
AWIPS in the GOES-R EraFitting the Pieces Together
  • Flexible software infrastructure
  • Communications bandwidth -- satellite broadcast and terrestrial networks
  • Data distribution paradigm -- push and pull
  • SEC leading effort to prepare the enterprise as well as planning AWIPS improvements to support future data
  • Robust infrastructure with capacity and throughput for larger volume/higher resolution data
awips ii software re architecture approach
AWIPS II Software Re-Architecture Approach
  • Perform “black-box” conversion
    • Preserve existing functionality,
    • Preserve look and feel of today’s system
  • Maintain functionality
    • Deployed system current with deployed AWIPS capability (i.e., OB9)
  • Use open source projects - No proprietary code
    • JAVA and open source projects enable AWIPS II to be platform and OS independent
    • No plans to move from Linux
  • AWIPS II enables collaborative development
    • Operating System and platform independence allows non-Linux based research to be easily integrated into AWIPS II
awips ii software re architecture outcome
AWIPS II Software Re-Architecture Outcome
  • Improved software architecture and capabilities to accommodate new data and services
    • Services oriented architecture
    • More flexible in production/delivery
    • Increased access to data for decision making
    • Improved RTO efficiency

through use of AWIPS

Development Environment

    • Enables future capabilities

(e.g. flexible data delivery,

thin client, collaboration)

awips soa architecture logical layered view

Client/Presentation Services

JMX

CAVE

External Programs

Mission Services Layer

Mbean

ProductSrv

IngestSrv

NotifySrv

Hydro Models

AdapterSrv

AutoBldSrv

PersistSrv

<<Java>>

HDF5DataStore

<<Java>>

DataLayer

IndexSrv

SubscribeSrv

UtilitySrv

LAPS

Security Services /Demilitarized Zone (DMZ)

Enterprise Service Bus - Communication

<<abstract>>

BaseDao

PurgeSrv

StagingSrv

FORTRAN/C/C++

Command Line

Programs

Data Access Layer

Hibernate

HDF5 API

Localization

Store

Platform Layer

PostgreSQL

HDF5

Data Persistence

Store

Metadata

Index

Spatial

Index

AWIPS SOA Architecture Logical Layered View
slide15

AWIPS Product Suite

On NOAAPort Today*

* NOAAPort disseminates over one million products (30+GBytes) every day

goes data in awips today

GOES Products Flowing into AWIPS

Product Name

WMO

Dissem.

Format (AWIPS ID)

Approx.

Approx. Daily

Header

Path

Frequency

Volume

Imager-based Imagery

TIG?

ii

1

GINI

30/15/7 min

27200 Mbits

TIC?

ii

Sounder-based Imagery

TIG?

ii

1

GINI

hourly

216 Mbits

DPI

TIGN

ii

1

GINI

hourly

280 Mbits

Soundings

JUTX

ii

2

BUFR

30 min

312 Mbits

AE SPE Imagery

ZETA98

2

GRIB1/Xmrg

hourly & event

216-320 Mbits

driven

Manual SPE Imagery

ZEGA98

SPE Text

TXUS20

2

Text

event driven

0 Mbits

SPENES

Hi Den Winds (BUFR)

J?CX

ii

2

BUFR

1-3 hourly

136 Mbits

Hi Den Winds (Text)

TWNA

ii

2

Text

1-3 hourly

80 Mbits

TWSA

ii

(none)

ASOS Cloud Products

TCUS

ii

2

Text

hourly

1.6 Mbits

SCP?R

i

Geodetic Subpnt Predictn.

TBUS

ii

2

Text

daily

0 Mbits

WBCSAT5/6

Administrative Messages

NOUS71

2

Text

event driven

0 Mbits

NOUS72

ADMNES

CONUS RTMA (ECA)

LAMA98

2

GRIB2

Hourly

56 Mbits

GOES Data in AWIPS Today
slide17

Future NOAAPort

Product Suite*

  • Environmental Satellite Product Additions
    • POES AVHRR Imagery (2010)
    • NPP & NPOESS (From NPP, beginning 2011)
    • GOES-R Series (2015)
      • Currently defining process for building, evaluating and implementing new products in the AWIPS II framework
  • NCEP Model Product Additions
    • High Resolution Window Model (2010)
    • GFS-Based DNG (2010)
    • Bias-corrected SREF (2011)
    • Numerous additional enhancements to NCEP (ongoing)
  • Radar (WSR-88D) Product Additions
    • Dual Polarization (2011)
    • Higher Pixel Resolution (2013)

* Only selected major planned additions are shown; pending bandwidth expansion; dates tentative

awips communications improvements
AWIPS Communications Improvements
  • New paradigm for data distribution
  • User readiness working group to work with users/ customers to define product access and delivery reqts.
  • Migrate AWIPS wide area network (WAN) to NOAAnet
    • Increased reliability
    • Increased bandwidth
    • Enables any-to-any network topology
  • Increase AWIPS SBN bandwidth to 45 Mbps (full transponder)
    • 5 times current capacity
    • Enables flexible delivery over satellite
awips data delivery push pull concept
AWIPS Data DeliveryPush/Pull Concept
  • Robust infrastructure to support “intelligent” access (push/pull) to non-local datasets
  • Key Benefits
    • Mitigates impacts on SBN by addressing significant growth in data volumes, e.g., ensembles, GOES-R, NPOESS
    • Allows users to access just the data they need by space, time, parameter
    • Enables synergy with NextGen net-enabled data access requirements
nws infrastructure architecture implementation schedule
NWS Infrastructure ArchitectureImplementation Schedule

Deployment

January 2011

NDE “Distribution

Build” Testing,

NPP Launch

Oct 2015

GOES-R

Launch

July 2013

GOES-R “Data

Operations Tests”

April 2013

NPOESS

C1 Launch

IOC

MOC

summary
Summary
  • NOAA is working on the enterprise infrastructure to accept, manipulate, and use data from new capabilities
  • Ensure all NWS systems on track for user readiness
    • Complete assessment
    • Address in design solution
    • Build toward NOAA target architecture
  • Efficiencies to reduce cost needed; seek out new technologies for computing and data integration architectures
what is awips

NEXRAD

GOES/POES/NPOESS

Warnings

NCEPModels

Watches

Advisories

ASOS

Forecasts

Buoys,

River Gauges

What is AWIPS?

169 separate AWIPS systems at

137 geographical locations

AWIPS

Communications

AWIPS Workstations and

Servers

Service provided to

3066 US Counties

24 hrs/day,

365 days/yr.

~900 Workstations (total)

~1200 Servers (total)

slide24

NOAAPort

NOAA’s Satellite Broadcast Network

POES

GOES

AMC-2

Satellite

Other Environmental

Satellite Products

AVHRR

HIRS/AMSU

DCS

GVAR

NOAA/NWS

NCEP

Guidance &

Model

Products

Satellite

Product

Generation

AWIPS

NCF

TOC

NWSTG

NOAAPORT

Uplink

Facility (NY)

Satellite imagery

NOAA/NESDIS

NOAAPORT Users

Includes Many Users –

Inside and Outside of NOAA

WFO/RFC

Forecasts, Watches

Warnings

Hydromet Sensor

Products (e.g., radar, ASOS,

Profiler, River Gages)

slide25

NOAAPort

Technical Specifications

  • Product Stream Assembly: AWIPS Network Control Facility (Silver Spring Md)
  • NOAAPort Satellite: SES Americom (AMC-2), Transponder: 13C
  • NOAAPort Satellite Location: 101◦ West
  • Downlink Signal: C BandNetwork Capacity: 10 Mbits/sec (approximate)
  • Transmission Protocol: DVB/S - Digital Video Broadcast by Satellite
  • Product Identification: Headings (NOAAPort, WMO/AWIPS & product)
  • Major Product Formats: GRIB, BUFR, GINI, Radar Level III, Text, Redbook
  • Compression: zlib for satellite imagery and most radar products; GRIB2 supports JPEG2000 compression
  • There are four NOAAPort “data streams” or “channels”– each with a unique DVB PID.
    • GOES/NESDIS
    • NCEP/NWSTG
    • NCEP/NWSTG2
    • OCONUS Imagery/Model/DCP
glossary of terms
Glossary of Terms

AWIPS: Advanced Weather Interactive Processing System

CLASS: Comprehensive Large Array-data Stewardship System

DMSP: Defense Meteorological Satellites Program

GOES: Geostationary Operational Environmental Satellite

GOES-R: Geostationary Operational Environmental Satellite R-Series

GOES-R: Geostationary Operational Environmental Satellite S-Series

IMETS: Incident Meteorologists

IOC: Initial Operating Capability

MetOp: Meteorological Operational Satellite

MPAR: Multi-function Phased Array Radar

Mid Operating Capability

NDE: NPOESS Data Exploitation

NESDIS: National Environmental Satellite, Data, and Information Service

NextGen: Next Generation Air Transportation System

NEXRAD: Next-Generation Radar

NPOESS: National Polar-orbiting Operational Environmental Satellite System

NPP: NPOESS Preparatory Project

POES: Polar Operational Environmental Satellite

R-T-O: Research to Operations

SBN: Satellite Broadcast Network
