a for dummies webex on what you get what it does and how to license

VmWare vSphere4

A “for dummies” WebEx on what you get, what it does, and how to license.

Tom Crowe

IT Manager

Wyche, Burgess, Freeman & Parham, PA

tcrowe@wyche.com

Matthew Cavanagh

Principal Consultant

PAR4 Technology Group

mcavanagh@par4tech.com

Dennis Maneikis

Account Manager

PAR4 Technology Group

dmaneikis@par4tech.com

par4 overview
Par4 Overview
  • New England and tri-state provider of virtualization and cloud services
  • VMWare premier and VAC partner, concentrated Virtualization focus.
  • Purchased Flytrap Technologies in November 2009
  • Offices in Amesbury, Ma, Tolland, CT, and Willimantic, CT.
  • Carrier grade datacenter providing Cloud services, hosted DR, data replication, desktop, and IaaS (Infrastructure as a Service) with 24/7 NOC
  • Provider of virtual ecosystem products, support, maintenance, training, and managed services
  • Member of VMWare’s VS4 Beta program
  • Customer verticals include enterprise, financial, tech, manufacturing, SLED, legal and healtchare
  • Partnered with most leading virtual ecosystem hardware and software manufacturers
vs4 launch highlights

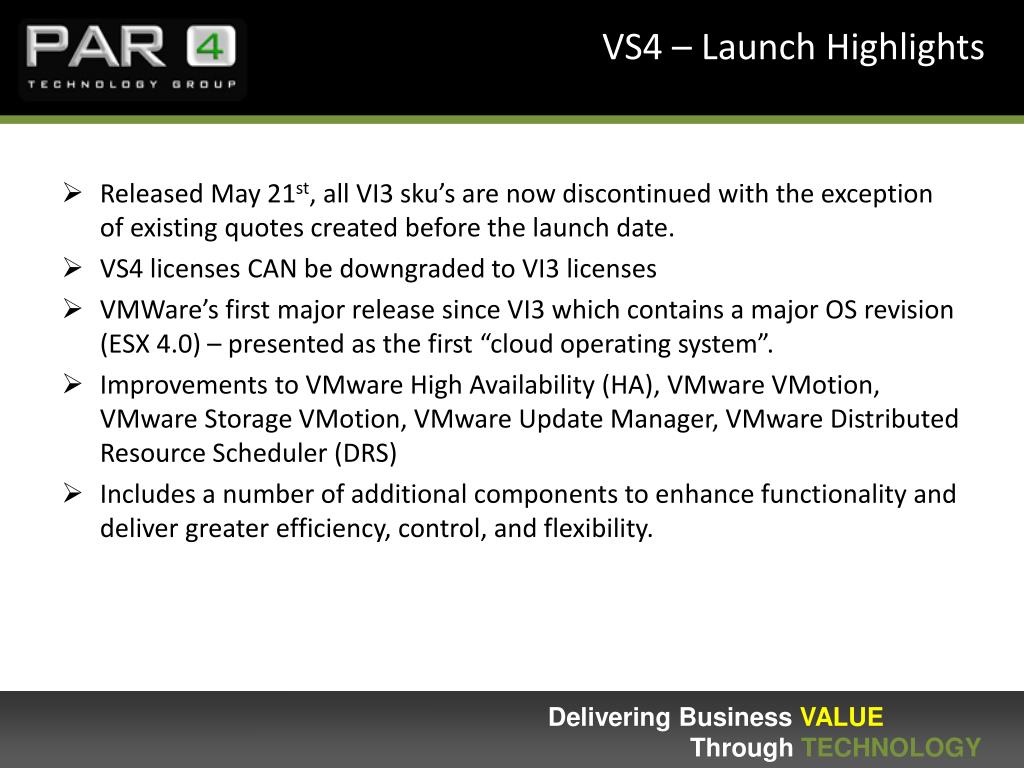

VS4 – Launch Highlights
  • Released May 21st, all VI3 sku’s are now discontinued with the exception of existing quotes created before the launch date.
  • VS4 licenses CAN be downgraded to VI3 licenses
  • VMWare’s first major release since VI3 which contains a major OS revision (ESX 4.0) – presented as the first “cloud operating system”.
      • Improvements to VMware High Availability (HA), VMware VMotion, VMware Storage VMotion, VMware Update Manager, VMware Distributed Resource Scheduler (DRS)
  • Includes a number of additional components to enhance functionality and deliver greater efficiency, control, and flexibility.

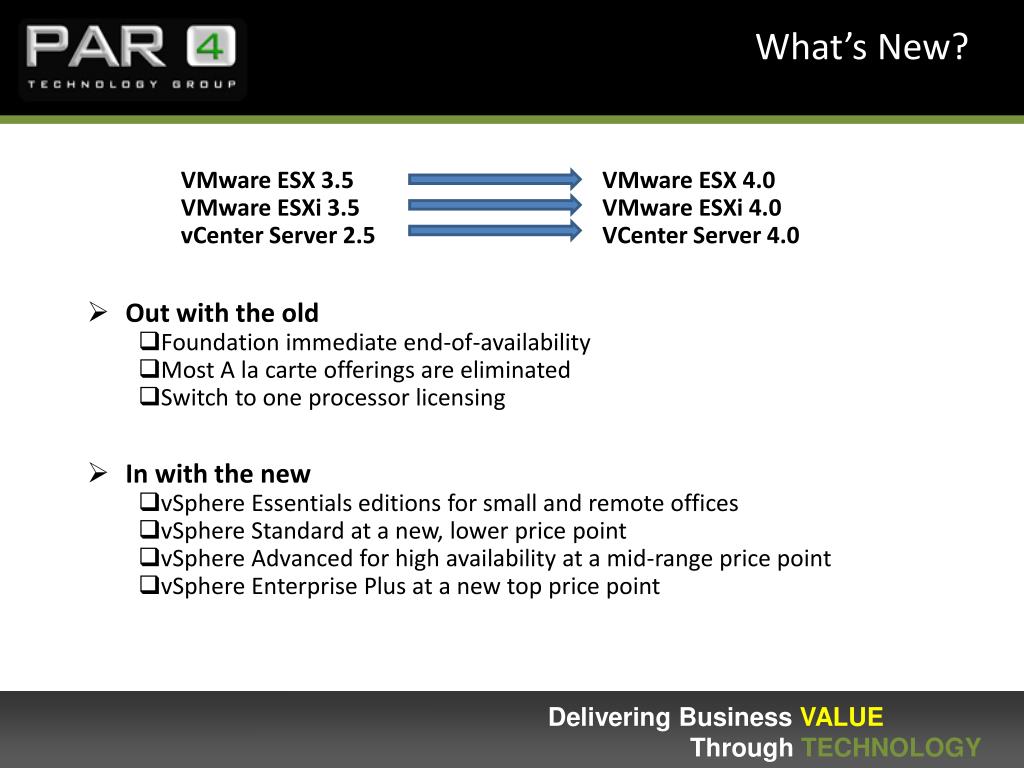

what s new
What’s New?

VMware ESX 3.5 VMware ESX 4.0

VMware ESXi 3.5 VMware ESXi 4.0

vCenter Server 2.5 VCenter Server 4.0

  • Out with the old
    • Foundation immediate end-of-availability
    • Most A la carte offerings are eliminated
    • Switch to one processor licensing
  • In with the new
    • vSphere Essentials editions for small and remote offices
    • vSphere Standard at a new, lower price point
    • vSphere Advanced for high availability at a mid-range price point
    • vSphere Enterprise Plus at a new top price point

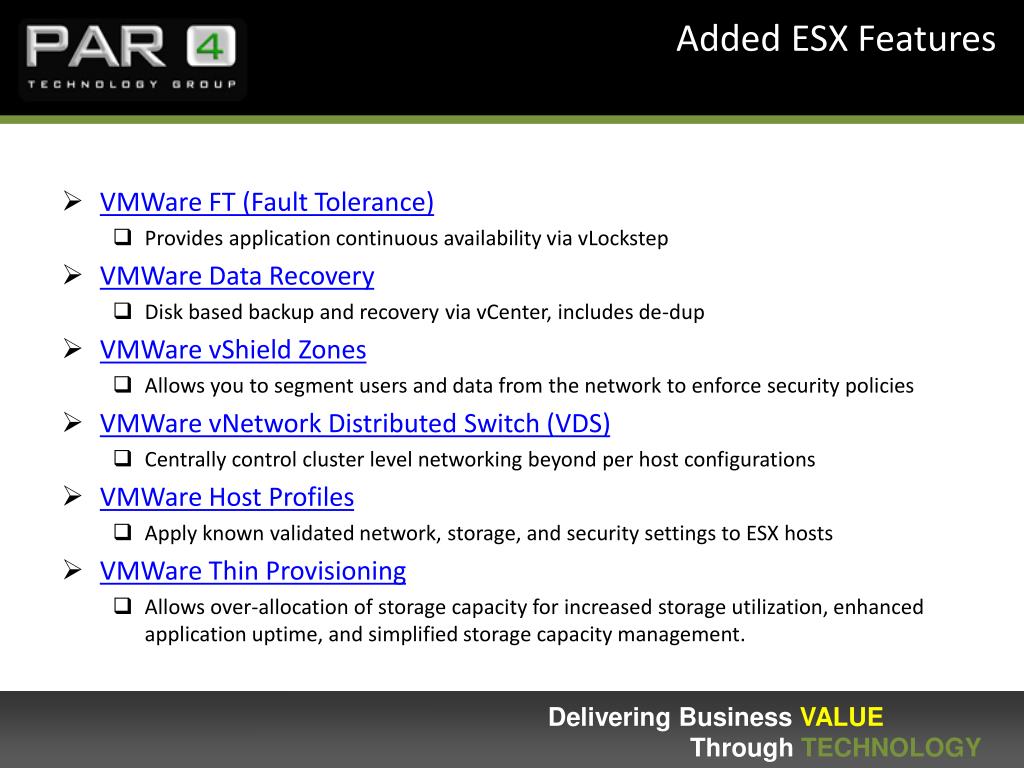

added esx features
Added ESX Features
  • VMWare FT (Fault Tolerance)
    • Provides application continuous availability via vLockstep
  • VMWare Data Recovery
    • Disk based backup and recovery via vCenter, includes de-dup

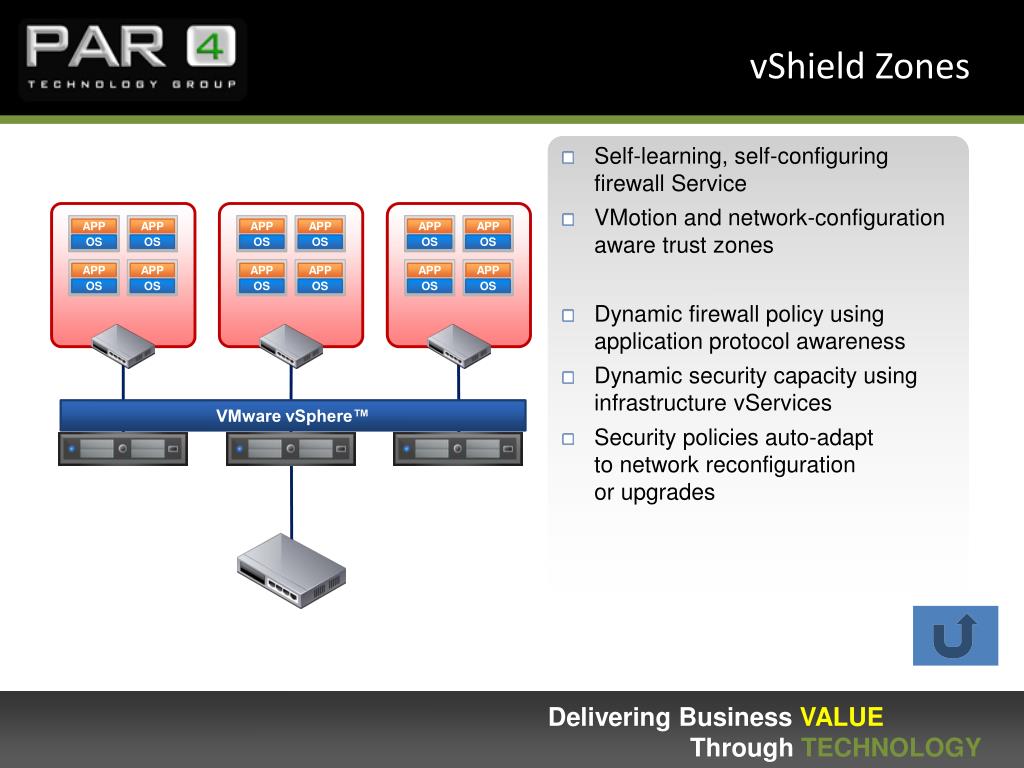

  • VMWare vShield Zones
    • Allows you to segment users and data from the network to enforce security policies
  • VMWare vNetwork Distributed Switch (VDS)
    • Centrally control cluster level networking beyond per host configurations

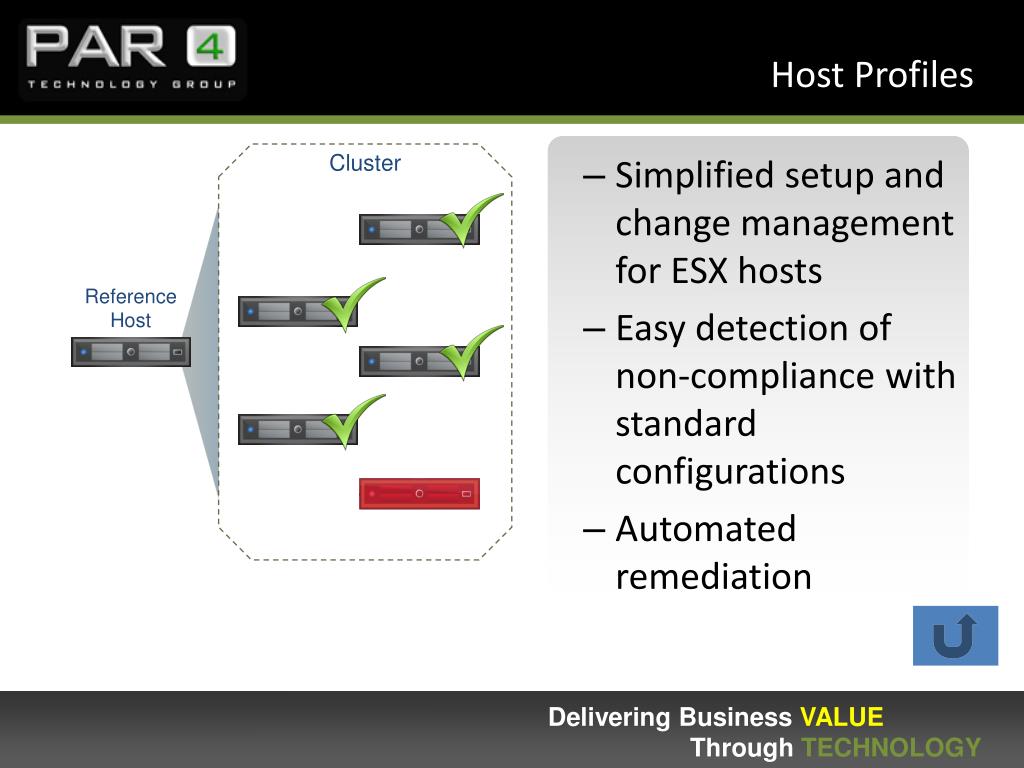

  • VMWare Host Profiles
    • Apply known validated network, storage, and security settings to ESX hosts
  • VMWare Thin Provisioning
    • Allows over-allocation of storage capacity for increased storage utilization, enhanced application uptime, and simplified storage capacity management.
added esx features6

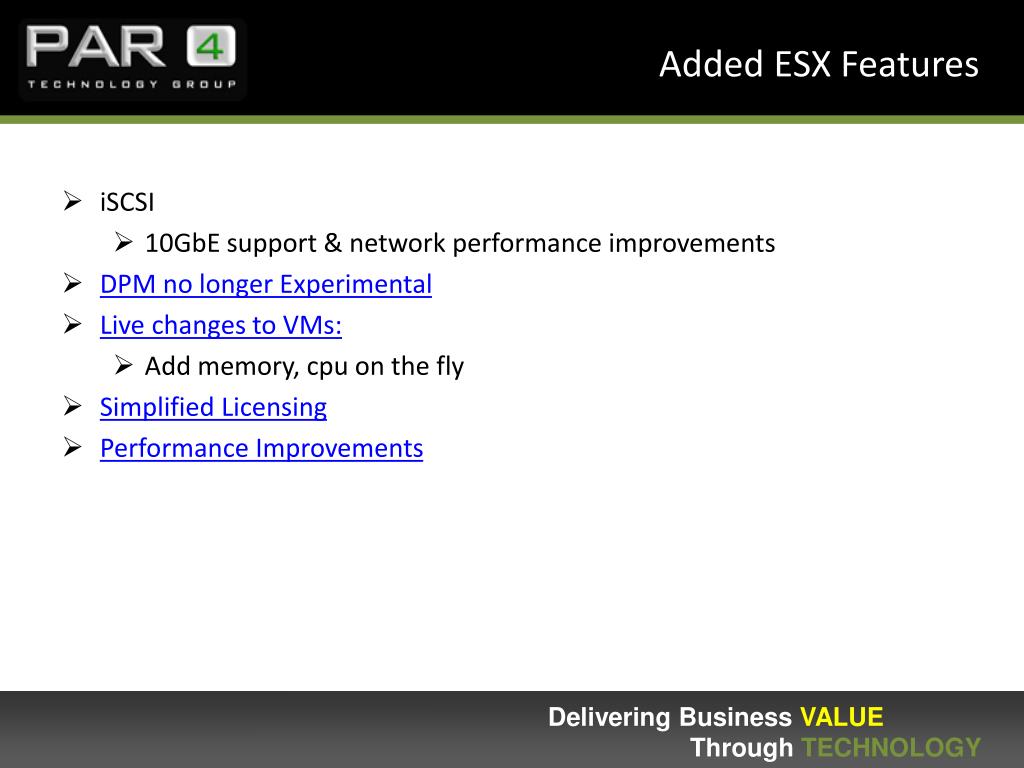

Added ESX Features

iSCSI

10GbE support & network performance improvements

DPM no longer Experimental

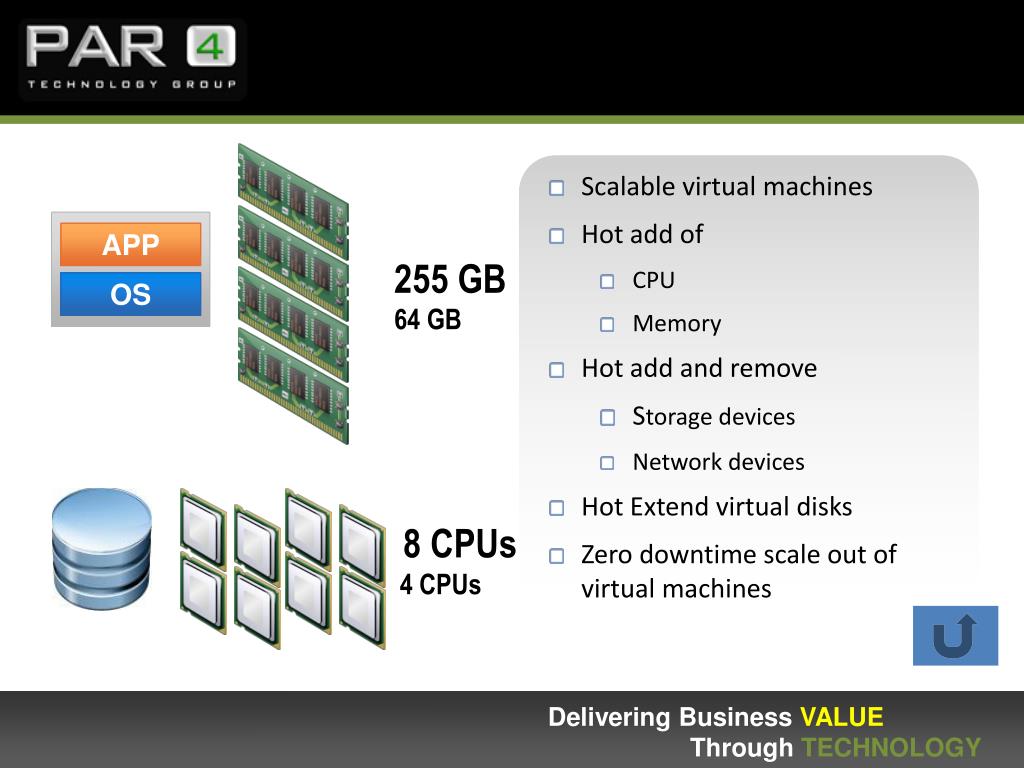

Live changes to VMs:

Add memory, cpu on the fly

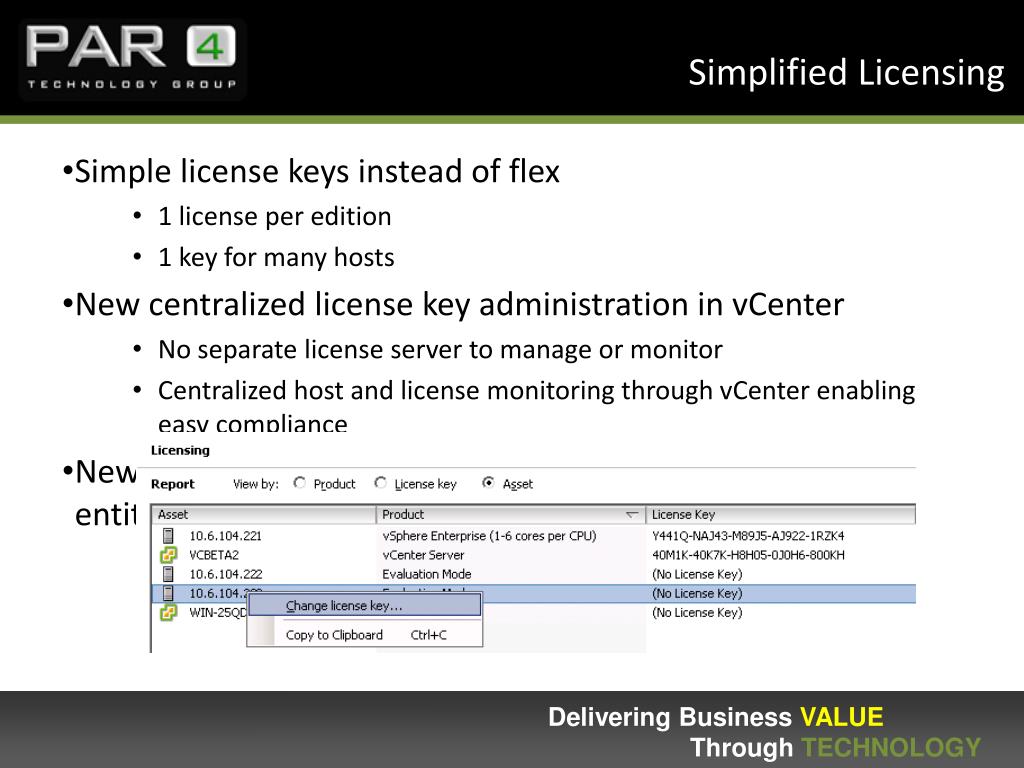

Simplified Licensing

Performance Improvements

vsphere 4 editions core platform

Large scale management of critical production applications

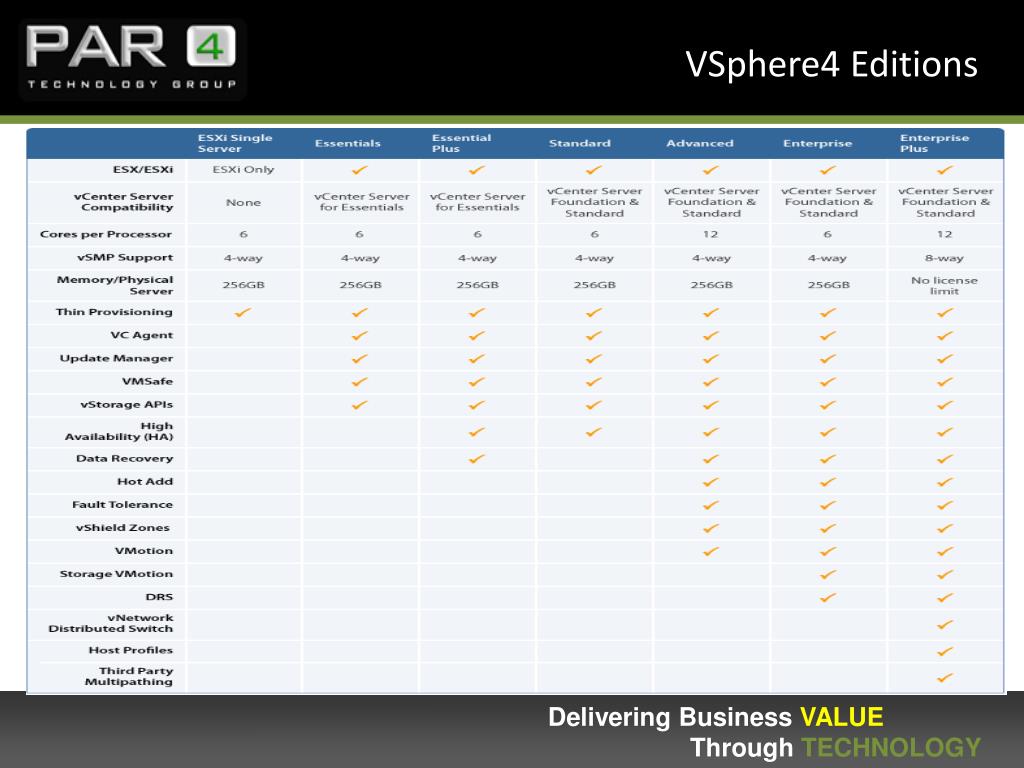

vSphere 4 Editions: Core Platform

Host Profiles

Distributed Switch

DRS / DPM

DRS / DPM

Storage VMotion

Storage VMotion

High availability products for protecting critical production applications

vShield Zones

vShield Zones

vShield Zones

Data Recovery

Data Recovery

Data Recovery

Fault Tolerance

Fault Tolerance

Fault Tolerance

Hot Add

Hot Add

Hot Add

VMotion™

VMotion™

VMotion™

Thin Provisioning

Thin Provisioning

Thin Provisioning

Thin Provisioning

High Availability

High Availability

High Availability

High Availability

Update Manager

Update Manager

Update Manager

Basic consolidation of a lab or small environment

Update Manager

VCB / vStorage APIs

VCB / vStorage APIs

VCB / vStorage APIs

VCB / vStorage APIs

VC Agent

VC Agent

VC Agent

VC Agent

4-way vSMP

8-way vSMP

4-way vSMP

4-way vSMP

VMware ESXi OR

VMware ESX

VMware ESXi OR

VMware ESX

VMware ESXi OR

VMware ESX

VMware ESXi OR

VMware ESX

6 Physical Cores / CPU

256 GB Physical Memory

12 Physical Cores / CPU

No License Memory Limit

12 Physical Cores / CPU

256 GB Physical Memory

6 Physical Cores / CPU

256 GB Physical Memory

ENTERPRISE PLUS

STANDARD

ADVANCED

ENTERPRISE

License (1 CPU)

SnS (Gold/Plat)

$795

$275 / 325

$2,245

$471 / 561

$2,875

$604 / 719

$3,495

$734 / $874

Note: US list pricing in USD – International pricing may vary

vs4 essentials non core formerly foundation
All inclusive packages:

Licenses for 3 physical servers (up to 2 processors each)

License for central management server

Packages cannot be decoupled or combined; components cannot be used with other vSphere editions

VS4 Essentials (non-core formerly foundation)

x 6 CPUS

Data Recovery

x 6 CPUS

High Availability

6 CPUS x

Update Manager

x 6 CPUS

Update Manager

6 CPUS x

x 6 CPUS

VC Agent

VC Agent

6 CPUS x

4-way vSMP

4-way vSMP

x 6 CPUS

VMware ESXi OR

VMware ESX

VMware ESXi OR

VMware ESX

6 CPUS x

x 6 CPUS

vCenter Server for Essentials

(up to 3 servers)

vCenter Server for Essentials

(up to 3 servers)

1 x

x 1

ESSENTIALS

($995)

ESSENTIALS PLUS

($2,995)

vCenter Server

for Essentials

upgrade paths and licensing highlights

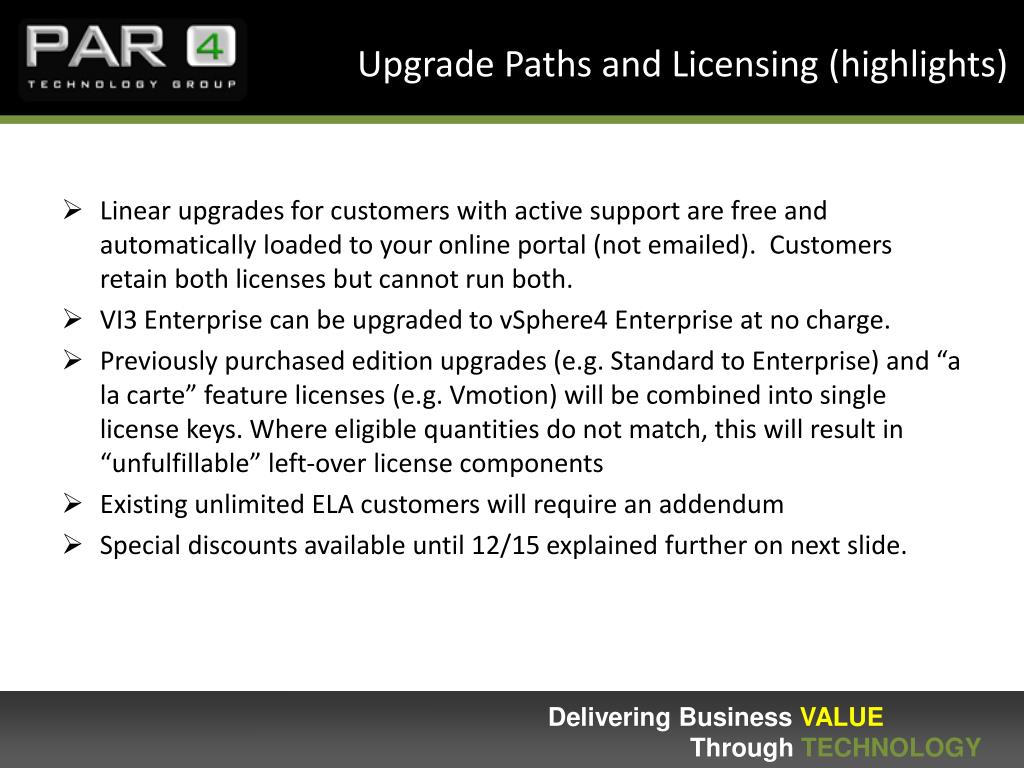

Upgrade Paths and Licensing (highlights)
  • Linear upgrades for customers with active support are free and automatically loaded to your online portal (not emailed). Customers retain both licenses but cannot run both.
  • VI3 Enterprise can be upgraded to vSphere4 Enterprise at no charge.
  • Previously purchased edition upgrades (e.g. Standard to Enterprise) and “a la carte” feature licenses (e.g. Vmotion) will be combined into single license keys. Where eligible quantities do not match, this will result in “unfulfillable” left-over license components
  • Existing unlimited ELA customers will require an addendum
  • Special discounts available until 12/15 explained further on next slide.
upgrade paths and licensing highlights11

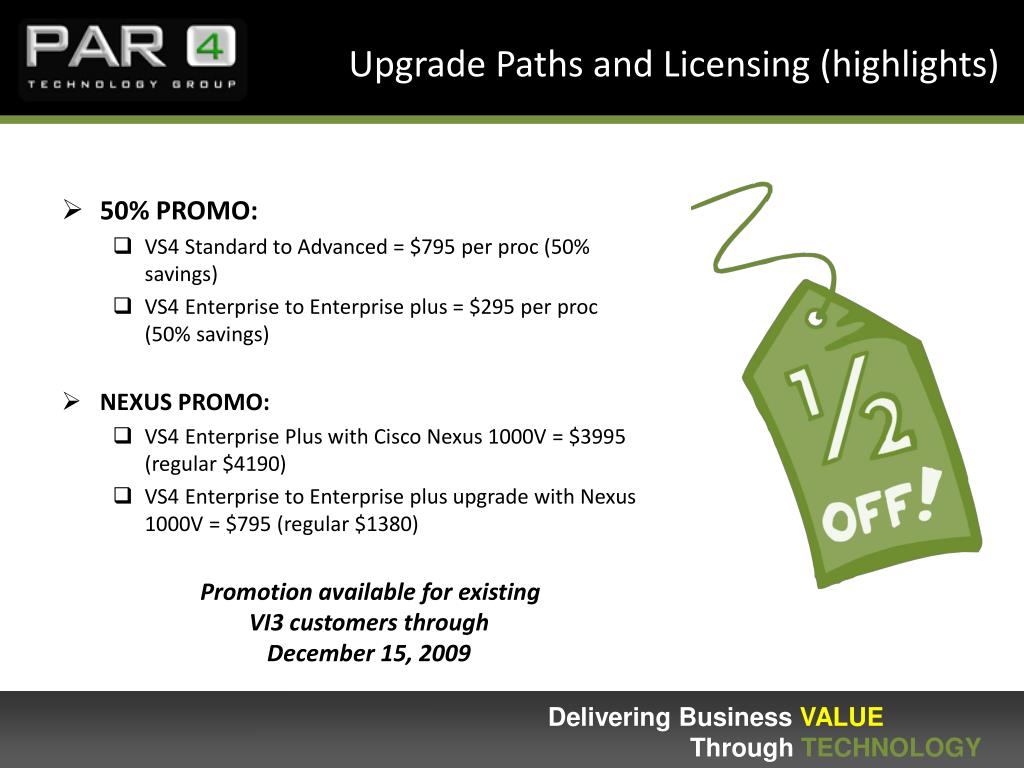

Upgrade Paths and Licensing (highlights)
  • 50% PROMO:
    • VS4 Standard to Advanced = $795 per proc (50% savings)
    • VS4 Enterprise to Enterprise plus = $295 per proc (50% savings)
  • NEXUS PROMO:
    • VS4 Enterprise Plus with Cisco Nexus 1000V = $3995 (regular $4190)
    • VS4 Enterprise to Enterprise plus upgrade with Nexus 1000V = $795 (regular $1380)

Promotion available for existing VI3 customers throughDecember 15, 2009

pricing model
VMware Infrastructure 3 (VI3)

6 x 2 CPU VI3 Enterprise

X $5750 / 2 CPU license

$34,500

VMware vSphere 4

12 x 1 CPU vSphere 4 Enterprise

X $2875 / 1 CPU license

$34,500

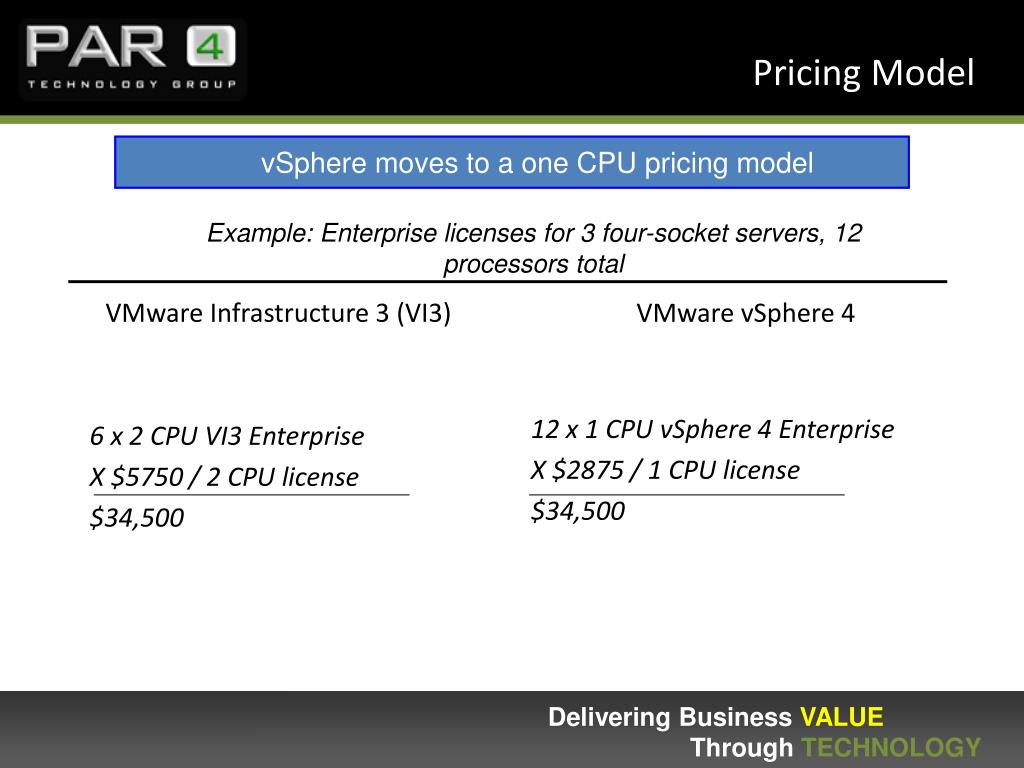

Pricing Model

vSphere moves to a one CPU pricing model

Example: Enterprise licenses for 3 four-socket servers, 12 processors total

should i upgrade
Should I Upgrade?

Cost savings from enhanced efficiency

Increased operational control

Deeper integration with existing infrastructure

  • Higher consolidation ratios due to performance optimizations
  • Up to 20% reduction in power costs with Distributed Power Management
  • Up to 50% reduction in storage costs with Thin Provisioning
  • Continuous availability with VMware Fault Tolerance
  • Operationally efficient security with vShield Zones
  • Dynamic scale up of virtual machines with “hot” add/plug/extend features
  • Compliance to standardized configurations with Host Profiles
  • Single pane of glass view over entire inventory with vCenter Server Linked Mode
  • Day to day task automation with vCenter Orchestrator
  • Third-party distributed virtual switch
  • Third-party multipathing
  • VMsafe products
should i upgrade or wait

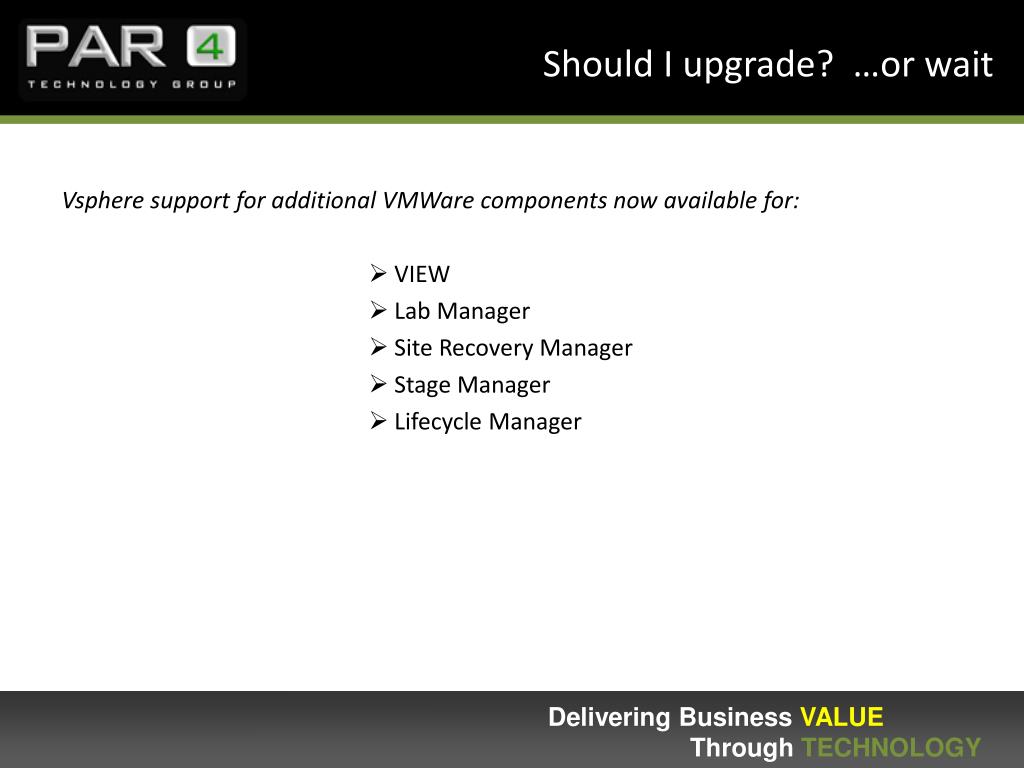

Should I upgrade? …or wait

Vsphere support for additional VMWare components now available for:

  • VIEW
  • Lab Manager
  • Site Recovery Manager
  • Stage Manager
  • Lifecycle Manager
summary

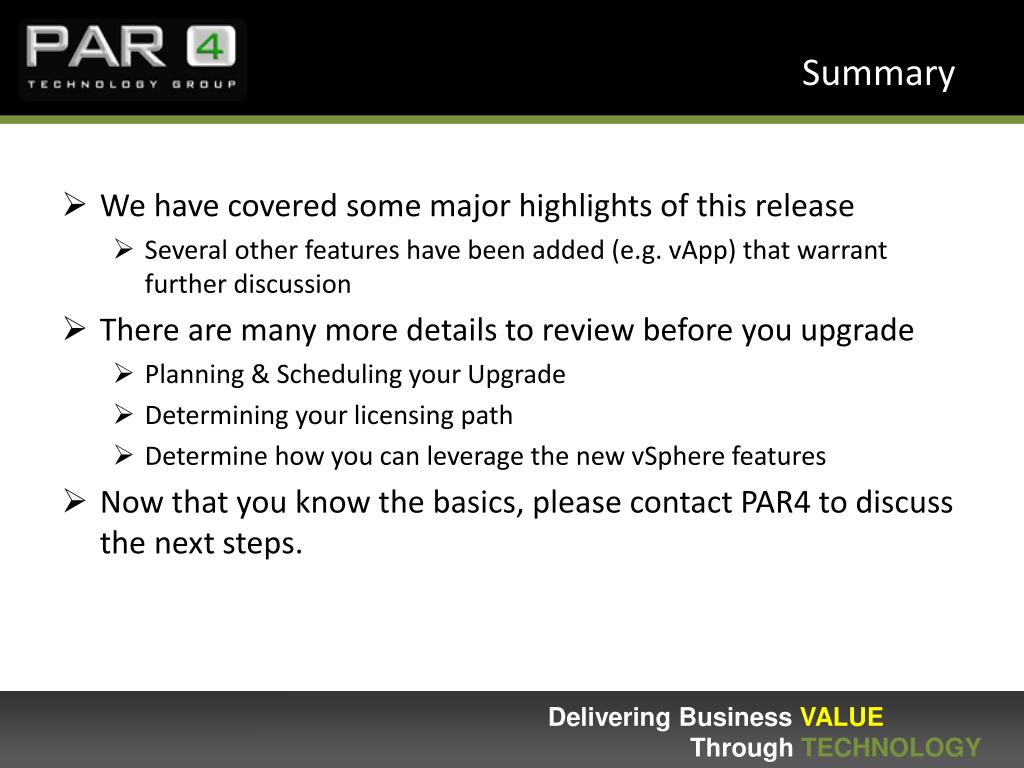

Summary

We have covered some major highlights of this release

Several other features have been added (e.g. vApp) that warrant further discussion

There are many more details to review before you upgrade

Planning & Scheduling your Upgrade

Determining your licensing path

Determine how you can leverage the new vSphere features

Now that you know the basics, please contact PAR4 to discuss the next steps.

thanks for joining us

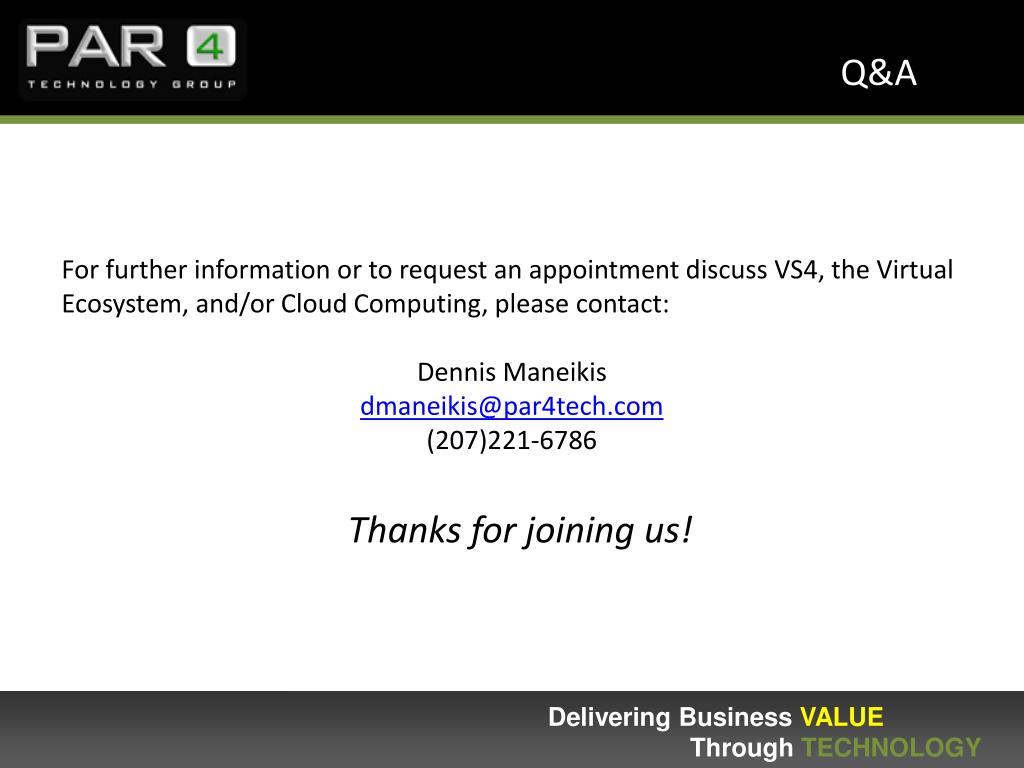

Q&A

Thanks for joining us!

For further information or to request an appointment discuss VS4, the Virtual Ecosystem, and/or Cloud Computing, please contact:

Dennis Maneikis

dmaneikis@par4tech.com

(207)221-6786

slide17

ESX 3.5

ESX 4.0

4 VCPUs

8 VCPUs

64 GB per VM

255 GB per VM

9 Gb/s

40 Gb/s

100,000

200,000+

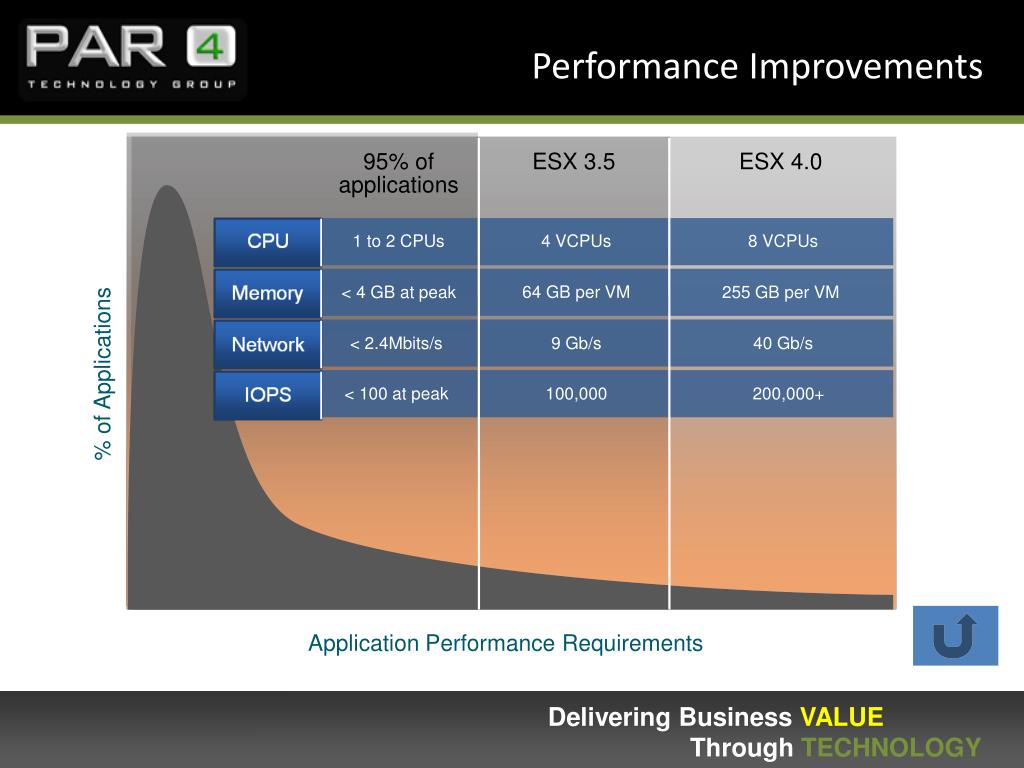

Performance Improvements

95% of applications

1 to 2 CPUs

< 4 GB at peak

< 2.4Mbits/s

% of Applications

< 100 at peak

Application Performance Requirements

slide18

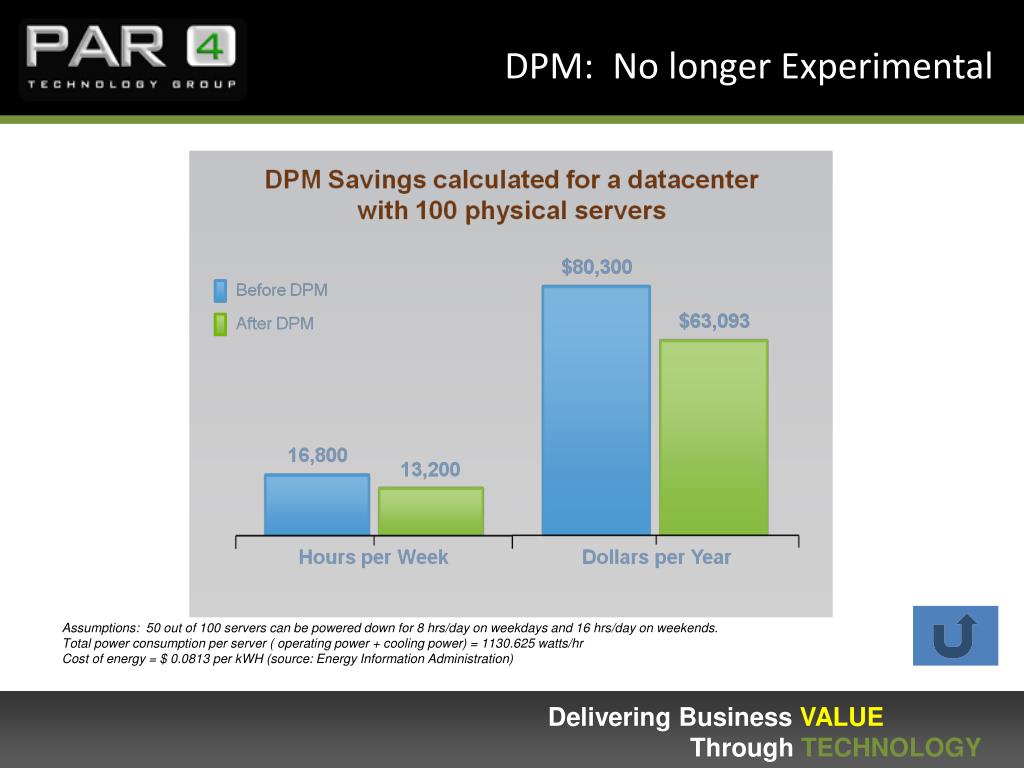

DPM: No longer Experimental

Assumptions: 50 out of 100 servers can be powered down for 8 hrs/day on weekdays and 16 hrs/day on weekends.

Total power consumption per server ( operating power + cooling power) = 1130.625 watts/hr

Cost of energy = $ 0.0813 per kWH (source: Energy Information Administration)

slide19

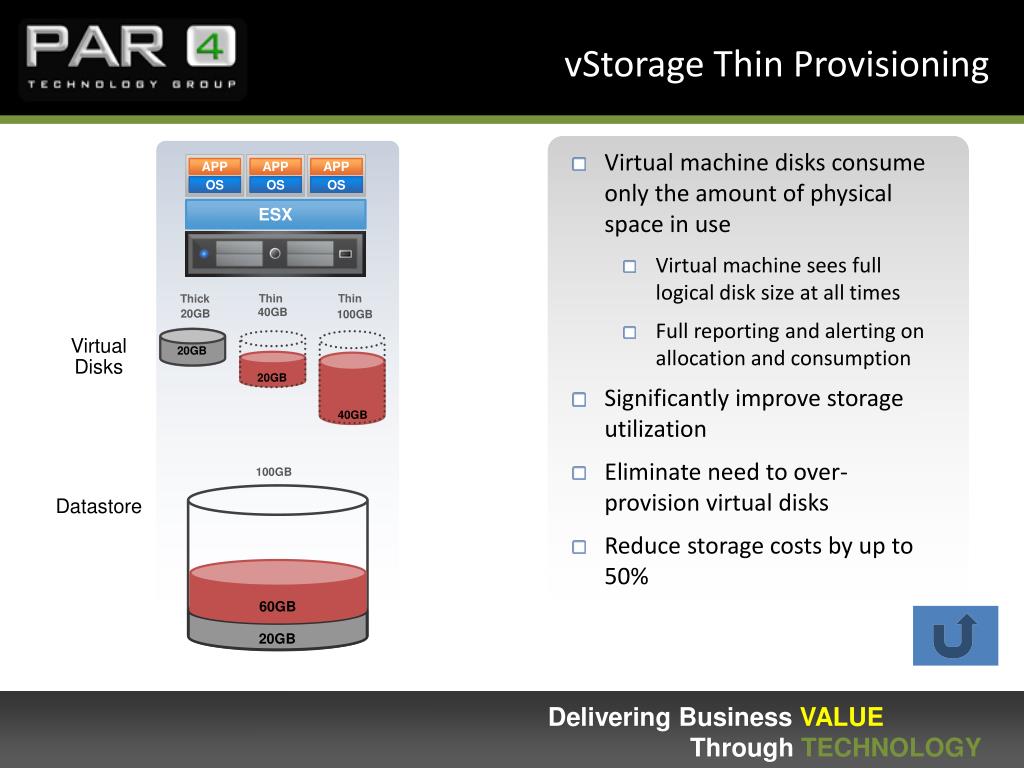

vStorage Thin Provisioning

  • Virtual machine disks consume only the amount of physical space in use
    • Virtual machine sees full logical disk size at all times
    • Full reporting and alerting on allocation and consumption
  • Significantly improve storage utilization
  • Eliminate need to over-provision virtual disks
  • Reduce storage costs by up to 50%

ESX

APP

APP

APP

OS

OS

OS

Thin

Thin

Thick

40GB

20GB

100GB

Virtual Disks

20GB

20GB

40GB

100GB

Datastore

60GB

20GB

slide20

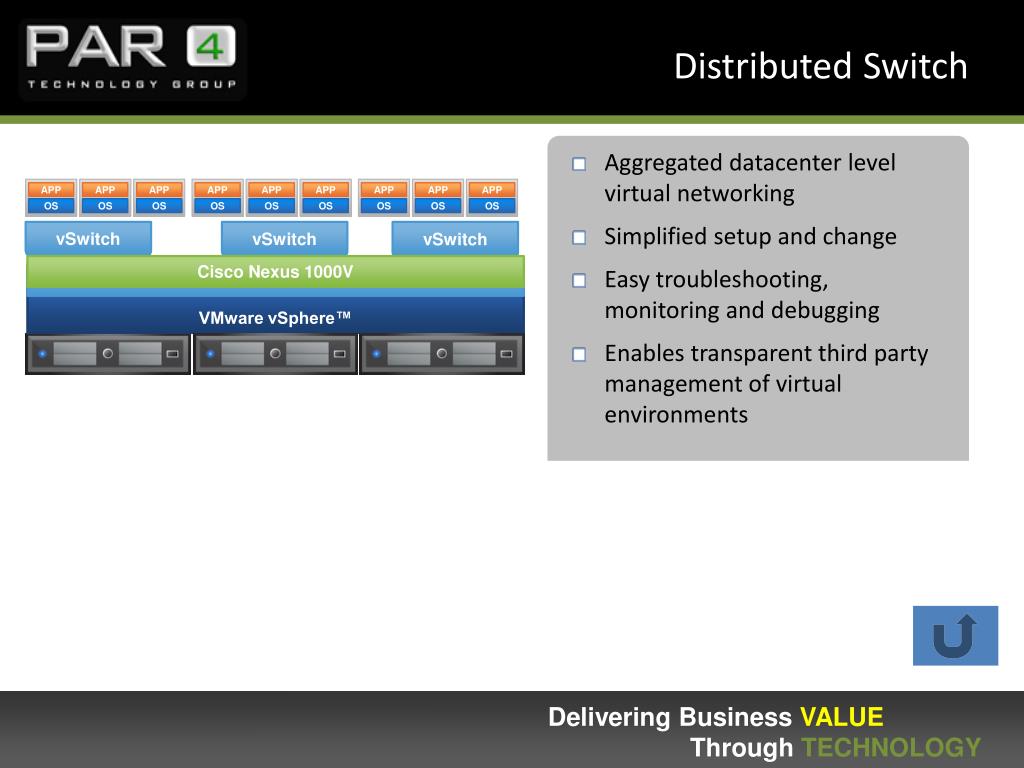

Distributed Switch

  • Aggregated datacenter level virtual networking
  • Simplified setup and change
  • Easy troubleshooting, monitoring and debugging
  • Enables transparent third party management of virtual environments

APP

APP

APP

APP

APP

APP

APP

APP

APP

vSwitch

vSwitch

vSwitch

OS

OS

OS

OS

OS

OS

OS

OS

OS

Cisco Nexus 1000V

vNetwork Distributed Switch

VMware vSphere™

slide21

Fault Tolerance

  • Single identical VMs running in lockstep on separate hosts
  • Zero downtime, zero data loss failover for all virtual machines in case of hardware failures
  • Zero downtime, zero data loss
  • No complex clustering or specialized hardware required
  • Single common mechanism for all applications and OS-es

APP

APP

APP

OS

OS

OS

VMware vSphere™

X

slide22

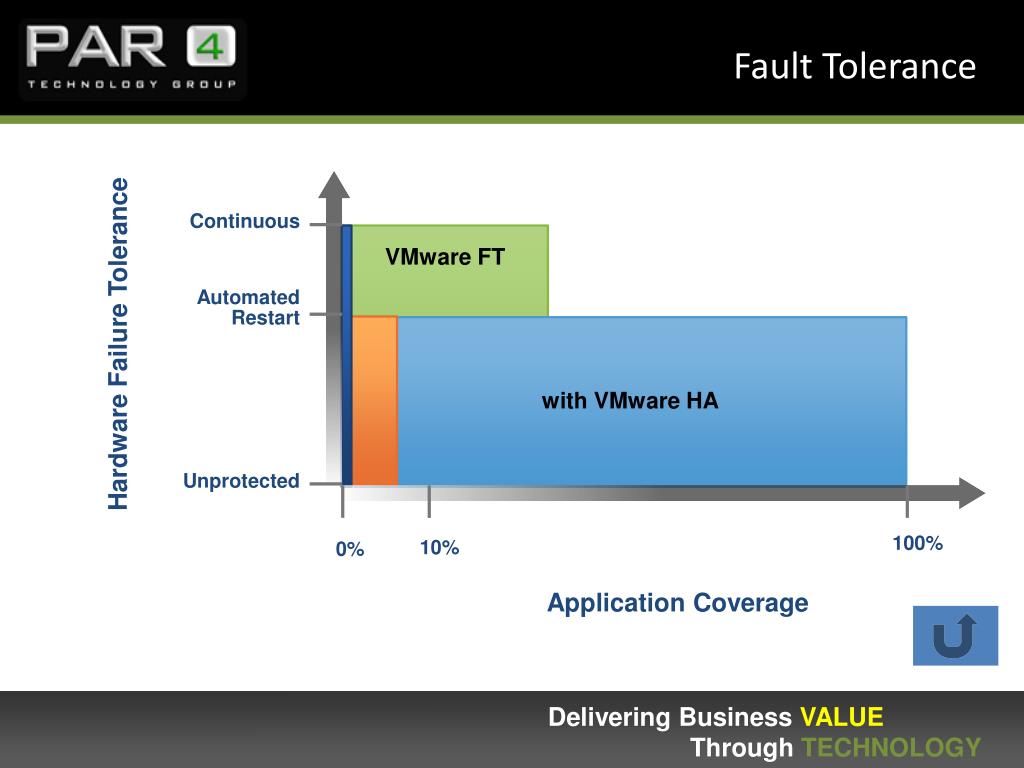

VMware FT

Fault Tolerance

Hardware Failure Tolerance

Continuous

Automated

Restart

with VMware HA

Unprotected

100%

10%

0%

Application Coverage

slide23

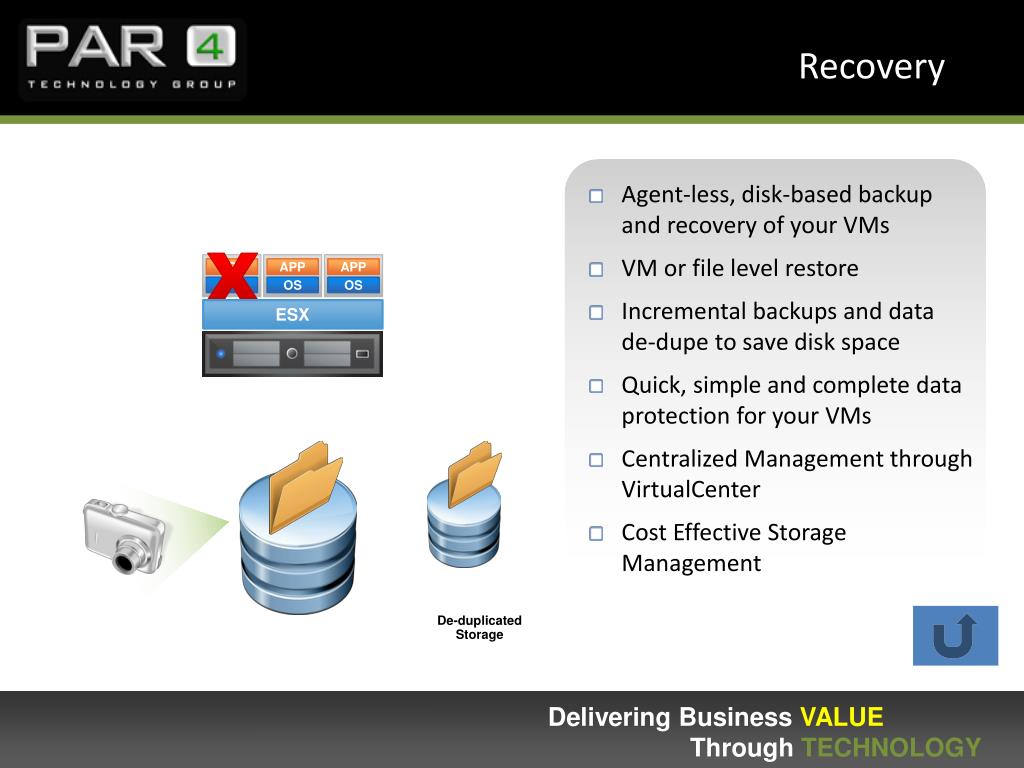

Data Recovery

  • Agent-less, disk-based backup and recovery of your VMs
  • VM or file level restore
  • Incremental backups and data de-dupe to save disk space
  • Quick, simple and complete data protection for your VMs
  • Centralized Management through VirtualCenter
  • Cost Effective Storage Management

APP

APP

APP

OS

OS

OS

X

ESX

De-duplicated

Storage

slide24

vShield Zones

  • Self-learning, self-configuring firewall Service
  • VMotion and network-configuration aware trust zones
  • Dynamic firewall policy using application protocol awareness
  • Dynamic security capacity using infrastructure vServices
  • Security policies auto-adapt to network reconfiguration or upgrades

APP

APP

APP

APP

APP

APP

APP

APP

APP

APP

APP

APP

OS

OS

OS

OS

OS

OS

OS

OS

OS

OS

OS

OS

VMware vSphere™

slide25

Scalable virtual machines

  • Hot add of
    • CPU
    • Memory
  • Hot add and remove
    • Storage devices
    • Network devices
  • Hot Extend virtual disks
  • Zero downtime scale out of virtual machines

APP

OS

255 GB

64 GB

8 CPUs

4 CPUs

slide26

Host Profiles

Cluster

  • Simplified setup and change management for ESX hosts
  • Easy detection of non-compliance with standard configurations
  • Automated remediation

Reference Host

slide27

Simplified Licensing

  • Simple license keys instead of flex
      • 1 license per edition
      • 1 key for many hosts
  • New centralized license key administration in vCenter
      • No separate license server to manage or monitor
      • Centralized host and license monitoring through vCenter enabling easy compliance
  • New license portal provides more accurate view of entitlement
slide28

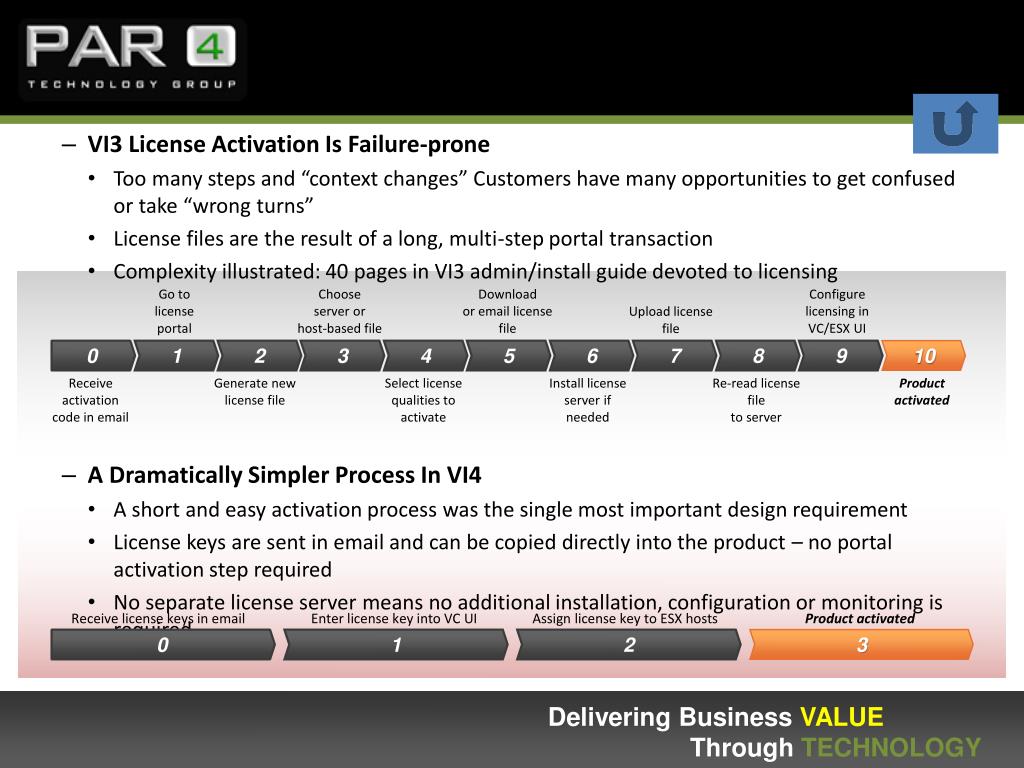

VI3 License Activation Is Failure-prone

    • Too many steps and “context changes” Customers have many opportunities to get confused or take “wrong turns”
    • License files are the result of a long, multi-step portal transaction
    • Complexity illustrated: 40 pages in VI3 admin/install guide devoted to licensing
  • Go to license portal
  • Choose server or host-based file
  • Download or email license file
  • Configure licensing in VC/ESX UI
  • Upload license file

0

1

2

3

4

5

6

7

8

9

10

  • Receive activation code in email
  • Generate new license file
  • Select license qualities to activate
  • Install license server if needed
  • Re-read license file to server
  • Product activated
  • A Dramatically Simpler Process In VI4
    • A short and easy activation process was the single most important design requirement
    • License keys are sent in email and can be copied directly into the product – no portal activation step required
    • No separate license server means no additional installation, configuration or monitoring is required
  • Receive license keys in email
  • Enter license key into VC UI
  • Assign license key to ESX hosts
  • Product activated

0

1

2

3

slide29

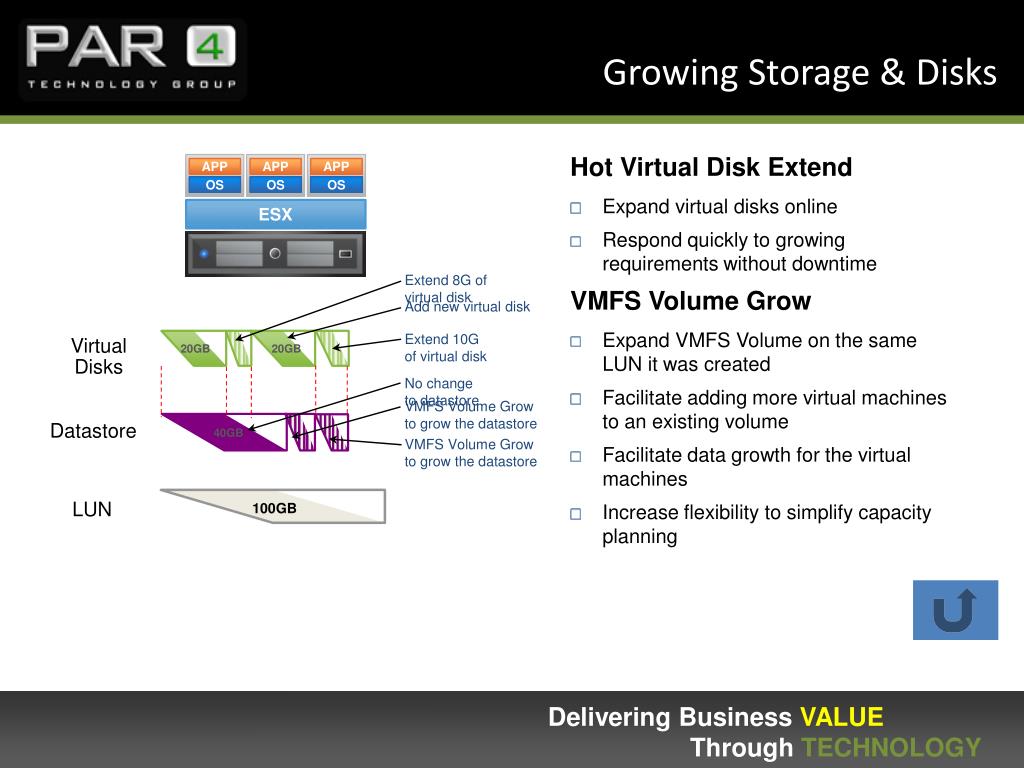

Growing Storage & Disks

  • Hot Virtual Disk Extend
  • Expand virtual disks online
  • Respond quickly to growing requirements without downtime
  • VMFS Volume Grow
  • Expand VMFS Volume on the same LUN it was created
  • Facilitate adding more virtual machines to an existing volume
  • Facilitate data growth for the virtual machines
  • Increase flexibility to simplify capacity planning

ESX

APP

APP

APP

OS

OS

OS

Extend 8G of virtual disk

Add new virtual disk

Extend 10G of virtual disk

Virtual Disks

20GB

20GB

No change to datastore

VMFS Volume Grow to grow the datastore

Datastore

40GB

VMFS Volume Grow to grow the datastore

100GB

LUN
