Presentation Transcript
how to construct a correct and scalable ibgp configuration

How to Construct a Correct and Scalable iBGP Configuration

Mythili Vutukuru

Joint work with

Paul Valiant, Swastik Kopparty and Hari Balakrishnan

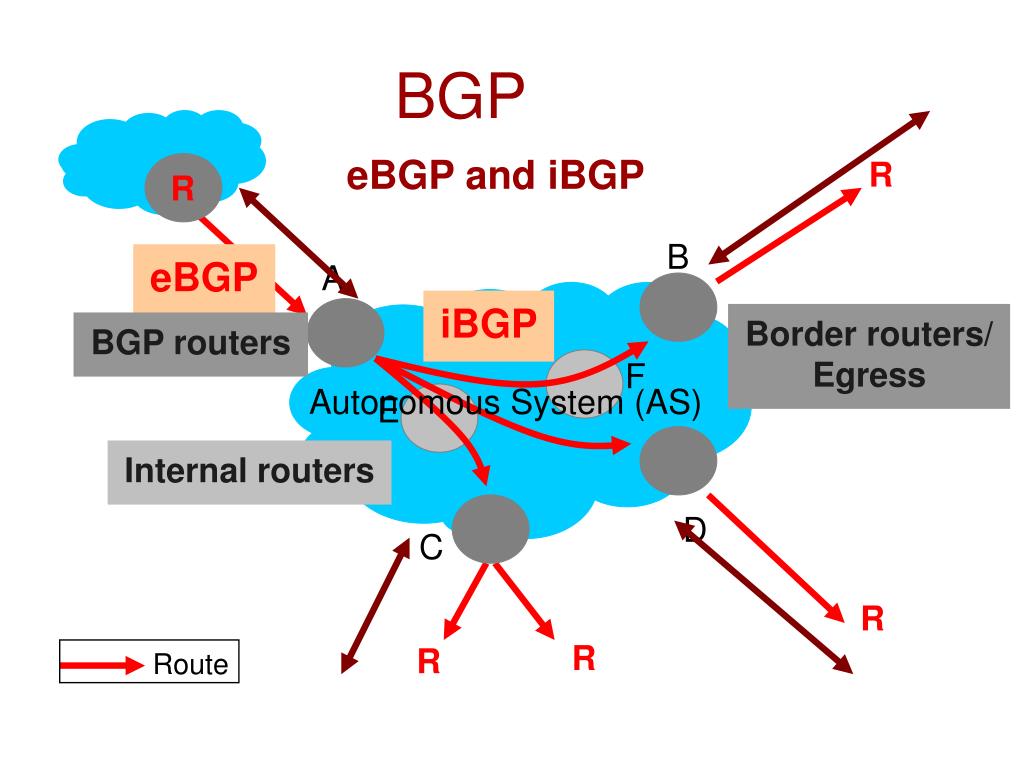

slide2
BGP

R

B

A

F

E

D

C

R

R

R

eBGP and iBGP

R

eBGP

iBGP

Border routers/

Egress

BGP routers

Autonomous System (AS)

Internal routers

Route

our contribution
Our contribution
  • Status quo in configuring iBGP
    • Full-mesh(not scalable)
    • Route reflection(no correctness guarantees)
  • Problems with both approaches
  • New approach to configure iBGP that is both correct and scalable
  • Uses elegant results from graph theory
outline of the talk
Outline of the talk
  • More background
    • What is the status quo?
    • What are the problems with it?
  • Problem statement
  • Our solution
background ibgp
iBGP sessions run on TCP

Overlay over the intra-domain routing protocol (IGP) like OSPF

Routing messages and data packets forwarded via IGP within AS

Routes from iBGP session not propagated to another iBGP session

B

A

F

E

D

C

Background - iBGP

R

iBGP

IGP

Route

approach 1 full mesh ibgp

R

R

R

R

Approach#1: Full-mesh iBGP

R

B

A

F

E

D

  • Every router has an iBGP session to every border router
  • Not scalable

C

iBGP session

Route

approach 2 route reflection
Approach#2: Route reflection
  • “Reflects” routes to and fromclient iBGP sessions
  • Avoids full-mesh
  • Hierarchy of reflectors

R

Route reflector

B

A

F

E

D

C

Client iBGP session

Route

problems with route reflection 1
Problem #1: Routers may not choose best route

Why? Route reflector reflects only its best route

B chooses the sub-optimal route through C

In full-mesh B would have chosen route through A

R

Problems with route reflection: #1

B

A

F

E

Client session

D

Route

Data packets

C

Lower cost to egress

problem 2 forwarding loops

B

R2

R1

R

D

R

A

C

Problem#2: Forwarding loops

R: goto A

To: R

IGP

To: R

Client iBGP session

R: goto D

Route

IGP link

Data packets

outline of the talk11
Outline of the talk
  • More background
    • What is the status quo?
    • What are the problems with it?
  • Problem statement
  • Our solution
problem statement
Problem Statement
  • Input: IGP (IP-level connectivity) graph
  • Output: iBGP configuration
        • Route reflectors and clients
        • iBGP sessions
  • Constraints
        • Emulate full-mesh
        • More scalable than full-mesh
  • Previous work [GW02] – how to check for correctness, not how to construct correct configurations

[GW02] T. Griffin and G. Wilfong, “On the Correctness of iBGP Configuration”, In Proc. ACM SIGCOMM 2002, Pittsburg, PA, August 2002.

outline of the talk13
Outline of the talk
  • More background
    • What is the status quo?
    • What are the problems with it?
  • Problem statement
  • Our solution
key insight for emulating full mesh

B

R2

R1

D

A

C

Key insight for emulating full-mesh
  • For every router P, every egress E
    • P and E have iBGP session, OR
    • P should be the client of a route reflector on the shortest path between P and E

To: R

R: goto D

R

R

To: R

To: R

Client iBGP session

Route

R: goto A

IGP link

Data packets

our solution
S is graph separator

Nodes in graph separator S are route reflectors

u in G1 or G2, v in S: u is a client of v

Full-mesh in G1, G2

Recurse on G1, G2

Our solution

R

S

D

A

?

B

G2

G1

R

conclusion
Conclusion
  • First algorithm to construct correct iBGP configurations with route reflection.
  • Efficient implementation
  • 2.5 to 10X fewer iBGP sessions compared to full-mesh iBGP
best route selection
Best route selection
  • BGP best route selection rules
    • Local Pref
    • AS path length
    • MED
    • IGP cost to egress
  • Best route selected by route reflector might not be the best route for the client
route reflection
Route reflection
  • 2 types of iBGP sessions
    • Client iBGP session
    • Normal (“peer”) iBGP session
  • Route from client → all clients and peers
  • Route from peer → all clients
  • Multiple route reflectors
  • Hierarchy of route reflectors
problems with route reflection
Problems with route reflection
  • Lack of complete visibility: every router is not guaranteed to see its best available route.
  • Forwarding loops
    • Some router along the forwarding path chooses a different egress
    • Packets do not make progress towards egress and loop forever
  • Not robust to IGP changes
    • IGP link failures trigger forwarding loops
  • Full-mesh iBGP has none of these problems
